What have you done with a PowerPC today?

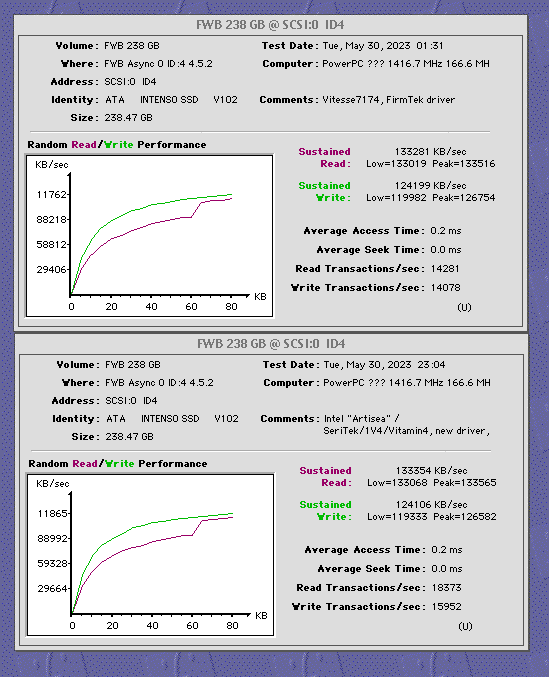

Now we got the "Artisea4" nee "SeriTek/1V4" alias "Vitamin4" alias Vitesse 7174 tests.
Here the new driver nicely improved the transaction number - but otherwise the performance of the SeriTek/1V4 and "Artisea4" / "Vitamin4" is essentially the same.

Except: I did not optimized the register access yet.

The main advantage of the new driver will be (hopefully) that it can break the 2TB barrier.


  • Like
Reactions: Amethyst1, eastone, ojfd and 1 other person
Tratkazir_the_1st said:
I've got it's nick name :D. Was it really so bad? :)
Click to expand...
Fujitsu and Apple tried to squeeze things to ATA what ATA wasn't designed for (device hot-swap).
In addition it was in the time of beginning of ATA.
In addition it was the first incarnation of Apple's IDE manager.

So "they" let us suffer: inadequate documentation, bad IDE manager and drive hardware fully loaded with early design bugs.

But if you constantly watch eBay, for few quadrillion of Dollars you may get that... PisMO drive for early PowerBooks.

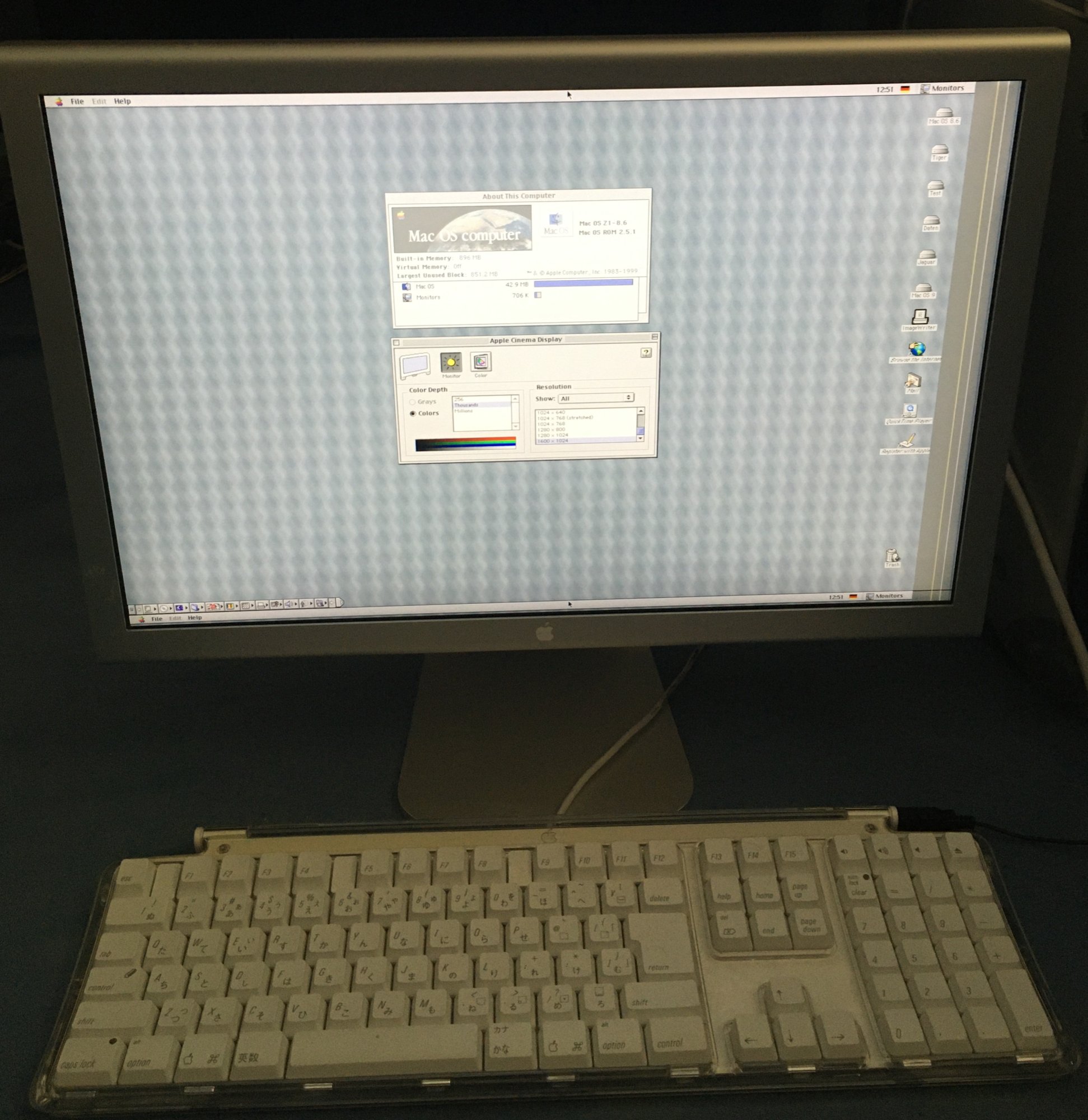

Treated myself to my first aluminium Cinema Display, a 20". I gotta say, this little thing is kind of cute. Better yet, it works with the ATI Rage 128 Pro in my Sawtooth. :D



As I've discovered, 1600×1024 is the highest resolution Mac OS will output via the Rage 128 Pro's DVI... even though the GPU can do higher resolutions (2048×1536 confirmed). A hardware EDID override dongle is necessary to force 1600×1024@60Hz since the ACD's EDID only contains its native mode. It's nice to see the ACD handle the situation reasonably (it lacks a built-in scaler, i.e. behaviour at lower-than-native resolutions is, uh, "undefined"). I get some random but static garbage across the last 80 pixels on the right and the last 26 lines at the bottom simply repeat the first 26 lines.

I tried some other lower-than-native resolutions and also confirmed the native 1680×1050 to go down to 51 Hz refresh rate (lower not tested yet).

1600×1000: same behaviour as 1600×1024
1440×900: garbage
1280×800: garbage
1280×1024: garbage
1024×768: black
800×600: black
640×480: black

  • Like
  • Love
Reactions: LightBulbFun, mode32, MarkC426 and 1 other person
Amethyst1 said:
Treated myself to my first aluminium Cinema Display, a 20". I gotta say, this little thing is kind of cute. Better yet, it works with the ATI Rage 128 Pro in my Sawtooth. :D

View attachment 2210431

As I've discovered, 1600×1024 is the highest resolution Mac OS will output via the Rage 128 Pro's DVI... even though the GPU can do higher resolutions (2048×1536 confirmed). A hardware EDID override dongle is necessary to force 1600×1024@60Hz since the ACD's EDID only contains its native mode. It's nice to see the ACD handle the situation reasonably (it lacks a built-in scaler, i.e. behaviour at lower-than-native resolutions is, uh, "undefined"). I get some random but static garbage across the last 80 pixels on the right and the last 26 lines at the bottom simply repeat the first 26 lines.

I tried some other lower-than-native resolutions and also confirmed the native 1680×1050 to go down to 51 Hz refresh rate (lower not tested yet).

1600×1000: same behaviour as 1600×1024
1440×900: garbage
1280×800: garbage
1280×1024: garbage
1024×768: black
800×600: black
640×480: black
Click to expand...
Those 20" ACDs are lovely displays. I got one years and years ago (2009 apparently, JFC) for my birthday and I've used it ever since! I ended with a second one to pair it with around 2015 or so, both of which are still in daily use at school on my main rig. Half of me wants to replace them some day, but the other half is quite attached to them and never wants to get rid of them.

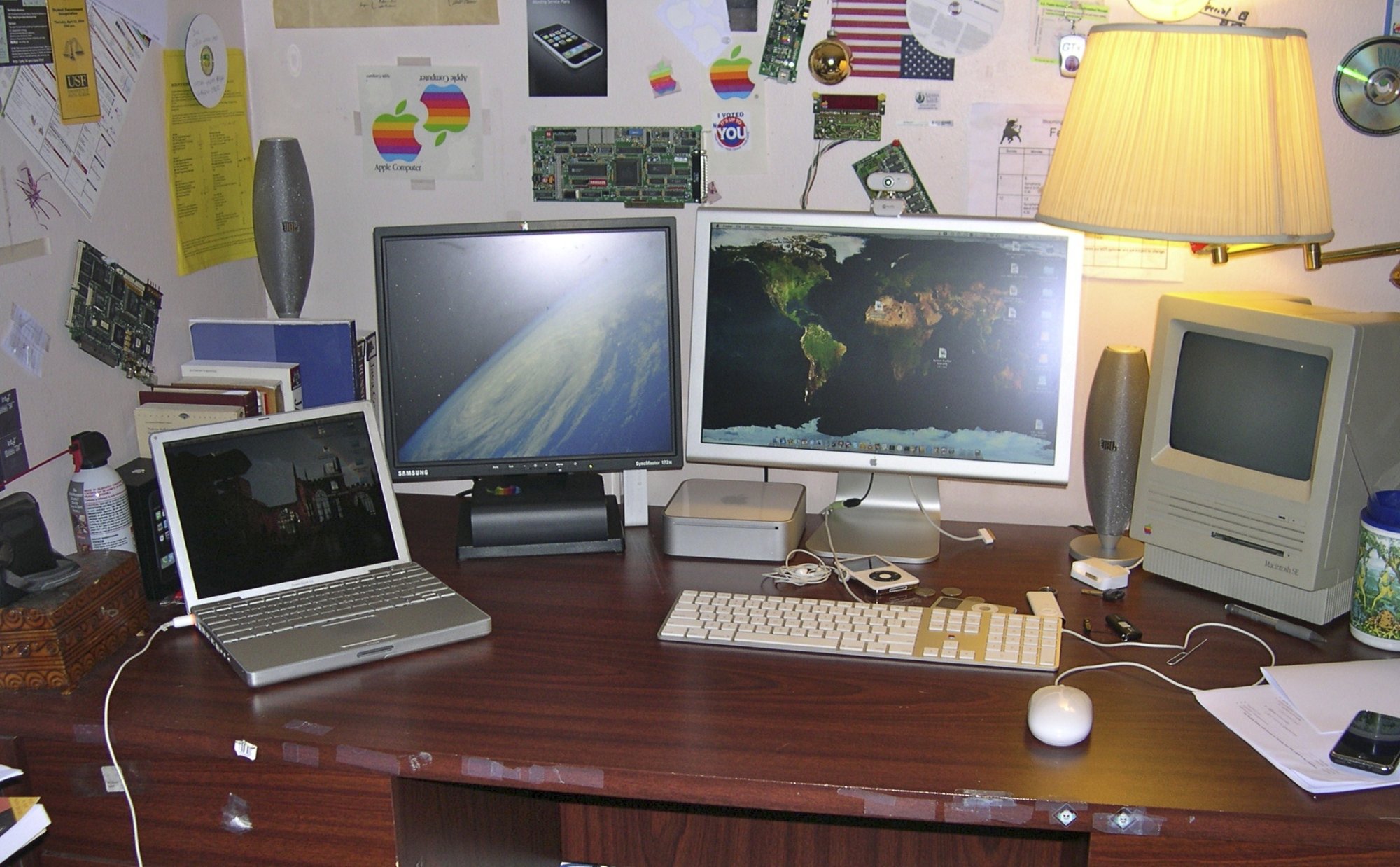

Paired back in the day with my just-purchased 2009 mini!

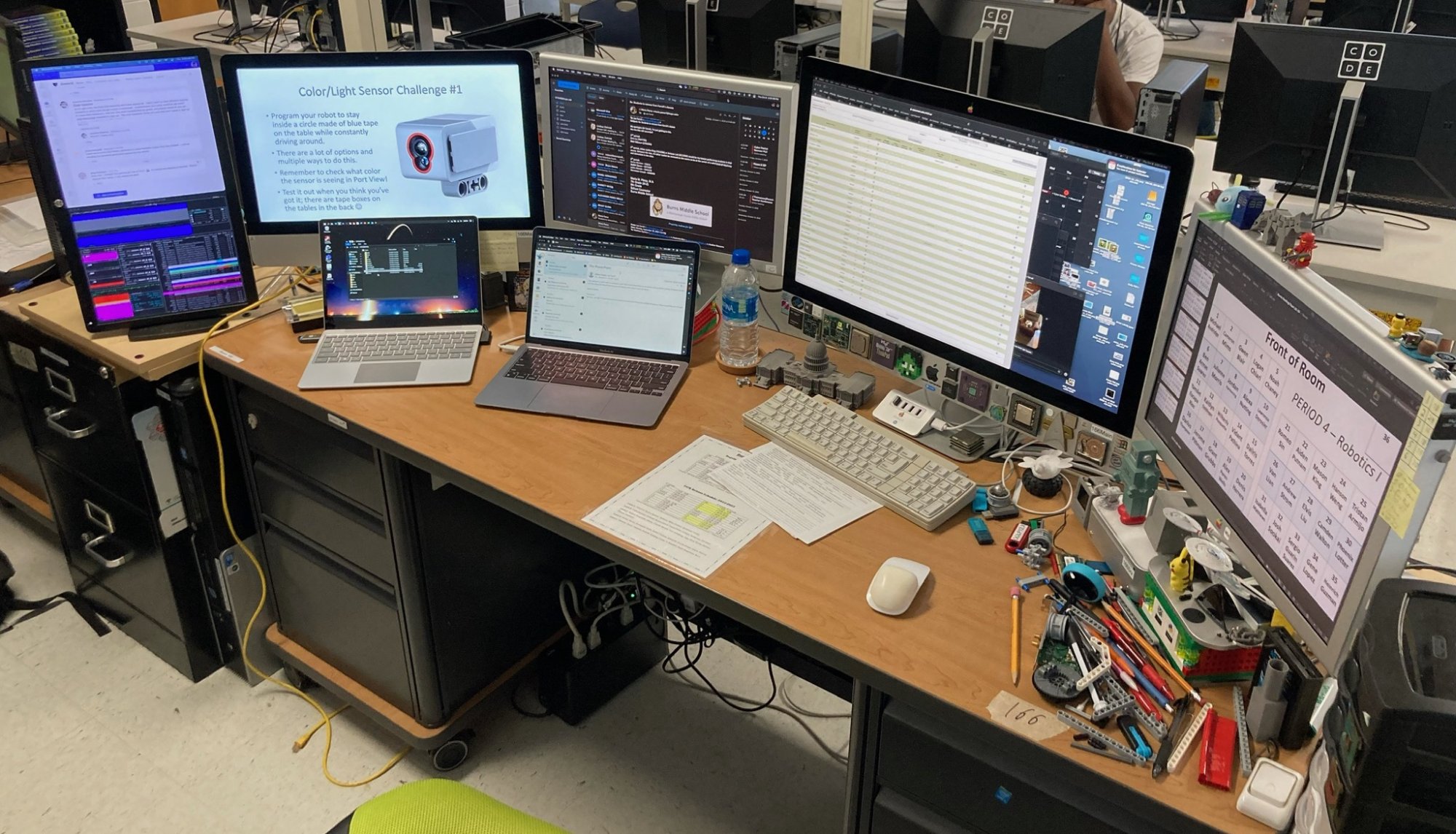

Paired today with my main iMac in my classroom!

  • Like
Reactions: VirtuallyInsane, mode32, AphoticD and 3 others
MultiFinder17 said:
Those 20" ACDs are lovely displays.
Click to expand...
I got an acrylic 20" back in 2003 and the large bezel made it look much bigger than it actually was, so when I first saw the alu 20" I thought it was tiny in comparison despite the panel being the same size.

MultiFinder17 said:
Paired back in the day with my just-purchased 2009 mini!
Click to expand...
That Samsung monitor next to it... :D

MultiFinder17 said:
Paired today with my main iMac in my classroom!
Click to expand...
That's a lot of screens. Two iMacs, right?

@Tratkazir_the_1st: Correct. I'm not Japanese though. ;)

  • Like
Reactions: MultiFinder17
Amethyst1 said:
I got an acrylic 20" back in 2003 and the large bezel made it look much bigger than it actually was, so when I first saw the alu 20" I thought it was tiny in comparison despite the panel being the same size.


That Samsung monitor next to it... :D


That's a lot of screens. Two iMacs, right?

@Tratkazir_the_1st: Correct. I'm not Japanese though. ;)
Click to expand...
iMac with the two ACDs, mini on the other two.

  • Like
Reactions: Amethyst1

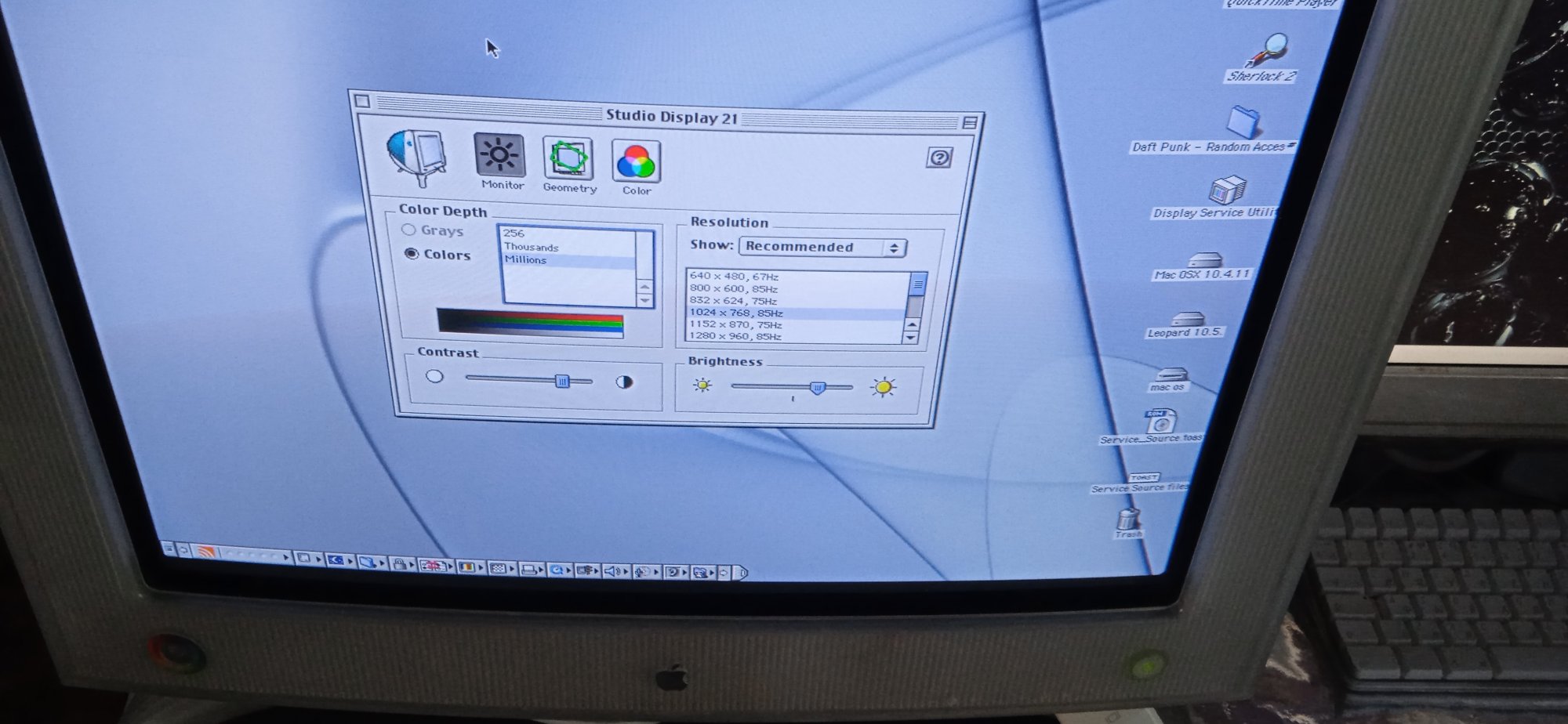

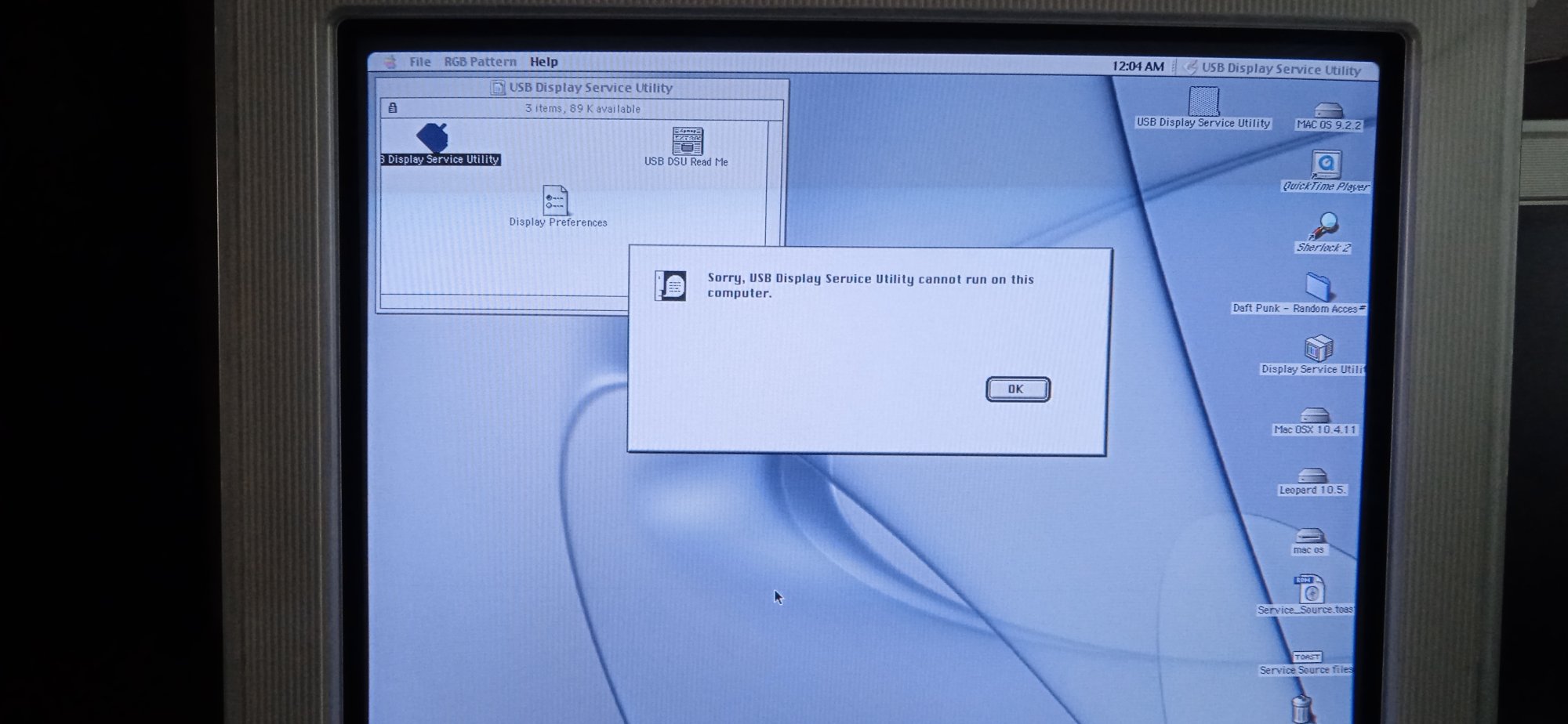

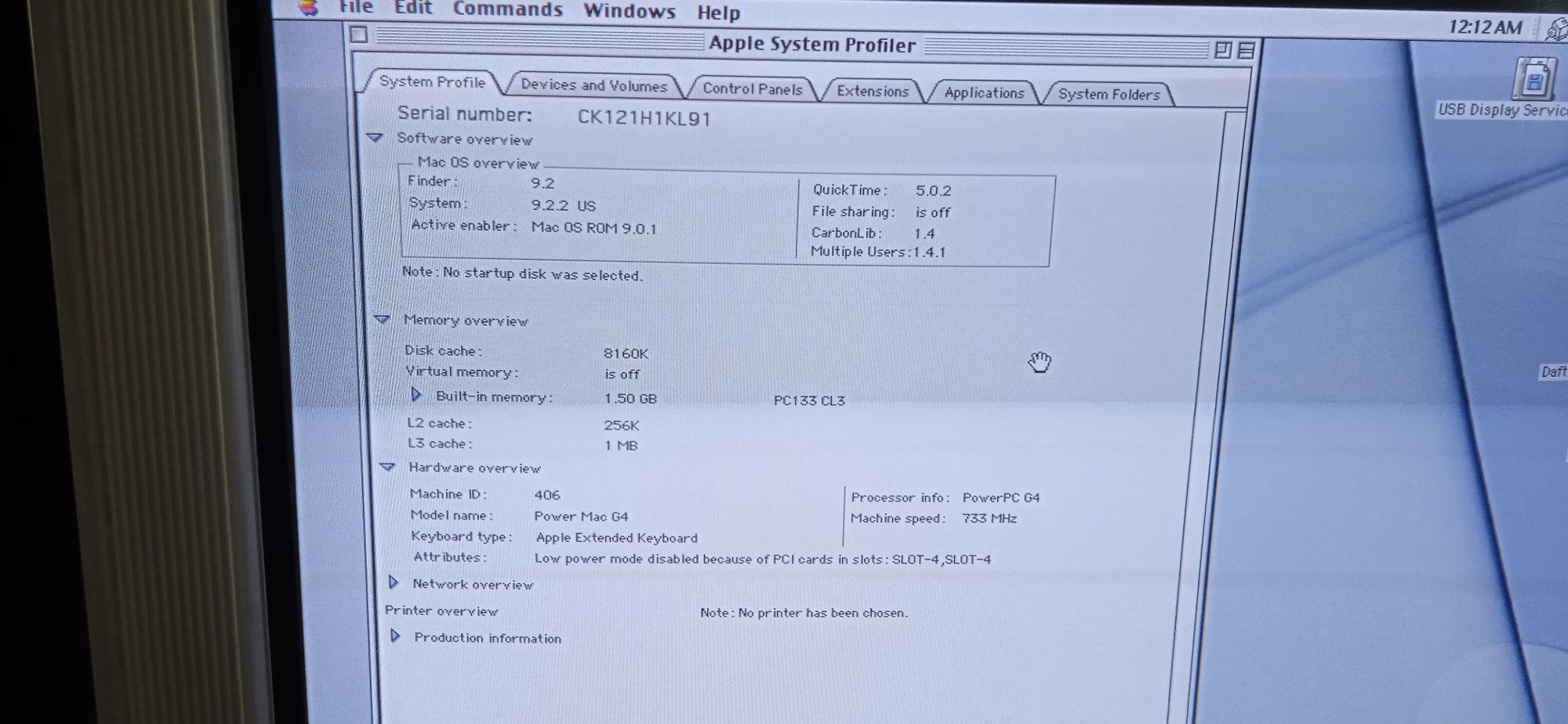

Hi all! This is my first question on your forum. How to make the utility work? USB (DSU)

Apple Power Mac G4 733 (Digital Audio) 21" Studio Display (Graphite - CRT)​



Attachments

  • IMG_20230602_120033_1.jpg
    191.6 KB · Views: 95
  • IMG_20230602_120841.jpg
    272.5 KB · Views: 95
  • IMG_20230602_120533_1.jpg
    217.5 KB · Views: 89
Not much. Moved Aleister Crowley into my closet now that I have one, for storage until I get the money for the total conversion. The plan is still to mount it in a Micro ATX case (ideally Fractal Design Core 1000), get it a new PSU, a SATA card, a bus overclock, some RAM, all that. Then see if I can use it as a web server without the ISP getting mad at me.​

  • Like
Reactions: TheShortTimer and Amethyst1
Threatened to kill the iBook that keeps turning itself on. 😆

Took out the battery instead. And off, and on.

Maybe the power button is stuck along with the hard drive being an issue.

iBook G4s do not seem to like my bedroom or being stored in it.

Recent PowerPC news: last several days and past ~40 hrs rebuilding SBCL infinite number of times with incremental fixes. As of right now, 2.3.4 has built. (Latest version is 2.3.5, macOS ppc code was removed in 2.2.3 and did not work already for ages.)
Macports is at 2.2.5 at the moment with our fix-ups. Likely to be at 2.3.5 soon.

Then some bad news: after multiple attempts I have managed to install FreeBSD 13.2 on the G5, but turned out it is totally broken on multiprocessor systems :( To a point of being unusable at all. And it super-buggy, fragile and slow. Quite a bit of a disappointment.

  • Like
  • Sad
Reactions: crimsonRE and TheShortTimer

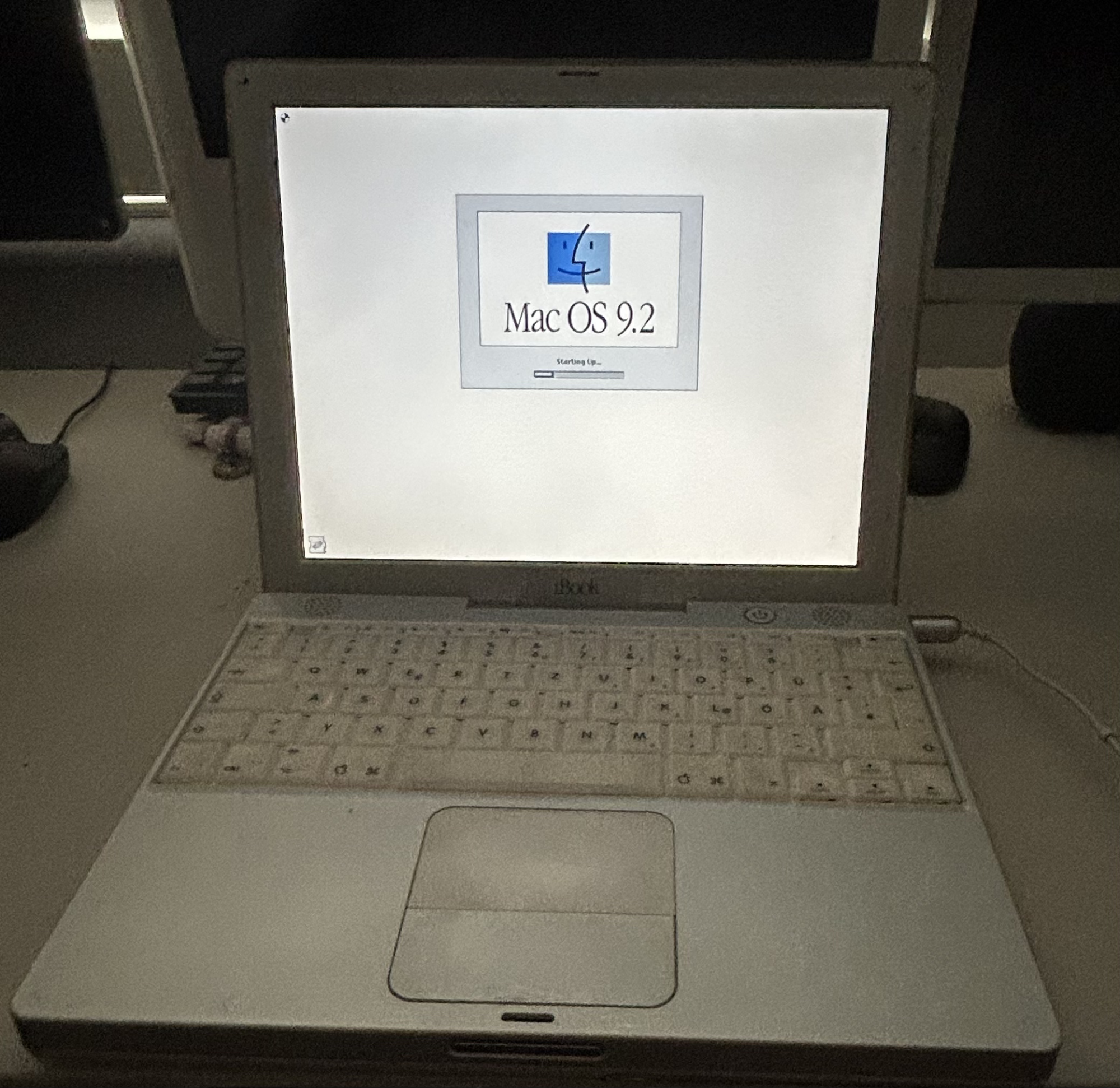

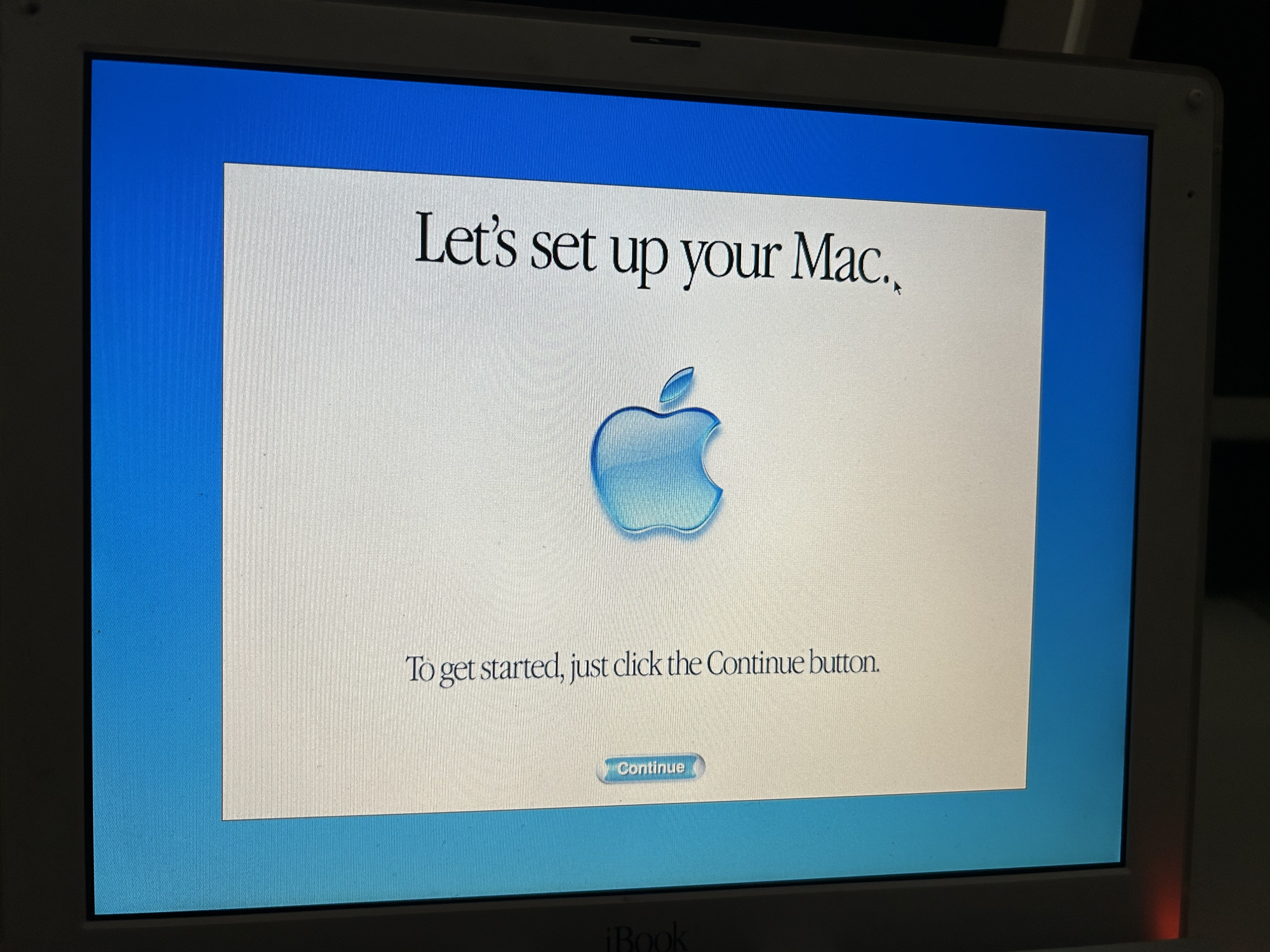

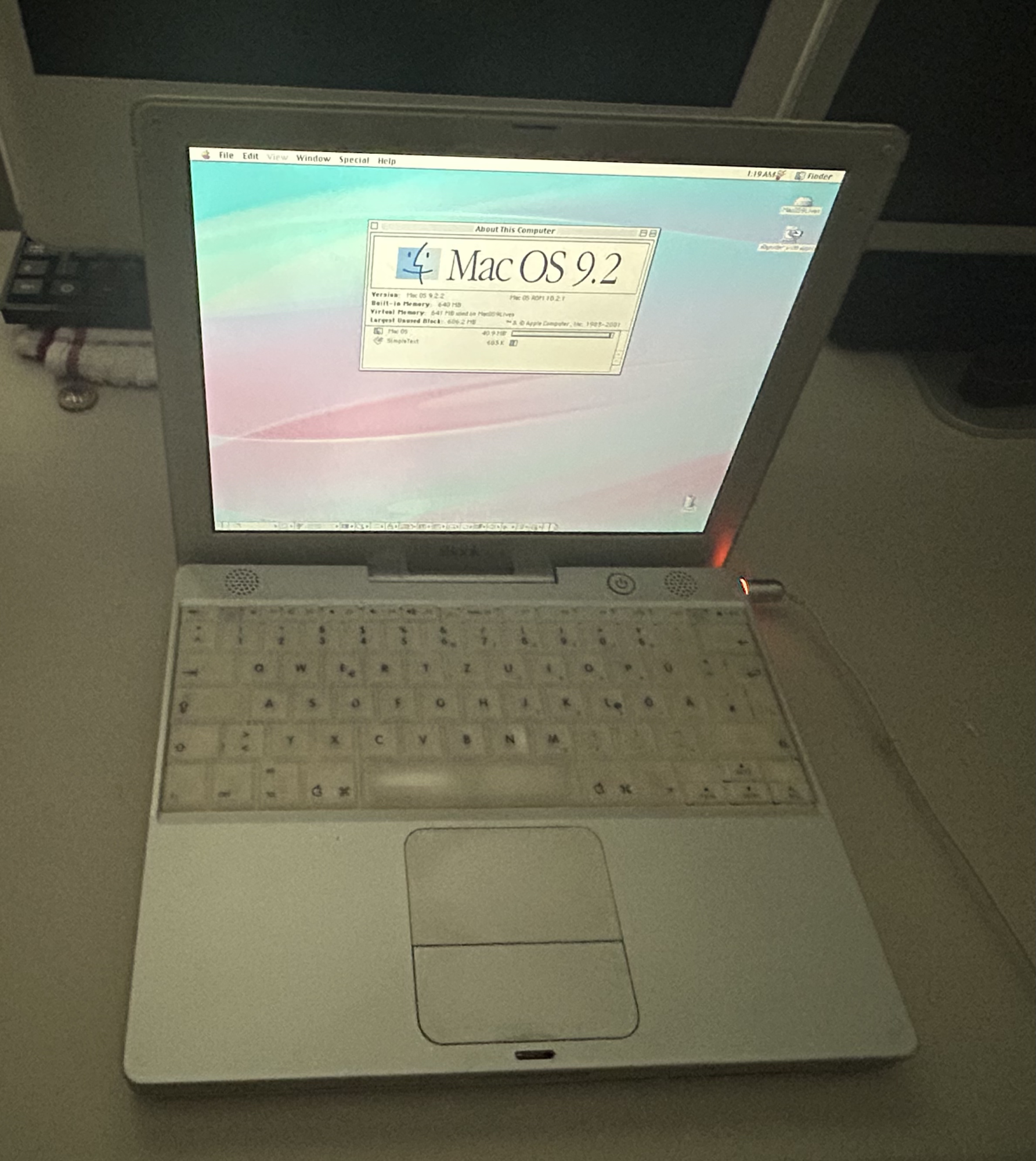

I finally got my friggin iBook G3 from 2001, and I installed Mac OS 9.2.2 onto it. It was on Tiger and it was killing me how slow it was, and now it flies. And the battery works again, lol.




It was only like 19 quid from Ebay, listed as "untested". Took a chance, and am happy so far.

  • Like
Reactions: Amethyst1, Eason85, Slix and 6 others
