iM 4,1-14,4 2011 iMac Graphics Card Upgrade

[NOTNlCE]

so a GTX 780 will be the fastest working GPU update on a 21.1 without issues?

n btw. someone a idea for a more power full PSU? will fit(maybe with modding) the 250W form a 24"?

edit: i think i can solve the PSU problem easly: just will build in a pico psu with 6pin PCIe connector, its possible to bridge with the main PSU / powerbutton...

I would strongly recommend using a K2100M for the 21.5" iMac due to issues with power draw. Though if you are cutting the power draw, it may work, might be an experiment and good knowledge for the thread, but theoretically it's possible. Others here have had issues with less powerful cards in the 21.5" iMacs, even with downclocks.



[Dr med Wurscht]

Hey Everyone,
quick Update: Got my GTX780M flashed with the help of a Friend.
Installed it today, and little success, the Mac seemed to start up. At least this was what i could hear. After a couple of seconds the fans got to maximium mode. When i teared it down again i recognized i forgot the display connector. So i gave it another try, but this time the mac won‘t start up, a short fan spinning and thats it....
Has anybody some ideas about this??



[SKYNET-1]

I would strongly recommend using a K2100M for the 21.5" iMac due to issues with power draw. Though if you are cutting the power draw, it may work, might be an experiment and good knowledge for the thread, but theoretically it's possible. Others here have had issues with less powerful cards in the 21.5" iMacs, even with downclocks.

just found this:

BEANTWORTET: PSU/logic board pinout voltages - iMac Intel 21.5" EMC 2308

@satoslp I’d start of by measuring on the logic board test points. Pin 4 will have to have 12 Volt if your power supply is good. If it does not then you most likely have a bad PSU Locate diagnostic LEDs in bottom case vents. Plug AC cord into system. Verify if diagnostic LED #1 turns ON. You...

de.ifixit.com

and not sure because of the pinout, this will work, or i need to change the place of few cables:

https://www.picclickimg.com/d/w1600/pict/192322694879_/24Pin-To-14pin-Cable-for-IBM-Lenovo-M92P.jpg

and then this:

24PIN 300W DC 16 24V DC DC ATX High Power Supply|supply power|dc dcdc atx - AliExpress

Cheap Integrated Circuits, Buy Quality Electronic Components & Supplies Directly from China Suppliers:24PIN 300W DC 16 24V DC DC ATX High Power Supply Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.

www.aliexpress.com

i would replace the main power plug with a female DC plug:

10pcs/lot DC power Jack Connector for Dell Alienware M11X R2 M15x P08G motherboard etc Laptop DC port|connector dc|connector powerconnector jack - AliExpress

Cheap Connectors, Buy Quality Lights & Lighting Directly from China Suppliers:10pcs/lot DC power Jack Connector for Dell Alienware M11X R2 M15x P08G motherboard etc Laptop DC port Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.

www.aliexpress.com

for my 330W MSI PSU(i used for eGPU):

330W Laptop Netzteil,MSI 330W Adapter,Günstige 330W Laptop-Adapter für MSI

opinions / suggestions?



[Jake F.]

Please read post 1 - have you installed the required SandyBridge kexts for Catalina? If no, please do. If yes, try a reinstall of the kexts; it's possible they are not working correctly or permissions got funky during your first install. Sleep should work just fine with those.

I followed the steps in #3,271 . The Sleep Mode works fine now! But he also mentions the AirPlay, but the Airplay is not working...

Again, I have a 27" iMac 2011 with K1100. Is it possible to enable Airplay?

Thank you so much for your great work!



[SKYNET-1]

Hey Everyone,
quick Update: Got my GTX780M flashed with the help of a Friend.
Installed it today, and little success, the Mac seemed to start up. At least this was what i could hear. After a couple of seconds the fans got to maximium mode. When i teared it down again i recognized i forgot the display connector. So i gave it another try, but this time the mac won‘t start up, a short fan spinning and thats it....
Has anybody some ideas about this??

u put the PCIe power connector in? the heatsink correctly installed? all cables plugged in? few hours ago seen in a YT video, a 12.1 27" 770 denied to start up, because he forgot to plug in any cable



[markfoody]

still struggling with a K2100M, I'm trying to flash it with no success - I've measured vcc-and across the W25X20 - and I get nothing, is that normal?
How are other people flashing this board?



[Dr med Wurscht]

u put the PCIe power connector in? the heatsink correctly installed? all cables plugged in? few hours ago seen in a YT video, a 12.1 27" 770 denied to start up, because he forgot to plug in any cable

Yes, I‘m sure that all cables besides the Display connector we‘re plugged in correct.



[SKYNET-1]

still struggling with a K2100M, I'm trying to flash it with no success - I've measured vcc-and across the W25X20 - and I get nothing, is that normal?
How are other people flashing this board?

u use NVflash? u start it as admin?
[automerge]1581123402[/automerge]

Yes, I‘m sure that all cables besides the Display connector we‘re plugged in correct.

may a cable is broken, its really annoying with a mac, because much work to check all the stuff... easiest way to check everything with the cables is fine, put the original card in, n try again... i just take a look for an MXM to PCIe 16x adapter, to flash n try on my main machine, because i know i will get pissed when not works on the first time 😅



[NOTNlCE]

I followed the steps in #3,271 . The Sleep Mode works fine now! But he also mentions the AirPlay, but the Airplay is not working...

Again, I have a 27" iMac 2011 with K1100. Is it possible to enable Airplay?

Thank you so much for your great work!

This info is not on the first post, but I believe someone mentioned that AirPlay can be enabled by using the Lilu + WhateverGreen kexts. This is not necessary in Mojave, but might do the job in Catalina. Worth a shot, I suppose.

EDIT: Both of my 27" with K1100M have AirPlay in Mojave, but I don't have Catalina installed on either to test. Perhaps this weekend I can get a test volume going.



[nikey22]

@markfoody
- I used a CH341a Black edition program, they already solved the 5v vs. 3v problem long ago with this newer edition. It should output about 3.3v to read this chip. You can measure pin 8 and pin 4 to verify you are getting 3.3V.

- I used a SOIC-8 pin clip (best to use Pomona 5250)
- I used Ubuntu with flashrom version 1.1 on a separate laptop
- Make sure the red wire of the clips is on pin 1 of the 'U2' chip
- Make sure you are on the 25SPI BIOS section of the programmer
- After a few tries, it should dump & write



[Jake F.]

Ma

This info is not on the first post, but I believe someone mentioned that AirPlay can be enabled by using the Lilu + WhateverGreen kexts. This is not necessary in Mojave, but might do the job in Catalina. Worth a shot, I suppose.

EDIT: Both of my 27" with K1100M have AirPlay in Mojave, but I don't have Catalina installed on either to test. Perhaps this weekend I can get a test volume going.

Maybe @highvoltage12v can say something about it! 😅

I couldn’t get it work! 🤷🏻‍♂️



[Dr med Wurscht]

u use NVflash? u start it as admin?
[automerge]1581123402[/automerge]


may a cable is broken, its really annoying with a mac, because much work to check all the stuff... easiest way to check everything with the cables is fine, put the original card in, n try again... i just take a look for an MXM to PCIe 16x adapter, to flash n try on my main machine, because i know i will get pissed when not works on the first time 😅

the original card is back in and works Perfect.



[Ausdauersportler]

so a GTX 780 will be the fastest working GPU update on a 21.1 without issues?

n btw. someone a idea for a more power full PSU? will fit(maybe with modding) the 250W form a 24"?

edit: i think i can solve the PSU problem easly: may a pico psu with 6pin PCIe connector, its possible to bridge with the main PSU / powerbutton... on standard PC works fine with 2 PSUs... but not sure, when the 6 pin connector from the imac PSU is not connected with the card connector on the mainboard, will start or just say "something is wrong, i will not start" 🤨

You are looking for the most complicated way to reach Rome, aren't you? What is about selling the still working 21,5? Then buy a broken (defect graphics card) 2011 27" iMac and put your card of desire in there. No PSU modding, fitting heat sink from day one, a lot of people to ask here in the forum, and a lot of success stories, latest from Finland this week.



[highvoltage12v]

I followed the steps in #3,271 . The Sleep Mode works fine now! But he also mentions the AirPlay, but the Airplay is not working...

Again, I have a 27" iMac 2011 with K1100. Is it possible to enable Airplay?

Thank you so much for your great work!

Really not working? Are whatevergreen and lilu Kexts installed to /S*/L*/E*/



[parraman]

Hello again, I finally got down to work and the light was made, imac med. 2011 of 21.5 ", and Quadro K110M GPU, working perfectly, both in High Sierra and Window 10 under bootcamp, later I will install the Os X Catalina ... I encourage people to perform this update is a wonder ...
Thanks to Nick, and to all the participants of this forum for their contributions !!!!!!



[markfoody]

@markfoody
- I used a CH341a Black edition program, they already solved the 5v vs. 3v problem long ago with this newer edition. It should output about 3.3v to read this chip. You can measure pin 8 and pin 4 to verify you are getting 3.3V.

- I used a SOIC-8 pin clip (best to use Pomona 5250)
- I used Ubuntu with flashrom version 1.1 on a separate laptop
- Make sure the red wire of the clips is on pin 1 of the 'U2' chip
- Make sure you are on the 25SPI BIOS section of the programmer
- After a few tries, it should dump & write

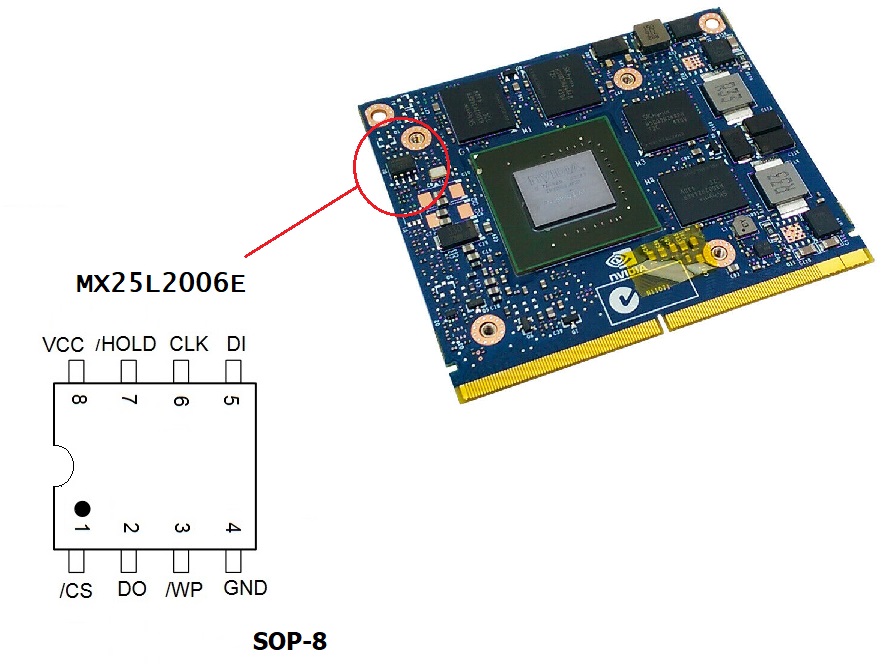

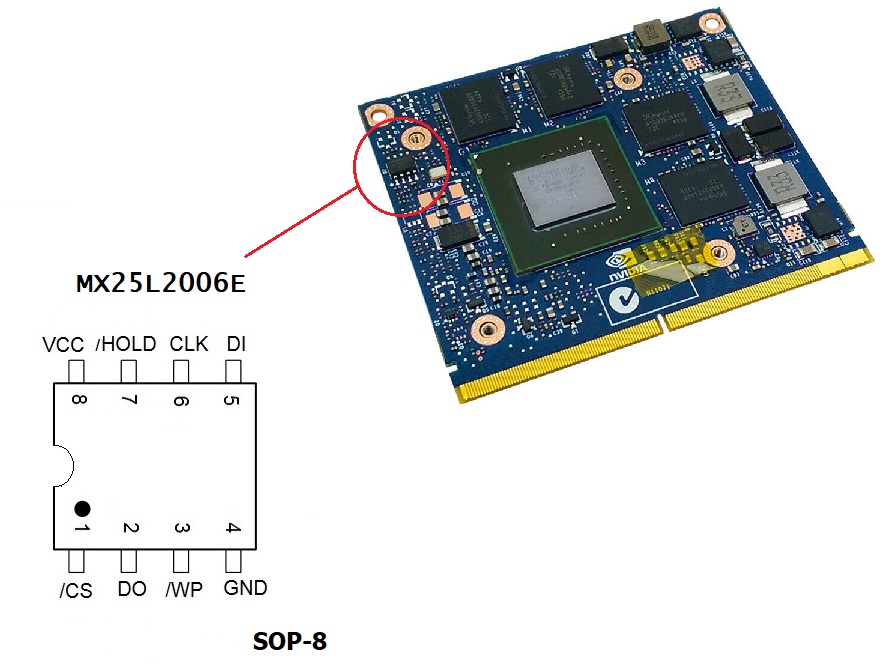

View attachment 893103

Thanks for your answer - I have the black edition of the programmer, but I seemed to get 5v across the power pins .. I'll play about more this afternoon...



[Kaapo Tupas]

My 2011 27” now running perfect with catalina. Thanks for the thread. It Is great to Keep these machines running. I have maxed the memory. Next I try to Change SuperDrive to sSd or plug another ssd as third sata. Don’t know yet. But xanderon Linux boot usb was great. Also dosdudes Catalina. And thanks for nicks bios also.



[periergos]

hello guys! I am trying to flash my k2000m card with nicks rom but the ch341 program doesn't have the chip in the list and even when I am trying with other options the end message that I get is that time of operations has overpassed and no result!! how should I flash the card? any options?



[SKYNET-1]

You are looking for the most complicated way to reach Rome, aren't you? What is about selling the still working 21,5? Then buy a broken (defect graphics card) 2011 27" iMac and put your card of desire in there. No PSU modding, fitting heat sink from day one, a lot of people to ask here in the forum, and a lot of success stories, latest from Finland this week.

i like to make possible whats "impossible" thats my nature, in every way

and i dont want a 27" in my rooms, for gaphic stuff i use my 24" dell(100% sRGB & 100% adobeRGB), n this is the best size, but because my better half use the computer too, i need something "small" for the bedroom where i can play while my main machine is in use



[NOTNlCE]

i like to make possible whats "impossible" thats my nature, in every way

and i dont want a 27" in my rooms, for gaphic stuff i use my 24" dell(100% sRGB & 100% adobeRGB), n this is the best size, but because my better half use the computer too, i need something "small" for the bedroom where i can play while my main machine is in use

If you're going to put forth all the effort, I would suggest using the RX 560 (WX4170) that Nick posted a while back. It has significantly less power draw than the 780M with comparable performance. You may still need to tweak the power settings to prevent overdrawing the PSU, but it will certainly be easier to cool as it has a 50W TDP vs a 122W TDP. Benchmarks show it only just barely underperforming the 780M, from what I can see.

Of course, this card might be a bit more work - backlight wire mod is required, and you'll likely need to solder on an EEPROM, but that seems like much LESS of a headache than worrying about picoPSUs, etc.



[FlorisVN]

If you're going to put forth all the effort, I would suggest using the RX 560 (WX4170) that Nick posted a while back. It has significantly less power draw than the 780M with comparable performance. You may still need to tweak the power settings to prevent overdrawing the PSU, but it will certainly be easier to cool as it has a 50W TDP vs a 122W TDP. Benchmarks show it only just barely underperforming the 780M, from what I can see.

Of course, this card might be a bit more work - backlight wire mod is required, and you'll likely need to solder on an EEPROM, but that seems like much LESS of a headache than worrying about picoPSUs, etc.

looks to me like this WX4170 has some eeproms onboard.
I dont know if it will be compatible, and if it has the correct Eeprom size chip.. ?
it's an HP version, but could perhaps be flashed with Nicks vbios.. ?

319.9€ |Firepro WX4170 4Gb 916613 002 L30654 001 Video Grafische Kaart 215 0895074 Met X Bracket Voor Hp ZBook17 G3 G4 G5 100% Test Ok|Laptop LCD Scherm| - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

nl.aliexpress.com



[markfoody]

Thanks for your answer - I have the black edition of the programmer, but I seemed to get 5v across the power pins .. I'll play about more this afternoon...

I think I'm going to give up !

I don't think I 'screwed up', but, at some point, perhaps, I've hit something, or broken something, or ....

But - the net result, on the K2100M card I have, I am unable to program the flash, using a ch341A.

As a test, I have taken my old AMD card, and read the rom on that, with no problem.

I've tested a little around the device - on the AMD card, as expected, there is no short from Vcc to GND... on the "new" card, - there is !!!!

I'd be very interested to hear other peoples advice, thoughts, etc - I've somehow hosed this card....



[Jake F.]

Really not working? Are whatevergreen and lilu Kexts installed to /S*/L*/E*/

So, after trying to install again Lili.kext and WhateverGreen.kext with the Kext Utility, the log is the following:

Detected ... Darwin Kernel Version 19.3.0. Start working: 2020-02-08 18:38:55 +0100 Task: Install "Lilu.kext (arches) x86_64" to "/System/Library/Extensions" Found existing "/System/Library/Extensions/Lilu.kext" BackUp : "Lilu.kext" to "Lilu.kext.bak" ... Error. Install: "Lilu.kext" ... Can't copy source file. Task: Install "WhateverGreen.kext (arches) x86_64" to "/System/Library/Extensions" Found existing "/System/Library/Extensions/WhateverGreen.kext" BackUp : "WhateverGreen.kext" to "WhateverGreen.kext.bak" ... Error. Install: "WhateverGreen.kext" ... Can't copy source file. Updating the system cache files . Done -- Build time = 0 sec. Syncing disk cache ... Done. All done. Have a nice ... day(night) Enjoy ...

It looks that the kexts are already installed. But in Screen Preferences, I can't select the AirPlay Screen (Disabled).

Any clue?

Thank you!



[Ausdauersportler]

I think I'm going to give up !

I don't think I 'screwed up', but, at some point, perhaps, I've hit something, or broken something, or ....

But - the net result, on the K2100M card I have, I am unable to program the flash, using a ch341A.

As a test, I have taken my old AMD card, and read the rom on that, with no problem.

I've tested a little around the device - on the AMD card, as expected, there is no short from Vcc to GND... on the "new" card, - there is !!!!

I'd be very interested to hear other peoples advice, thoughts, etc - I've somehow hosed this card....

2011 iMac Graphics Card Upgrade

so guys, I have a little gift for you to give back after such an incredible thread :D hope you like it, the headaches to get it running were immens for me as a newb. I couldn't stand it to use fckin windows to flash the cards and so I prepared this ~350mb drive I created a Linux Live USB...

forums.macrumors.com

Some pages back in this post #4363 there has been a Linux Boot Stick solution announced. I used it yesterday on my already patched and installed iMac/K2100m just to check if the linux nvflash version would work on my already installed card. I could read the BIOS, but just half of it (131 ok 262KB), probably I used it not entirely correct

But I guess this may by your solution. From all what I saw you can do this also remotely, i.e. without having a working display on your iMac from a 2nd machine in your local network. Just follow the documentation in that post step by step.

I programmed 10 cards during the last three weeks with my cheap CH341A, sometimes you get no connection, sometimes it comes up with two BIOS chip definitions to choose from, but in the very end it worked.



[HighSierraCosworth]

Hey all, Just finished up (most) of a Quadro K1100M upgrade to a 21.5 inch. getting some Kernel Panics. I'm running Mojave via the DosDude patcher, I've deselected legacy Graphics patch. I have installed that 2020-001 security update. Attached are the last kernel panic report, and an EtreCheck report

Spoiler: EtreCheck

EtreCheck version: 6.1.9 (6B057)
Report generated: 2020-02-08 13:24:48
Download EtreCheck from https://etrecheck.com
Runtime: 3:10
Performance: Good

Problem: Computer is restarting
Description:
2011 iMac GPU upgrade, Quadro K1100M, Nick vBIOS, random restarts, Fau
lt CR2: 0x00007fffa7492ae0, Error code: 0x0000000000000000, Fault CPU:
 0x1, PL: 0, VF: 0

Major Issues:
  Anything that appears on this list needs immediate attention.
  No Time Machine backup - Time Machine backup not found.
  Gatekeeper disabled - Gatekeeper security protection is disabled. This computer is at risk of malware infection.
  System Integrity Protection disabled - System Integrity Protection is disabled. This computer is at risk of malware infection.
  Kernel panics - This system has experienced kernel panics that could be related to 3rd party software.
  Apple security disabled - Apple security software is disabled. This computer is at risk of malware infection.

Minor Issues:
  These issues do not need immediate attention but they may indicate future problems or opportunities for improvement.
  Unsigned files - There are unsigned software files installed. They appear to be legitimate but should be reviewed.

Hardware Information:
  iMac (21.5-inch, Mid 2011)
  iMac Model: iMac12,1
  1 2.5 GHz Intel Core i5 (i5-2400S) CPU: 4-core
  8 RAM - Upgradeable
    BANK 0/DIMM0 - 2 GB DDR3 1333
    BANK 1/DIMM0 - 2 GB DDR3 1333
    BANK 0/DIMM1 - 2 GB DDR3 1333
    BANK 1/DIMM1 - 2 GB DDR3 1333

Video Information:
  Quadro K1100M by Nick[D]vB - VRAM: 2 GB
    iMac 1920 x 1080

Drives:
  disk0 - TOSHIBA THNSNK128GVN8 M.2 2280 128GB 128.04 GB (Solid State - TRIM: No)
  Internal SATA 6 Gigabit Serial ATA
    disk0s1 - EFI (MS-DOS FAT32) [EFI] 210 MB
    disk0s2 [APFS Container] 127.83 GB
      disk1 [APFS Virtual drive] 127.83 GB (Shared by 4 volumes)
        disk1s1 - S*************e (APFS) (Shared - 30.78 GB used)
        disk1s2 - Preboot (APFS) [APFS Preboot] (Shared - 26 MB used)
        disk1s3 - Recovery (APFS) [Recovery] (Shared - 507 MB used)
        disk1s4 - VM (APFS) [APFS VM] (Shared - 20 KB used)

Mounted Volumes:
  disk1s1 - S*************e
    127.83 GB (Shared - 30.78 GB used, 103.87 GB available, 96.46 GB free)
    APFS
    Mount point: /

  disk1s4 - VM [APFS VM]
    127.83 GB (Shared - 20 KB used, 96.46 GB free)
    APFS
    Mount point: /private/var/vm

  disk2s2 - F****************************]
    3.36 GB (2.81 GB used, 548 MB free)
    Mac OS Extended
    Disk Image
    Mount point: /Volumes/F****************************]
    Owners enabled: No
    Read-only: Yes

Network:
  Interface en0: Ethernet
  Interface en4: iPhone
  Interface fw0: FireWire
  Interface en1: Wi-Fi
    802.11 a/b/g/n
  Interface en3: Bluetooth PAN
  Interface bridge0: Thunderbolt Bridge
  iCloud Quota: 2.84 GB available

System Software:
  macOS Mojave 10.14.6 (18G3020)
  Time since boot: Less than an hour

Security:
  System Status
  Gatekeeper: Anywhere
  System Integrity Protection: Disabled

  Antivirus software: None!

Unsigned Files:
  Launchd: /Library/LaunchAgents/com.dosdude1.PatchUpdater.plist
    Executable: /usr/local/sbin/patchupdaterd
    Details: Exact match found in the whitelist - probably OK

Kernel Extensions:
  /Library/Extensions
    [Not Loaded] LegacyUSBInjector.kext (1.0)
    [Loaded] SIPManager.kext (1.0 - SDK 10.12)

  ~/Downloads/Hackintool.app
    [Not Loaded] AppleIntelInfo.kext (3.0 - SDK 10.14)

System Launch Agents:
  [Not Loaded]  17 Apple tasks
  [Loaded]  169 Apple tasks
  [Running]  114 Apple tasks

System Launch Daemons:
  [Not Loaded]  39 Apple tasks
  [Loaded]  182 Apple tasks
  [Running]  112 Apple tasks
  [Other]  One Apple task

Launch Agents:
  [Running] com.dosdude1.PatchUpdater.plist (? dc576c08  - installed 2020-02-07)

Launch Daemons:
  [Running] com.crystalidea.macsfancontrol.smcwrite.plist (Ilya Parniuk - installed 2020-02-07)

User Login Items:
  [Not Loaded] AdGuard Login Helper (App Store - installed 2020-02-07)
    Modern Login Item
    /Applications/AdGuard for Safari.app/Contents/Library/LoginItems/AdGuard Login Helper.app

  [Not Loaded] AdGuard for Safari Login Helper (App Store - installed 2020-02-07)
    Modern Login Item
    /Applications/AdGuard for Safari.app/Contents/Library/LoginItems/AdGuard for Safari Login Helper.app

  [Not Loaded] BSLoginLauncher (App Store - installed 2020-02-08)
    Modern Login Item
    /Applications/Brightness Slider.app/Contents/Library/LoginItems/BSLoginLauncher.app

Audio Plug-ins:
  AppleTimeSyncAudioClock: 1.0 (Apple - installed 2019-09-20)
  BluetoothAudioPlugIn: 6.0.14 (Apple - installed 2020-02-07)
  AirPlay: 2.0 (Apple - installed 2020-02-07)
  AppleAVBAudio: 760.6 (Apple - installed 2019-09-20)
  BridgeAudioSP: 5.52 (Apple - installed 2020-02-07)
  iSightAudio: 7.7.3 (Apple - installed 2019-09-20)

Safari Extensions:
  AdGuard - App Store (installed 2020-02-07)
  AdGuard Custom - App Store (installed 2020-02-07)
  AdGuard Other - App Store (installed 2020-02-07)
  AdGuard Privacy - App Store (installed 2020-02-07)
  AdGuard Safari Icon - App Store (installed 2020-02-07)
  AdGuard Security - App Store (installed 2020-02-07)
  AdGuard Social - App Store (installed 2020-02-07)
  AdvancedBlocking - App Store (installed 2020-02-07)
  LastPass - Marvasol, Inc DBA LastPass (installed 2020-01-09)
  Night Eye - App Store (installed 2020-02-07)

3rd Party Preference Panes:
  Patch Updater (installed 2020-02-07)

Time Machine:
  Time Machine Not Configured!
  One local snapshot
  Oldest local snapshot: 2020-02-07 18:35:03
  Last local snapshot: 2020-02-07 18:35:03

Performance:
  System Load: 2.94 (1 min ago) 3.65 (5 min ago) 2.44 (15 min ago)
  Nominal I/O speed: 16.16 MB/s
  File system: 28.08 seconds
  Write speed: 117 MB/s
  Read speed: 501 MB/s

CPU Usage Snapshot:
  Type Overall
  System 19 %
  User 54 %
  Idle 27 %

Top Processes Snapshot by CPU:
  Process (count) CPU (Source - Location)
  diskimages-helper 51.72 % (Apple)
  com.apple.WebKit.WebContent (9) 40.92 % (Apple)
  WindowServer 27.04 % (Apple)
  Safari 24.58 % (Apple)
  DesktopServicesHelper 24.22 % (Apple)

Top Processes Snapshot by Memory:
  Process (count) RAM usage (Source - Location)
  com.apple.WebKit.WebContent (9) 1.41 GB (Apple)
  EtreCheckPro 459 MB (Etresoft, Inc.)
  com.apple.SafariServices.ExtensionHelper (2) 224 MB (Apple)
  Discord Helper (2) 216 MB (Hammer & Chisel Inc.)
  mdworker_shared (8) 144 MB (Apple)

Top Processes Snapshot by Network Use:
  Process (count) Input / Output (Source - Location)
  com.apple.WebKit.Networking 10 MB / 233 KB (Apple)
  Discord 6 MB / 31 KB (Hammer & Chisel Inc.)
  cloudd 62 KB / 28 KB (Apple)
  mDNSResponder 60 KB / 22 KB (Apple)
  commerce 34 KB / 2 KB (Apple)

Top Processes Snapshot by Energy Use:
  Process (count) Energy (0-100) (Source - Location)
  diskimages-helper 30 (Apple)
  VTDecoderXPCService (2) 4 (Apple)
  com.apple.WebKit.WebContent (9) 3 (Apple)
  Safari 2 (Apple)
  Finder 2 (Apple)

Virtual Memory Information:
  Physical RAM: 8 GB

  Free RAM: 18 MB
  Used RAM: 5.02 GB
  Cached files: 2.96 GB

  Available RAM: 2.98 GB
  Swap Used: 0 B

Software Installs (past 30 days):
  Install Date Name (Version)
  2020-02-07 Night Eye (4.0.4)
  2020-02-07 AdGuard for Safari (1.6.4)
  2020-02-07 XProtectPlistConfigData (2113)
  2020-02-07 MRTConfigData (1.54)
  2020-02-07 Gatekeeper Configuration Data (181)
  2020-02-07 Safari (13.0.5)
  2020-02-07 Security Update  (10.14.6)
  2020-02-08 Brightness Slider (1.2.6)
  2020-02-08 LastPass (4.4.0)

Diagnostics Information (past 7-30 days):
  2020-02-08 13:11:33 Kernel Panic
    Details:
      panic(cpu 1 caller 0xffffff8006cdda4d): Kernel trap at 0xffffff80071c9
      180, type 13=general protection, registers:

    3rd party kernel extensions:
      com.parrotgeek.SIPManager

  2020-02-08 12:59:42 DiskImageMounter.app High CPU Use
    Executable: /System/Library/CoreServices/DiskImageMounter.app

  2020-02-08 11:09:23 AdGuard for Safari.app Crash
    Executable: /Applications/AdGuard for Safari.app

  2020-02-07 20:33:19 ReportCrash Crash
    Executable: /System/Library/CoreServices/ReportCrash
    Details:
      dyld3 mode
      Analyzing process: Kext Utility[418], path: ???; parent process: [1],
      path: /sbin/launchd


End of report

Spoiler: Panic report

Anonymous UUID:       5B456913-64EF-3292-7E37-2EC6934BFE96

Sat Feb  8 13:11:33 2020

*** Panic Report ***
panic(cpu 1 caller 0xffffff80090dda4d): Kernel trap at 0xffffff80095c9180, type 13=general protection, registers:
CR0: 0x0000000080010033, CR2: 0x00007fffa7492ae0, CR3: 0x00000001bba810d6, CR4: 0x00000000000626e0
RAX: 0x0f0f0f0f0f0f0f0f, RBX: 0x0000000000000002, RCX: 0x0000000000000000, RDX: 0xffffff801ae7b6e0
RSP: 0xffffff913836b9a0, RBP: 0xffffff913836bb30, RSI: 0x0000000000000000, RDI: 0xffffff801da56a80
R8:  0x000000000000001e, R9:  0xffffff801d9faac8, R10: 0x0000000000000001, R11: 0xffffff801d673b40
R12: 0xffffff801da56a80, R13: 0xffffff8009a208c8, R14: 0xffffff801ae7b6e0, R15: 0x0000000000000001
RFL: 0x0000000000010202, RIP: 0xffffff80095c9180, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00007fffa7492ae0, Error code: 0x0000000000000000, Fault CPU: 0x1, PL: 0, VF: 0

Backtrace (CPU 1), Frame : Return Address
0xffffff8008d51a90 : 0xffffff8008fb058d
0xffffff8008d51ae0 : 0xffffff80090ec0f5
0xffffff8008d51b20 : 0xffffff80090dd82a
0xffffff8008d51b90 : 0xffffff8008f5d9d0
0xffffff8008d51bb0 : 0xffffff8008faffa7
0xffffff8008d51cd0 : 0xffffff8008fafdf3
0xffffff8008d51d40 : 0xffffff80090dda4d
0xffffff8008d51eb0 : 0xffffff8008f5d9d0
0xffffff8008d51ed0 : 0xffffff80095c9180
0xffffff913836bb30 : 0xffffff80095c9346
0xffffff913836bb60 : 0xffffff800962d705
0xffffff913836bbc0 : 0xffffff8009637664
0xffffff913836bc10 : 0xffffff8009637720
0xffffff913836bc40 : 0xffffff800968bdfb
0xffffff913836bc90 : 0xffffff800968bf0d
0xffffff913836bd40 : 0xffffff800909a53b
0xffffff913836bd80 : 0xffffff8008fb5dcc
0xffffff913836bdd0 : 0xffffff8008f90b41
0xffffff913836be50 : 0xffffff8008fa525e
0xffffff913836bef0 : 0xffffff80090c3767
0xffffff913836bfa0 : 0xffffff8008f5e1b6

BSD process name corresponding to current thread: dpd
Boot args: -no_compat_check

Mac OS version:
18G3020

Kernel version:
Darwin Kernel Version 18.7.0: Thu Jan 23 06:52:12 PST 2020; root:xnu-4903.278.25~1/RELEASE_X86_64
Kernel UUID: 71EBCAB7-7239-36ED-A2B8-3DCEB0D5EFD1
Kernel slide:     0x0000000008c00000
Kernel text base: 0xffffff8008e00000
__HIB  text base: 0xffffff8008d00000

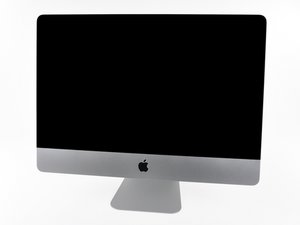

System model name: iMac12,1 (Mac-942B5BF58194151B)

System uptime in nanoseconds: 1863996107964
last loaded kext at 1248139850366: com.apple.driver.AppleXsanScheme    3 (addr 0xffffff7f8c3f0000, size 32768)
last unloaded kext at 506714055338: com.apple.driver.usb.AppleUSBUHCI    1.2 (addr 0xffffff7f8a956000, size 135168)
loaded kexts:
com.parrotgeek.SIPManager    1
com.apple.filesystems.smbfs    3.3.2
com.apple.driver.AppleHWSensor    1.9.5d0
com.apple.driver.AudioAUUC    1.70
com.apple.fileutil    20.036.15
com.apple.filesystems.autofs    3.0
com.apple.driver.AppleMikeyHIDDriver    131
com.apple.driver.AGPM    110.25.11
com.apple.driver.AppleMikeyDriver    281.52
com.apple.driver.AppleGraphicsDevicePolicy    3.50.14
com.apple.AGDCPluginDisplayMetrics    3.50.14
com.apple.driver.AppleUpstreamUserClient    3.6.5
com.apple.driver.AppleHV    1
com.apple.iokit.IOUserEthernet    1.0.1
com.apple.GeForce    12.0.0
com.apple.driver.AppleHDA    281.52
com.apple.driver.AppleIntelHD3000Graphics    10.0.4
com.apple.iokit.IOBluetoothSerialManager    6.0.14d4
com.apple.driver.pmtelemetry    1
com.apple.Dont_Steal_Mac_OS_X    7.0.0
com.apple.driver.AppleBacklight    170.12.12
com.apple.driver.AppleOSXWatchdog    1
com.apple.driver.AppleThunderboltIP    3.1.2
com.apple.driver.AppleMCCSControl    1.5.9
com.apple.driver.ACPI_SMC_PlatformPlugin    1.0.0
com.apple.driver.AppleSMCPDRC    1.0.0
com.apple.driver.AppleSMCLMU    212
com.apple.driver.AppleIntelSlowAdaptiveClocking    4.0.0
com.apple.driver.eficheck    1
com.apple.driver.AppleLPC    3.1
com.apple.driver.AppleIntelSNBGraphicsFB    10.0.4
com.apple.driver.AppleIRController    354
com.apple.driver.AppleUSBCardReader    456.260.3
com.apple.filesystems.apfs    945.275.8
com.apple.driver.AppleVirtIO    2.1.3
com.apple.filesystems.hfs.kext    407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.BootCache    40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0
com.apple.AppleSystemPolicy    1.0
com.apple.iokit.AppleBCM5701Ethernet    10.3.3
com.apple.driver.AppleFWOHCI    5.6.0
com.apple.private.KextAudit    1.0
com.apple.driver.AirPort.Atheros40    700.74.5
com.apple.driver.AppleAHCIPort    329.260.5
com.apple.driver.AppleRTC    2.0
com.apple.driver.AppleACPIButtons    6.1
com.apple.driver.AppleHPET    1.8
com.apple.driver.AppleSMBIOS    2.1
com.apple.driver.AppleACPIEC    6.1
com.apple.driver.AppleAPIC    1.7
com.apple.driver.AppleIntelCPUPowerManagementClient    220.0.0
com.apple.nke.applicationfirewall    202
com.apple.security.TMSafetyNet    8
com.apple.driver.AppleIntelCPUPowerManagement    220.0.0
com.apple.driver.AppleXsanScheme    3
com.apple.kext.triggers    1.0
com.apple.driver.AppleGraphicsControl    3.50.14
com.apple.iokit.IOAVBFamily    760.6
com.apple.plugin.IOgPTPPlugin    740.2
com.apple.iokit.IOSkywalkFamily    1
com.apple.nvidia.driver.NVDAGK100Hal    12.0.0
com.apple.iokit.IOAcceleratorFamily2    404.14
com.apple.driver.DspFuncLib    281.52
com.apple.kext.OSvKernDSPLib    528
com.apple.nvidia.driver.NVDAResman    12.0.0
com.apple.driver.AppleSSE    1.0
com.apple.iokit.IOSurface    255.6.1
com.apple.driver.AppleBacklightExpert    1.1.0
com.apple.iokit.IONDRVSupport    530.51
com.apple.AppleGPUWrangler    3.50.14
com.apple.AppleGraphicsDeviceControl    3.50.14
com.apple.driver.AppleThunderboltEDMSink    4.2.0
com.apple.driver.IOPlatformPluginLegacy    1.0.0
com.apple.driver.AppleSMBusController    1.0.18d1
com.apple.driver.AppleSMBusPCI    1.0.14d1
com.apple.iokit.IOFireWireIP    2.3.0
com.apple.iokit.IOSlowAdaptiveClockingFamily    1.0.0
com.apple.driver.AppleHDAController    281.52
com.apple.iokit.IOHDAFamily    281.52
com.apple.driver.IOPlatformPluginFamily    6.0.0d8
com.apple.iokit.IOGraphicsFamily    530.68
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport    6.0.14d4
com.apple.iokit.IOBluetoothHostControllerUSBTransport    6.0.14d4
com.apple.iokit.IOBluetoothHostControllerTransport    6.0.14d4
com.apple.iokit.IOBluetoothFamily    6.0.14d4
com.apple.driver.AppleUSBAudio    315.6
com.apple.driver.usb.IOUSBHostHIDDevice    1.2
com.apple.iokit.IOAudioFamily    206.5
com.apple.vecLib.kext    1.2.0
com.apple.driver.usb.networking    5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice    1.2
com.apple.iokit.IOSerialFamily    11
com.apple.filesystems.hfs.encodings.kext    1
com.apple.driver.usb.AppleUSBHub    1.2
com.apple.driver.AppleThunderboltDPInAdapter    5.6.9
com.apple.driver.AppleThunderboltDPOutAdapter    5.6.9
com.apple.driver.AppleThunderboltDPAdapterFamily    5.6.9
com.apple.driver.AppleThunderboltPCIDownAdapter    2.1.5
com.apple.driver.AppleThunderboltNHI    4.7.9
com.apple.iokit.IOThunderboltFamily    6.8.6
com.apple.iokit.IOAHCIBlockStorage    301.270.1
com.apple.iokit.IOEthernetAVBController    1.1.0
com.apple.driver.mDNSOffloadUserClient    1.0.1b8
com.apple.iokit.IOFireWireFamily    4.7.3
com.apple.iokit.IO80211Family    1200.12.2
com.apple.driver.corecapture    1.0.4
com.apple.driver.usb.AppleUSBHostPacketFilter    1.0
com.apple.iokit.IOUSBFamily    900.4.2
com.apple.iokit.IOAHCIFamily    288
com.apple.driver.usb.AppleUSBEHCIPCI    1.2
com.apple.driver.usb.AppleUSBEHCI    1.2
com.apple.driver.AppleUSBHostMergeProperties    1.2
com.apple.driver.AppleEFINVRAM    2.1
com.apple.driver.AppleEFIRuntime    2.1
com.apple.iokit.IOSMBusFamily    1.1
com.apple.iokit.IOHIDFamily    2.0.0
com.apple.security.quarantine    3
com.apple.security.sandbox    300.0
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.DiskImages    493.0.0
com.apple.driver.AppleFDEKeyStore    28.30
com.apple.driver.AppleEffaceableStorage    1.0
com.apple.driver.AppleKeyStore    2
com.apple.driver.AppleUSBTDM    456.260.3
com.apple.driver.AppleMobileFileIntegrity    1.0.5
com.apple.iokit.IOUSBMassStorageDriver    145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice    408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily    408.250.3
com.apple.iokit.IOStorageFamily    2.1
com.apple.kext.CoreTrust    1
com.apple.driver.AppleCredentialManager    1.0
com.apple.driver.KernelRelayHost    1
com.apple.iokit.IOUSBHostFamily    1.2
com.apple.driver.usb.AppleUSBCommon    1.0
com.apple.driver.AppleBusPowerController    1.0
com.apple.driver.AppleSEPManager    1.0.1
com.apple.driver.IOSlaveProcessor    1
com.apple.iokit.IOTimeSyncFamily    740.2
com.apple.iokit.IONetworkingFamily    3.4
com.apple.iokit.IOReportFamily    47
com.apple.driver.AppleACPIPlatform    6.1
com.apple.driver.AppleSMC    3.1.9
com.apple.iokit.IOPCIFamily    2.9
com.apple.iokit.IOACPIFamily    1.4
com.apple.kec.pthread    1
com.apple.kec.Libm    1
com.apple.kec.corecrypto    1.0

EOF
Model: iMac12,1, BootROM 87.0.0.0.0, 4 processors, Intel Core i5, 2.5 GHz, 8 GB, SMC 1.71f22
Graphics: Quadro K1100M by Nick[D]vB, Quadro K1100M by Nick[D]vB, spdisplays_pcie_device, 2 GB
Memory Module: BANK 0/DIMM0, 2 GB, DDR3, 1333 MHz, 0x02FE, 0x45424A3230554638424353302D444A2D4620
Memory Module: BANK 1/DIMM0, 2 GB, DDR3, 1333 MHz, 0x02FE, 0x45424A3230554638424353302D444A2D4620
Memory Module: BANK 0/DIMM1, 2 GB, DDR3, 1333 MHz, 0x80CE, 0x4D34373142353737334448302D4348392020
Memory Module: BANK 1/DIMM1, 2 GB, DDR3, 1333 MHz, 0x80CE, 0x4D34373142353737334448302D4348392020
AirPort: spairport_wireless_card_type_airport_extreme (0x168C, 0x9A), Atheros 9380: 4.0.74.0-P2P
Bluetooth: Version 6.0.14d4, 3 services, 27 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Serial ATA Device: TOSHIBA THNSNK128GVN8 M.2 2280 128GB, 128.04 GB
USB Device: USB 2.0 Bus
USB Device: FaceTime HD Camera (Built-in)
USB Device: Hub
USB Device: 4-Port USB 2.0 Hub
USB Device: Nixeus REVEL
USB Device: BCM20702A0
USB Device: USB keyboard
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: AudioBox USB
USB Device: IR Receiver
USB Device: Internal Memory Card Reader
Thunderbolt Bus: iMac, Apple Inc., 25.1
