iM 4,1-14,4 2011 iMac Graphics Card Upgrade

[dfranetic]

Okay then, I'll stick to the WX4130M, also, does anyone know if sleep will work on the WX4130M? Since it doesn't work on Big Sur and Monterey because the iGPU is disabled via opencore on the Nvidia GPU.

I have never had problems with sleep (with default OCLP config), either with the Nvidia cards (K610M, K1100M, K3100M), or with AMD WX41x0 cards. (I currently have a WX4130 in an iMac11,2. It sleeps and wakes as expected...)



[nick0k]

So, i try to find a WX4130... now i've found a K4100M with 4gb at 130€.. not too expensive.. i don't want to spend more. Probably next weekend i prepare much coffee.. i will need it!



[hardy43]

@

Delete this FAT partition (Who told you to create one??) and install OpenCore to your internal SSD/HDD EFI partition discovered by OCLP in the #2 install dialog.

Honestly I am curious what exceptional new idea you are going to post next time.

I finally sorted it It took me far too long but it was a good learning curve and its all working great now. Thank you for your help and the amazing thread here with everything you need to know!



[MrZupp]

I have never had problems with sleep (with default OCLP config), either with the Nvidia cards (K610M, K1100M, K3100M), or with AMD WX41x0 cards. (I currently have a WX4130 in an iMac11,2. It sleeps and wakes as expected...)

Idk what's the problem on mine, someone here suggested that since the iGPU is disabled sleep won't work on big sur or newer



[Ausdauersportler]

Idk what's the problem on mine, someone here suggested that since the iGPU is disabled sleep won't work on big sur or newer

Again, first post, known issues with some cards. We assume SMBUS collisions to be the root cause and I wrote some hours ago that there is no solution. We have to assume there are different variants of one card type , i.e. of the K3000M. Some work perfectly, some fail to sleep.

For an unknown reason all AMD GCN cards fail to sleep on Mid 2011 systems. But surely it is not the disabled iGPU which causes this. I made sure the correct extension are injected using OCLP with Big Sur and Monterey with NVIDIA and AMD cards. If this ridiculous idea would be true no upgraded system would be able to sleep.



[nelsondog9]

There are many 4130 and 4150 to choose from on eBay at the moment.



[CY Yong]

Could you please share your info about the L5500?
Type of component? (I guess it's a coil, but not sure)
Value? (you will need an LCR meter to measure it at various frequency)

Hi, I just solder it back by using normal 0.3mm solder wire.



[CY Yong]

Anonymous UUID: 28214A1D-E21A-9C7A-E566-4B896F6D555D

Tue Nov 9 10:20:07 2021

*** Panic Report ***
panic(cpu 2 caller 0xffffff802338687f): Kernel trap at 0xffffff8023307853, type 14=page fault, registers:
CR0: 0x0000000080010033, CR2: 0x0000000000000200, CR3: 0x000000082a21b02a, CR4: 0x00000000000626e0
RAX: 0x0000000000000200, RBX: 0xffffff806011b300, RCX: 0x0000000000000200, RDX: 0x0000000000004000
RSP: 0xffffff83ccddbcd0, RBP: 0xffffff83ccddbce0, RSI: 0xffffff805ed0b840, RDI: 0xffffff806011b338
R8: 0x00000187b104a48a, R9: 0x0000000000000007, R10: 0xffff000000000000, R11: 0xffff800000000000
R12: 0xffffff806011b310, R13: 0xffffff8072a9b2d0, R14: 0xffffff805ed0b840, R15: 0x0000000000000000
RFL: 0x0000000000010206, RIP: 0xffffff8023307853, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0x0000000000000200, Error code: 0x0000000000000000, Fault CPU: 0x2, PL: 0, VF: 0

Backtrace (CPU 2), Frame : Return Address
0xffffff83ccddb7a0 : 0xffffff802326ae76
0xffffff83ccddb7f0 : 0xffffff8023394484
0xffffff83ccddb830 : 0xffffff8023386654
0xffffff83ccddb8a0 : 0xffffff802321ce60
0xffffff83ccddb8c0 : 0xffffff802326a8ec
0xffffff83ccddb9f0 : 0xffffff802326a6ac
0xffffff83ccddba50 : 0xffffff802338687f
0xffffff83ccddbbc0 : 0xffffff802321ce60
0xffffff83ccddbbe0 : 0xffffff8023307853
0xffffff83ccddbce0 : 0xffffff802330684f
0xffffff83ccddbd40 : 0xffffff80232f6231
0xffffff83ccddbe80 : 0xffffff80232f5832
0xffffff83ccddbec0 : 0xffffff802325e847
0xffffff83ccddbef0 : 0xffffff802337033d
0xffffff83ccddbfa0 : 0xffffff802321d666

BSD process name corresponding to current thread: mds

Mac OS version:
17G14042

Kernel version:
Darwin Kernel Version 17.7.0: Fri Oct 30 13:34:27 PDT 2020; root:xnu-4570.71.82.8~1/RELEASE_X86_64
Kernel UUID: 5E83A13A-32F5-3604-8591-50E2F2F70DC6
Kernel slide: 0x0000000023000000
Kernel text base: 0xffffff8023200000
__HIB text base: 0xffffff8023100000
System model name: iMac12,2 (Mac-942B59F58194171B)

System uptime in nanoseconds: 6538498505178
last loaded kext at 243881767527: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fa69ad000, size 69632)
last unloaded kext at 549822394383: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fa69ad000, size 61440)
loaded kexts:
com.google.drivefs.filesystems.dfsfuse 45.3.0
com.intel.driver.EnergyDriver 3.7.0
com.apple.filesystems.smbfs 3.2.3
com.apple.driver.AudioAUUC 1.70
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.driver.AGPM 110.23.37
com.apple.driver.AppleMikeyDriver 281.52
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.AGDCPluginDisplayMetrics 3.20.18
com.apple.driver.AppleHV 1
com.apple.kext.AMDLegacyFramebuffer 1.6.8
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.driver.AppleHDA 281.52
com.apple.iokit.IOBluetoothSerialManager 6.0.7f22
com.apple.kext.AMDRadeonX3000 1.6.8
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleBacklight 170.12.6
com.apple.driver.AppleIntelHD3000Graphics 10.0.4
com.apple.driver.AppleThunderboltIP 3.1.1
com.apple.driver.eficheck 1
com.apple.driver.AppleSMCPDRC 1.0.0
com.apple.kext.AMD6000Controller 1.6.8
com.apple.driver.AppleLPC 3.1
com.apple.driver.AppleIntelSNBGraphicsFB 10.0.4
com.apple.driver.AppleSMCLMU 211
com.apple.driver.AppleOSXWatchdog 1
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.AppleMCCSControl 1.5.5
com.apple.driver.AppleIRController 353
com.apple.iokit.SCSITaskUserClient 404.30.3
com.apple.driver.AppleUSBCardReader 439.70.3
com.apple.filesystems.hfs.kext 407.50.6
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.AppleSystemPolicy 1.0
com.apple.filesystems.apfs 748.51.0
com.apple.iokit.AppleBCM5701Ethernet 10.3.1
com.apple.driver.AppleFWOHCI 5.5.9
com.apple.driver.AirPort.Atheros40 700.74.5
com.apple.driver.AppleAHCIPort 329.50.2
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.50.1
com.apple.nke.applicationfirewall 186
com.apple.security.TMSafetyNet 8
com.apple.security.quarantine 3
com.apple.driver.AppleIntelCPUPowerManagement 220.50.1
com.apple.kext.triggers 1.0
com.apple.iokit.IOAVBFamily 683.1
com.apple.plugin.IOgPTPPlugin 680.15
com.apple.driver.AppleSSE 1.0
com.apple.driver.DspFuncLib 281.52
com.apple.kext.OSvKernDSPLib 526
com.apple.iokit.IOSerialFamily 11
com.apple.iokit.IOAcceleratorFamily2 378.28
com.apple.iokit.IOSurface 211.15
com.apple.driver.AppleBacklightExpert 1.1.0
com.apple.AppleGPUWrangler 3.20.18
com.apple.AppleGraphicsDeviceControl 3.20.18
com.apple.iokit.IONDRVSupport 519.21
com.apple.driver.AppleHDAController 281.52
com.apple.iokit.IOHDAFamily 281.52
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.iokit.IOFireWireIP 2.2.9
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.kext.AMDLegacySupport 1.6.8
com.apple.driver.AppleThunderboltEDMSink 4.1.4
com.apple.iokit.IOUSBHIDDriver 900.4.1
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.iokit.IOGraphicsFamily 519.23
com.apple.iokit.IOSCSIMultimediaCommandsDevice 404.30.3
com.apple.iokit.IOBDStorageFamily 1.8
com.apple.iokit.IODVDStorageFamily 1.8
com.apple.iokit.IOCDStorageFamily 1.8
com.apple.iokit.IOAHCISerialATAPI 267.50.1
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.7f22
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.7f22
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.7f22
com.apple.iokit.IOBluetoothFamily 6.0.7f22
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.driver.AppleThunderboltDPInAdapter 5.5.5
com.apple.driver.AppleThunderboltDPOutAdapter 5.5.5
com.apple.driver.AppleThunderboltDPAdapterFamily 5.5.5
com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOAHCIBlockStorage 301.40.2
com.apple.driver.AppleThunderboltNHI 4.7.3
com.apple.iokit.IOThunderboltFamily 6.7.10
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.driver.mDNSOffloadUserClient 1.0.1b8
com.apple.iokit.IOFireWireFamily 4.7.2
com.apple.iokit.IO80211Family 1200.12.2
com.apple.driver.corecapture 1.0.4
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.1
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 480.60.3
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 439.70.3
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 140.70.2
com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.3
com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.3
com.apple.iokit.IOStorageFamily 2.1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOReportFamily 31
com.apple.iokit.IOTimeSyncFamily 680.15
com.apple.iokit.IONetworkingFamily 3.4
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF
Model: iMac12,2, BootROM 87.0.0.0.0, 4 processors, Intel Core i7, 3.4 GHz, 32 GB, SMC 1.72f2
Graphics: AMD Radeon HD 6970M, AMD Radeon HD 6970M, PCIe
Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1333 MHz, 0x0000, -
Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1333 MHz, 0x0000, -
Memory Module: BANK 0/DIMM1, 8 GB, DDR3, 1333 MHz, 0x0000, -
Memory Module: BANK 1/DIMM1, 8 GB, DDR3, 1333 MHz, 0x0000, -
AirPort: spairport_wireless_card_type_airport_extreme (0x168C, 0x9A), Atheros 9380: 4.0.74.0-P2P
Bluetooth: Version 6.0.7f22, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet, Ethernet, en0
Serial ATA Device: Mercury Electra 6G SSD, 1 TB
Serial ATA Device: OPTIARC DVD RW AD-5690H
USB Device: USB 2.0 Bus
USB Device: FaceTime HD Camera (Built-in)
USB Device: Hub
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: USB Receiver
USB Device: IR Receiver
USB Device: Internal Memory Card Reader
Thunderbolt Bus: iMac, Apple Inc., 25.1


Just an update. After I fixed the L5500 by solder it back by solder wire, and upgrade it to 3.4 GHz Intel Core i7.
Then I have use Macs Fan control, set the fan to
ODD - Auto
HDD - 2200
CPU - Auto

This 2 day when I shut down the computer, it's will show kernel report, and restart, then I have to click shutdown again only it can go fully shutdown.

Anyone have any idea why this happen? Or can teach me how to check the Kernel report to find out the error come from where?



[Razor-G]

Hey guys! I have both iMac 2011 k4100m and MacBook Air 2020 M1. Is it way to use my iMac as external monitor for newer M1 Mac? I've tried thunderbolt cable + apple original thunderbolt2/3 adapter and nothing is happened when I pressed "cmd + f2". High Sierra and Big Sur on iMac has been tested for it. Thanks for advice!



[Ausdauersportler]

Hey guys! I have both iMac 2011 k4100m and MacBook Air 2020 M1. Is it way to use my iMac as external monitor for newer M1 Mac? I've tried thunderbolt cable + apple original thunderbolt2/3 adapter and nothing is happened when I pressed "cmd + f2". High Sierra and Big Sur on iMac has been tested for it. Thanks for advice!

According this this thread and some other youtube videos the M1 will not work with 2011+ iMacs using a thunderbolt port.

Recently @protocold posted how to use TDM even with Monterey on Late 2009 and Mid 2011 iMacs using a miniDP cable (these are different from a thunderbolt 2 cable). I can confirm this finding using a MacBook5,2 and an iMac11,3 Mid 2011 running Monterey.

Basically all has already posted to the FAQ, Q16.



[nick0k]

Depends on the card, of course an K4100M will perform better than a WX4130, but generally AMD cards have better support on mac due to them being used in the latest macs.

Okay then, I'll stick to the WX4130M, also, does anyone know if sleep will work on the WX4130M? Since it doesn't work on Big Sur and Monterey because the iGPU is disabled via opencore on the Nvidia GPU.

Excuse me if i insist, but the K4100M GPU is in my hand in 2 days.. it's more comfortable..so my question above is, what kind of mod i have made in the hetasink pipe for a K4100M GPU ? Actually i have a heatsink Pipe for an Radeon HD 6970 1gb.. imac 27 mid 2011. Because if it's an easy mod i proceed but if it's difficult i order a wx4130 on Ebay and wait some weeks..



[nick0k]

I would mean.. which is the video card with the simplest and most stable procedure?



[Ausdauersportler]

I would mean.. which is the video card with the simplest and most stable procedure?

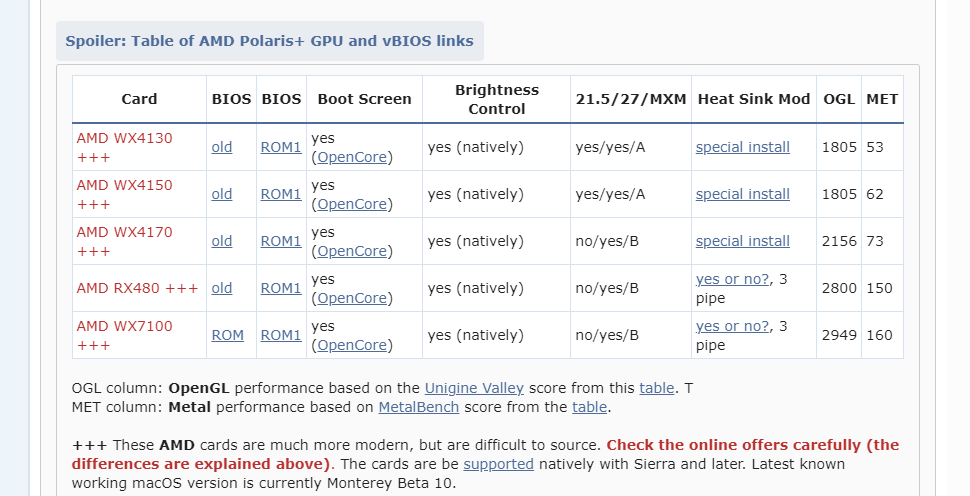

Please check the first post about heat sink mods, the complete procedure, and find out yourself what may the best solution having your own abilities, budget and time to tinker in mind.

The most simple way: Replace it with an old ATI card!



[nick0k]

Please check the first post about heat sink mods, the complete procedure, and find out yourself what may the best solution having your own abilities, budget and time to tinker in mind.

The most simple way: Replace it with an old ATI card!

I asked for courage..!
when you want to do these upgrades then you don't wait any longer .. buy on ali .. the card will arrive in 20/30 days .. too late!
I am almost convinced to buy the K4100M if i have 3 pipe heatsink, tonight i open my imac and take a photo then post here!



[m0bil]

I asked for courage..!
when you want to do these upgrades then you don't wait any longer .. buy on ali .. the card will arrive in 20/30 days .. too late!
I am almost convinced to buy the K4100M if i have 3 pipe heatsink, tonight i open my imac and take a photo then post here!

If your original card was a 6970 then you have a 3 pipe heatsink.



[iMac27mid2011]

You are good to go. Once your iMac can chime and boot and activate the external display, it means your GPU is working. The name displayed could vary by the vBIOS used that may change the card's identity with no effect on performance.

With the flashed GOP vBIOS, the logon screen would show itself only late in the boot process when the OS graphic drivers are loaded. Thus, it is always good to prepare an OCLP Loader SD card for the initial booting which will bring up the OCLP BootPicker for you to choose the macOS in your internal SSD/HD. But if you still have a functional internal DVD connected, burning a OCLP Loader CD/DVD as suggested by Ausdauersportler will ease you lots of trouble. Just press the C key on restart to boot from the OCLP Loader CD/DVD which will then give you the OCLP BootPicker. That could be a life-saving tool for trouble-shooting. Afterwards, you can make a OCLP Loader SD card or install the OCLP onto your macOS volume to always enable the OCLP BootPicker. That's the current limitation of the GOP vBIOS of the AMD GPUs without a native Apple BootPicker.

Guys, you've been hugely helpful. As Ausdauersportler suggested, after I read the Opencore post on first page, it became much more clear. I created an OCLP loader CD, which worked great. I installed Monterey, and the internal monitor now works fine. I'm planning to post a full review of the process.

Two questions for the experts:

1. After installing Monterey, I rebooted with the loader CD and attempted to hold down C so that I could select the EFI as my default boot (as per around 17:25 of the video at bottom of this message). My problem is that I can't seem to use my mouse or keyboard to select the EFI. Any ideas what's going on?

2. Now that I've upgraded to Monterey, do I need to create an updated OCLP loader CD, or will the one I create in High Sierra work?



[joevt]

My problem is that I can't seem to use my mouse or keyboard to select the EFI. Any ideas what's going on?

Is it wired or wireless? Bluetooth? Are they USB 1 or USB 2? Are they connected to built-in USB ports of the Mac or to a display?



[Painkiller]

When I swap my old 4850 HD with a WX4150 and I install a driver Board to make the internal screen a external one, do I still have my mini dp port at the back if the Mac ? Or where do I get the signal for the driver board from? It would be nice to still keep my second screen working.



[Ausdauersportler]

When I swap my old 4850 HD with a WX4150 and I install a driver Board to make the internal screen a external one, do I still have my mini dp port at the back if the Mac ? Or where do I get the signal for the driver board from? It would be nice to still keep my second screen working.

According to Apple there is no such iMac Early 2009 with an i870 as mentioned in your signature, it must be the normal Late 2009. The sockets of the Core2Duo (C2D) and i870 are simply different.

So I would expect you will get the WX4150 working without any additional driver board, just replace the GPU have a 2nd external display ready to get a picture using High Sierra (which is still broken with AMD GOP).

About the C2D Late 2009: Recently there was a post on Discord from a user claiming to have a GTX770 installed. So it might be possible to get even the 27 C2D working without this driver board trick.

The 24 Mid/Early 2009 and 21.5 Late 2009 C2D system use LVDS (not eDP as all other later iMacs) with the internal LCD and would need either a different vBIOS or the driver board mod. The driver board would be connected to the external display port - and to answer your question finally - in this case the external port would be gone.



[Ausdauersportler]

Guys, you've been hugely helpful. As Ausdauersportler suggested, after I read the Opencore post on first page, it became much more clear. I created an OCLP loader CD, which worked great. I installed Monterey, and the internal monitor now works fine. I'm planning to post a full review of the process.

Two questions for the experts:

1. After installing Monterey, I rebooted with the loader CD and attempted to hold down C so that I could select the EFI as my default boot (as per around 17:25 of the video at bottom of this message). My problem is that I can't seem to use my mouse or keyboard to select the EFI. Any ideas what's going on?

It is not about mouse and keyboard, it is simply because your GPU does not offer an EFI boot screen - you cannot press alt on boot and select the OC EFI - OC has to be booted automatically to provide the OC (emulated) boot screen. This emulated boot picker allows you to pick from different macOS and Windows boot options. And within this OC boot picker mouse and keyboard will work.

2. Now that I've upgraded to Monterey, do I need to create an updated OCLP loader CD, or will the one I create in High Sierra work?

Just write OC using OCLP to your internal SSD and keep the CD in case the internal EFI will not work. With upcoming Monterery versions (12.1 or later) there might be the need to update the internal EFI and create a new CD with the same OC new version - just read the release notes of the next upcoming OCLP versions.



[nelsondog9]

So I’d like to buy a wx4130 and have it flashed by the agreeable seller but I feel I don’t have time to read all the important info before I miss out on the auction. Would you mind terribly posting a link to what I need to forward to the seller? Thank you Mac angels 👼
Yes, I’m sucking up! Hahaha



[KennyW]

So I’d like to buy a wx4130 and have it flashed by the agreeable seller but I feel I don’t have time to read all the important info before I miss out on the auction. Would you mind terribly posting a link to what I need to forward to the seller? Thank you Mac angels 👼
Yes, I’m sucking up! Hahaha

I don't think you need to forward that to the seller. Those sellers who are not interested in Mac won't read it. Those selling to Mac users would have been a frequent visitor to this forum to pick up the latest info and vBIOS.

If you don't have the time to read all the important information on this GPU upgrade, my advice for you is not to do it.
Flashing the vBIOS to a functioning card is probably one of the easier part. Dissembling your iMac, remounting the heatsink, testing its full function are the necessary evil that demands some technical skill. Reading the 1st post in detail again & again is a pre-requisite. No shortcut unless you can find or pay someone to do it. All the important steps are listed in post 1 under the Plan of the Complete Hardware Upgrade Process. 😊



[nelsondog9]

Thanks for the advice but just look at it this way… Have you ever had your car break down and you didn’t know how to make the necessary repairs? Have you ever have a craving for a dish that you really like but don’t know how to cook? Just ask someone who knows, right? I’m sure they won’t hear them tell you ‘if you can fix your own car maybe it’s just not for you to own it.’ Or ‘maybe you just weren’t meant to have your favourite dish…’
In this case I’m only asking for the latest version of the vBIOS to avoid making a terrible mistake. I’m not very knowledgeable in this field so I’m just asking for a little help from the people who seem to be experts. After learning what I can I will help anyone I come across along the way and beyond if I can.
After 4 years of hoping and waiting for something good to come along and get my gorgeous iMac up and running again, I just need some help to give it another life.
I do realize that some of you guys here help people like myself all the time and maybe you’re getting tired of it. That’s fine but I do think there’s a need to tell people “maybe it’s not for you”. Help or don’t help, it’s your prerogative.
I spoke with the seller and he agreed to reserve a card for me until I get this sorted out. I feel a little less stressed now after paying for the card.
Thanks for taking the time to read.



[Nguyen Duc Hieu]

Thanks for the advice but just look at it this way… Have you ever had your car break down and you didn’t know how to make the necessary repairs? Have you ever have a craving for a dish that you really like but don’t know how to cook? Just ask someone who knows, right? I’m sure they won’t hear them tell you ‘if you can fix your own car maybe it’s just not for you to own it.’ Or ‘maybe you just weren’t meant to have your favourite dish…’
In this case I’m only asking for the latest version of the vBIOS to avoid making a terrible mistake. I’m not very knowledgeable in this field so I’m just asking for a little help from the people who seem to be experts. After learning what I can I will help anyone I come across along the way and beyond if I can.
After 4 years of hoping and waiting for something good to come along and get my gorgeous iMac up and running again, I just need some help to give it another life.
I do realize that some of you guys here help people like myself all the time and maybe you’re getting tired of it. That’s fine but I do think there’s a need to tell people “maybe it’s not for you”. Help or don’t help, it’s your prerogative.
I spoke with the seller and he agreed to reserve a card for me until I get this sorted out. I feel a little less stressed now after paying for the card.
Thanks for taking the time to read.

Just plain curiosity, have you read post #1 to this part (screen capture below)?
ROM1 is the latest ROM. The link is just there under your nose.

Normally we don't provide pre-purchase consulting in the public here, as each of us has his own bias in card selection. You will have to read post#1, including the performance table and make the decision yourself.

Funny enough, this thread has impacted the card sellers in China, too. They have had to refund so many cards that now they have put tripple lines in red: "This card is not for iMac, please do not buy this card to install on your iMac bla bla bla."

Other sellers asked for the laptop model of the buyer, and when knowing that I was intended to use it on an iMac, he tried to reject the order. I have had to assure him that I would not complain him or return the card if it wouldn't work on my iMac.



[Ausdauersportler]

Thanks for taking the time to read.

You just made it to my ignore list - that was fast!
