Right: first install OpenCore, then install Windows through the OpenCore boot screen, then add the separate Windows drivers from Boot Camp assistant on a flash drive.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
iM 4,1-14,4 2011 iMac Graphics Card Upgrade
- Thread starter MichaelDT
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
i would like to use high sierra in dual boot with windows. I'm not understanding anything anymore, to have them so what should I follow? thanks and sorry
Just search the internet for a guide how to install Windows 10 on iMac12,2 using Bootcamp.
I tried but when the installation starts, it gives an error, and with windws 8 it gives an error and I understand it is the hd3000, I don't know what to do anymore
I have a 2011 27" iMac (iMac12,2) 3.4 GHz/12 GB/2TB. I would like to upgrade it and give it away. I have wiped the drive and installed High Sierra. The new recipient will not be tech-savvy, so priority is to easy-of-use / minimal work to keep it running after handover.
In the Curtis Gross video he mentions the K610M being $14; the cheapest I see it for is $40.
What card(s) do you recommend for this use case? (price and reduced hassle more important than performance(
In the Curtis Gross video he mentions the K610M being $14; the cheapest I see it for is $40.
What card(s) do you recommend for this use case? (price and reduced hassle more important than performance(
Thinking about it again, the first thing should be to make sure your iMac has the latest firmware update applied. For that purpose you need to install and update High Sierra to the latest available security update.
OCLP should disable the HD3000 and hence make the Windows 8 problem disappear...
It would also make sure that audio works in Windows - which otherwise would only work using Bootcamp. So those two are your only alternatives.
I'm not sure about bootcamp install, but on UEFI Windows 10 installs OCLP disabling the HD3000 does not work, and that causes the well known driver problem BSOD on first boot with internet (as soon as Windows downloads and installs the HD3000 drivers). You have to manually disable the device or (better) create a policy to avoid any further driver installs for the iGPU.
Can someone here who recently disassembled a 2009 or 2010 27 inch iMac share what the V-Sync ribbon cable in the top left corner looks like? I need to know if the terminals on each end are on the same face of the cable or on opposite faces. The cable on my iMac is broken and I want to replace it with a longer one (which is why I can't just get an OEM replacement, so I need to match the cable type). Thanks in advance
On the 2009 27inc iMac the terminals on both ends are on the same face of the cable.
Tips for extending the life of this cable: I noticed the end that connects to the logic board started to show a lot of wear and tear and I figured I wouldn't be able to unplug and replug this end many more times. I unplug the other end that connects to the LCD and switched sides, so the cable-end that used to be on the logic board is now connected to the LCD and the cable-end that used to be on the LCD is now connected to the logic board. This way I figure the cable will last twice as long.
Oh wow, thanks for pointing that out! I was just about to purchase one with the terminals on opposite sides - after seeing some pictures online and my broken cable. You saved me just in time.
Good tip. yes. In my case, though, the issue was that the previous owner had apparently had the display fall out once - breaking both the eDP display connector off of the mainboard and breaking the end of the v sync cable :-(
ok now I do not know what to do, I have Windows 8 installed in dual boot and I have not yet made the internet access, and I tried to disable the hd3000, I attacked the network and unfortunately still finds it in the updates. so as soon as you install it will not work anymore, and in the site OC in the end say to follow this method, I have not yet installed OC. NOW I have a doubt I tried from a USB pass the drivers for the 880m but when the installation starts it says it does not detect hardware components, thank you for the help
Last week I broke off some small pieces of 3 cable plugs in my iMac 27 from 2010 when I had to remove the mother board for connecting a second SATA cable to second port. At least one of them (USB/BT) I couldn't remove without risking to break it completely. So I left it plugged in and workaround....everything is still working. However it is obvious that after more then 10 years the softeners in the plastic are gone due to heat etc... this was of an eye opener to me and showed me that everything has a limited lifetime and opening and closing is getting more an more risky 😀

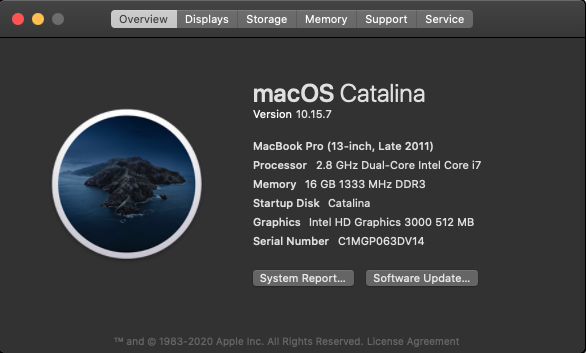

try this from spoiler maybe it will work for you for me with Catalina installed - works well
iMac 2011(27 with i5) GPU upgrade to w6170m experience
Hello, Here what I did: iMac 27 2011 with upgraded videoCard to w6170m with a flashed GOP Bios from the post about gpu upgrade + hdd replaced to ssd The goal: 1. replace faulty video card and get black theme 2. fully working at least one external display 3. fully working airplay Here what I...
forums.macrumors.com
You have to create and enable the group policy before windows connects to the internet. I wrote about it on a past post.
This is how it looks in my (spanish) windows 10:
Hi will this work with quadro k3100m for brightness control I Windows and were do I add the dword in registry with regedit.
Friends, I'm new to the forum. Video card 6750 (512) burns as often as 6970? I read on the Internet that the apple complained only about 6970 (1gb) The 6750 (512) card is also bad and marriage? I work in an office and want to understand how reliable the 6750 card is. Thank you
Here:
Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Video\{XXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX}\0000
where XXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX is te registered active graphics card
Yes, it is exactly the same procedure. I'm pretty sure it's also somewhere in this thread...
On the very first post within the short Windows installation section and the best thing is, the video linked in there was made by a guy from Italy in Italian language...Yes, it is exactly the same procedure. I'm pretty sure it's also somewhere in this thread...
Sorry for the lame answer, but the docs are hidden on the very first post of this thread. All macOS versions since 10.8.x should work, use OCLP for any version post High Sierra.
