iM 4,1-14,4 2011 iMac Graphics Card Upgrade

[Heindijs]

Just for verification:

1. Are you sure that you have got the correct LVDS vBIOS from Ausdauersportler?

https://forums.macrumors.com/threads/2011-imac-graphics-card-upgrade.1596614/post-31995643

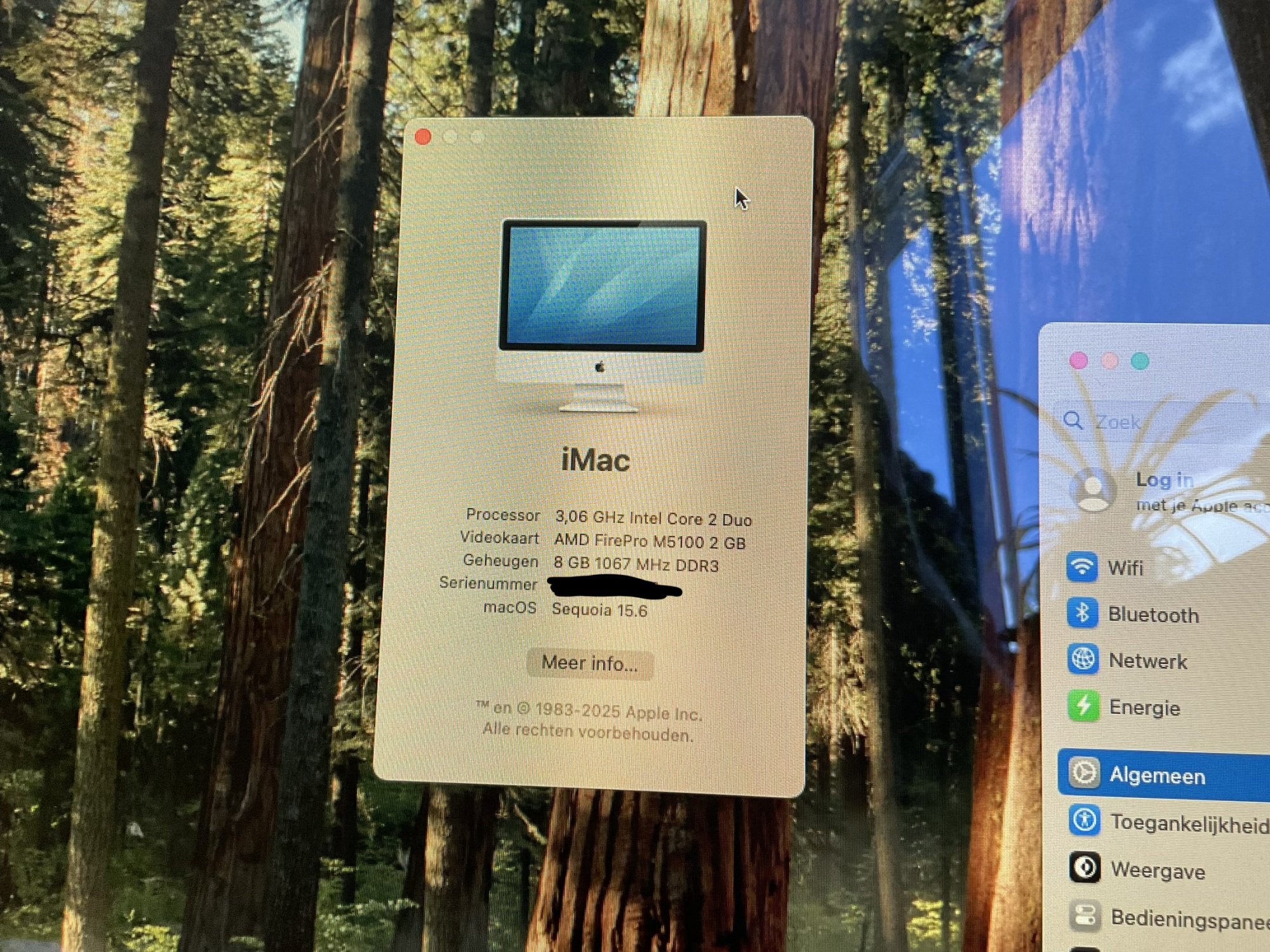

2. Are you testing the 21.5in LCD panel with eDP input on an early iMac 2009 with LVDS output?

It's a 24" model so it has LVDS right?

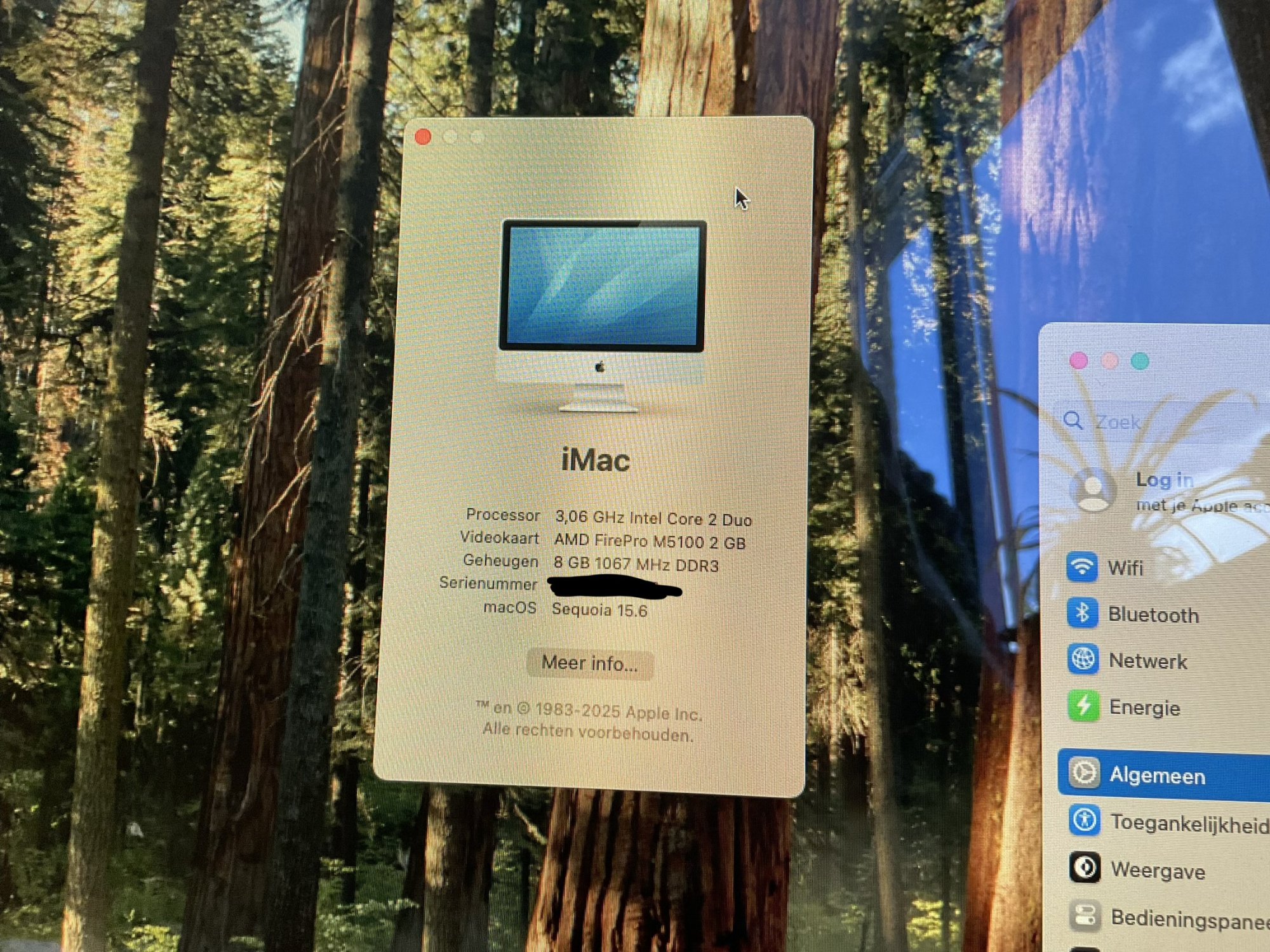

I used M5100-EnableGop91-LVDS.rom



[Tahoee]

It's a 24" model so it has LVDS right?
I used M5100-EnableGop91-LVDS.rom

If you've tried every thing, The GPU is faulty. For a maybe temporary fix, you can reflow the gpu using an oven at 190°C (375°F) for 10 - 12 minutes.. Good luck tho


First time commenting. :3



[Heindijs]

If you've tried every thing, The GPU is faulty. For a maybe temporary fix, you can reflow the gpu using an oven at 190°C (375°F) for 10 - 12 minutes.. Good luck tho


First time commenting. :3

I've tried that already indeed. Was of no use sadly.



[drew0986]

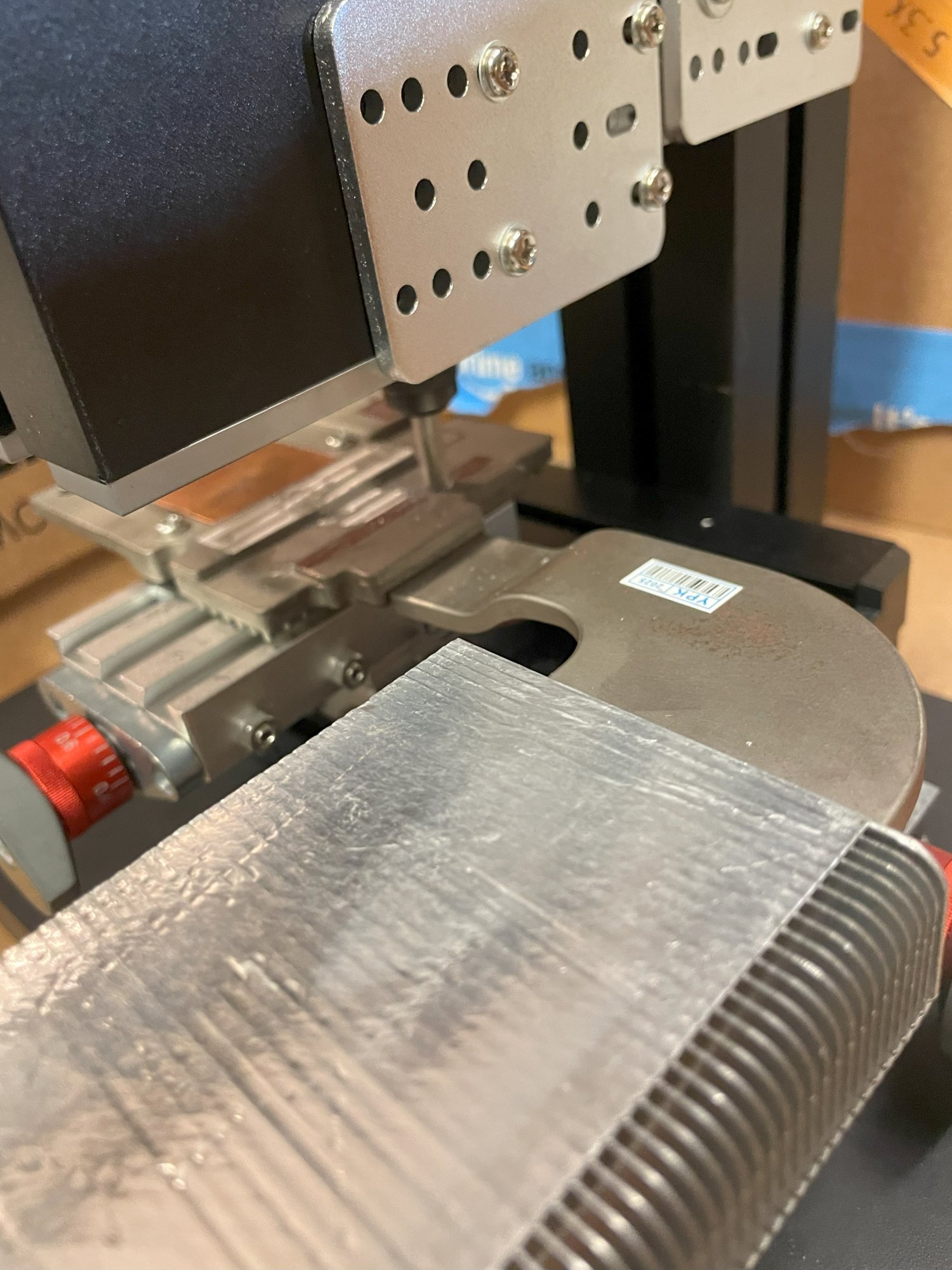

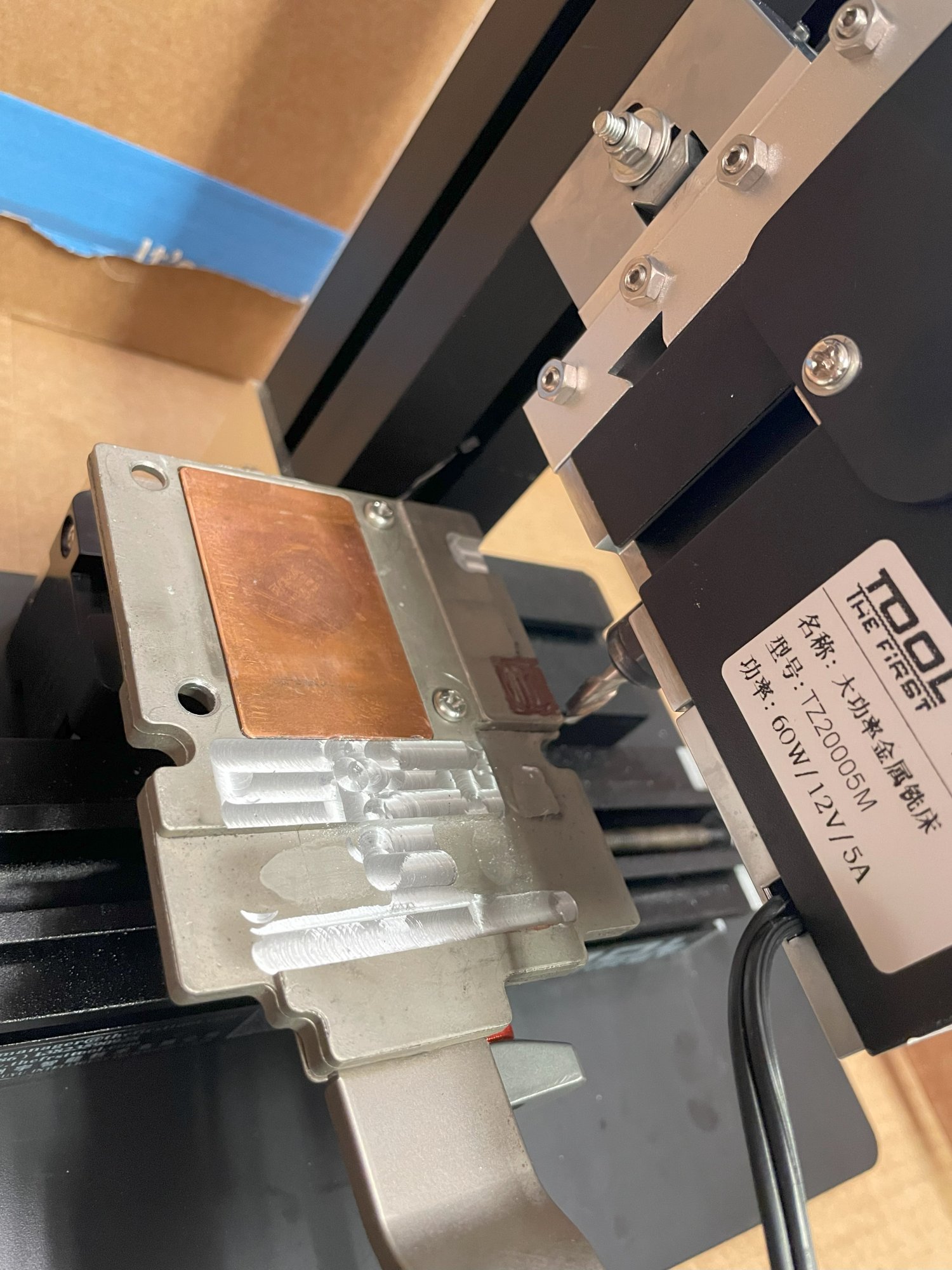

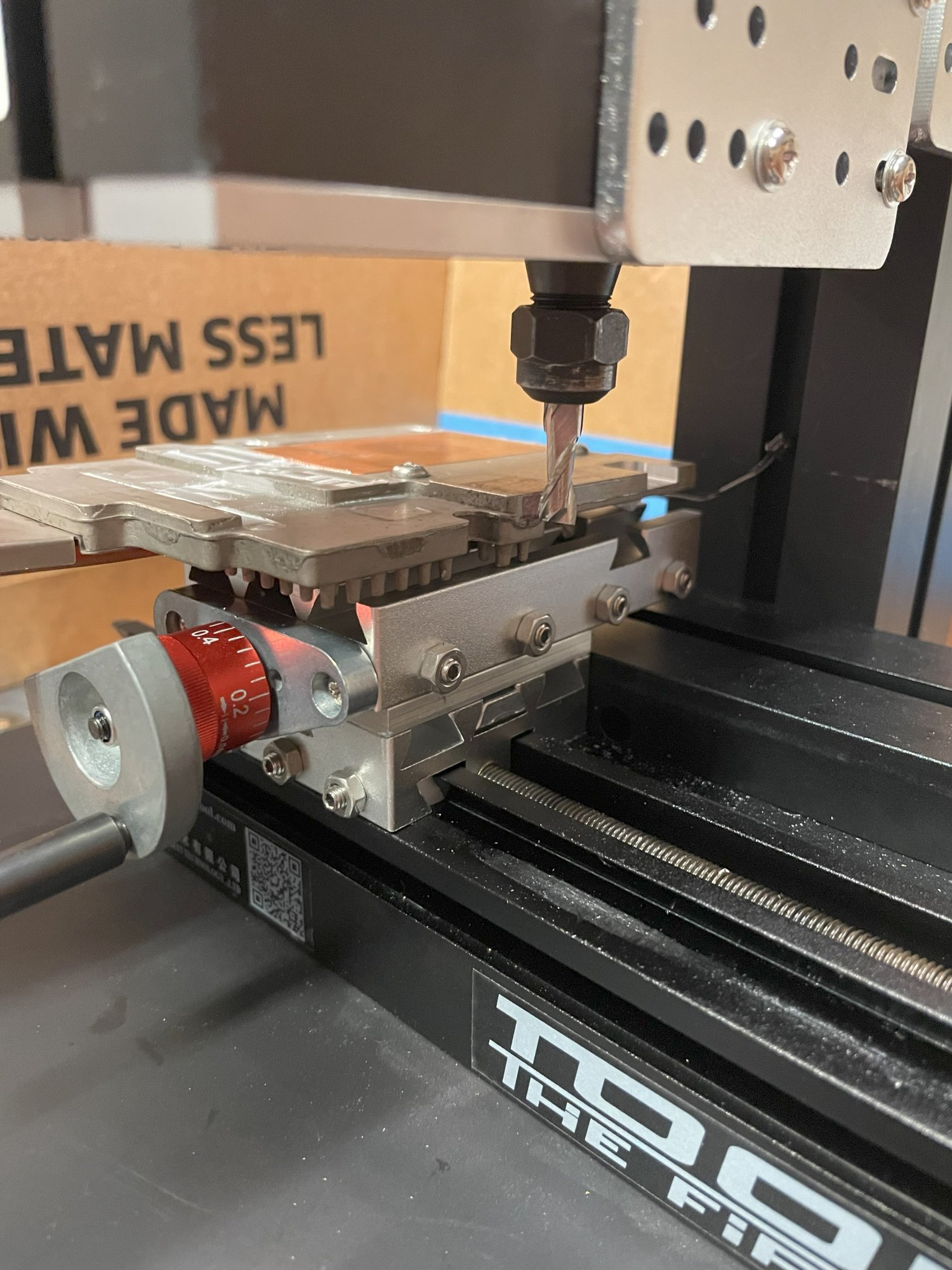

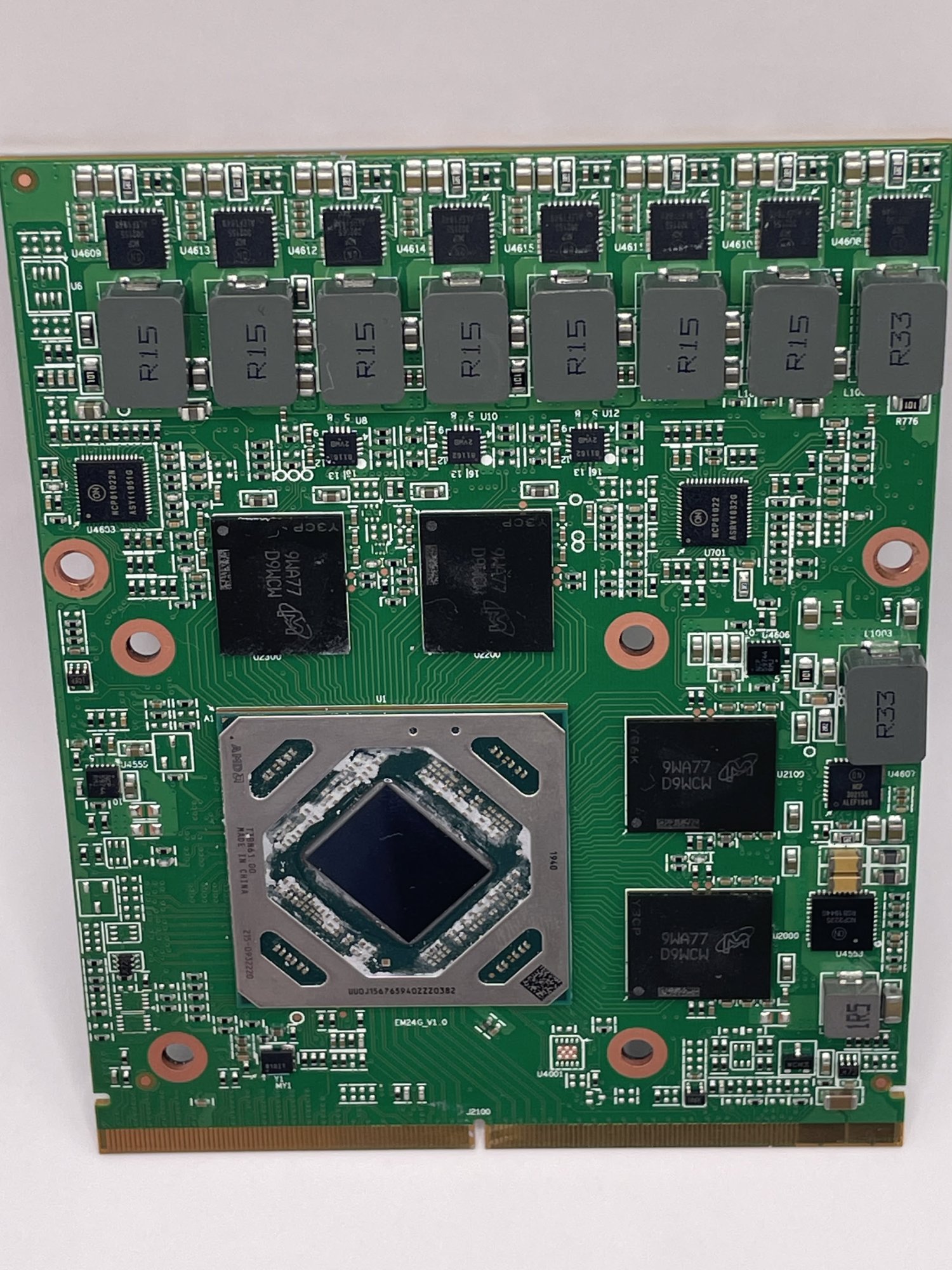

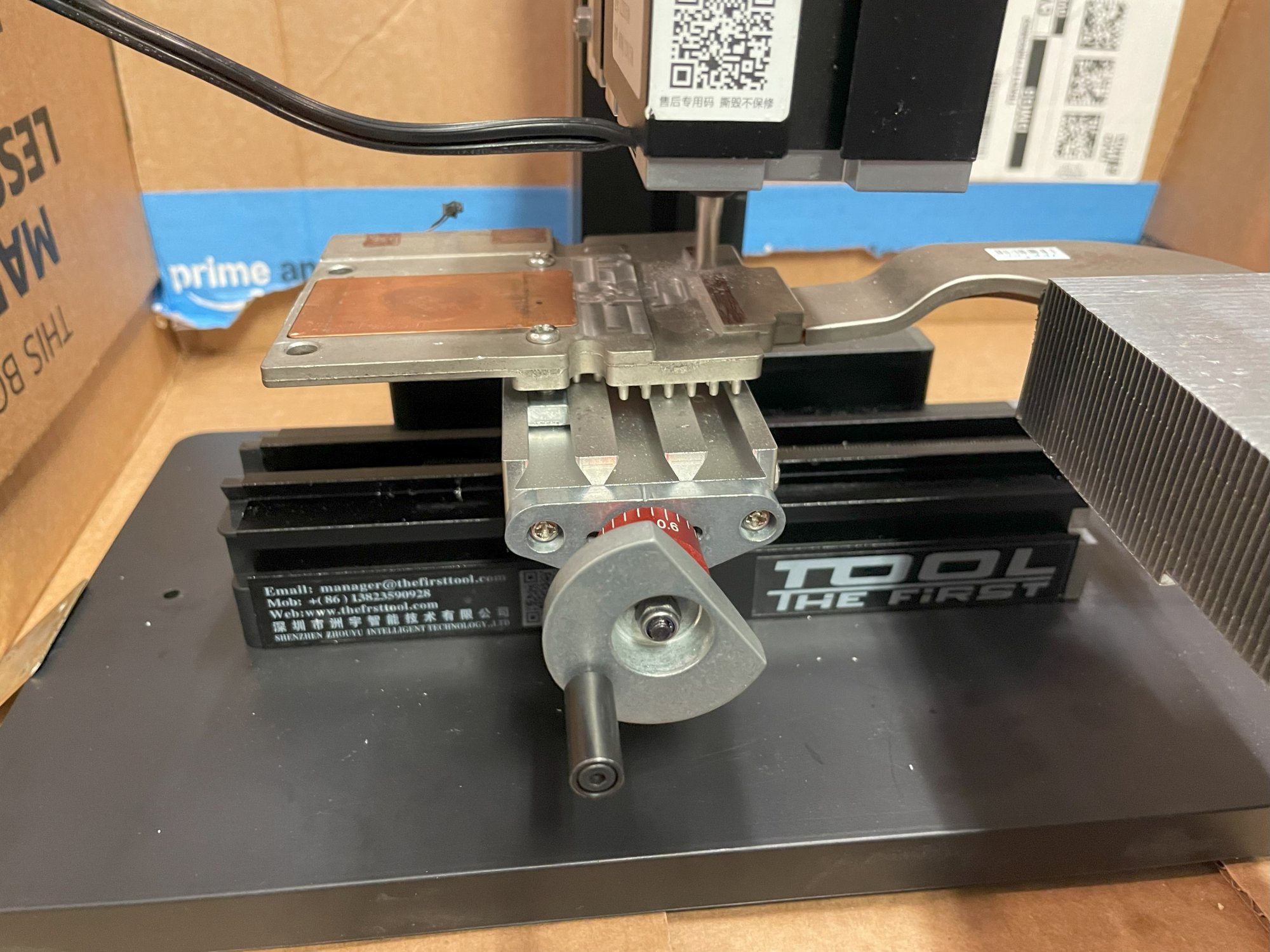

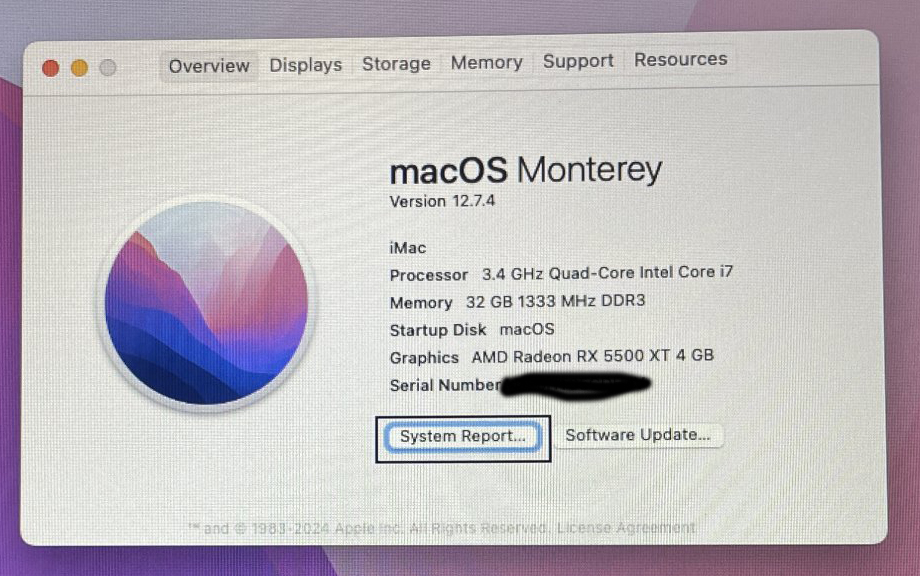

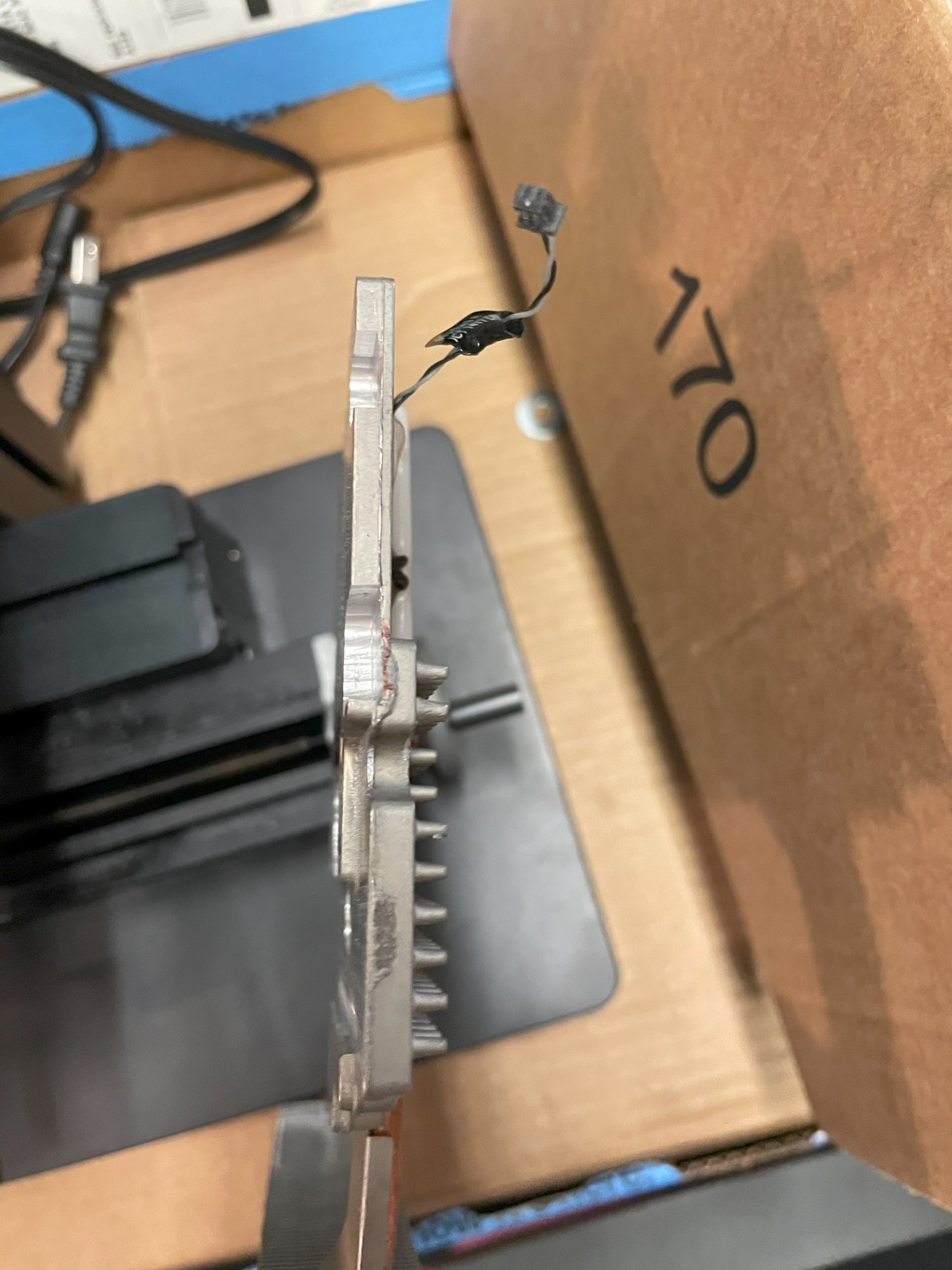

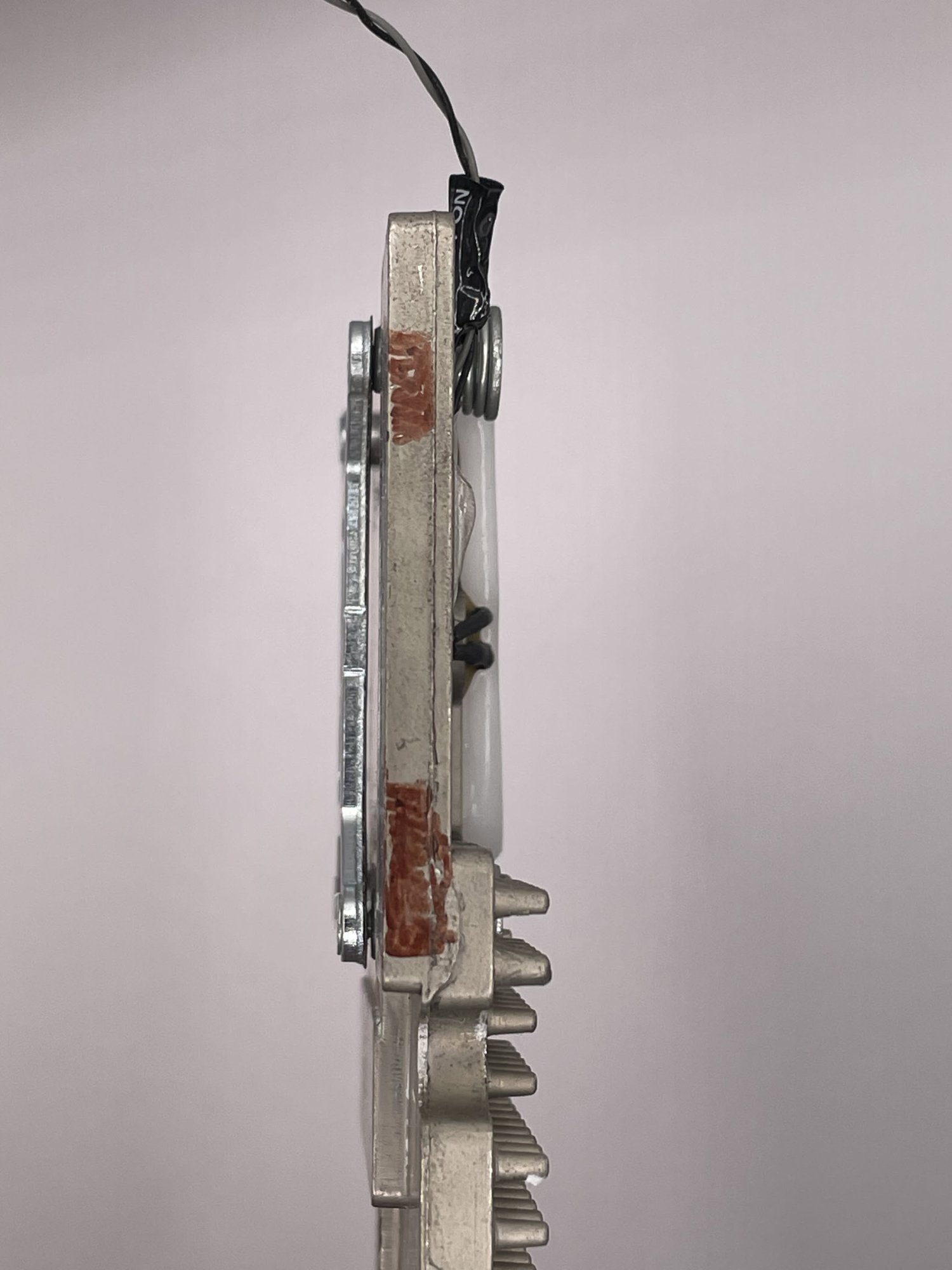

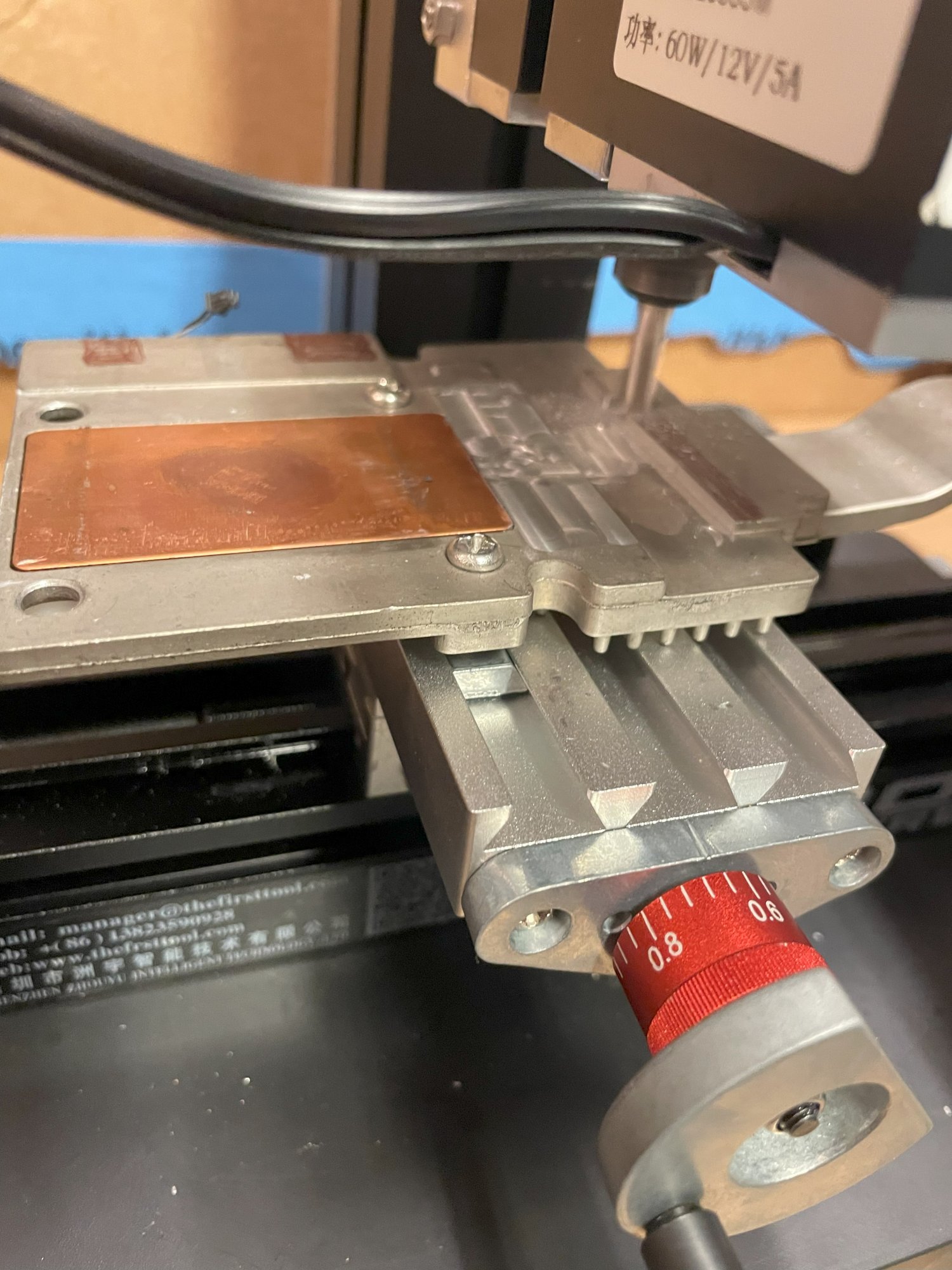

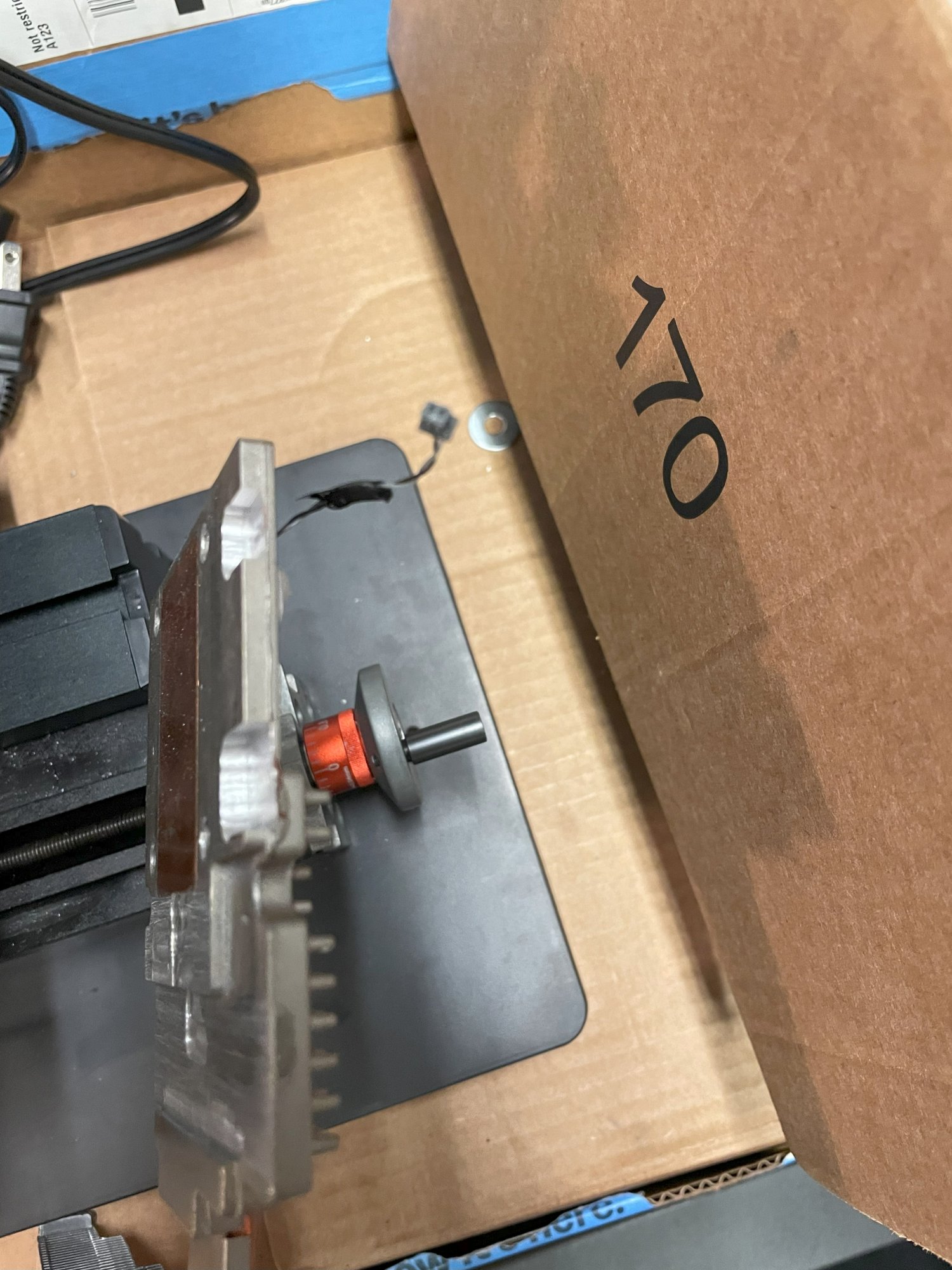

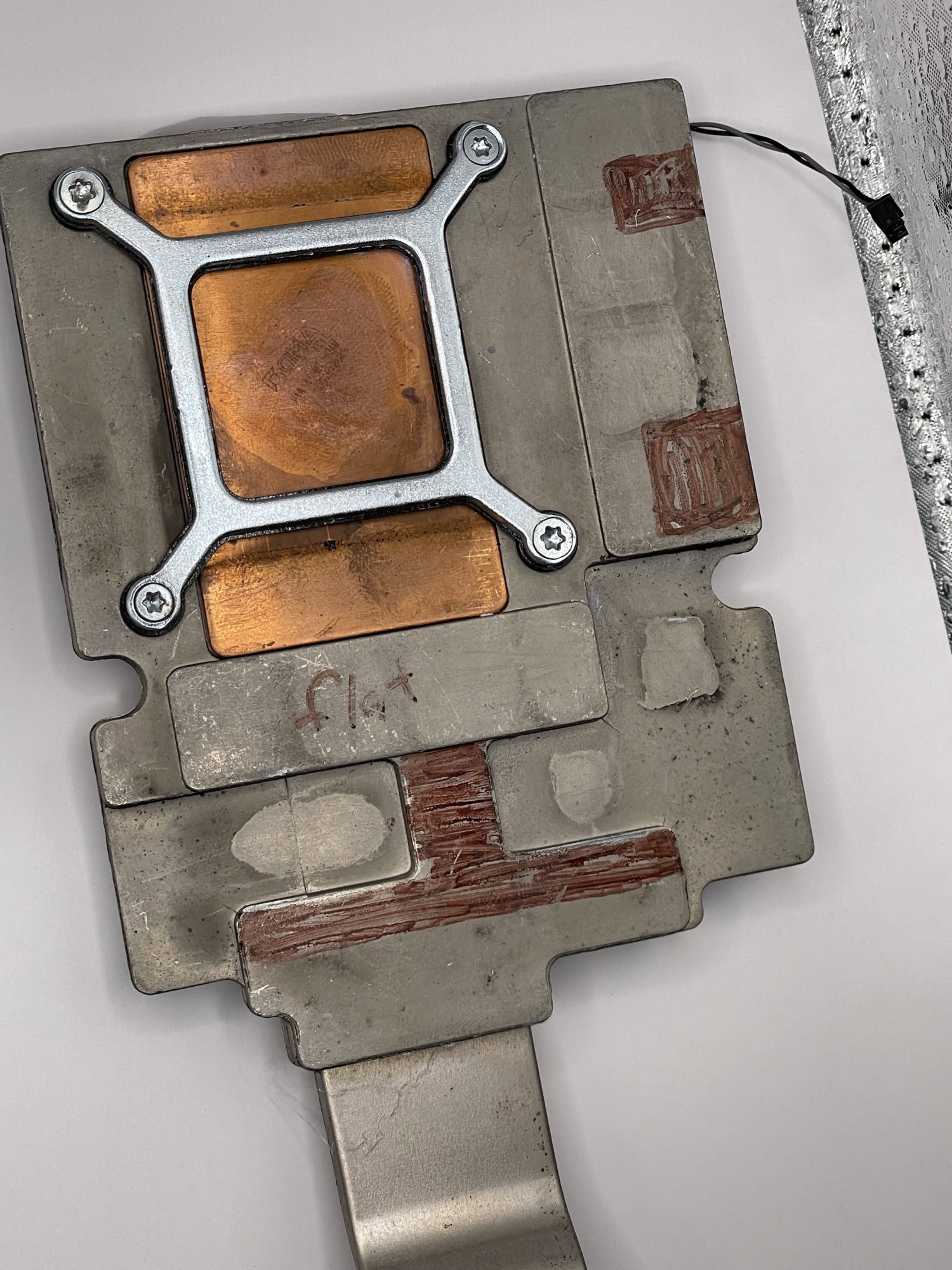

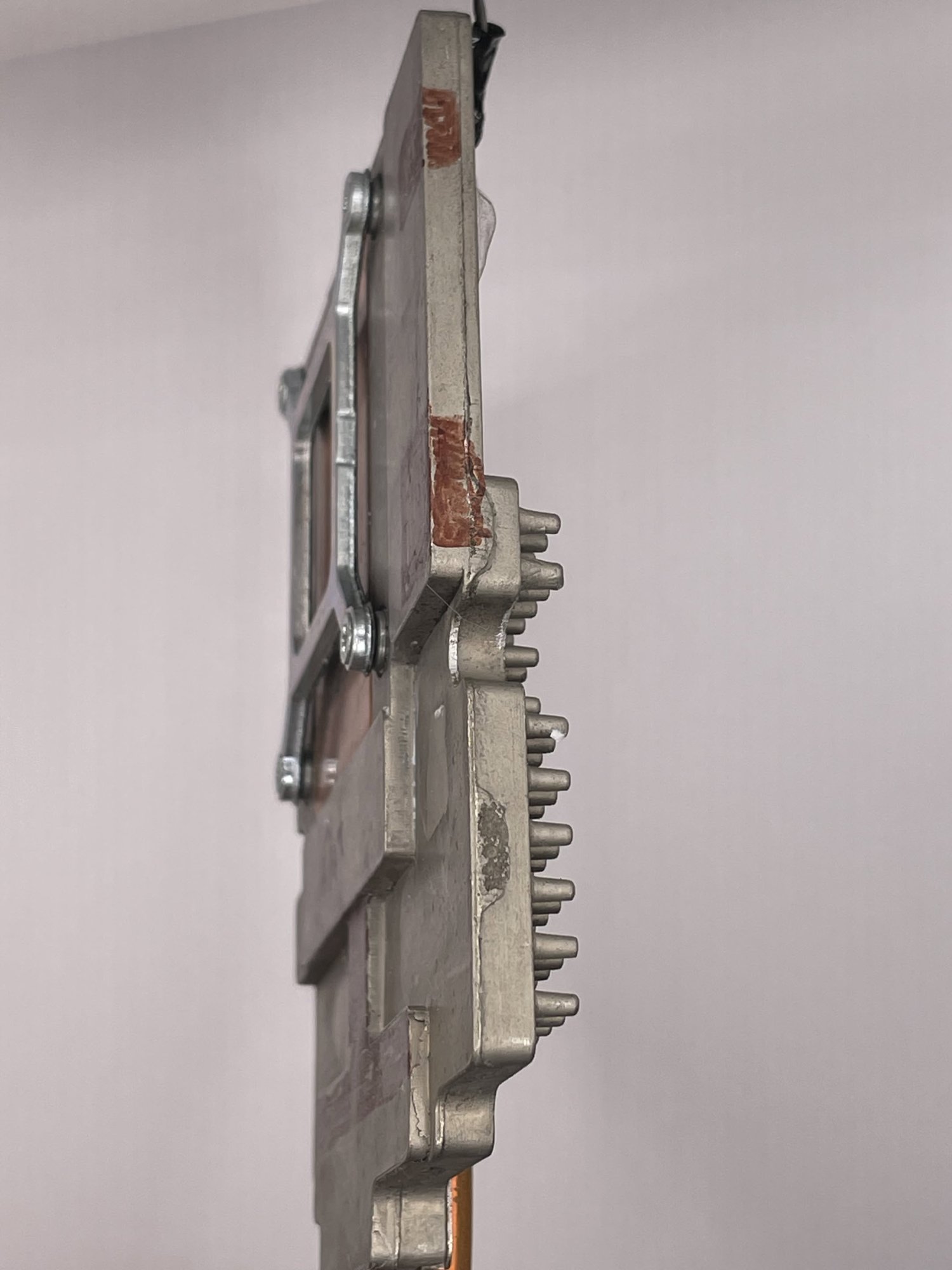

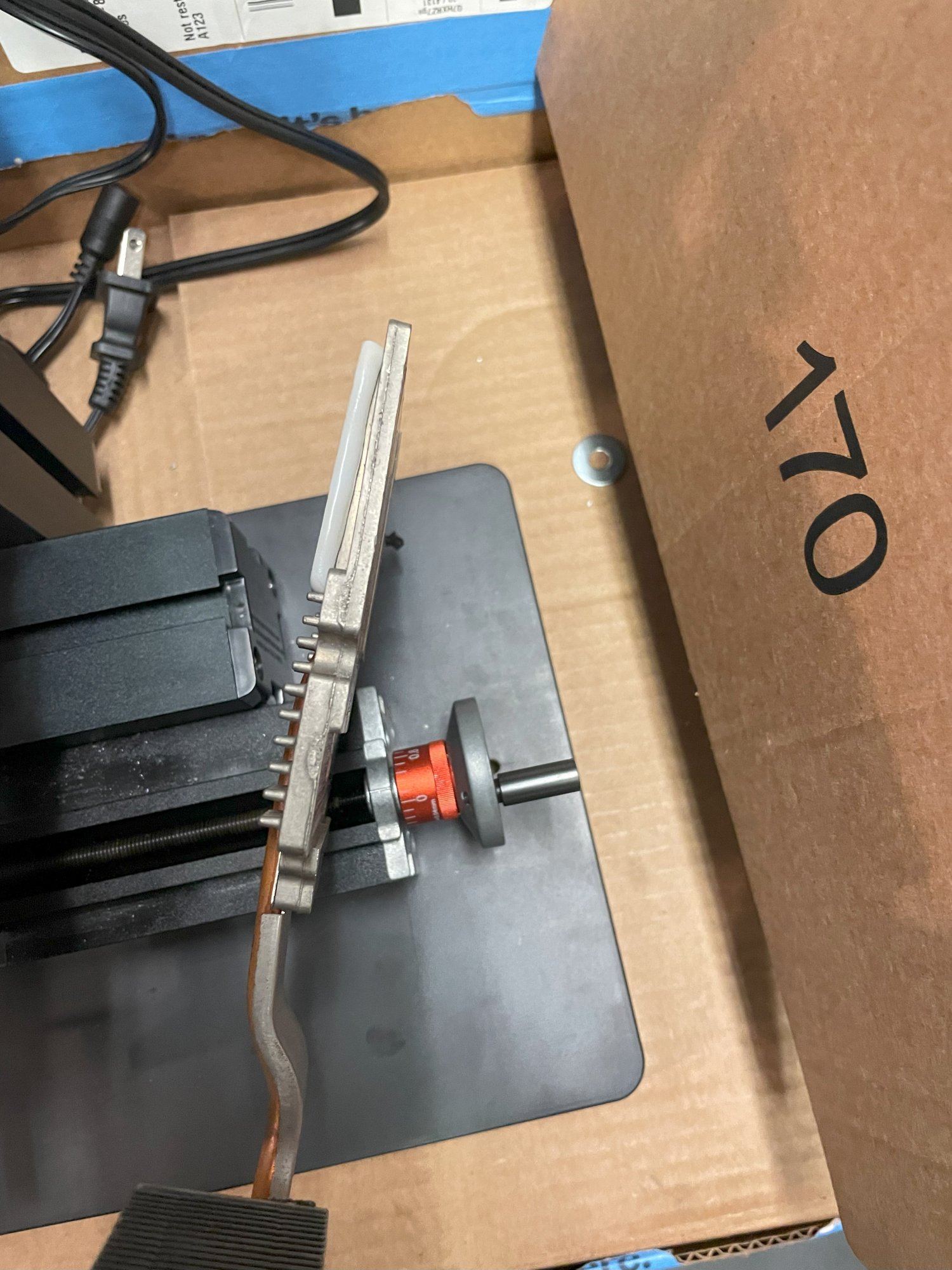

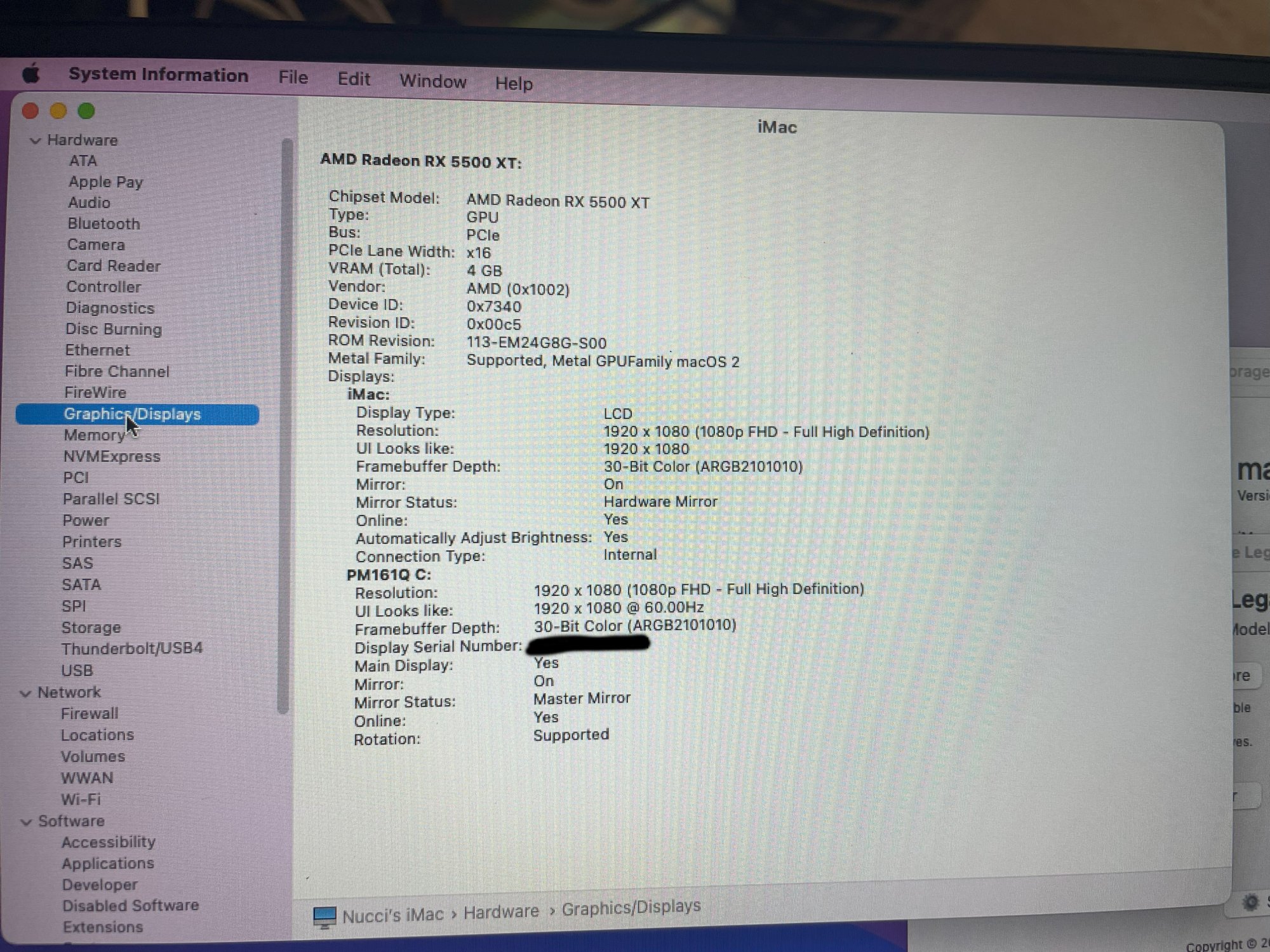

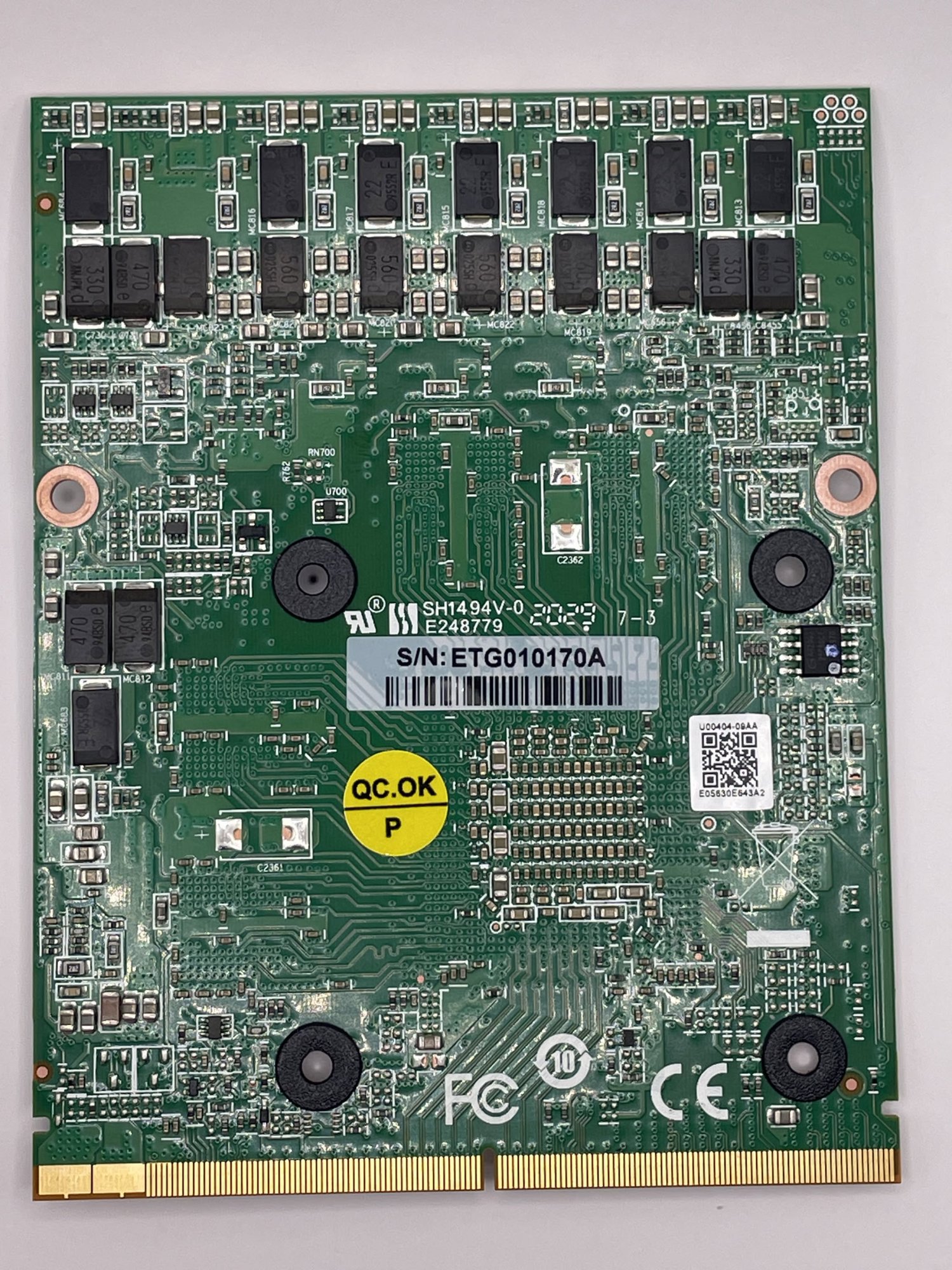

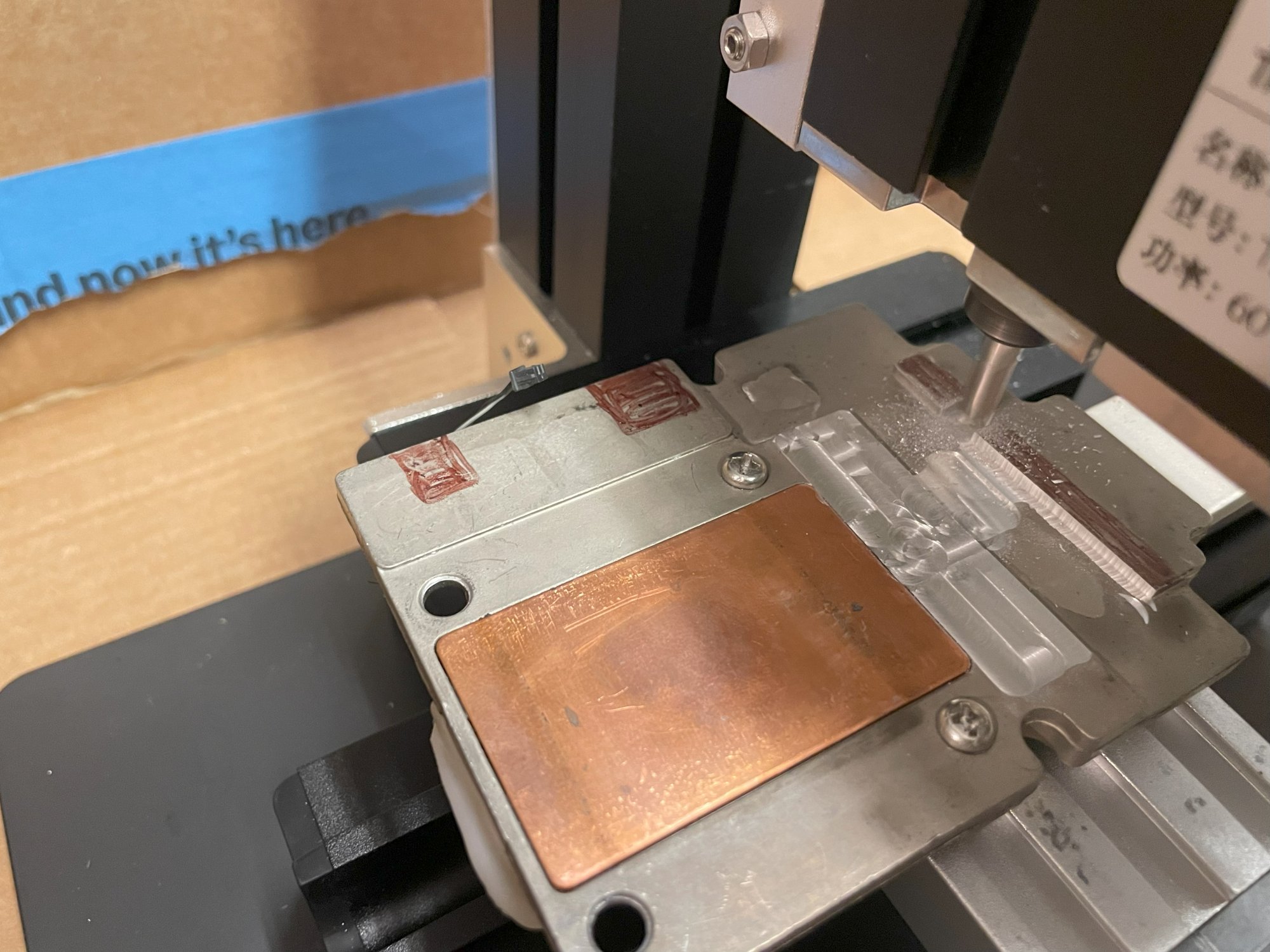

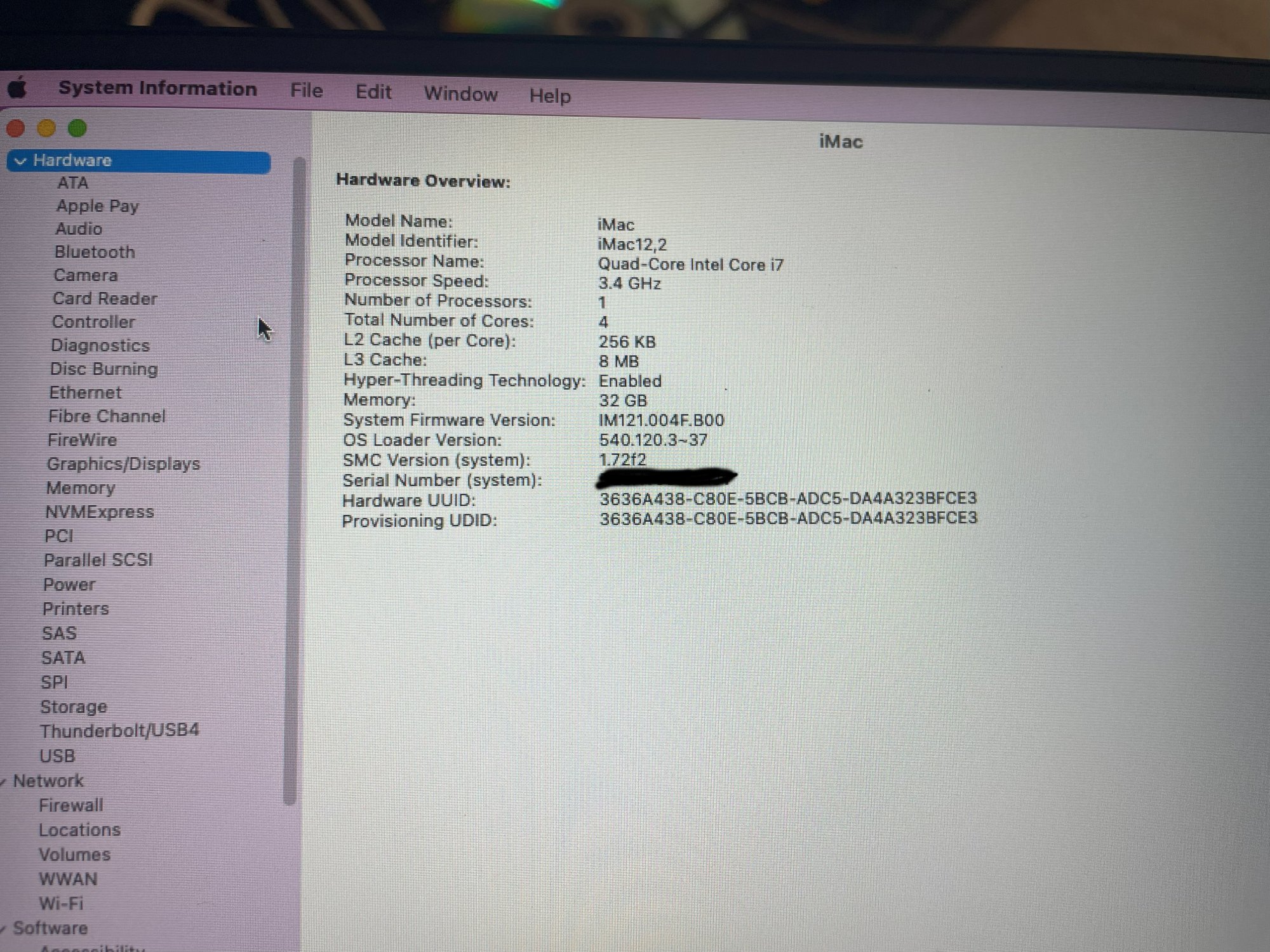

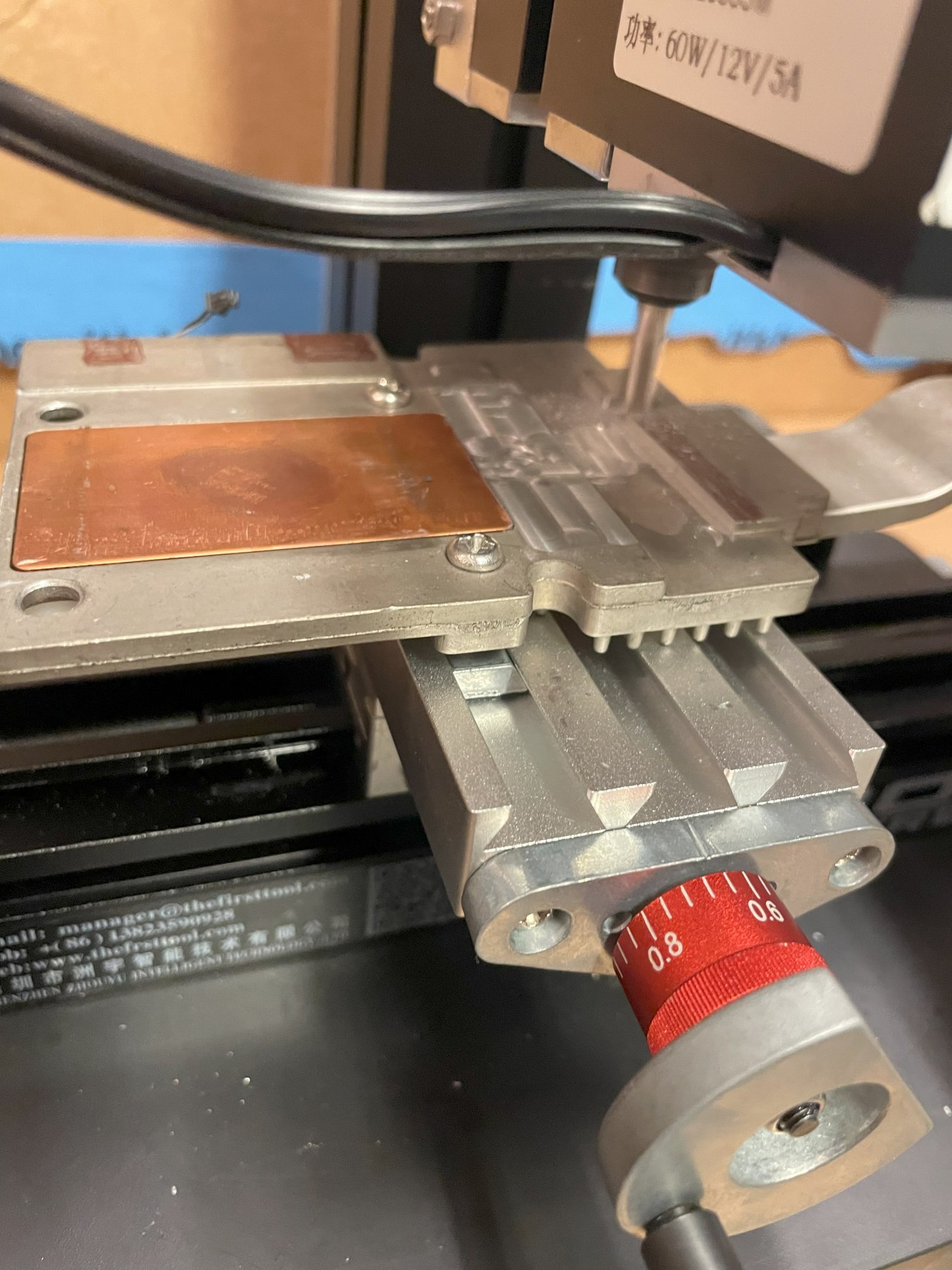

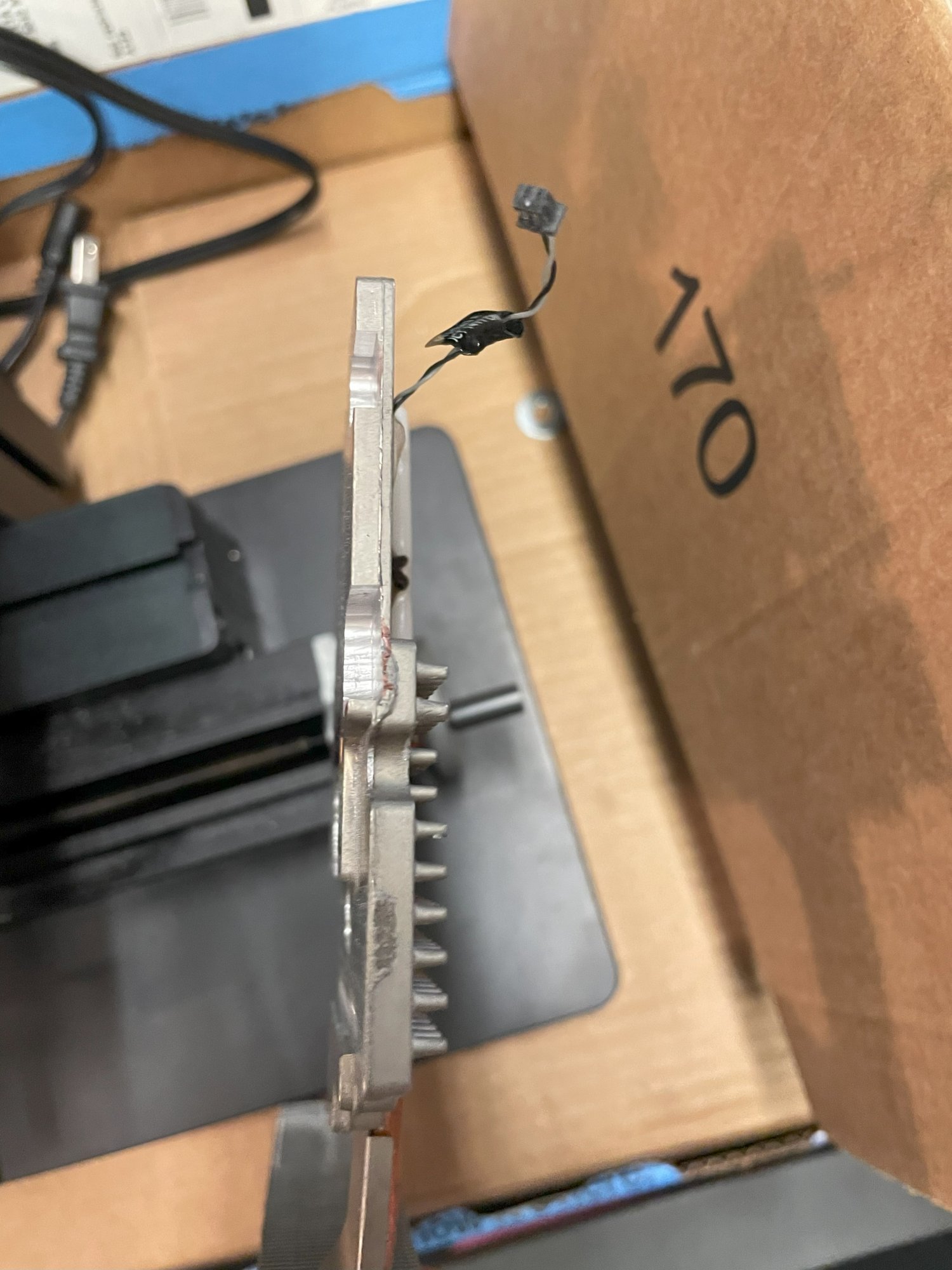

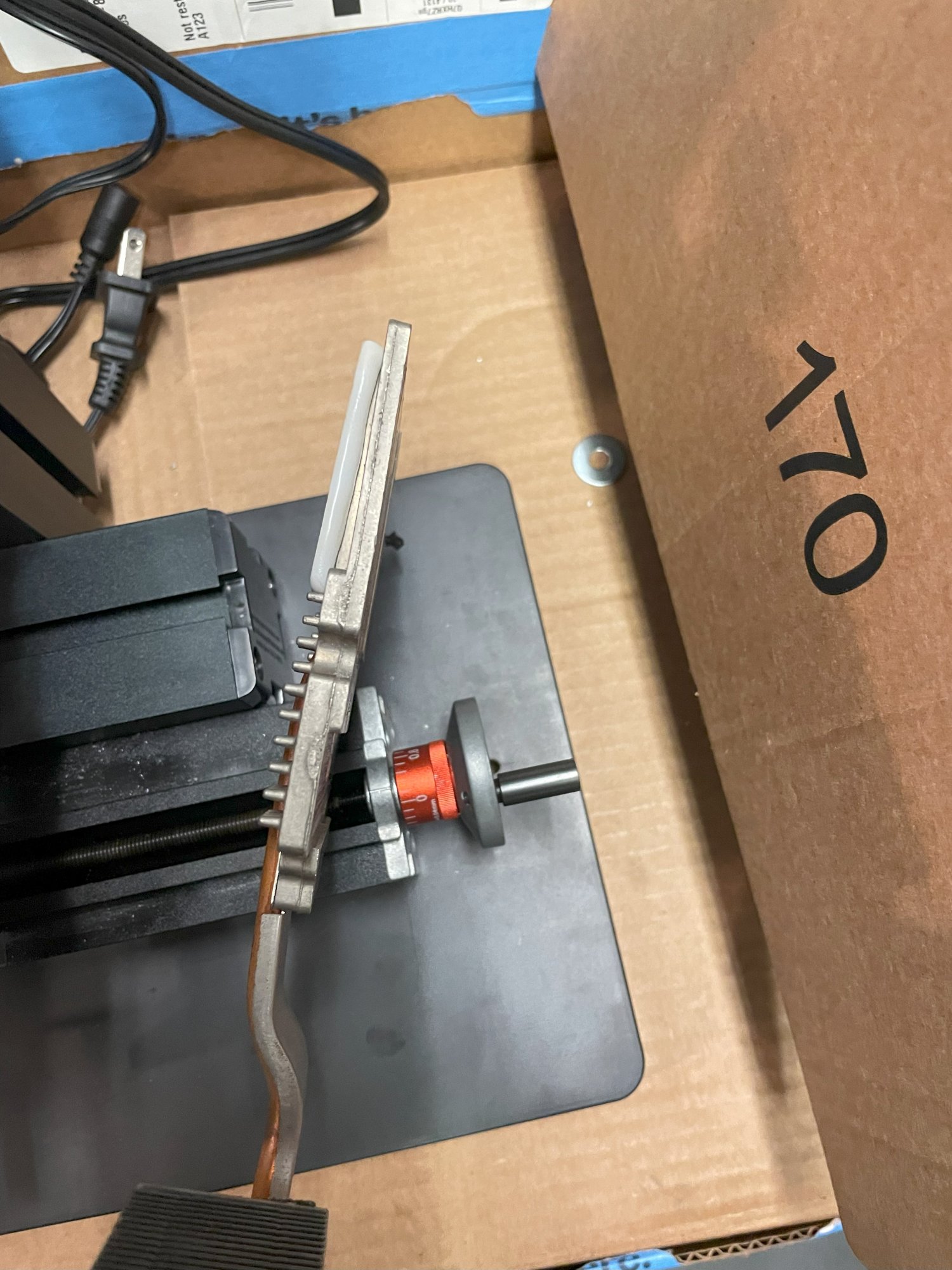

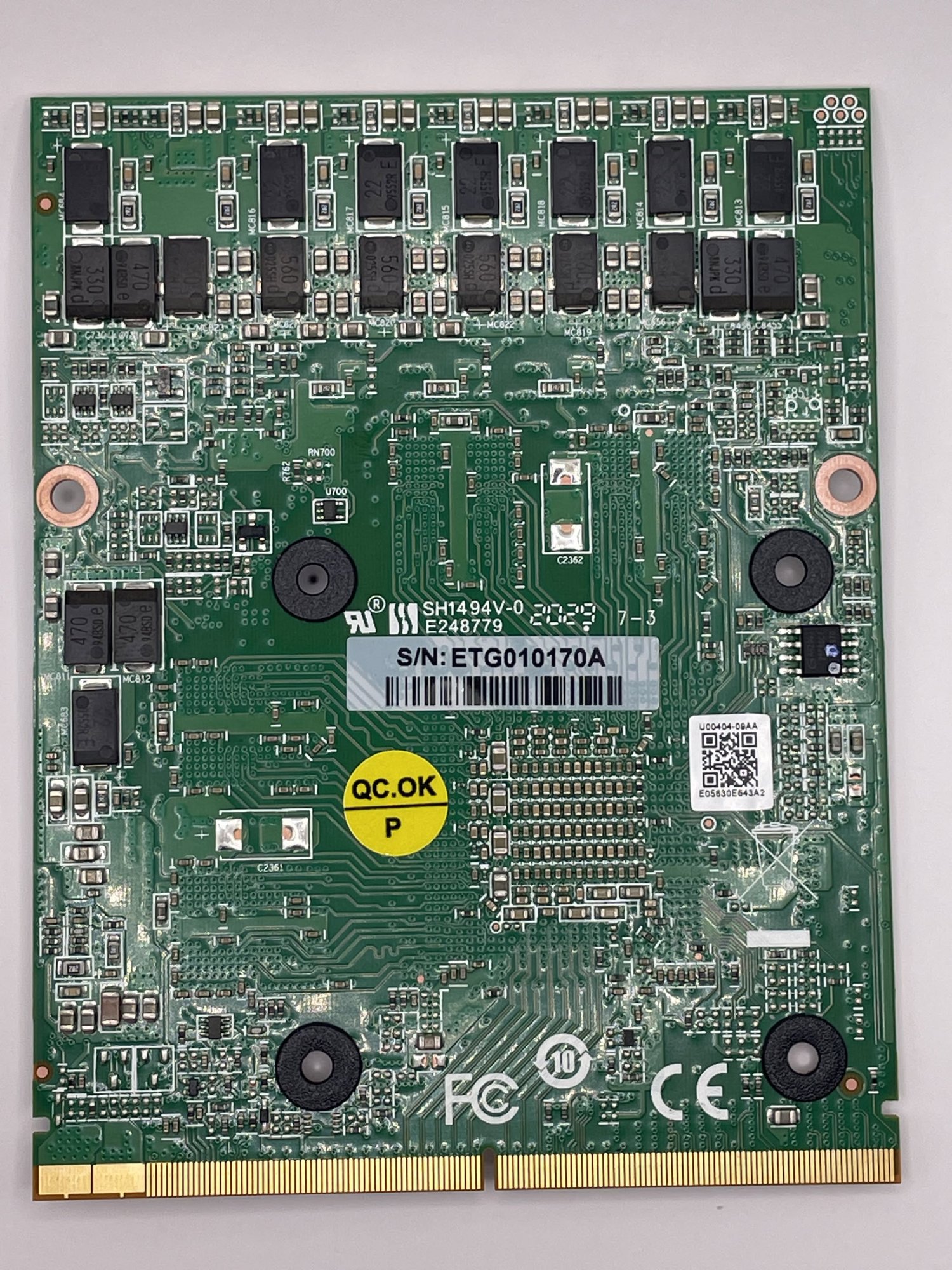

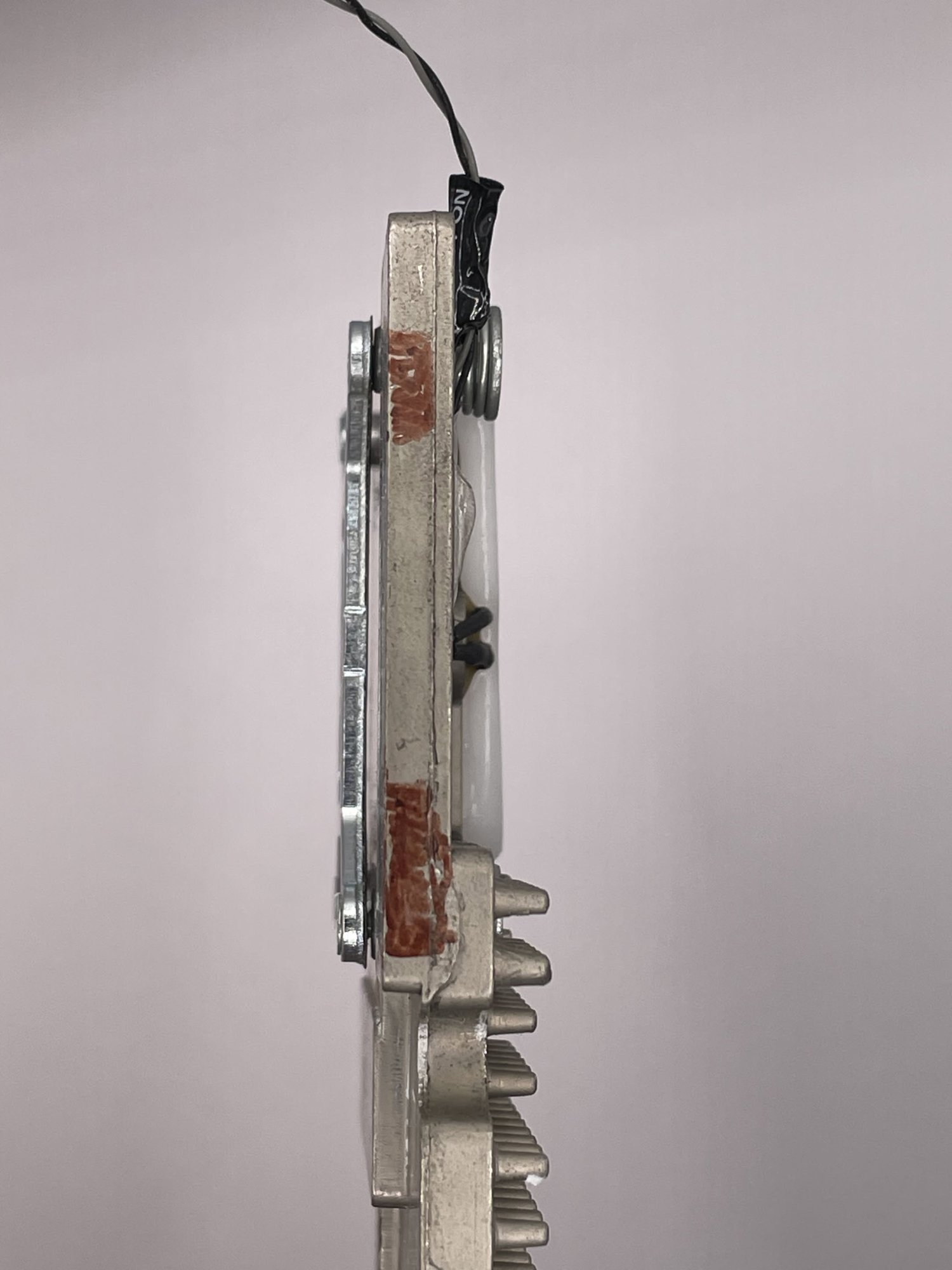

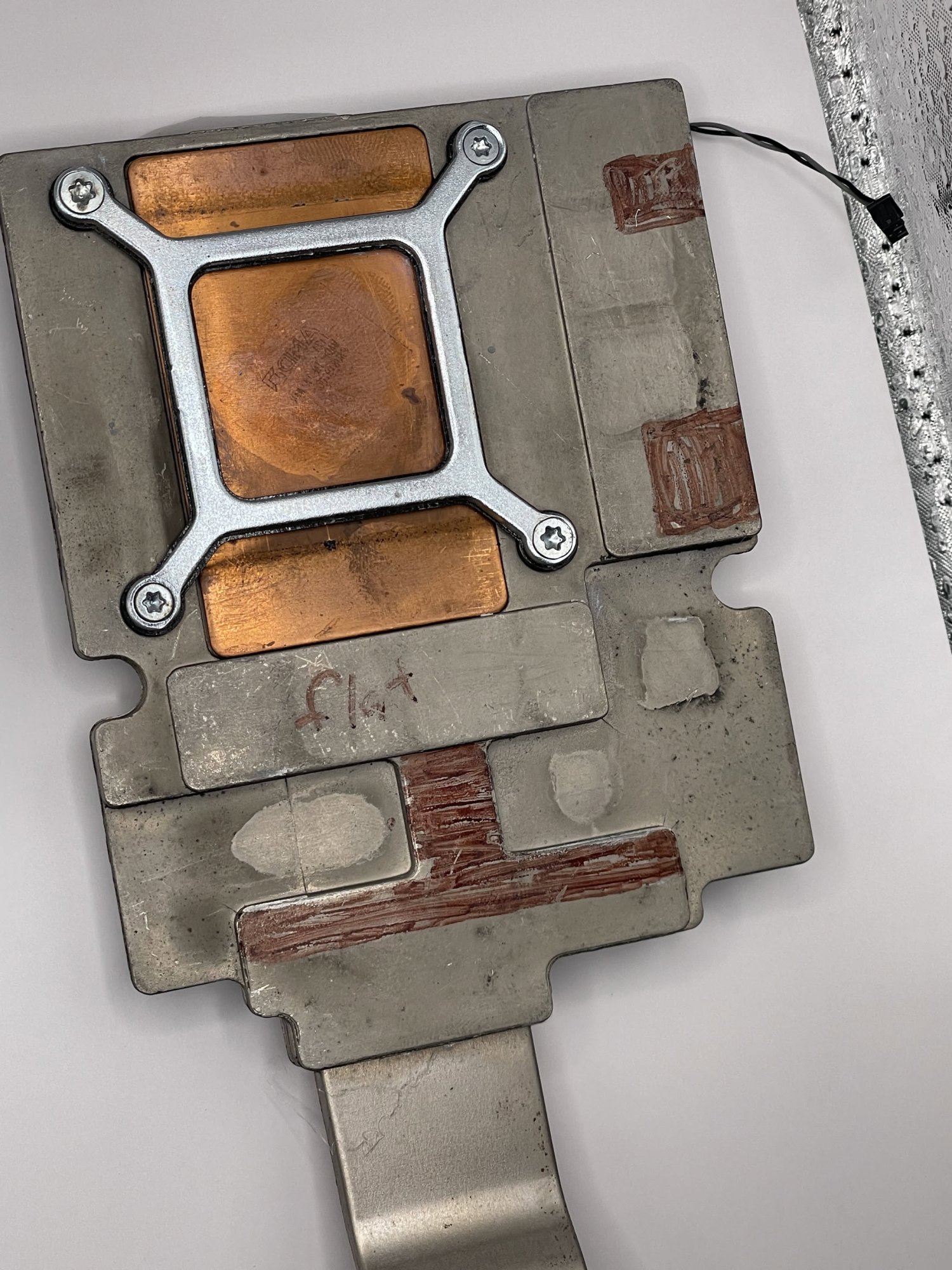

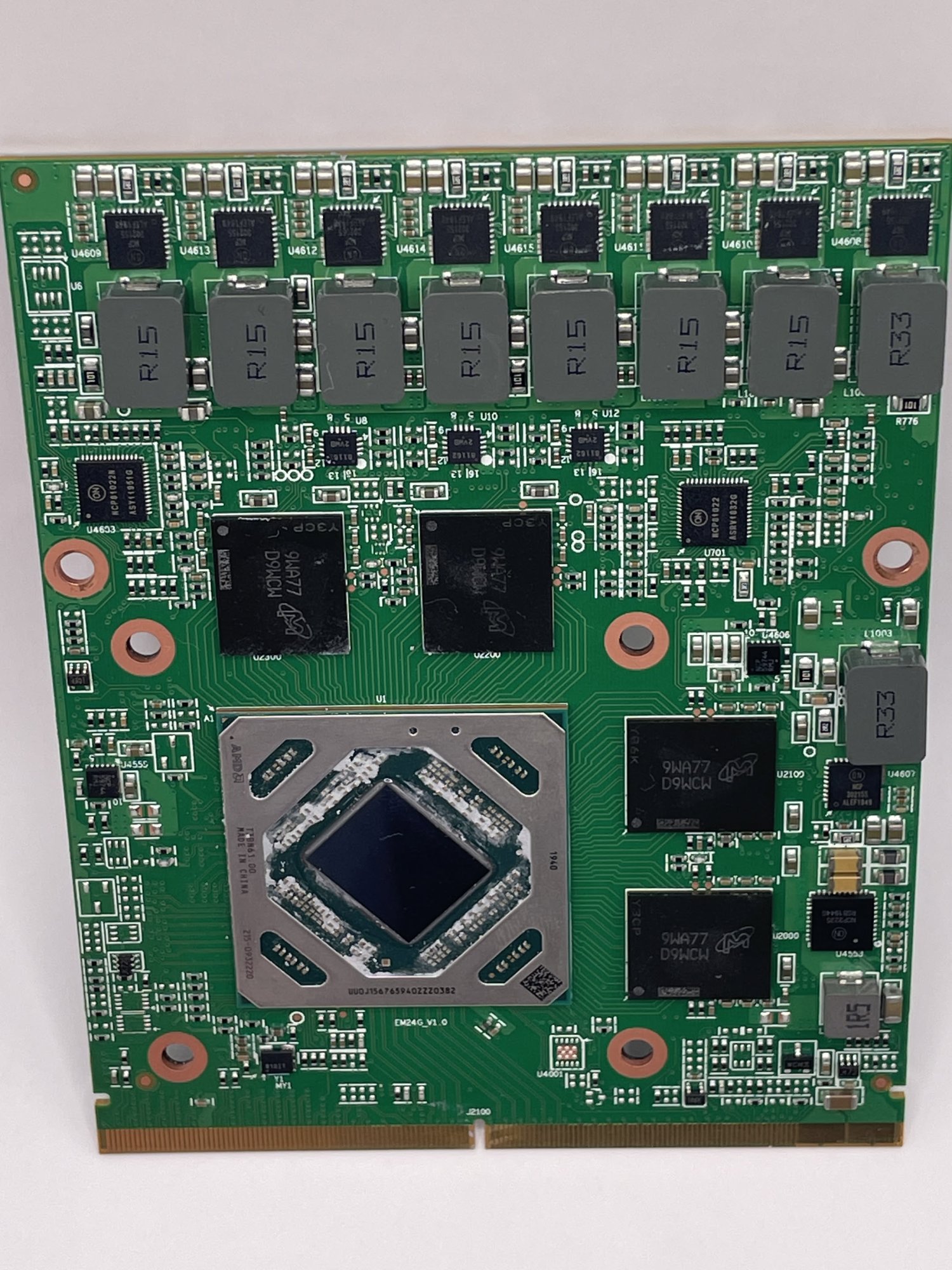

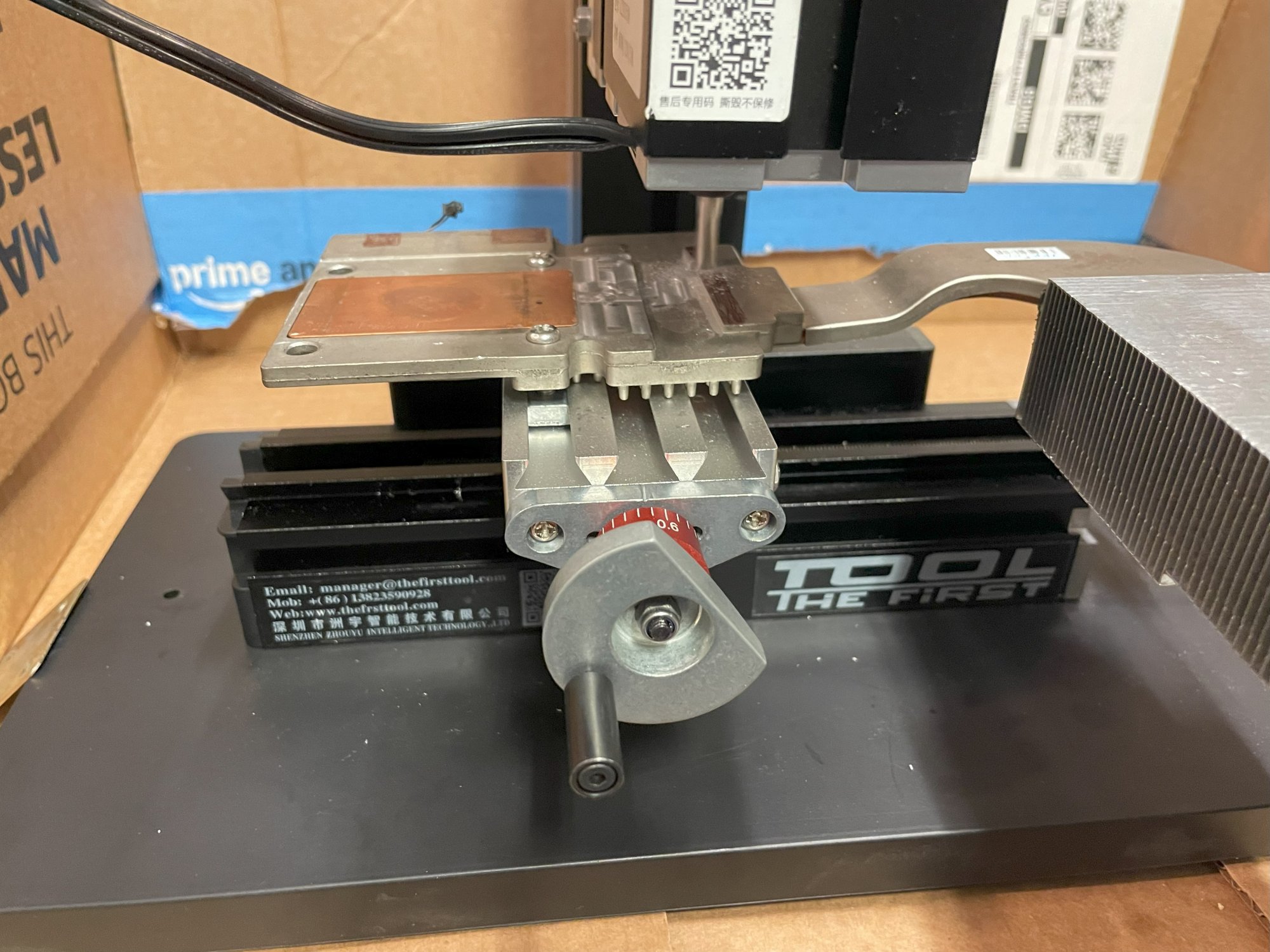

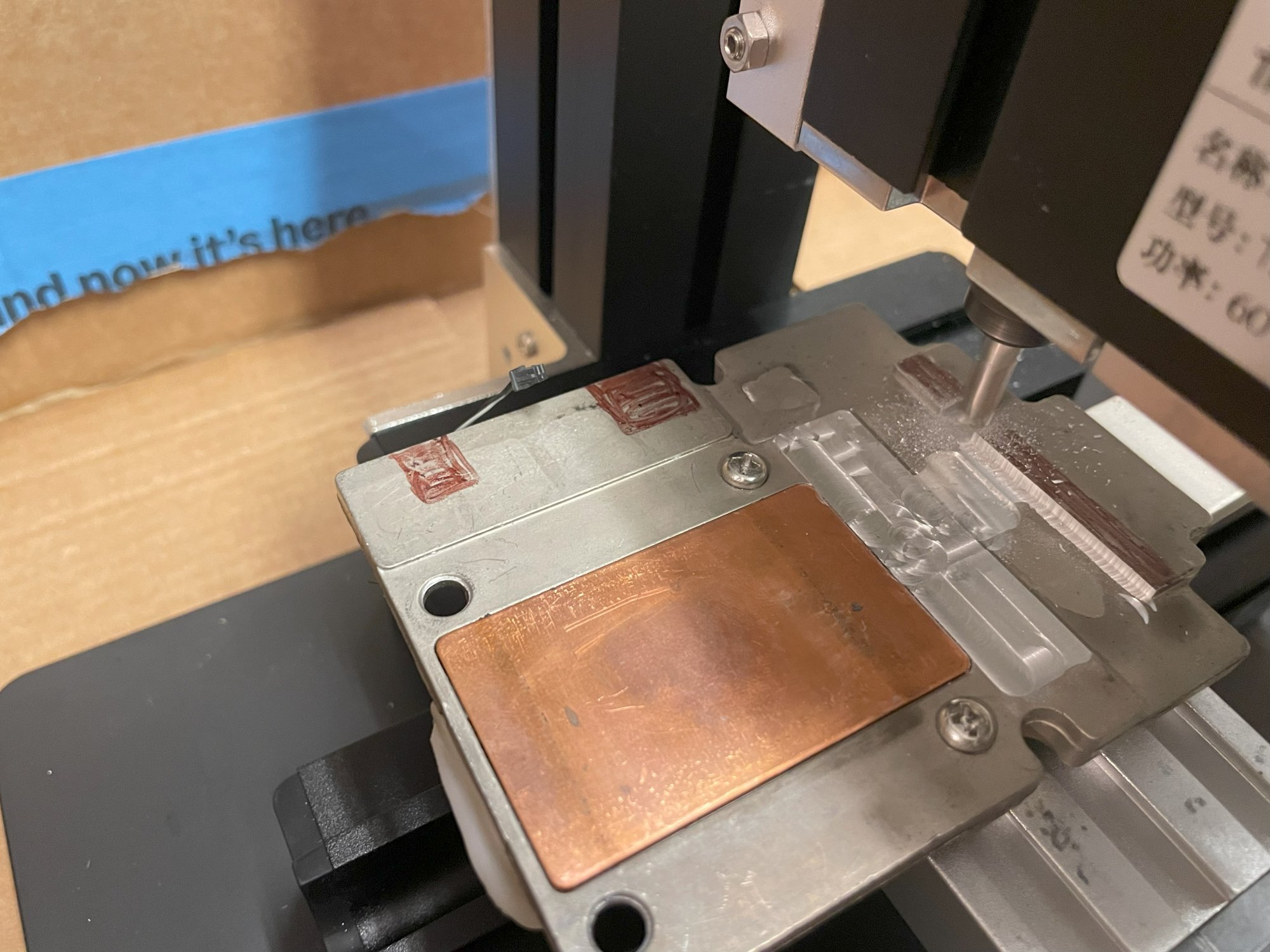

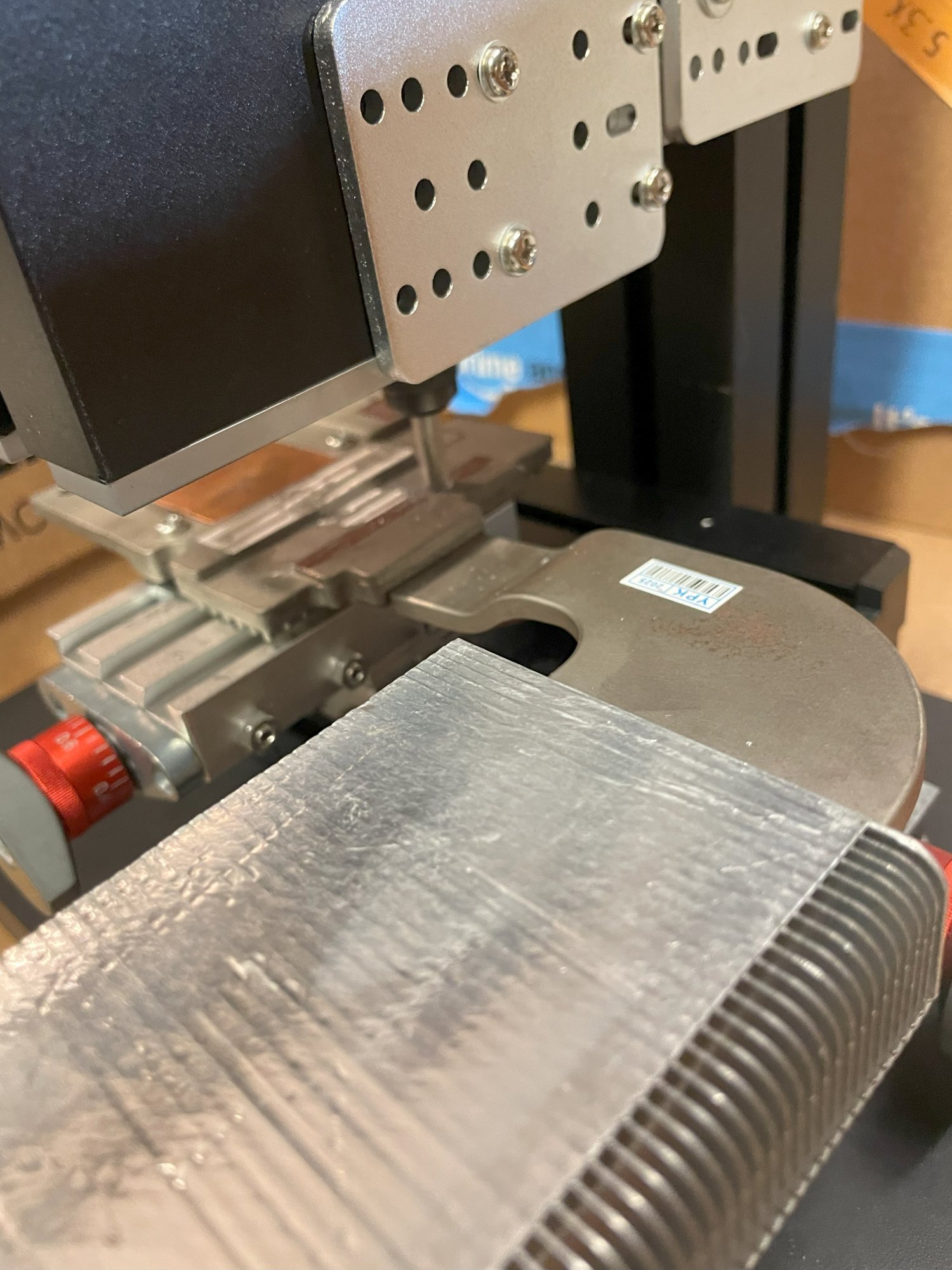

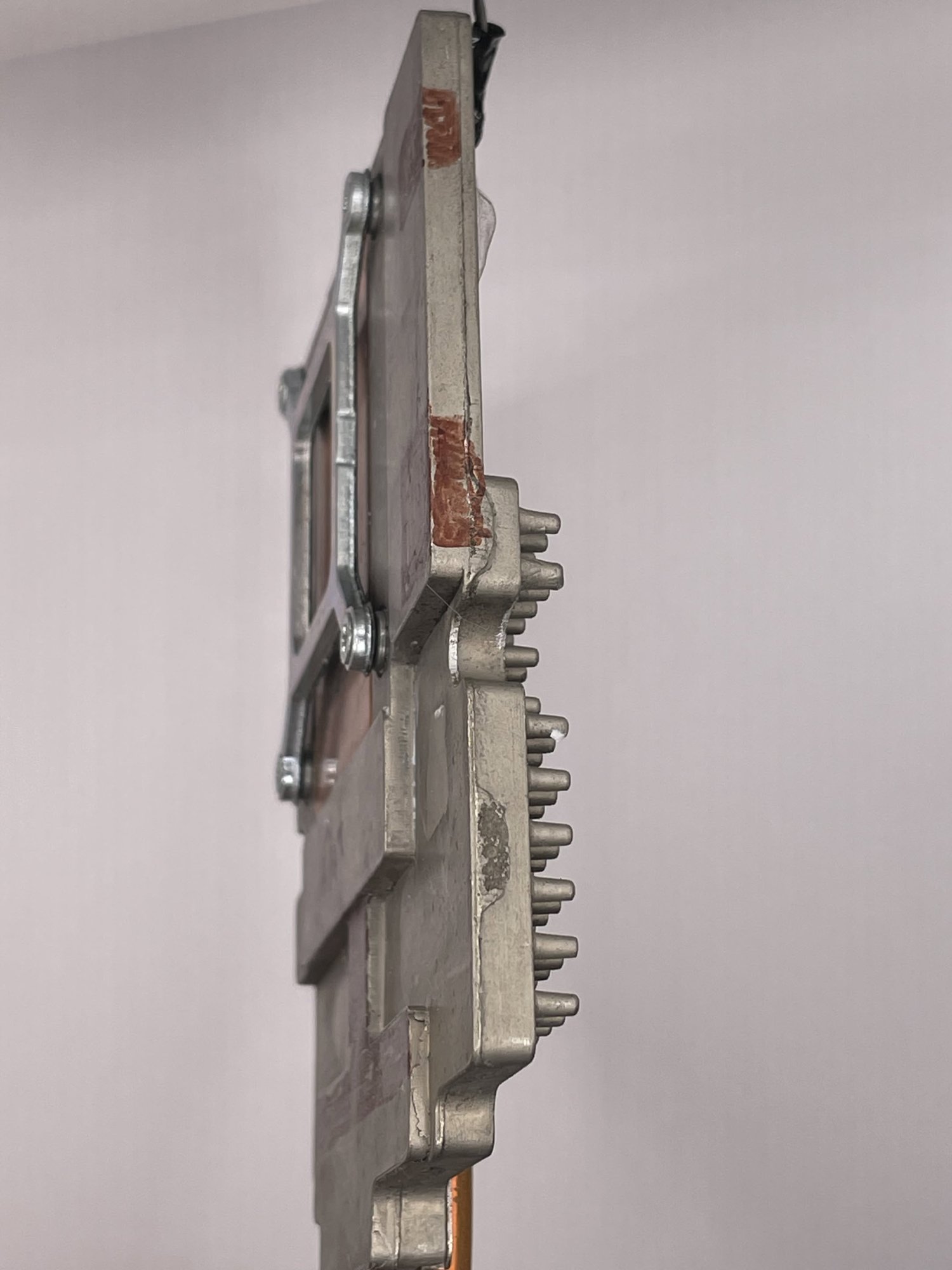

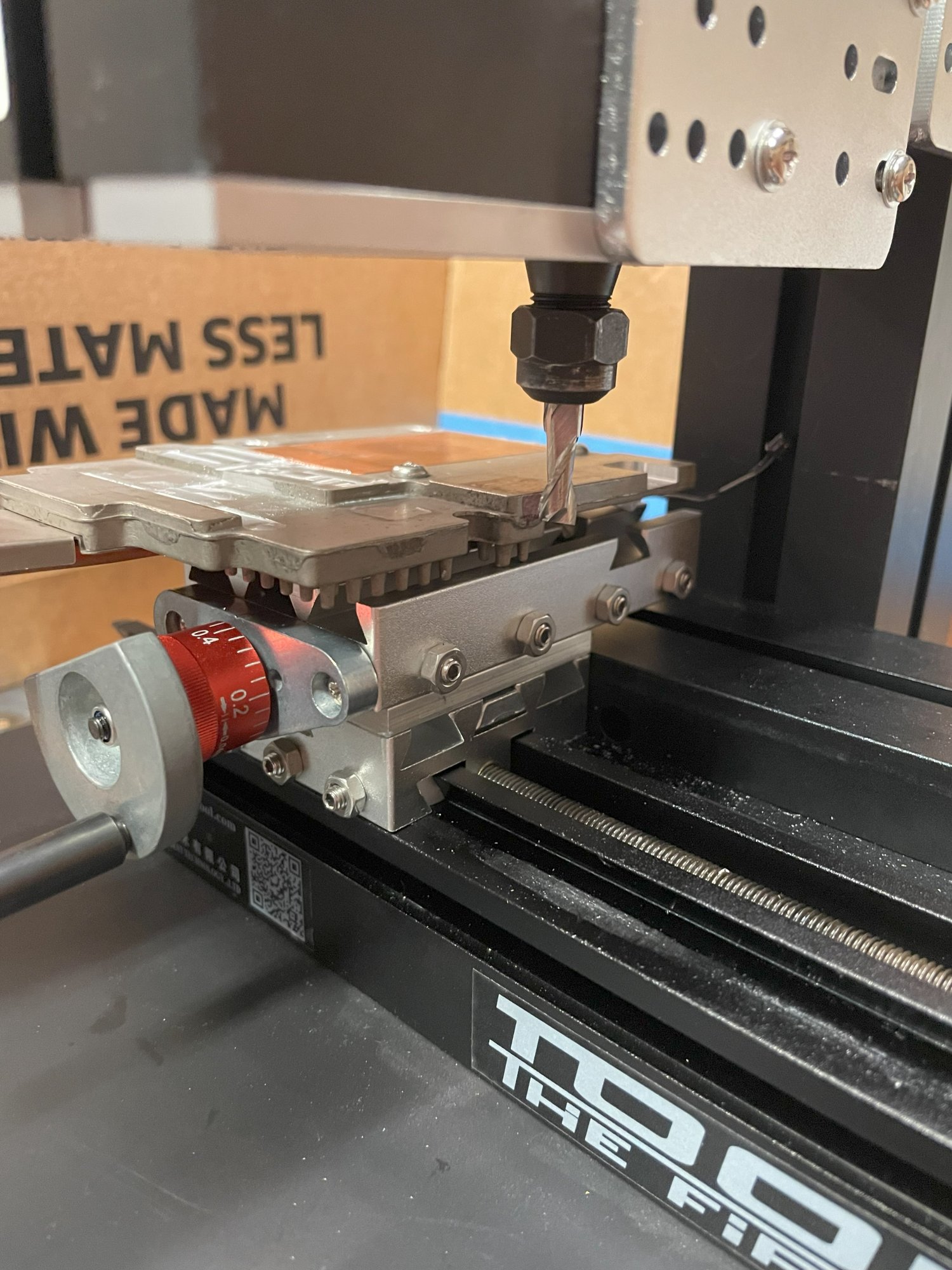

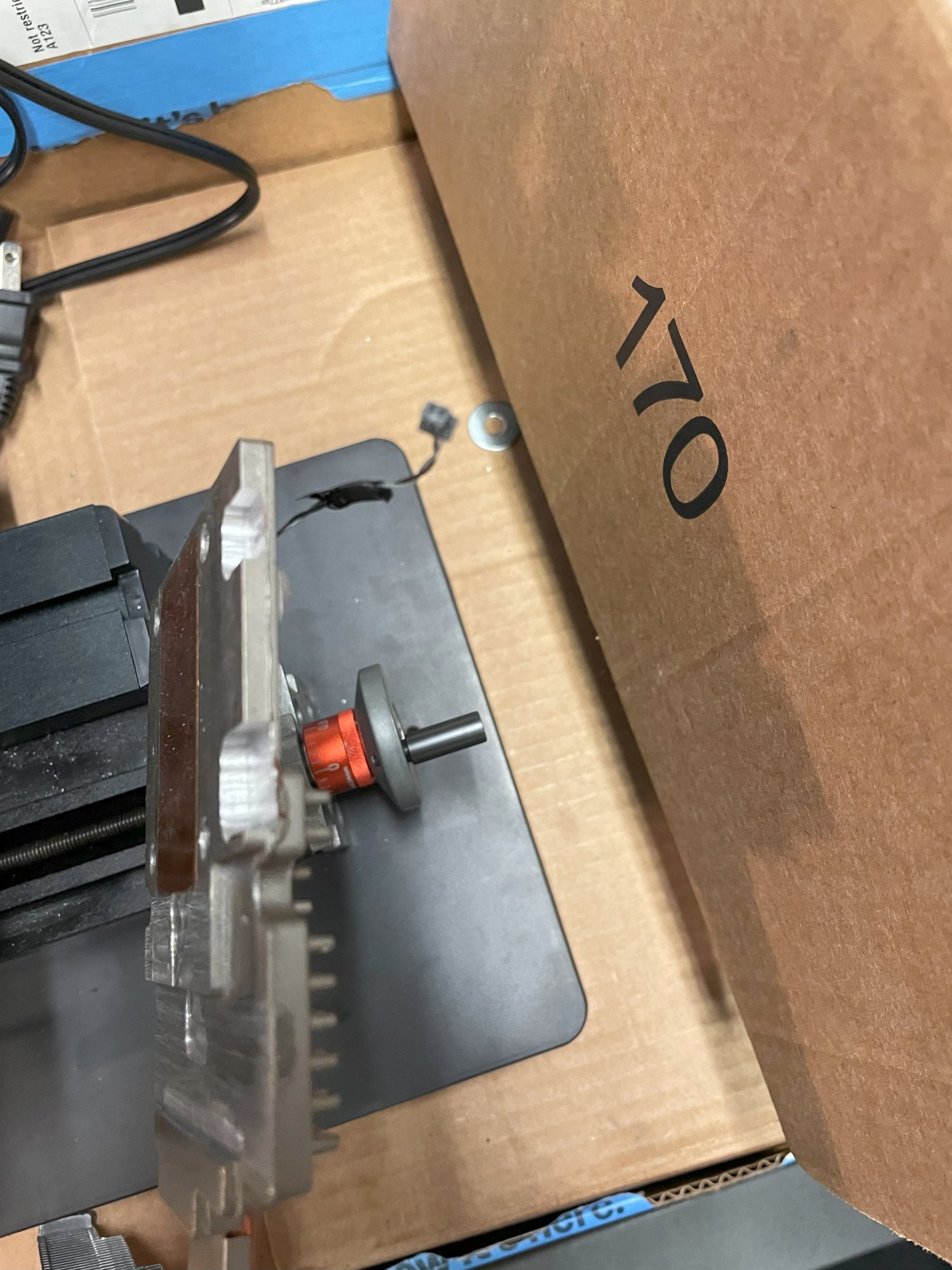

I have three used Rx5500xt that will be flashing and modifying three pipe heat sinks. I will post pictures after the heat sinks are modified, as of right now here are the original .rom and high qual pics....
