MP 1,1-5,1 Activate AMD hardware acceleration

[tsialex]

Ok so I'm still failing here to install 12.3 or any Monterey on my cMP 5,1. I have 11.6.5 working no problem. I did have 12.2.1 working but ever since the OTA update I can't seem to make the upgrade work.

After a few boots, normal instal, it gets to a reboot then loads and fails with a pop up that says from the macOS update assistant, A required firmware could not be installed. Once you click ok, the computer hangs or reboots which you'd have to boot from another drive then I get the crash report.

Never seen that error report. Also interesting it says the OS is not set.

To get here, I tried a few things all lead to the same. The most recent was a new clean sata drive for the destination, then had a 16gb thumb drive and used the open core patcher gui app (v.0.4.3) downloaded and created the install disk, opened the EFI with clover configurator and dropped in the 0.79 open core package found here: https://forums.macrumors.com/thread...n.2180095/page-53?post=28255048#post-28255048

I'm just wondering, is there something I'm missing or there's something up with my cMP hardware?
Any help or insight would be greatly appreciated.

Crash Report:

panic(cpu 0 caller 0xffffff8015426fa2): "Rooting from the live fs of a sealed volume is not allowed on a RELEASE build\n"@/System/Volumes/Data/SWE/macOS/BuildRoots/a0c6c82cc8/Library/Caches/com.apple.xbs/Sources/apfs/apfs-1677.141.3/kext/apfs_vfsops.c:2047


Backtrace (CPU 0), Frame : Return Address


0xffffffa054192ec0 : 0xffffff801228b26d


0xffffffa054192f10 : 0xffffff80123d2993


0xffffffa054192f50 : 0xffffff80123c2f8a


0xffffffa054192fa0 : 0xffffff801222fa2f


0xffffffa054192fc0 : 0xffffff801228aa8d


0xffffffa0541930e0 : 0xffffff801228ad83


0xffffffa054193150 : 0xffffff8012a9c5aa


0xffffffa0541931c0 : 0xffffff8015426fa2


0xffffffa0541939b0 : 0xffffff8015430353


0xffffffa0541939e0 : 0xffffff80125178cc


0xffffffa054193b60 : 0xffffff80127d3d53


0xffffffa054193e80 : 0xffffff80122b9897


0xffffffa054193fa0 : 0xffffff801222f13e


Kernel Extensions in backtrace:


com.apple.filesystems.apfs(1677.141.3)[45812160-E4A7-307A-B604-91D6A782126B]@0xffffff80153aa000->0xffffff8015519fff


dependency: com.apple.driver.AppleEFINVRAM(2.1)[A506788E-BC7C-3C87-BD70-376984C225D3]@0xffffff80136fe000->0xffffff8013707fff


dependency: com.apple.driver.AppleEffaceableStorage(1.0)[F1C24692-B3A0-3F31-A777-CA17069CD3DD]@0xffffff8013711000->0xffffff8013716fff


dependency: com.apple.iokit.CoreAnalyticsFamily(1)[E6C5D15B-3934-3236-932A-1EEF294F5E2B]@0xffffff8013b6d000->0xffffff8013b73fff


dependency: com.apple.iokit.IOStorageFamily(2.1)[FFF27081-0E9D-3E7F-8807-C018C8E46A09]@0xffffff8014e6e000->0xffffff8014e7ffff


dependency: com.apple.kec.corecrypto(11.1)[17F7A252-0406-3D10-90BD-A51F4394481D]@0xffffff8015547000->0xffffff80155d8fff


dependency: com.apple.security.AppleImage4(3.0.0)[BE766F1D-D061-3436-98BA-AF65AD47F2EF]@0xffffff801377d000->0xffffff801378dfff





Process name corresponding to current thread: kernel_task


Boot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0





Mac OS version:


Not yet set





Kernel version:


Darwin Kernel Version 20.6.0: Tue Feb 22 21:10:41 PST 2022; root:xnu-7195.141.26~1/RELEASE_X86_64


Kernel UUID: 40A47F9A-078F-3F9B-B353-53A194CC6F1D


KernelCache slide: 0x0000000012000000


KernelCache base: 0xffffff8012200000


Kernel slide: 0x0000000012010000


Kernel text base: 0xffffff8012210000


__HIB text base: 0xffffff8012100000


System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)


System shutdown begun: NO


Panic diags file unavailable, panic occurred prior to initialization


Hibernation exit count: 0





System uptime in nanoseconds: 2494066769


Last Sleep: absolute base_tsc base_nano


Uptime : 0x0000000094a878f8


Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000


Wake : 0x0000000000000000 0x00000014b036b3f0 0x0000000000000000

You need to correct the FirmwareFeatures (that's why you are seeing the window asking for the required firmware update) and to add the ASPP-Override.kext to your ESP and to your config plist.

OpenCore on the Mac Pro

No. This is explained on the first post of this thread, read "Complete your setup / Spoofing and enabling missing features". You have to edit at least SMBIOS, or PlatformNVRAM and SMBIOS, to something like the example below: PlatformNVRAM BID...

forums.macrumors.com

Instructions and the ASPP-Override.kext itself you can get on the first post of the thread linked above.

Btw, use one implementation or another, don't mix OCLP with @h9826790 implementation of OC - OCLP 0.4.3 already have both ASPP-Override.kext and FirmwareFeatures correctly implemented.



[Uranga]

Ok, I've installed Open core successfully! Thank you for this great post. The issue I now have, is i cannot find a working installation for Big Sur. I only get Monterey. Since I use this Mac for Music Production and VST plugins, I do not want to use Monterey. I've tried the safari route, which brings me straight to the app store. I click on "more info" but it keeps brining me to the Monterey Page. I've tried the terminal command route and NOTHING. not sure if it just disappeared. Does anyone have a manual installer? Thanks in advance.



[Mic-M4c]

@Uranga

Download and install MDS or OpenCore Legacy Patcher (GUI.app.zip) softwares. Then you can :

1. Download the last macOS installers
2. Create macOS bootable installers
3. Do a clean install of Big Sur 11.6.5 (with OpenCore 0.7.6 for example)

Good luck !



[sfalatko]

Ok, I've installed Open core successfully! Thank you for this great post. The issue I now have, is i cannot find a working installation for Big Sur. I only get Monterey. Since I use this Mac for Music Production and VST plugins, I do not want to use Monterey. I've tried the safari route, which brings me straight to the app store. I click on "more info" but it keeps brining me to the Monterey Page. I've tried the terminal command route and NOTHING. not sure if it just disappeared. Does anyone have a manual installer? Thanks in advance.

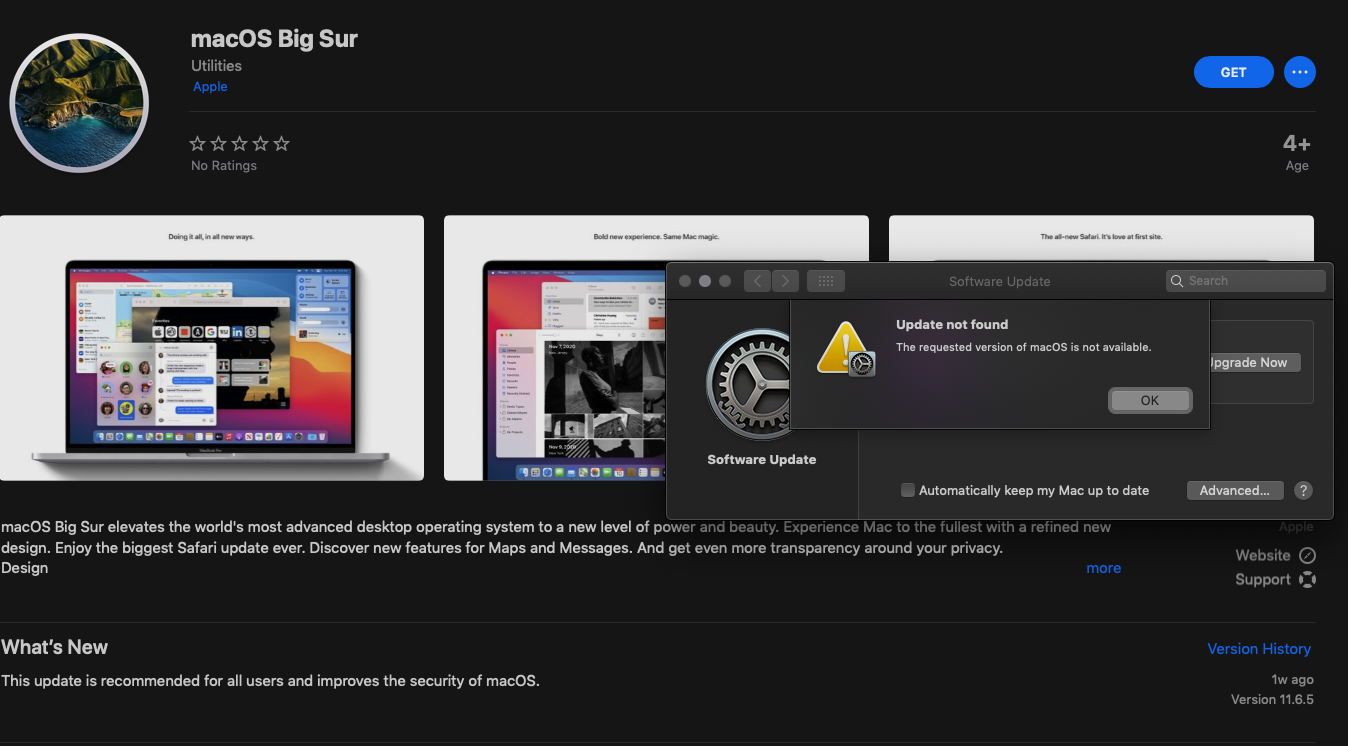

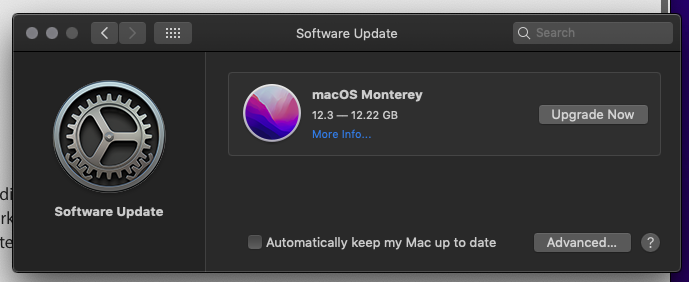

There are a couple of different ways to get old versions (not the current release) of macOS. One is detailed here - How to Download macOS Monterey, Big Sur, Catalina & Mojave Full Installers



[Stex]

@h9826790 just in case, FYI read below:

Tired of low Geekbench scores? Use RadeonBoost!

Don't use this Kext on anything later than Catalina, starting from macOS Big Sur it doesn't work anymore for most GPUs due to Apple changing things. I also don't update it anymore because I am not building and using Hackintoshes anymore.

forums.macrumors.com



[Uranga]

@Uranga

Download and install MDS or OpenCore Legacy Patcher (GUI.app.zip) softwares. Then you can :

1. Download the last macOS installers
2. Create macOS bootable installers
3. Do a clean install of Big Sur 11.6.5 (with OpenCore 0.7.6 for example)

Good luck !

thanks for the info. as I mentioned, I'm using it for music production so I need all of my apps, VSTs, plug-ins, samples, sounds ect, so too much of a migration to do a "clean install." I'm looking for just an update. Thanks



[lsdabus]

Ok so I'm still failing here to install 12.3 or any Monterey on my cMP 5,1. I have 11.6.5 working no problem. I did have 12.2.1 working but ever since the OTA update I can't seem to make the upgrade work.

After a few boots, normal instal, it gets to a reboot then loads and fails with a pop up that says from the macOS update assistant, A required firmware could not be installed. Once you click ok, the computer hangs or reboots which you'd have to boot from another drive then I get the crash report.

Never seen that error report. Also interesting it says the OS is not set.

To get here, I tried a few things all lead to the same. The most recent was a new clean sata drive for the destination, then had a 16gb thumb drive and used the open core patcher gui app (v.0.4.3) downloaded and created the install disk, opened the EFI with clover configurator and dropped in the 0.79 open core package found here: https://forums.macrumors.com/thread...n.2180095/page-53?post=28255048#post-28255048

I'm just wondering, is there something I'm missing or there's something up with my cMP hardware?
Any help or insight would be greatly appreciated.

Crash Report:

panic(cpu 0 caller 0xffffff8015426fa2): "Rooting from the live fs of a sealed volume is not allowed on a RELEASE build\n"@/System/Volumes/Data/SWE/macOS/BuildRoots/a0c6c82cc8/Library/Caches/com.apple.xbs/Sources/apfs/apfs-1677.141.3/kext/apfs_vfsops.c:2047


Backtrace (CPU 0), Frame : Return Address


0xffffffa054192ec0 : 0xffffff801228b26d


0xffffffa054192f10 : 0xffffff80123d2993


0xffffffa054192f50 : 0xffffff80123c2f8a


0xffffffa054192fa0 : 0xffffff801222fa2f


0xffffffa054192fc0 : 0xffffff801228aa8d


0xffffffa0541930e0 : 0xffffff801228ad83


0xffffffa054193150 : 0xffffff8012a9c5aa


0xffffffa0541931c0 : 0xffffff8015426fa2


0xffffffa0541939b0 : 0xffffff8015430353


0xffffffa0541939e0 : 0xffffff80125178cc


0xffffffa054193b60 : 0xffffff80127d3d53


0xffffffa054193e80 : 0xffffff80122b9897


0xffffffa054193fa0 : 0xffffff801222f13e


Kernel Extensions in backtrace:


com.apple.filesystems.apfs(1677.141.3)[45812160-E4A7-307A-B604-91D6A782126B]@0xffffff80153aa000->0xffffff8015519fff


dependency: com.apple.driver.AppleEFINVRAM(2.1)[A506788E-BC7C-3C87-BD70-376984C225D3]@0xffffff80136fe000->0xffffff8013707fff


dependency: com.apple.driver.AppleEffaceableStorage(1.0)[F1C24692-B3A0-3F31-A777-CA17069CD3DD]@0xffffff8013711000->0xffffff8013716fff


dependency: com.apple.iokit.CoreAnalyticsFamily(1)[E6C5D15B-3934-3236-932A-1EEF294F5E2B]@0xffffff8013b6d000->0xffffff8013b73fff


dependency: com.apple.iokit.IOStorageFamily(2.1)[FFF27081-0E9D-3E7F-8807-C018C8E46A09]@0xffffff8014e6e000->0xffffff8014e7ffff


dependency: com.apple.kec.corecrypto(11.1)[17F7A252-0406-3D10-90BD-A51F4394481D]@0xffffff8015547000->0xffffff80155d8fff


dependency: com.apple.security.AppleImage4(3.0.0)[BE766F1D-D061-3436-98BA-AF65AD47F2EF]@0xffffff801377d000->0xffffff801378dfff





Process name corresponding to current thread: kernel_task


Boot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0





Mac OS version:


Not yet set





Kernel version:


Darwin Kernel Version 20.6.0: Tue Feb 22 21:10:41 PST 2022; root:xnu-7195.141.26~1/RELEASE_X86_64


Kernel UUID: 40A47F9A-078F-3F9B-B353-53A194CC6F1D


KernelCache slide: 0x0000000012000000


KernelCache base: 0xffffff8012200000


Kernel slide: 0x0000000012010000


Kernel text base: 0xffffff8012210000


__HIB text base: 0xffffff8012100000


System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)


System shutdown begun: NO


Panic diags file unavailable, panic occurred prior to initialization


Hibernation exit count: 0





System uptime in nanoseconds: 2494066769


Last Sleep: absolute base_tsc base_nano


Uptime : 0x0000000094a878f8


Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000


Wake : 0x0000000000000000 0x00000014b036b3f0 0x0000000000000000

I had the same firmware update error while installing Monterey 12.3 over Big Sur 11.6.4 on cMP 5.1 (using Martin Lo open core 0.7.9) and what worked for me was editing the config as shown in this video from Martin Lo



[mode11]

For newer macOS, the system files are protected even SIP is disabled anyway. So, IMO, SIP is mainly to avoid users to use 3rd party kext / software etc, but not really to protect system files anymore.

My package is aim at providing HWAccel, then insert more bonus (or requested) functions with greatest compatibility. Security is not the primary concern. In fact, that's a bit contradicting to "max compatibility" (due to some software need SIP to be disabled by default).

Hi Martin, thanks for providing your package - it makes using OC a breeze.

Can SIP be toggled on and off by just changing the relevant value in Config.plist and rebooting?

Is there any functionality in your package that will not work when SIP is enabled?

It sounds like in your opinion, SIP offers no real security benefit and just gets in the way of certain operations (e.g. blessing drives or dumping bootroms). Would you therefore advise to just leave SIP permanently disabled?



[h9826790]

Can SIP be toggled on and off by just changing the relevant value in Config.plist and rebooting?

Can

Is there any functionality in your package that will not work when SIP is enabled?

May be, I haven't tested them all in every single macOS release. But main functions should work regardless SIP status.

It sounds like in your opinion, SIP offers no real security benefit and just gets in the way of certain operations (e.g. blessing drives or dumping bootroms). Would you therefore advise to just leave SIP permanently disabled?

My personal opinion is to keep that off. And I keep my cMP's SIP disabled. But that's really just my personal choice.

As I said before, more than one of my package users reported that some of their software can only be used when SIP disabled. An due to my package aim at max compatibility. Therefore, I set SIP disabled by default.

But if you want to turn SIP back on (which is Apple's recommendation, I have no objection to that). And you can't feel any downside for your daily use. Then of course you can turn on SIP, enjoy the "Apple way".



[Lyndon92]

Does anyone had any issue with Bluetooth 4.0 support in Monterey 12.3 , on cMP 5.1 please ?
Everything is working fine, but my Fenvi Wifi+Bluetooth card (the one you have to plug into usb port) doesn't work.
I have Wifi 802.11 ac , no problem but my Bluetooth is very laggy and doesnt show as 4.0

Everything was running fine under Big Sur 11.6



[0134168]

Does anyone had any issue with Bluetooth 4.0 support in Monterey 12.3 , on cMP 5.1 please ?
Everything is working fine, but my Fenvi Wifi+Bluetooth card (the one you have to plug into usb port) doesn't work.
I have Wifi 802.11 ac , no problem but my Bluetooth is very laggy and doesnt show as 4.0

Everything was running fine under Big Sur 11.6

My advice is to get a Pcie wifi/bt card



[owlgreen]

Is there any chance some of the methods in this thread will help me, an opencore (0.7.9) Big Sur user running a 3900x on an x570 with an rx6900xt? I would like to enable gpu-based 10-bit HEVC encoding in FCP, Compressor, and Resolve Studio. Decoding works to allow smooth playback of 10-bit 4k HEVC in some programs, but not all. In no program can i use the gpu to encode 10-bit HEVC. Thanks for any insights you may have.



[snowin]

Does anyone had any issue with Bluetooth 4.0 support in Monterey 12.3 , on cMP 5.1 please ?
Everything is working fine, but my Fenvi Wifi+Bluetooth card (the one you have to plug into usb port) doesn't work.
I have Wifi 802.11 ac , no problem but my Bluetooth is very laggy and doesnt show as 4.0

Everything was running fine under Big Sur 11.6

I am on 12.2.1 still and have intermittent bluetooth issues - usually a restart fixes. I did the 4.2 Broadcom card update in my cMP 5,1. But sometimes bluetooth is just gone and doesn't show up in system profiler. That being said this started after travelling 1600km with my cMP in the back of the car so it may have been jostled. I will take a peek inside the beast when I have some free time in the next couple days and see if maybe something jostled loos (need to reseat my GPU anyway as I'm getting horiz pixel flashes on my 30" ACD whenever there is black on screen).



[star-affinity]

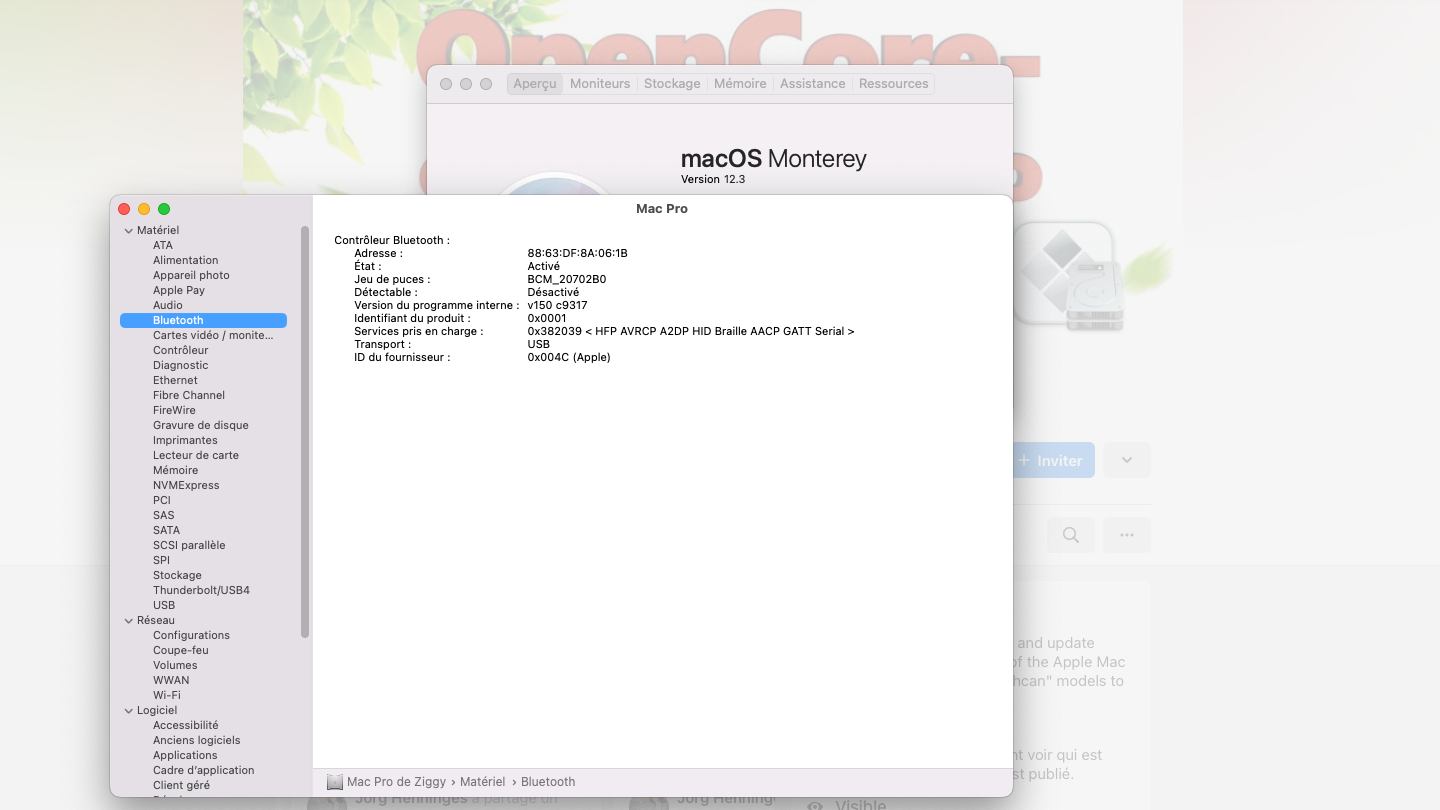

Speaking of Bluetooth – it works fine for me in Monterey 12.3 and OC 0.7.9, but any ideas why my Apple Bluetooth Keyboard keeps loosing connection between reboots? I now have to connect the cable and then unplug it again for the keyboard to connect via Bluetooth. Wasn't like that before so I think it's something that changed in recent version of the OC package.

Edit:
Seems to work after updating to Monterey 12.3.1!

Edit 2:
And then it didn't after a second restart after turning off the Cpuid1Mask. Damn it.



[0134168]

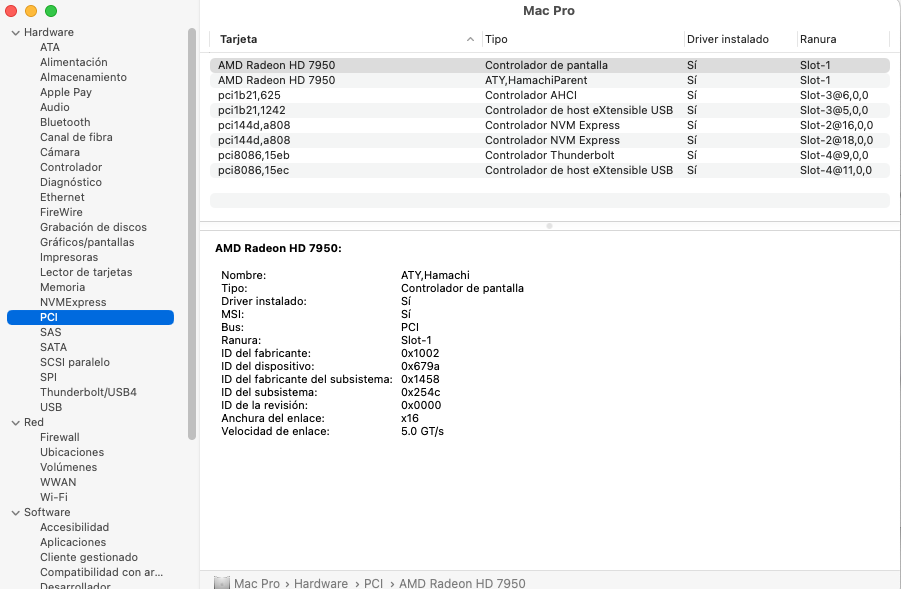

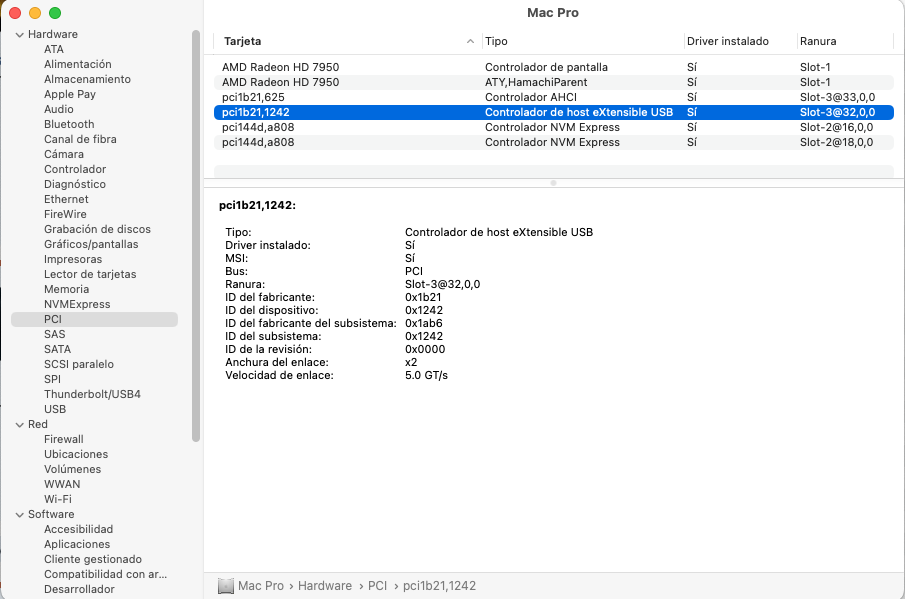

@h9826790 Hello again. Mac Pro 4,1->5,1. Flashed Titan Ridge on Slot 4. With OCLP , the thunderbolt is recognized, but does not work right, speed drops ans stops. With your package 0.7.9, though I have edit the config file as in your video, thunderbolt is not recognized. Can you help me? Thanks.


Again, congratulations for your great work.



[Cdr. Myy'q]

I want to update from Monterey 12.2.1 to 12.3.1, but the Software Update preferences pane tells me "Your Mac is up to date -- macOS Monterey 12.2.1 (21D62). I have been using Martin's all-in-one package for several versions already and am now on 0.7.9 on my cMP 4.1->5.1.

Also the "softwareupdate" command believes I am on the most recent version already.

Any idea what I could do? Thank you



[jameslmoser]

I want to update from Monterey 12.2.1 to 12.3.1, but the Software Update preferences pane tells me "Your Mac is up to date -- macOS Monterey 12.2.1 (21D62). I have been using Martin's all-in-one package for several versions already and am now on 0.7.9 on my cMP 4.1->5.1.

Also the "softwareupdate" command believes I am on the most recent version already.

Any idea what I could do? Thank you

You have to do this when updating Monterey, not just the initial upgrade/install.



[Cdr. Myy'q]

You have to do this when updating Monterey, not just the initial upgrade/install.

Thanks a lot, that did the trick!



[accessvirus]

Can you help me?

2) Turn on VMM as per the video guide
Where is this video?



4) Revert the config
How can I revert the config?



[jameslmoser]

Can you help me?

2) Turn on VMM as per the video guide
Where is this video?



4) Revert the config
How can I revert the config?

2) The video you are looking for is literally in the post before yours. Changing the CpuidMask does that.

4) To revert the config, just change the values back to what they were before you edited them, or replace the file with the one you originally downloaded.



[streak8047]

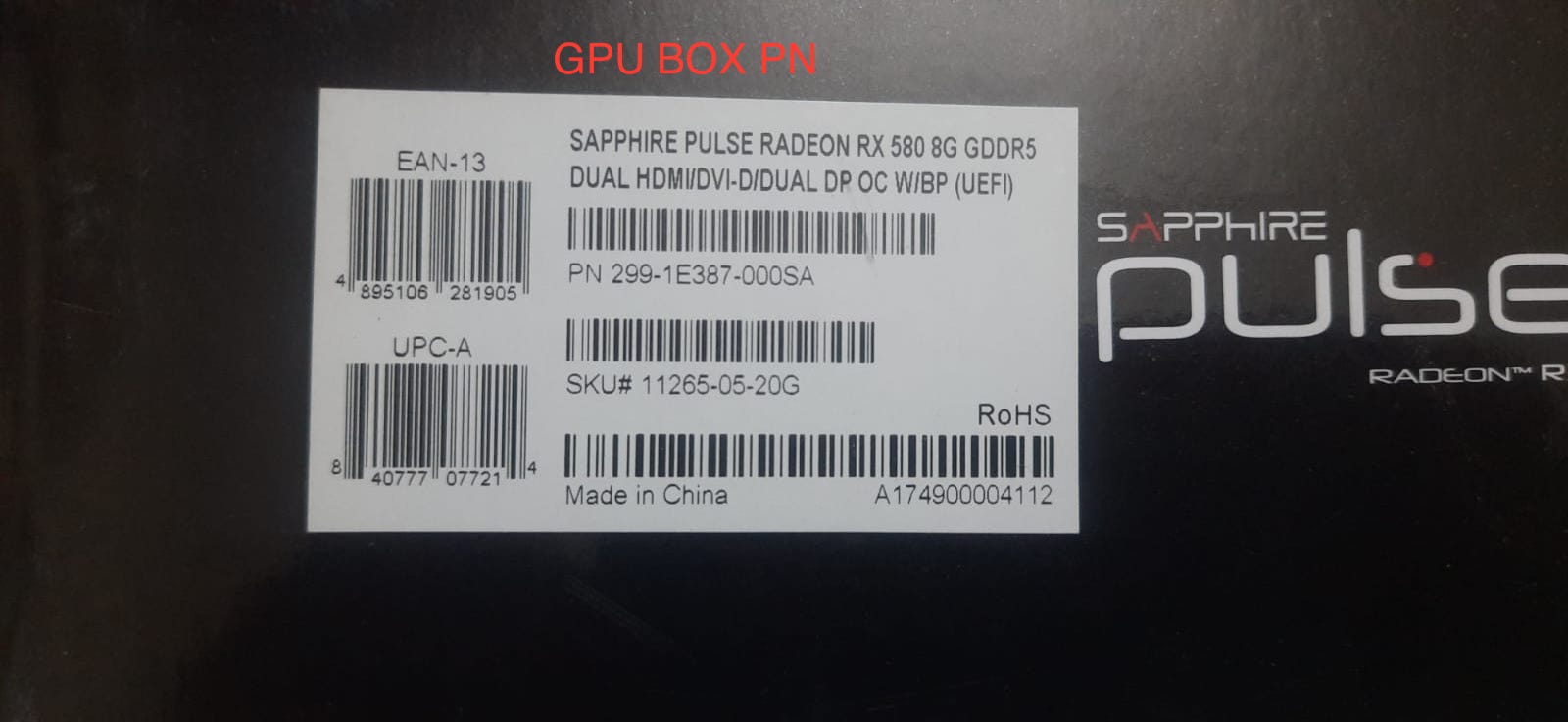

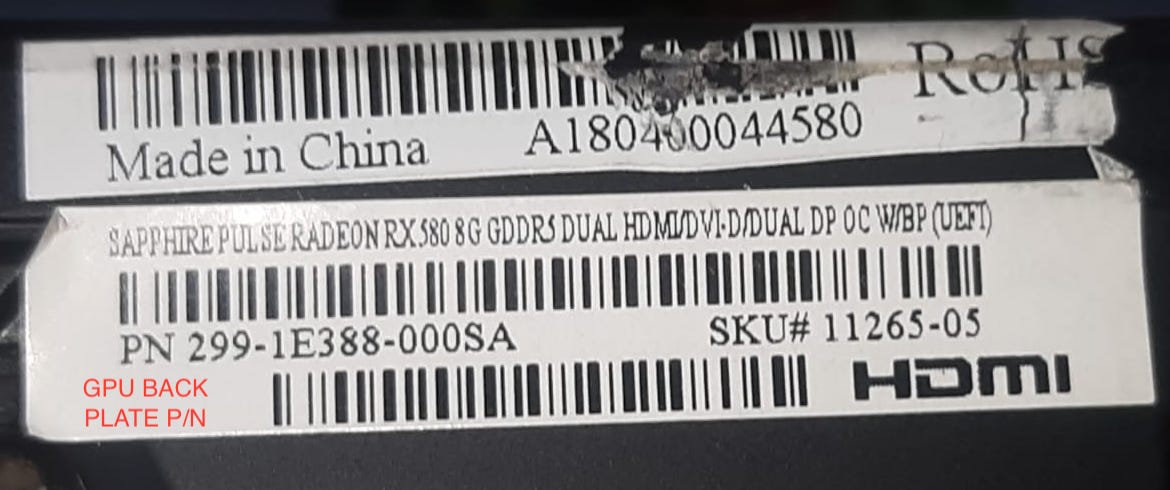

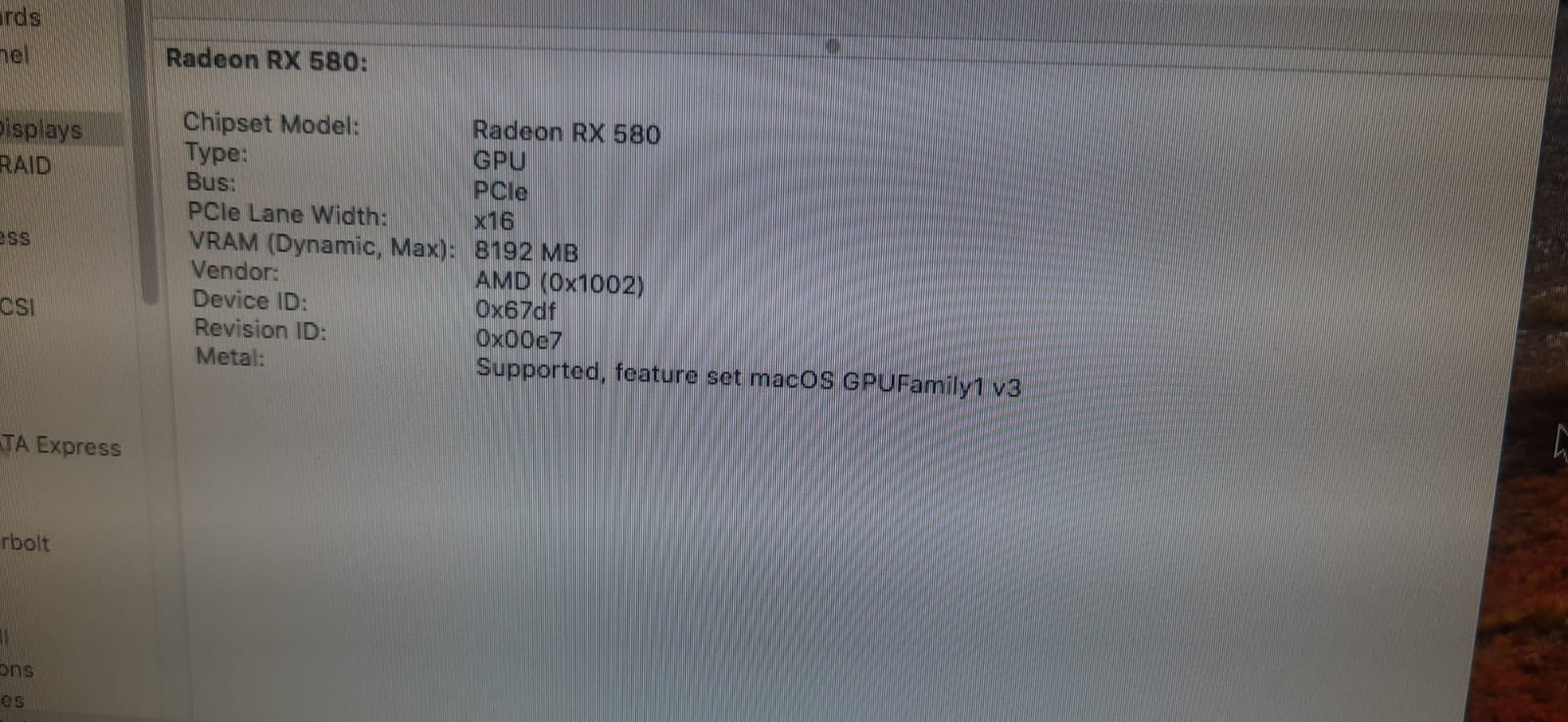

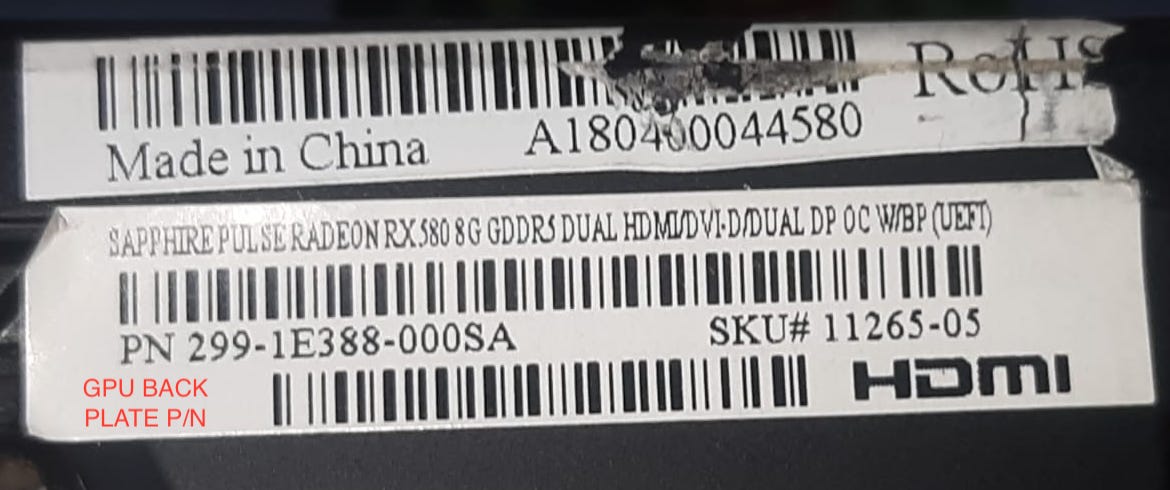

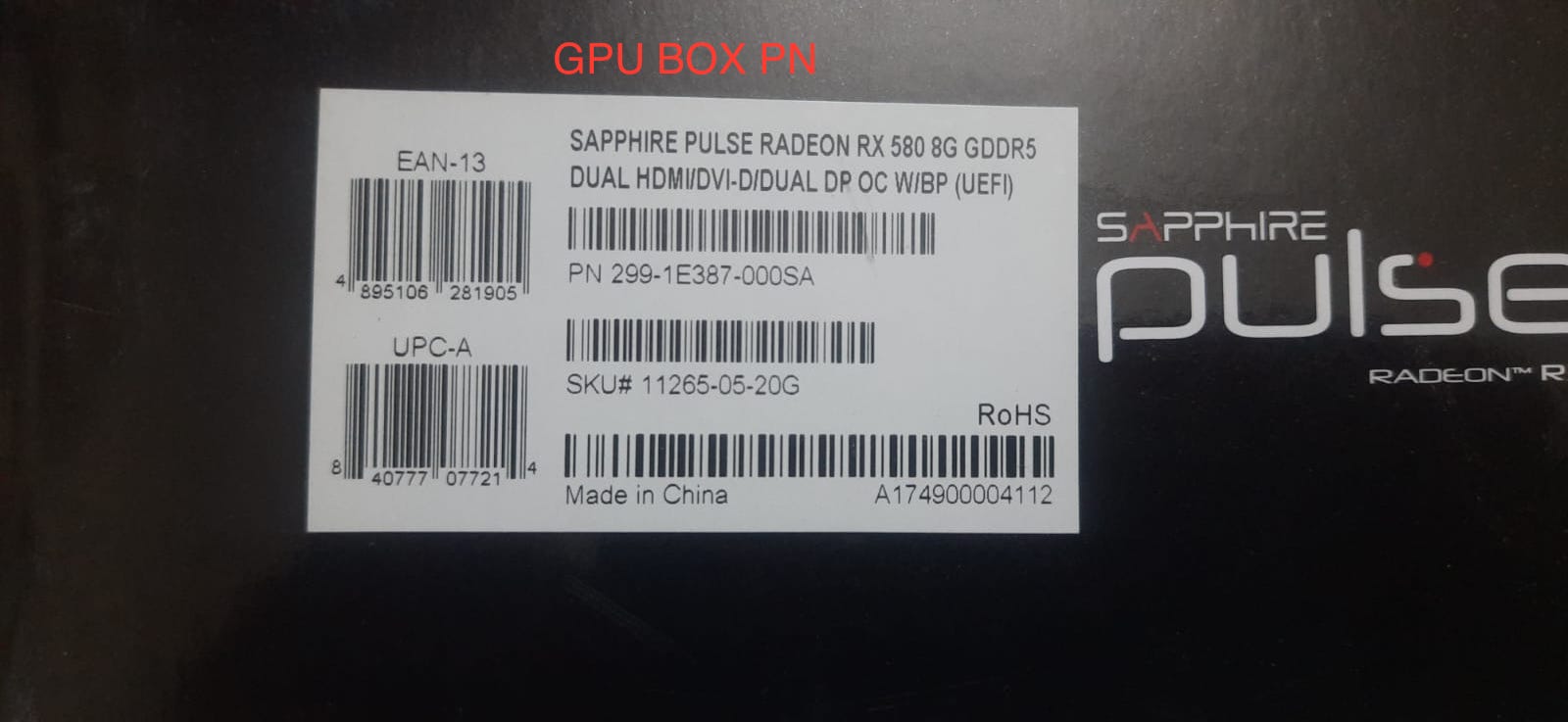

RX580 ,macpro 5.1 ,no boot screen on non Flash Sapahire GPU with Open legacy patcher 0.4.3,I brought used RX580
Higherseira OS detected GPU RX580 with out using OLCP ,with out boot screen,my previous owner has modded ROM on roam not sure,as per the plate part no mentioned 299-1E388-00SA & SKU 11265 -05 BOX cover has SKU 11265-05-20G look little different ,already flashed Saphire RX580 Rom from Techpowerup with same subsystem ID not showing bootscreen with OLCP, please suggest a solution ,might be wrong ROM for GPU, works fine on windows PC .



[3DXmac]

Hi Guys,
Well, running Bir Sur on cMP 5,1 over the last Martin's package but it seems iCloud syncing is broken. Did a quick search on this thread but couldn't find a solution.
Any advice on that? I would appreciate your help.



[sfalatko]

Hi Guys,
Well, running Bir Sur on cMP 5,1 over the last Martin's package but it seems iCloud syncing is broken. Did a quick search on this thread but couldn't find a solution.
Any advice on that? I would appreciate your help.

Try signing out and then back into iCloud.



[3DXmac]

Yes, it worked, but for some reason not at the first attempt. It seemed to be stucked.



[Bob Lodge]

Hello everyone.
I bought a couple of XFX RX580 8 GB GPU's for some of my Mac Pro systems and I found a weird bug when booting those GPU's with OC.
Turns out this specific GPU model from XFX gives a green background color (instead of the black one) and some very weird rainbowy icons and names for the bootable partitions (instead of the regular colors and white text). Colors come back to normal as soon as you boot any partition and the OS loads the Log In Screen. Everything is working pretty damn fine, I even have a WIN10 partition with Warzone and it plays just fine, it's just the bootloader's colors that weird me out.
I tried both GPU's and both did the same on my mac pro's, tried on a PC and never got any green screens on boot menus, BIOS menus, etc. So I narrowed it down to the config file for OC's bootloader.
I've tried to get more familiar with the config file but I couldn't find anything regarding the color palette or color mode for the bootloader, at least not that I could understand.
Is there such an option in the config file for the GPU's color scheme on OC?

Here are the specs for the 5.1 that's keeping that GPU:
- Mac Pro 5.1
- 2x X5690
- 32 GB RAM
- XFX RX580 GTS XXX Edition 8GB GPU.
- Mac OS Catalina 10.15.7 on NVMe.
- OC 0.7.8 (Martin's package) on SATA HDD.

Thanks in advance!
