MP 1,1-5,1 AMD Radeon VII on the Mac Pro 5,1 - Mojave 10.14.4 and 10.14.5 Beta driver results.
- Thread starter monoton
- Start date
- Sort by reaction score
Thats why GPU based rendering is driving such an increase in productivity. With each new generation release of GPU, there is a decent speed bump (25%-50% sometimes) where as CPU speed increases have slowed dramatically over the years, which is why these old 12 core 5.1's do so well for a 10 year+ machine.
Well, for someone who just does photography and some occasional video work I sure ended up with a graphics card collection yesterday. The third one arrived; there's something about gear that arrives in damaged boxes - it always seems to perform better!
This final one runs perfectly well at stock clock and 1100 MHz memory at only 945 mV. It barely ramps its fans during Heaven and is perfectly tolerable even during FurMark. This one's staying!
This final one runs perfectly well at stock clock and 1100 MHz memory at only 945 mV. It barely ramps its fans during Heaven and is perfectly tolerable even during FurMark. This one's staying!
Hey there,
Since you have a Pixlas Vega VII, I would like to know if you noticed any performance changes when you did the transition from Mojave to Catalina. I am dragging my leg a bit when it comes to Catalina. Somehow I am worried a bit. Mojave so far works really great for me, but some time down the line I will need to upgrade. What's your gut feeling about it? Did the Vega VII improve in Catalina, - any driver changes?

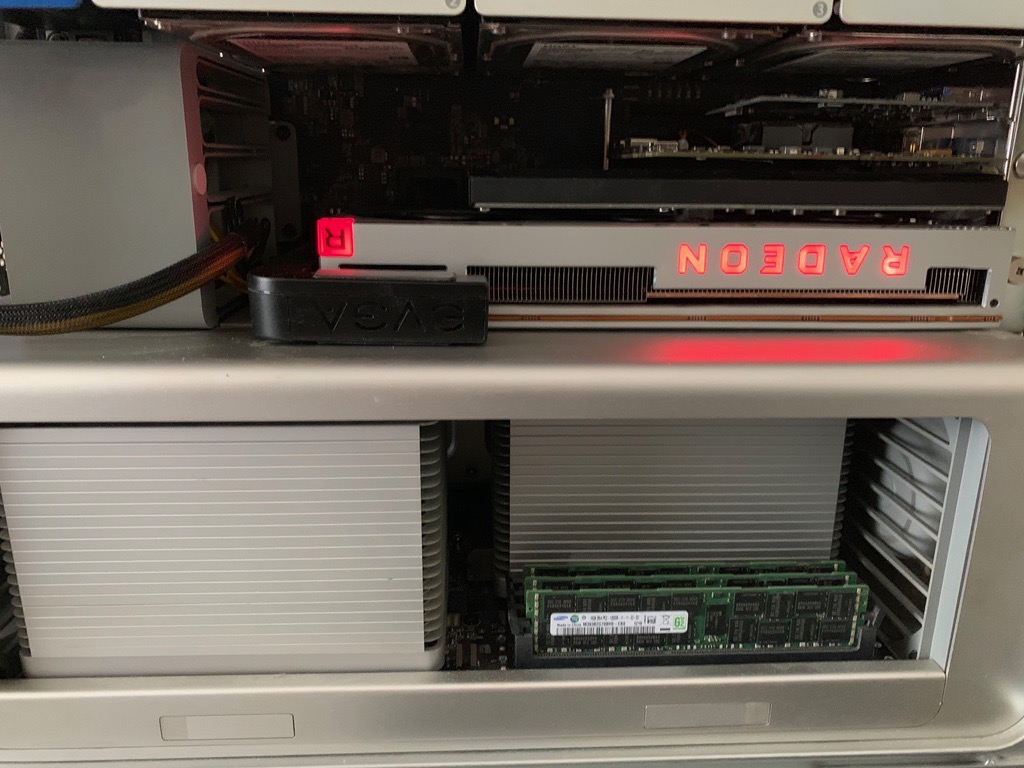

There's no Pixla's mod on this machine; the Radeon VII runs only from the PCIe Boost sockets on the logic board through an EVGA PowerLink.
I also can't really help with your question! I only have Mojave on here as an emergency OS in case the NVRAM is reset (which would remove the -no_compat_check flag from boot-args) so as far as day-to-day performance is concerned, I just don't know. I jumped straight from High Sierra with a GTX 1080 Ti to Catalina with the Radeon VII. There's definitely an improvement in most things on the desktop between those two configurations, particularly anything graphically demanding in Apple apps (Photos is really smooth when editing now). If I'd see the any difference between Mojave and Catalina, I haven't got the experience to tell!
There's no Pixla's mod on this machine; the Radeon VII runs only from the PCIe Boost sockets on the logic board through an EVGA PowerLink.
In prepping and upgrading the 2009 I've been working on this has been the thing that makes me most feel like a maroon (relative to a hack most is pretty easy really). So to be really clear, you have the dual 6 pin to 8 pin cable, the two 6 pins attach to the MB and the 8 pin to -one- of the two connectors on the powerlink, leaving one 8 pin still open on the powerlink. But the powerlink connector itself is distributing the (2x150W 6pin) power evenly to the card so there's no concern/problem not connecting the other powerlink 8 pin connector to anything. Is that correct? TIA ✌🏼
Don't you think that you are overplaying your backplane power capabilities here?There's no Pixla's mod on this machine; the Radeon VII runs only from the PCIe Boost sockets on the logic board through an EVGA PowerLink.
I also can't really help with your question! I only have Mojave on here as an emergency OS in case the NVRAM is reset (which would remove the -no_compat_check flag from boot-args) so as far as day-to-day performance is concerned, I just don't know. I jumped straight from High Sierra with a GTX 1080 Ti to Catalina with the Radeon VII. There's definitely an improvement in most things on the desktop between those two configurations, particularly anything graphically demanding in Apple apps (Photos is really smooth when editing now). If I'd see the any difference between Mojave and Catalina, I haven't got the experience to tell!
Tom's Hardware tested the load at each power input and at full load, a Radeon VII can spike up to 322W with ~298W sustained (~30W from PCIe slot, ~142W from the first PCIe power connector and ~126W from the second). Even with a Powerlink as a load balancer, MP5,1 can only provide ~240W from both PCI AUX A and B before the backplane monitoring circuit shutdowns the PSU.
Possibly not much help but extra SATA power can be added to the EVGa PowerLink by connecting a TWO X SATA to ONE by 6 pin using the spare 6 pin power input socket that comes with the PowerLink.
1.
Connect the SPARE 6 pin socket that comes with the PowerLinkto the PowerLink's power input side, use the small Allen key to install it.
2.
Now connect the 2 X SATA to 1 x 6pin cable to this PowerLink 6 pin power input socket.
For the GPU connect the two 8 pin male to female PowerLink OUTPUT cables to the Radeon VII
I've been using this setup for my RX 580 8gb as I'm paranoid about over-stressing power demand when I use X-Plane 11 in extreme settings 😇. I have the PowerLink sitting on top of the PCIe area's input fan.
Codecil : Don't use a TWO x SATA to ONE by 8 pin as it will draw too much power from the backplane.
( Assumes that you can do without two onboard SATA HDD / SSD connections. )
DETAIL
DETAIL
1.
Connect the SPARE 6 pin socket that comes with the PowerLinkto the PowerLink's power input side, use the small Allen key to install it.
2.
Now connect the 2 X SATA to 1 x 6pin cable to this PowerLink 6 pin power input socket.
For the GPU connect the two 8 pin male to female PowerLink OUTPUT cables to the Radeon VII
I've been using this setup for my RX 580 8gb as I'm paranoid about over-stressing power demand when I use X-Plane 11 in extreme settings 😇. I have the PowerLink sitting on top of the PCIe area's input fan.
Codecil : Don't use a TWO x SATA to ONE by 8 pin as it will draw too much power from the backplane.
Maybe I am; all I can say is I've been using this for a few weeks now and had not one shutdown issue. No problems during Furmark, Luxmark or the usual Heaven and Valley benches. The card is down-volted to 970 mV, which surely helps, and monitoring has never seen more than 8 A drawn from each boost slot, so ~192 W from those in total.

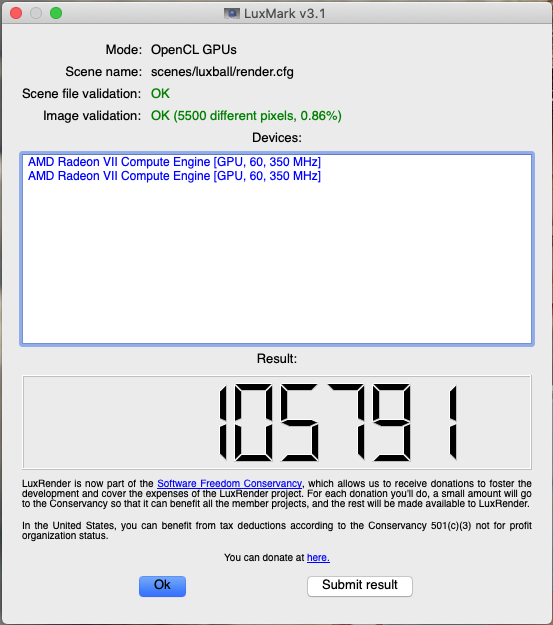

In fact, I'll grab Luxmark and run it again now just to see.
That's pretty typical of what happens; power through the aux connectors pegs at 7.99 A and through the PCIe connector at 3.22 A, so that's around 230 W, which is in the ballpark of what the PowerPlay settings should be. I have it set at 200 W @ 120% so shouldn't see more than 240 W draw in total.
I'll attach the PowerPlay kext I use, which is 1890 MHz @ 970 mV, 1111 MHz HBM2 and 200 W (120%) limit.
Oh, if you look carefully at iStat you'll see there's no reading from the Aux A slot because I carelessly knocked the monitoring chip off the logic board some time ago. But the cables are physically ganged together even before they go into the PowerLink, so they'll be evenly balanced.
Last edited:
On this system it's a dual mini 6-pin to single 8-pin cable which goes from the two mini 6-pin aux sockets on the logic board into one of the 8-pin sockets on the PowerLink, leaving the other open, as you say. The PowerLink has the two 8-pin output connectors attached, which plug in to the two 8-pin sockets on the Radeon VII.
So yes, in my experience there's no issue at all leaving the second 8-pin input on the PowerLink unpopulated. There are only two rails inside the PowerLink anyway, one +12V and one ground, so everything is physically connected together.
Now, whether it's right or not that I'm pulling 192 W through one 8-pin connector which on paper is for 150 W is another matter. I'm fine with it; the physical capabilities of the cables and sockets are way more than that, it's really more of a preventative measure against user error in my book. And I appear to be staying within the 240 W cumulative maximum that can be drawn through those combined two aux sockets on the logic board, otherwise, in theory, the system would instantly power off.
Hope that's of some help?
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I’ve been running mine with the 204w downvolt, powered by just the dual mini 6-pins, converted to a single 8-pin, which is then split into a dual 8-pin (to connect to the Radeon VII).
It’s been flawless under heavy loads.
It’s been flawless under heavy loads.
Yes, thank you. I haven't stress tested it, but just running, playing videos/Youtube seems fine. I'm an audio guy and I use an AJA card for video playback w/Pro Tools, so I don't think I'll ever be stressing the card out that much. I have one of those cheap Dell PS's with 8 pins on the way just in case though.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Ah, a fella audio guy! I build stuff and other people do most of the audio these days, but I know that world well.
Howdy All!, So i did the pixelas mod and installed the Vega VII for playing WoW and i am LOVING it! The performance is great! I really want to flash the card so i can use the boot menu as I do swap to BootCamp often. Does anyone have experience with this? Sorry if this is the wrong place but I’ve been searching online and have not been successful
there is no flash or service for the radeon VII bootscreen
the only way is with opencore
forums.macrumors.com
the only way is with opencore
OpenCore on the Mac Pro
This guide explains how to use the excellent OpenCore boot loader to install, run, and update the latest version of macOS on the MacPro5,1, resulting in a clean, unaltered operating system just like on a supported Mac.
forums.macrumors.com
I would like to purchase an AMD Radeon VII for my Mac Pro 5.1 (for Editing Viedo) but I would first like to know how high it is (because in the second PCIe slot I have an IO Controller SSD NVMe) and if there is a guide for installing this card? Thanks in advance!
Thank you very much!
But is there a tutorial to install Radeon VII on Mac Pro 5.1?
It's difficult?
i still recommend to use the radeonVII exclusively in pixlas mode in contrast to various other approaches.
Mac Pro Pixlas Mod - The House of Moth
Modify your Mac Pro power supply to relieve the board and feed powerhungry GPU's
thehouseofmoth.com
I want to buy an AMD Radeon VII card but I can only find the XFX one online, while both PowerColor and Sapphire are unavailable. Do you think they are all the same or are there differences and is one better than the other? Thanks in advance for the help!
[automerge]1587738287[/automerge]
Are there any differences between XFX's Radeon VII, PowerColor and Sapphire or are they all exactly the same?
Last edited:
Can you send the link where I can buy the black plastic part that covers the connectors on the card? Thanks in advance!
It is compatible with Open-End to Dual 8 Pin (6+2) PCI-E Sleeved Cable (Pixlas Mod)?
yes, i have pixlas mod in all of my cMPs for GPUs
the backplane power connectors are used by the GC-titan ridge
Last edited by a moderator:
