No, i have Ati Radeon Hd 2600 xt for boot screens, but it is not installed. Only RX580 is.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Best graphics card for 2010 Mac Pro that is supported out of box
- Thread starter Ethosik
- Start date
- Sort by reaction score
Quick question on this, I'm new to the whole Mac Pro thing (My last workstation was a PowerMac G5)
This isn't a real Mac Pro anyway it's an HP Z800 running High Sierra but for ease of explanation lets just assume it's a Mac Pro
I've been doing FCPX work on my 2012 MBP for two years now (my projects aren't huge or complex, but they are numerous, upgraded to the workstation simply for more HDD space)
It seems...
Faster. On the MBP. It's an Ivy Bridge 3612(?) with an Nvidia GT650M, compared to this Z800 which is twin X5675 Xeons and (currently) a Quadro K4000
The workstation should kick the laptops ass, no? I don't think it does. Maybe it does? I haven't timed a render yet, I just set it and walk away. Maybe I should.
That’s the reason, MBP has QuickSync.
If you editing / exporting with ProRes 422, your “Mac Pro” will crush the MBP.
So everyone convinced me that a 580 is the way to go right now for video editing.
This video in particular was well convincing that CUDA means nothing now that METAL is supported by Adobe.
I was curious that the 580 is rated to take up to 225W, has anyone experienced shut downs using only a dual 6 to 8 pin solution like this moddiy one, which provides only 150W?
The slot will also provide 75W, you forgot to calculate that.
Ah yes, thank you! I'm ordering the recommended Moddiy cable. =)
They're updating their ordering system right now according to the banner at the top of the webpage. They're not taking orders at the moment AFAIK...
Ah they are having system upgrades and can't make sales.
How's this look?
https://www.aliexpress.com/item/Dua...8-Pin-Video-Card-Power-Cable/32822042322.html
Looks about the same to me.
Should work. Anyway, they are just really cables. As long as you have the connectors, you can make the required cable by yourself.
Looks good, can't say I've read anything about this particular cable from this supplier, but it seems to be correct configuration.
I ordered one in preparation for a new card. I have no way to test it at present though.
Last edited:
Upgrade to 10.13.6 this morning , my RX580 8 GB no longer support 4.4.4 @ 60Hz via Display-
port adapter to HDMI (Club 3D CAC 1080 DisplayPort 1.4 to HDMI 2.0 HDR)
Apple downgrade the RX580 with the new update , now I only have 4.4.4 @ 30Hz .
Since 10.13.6 AMD RX580 8GB;
no longer support 4.4.4 @60 Hz
no longer support HDMI Ultra Deep Color
Thanks Apple .
Last edited:
Try SwitchResX yet?
After 10.13.6 update, my RX580 automatically revert to 3840x1080 8bit 60Hz output, but I can re-select back to 3840x1080 HiDPI 10bit 144Hz without any trouble. (I did that via ResXtreme)
Never heard of QuickSync, this is interesting...
So, due to many reasons, one being power consumption...
Unless I move to ProRes, I might be better off selling up and grabbing an iMac with a later gen i7?
Or you can wait for 10.14 and get a RX580. The hardware decoding / encoding should be available in 10.14 for cMP.

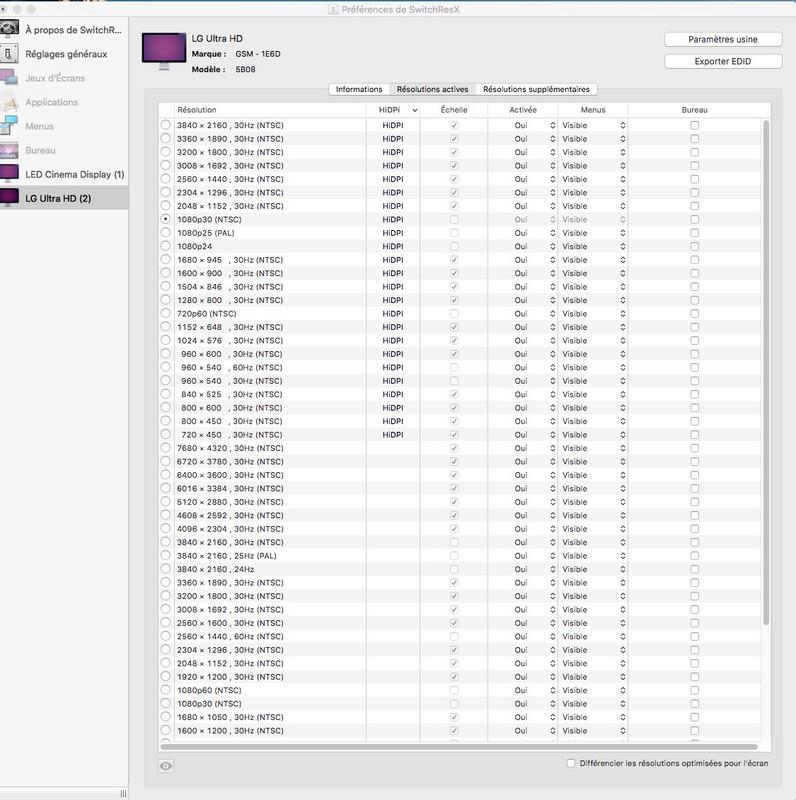

I tried with SwitchResX and ResXtrem 60Hz @ 4k HiDpi is no longer available since 10.13.6.

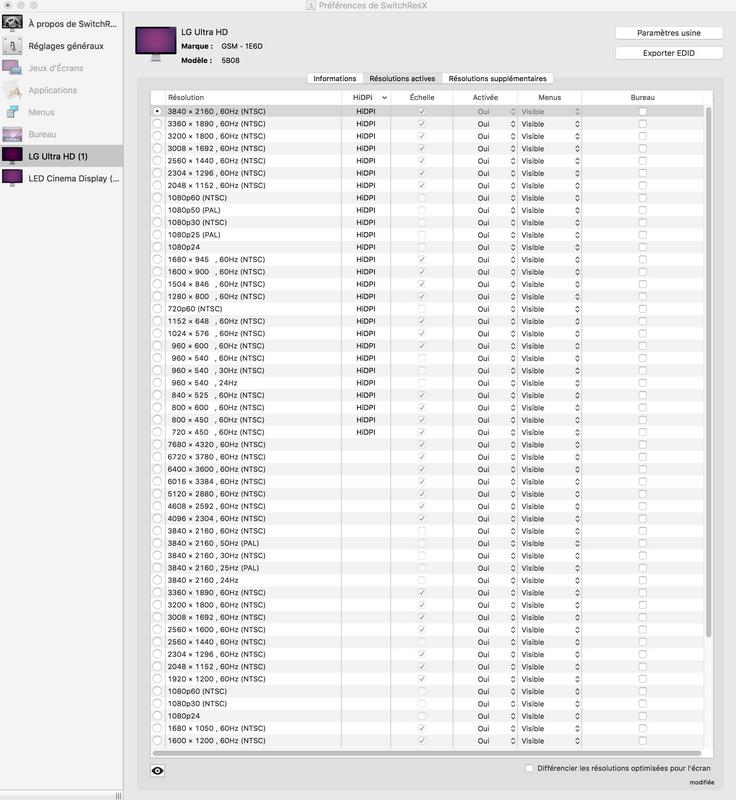

Before update :

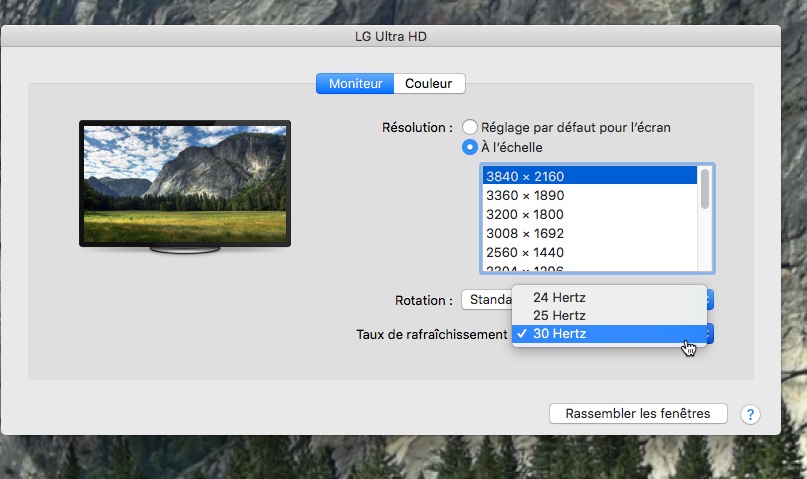

After update, 10.13.6 , AMD RX580 8GB no longer support 4k @60Hz :
Seem Apple downgraded AMD RX580 8GB @ 60Hz :
Last edited:

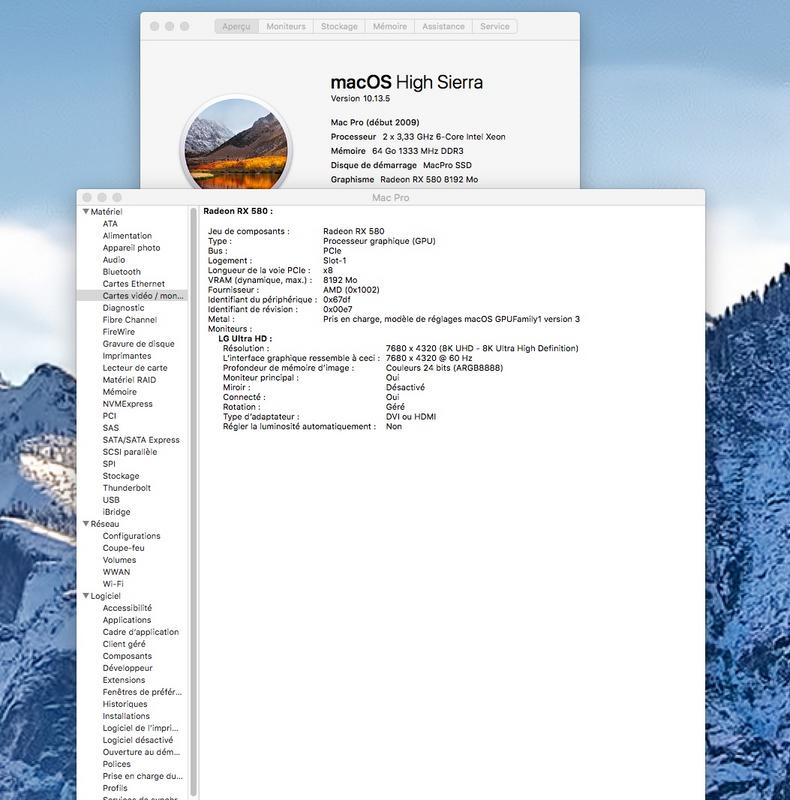

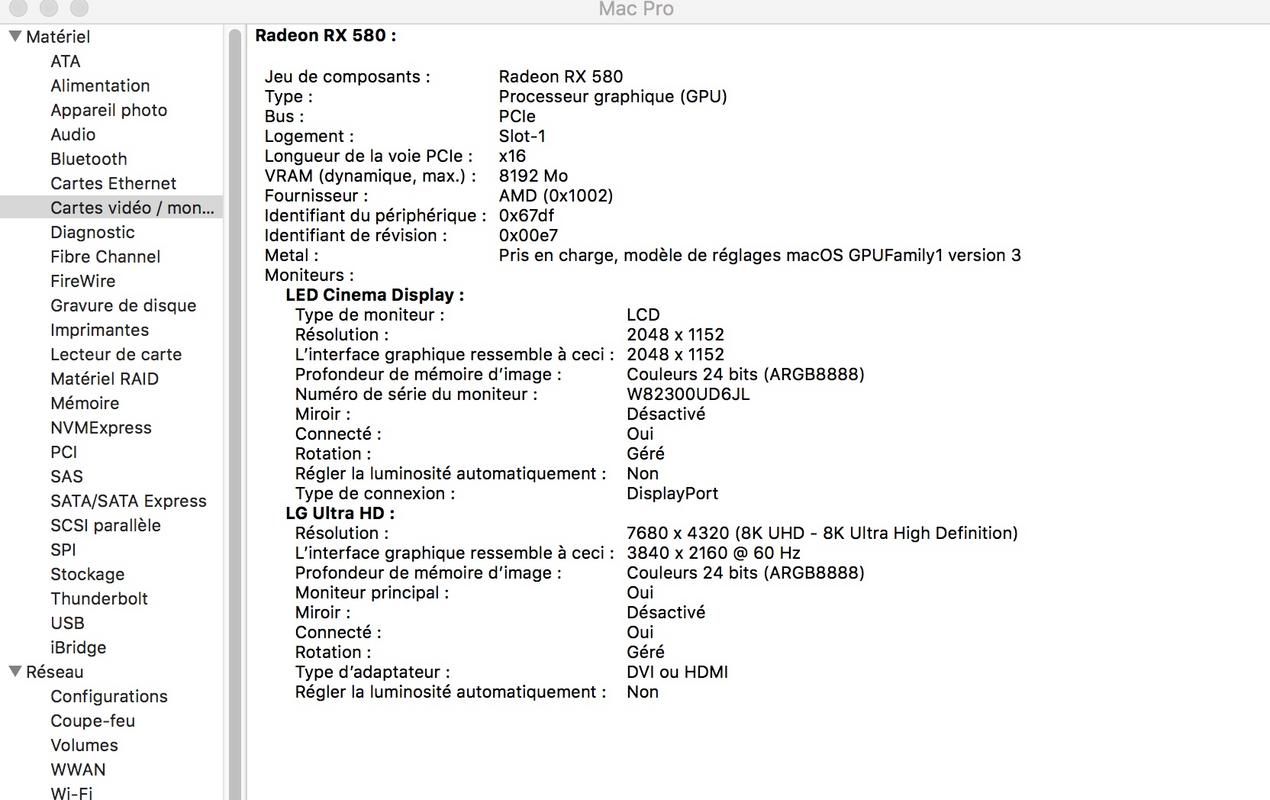

Your display is showing up as an 8k display, rendering as 2160p?
It's not just 4k you seem to have lost 60Hz refresh on. It's also plugged in via an adapter (my french isn't... existant)?
Right , I lost 60Hz ,
I can have only 30 Hz @ 4k via an DisplayPort adapter to HDMI (Club 3D CAC 1080 DisplayPort 1.4 to HDMI 2.0 HDR) while before the update I had 60 Hz @ 4k.
I use this adapter because it's the only way I found to resolve ''black screen'' and ''flicker screen'' issus on my 43'' LG monitor , same issu with my new LG 65" (Oled Tv).

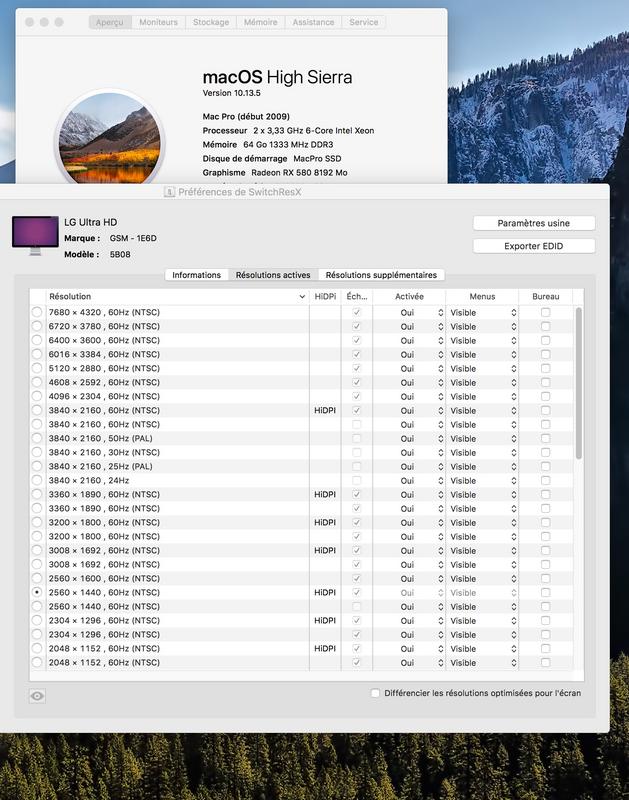

Back to 10.13.5 ,as you can see I have now 4k @60 Hz :
Edit : To have 4.4.4 resolution, I have to enable "Ultra Deep Color " on my 43" monitor or my oled tv, but since 10.13.6 the new AMD drivers no longer support this function; I do not understand this downgrade but on the other hand this is not very surprising from Apple (eg. RX570).
Last edited:
Wow, this one cable solution is gonna take 3 weeks to arrive from china.
Can I use two mini 6 to 6 cables instead?
https://www.amazon.com/Express-Video-Adapter-14-inch-COMeap/dp/B07F7XTSWL/ref=sr_1_3?ie=UTF8&qid=1531328214&sr=8-3&keywords=mini+pci+6+pin+to+pci+6+pin&th=1
[doublepost=1531328716][/doublepost]
Did you try this previously suggested soft that worked for another user? Try it without your adapter?
http://resxtreme.com/
Last edited:
Ah card just arrived, has only an 8pin input, for some reason I thought it was a 6 pin and 8 pin
Fortunately I ordered this too
https://www.amazon.com/gp/product/B0721R2SR7/ref=od_aui_detailpages00?ie=UTF8&psc=1
Fortunately I ordered this too
https://www.amazon.com/gp/product/B0721R2SR7/ref=od_aui_detailpages00?ie=UTF8&psc=1
So if you plug the display in directly, aside from the issues, do the 60Hz options and 4:4:4 colour come back? I'd still like to know why your display reports as 8k physical resolution, when it's a 4k panel.
You can do that on any display as long as the GPU support. It’s not the native resolution, but you can manually set that.
