Best graphics card for 2010 Mac Pro that is supported out of box

[MIKX]

HD 7950 or HD 7970 or R9 280 or R9 280X are all Metal Supported and can be EFI flashed to show the bootscreen at bootup.

Personally, I recommend the Sapphire Dual-X 3gb HD 7970 ( I have a flashed one ! ) or the MSI R9 280 X

Plenty of these going cheap on eBay

You can learn how to EFI flash the above cards here

Rom things

Rom things

forum.netkas.org

EFI flashing is not hard just has a steep learning curve but most of us in the Mac Pro forum have mastered it.

I started EFI flashing as a 100% noob but people on the Netkas site helped me until I ' got it ' .



[amp829]

Mojave requires a METAL supported GPU and BootROM upgrade. You can't download or install it officially without the METAL supported GPU.

Read the first post of the thread to know all the details MP5,1: What you have to do to upgrade to Mojave (BootROM upgrade instructions thread), pay attention with the requirements and read all the notes.

My friend i believe i have done the most difficult work up up to now (24 hours to turn off file vault ! ) , since i have given any detail for what i have in my hands .
i am waiting for 1-2-3 ... specific things to do so this 1 week drama find it's end .
so it would be very helpful to tell me what's the next step in order to avoid getting lost to translation of so many details .... thanks . you can ask me everything you want for my equipment !
[automerge]1571834845[/automerge]
i have to mention again that i have at my hands the sapphire pulse rx 580 8gb which is mentioned as metal card and supported by mac pros but at my mac i don't have picture at all . i can only use it when i am running the apple GT120 together when i remove the apple the rx 580 doesn't work so i am looking for a way to make it work on it's own and hat is to upgrade the boot rom i 've been told at the site ...
i don't have any other metal apple cards ..

and last but not the lest my boot rom is MP51.0089.B00



[tsialex]

My friend i believe i have done the most difficult work up up to now (24 hours to turn off file vault ! ) , since i have given any detail for what i have in my hands .
i am waiting for 1-2-3 ... specific things to do so this 1 week drama find it's end .
so it would be very helpful to tell me what's the next step in order to avoid getting lost to translation of so many details .... thanks . you can ask me everything you want for my equipment !
[automerge]1571834845[/automerge]
i have to mention again that i have at my hands the sapphire pulse rx 580 8gb which is mentioned as metal card and supported by mac pros but at my mac i don't have picture at all . i can only use it when i am running the apple GT120 together when i remove the apple the rx 580 doesn't work so i am looking for a way to make it work on it's own and hat is to upgrade the boot rom i 've been told at the site ...
i don't have any other metal apple cards ..

and last but not the lest my boot rom is MP51.0089.B00

Please read the post, everything is already there and I'm not going to write it again here.

If you RX 580 is not working correctly, you have to find what's wrong, like not using the correct power cable (dual mini-PCIe 6-pin to PCIe 8-pin) for example. You can't use both cards while trying to upgrade the BootROM.



[MIKX]

amp829

How are you powering the RX 580 ? 2 X Mini 6 pin from the motherboard to 1 X 8pin to the GPU ?

Are you using this power cable ?

Which ports & cables are you using to connect to your monitor ?

I suggest that you go to your MacRumors member profile and make a ' signature' to describe your Mac Pro set up.

Hint

My 'signature' is at the bottom of thsi post.



[amp829]

i am using this cable https://www.ebay.co.uk/itm/Dual-Min...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

and when i use both cards the rx 580 works like a butter .

can i remove the GT120 while the mac is on use and see if the rx 580 is going to work itself since the monitor cable is at rx not at GT ?

amp829

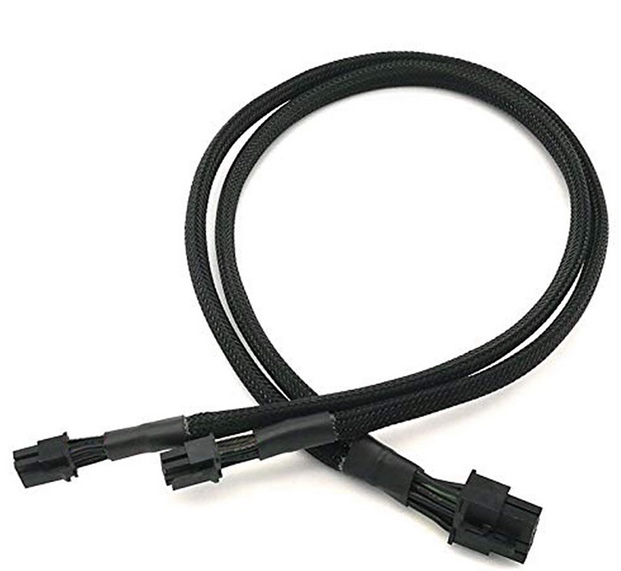

How are you powering the RX 580 ? 2 X Mini 6 pin from the motherboard to 1 X 8pin to the GPU ?

Are you using this power cable ?

View attachment 871895

Which ports & cables are you using to connect to your monitor ?

I suggest that you go to your MacRumors member profile and make a ' signature' to describe your Mac Pro set up.

Hint

My 'signature' is at the bottom of thsi post.



[tsialex]

i am using this cable https://www.ebay.co.uk/itm/Dual-Mini-6-Pin-PCI-e-Male-to-8-Pin-Graphics-Card-Power-Cord-for-Mac-Pro-18AWG/233229541399?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

and when i use both cards the rx 580 works like a butter .

can i remove the GT120 while the mac is on use and see if the rx 580 is going to work itself since the monitor cable is at rx not at GT ?

Never remove any PCIe card while the Mac Pro is powered, MP5,1 PCIe slots are not hot-swappable and you will probably damage something.

Do a clean install of High Sierra with an empty disk with your GT 120, power off your Mac Pro, then install just your RX 580 and check if it works, maybe your current install has problems like AirDisplay incompatible kexts or something along the lines.



[amp829]

Never remove any PCIe card while the Mac Pro is powered, MP5,1 PCIe slots are not hot-swappable and you will probably damage something.

Do a clean install of High Sierra with an empty disk with your GT 120, power off your Mac Pro, then install just your RX 580 and check if it works, maybe your current install has problems like AirDisplay incompatible kexts or something along the lines.

IS there a report i can find to show you ?



[MIKX]

amp829

Do you know how to do an NVRAM re-set ?

If not SHUT DOWN.

Remove the GT 120

Check to make certain that your RX 580's is installed correctly in PCie slot 1

Check that your RX 580's power cable ( 2 X Mini 6 pin to 1 X 8 pin ) is correctly connected.
there is a " click " when the cable locks into the socket.

This time, uses a DVI to DVI cable ( if you have one ) ​

===============================================

Hold down these keys down straight after you hit the startup button.
IMPORTANT : Keep holding the keys down until you hear the 'Happy Mac Chime' THREE times !

then let go the keys and. let the cMP try to start up.

NVRAM RE-SET ( also called "PRAM" re-set" sometimes.​



[amp829]

Hello guys
I finally did it !
i turned the switch of the Rx580 to gaming mode (default because is dual bios version) i entered it at the mac together with gt120 and left them work together ...
After, i shut down and removed the gt120 and after turn up the MAC the miracle happened ! i had the login screen with rx580 .
the only thing i might regret is that i went at mac updater and download /installed mojave .
Now i am running at MOJAVE and still doing the updates .
One technician told me that was wrong move .
mojave is going to trouble and stall my mac's speed just like any other update ....


Thanks everybody for your help !



[amp829]

now i watch that although my monitor is considered 10 bit monitor DELL U3011 (wide color gamut )
my
Framebuffer Depth: is 24-Bit Colour (ARGB8888) not 30bit
also the Boot ROM Version is : 138.0.0.0.0

how can i have 10 bit colour ?
and if really matters to update to 144,00 boot rom ?



[amp829]

i am at Mojave latest update but my bottom is 138.00.... i want to update to 144.00... as it should be while updating from High Sierra . Does anybody knows the way ?



[amp829]

i found the way and everything is OK ... so if someone else has the same problem i can help him/her ±!!



[h9826790]

now i watch that although my monitor is considered 10 bit monitor DELL U3011 (wide color gamut )
my
Framebuffer Depth: is 24-Bit Colour (ARGB8888) not 30bit
also the Boot ROM Version is : 138.0.0.0.0

how can i have 10 bit colour ?
and if really matters to update to 144,00 boot rom ?

ResXtreme (free software) allow user to switch to 10 bit colour easily.



[amp829]

ResXtreme (free software) allow user to switch to 10 bit colour easily.

thanks mate it came up to my mac on it's own after a restart ...so i have as it should be 10 bit colour



[amp829]

Hello i noticed that my mac pro is jerking when playing high quality videos , there are sound interrupts and when panning also like losing frames ... i have the rx 580 8gb GPU ....i noticed this behaviour also when playing the screen saver photos . Can anyone tell me what is probably wrong ?



[tsialex]

Hello i noticed that my mac pro is jerking when playing high quality videos , there are sound interrupts and when panning also like losing frames ... i have the rx 580 8gb GPU ....i noticed this behaviour also when playing the screen saver photos . Can anyone tell me what is probably wrong ?

If you are trying to play x265 videos with high bitrate, Apple don't support RX 580 hardware HEVC decoding/encoding when installed in a MP5,1.

You can enable it yourself with some work, read about here:

Activate AMD hardware acceleration



[amp829]

i try it but there are things i can't understand , the procedure is not for newbies like me , surely advanced mac users can make it . but the most important is to be given a solution from apple , since it supports RX 580 it should support it and at h265 videos which is one of the best code for high end quality videos .
@tsialex do you think downgrading to High sierra would solve my problem ?



[h9826790]

i try it but there are things i can't understand , the procedure is not for newbies like me , surely advanced mac users can make it . but the most important is to be given a solution from apple , since it supports RX 580 it should support it and at h265 videos which is one of the best code for high end quality videos .
@tsialex do you think downgrading to High sierra would solve my problem ?

No, only make it worst.

You should stay at 10.14.6. And use the Lilu + WhateverGreen method to activate HEVC decode (if all you want is just smooth playback).

Just follow step 1-15 in that post #1 will do. It's really just read and do, copy and paste. No advance skill involve.

The only step I didn't explain is step 1. But Google "SIP macOS" will be good enough to tell you how to turn that OFF.



[tsialex]

i try it but there are things i can't understand , the procedure is not for newbies like me , surely advanced mac users can make it . but the most important is to be given a solution from apple , since it supports RX 580 it should support it and at h265 videos which is one of the best code for high end quality videos .
@tsialex do you think downgrading to High sierra would solve my problem ?

Forget Apple, MP5,1 was declared obsoleted already, Catalina don't support it and Mojave is only in maintenance mode.

When we asked about HEVC support for RX 580 they told that was a never intended to work with MP5,1.



[kohlson]

the procedure is not for newbies like me

I did this procedure, and it works great. Not only can you watch high bitrate/x265 video, it speeds the workflow in FCPX. Note that I did the hex method, and that this was the first time I had ever used a hex editor. I downloaded the free iHex from the App Store. My advice:
- I made many mistakes when attempting this, all from not following the instructions exactly. If you follow the instructions, it works, and if you don't, it won't.
- You should have an alternate boot disk.



[amp829]

No, only make it worst.

You should stay at 10.14.6. And use the Lilu + WhateverGreen method to activate HEVC decode (if all you want is just smooth playback).

Just follow step 1-15 in that post #1 will do. It's really just read and do, copy and paste. No advance skill involve.

The only step I didn't explain is step 1. But Google "SIP macOS" will be good enough to tell you how to turn that OFF.

Deactivate Sip was easy ! i could not understand what exactly have to do at the step 4 , i have to open just the unzipped folder or the inside same name file ? which i tried to open and i could not and my mac told to search to App Store for a compatible app .
at step 5 writes enter contents , which contents ? These are my problems which may look silly but don't let me to do the job . i would need someone to explain me exactly what i have to do and if i already have too had an extra app like HEX mentioned above .. i am doing $k 10bit 4.2.2 video editing at FCPX and Davinci resolve , when i used my rx 580 when updated to mojave everything was smooth but now it jerks



[h9826790]

Deactivate Sip was easy ! i could not understand what exactly have to do at the step 4 , i have to open just the unzipped folder or the inside same name file ? which i tried to open and i could not and my mac told to search to App Store for a compatible app .
at step 5 writes enter contents , which contents ? These are my problems which may look silly but don't let me to do the job . i would need someone to explain me exactly what i have to do and if i already have too had an extra app like HEX mentioned above .. i am doing $k 10bit 4.2.2 video editing at FCPX and Davinci resolve , when i used my rx 580 when updated to mojave everything was smooth but now it jerks

Right click, show package content.

I will amend the instruction now. Thanks for voicing out this issue.



[amp829]

thanks i will wait



[amp829]

i use as a playback media player the ELMEDIA Video player and it plays H265 4K 10bit 4:2:2 videos as a butter but my mac
restarted 2 times and the report is below
** Panic Report ***
mp_kdp_enter() timed-out on cpu 14, NMI-ing
mp_kdp_enter() NMI pending on cpus: 0 10 11
mp_kdp_enter() timed-out during locked wait after NMI;expected 16 acks but received 14 after 15545452 loops in 1130499855 ticks
panic(cpu 14 caller 0xffffff801a6b6ead): "IPI timeout, unresponsive CPU bitmap: 0x400, NMIPI acks: 0x0, now: 0x0, deadline: 2559483544622, pre-NMIPI time: 0x253ed1b8635, current: 0x2540ae8ee6a, global: 0"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4903.278.12/osfmk/x86_64/pmap.c:3038
Backtrace (CPU 14), Frame : Return Address
0xffffffa3df2b3860 : 0xffffff801a5af57d
0xffffffa3df2b38b0 : 0xffffff801a6eb065
0xffffffa3df2b38f0 : 0xffffff801a6dc79a
0xffffffa3df2b3960 : 0xffffff801a55c9d0
0xffffffa3df2b3980 : 0xffffff801a5aef97
0xffffffa3df2b3aa0 : 0xffffff801a5aede3
0xffffffa3df2b3b10 : 0xffffff801a6b6ead
0xffffffa3df2b3bd0 : 0xffffff801a6bd576
0xffffffa3df2b3cb0 : 0xffffff801a6be226
0xffffffa3df2b3d20 : 0xffffff801a647949
0xffffffa3df2b3e80 : 0xffffff801a64f545
0xffffffa3df2b3ec0 : 0xffffff801a5a24fe
0xffffffa3df2b3ef0 : 0xffffff801a6c26d7
0xffffffa3df2b3fa0 : 0xffffff801a55d1b6

BSD process name corresponding to current thread: Elmedia Video Pl

Mac OS version:
18G1012

Kernel version:
Darwin Kernel Version 18.7.0: Sat Oct 12 00:02:19 PDT 2019; root:xnu-4903.278.12~1/RELEASE_X86_64
Kernel UUID: DFB5D0E2-3B41-3647-A48B-D704AFCC06B4
Kernel slide: 0x000000001a200000
Kernel text base: 0xffffff801a400000
__HIB text base: 0xffffff801a300000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 2560985269243
last loaded kext at 267417747493: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f9eb3f000, size 69632)
loaded kexts:
com.apple.filesystems.msdosfs 1.10
com.apple.filesystems.exfat 1.4
com.apple.fileutil 20.036.15
com.apple.driver.AppleBluetoothMultitouch 96
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.driver.AppleMCCSControl 1.5.9
com.apple.kext.AMDFramebuffer 2.1.1
com.apple.filesystems.autofs 3.0
com.apple.driver.AGPM 110.25.11
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.kext.AMDRadeonX4000 2.1.1
com.apple.driver.AppleGraphicsDevicePolicy 3.50.14
com.apple.driver.AppleHDAHardwareConfigDriver 282.54
com.apple.AGDCPluginDisplayMetrics 3.50.14
com.apple.driver.AppleHDA 282.54
com.apple.driver.AppleMikeyDriver 282.54
com.apple.driver.AppleHV 1
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothSerialManager 6.0.14d3
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.kext.AMD9500Controller 2.1.1
com.apple.driver.AppleGFXHDA 100.1.414
com.apple.driver.AppleLPC 3.1
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.AppleFIVRDriver 4.1.0
com.apple.driver.AudioAUUC 1.70
com.apple.driver.AppleOSXWatchdog 1
com.apple.iokit.IOBluetoothUSBDFU 6.0.14d3
com.apple.driver.AppleRAID 5.1.0
com.apple.filesystems.apfs 945.275.8
com.apple.driver.MaxTranserSizeOverrideDriver 456.260.3
com.apple.driver.AppleFileSystemDriver 3.0.1
com.apple.driver.AppleVirtIO 2.1.3
com.apple.filesystems.hfs.kext 407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.AppleSystemPolicy 1.0
com.apple.iokit.SCSITaskUserClient 408.250.3
com.apple.driver.AppleFWOHCI 5.6.0
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AppleAHCIPort 329.260.5
com.apple.private.KextAudit 1.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0
com.apple.nke.applicationfirewall 202
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 220.0.0
com.apple.driver.AppleMultitouchDriver 2450.1
com.apple.driver.AppleInputDeviceSupport 2440.2
com.apple.driver.AppleBluetoothHIDKeyboard 208
com.apple.driver.IOBluetoothHIDDriver 6.0.14d3
com.apple.driver.AppleHIDKeyboard 208
com.apple.kext.triggers 1.0
com.apple.kext.AMDRadeonX4000HWLibs 1.0
com.apple.iokit.IOAcceleratorFamily2 404.14
com.apple.kext.AMDRadeonX4000HWServices 2.1.1
com.apple.driver.AppleGraphicsControl 3.50.14
com.apple.driver.DspFuncLib 282.54
com.apple.kext.OSvKernDSPLib 528
com.apple.iokit.IOAVBFamily 760.6
com.apple.plugin.IOgPTPPlugin 740.2
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.iokit.IOSkywalkFamily 1
com.apple.driver.AppleSSE 1.0
com.apple.iokit.IOSurface 255.6.1
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.AppleGPUWrangler 3.50.14
com.apple.driver.AppleHDAController 282.54
com.apple.iokit.IOHDAFamily 282.54
com.apple.iokit.IONDRVSupport 530.51
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.kext.AMDSupport 2.1.1
com.apple.AppleGraphicsDeviceControl 3.50.14
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOFireWireIP 2.3.0
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.iokit.IOGraphicsFamily 530.67
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.14d3
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.14d3
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.14d3
com.apple.iokit.IOBluetoothFamily 6.0.14d3
com.apple.driver.AppleXsanScheme 3
com.apple.iokit.IOAHCIBlockStorage 301.270.1
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.driver.AppleUSBAudio 315.6
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.usb.cdc 5.0.0
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.iokit.IOSerialFamily 11
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOSCSIMultimediaCommandsDevice 408.250.3
com.apple.iokit.IOBDStorageFamily 1.8
com.apple.iokit.IODVDStorageFamily 1.8
com.apple.iokit.IOCDStorageFamily 1.8
com.apple.iokit.IOAHCISerialATAPI 267.50.1
com.apple.iokit.IOFireWireFamily 4.7.3
com.apple.driver.AppleUSBMergeNub 900.4.2
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.2
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.security.quarantine 3
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 493.0.0
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 456.260.3
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice 408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily 408.250.3
com.apple.iokit.IOStorageFamily 2.1
com.apple.kext.CoreTrust 1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOReportFamily 47
com.apple.iokit.IOTimeSyncFamily 740.2
com.apple.iokit.IONetworkingFamily 3.4
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF
Model: MacPro5,1, BootROM 144.0.0.0.0, 8 processors, Quad-Core Intel Xeon, 2,26 GHz, 32 GB, SMC 1.39f5
Graphics: Radeon RX 580, Radeon RX 580, spdisplays_pcie_device, 8 GB
Memory Module: DIMM 1, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 2, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 3, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 4, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 5, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 6, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 7, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 8, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Bluetooth: Version 6.0.14d3, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet 1, Ethernet, en0
Network Service: Ethernet 2, Ethernet, en1
PCI Card: Radeon RX 580, Display Controller, Slot-1
PCI Card: pci1002,aaf0, Audio Device, Slot-1
Serial ATA Device: HL-DT-ST DVD-RW GH41N
Serial ATA Device: WDC WD3000FYYZ-01UL1B2, 3 TB
Serial ATA Device: Samsung SSD 850 EVO 500GB, 500,11 GB
Serial ATA Device: WDC WD30EZRX-00MMMB0, 3 TB
Serial ATA Device: WDC WD30EURS-63SPKY0, 3 TB
USB Device: USB 2.0 Bus
USB Device: Transcend
USB Device: USB 2.0 Bus
USB Device: Miscellaneous Device
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:



[h9826790]

i use as a playback media player the ELMEDIA Video player and it plays H265 4K 10bit 4:2:2 videos as a butter but my mac
restarted 2 times and the report is below
** Panic Report ***
mp_kdp_enter() timed-out on cpu 14, NMI-ing
mp_kdp_enter() NMI pending on cpus: 0 10 11
mp_kdp_enter() timed-out during locked wait after NMI;expected 16 acks but received 14 after 15545452 loops in 1130499855 ticks
panic(cpu 14 caller 0xffffff801a6b6ead): "IPI timeout, unresponsive CPU bitmap: 0x400, NMIPI acks: 0x0, now: 0x0, deadline: 2559483544622, pre-NMIPI time: 0x253ed1b8635, current: 0x2540ae8ee6a, global: 0"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4903.278.12/osfmk/x86_64/pmap.c:3038
Backtrace (CPU 14), Frame : Return Address
0xffffffa3df2b3860 : 0xffffff801a5af57d
0xffffffa3df2b38b0 : 0xffffff801a6eb065
0xffffffa3df2b38f0 : 0xffffff801a6dc79a
0xffffffa3df2b3960 : 0xffffff801a55c9d0
0xffffffa3df2b3980 : 0xffffff801a5aef97
0xffffffa3df2b3aa0 : 0xffffff801a5aede3
0xffffffa3df2b3b10 : 0xffffff801a6b6ead
0xffffffa3df2b3bd0 : 0xffffff801a6bd576
0xffffffa3df2b3cb0 : 0xffffff801a6be226
0xffffffa3df2b3d20 : 0xffffff801a647949
0xffffffa3df2b3e80 : 0xffffff801a64f545
0xffffffa3df2b3ec0 : 0xffffff801a5a24fe
0xffffffa3df2b3ef0 : 0xffffff801a6c26d7
0xffffffa3df2b3fa0 : 0xffffff801a55d1b6

BSD process name corresponding to current thread: Elmedia Video Pl

Mac OS version:
18G1012

Kernel version:
Darwin Kernel Version 18.7.0: Sat Oct 12 00:02:19 PDT 2019; root:xnu-4903.278.12~1/RELEASE_X86_64
Kernel UUID: DFB5D0E2-3B41-3647-A48B-D704AFCC06B4
Kernel slide: 0x000000001a200000
Kernel text base: 0xffffff801a400000
__HIB text base: 0xffffff801a300000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 2560985269243
last loaded kext at 267417747493: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f9eb3f000, size 69632)
loaded kexts:
com.apple.filesystems.msdosfs 1.10
com.apple.filesystems.exfat 1.4
com.apple.fileutil 20.036.15
com.apple.driver.AppleBluetoothMultitouch 96
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.driver.AppleMCCSControl 1.5.9
com.apple.kext.AMDFramebuffer 2.1.1
com.apple.filesystems.autofs 3.0
com.apple.driver.AGPM 110.25.11
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.kext.AMDRadeonX4000 2.1.1
com.apple.driver.AppleGraphicsDevicePolicy 3.50.14
com.apple.driver.AppleHDAHardwareConfigDriver 282.54
com.apple.AGDCPluginDisplayMetrics 3.50.14
com.apple.driver.AppleHDA 282.54
com.apple.driver.AppleMikeyDriver 282.54
com.apple.driver.AppleHV 1
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothSerialManager 6.0.14d3
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.kext.AMD9500Controller 2.1.1
com.apple.driver.AppleGFXHDA 100.1.414
com.apple.driver.AppleLPC 3.1
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.AppleFIVRDriver 4.1.0
com.apple.driver.AudioAUUC 1.70
com.apple.driver.AppleOSXWatchdog 1
com.apple.iokit.IOBluetoothUSBDFU 6.0.14d3
com.apple.driver.AppleRAID 5.1.0
com.apple.filesystems.apfs 945.275.8
com.apple.driver.MaxTranserSizeOverrideDriver 456.260.3
com.apple.driver.AppleFileSystemDriver 3.0.1
com.apple.driver.AppleVirtIO 2.1.3
com.apple.filesystems.hfs.kext 407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.AppleSystemPolicy 1.0
com.apple.iokit.SCSITaskUserClient 408.250.3
com.apple.driver.AppleFWOHCI 5.6.0
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AppleAHCIPort 329.260.5
com.apple.private.KextAudit 1.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0
com.apple.nke.applicationfirewall 202
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 220.0.0
com.apple.driver.AppleMultitouchDriver 2450.1
com.apple.driver.AppleInputDeviceSupport 2440.2
com.apple.driver.AppleBluetoothHIDKeyboard 208
com.apple.driver.IOBluetoothHIDDriver 6.0.14d3
com.apple.driver.AppleHIDKeyboard 208
com.apple.kext.triggers 1.0
com.apple.kext.AMDRadeonX4000HWLibs 1.0
com.apple.iokit.IOAcceleratorFamily2 404.14
com.apple.kext.AMDRadeonX4000HWServices 2.1.1
com.apple.driver.AppleGraphicsControl 3.50.14
com.apple.driver.DspFuncLib 282.54
com.apple.kext.OSvKernDSPLib 528
com.apple.iokit.IOAVBFamily 760.6
com.apple.plugin.IOgPTPPlugin 740.2
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.iokit.IOSkywalkFamily 1
com.apple.driver.AppleSSE 1.0
com.apple.iokit.IOSurface 255.6.1
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.AppleGPUWrangler 3.50.14
com.apple.driver.AppleHDAController 282.54
com.apple.iokit.IOHDAFamily 282.54
com.apple.iokit.IONDRVSupport 530.51
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.kext.AMDSupport 2.1.1
com.apple.AppleGraphicsDeviceControl 3.50.14
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOFireWireIP 2.3.0
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.iokit.IOGraphicsFamily 530.67
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.14d3
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.14d3
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.14d3
com.apple.iokit.IOBluetoothFamily 6.0.14d3
com.apple.driver.AppleXsanScheme 3
com.apple.iokit.IOAHCIBlockStorage 301.270.1
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.driver.AppleUSBAudio 315.6
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.usb.cdc 5.0.0
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.iokit.IOSerialFamily 11
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOSCSIMultimediaCommandsDevice 408.250.3
com.apple.iokit.IOBDStorageFamily 1.8
com.apple.iokit.IODVDStorageFamily 1.8
com.apple.iokit.IOCDStorageFamily 1.8
com.apple.iokit.IOAHCISerialATAPI 267.50.1
com.apple.iokit.IOFireWireFamily 4.7.3
com.apple.driver.AppleUSBMergeNub 900.4.2
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.2
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.security.quarantine 3
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 493.0.0
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 456.260.3
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice 408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily 408.250.3
com.apple.iokit.IOStorageFamily 2.1
com.apple.kext.CoreTrust 1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOReportFamily 47
com.apple.iokit.IOTimeSyncFamily 740.2
com.apple.iokit.IONetworkingFamily 3.4
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF
Model: MacPro5,1, BootROM 144.0.0.0.0, 8 processors, Quad-Core Intel Xeon, 2,26 GHz, 32 GB, SMC 1.39f5
Graphics: Radeon RX 580, Radeon RX 580, spdisplays_pcie_device, 8 GB
Memory Module: DIMM 1, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 2, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 3, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 4, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 5, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 6, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 7, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 8, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Bluetooth: Version 6.0.14d3, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet 1, Ethernet, en0
Network Service: Ethernet 2, Ethernet, en1
PCI Card: Radeon RX 580, Display Controller, Slot-1
PCI Card: pci1002,aaf0, Audio Device, Slot-1
Serial ATA Device: HL-DT-ST DVD-RW GH41N
Serial ATA Device: WDC WD3000FYYZ-01UL1B2, 3 TB
Serial ATA Device: Samsung SSD 850 EVO 500GB, 500,11 GB
Serial ATA Device: WDC WD30EZRX-00MMMB0, 3 TB
Serial ATA Device: WDC WD30EURS-63SPKY0, 3 TB
USB Device: USB 2.0 Bus
USB Device: Transcend
USB Device: USB 2.0 Bus
USB Device: Miscellaneous Device
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:

Only had issues when use that player? If yes, better stop using it. Just a player anyway. IINA or VLC usually can do better.
