Yes, my original 3x1gb modules in my cMP where Hynix also.
I thought Hynix was Apple's long-standing brand.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Caution! Troubles with 870 evo drives on cMP 5,1 !
- Thread starter wrianwolfsn
- Start date
- Sort by reaction score
I thought Hynix was Apple's long-standing brand.
Apple uses mostly MICRON but also uses Hynix RAM as well as other. Of course, none of that is the topic of this thread.
Huh? You were responding to me by saying saying that you were responding to me.
Really?
You apparently did not read the post that you say you were responding to.
Yes I think older models have samsung and Toshiba, and also SanDisk with marvell controllers.
M1 uses kioxia chips (Toshiba)
I had hoped the SVT02B6Q firmware would have resolved the Ø on reboot issue on our new cMP 4,1>5,1, but after I had done the update last night it still has to be shut down completely before it will see the 870 EVO in bay 1.
Backstory- Our 3,1 had died several weeks ago (maybe PSU, maybe logic board, tests inconclusive) so we found a reasonably priced 5,1 (appears to be a 2010 4,1 flashed to 5,1). The 3,1 had been maxed out on El Capitan for years on a 850 EVO booting from an OWC PCIe card. I was looking forward to having a second x16 slot to get some more speed out of the SSD, but to be safe I cloned it to the 870 EVO via CCC in case things went pants. Booted fine on the card, so I got greedy and tried to update to the latest MacOS the cMP would take (Monterey) without taking the plunge into patches and open source firmware. Had to step up to High Sierra first and it failed saying the drive had no firmware partition. I had cloned over the Recovery partition so it took some google-fu to figure out why it would not install. Suggestion was do reinstall via Internet Recovery to have the partition created. That's when I found that when I did Command-R or Opt-Command-R the cMP would not make any network connections (both ethernet ports took self-assigned addresses, and the Airport said the WAP five feet away is too far away to connect to). Moved the 870 EVO to bay 1 and the cMP still would not make network connections in recovery modes but the High Sierra installer no longer complained about a missing firmware partition. This is when I encountered the Ø on reboot issue. some more fu and I found this forum among others saying had to shut down to see the 870. And that got me through the MacOS upgrading steps.
Now I'm going to move the SSD back to the OWC card and see if the Ø on reboot still happens.
Yep. Because of required firmware updates, it is recommended that you update to Mojave first through the App Store, then Catalina, then Big Sur before attempting Monterey.
Catalina
DodDude1 Catalina patch
Big Sur
Big Sur over MP 5.1
Monterey
Monterey over MP 5.1
Let us know.
Last firmware update for MacPro5,1 ever released is 144.0.0.0.0 with Mojave.
It's completely unsupported after you leave Mojave and don't matter if you jump from Mojave to Monterey.
You may be right. I've heard different reports but don't own a 5.1 so have no opinion one way or the other.
D'oh! I meant Mojave. Y'know...one of those western places that start with M.
Moving the SSD back to the OWC card now lets the cMP reboot.
I came across this thread as today on my 5,1 with Mojave and a newly purchased 870 Evo in the Sata 2 backplane, the drive just disappeared. I had to reboot and it showed up again.
This is the first time I've added a ssd to the sata2 backplane to use for extra storage, while a Kingston PCIe hyperX card is my main boot / os drive.
Is there something special I'm missing to get the drive to not disconnect or is there something more to this?
This is the first time I've added a ssd to the sata2 backplane to use for extra storage, while a Kingston PCIe hyperX card is my main boot / os drive.
Is there something special I'm missing to get the drive to not disconnect or is there something more to this?
Works perfectly with any SSD that works correctly with a MacPro5,1, I have more than half a dozen installed. Won't change 870EVO issues.
What a passive adapter have to do with TRIM? Some drives have issues with TRIM, not the adapter.
I talk about the issues with the 870 Evo. Some harddrive has this warm boot problem too and i was reported disabling trimforce will help in some reasons.
Big size hard drives have a different pin-out than what the south bridge SATA ports expect, 3.3V pin, not the same problem as 870 EVOs.
TRIM issue is related to the SSD firmware doing things that macOS don't expect, sometimes lying to the controller, problem is much complex and deeper. A lot of SSDs have issues with TRIM and write cache.
This is a first for me. Since when did hdd’s become so finicky? Used to be you could buy hardware and use it rather than spend tons of time researching if it will work or not.

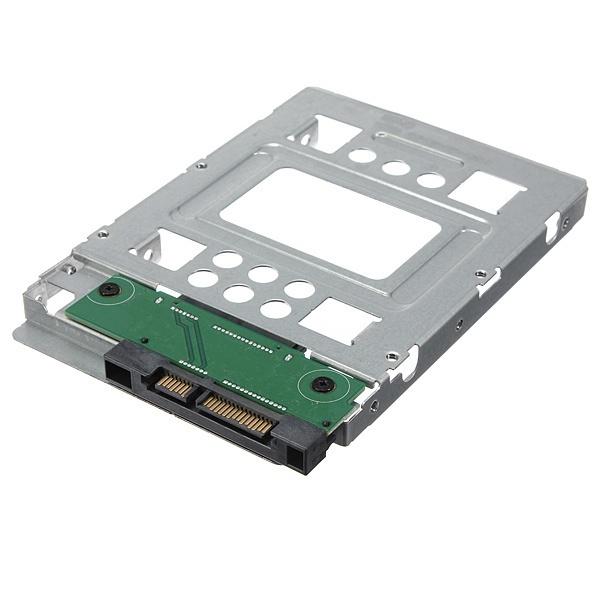

Rebooting worked and brought the drive back and I’m using an adapter which has a bit of circuitry on it to make the connection but I doubt that would cause issues.
So I’d the 870 evo III are not compatible with the 5,1 cMP how about the crucial line of 500/1000 ssd drives?
Also I have not enabled trim on any drives so it’s unknown is it needs that now or not. At the time of my installing a Kingston Hyper X PCIe ssd, it was said to not enable trim.
I also do not have power settings enabled that would put the hdd’s to sleep.
Rebooting worked and brought the drive back and I’m using an adapter which has a bit of circuitry on it to make the connection but I doubt that would cause issues.
So I’d the 870 evo III are not compatible with the 5,1 cMP how about the crucial line of 500/1000 ssd drives?
Also I have not enabled trim on any drives so it’s unknown is it needs that now or not. At the time of my installing a Kingston Hyper X PCIe ssd, it was said to not enable trim.
I also do not have power settings enabled that would put the hdd’s to sleep.
TRIM is not the issue—never was. It's built into the MacOS since 10.6.8, also Windows and UNIX. All it does is prepare the cells for new data about twice as fast as a drive's own Garbage Collection utility in the firmware. That's all it does.
Since Apple never used 2.5" SSDs, TRIM is blocked in the MacOS when one is detected. Running sudo trimforce enable in Terminal unblocks this in Yosemite 10.4 and later.
There's a lot of misinformation out there, a lot of it generated by OWC and Kingston in an effort to sell their SSDs before Apple made the change. It was interesting to see both companies walk that back but a lot of that misinformation is still parroted by the uninformed.
Since Apple never used 2.5" SSDs, TRIM is blocked in the MacOS when one is detected. Running sudo trimforce enable in Terminal unblocks this in Yosemite 10.4 and later.
There's a lot of misinformation out there, a lot of it generated by OWC and Kingston in an effort to sell their SSDs before Apple made the change. It was interesting to see both companies walk that back but a lot of that misinformation is still parroted by the uninformed.
Please name one where that's a verified issue if you don't mind. Oh it was considered the bogeyman before anyone understood what it really did but that was dismissed years ago.
