SuperKerem

macrumors 6502a
Original poster
Oct 29, 2012
863
260
Prerequisites:
- Nvidia Quadro FX 4500
- PC or Mac Pro with a PCI Express slot
- USB flash drive
- Access to a Windows installation for Step 1

Download: https://goo.gl/Ow66FG
Note: Only the Quadro FX 4500 revision with a metal L-shaped piece on the back of the card can be flashed for compatibility with Late 2005 Power Mac G5s. This revision is known as having 'double-sided RAM'. The newer revision contains RAM on only the top side of the card and is incompatible.

1. Install and launch the 'HP USB Storage Format Tool' executable
- Specify your USB drive and select 'FAT32'
- Select 'Create a DOS startup disk'
- Select 'USB DOS Image' folder
- Click 'Start'
- DOS is now bootable on your USB drive.

(Your USB drive may appear to be empty. This is because Windows Explorer is set to hide system files by default.)

2. Copy 'quadro.rom', 'nvflash.exe' and 'cwsdpmi.exe' (in 'nvFlash 5.67' folder) to the root directory of the USB drive.

(The USB drive is now ready to use.)

3. Connect a display to the FX 4500. It must be the only PCIe card in your PC or Mac Pro.
- Restart your computer and boot to the USB drive (enter boot manager on startup)
- DOS should load with the prompt 'a:\>' or 'c:\>'
- To initiate the reprogramming, carefully type:
nvflash -4 -5 -6 -j quadro.rom
- Press the enter key, accept the onscreen confirmation prompts, and nvFlash will commence. Do not interrupt.

4. Turn off your PC or Mac Pro and replace the Quadro FX 4500 into the Power Mac G5.

Thanks for reading!

Last edited:

LarsG5

macrumors member
Aug 10, 2016
49
13
Duuuuuuude, you're my God!

Everything worked perfectly!

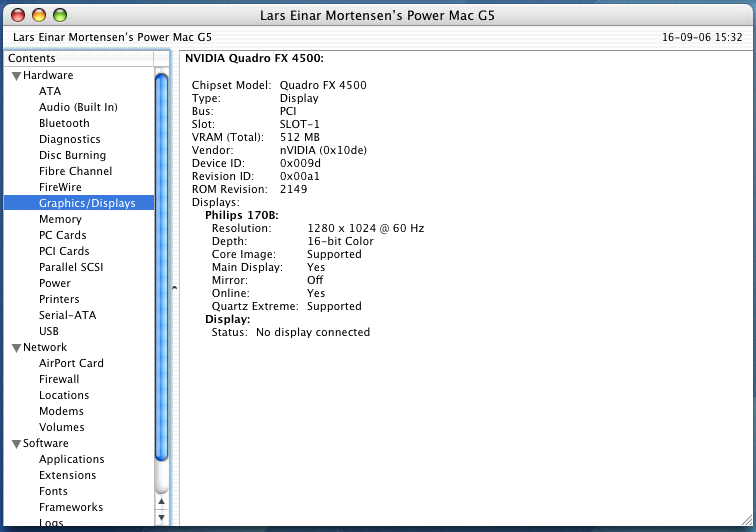

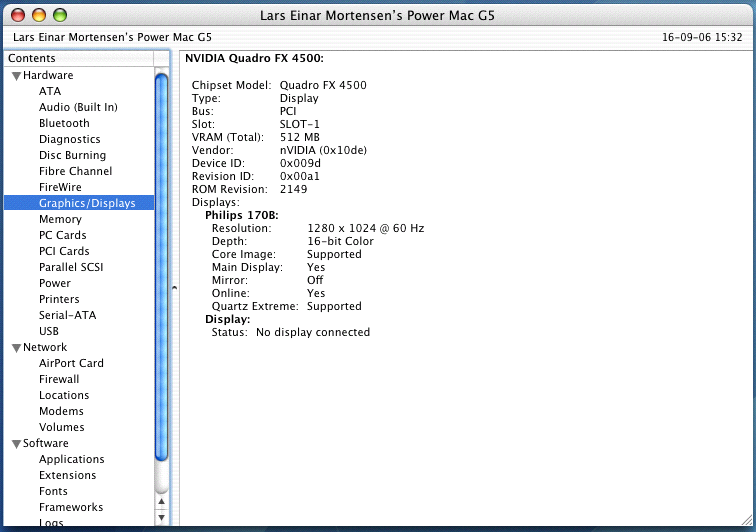

Picture 4.png


LAHegarty

macrumors regular
Aug 17, 2013
134
41
York, UK.
Last edited:
  • Like
Reactions: Mileham

LAHegarty

macrumors regular
Aug 17, 2013
134
41
York, UK.
Anyone who has flashed these cards, I'm looking for more info on them.
Do both the DVI ports work on a flashed card?

@LarsG5 Has reported only 1 of their 2 DVI ports appear to be working, has anyone else had this problem with flashed cards?


Eriamjh1138@DAN

macrumors 6502a
Sep 16, 2007
951
1,044
BFE, MI
Can someone post a pic of what card one should be looking for?

There are some really cheap ones on eBay, but they don't show good pictures of the whole card, both sides, etc. I'm guessing MOST of them are the wrong kind of card.

I have a PC and can probably easily flash a card like this.

Last edited:

MacCubed

macrumors 68000
Apr 26, 2014
1,618
494
Florida

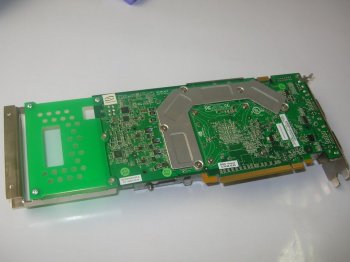

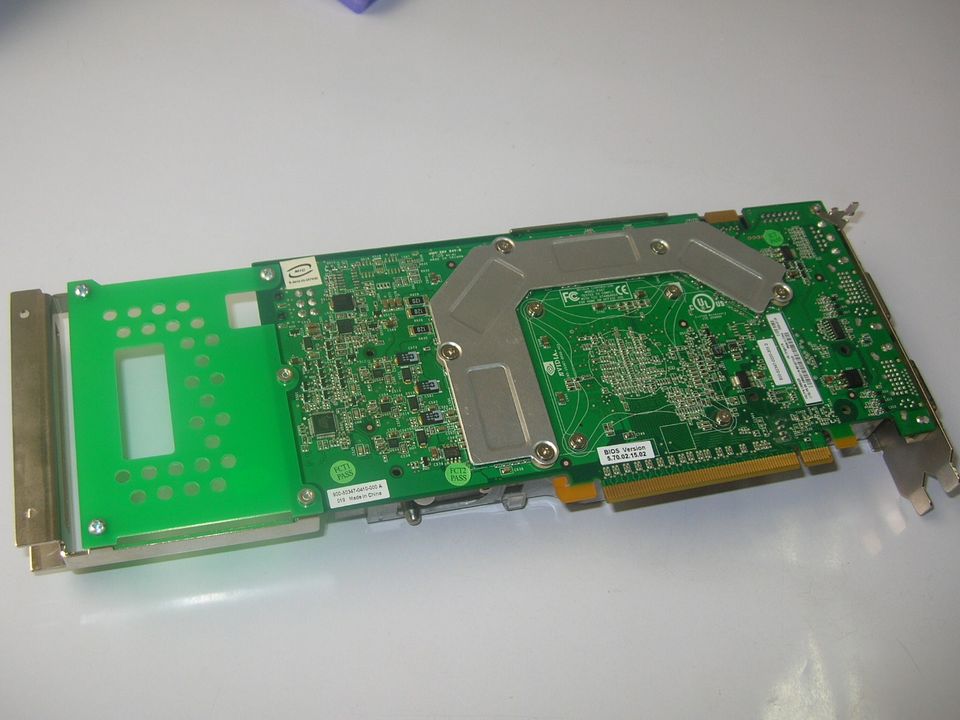

You are going to want to find cards that have a silver looking heat sink on the back. These are the only ones that will work with a G5, the ones without the heat sink will work in a Mac Pro


Attachments

  • fx4500-back.jpg
    86 KB · Views: 1,803
  • Like
Reactions: Mileham

SuperKerem

macrumors 6502a
Original poster
Oct 29, 2012
863
260
Download link no longer active, does anyone have these files?

Update: Managed to get a hold of the files thanks to @LarsG5 who contacted me over on facebook.
Files: http://www.mediafire.com/file/a6zas2za4avqfre/Flash-Quadro-FX4500-For-G5-AmazingKerem.iso

list of cards that work with G5 PCIe:

Compatible:
?

Incompatible:
Nvidia Quadro FX 4500 - REV A00
Nvidia Quadro FX 4500 - REV A02


This will be updated as I gather information.
Updated the download link.
[doublepost=1484489727][/doublepost]
Can someone post a pic of what card one should be looking for?

There are some really cheap ones on eBay, but they don't show good pictures of the whole card, both sides, etc. I'm guessing MOST of them are the wrong kind of card.

I have a PC and can probably easily flash a card like this.
Indeed, many on Ebay are likely to be incompatible. You should look for FX 4500s with a silver L-shaped metal piece on the back.

Last edited:

SuperKerem

macrumors 6502a
Original poster
Oct 29, 2012
863
260
Thank you! Successfully upgraded.
Awesome! Glad to help. :)
[doublepost=1484735893][/doublepost]
It was 6 months ago, and I have since parted with the G5, but I had success flashing an OEM HP Quadro 4500 (HP p/n 395814-001) I just had to take the bracket off.
Yeah, I had to do the same thing for my card.

Fortunately, the G5 has a nice mounting system that will support the card whether it has the bracket or not. ;)


SuperKerem

macrumors 6502a
Original poster
Oct 29, 2012
863
260
Thanks, just placed an order.

I see the card supports SLI but I imagine there's absolutely no support for that on any powerpc, right?
Nope, unfortunately not. Also, I believe the GPU won't improve the performance of the OS/UI, but of course, it will benefit applications.

Last edited:

bunnspecial

macrumors G3
May 3, 2014
8,353
6,497
Kentucky
You do reach a point of diminishing returns, but the GUI in OS X leverages the video card heavily for rendering the desktop. Again, past a point you the difference won't likely be noticeable in day-to-day use but a better card does make the system more responsive overall.

  • Like
Reactions: AphoticD

SuperKerem

macrumors 6502a
Original poster
Oct 29, 2012
863
260
You do reach a point of diminishing returns, but the GUI in OS X leverages the video card heavily for rendering the desktop. Again, past a point you the difference won't likely be noticeable in day-to-day use but a better card does make the system more responsive overall.
As far as I know, PowerPC Macs do not incorporate hardware acceleration for the OS, and therefore I assume that UI elements are rendered by the CPU.

Last edited:

bunnspecial

macrumors G3
May 3, 2014
8,353
6,497
Kentucky
You would be very, very wrong on that assumption.

OS X has incorporated Quartz Extreme for rendering the GUI since 10.2 and Core Image since 10.4. 10.11 added Metal.

Try running a computer in Leopard with and without a core image GPU for a dramatic example. Then, put in a GPU that doesn't support Quartz Extreme(like a Rage 128) and watch the system drag to almost a halt.


SuperKerem

macrumors 6502a
Original poster
Oct 29, 2012
863
260
You would be very, very wrong on that assumption.

OS X has incorporated Quartz Extreme for rendering the GUI since 10.2 and Core Image since 10.4. 10.11 added Metal.

Try running a computer in Leopard with and without a core image GPU for a dramatic example. Then, put in a GPU that doesn't support Quartz Extreme(like a Rage 128) and watch the system drag to almost a halt.
TIL! In that case, I would be mistaken. Since I haven't noticed a UI performance gain between a stock 6600 LE and a high-end FX 4500 using my system, I had not thought twice about the correlation between GPU and UI animations.


bunnspecial

macrumors G3
May 3, 2014
8,353
6,497
Kentucky
As I said, past a certain point you get into diminishing returns with higher powered cards. The difference isn't that perceptible between a low end PCIe G5 card and the high end cards(X1900 and FX4500).

On AGP G5s, though, moving from something like the Geforce FX5200(which was the standard shipping card in earlier systems) to a Radeon 9600XT will be noticeable.

Also of interest is comparing something like a Geforce 4Ti to an FX5200 in Leopard. The 4Ti is a better card in basically every measurable way, but the FX5200(as terrible as it is) will outperform the 4Ti due to the latter's Core Image support. It gets even more interesting when you compare the awful Intel GMA950 used in a lot of early consumer level Intel Macs-once again it's a terrible GPU that gives acceptable performance because it supports Core Image.

BTW, at least in Leopard look in System Profiler under Displays. There is a line that says "Core Image" and it will either say "software" or "hardware accelerated."

The classic Mac OS going back to the Mac II(System 4) used QuickDraw hardware acceleration to render the desktop. Since it's a lot simpler and has a lot less "eye candy" than OS X, even something like a Rage Pro is more than enough to get good performance. It's pretty dramatic, though, when you compare the performance of OS 9 on older PCI systems using the on-board graphics vs. a separate GPU.


SuperKerem

macrumors 6502a
Original poster
Oct 29, 2012
863
260
As I said, past a certain point you get into diminishing returns with higher powered cards. The difference isn't that perceptible between a low end PCIe G5 card and the high end cards(X1900 and FX4500).

On AGP G5s, though, moving from something like the Geforce FX5200(which was the standard shipping card in earlier systems) to a Radeon 9600XT will be noticeable.

Also of interest is comparing something like a Geforce 4Ti to an FX5200 in Leopard. The 4Ti is a better card in basically every measurable way, but the FX5200(as terrible as it is) will outperform the 4Ti due to the latter's Core Image support. It gets even more interesting when you compare the awful Intel GMA950 used in a lot of early consumer level Intel Macs-once again it's a terrible GPU that gives acceptable performance because it supports Core Image.

BTW, at least in Leopard look in System Profiler under Displays. There is a line that says "Core Image" and it will either say "software" or "hardware accelerated."

The classic Mac OS going back to the Mac II(System 4) used QuickDraw hardware acceleration to render the desktop. Since it's a lot simpler and has a lot less "eye candy" than OS X, even something like a Rage Pro is more than enough to get good performance. It's pretty dramatic, though, when you compare the performance of OS 9 on older PCI systems using the on-board graphics vs. a separate GPU.
Very interesting, I see! I was just trying to say in my response that I had not thought twice about my misconception due to the gains being unapparent.

It does makes sense that in the final revision of pro PowerPC Macs, even the lowest-end cards were sufficient to render the basic UI animations. Maybe with further OS support we'd have seen these cards being pushed to their limits!

Also, although I had seen the Core Image support spec in System Profiler, it never meant much to me since I've never owned a classic PowerPC Mac - I'd always seen it as being "enabled". I appreciate the background info, it was most definitely a fruitful read.


MagicBoy

macrumors 68040
May 28, 2006
3,974
1,060
Manchester, UK
As an aside, as it's a popular topic round these parts ... upgrading the GPU once you've got core image support won't help video playback. Rage 128 and upwards have MPEG2 assisted decode for DVD. To get H.264 hardware decode requires a late-2008ish and later Intel Mac with a nVidia or ATi GPU and OS X 10.6.3 onwards.


macmee

Suspended
Dec 13, 2008
835
1,110
Canada
You do reach a point of diminishing returns, but the GUI in OS X leverages the video card heavily for rendering the desktop. Again, past a point you the difference won't likely be noticeable in day-to-day use but a better card does make the system more responsive overall.

Yeah Leopard on my imac g4 was very sad, as it only has 32mb vram

And yet Tiger runs amazing!


macmee

Suspended
Dec 13, 2008
835
1,110
Canada
Yep! If those listing photos are accurate, you will be able to flash that card just fine. :)

One thing I just noticed now is that I think I need to (somehow) hook up power to the card myself. Are you aware of anything like this and/or what else I might need to buy to pull that off?
