MP 1,1-5,1 GPU Compatibility List for cMP
- Thread starter Pentaxer
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
always good to look at the product page for the card
https://www.sapphiretech.com/en/consumer/pulse-rx-580-8g-g5#4834C212DC7848AAAA26663C0BAF2B1D
Resolution
- DisplayPort: 5120×2880@60Hz
- HDMI: 4096×2160@60Hz
- DVI:2560x1600@60Hz
- 1x DVI-D
- 2x HDMI
- 2x DisplayPort 1.4
thats the pulse RX 580
Yes its dual link. Here is a close up photo of the DVI port
http://www.macvidcards.com/store/p1...0_8GB_Sapphire_Pulse_for_Mac_Pro_4,1/5,1.html
Thank you so much guys! I was reading that it was, but I just wanted to make sure, you guys are the bomb!
My Sapphire Pulse RX 590 8GB is showing correctly in About this Mac… and System Information after upgrading to 10.14.6.
The information on RX 590 was added in the initial post.
Just wanting to double check something please: Mostly out of sentiment I've had a bit of fun upgrading my original 1,1 Mac Pro. It's been running El Capitan for years, but more recently I upgraded the firmware to 2,1 added more RAM and installed dual 3.0GHz quad core Xeons (as they're dirt cheap these days) and I have a Sapphire Radeon 5790 GHz edition Vapor-X installed because a friend had it going spare after they upgraded their gaming PC.
I followed the instructions on netkas and I flashed it with the 7950 mac rom - but I'm not seeing boot screens it just goes straight to the desktop. Is this because its the 32bit EFI not playing with the 64bit on the card as warned about in the quote from the OP below, or is it because I haven't actually flashed it correctly? Honestly I hope I've done it wrong as I can redo it - if its another problem with the 1,1 32bit EFI then it might be time just to install Linux on it.
Most of the many dozens of threads I've read here and elsewhere very reasonably assume that this card is being installed in at least a 3,1 and more normally a 5,1 cMP so this issue wouldn't arise. BTW though I haven't pushed it, and have no intention of doing so, the card seems perfectly stable.
I followed the instructions on netkas and I flashed it with the 7950 mac rom - but I'm not seeing boot screens it just goes straight to the desktop. Is this because its the 32bit EFI not playing with the 64bit on the card as warned about in the quote from the OP below, or is it because I haven't actually flashed it correctly? Honestly I hope I've done it wrong as I can redo it - if its another problem with the 1,1 32bit EFI then it might be time just to install Linux on it.
Most of the many dozens of threads I've read here and elsewhere very reasonably assume that this card is being installed in at least a 3,1 and more normally a 5,1 cMP so this issue wouldn't arise. BTW though I haven't pushed it, and have no intention of doing so, the card seems perfectly stable.
guys, is there an option to buy R9 290X, not 280. may be compatibility issues? is there an option to buy for a good price of $ 80. I look towards RX 580(and RX 570) but I really want a boot screen. (the difference in performance and price is not large, only the "age" of R9 290x is confusing)
Last edited:
Apple specifically recommends RX560 and RX580 for MP5,1 for Mojave. At under $165 USD on sale, would just go Sapphire Pulse RX580 8GB for anyone buying for MP5,1. Some (maybe many) RX570's work, but there have been reports of minor issues from some users when pushing them.
екеч
I apologize if this is offtopic
UPD

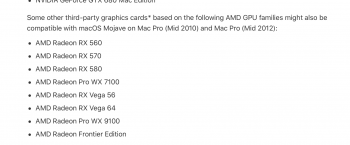

https://support.apple.com/en-us/HT208898
here is a list of recommended for Mojave cards from Apple and 570 in the list
in my country, a new RX580 new costs at least $ 200, (a friend gives you RX570, so it’s such a low price) I googled the forum - I didn’t see any obvious problems with 570, but maybe it’s because of the Google translator(I translate your comment and the translator writes that 570 has problems if you "when pushing them" , and I don’t understand what I mean)
I apologize if this is offtopic
UPD
https://support.apple.com/en-us/HT208898
here is a list of recommended for Mojave cards from Apple and 570 in the list
Last edited:
The first post has this information about a card I just bought on eBay:
NVIDIA Geforce GTX 1070 8GB Founders Edition (FE)
Power consumption: 6 pins.
The card that arrived (GIGABYTE brand) has an 8 pin connector so I must need an adapter. What is the difference between the 6 pins to 6+2 pins and the dual 6 pins to 8 pins cables? Do they both provide the necessary power to a card with an 8 pin connector?
NVIDIA Geforce GTX 1070 8GB Founders Edition (FE)
Power consumption: 6 pins.
The card that arrived (GIGABYTE brand) has an 8 pin connector so I must need an adapter. What is the difference between the 6 pins to 6+2 pins and the dual 6 pins to 8 pins cables? Do they both provide the necessary power to a card with an 8 pin connector?
Last edited:
I just got a Sapphire Pulse RX 580 and the fans stop spinning after it boots to the desktop. I reset the pram. reset the card and 8 pin plug. It is a new card. I put the old 5770 card back in and the fan spins in that one. Just wanted to check here and see if there’s anything else I should check before I return it for a new one. I tried it in 10.13.6 and 10.14.6, same thing happened the card works in both os just the fans stopping when it gets to the desktop. Does anybody have any ideas?
I chucked in a Radeon RX 580 8 GB a while ago and also noticed the fans hardly spun up. The original 5770 spun like a banshee, so my thought was the RX 580 is a far more efficient at heat management. Seriously, it doesn’t spin up much at all. I don't have any temp issues.
Or, are you saying it doesn’t spin EVER?
Do they ever come on again? Have you tried rendering something, or handbrake or some thing similar? You can verify the GPU is "working" with Activity Monitor-GPU History.
In general, my RX580 doesn't make a lot of noise. I verified the fans run by taking the side ooff from the cMP and looking to see if they were spinning. I think there may be utilities that can tell you if the fans spin.
The fans stop spinning l looked at them. I just thought it strange they would stop. I only looked inside because I was getting freezing when I tried to start any games or running Logic Pro and GarageBand. I never let it go very long I was worried it would fry the card and then I couldn’t return it. That’s a good idea though. How long do you think it would take for the fan to start spinning with handbrake running something heavy task wise.
I seem to remember that AMD advertised something about this card that the fans runs very slowly, if at all, if the card isn't working.
I can get my card working pretty quickly, because I did the AMD Hardware acceleration thing mentioned elsewhere on MR - the 580 does more of the work. But I would try importing or rendering an iMovie. Be sure to have Activity Monitor GPU log up so you can see if the 580 is doing any work. I would imagine it would spin up within 10 seconds or so. In any event you can always dancel any action, or force quit.
There are several steps to return it after a certain period. But if you're concerned, I would put in for an RMA and get another.
I can get my card working pretty quickly, because I did the AMD Hardware acceleration thing mentioned elsewhere on MR - the 580 does more of the work. But I would try importing or rendering an iMovie. Be sure to have Activity Monitor GPU log up so you can see if the 580 is doing any work. I would imagine it would spin up within 10 seconds or so. In any event you can always dancel any action, or force quit.
There are several steps to return it after a certain period. But if you're concerned, I would put in for an RMA and get another.
as far as I know,(read in some of the reviews) RX580, no load fans on the video card do not spin
they begin to spin under load. start the cinebench, it should load the video card
Cinebench only has very very light loading for GPU even you run the OpenGL test (only available for the older version). Latest CineBench only has CPU benchmark, no GPU benchmark.
Run Luxmark, Unigine Heaven / Valley, etc is so much easier to warm up the GPU, and trigger the fan to spin.
