MP 1,1-5,1 I installed a 3080 in my 2009 Mac Pro 4.1>5.1 today, problems here

Yes, if you can attach a picture to confirm, I'd like to see it. If you select Mojave, it'll probably load, but if you look at the System Information it will say something like Display 8MB or something like that, because there's no driver support in macOS. I would start getting a USB Drive for Windows 10 ready.

ZXRyuu said:
Yes, if you can attach a picture to confirm, I'd like to see it. If you select Mojave, it'll probably load, but if you look at the System Information it will say something like Display 8MB or something like that, because there's no driver support in macOS. I would start getting a USB Drive for Windows 10 ready.
Click to expand...

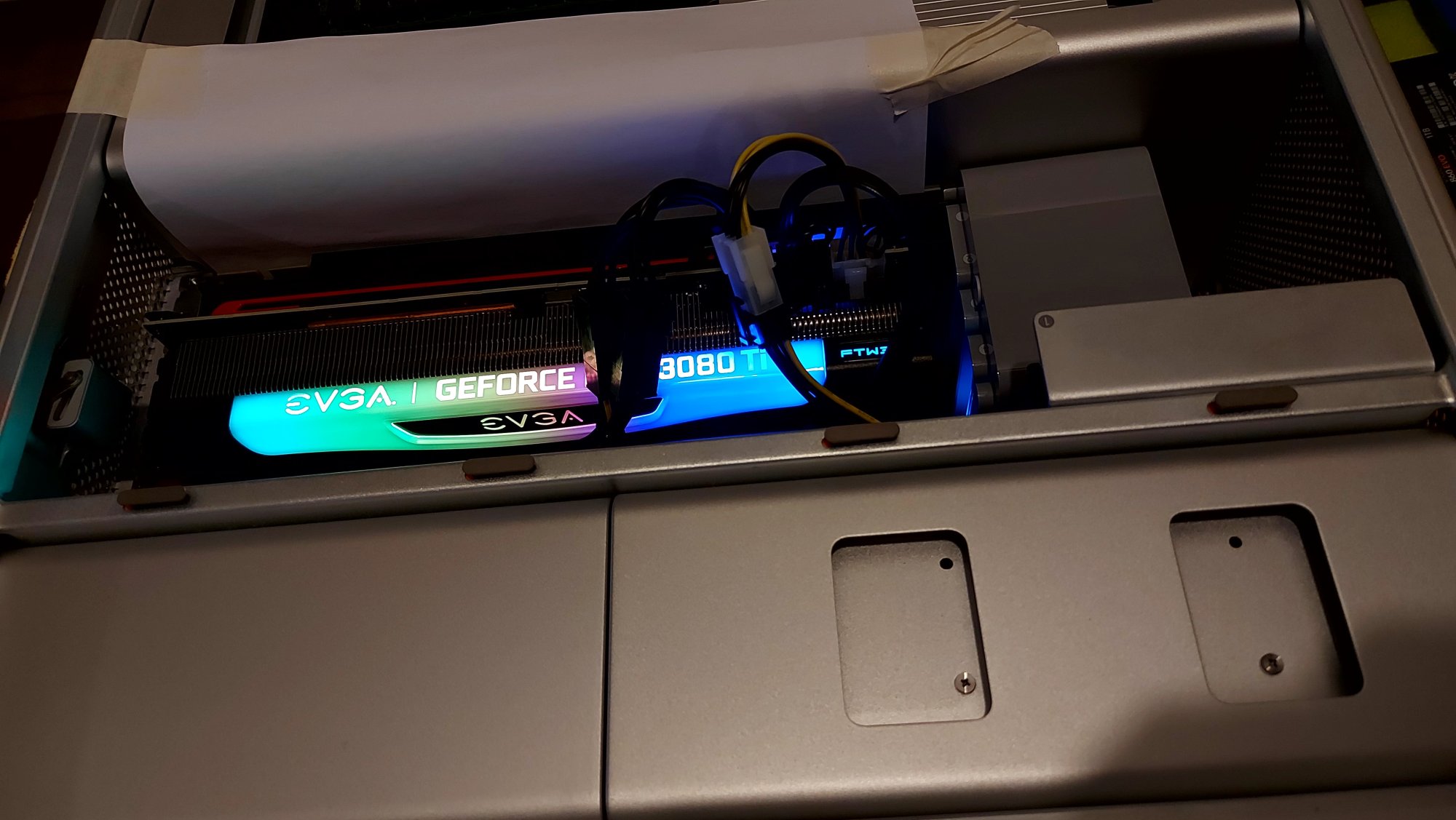

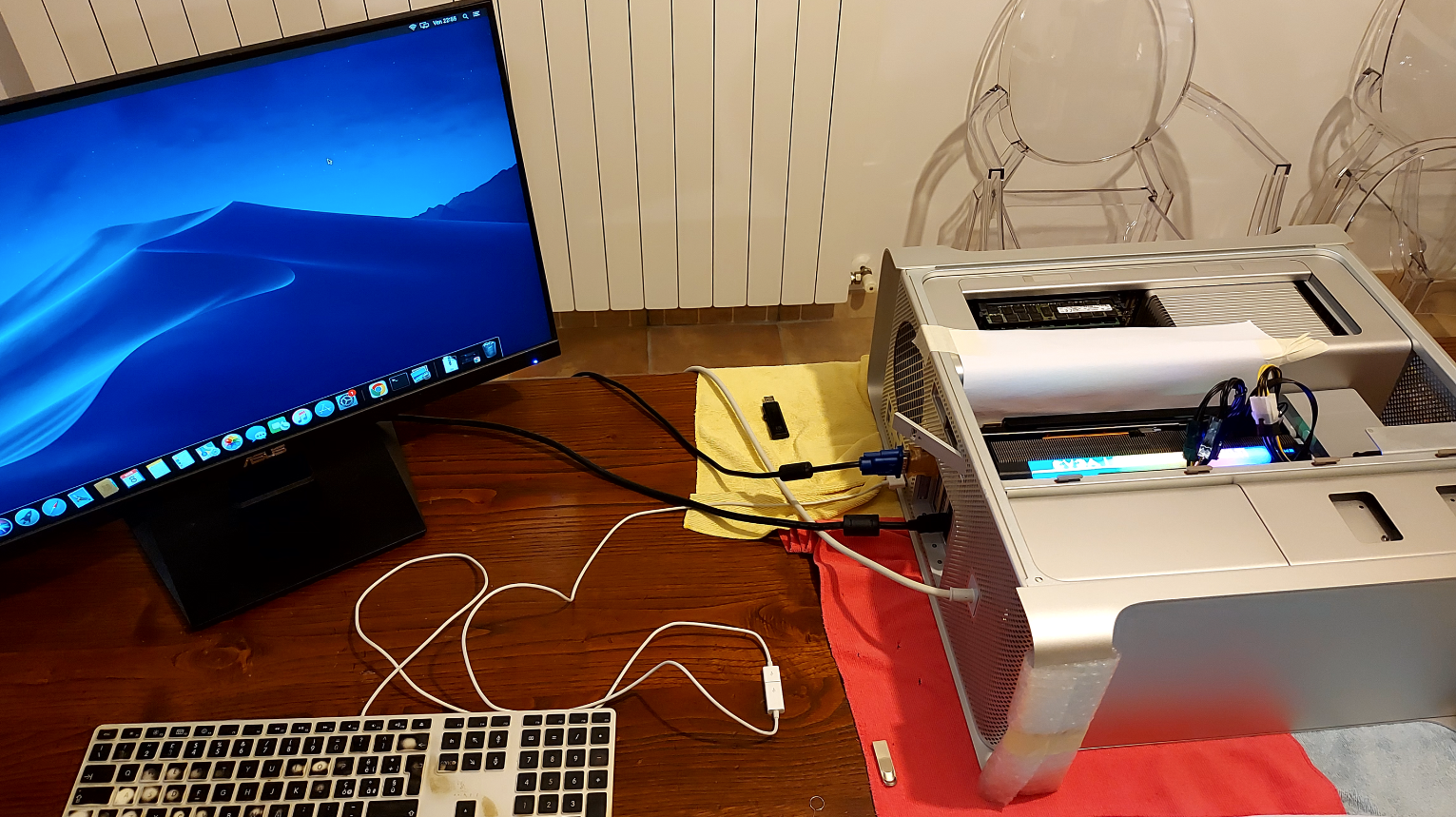

Sure I left you here a pic of desktop and a pic of 3080TI with desktop

So now I proceed to remove physically the ATI and left only the RTX

Thanks a lot for your patience for having me follow on these operations.

So at this point, do you advice me to remain with windows 10 or install the 11 version if it is stable?

Schermata 2024-03-08 alle 22.59.37.png

You're welcome; glad it worked for you. I would start with Windows 10, because it will make installing Boot Camp and other drivers easier. I upgraded my copy of Windows 10 to 11 later on, after I had done all of the Windows updates, Apple Software updates for Boot Camp and various other software configurations. Be advised, I got the best results out of Windows by installing it on its own, separate hard drive and using UEFI options through Rufus. Now that you have Native Boot Screen Support, you should have an easier time selecting which boot loader you want to use at startup.

I'd like to see your final result when you get Windows up and running.

  • Like
Reactions: Supermimmo
ZXRyuu said:
You're welcome; glad it worked for you. I would start with Windows 10, because it will make installing Boot Camp and other drivers easier. I upgraded my copy of Windows 10 to 11 later on, after I had done all of the Windows updates, Apple Software updates for Boot Camp and various other software configurations. Be advised, I got the best results out of Windows by installing it on its own, separate hard drive and using UEFI options through Rufus. Now that you have Native Boot Screen Support, you should have an easier time selecting which boot loader you want to use at startup.

I'd like to see your final result when you get Windows up and running.
Click to expand...

Sure, tomorrow I will reinstall the ssd with windows 10 installed without Bootcamp
I was install it with cmd on windows using Brigador focused for macpro 5.1

Tomorrow I will install all drivers for RTX
And leave phisycal the ATI Radeon

Awesome; sounds great! Have a great time with that tomorrow. Looking forward to hearing about it.

  • Like
Reactions: Supermimmo
I forgot to mention; make sure you download and install OpenCore to your EFI partition and select it from the Boot Picker before installing Windows. Using OpenCore Legacy Patcher to install Windows will help ensure you don't end up with NVRAM corruption, which could potentially brick your machine.

@ZXRyuu Oh ok thanks for update me, there is also a guide for this? Or you can guide me for it for this last part?

Last edited:
@ZXRyuu I think I've done, at start power of MacPro, I've hold press "Option", I've selected EFI BOOT and on SSD there is only Windows Disk and it load quick alone, just to click after click efiboot correnct?

Can I remove the boot picker at startup or is better if I maintain it?

Last edited:
That sounds right. Do you have some pictures of your steps?

I would continue to maintain it at this point.

Busy day today; just got time to check back.

ZXRyuu said:
That sounds right. Do you have some pictures of your steps?

I would continue to maintain it at this point.

Busy day today; just got time to check back.
Click to expand...

Sure I will send a screenshot of benchmark but before it I've a problem yesterday, because I unplug the old Amd and install only RTX
The power seems is correct around 485W totally

But when I use a bechmark like 8k optimized
the MacPro suddenly shuts downPc shoutdown immediately

So for not use Pixlas Mod I connected like this:

The 2 port 6 mini pin indipendently to 8 pin so 300W of GPU

And the last port of GPU to 8pin to "Y" 6 pin and to 6 pin to two Sata HDD port

Plus 75W of PCI-E

But when it arrived in full stress it the mac pro shoutdown, my question is If I connect a "Y" two 6mini pin to 8 pin otherwise then now so single mini 6pin to 8pin, would it surely have the same current range as 300w?

If yes I've two free port of GPU available to connect to 2/3/4 HDD sata on motherboard

Last edited:
I don't have that much experience with the Pixlas Mod (only what I've read online), or GPUs that draw more power than 150watts (which is what my RTX 4060 Ti uses). But the behavior you're seeing is definitely indicative of an overdraw of power.

thehouseofmoth.com

Mac Pro Pixlas Mod, is it really needed?

I have been a vocal proponent of the Pixlas Mod. However I started doubting the claims my recommendation was based on and decided it was time to get to the bottom of this. Do I still recommend the Pixlas Mod after gathering all this information?
thehouseofmoth.com thehouseofmoth.com

This page mentions something about the EVGA Power Link and that seemed to redirect some power to help out. Maybe it would help in your case, but I have no idea. Again, I have very little understanding of the Pixlas mod; sorry.

Ok no problem @ZXRyuu , I only ask if 2 single 6mini pin to 8 pin can cover power like 2 minipin to 8pin
And the rest I think to connect on 3 sata

From my understanding, using a dual mini 6 pin to single 8 pin cable provides the best results.

ZXRyuu said:
From my understanding, using a dual mini 6 pin to single 8 pin cable provides the best results.
Click to expand...

Ok so I can use "Y" for 6 minipin to 8 pin to - First 8 pin GPU - 300W
"Y" for 6 pin to 2 sata to 8 pin - Second 8 pin GPU - 108W
and the last one - 6 pin to sata to 8 pin - Third port GPU - 54W (or I can use also here 2 sata in case)

+ PCI-e power 75W

Total = 573W (factory specs this EVGA FTW3 ULTRA 3080TI need maximum 450W)

on your link about a power link evga is only for 2 port of 8 not 3 like my case
so do you think or know someone can tell me if my last cable setting is correct and is that enough to keep it from turning off?

Oh yeah, I didn't realize that your GPU had three power ports. Yeah, you will probably need to ask someone else about your wiring needs.

nonamevr said:
Maybe it can help you
thehouseofmoth.com

Mac Pro Pixlas Mod, is it really needed?

I have been a vocal proponent of the Pixlas Mod. However I started doubting the claims my recommendation was based on and decided it was time to get to the bottom of this. Do I still recommend the Pixlas Mod after gathering all this information?
thehouseofmoth.com thehouseofmoth.com
Click to expand...

Ok thanks @nonamevr your advice is the same of @ZXRyuu, so I'll to follow this configuration

2 sata to 8pin
2 sata to 8pin
2x6minipin to 8pin

also now having all the sata ports occupied to power the gpu, I would like to know if the m2 SSD adapter on PCI-e is ok for booting windows

some users have found that there is no problem with open core, can you confirm?

and if so, does this adapter have to be from OWC like the Accelsior 1m2 model or is a generic one fine too?

Hi again, @nonamevr @ZXRyuu,

after some tests, my mac pro 5,1 it turns off suddenly when you are about to load a some softwares or benchmarks but I've resolved it with always 3080TI inside, when I've reinstalled the old Intel Xeon E5620 with 64GB, and All Works! becasue this case there are 110W less, without the Xeon X5690 with 128GB of Ram that needs that 110W plus to work and the PSU doesn't support. But now is going well!

Last edited:
@Supermimmo @ZXRyuu I've read though all your posts from earlier in the year and think I have a pretty good understanding on the process for getting an RTX card to work in an old MacPro 5,1 running Windows 10. I have a Gigabyte RTX 3070 TI card which I recently acquired, and have been on the fence on trying this. Can you give me any idea on the success rate? I know ZXRyuu originally tried with a 3080 card. Should this process work with any 3xxx series card, does the particular card manufacturer make any difference? Any advise or feedback you can give would be appreciated!

RyGuyver said:
@Supermimmo @ZXRyuu I've read though all your posts from earlier in the year and think I have a pretty good understanding on the process for getting an RTX card to work in an old MacPro 5,1 running Windows 10. I have a Gigabyte RTX 3070 TI card which I recently acquired, and have been on the fence on trying this. Can you give me any idea on the success rate? I know ZXRyuu originally tried with a 3080 card. Should this process work with any 3xxx series card, does the particular card manufacturer make any difference? Any advise or feedback you can give would be appreciated!
Click to expand...

Hi @RyGuyver for my personal experience I think there is no problems with your 3080, I've tested some things with my 3070ti in this time. About if system is it stable under stress, with games and renders, so I didn't wont to use a pixlas mod for take energy and I don't like to modify also cables etc. So my system is stable with 3070ti with all hdd port used, without pixlas with double intel quad-core 2.8Ghz, and 64GB of RAM.

Becasue I tested with two x5690 and 128GB ram
But the Mac turn off alone after stress, because I think needs much more energy from PSU

But I can work and play with that stable configuration

Wait reply @ZXRyuu if he can help you much more

Let me know yours
Cheers

Supermimmo said:
Hi @RyGuyver for my personal experience I think there is no problems with your 3080, I've tested some things with my 3070ti in this time. About if system is it stable under stress, with games and renders, so I didn't wont to use a pixlas mod for take energy and I don't like to modify also cables etc. So my system is stable with 3070ti with all hdd port used, without pixlas with double intel quad-core 2.8Ghz, and 64GB of RAM.

Becasue I tested with two x5690 and 128GB ram
But the Mac turn off alone after stress, because I think needs much more energy from PSU

But I can work and play with that stable configuration

Wait reply @ZXRyuu if he can help you much more

Let me know yours
Cheers
Click to expand...
Hey, wanted to post a follow up that this TOTALLY WORKED!

For anyone that comes across this I ended up reaching out to Macschrauber and paid him do a rebuild of of my Firmware just to ensure there were no issues. I wasn't necessarily seeing any errors reported on the ROM dump and it may have been ok, but there were a few oddities including a message saying that my Boot Rom Version needed to be updated even though it was shown at 140.0.0.0.0. Macschrauber turned around the firmware rebuild overnight and was super friendly.

Anyway, I'm currently running my Gigabyte GeForce RTX 3070 TI card in Windows 10 on my MacPro 5,1 with no issues. Planning to next do a Windows 11 install on PCIe-based NVMe storage following info from the YouTube channel Mac Sound Solutions and see how that goes. Graphics performance is WAY better than my GTX 1080 and I'm so happy I only spent around $700 on this project versus around $4k on a new PC.

Cheers!
