iM 4,1-14,4 iMac 2011 (see more) UEFI Firmware Mod

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
m0bil said:
Results are a bit strange, while single-core results are in line with expected clock speed increase, I think multi-core should show better benchmark results. I wonder if macOS power management is limiting multi-core multipliers. Do you have a way to actually monitor CPU core speeds while benchmarking ??

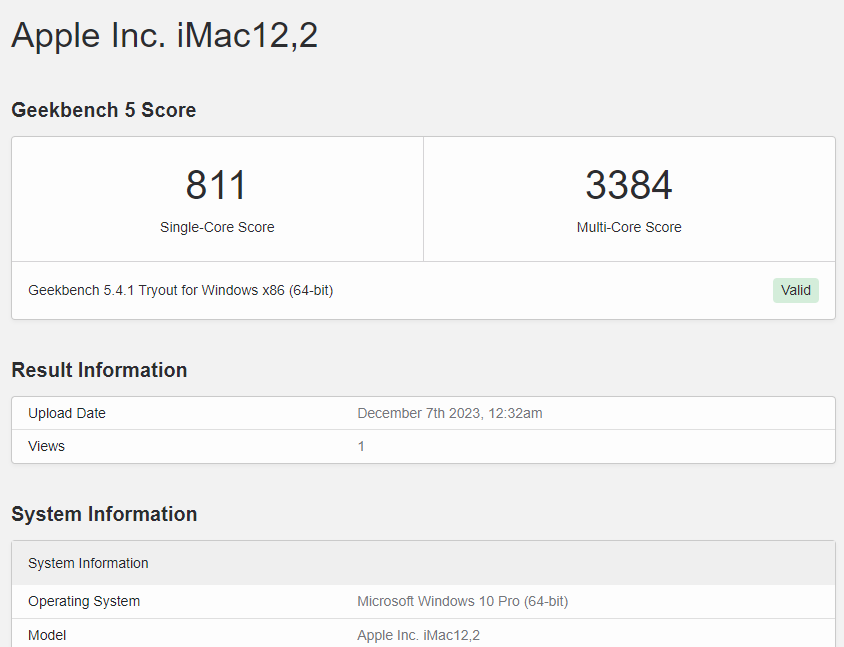

Edit: while Windows and macOS results are not the same, that is what I get on Win10, 4x40 multiplier:

View attachment 2321853
Click to expand...

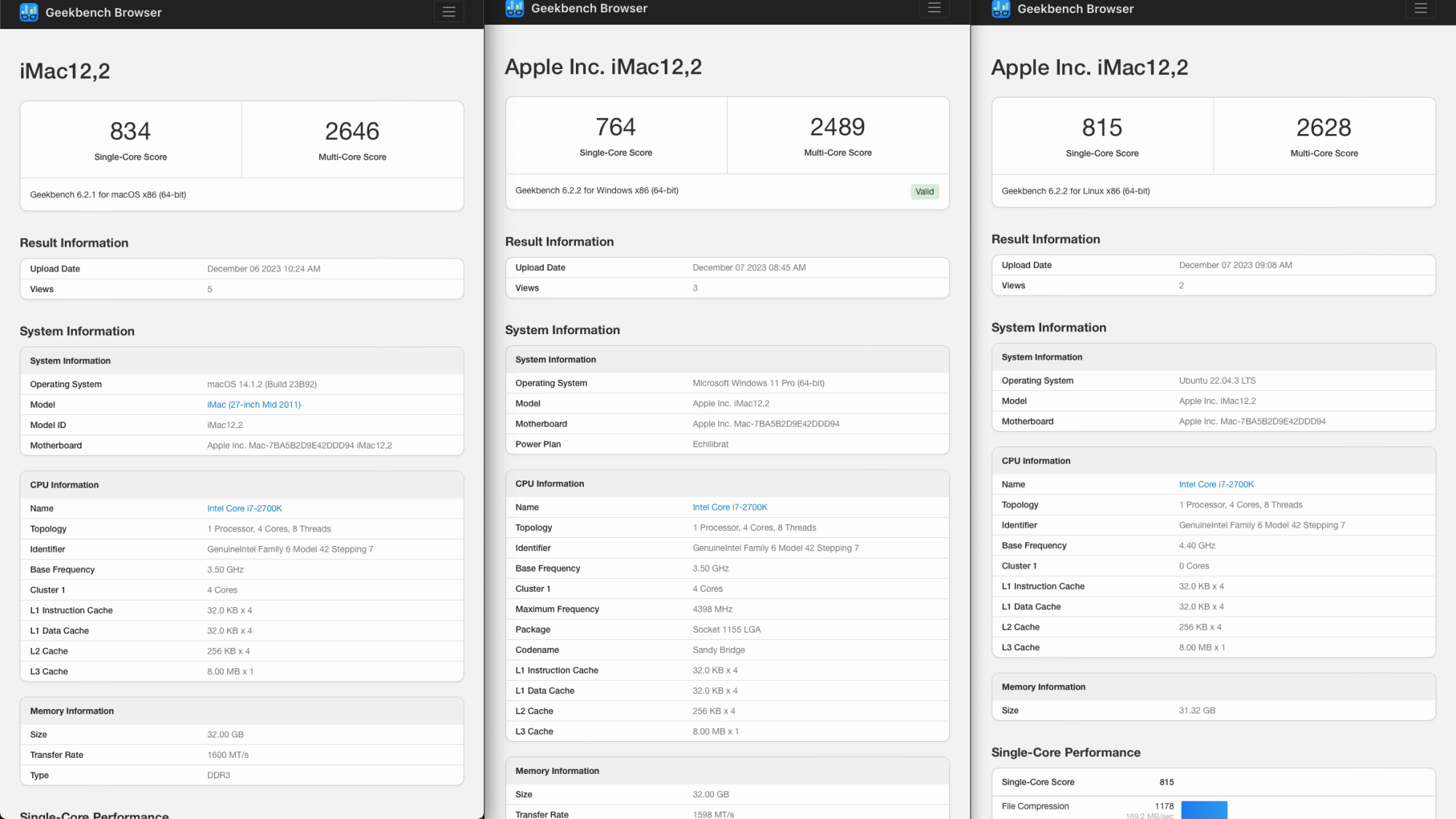

Hey @m0bil! Attached is Geekbench results 4x44 in macOS, Windows and Ubuntu. Like you see is more or less the same. I think you have a better something...... RAM, firmware configuration, silicon, GPU (but I don't think this can be the reason), etc. Can you make a test with 4x44 in Windows/Ubuntu?


Attachments

  • Geekbench comparison.png
    Geekbench comparison.png
    461.9 KB · Views: 127
StefanAM said:
Hey @m0bil! Attached is Geekbench results 4x44 in macOS, Windows and Ubuntu. Like you see is more or less the same. I think you have a better something...... RAM, firmware configuration, silicon, GPU (but I don't think this can be the reason), etc. Can you make a test with 4x44 in Windows/Ubuntu?
Click to expand...
try geekbench 5, it was the version I used and I think results differ between versions.
Also in windows you can use ThrottleStop to monitor per-core clocks while benchmarking.

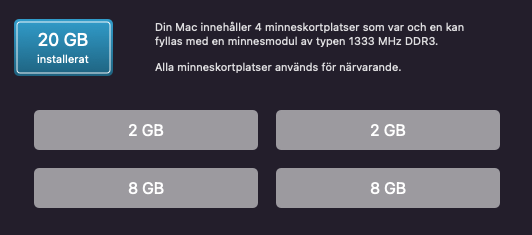

In my current setup with the stock 2600 I can get different results by how the way I place the ram-modules. I now have 2 x 2GB + 2 x 8 GB and result vary.

This is what gives the highest results. Since Im now going for 4X8GB 1600mhz modules this will not matter anymore but good to know for you if you have mixed RAM-modules.

Skärmavbild 2023-12-08 kl. 13.41.28.png

  • Like
Reactions: StefanAM
StefanAM said:

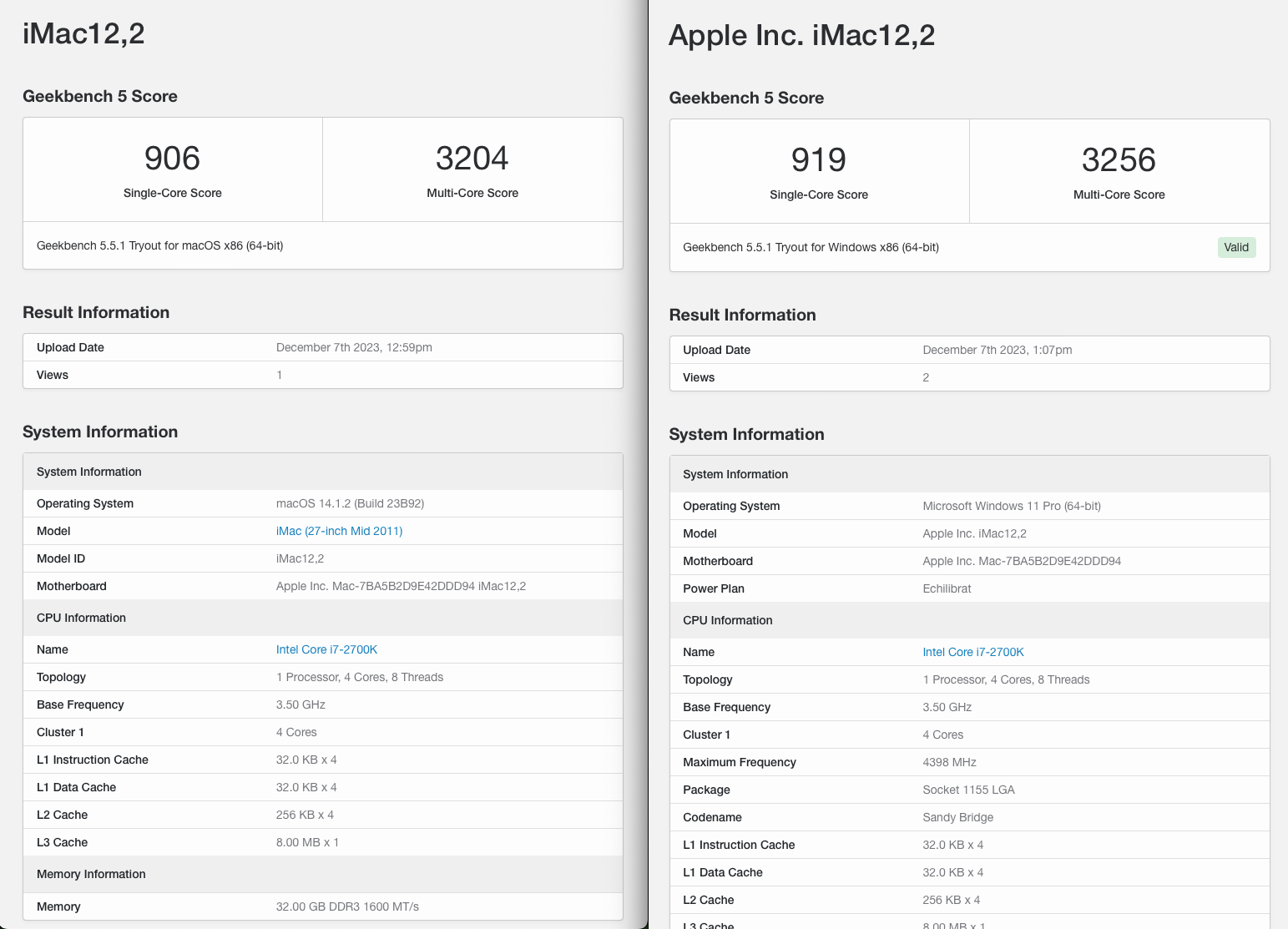

I wasn't aware you're using Geekbench 5. I will post GB5 results.

Update:
Click to expand...
While your single core score is ok, I think you should get higher multi-core score at 4x44. I have still to check this on my current set. Maybe ram makes a difference, as lower latency modules should give higher scores, specially when overclocking. From windows you can check you ram latency from cpu-z.

m0bil said:
While your single core score is ok, I think you should get higher multi-core score at 4x44. I have still to check this on my current set. Maybe ram makes a difference, as lower latency modules should give higher scores, specially when overclocking. From windows you can check you ram latency from cpu-z.
Click to expand...

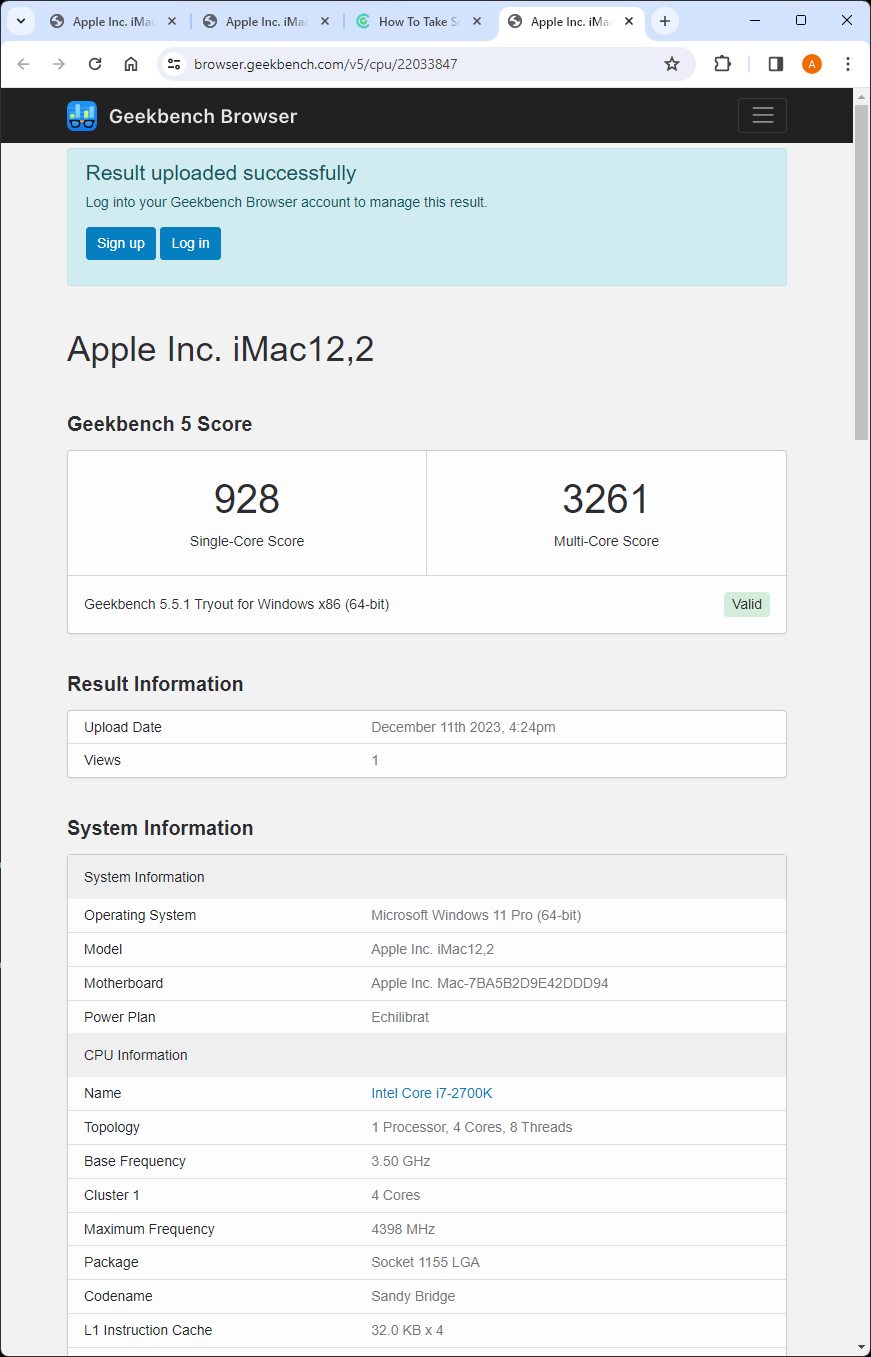

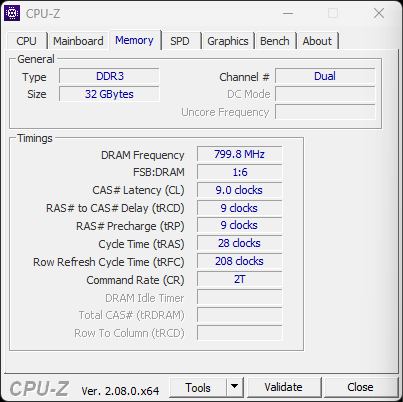

Here is my RAM timings and another GB5. I'll try 4x42 and see how it works.


Attachments

  • 1.png
    21.5 KB · Views: 99
  • 2.png
    89.2 KB · Views: 101
Merry christmas everyone! Just wanted to share my appreciation and respect for what you do. After reading I'm now feeling a little bit of a desire to grab my 12,2 and sequeeze the last performance bits out of it. Also the GOP update to bring back the native bootpicker I found in the other thread are great achievements! Amazing stuff you are doing!

  • Like
Reactions: abbotsford1980, Bmju and ChrizLoud
@m0bil Can you send me your multiplier patch? I would give it a try on my machine.

Off topic question to readers from Germany: I'm looking for a 12,2 HDD replacement fan, does anyone of you have one left over to sell?

tsialex said:
You can't install a 1150 processor to a 1155 slot socket. Not physically or logically possible.
Click to expand...
I asked a special question - if I delete the pointer on socket 1155, and insert the processor, will it work at all??? I know it won't physically happen. But the shape is the same.

idenis42 said:
I asked a special question - if I delete the pointer on socket 1155, and insert the processor, will it work at all??? I know it won't physically happen. But the shape is the same.
Click to expand...

Already answered that, it's not compatible electrically or logically - different pin-out, different voltage levels, different PCH.

In a 2011 iMac you can't even use a 1155 gen3 Intel processor, while physically compatible, it's not firmware (and probably also PCB design) compatible.

  • Like
Reactions: SEJU, rodolfo.araujo, m0bil and 1 other person

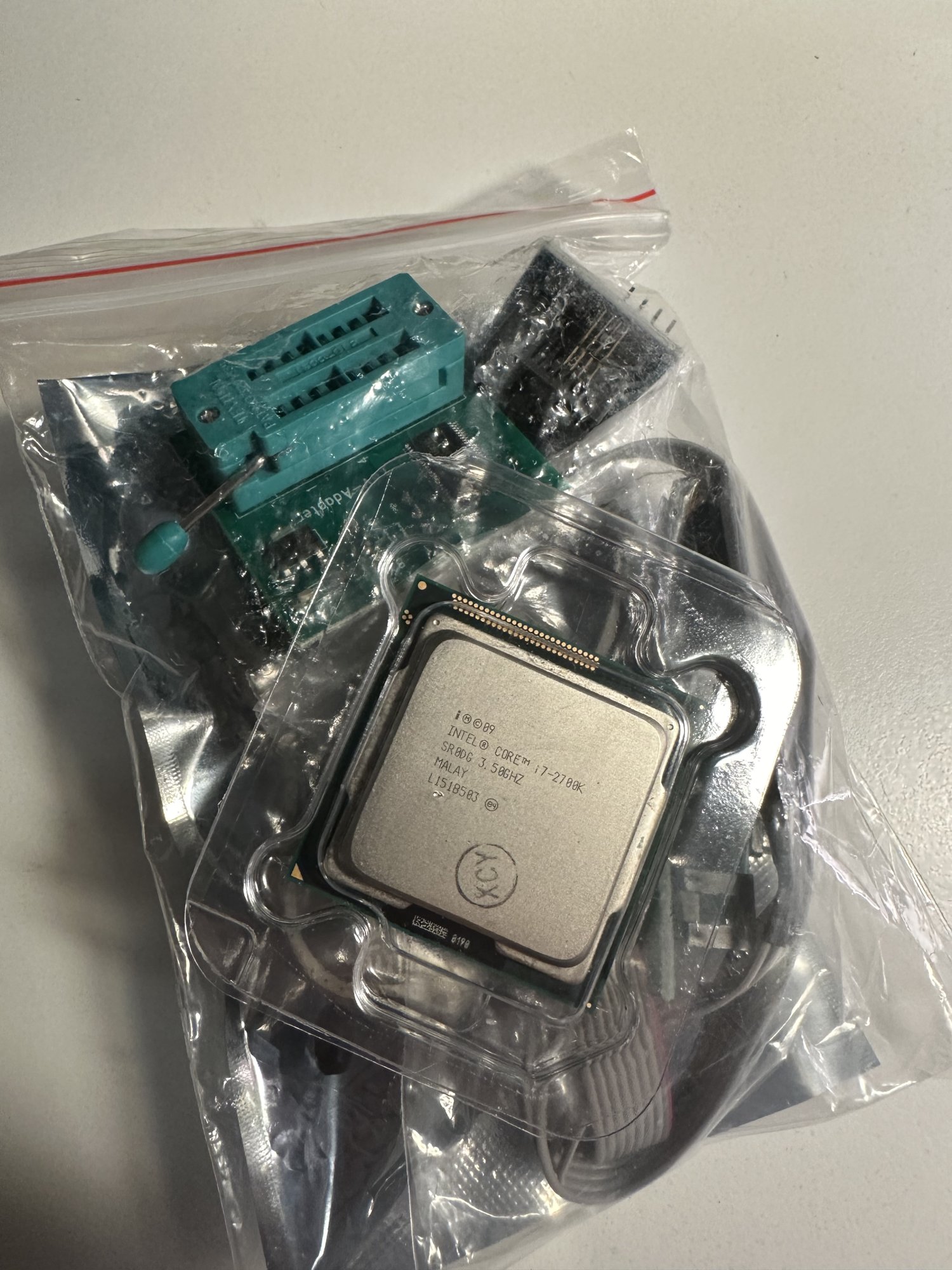

Okay im ready to go 😂
Please pm me the CPU 2700k overclock patch and i will post results before and after.


Attachments

  • IMG_9423.jpeg
    437.2 KB · Views: 70
  • Like
Reactions: StefanAM
Can I just drop in the 2700K CPU and It will boot or do I need to run microcodes patch before?

Thanks. Lets try this.. I actually I just bough an i3 2011 27" so I will test it in this instead of my main i7 iMac. Also nice to compare them in real life tasks standing side by side.

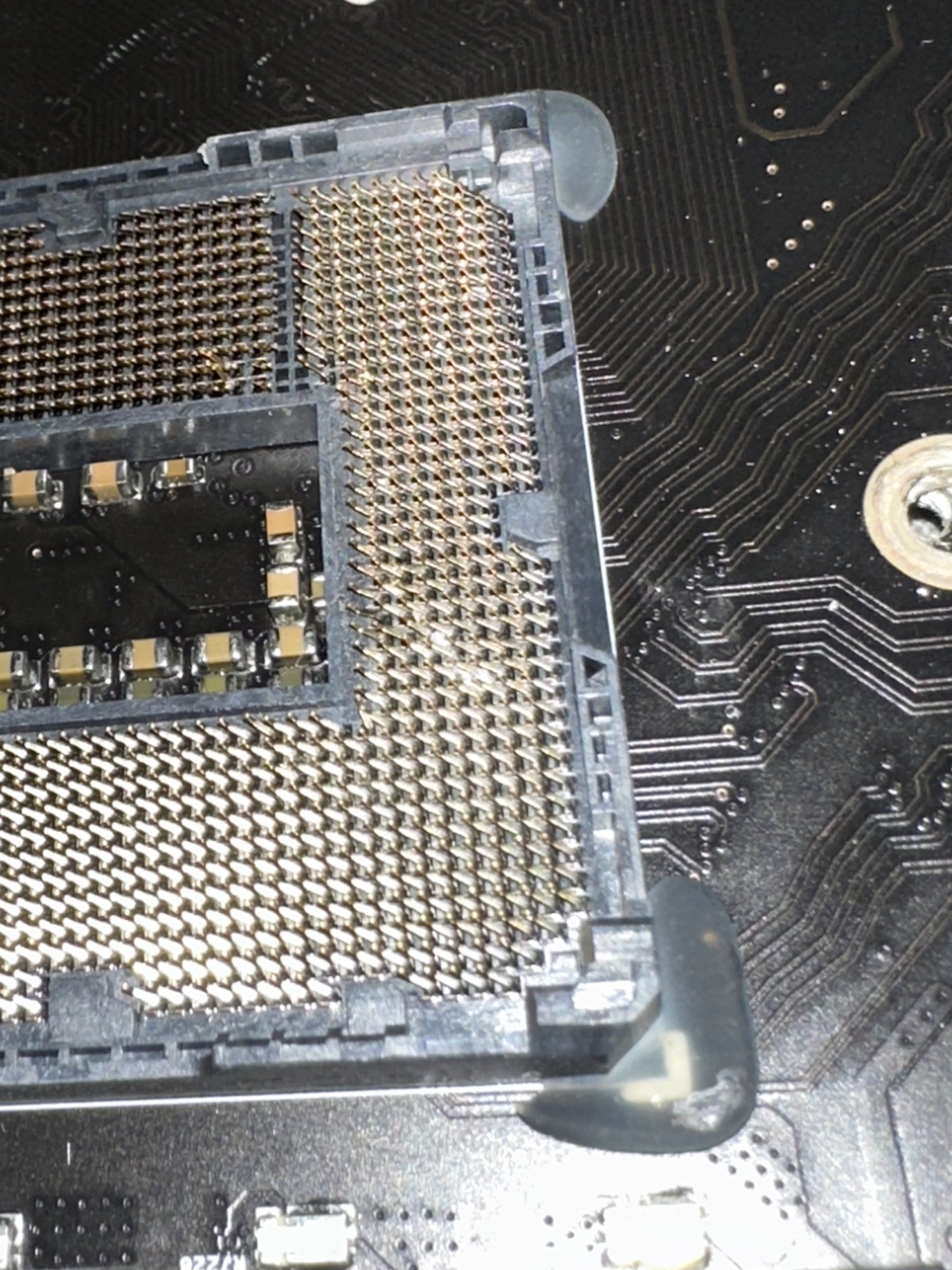

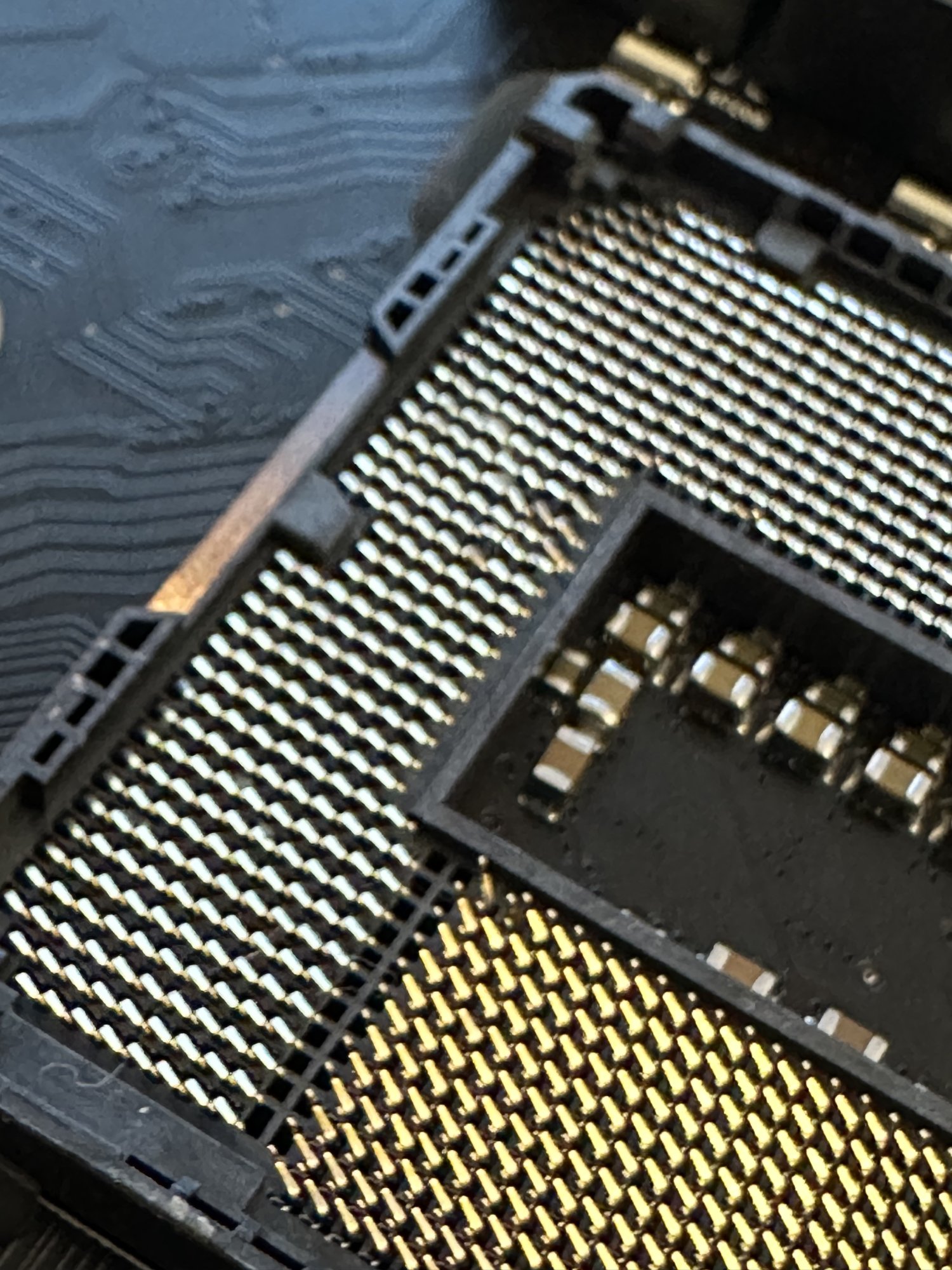

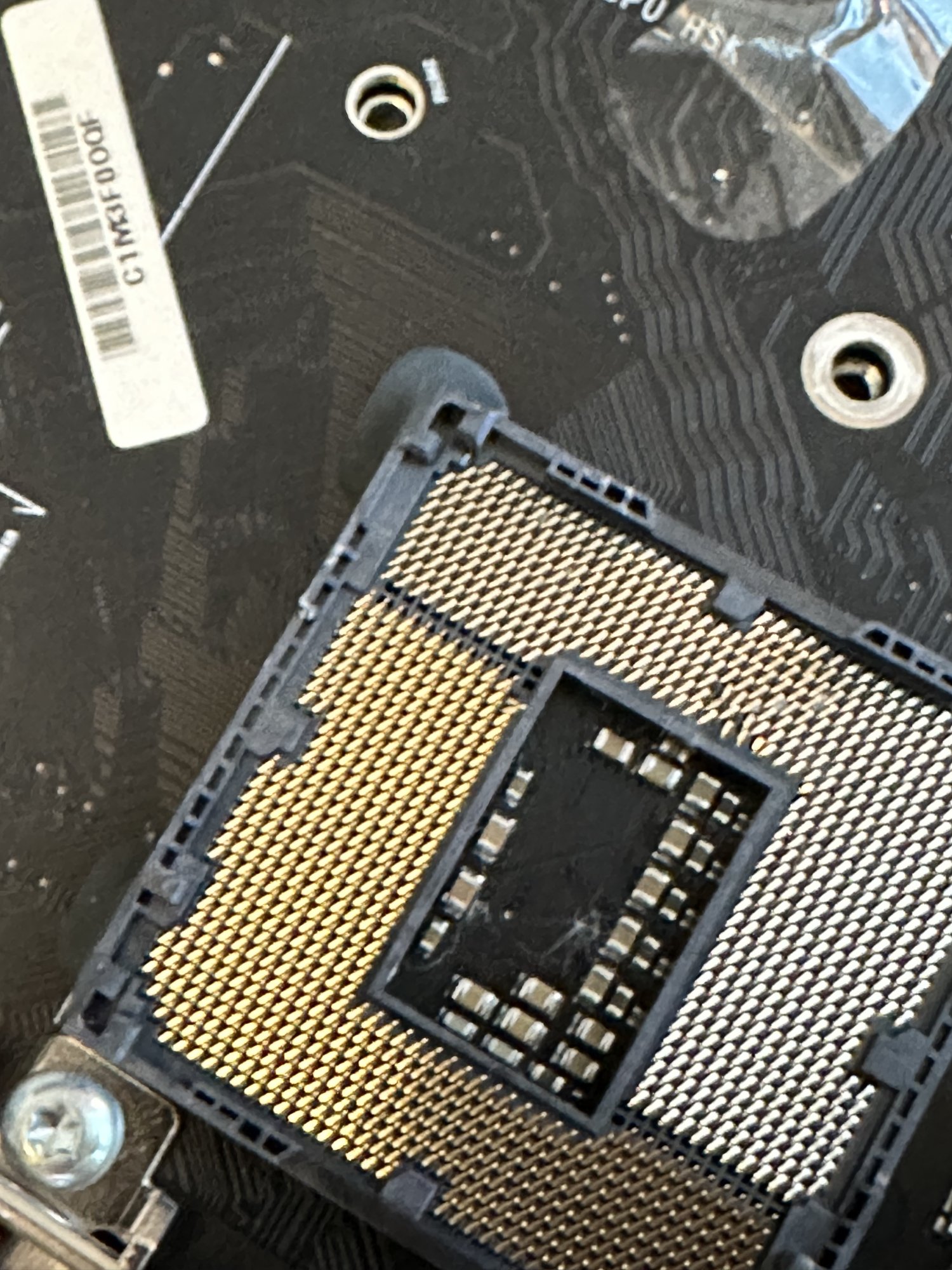

The screws on the cpu holder was shorter than expected (was not prepared to hold it back). Old i3 cpu flew like 1m up in the air and landed upside down on the LGA socket. Several bent pins and old thermal past in between the pins.

My soon to be 40yo grandpa eyes will not help me in bending back the pins. I would say this motherboard is f*cked.


Attachments

  • IMG_9454.jpeg
    504.9 KB · Views: 83
  • IMG_9455.jpeg
    514.8 KB · Views: 76
  • IMG_9453.jpeg
    526.5 KB · Views: 76
Last edited:
  • Sad
Reactions: MrZupp, m0bil, 52hehe and 1 other person
ChrizLoud said:
The screws on the cpu holder was shorter than expected (was not prepared to hold it back). Old i5 cpu flew like 1m up in the air and landed upside down on the LGA socket. Several bent pins and old thermal past in between the pins.

My soon to be 40yo grandpa eyes will not help me in bending back the pins. I would say this motherboard is f*cked.
Click to expand...
No man.. nooo. You are NOT supposed to remove those screws... Didnt you see the lever? thats why the cpu flew up. you never need to hold it down.

EDIT: Forgot to write NOT in the sentence.

Last edited:
  • Like
Reactions: ChrizLoud
Aquired new iMac 2011 mpcb.. This time I used the leveler. 2700k is in. Compared to my other iMac 2011 with 2600s temps are actually the same besides 2600s iMac needs to ramp up fans to about 1100 rpm instead of 940 rpm keeping 82C on intel power gadget all threads load test. Now time for some overclocking magic :D

Edit: After some thinking this might be the 2600s original 13 year old thermal paste vs 2 hours old Arctic MX-4 :)
Let's see what this Apple CPU cooling unit can do when overclocking.

Last edited:
  • Like
Reactions: m0bil
