Nice work and although my G4 still sits waiting, I am definitely interested in this board while they are available.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
iMac G4 to M1 conversion progress
- Thread starter connor55
- Start date
- Sort by reaction score
Can’t wait to see this board! I was dreaming about something like that, but I don’t have the skills or tools…
Its coming soon, probably mid april
Attachments
If you'd like to help in creating a final board that is an adapter vs a breakout (i.e. prerouted to work without jumpers) let me know if you have a pinout to try
Im realy waiting for this. I collecting parts to do the conversion on a 20" version. The next adapter that would be needed is for original speakers. My plan was cuting the amplifier from the G4 motherboard but it seams a bit harsh.
Was also looking at Juicy Crumb Systems adapter board that has everything, but its realy expensive and is aimed at converting the G4 to an external display.
Was also looking at Juicy Crumb Systems adapter board that has everything, but its realy expensive and is aimed at converting the G4 to an external display.

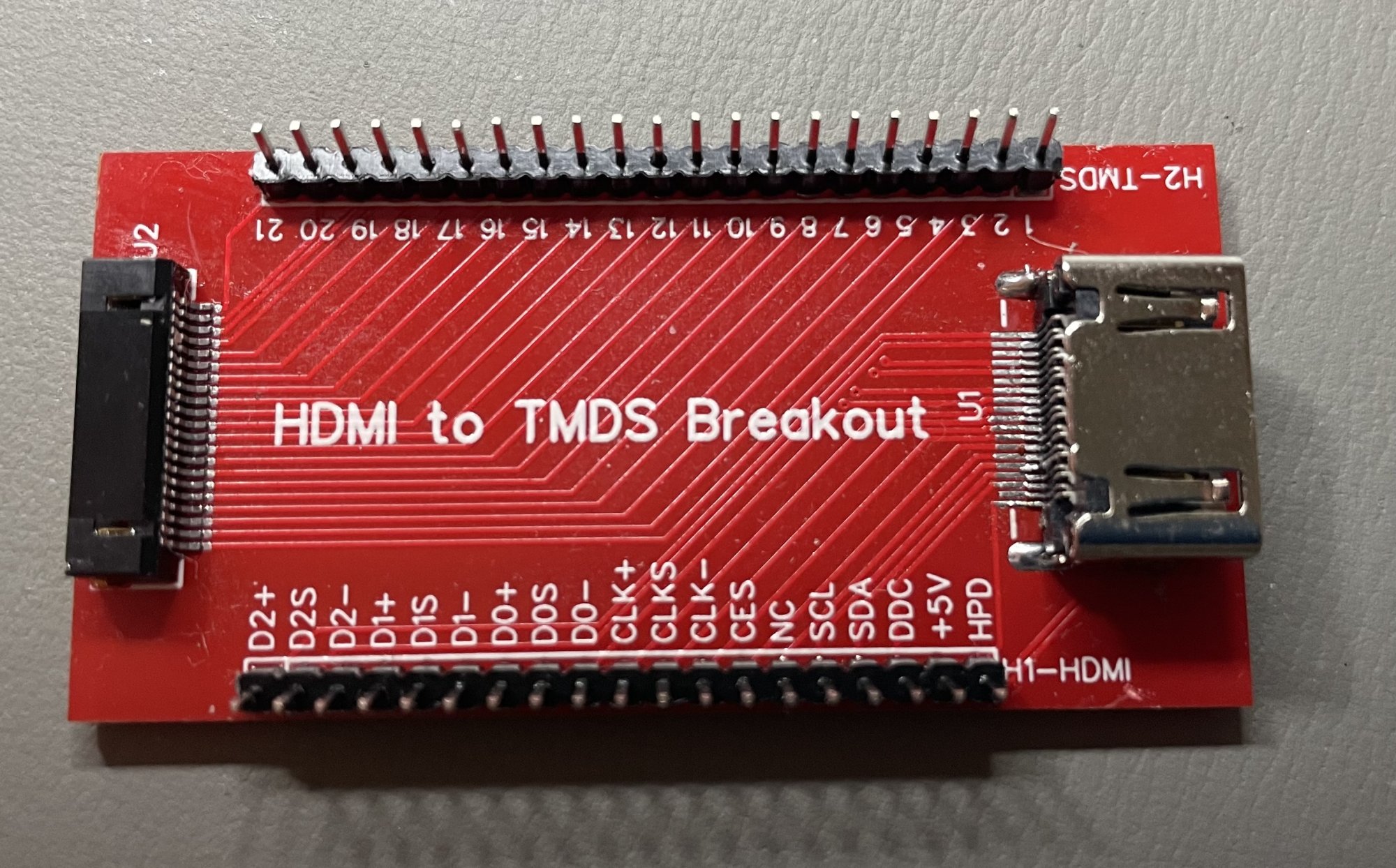

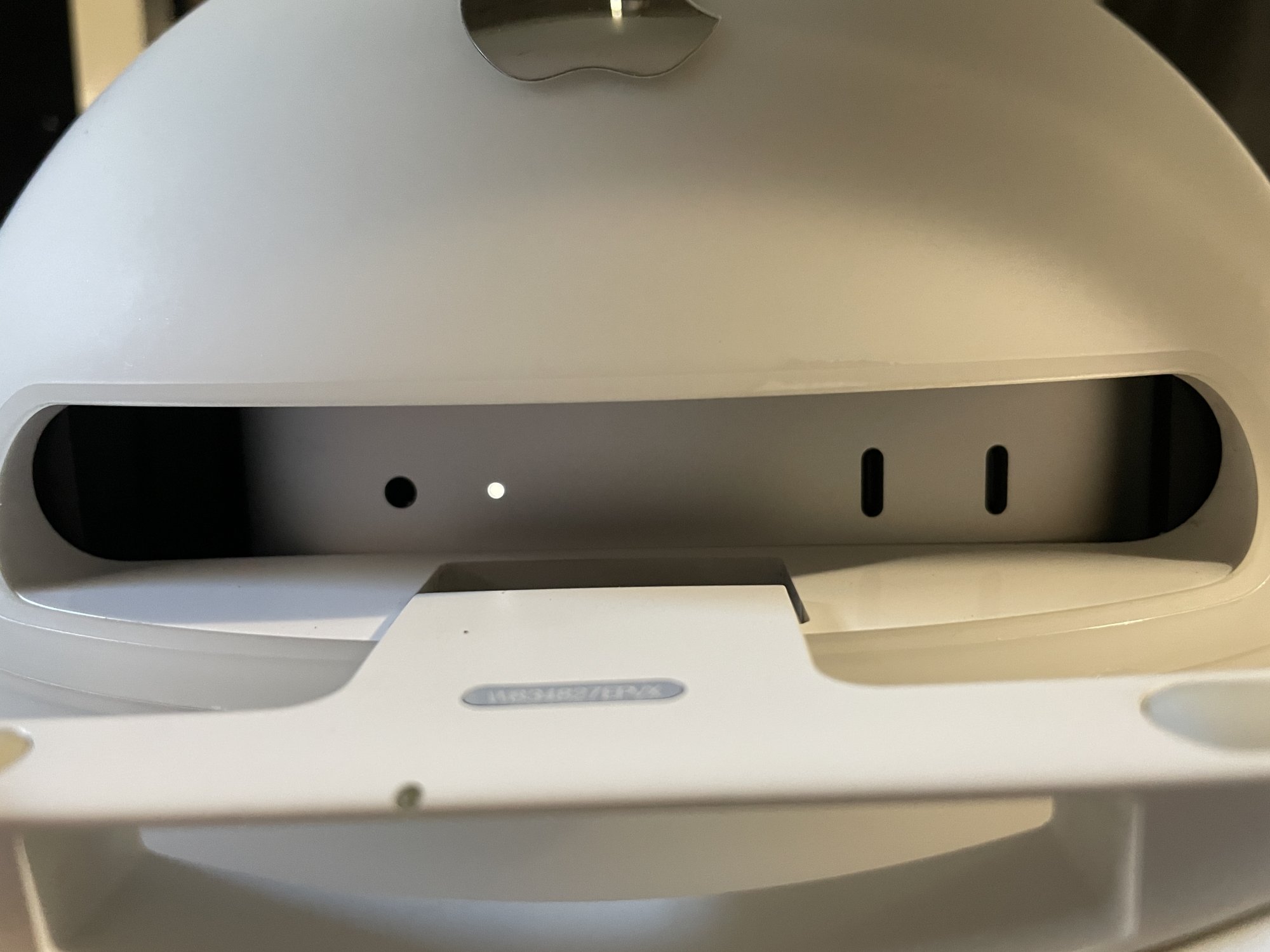

Well its ready for prime time

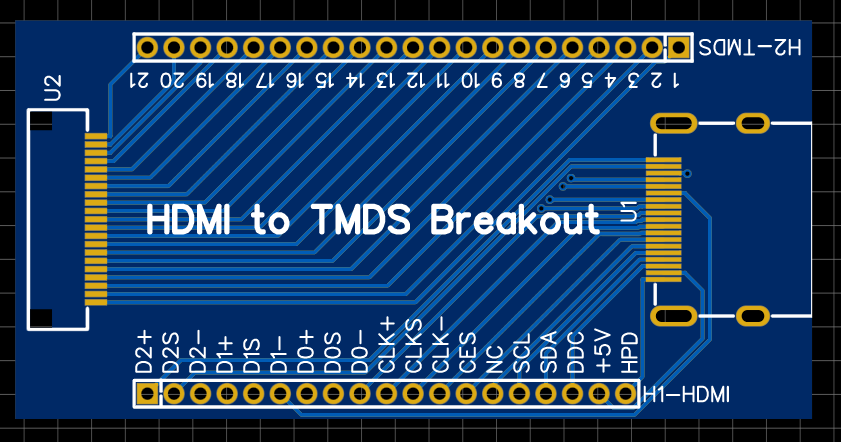

HDMI to TMDS Breakout board by Stillwell Labs on Tindie
Breakout board for HDMI to TMDS
www.tindie.com
HDMI to TMDS Breakout board by Stillwell Labs on Tindie
Breakout board for HDMI to TMDS
www.tindie.com

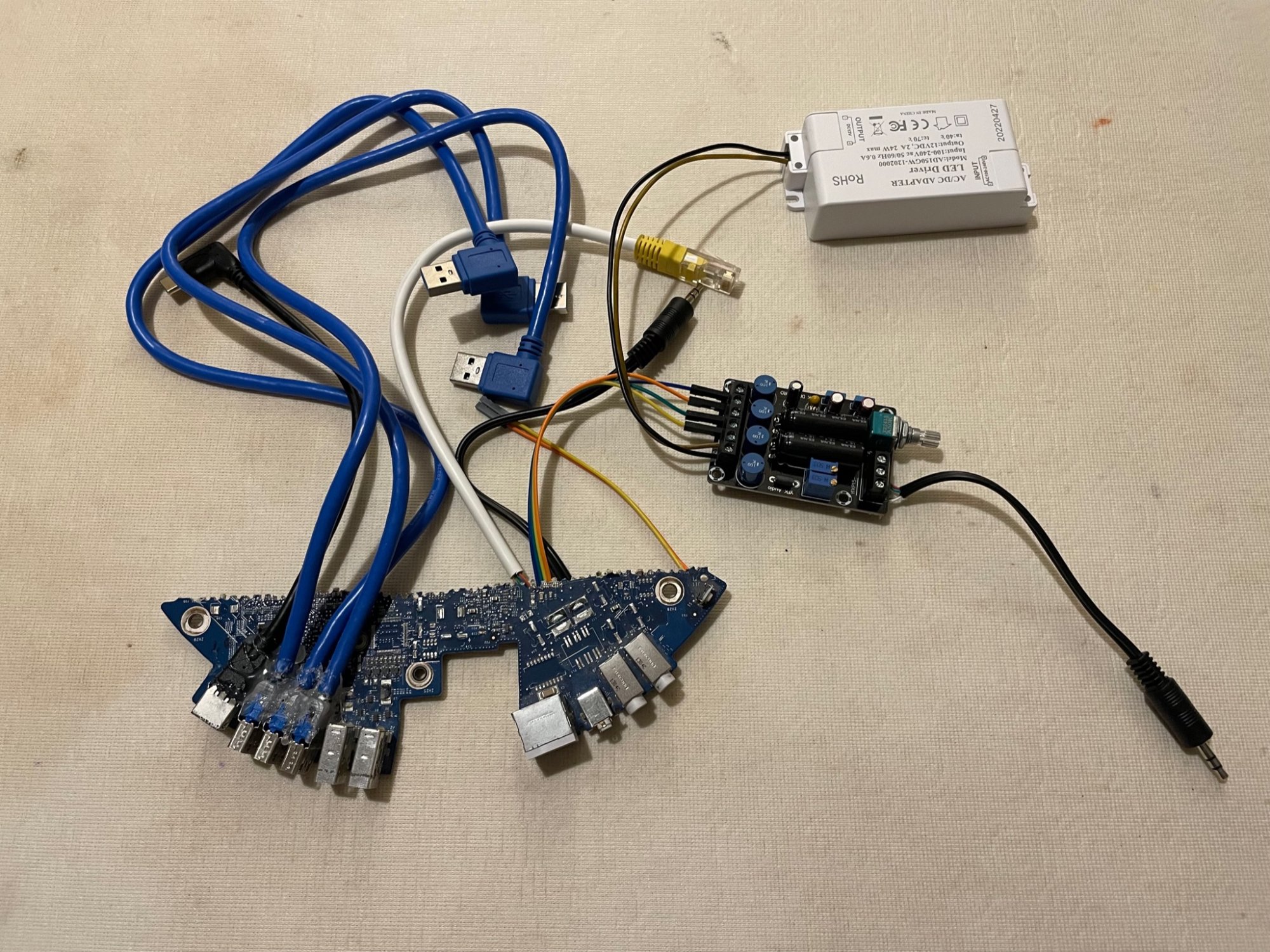

To use the original speakers, you can use an amplifier board based on a TA2024, that is the original chip embedded on the iMac main board.

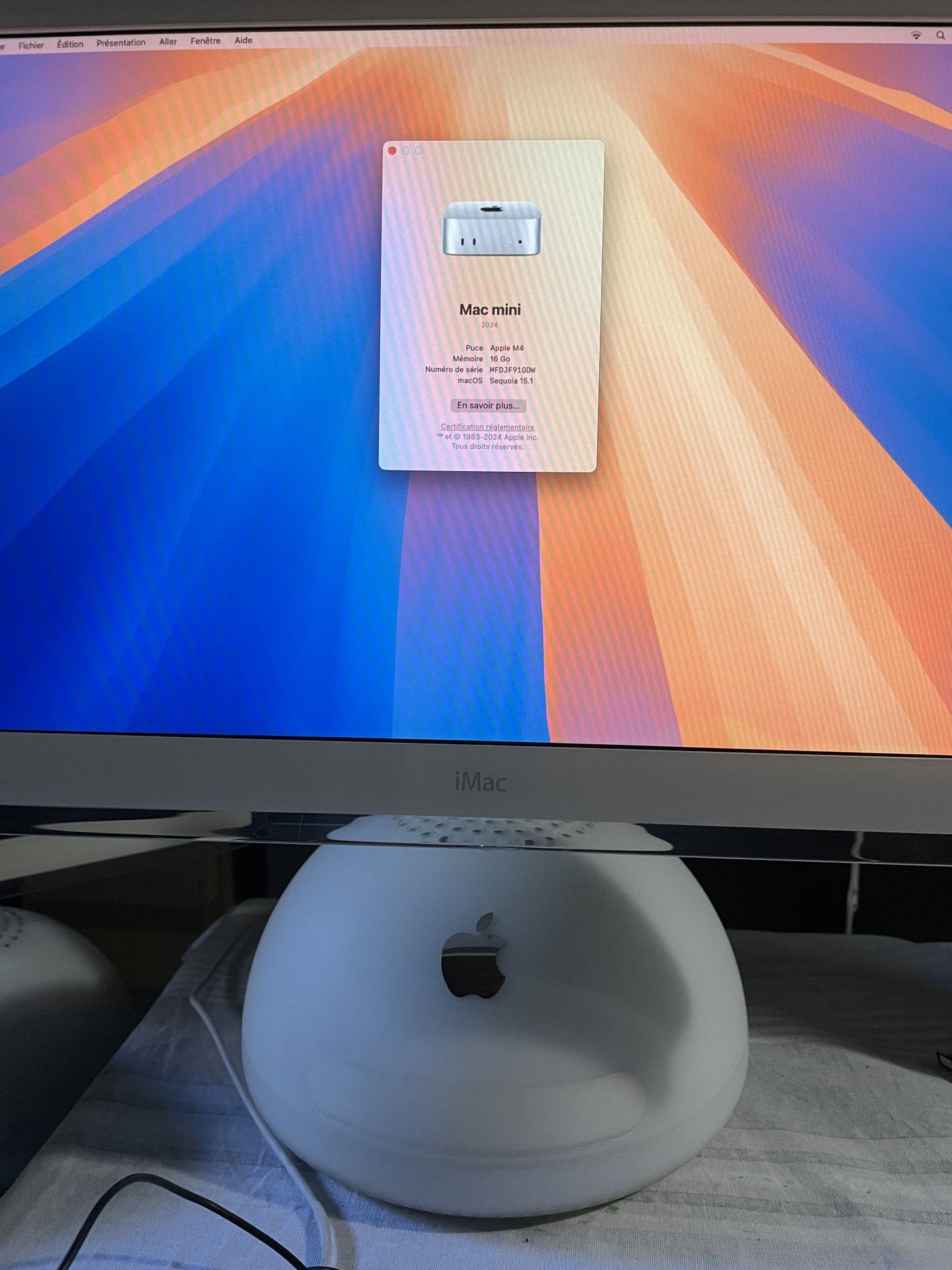

I soldered cables on the iMac cut main board to use the original connector, and powered it with a dedicated power brick.
Thanks a lot for making this board, but unfortunately they do not ship to Australia.HDMI to TMDS Breakout board by Stillwell Labs on Tindie
Breakout board for HDMI to TMDS
Attachments
Fine just add shipping to Sweden then ill order one. EDIT, Saw the update on shipping, little pricy shipping rate.Well its ready for prime time
HDMI to TMDS Breakout board by Stillwell Labs on Tindie
Breakout board for HDMI to TMDS
This is the board we should remake with right alignment on connectors and TMDS-HDMI converter and TA2024 amplifier. What is the model on the board connector of TMDS?
No
best option may be a iMac G4 using a DockLite from Juicy Crumb. Or they maybe working on a DockPro for G4Joe, This is an interesting project. I have successfully completed the re-wire of the display TMDS wiring on my iMac G4 and would not like to do that again. I want to retrofit another 17in and am curious about the inverter wiring. Is the inverter wiring out of scope in your project? Do you know the P/N of the mate-with connector for the black G4 inverter cable? Do you have plans for an actual adapter, en lieu of your breakout card? TIA
Nothing is out of the realm of possibilities.
Do you have a design in mind you could share?

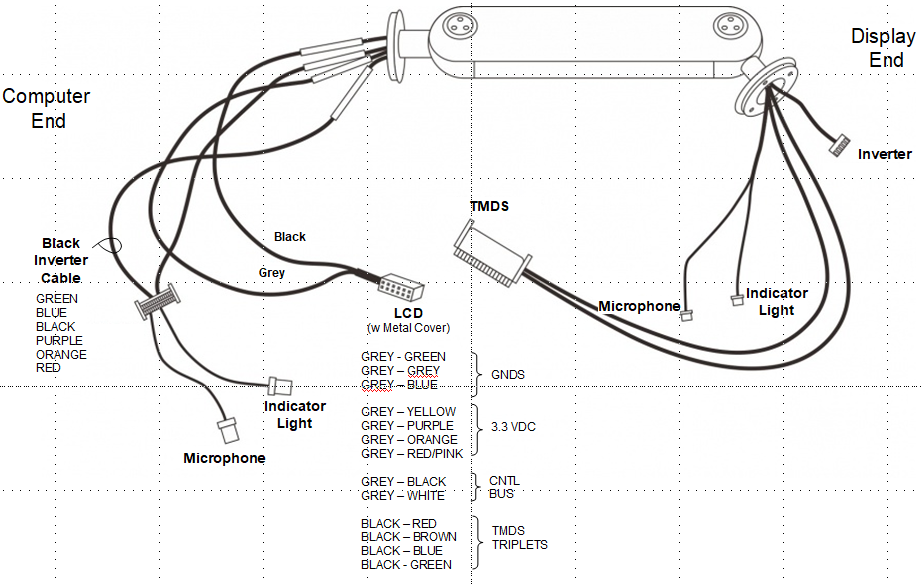

I did document my work when I performed the mod the first time and I could share it with you. I was thinking a breakout card like yours that also included a m/w connector that matched the inverter connector from the neck where the pins were broken out and easily accessible. The user would obviously be required to wire in inverter power, hot pin detect, VEDID and brightness control. These functions are obviously not detailed in this illustration.
Attachments

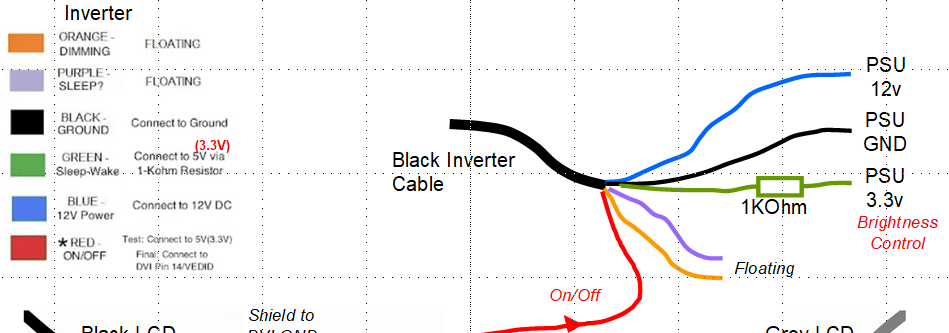

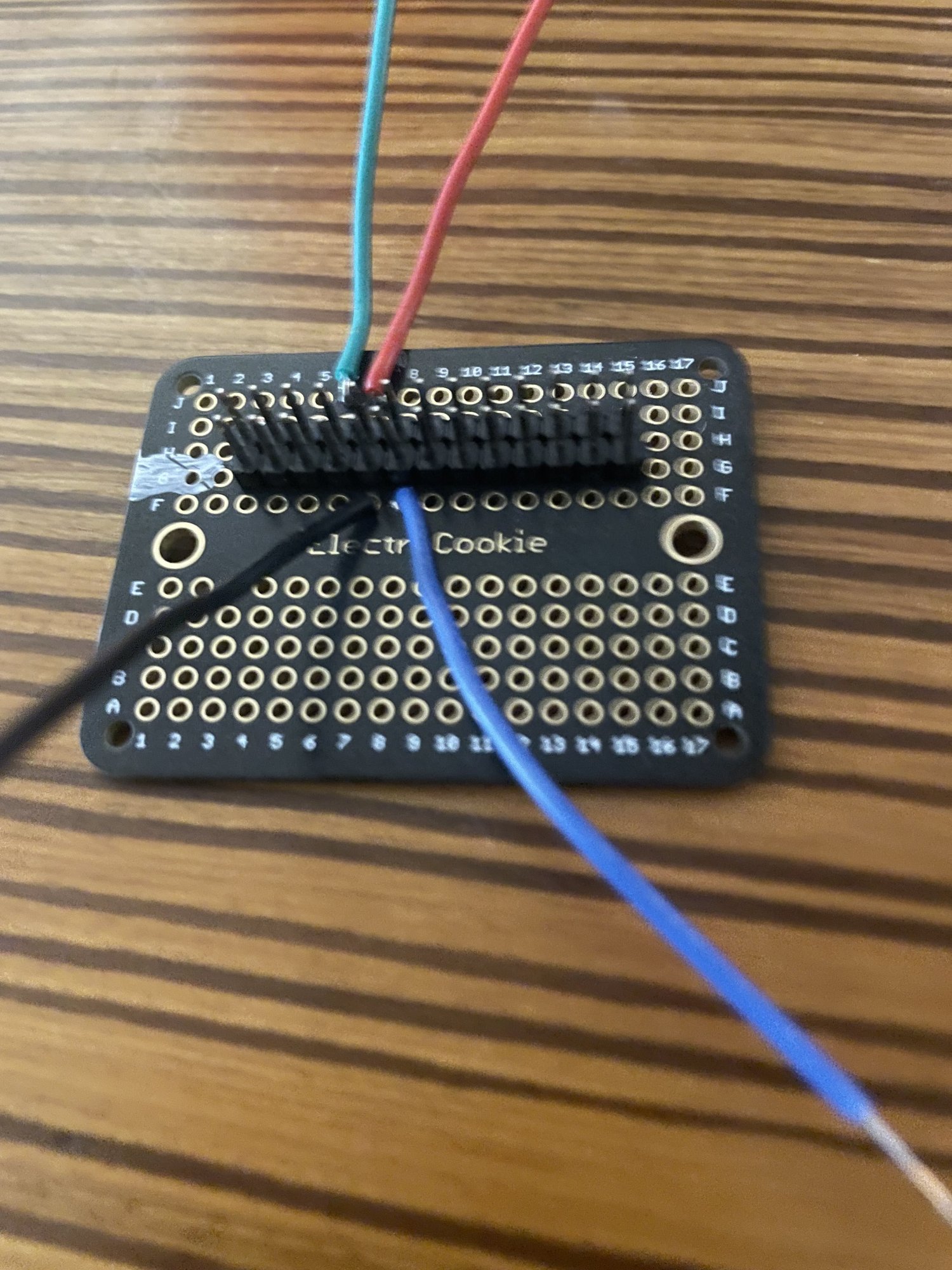

I left the purple and orange floating, like this, and ran hot pin detect thru 1Kohm resister to the red inverter wire. If the inverter connector is broken out, all that would be left is for the user to jumper in 12v power/gnd and a 3.3v dimmer/brightness control. What do you think? An all-in-one adapter card. The TMDS/HDMI signals don't necessarily need to be broken out, with the exception of HDMI pin 18 (VEDID) and the Hot Plug Detect/Gnd, but you already have them broken out.
Attachments
If someone wants to do a design (schematic with BOM) I am happy to get the board designed and produced.
I just don't have the time to do the design and prototyping. I have a lot of projects in the air right now.
I just don't have the time to do the design and prototyping. I have a lot of projects in the air right now.
I can appreciate that. I would do it but I am presently upgrading an iPod Classic 5th gen with micro SD card and larger battery and looking to design an VESA mount to iMac G4 neck mechanical interface to 3D print to attach a larger/higher resolution monitor to one of my G4s. Maybe later this fall we can come back to this. I might still purchase your breakout card to do some prototyping. Thank you for the discussion.
congrats! Just had another thought ... a breakout card like we discussed with a 12 vdc plug and a DC-Dc step down coverter and then all one would need for an external monitor would be HDMI and 12 VDC power (also need 1k ohm resistors on-board)
