tsialex

Contributor
Jun 13, 2016
13,459
13,608
I have had my MacPro since 2014 and installed the aura pro X2 in 2018. The MP61.0120.B00 Boot ROM came with High Sierra update in 2017 and included support for NVMe booting. Why has Boot ROM not updated since? Latest MacPro6,1 Boot ROM is 137.0.0.0.0

System Report:

View attachment 959302
Apple removed the OEM SSD requirement around 130.0.0.0.0, if you have an earlier EFI version (MP61.0120.B00 is a Sierra EFI built 1708080133) you need to install your original SSD back and run Mojave or Catalina to upgrade to the current BootROM release.


drbill

macrumors regular
Sep 25, 2020
111
1,129
Apple removed the OEM SSD requirement around 130.0.0.0.0, if you have an earlier EFI version (MP61.0120.B00 is a Sierra EFI built 1708080133) you need to install your original SSD back and run Mojave or Catalina to upgrade to the current BootROM release.

Thanks.
I purchased a used Apple SSD from a MP6,1 on eBay today. Apparently it has Mojave on it. So when I replace my OWC aura pro X2 with it I should run software update and it will install the current Boot ROM?


tsialex

Contributor
Jun 13, 2016
13,459
13,608
Thanks.
I purchased a used Apple SSD from a MP6,1 on eBay today. Apparently it has Mojave on it. So when I replace my OWC aura pro X2 with it I should run software update and it will install the current Boot ROM?
Nuke the used SSD partitions and do a clean install of Mojave/Catalina, don't boot the used one you never know what an used SSD will have…

Fully update macOS, during the updating process a service will then automatically download and update the BootROM to the current EFI release.

  • Like
Reactions: loby

loby

macrumors 68000
Jul 1, 2010
1,885
1,517
Any ideas as to why my MacPro6,1 with OWC aura pro X2 Boot ROM remains at MP61.0120.B00 or what I can do to get it updated if in fact the Boot ROM now updates with 3rd party NVMe installed? I just updated 10.15.6 -> 10.15.7

As tsialex suggested, wipe out the disk, probably re-partition it for good measure and reinstall from scratch. I would re-install by using the internet install (boot - then hold option-command-R buttons down as it boots to get the latest OS). That should do it.


drbill

macrumors regular
Sep 25, 2020
111
1,129
Nuke the used SSD partitions and do a clean install of Mojave/Catalina, don't boot the used one you never know what an used SSD will have…

Fully update macOS, during the updating process a service will then automatically download and update the BootROM to the current EFI release.
Thank you, I'll let you know how it goes!


vett93

macrumors 6502
Jul 27, 2014
279
40
California
Apple removed the OEM SSD requirement around 130.0.0.0.0, if you have an earlier EFI version (MP61.0120.B00 is a Sierra EFI built 1708080133) you need to install your original SSD back and run Mojave or Catalina to upgrade to the current BootROM release.

I have a Samsung 970 EVO 2TB SSD on my Mac Pro. I updated the Mac OS to 10.15.7. However, the boot ROM is still at 133.0.0.0.0. Is there any benefit to update from 133 to 137?

Edit: I put the original Apple SSD back and updated the OS. After switching back to the Samsung SSD, it also shows 137. Thanks anyway.

Last edited:

drbill

macrumors regular
Sep 25, 2020
111
1,129
Nuke the used SSD partitions and do a clean install of Mojave/Catalina, don't boot the used one you never know what an used SSD will have…

Fully update macOS, during the updating process a service will then automatically download and update the BootROM to the current EFI release.
Everything's good. Boot Rom is now 137. Also, my LG Ultrafine 5K starts on boot as primary display - did not before ? Thanks again!

  • Like
Reactions: tsialex

turluttu

macrumors member
Mar 4, 2018
42
7
Moscow

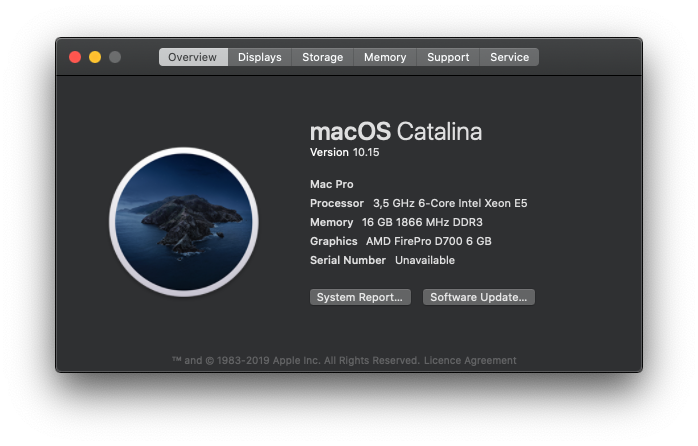

Hello everybody! Can someone help me add a serial number? Thanks!
Screenshot 2020-11-03 at 15.38.28.png


cesarvog

macrumors member
Dec 22, 2009
33
13
Brazil
Current 6,1 BootROM is 137.0.0.0.0, as already stated above.


Attachments

  • Screen Shot 2020-11-03 at 10.05.23.png
    Screen Shot 2020-11-03 at 10.05.23.png
    30.1 KB · Views: 210

kfscoll

macrumors 65816
Nov 3, 2009
1,147
139
Guys! Guys who will help? How do I add a serial number to the Firmware?
Why are you asking in this thread? This thread is just to keep of new boot ROM releases. It might be best for you to start a new thread vs. hijacking this one.


MisterAndrew

macrumors 68030
Sep 15, 2015
2,895
2,390
Portland, Ore.
Guys! Guys who will help? How do I add a serial number to the Firmware?

Why is your serial number missing? Did you replace the logic board? It sounds like you need the Blank Board Serializer program. I don't know where you can find it for the 2013 Mac Pro. You'll probably need to make an appointment with an Apple authorized service provider.

  • Like
Reactions: turluttu

turluttu

macrumors member
Mar 4, 2018
42
7
Moscow
Why is your serial number missing? Did you replace the logic board? It sounds like you need the Blank Board Serializer program. I don't know where you can find it for the 2013 Mac Pro. You'll probably need to make an appointment with an Apple authorized service provider.
I'm thinking of flashing it with a programmer. Question: can I upload the firmware from another Mac Pro 6.1 only the serial number has been changed?

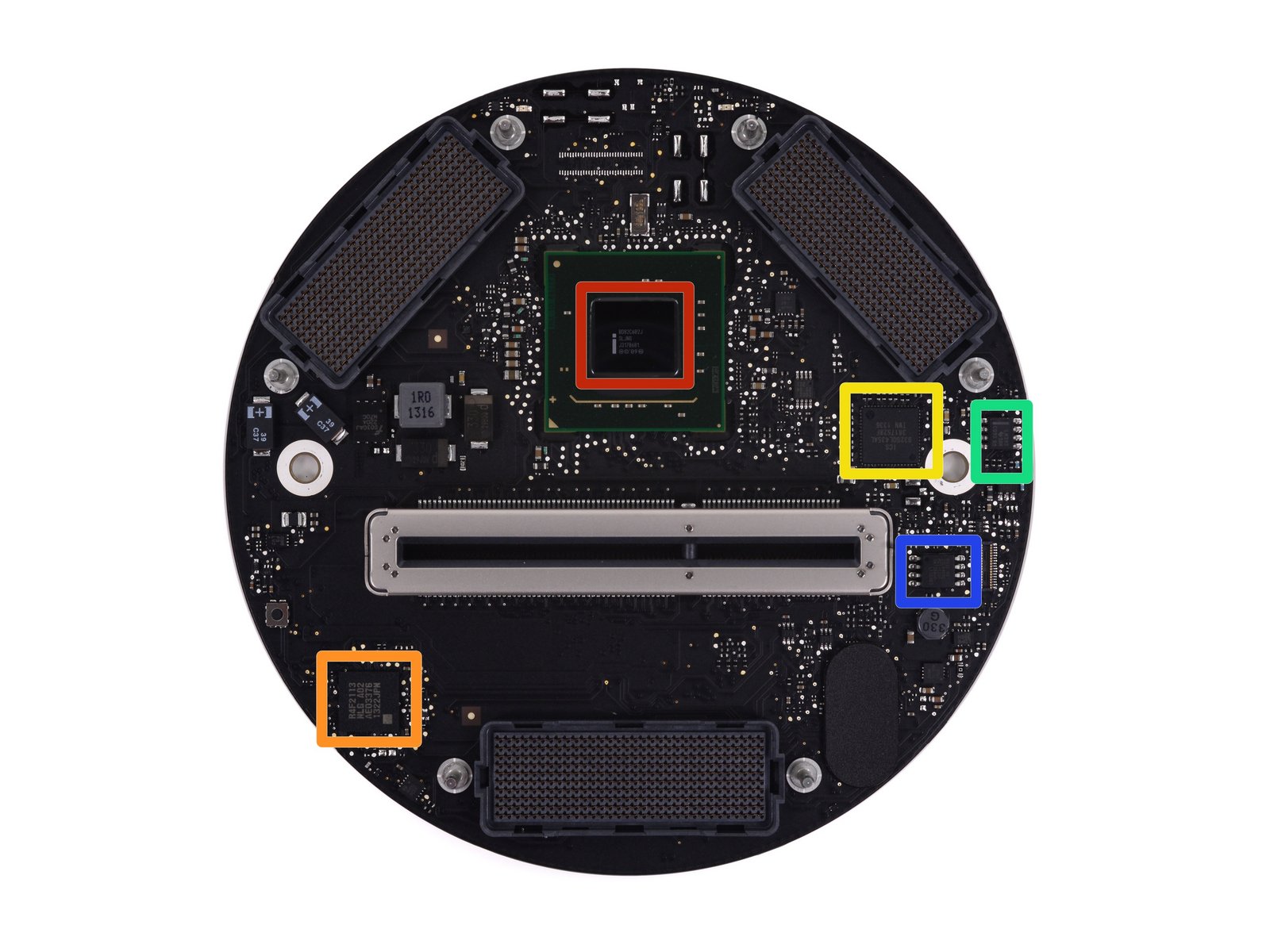

p.s. I think the eeprom is indicated in blue (MXIC 25L6406E 64M-BIT CMOS Serial Flash)



MisterAndrew

macrumors 68030
Sep 15, 2015
2,895
2,390
Portland, Ore.
I'm thinking of flashing it with a programmer. Question: can I upload the firmware from another Mac Pro 6.1 only the serial number has been changed?

p.s. I think the eeprom is indicated in blue (MXIC 25L6406E 64M-BIT CMOS Serial Flash)

View attachment 1082538
No, I don't believe so. There are several things in the firmware that are specific to the Mac. I think it's more complicated than the firmware in previous Mac Pros. Apple is probably the only one that can do this for you.

  • Like
Reactions: turluttu

chrfr

macrumors G5
Jul 11, 2009
13,729
7,306
I'm thinking of flashing it with a programmer. Question: can I upload the firmware from another Mac Pro 6.1 only the serial number has been changed?

p.s. I think the eeprom is indicated in blue (MXIC 25L6406E 64M-BIT CMOS Serial Flash)

View attachment 1082538
Apple has a specific software tool that'll solve this without having to worry about making your computer a brick.

  • Like
Reactions: turluttu

tsialex

Contributor
Jun 13, 2016
13,459
13,608
You can't transfer a SPI flash image dump from one Mac to another, you will make a clone. Apple detects clones when you login at iCloud/iMessage/FaceTime and block both Macs - don't ever do it.

Editing the SPI flash image and changing the hardwareIDs (there are several) will only work if you correctly adjust the checksums (there are several and some are nested). While it's possible to do it, lot's of firmware knowledge is needed to do it successfully and it's totally out of reach of users.

MP6,1 don't have Firmware Programming Mode, so you will have to take it apart every time you adjust something and program it with an external programmer. Just this makes trial an error almost impossible.

Your best bet is to use BBS or go to Apple.


loby

macrumors 68000
Jul 1, 2010
1,885
1,517
New firmware update in the Big Sur Release Candidate today. Version 425.0.0.0.0.
Question: If updating to Big Sur and going back to Mojave be an issue after the firmware update? I noticed that rendering and CPU throttling issues on my macbook pro 2018 with T2 and not using full CPU or GPU in FCPX after updating to Catalina and do not want to risk mac pro 2013 with throttling GPUs if going back to Mojave.

Anyone notice any differences?


MisterAndrew

macrumors 68030
Sep 15, 2015
2,895
2,390
Portland, Ore.
There’s no issue booting a previous version of macOS after updating the firmware. Install Big Sur on a separate drive or partition to update the firmware. A Beta OS should never be installed as the the primary OS. Firmware 425 might be the release version, but it is still technically a beta until the final release so you may want to hold off for now. The only difference I’ve discovered is a revised boot chime (beginning with version 423). It’s about a chord lower.

  • Like
Reactions: loby

MisterAndrew

macrumors 68030
Sep 15, 2015
2,895
2,390
Portland, Ore.
Any noticeable changes, including performance?

Not anything so far. The system feels like it might be a little more snappy, but hard to tell. The write speeds on my NVMe are really slow (300 mb/sec range), but I don't know if that's due to the firmware or something wrong with the NVMe.


loby

macrumors 68000
Jul 1, 2010
1,885
1,517
Not anything so far. The system feels like it might be a little more snappy, but hard to tell. The write speeds on my NVMe are really slow (300 mb/sec range), but I don't know if that's due to the firmware or something wrong with the NVMe.
Single Core tasks have more speed in Big Sur. Overall, the experience has been good and was surprised. I would be curious as to why a firmware is needed, but is of course welcomed, especially if there are improvements.

  • Like
Reactions: MisterAndrew
