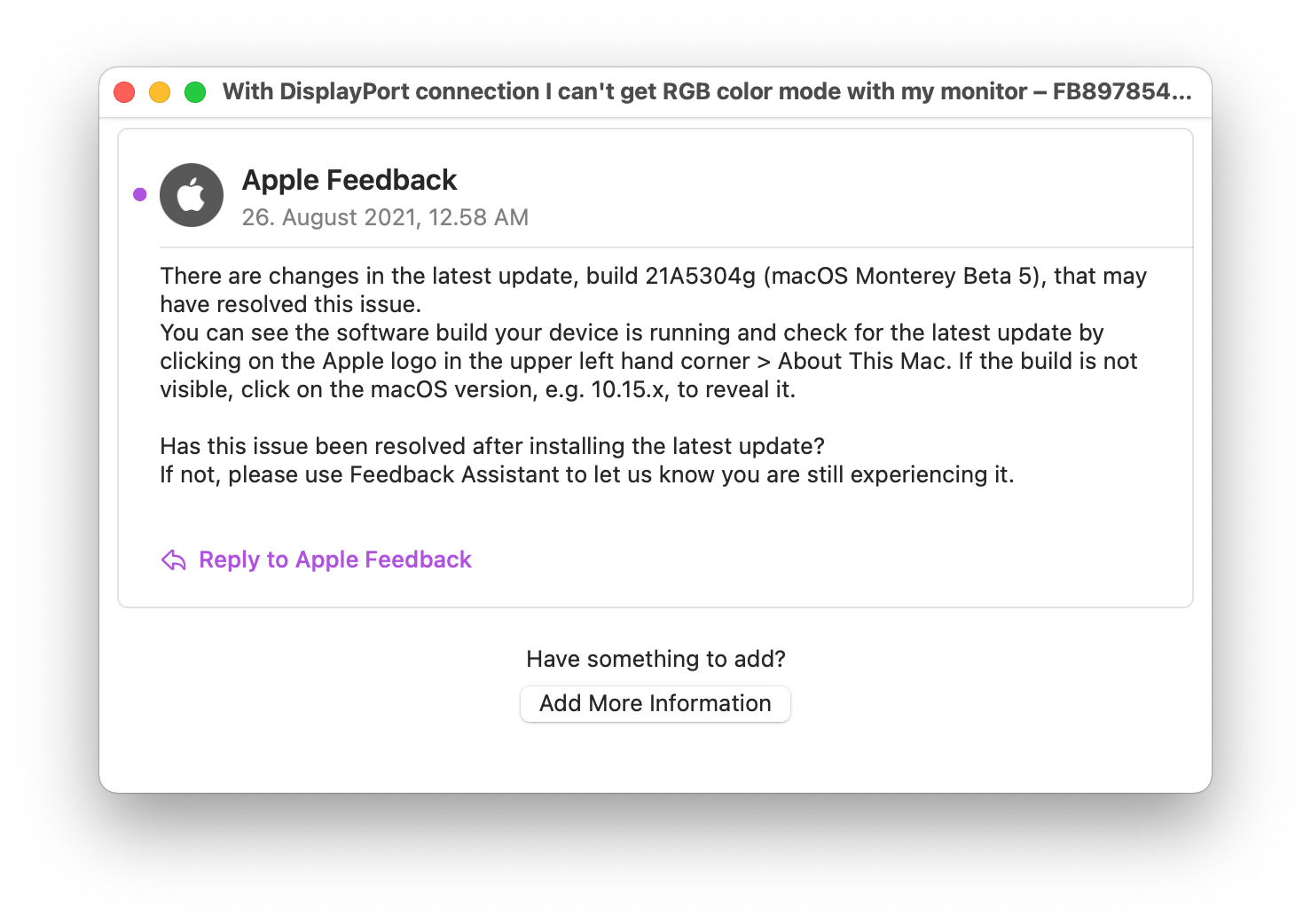

Seems like MacOS 12 Monterey fixed the issue for you so it stays on RGB.
Anyone else who upgraded to MacOS 12 can confirm this as well?
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
M1 Mac External Display - Fuzzy Fonts & Colors - YPBPR vs RGB
- Thread starter amitdel
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
Seems like MacOS 12 Monterey fixed the issue for you so it stays on RGB.
Anyone else who upgraded to MacOS 12 can confirm this as well?
What’s the best way to get the sharpest text/fonts using a 4K monitor?
I haven’t checked in months but I assume we should still disable font smoothing?
I haven’t checked in months but I assume we should still disable font smoothing?
It is 99% sure it won't make difference because problem is 1440p monitor and that MacOS does not support HiDPI font for under 4K displays.
On a 4K display, unless you have superhuman eyesight, leave it all at default settings and choose the “looks-like” setting best for your situation.
The issue with some 4K displays is that macOS will output YPrPb display mode instead of RGB. Depending on the monitor, you may or may not see any difference (comes down to color depth and calibration).
On non-HiDPI monitors, it makes more of a difference in some situations.
Can someone running the beta version of Monterey confirm whether this issue is fixed for M1 Macbook Air?
What do you mean looks like? One of the default scaled settings or manual scaling?
Choose any of the HiDPI selections. Do not use a non-HiDPI setting unless you’re selecting native 3840x2160 (but be prepared for microscopic UI elements).
How do you know which ones are HiDPI? Is it just the 5 basic scaling options? If I do the custom resolution trick those aren’t HiDPI?
The basic ones will be HiDPI if you're using a HiDPI monitor (4K+). If you look at the option-click offerings, the HiDPI ones will be labelled with "(HiDPI)".
I recently bought a m1 air and LG 35inch monitor, a I'm getting those really cloudy tones, is there any way to fix this?
Hello. I have been reading your forum for a long time. A lot of useful information, thank you very much. I want to buy a Gigabyte AORUS FI32U monitor for mac mini M1. It seems to me perfect, 32 UHD IPS 144Gz. But there are doubts that it will work correctly HiDPI with such Gz (at least more than 100Gz).
How do you think?
This monitor is out this month.
How do you think?
This monitor is out this month.
I've got the lg 35wn75c, I've heard Monterey may fix the issue? Do you know if there is any other workarounds? Thank you!
I was having issues with my Dell S2721QS from flickering when connected to my M1 MacBook Air and after tinkering found a solution. Hope this helps anyone who experienced the same.
The goal is to make the screen color "RGB", but it's standard set to "YBRGB".
1. Connect the M1 Macbook to the monitor first by HDMI (by dongle). It will show "YBRGB" by default. Change the monitor resolution settings to what you want first through the Mac settings.
2. Through the Dell monitor, change "YBRGB" to "RGB". The Dell monitor colors will look strange, that's ok.
3. Turn off the monitor. Unplug the HDMI dongle from the Mac.
4. Within 10 seconds plug in the USB-C to DisplayPort.
5. Turn on the Dell monitor and check the monitor settings that it's still on "RGB".
This has seemed to work for me. It seems it's tricking the monitor into staying on RGB.
The goal is to make the screen color "RGB", but it's standard set to "YBRGB".
1. Connect the M1 Macbook to the monitor first by HDMI (by dongle). It will show "YBRGB" by default. Change the monitor resolution settings to what you want first through the Mac settings.
2. Through the Dell monitor, change "YBRGB" to "RGB". The Dell monitor colors will look strange, that's ok.
3. Turn off the monitor. Unplug the HDMI dongle from the Mac.
4. Within 10 seconds plug in the USB-C to DisplayPort.
5. Turn on the Dell monitor and check the monitor settings that it's still on "RGB".
This has seemed to work for me. It seems it's tricking the monitor into staying on RGB.
It's a macOS problem, not a monitor problem. Patiently (well, not so patiently) waiting to hear if macOS 12 is confirmed to fix the issue.
Apple M1 Chip Equipped Mac Computer and Monitor Compatibility
- Updated August 31, 2021
Apple M1/M2/M3 series Chip Equipped Mac Computer and Monitor Compatibility | EIZO
EIZO is a visual technology company that manufactures high-end monitors and display solutions for business, graphics, home entertainment, healthcare, maritime, security/surveillance, ATC and defense/aerospace.
I have a Dell 34” widescreen U3419, and I recently swapped the usb-c cable that came with the monitor for the Apple Thunderbolt 3 cable (I just wanted a shorter cable). I noticed a visible (to me) improvement in the text sharpness, particularly some smaller fonts. By no means is this HiDPI/Retina quality, but it is better.
Thanks for your guide. I use Macbook Pro M1 with Dell P2721Q, my OSD already has both RGB and YPbPr to select.
Default selected is YPbPr, I could not see any bad about font or image when using original YPbPr.
But when I want to select RGB for "standard" using of everyone, my screen color look strange.
I follow your guide to do reach main target is make the screen color RGB, but with different cables:
1. Connect the Macbook Pro M1 to the monitor by USB-C to DisplayPort.
2. Through the OSD, change from "YPbPr" into "RGB". The color will look strange.
3. Turn off the monitor. Unplug the USB-C to DisplayPort from the Mac.
4. Plug in USB-C to USB-C with supplied by Dell monitor into Macbook Pro M1.
5. Turn on the Dell Monitor and check monitor settings that it's still on "RGB" and with true color.
Thanks for your guide. I hope this post will help anyone having this issue.
Last edited:
Can confirm now that this was bullcrap... Nothing is fixed in Monterey regarding RGB mode detection. It still defaults to YPbPr if I for example change display orientation. Luckily plist editing still works.
Glad to hear plist editing works in Monterey too because I read somewhere in this forum someone saying plist format was changed in Monterey and was not working anymore and that got me worried.
Hi,
Does anybody have news about Apple MacBook Air M1 with a Mi Curved Gaming-Monitor 34"?
The colors look like sh**, and the font is also not that good. I've tried so far:
Does anybody have news about Apple MacBook Air M1 with a Mi Curved Gaming-Monitor 34"?
The colors look like sh**, and the font is also not that good. I've tried so far:
- Running `defaults write -g CGFontRenderingFontSmoothingDisabled -bool NO`
- Using this script: https://github.com/sudowork/fix_m1_rgb
As far as I can tell, any monitor that has 3440x1440 native resolution (ultra wide) is going to look crappy on a M1 mac because it cannot be set to have any HiDPI resolution (i.e. the pixel doubling that Mac's use to achieve retina resolutions). I haven't seen a way to make it significantly better (I am in the same boat as you). Just the way it is sadly.
