M3 Chip Generation - Discussion Megathread
- Thread starter scottrichardson
- Start date
- Sort by reaction score
The RT stage seems very similar to what Nvidia is doing. @lemanExplore GPU advancements in M3 and A17 Pro - Tech Talks - Videos - Apple Developer
Learn how Dynamic Caching, the next-generation shader core, hardware-accelerated ray tracing, and hardware-accelerated mesh shading of...developer.apple.com
They explicitly call out use of über shaders, lol.
Why are you resurrecting something that's been dead for an age (in internet time)?
But since you are, what exactly do you think is wrong with this? I am using the EXACT SAME WORDS as the person I replied to. This is a rhetorical device designed to show someone that their position of privilege is actually no more privileged than other positions. Notably, it's not passive-aggressive as the original post was. And there was a pretty broad consensus in support of this.
Apple M3 Pro Takes The Throne of The Fastest CPU In PassMark Single-Thread Benchmark, 1% Faster Than Intel Core i9-14900K
Latest benchmarks of Apple's M3 CPUs are in and the M3 Pro specifically has secured the top position in PassMark's single-thread benchmark.
wccftech.com
I'm really curious why didn't up the frequency of the Max (16" at least like last time). I figured they'd started segmenting products that way like the other players but maybe it was just a test?
And no mention of power draw anywhere in the article. Looking down in the comments section, yikes 🙈Apple M3 Pro Takes The Throne of The Fastest CPU In PassMark Single-Thread Benchmark, 1% Faster Than Intel Core i9-14900K
Latest benchmarks of Apple's M3 CPUs are in and the M3 Pro specifically has secured the top position in PassMark's single-thread benchmark.
Maybe they felt that M2 Max needs to be faster to offer good value compared to other offerings in the market. And with M3 they are confident that the performance is sufficient. And it is, given the fact that even the base M3 makes a good figure next to the fastest currently available desktop CPU...
BTW, since now we have a bunch of folks with the M3 machines, would anyone be so kind to run my power/frequency tester tool on M3? The link is here: https://github.com/mr-mobster/AppleSiliconPowerTest
Thanks in advance!
Thanks in advance!
https://developer.apple.com/videos/play/tech-talks/111375 Apple released an explainer video for GPU advancements with the A17 Pro and M3. Haven't watched the whole video yet but they explain the new architecture as the new "Apple family 9 GPU".
Last edited:
I believe he thinks the CPU architecture is different between the A17 Pro and the M3 series.
Explore GPU advancements in M3 and A17 Pro - Tech Talks - Videos - Apple Developer
Learn how Dynamic Caching, the next-generation shader core, hardware-accelerated ray tracing, and hardware-accelerated mesh shading of...
Just looking at Balders Gate 3 comparison in the Apple video.... that's a fairly substantial performance uplift in that game from the top M2 Max to the top M3 Max. Seems like the current benchmarks don't utilise the new tech in the Shader Cores very well, unlike Balder's Gate which does appear to do so? Looking at like 50fps vs 78fps. Which is a solid improvement.
I hope they have more planned than that. There’s a lot of low hanging fruit now.
Last edited:
Unless they rehire the Mac porting team I’m not sure we will see these improvements in macOS (any time soon).
Wccftech’s comment section is something else, I assume there’s no moderation. I’ve seen some pretty heinous posts in there, including plenty of racism.
The spelling alone is atrocious. Better not mention the non-existent level of technical knowledge displayed all while claiming that Mac users aren't computer literate. Pretty sad.
Wccftechs comment section is the result of Twitters blue checkmark users having a child with 4chan and Truth Social. It is sick.
"Apple family 9" is nothing new. We knew that like the day the A17 was announced.
You can see these terms in the Metal Feature Sets PDF (which gets updated at random times, but generally a few days after each new architecture is revealed).
But if the line isn't at least relatively clean, you probably won't be saving enough die area to make the chop worth anything.
The way you're talking about this hints that you haven't even looked at annotated die shots of the M3 Max, much less compared them to M2/M1 Max (where we can look for evidence of how they do layout to support a chop).
At the bottom of the M3 Max (the place where we have to try to imagine a chop existing), there are two rows of six GPU cores each. The only option would be to chop one entire row of six. The four remaining GPU cores that need to go can be explained as defect management, but when I do pixel based area analysis on the annotated image I'm using, I get these areas:
- Full die: 1414w*1457h = 2.06m
- 1 GPU row chopped: 1414w*1357h = 1.92m
The next obvious thing: M1/M2 Max have a little bit of kerf separating the upper group of memory controllers on each side from the lower group. This kerf exists because the lower group gets chopped away in M1/M2 Pro. If M3 Max layout supported a chop, you'd expect a kerf 3/4 of the way down on each of the two blocks of memory controllers, but it isn't there.
I could go on and on about many other things which strongly argue against a chop. The one I'll end with is that M3 Max has 40 GPU cores and no spares are visible in the layout. If Apple was running different masks and wafers for full and chopped M3 Max, they'd have to scrap a large number of full M3 Max die due to defective GPU cores. I don't think that's even slightly plausible. They need a way to harvest some of the scrap, and the 30c GPU Max variants are how they do it. Nothing else makes sense.
I have no opinion on the rest of your post, because I don't know if 7% area saved would outweigh the costs of making two dies. But this specific argument makes no sense. There is no reason Apple couldn't sell both chopped M3 Maxes, and full M3 Maxes with some cores and a memory bus disabled, as 30-core M3 Maxes.

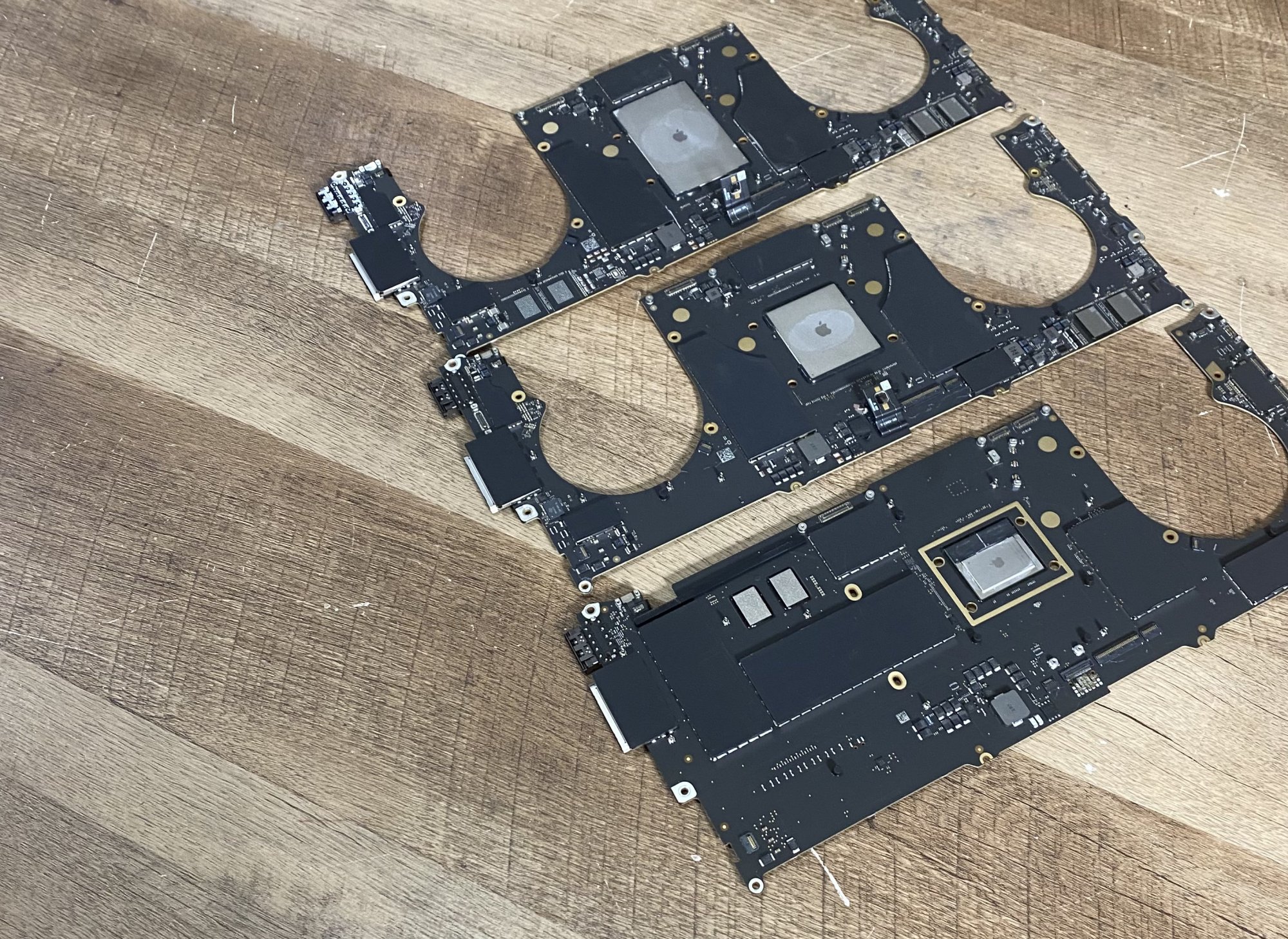

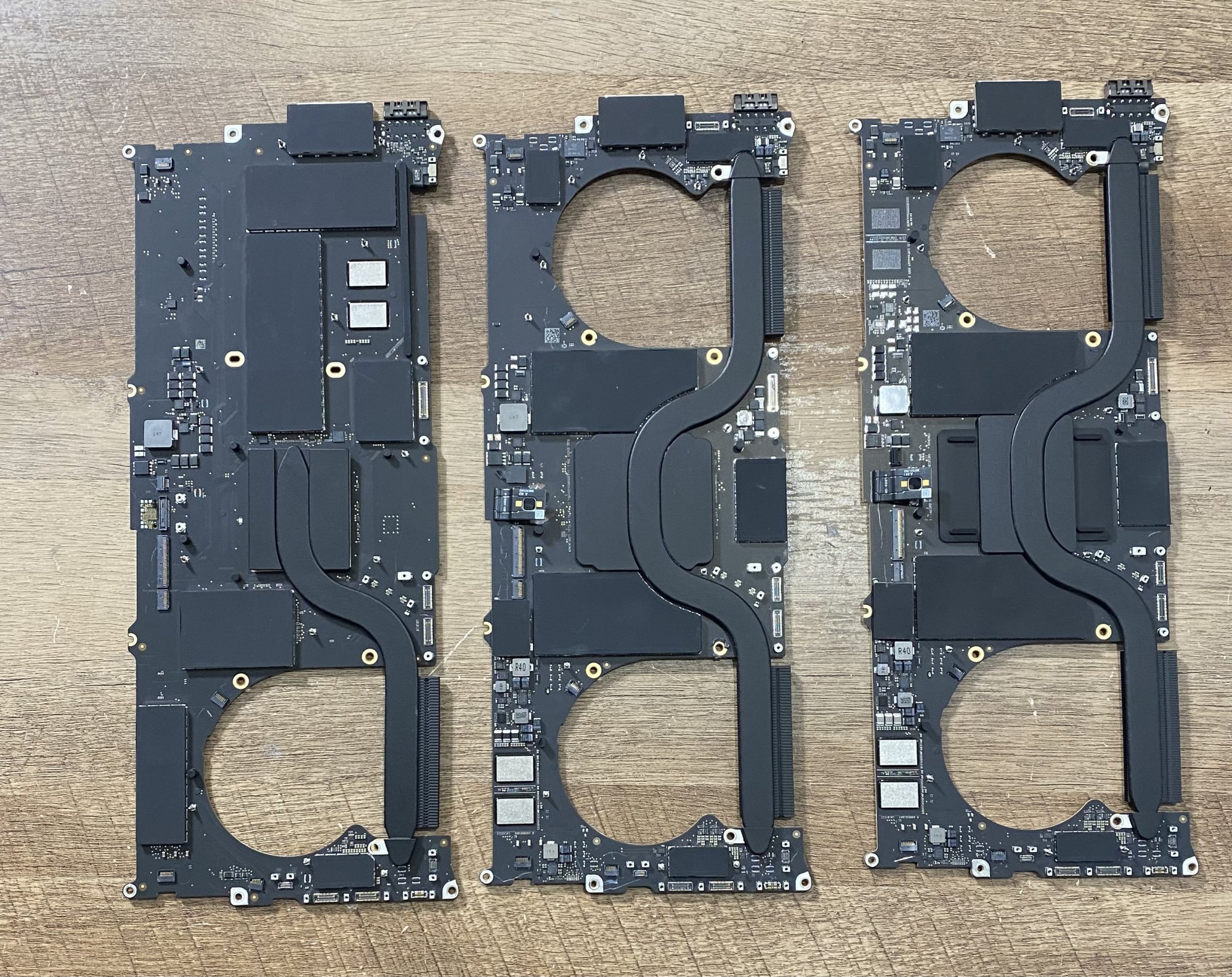

Someone posted these from Japanese twitter. All three 14" boards stripped.
Way too little could be deducted from these but this is the first SoC package shot of the M3 Max. And the poster didn't note if the Pro and Max are binned or not. The only thing that can be confirmed is the lost of 4 NAND solder spots for the M3 Pro board, from the total of 8 on the Max (used to have all 8 on M1 Pro M2 Pro).
I did my own surgery on the Max die, and I came up with ~18% area reduction. That said, they’d have to have another (albeit much smaller) mask set. Ultimately, the only way I’d think this sort of production run would be good is if Apple is binning chips for yet to be announced devices.
It almost certainly wouldn't. One thing I only obliquely referenced in that post is that die have to be packed or "tiled" onto a wafer, and this has consequences.
Like everyone else, TSMC uses 300mm dia. wafers. This yields about 70,000mm^2 of usable area.
So how many M3 Max can you fit on one wafer? That's a hard question to answer because I haven't seen anyone reveal the actual measured size. I'm going to assume it's 500mm^2 because it should be a bit larger than past Max chips, and the M1 Max was supposedly about 430mm^2. Also, 500 makes the numbers for the first round of calculations nicer.
Speaking of, we'll ignore that the wafer is circular while the die is a rectangle. So we just divide 70000 by 500 and get a neat round number of 140 M3 Max per wafer. Let's further assume that the M3 Max is square. (It actually almost is, according to pixel counting, though the hidden Ultra Fusion interconnect will likely push it slightly more rectangular.) We have to lay the 140 die out in a grid, and since sqrt(140) is not a nice integer, let's bump the assumed wafer size slightly. That puts our baseline as 144 die in a 12*12 grid on a 72,000mm^2 square wafer. (Spherical cow, square wafer, same kinda thing...)
With that 144-die wafer as our baseline, how many extra die do we get once we chop 7% of the height?
Well... the answer is actually a big fat zero. A 500mm^2 die that's perfectly square is 22.36mm x 22.36mm, and the chop gives us 22.36 x 20.8 - we're saving 1.56mm of height. The total height saved is 12 rows * 1.56mm = 18.72mm. But we'd need to free up 20.8mm to add another row, so chopping 1.56mm per die gained us nothing.
Now obviously in the real world you're packing rectangles (not squares) onto a circle (not a square). So you lose a lot of area at the edges to the whole rectangle-packed-on-circle thing. There's also saw kerf laid out between the rows and columns because at some point you gotta singulate the wafer (cut it apart with a diamond saw), and so forth. Many complications I papered over. However, the basic geometric principle remains true: when packing objects that are relatively large into a given area, slightly reducing the size of those objects may not improve the number which can be packed at all.
(As die size goes down, the gains you get by reducing die size do start to more closely approximate what you'd naively expect just by dividing wafer area by die area.)
I think you're being "technically correct" here. I'm making economic / practical arguments here, not talking about whether it's physically possible to do as you say.
The yield of perfect 40/40 core Maxes is bound to be fairly low as it's such an enormous die. They're going to have plenty of supply of binned down 30c GPU Maxes just by running the wafers required to supply them with 40c GPU Maxes, so why spend all that extra money developing and manufacturing a second mask set? Especially if the chop can only be a very small one, meaning it doesn't even yield them many (or any) extra die per wafer?
