I'm a little disappointed nobody has answered me. :-( Is it because the idea is so dumb? @name99, @mr_roboto, anyone else?
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
M3 Die Shot suggests display engines take up nearly the same area as P-cores
- Thread starter ArkSingularity
- Start date
- Sort by reaction score
Stacked chiplet DRAM is technically feasible but it seems like an awful lot of trouble to go to just for a frame buffer. If you were Apple and you wanted to do it, you'd just do it for all the DRAM, not merely the frame buffer.
It's not a new idea. About 10 years ago JEDEC published standards for "Wide IO" DRAM, where DRAM die are stacked on top of logic die using through-silicon vias for interconnect. The 'wide' is because this interface specified wide data busses clocked at lower speeds compared to traditional DRAM interfaces, made possible by the much smaller size of TSV interconnect compared to traditional DRAM wire-bond pad structures. (Similar to how Apple's Ultra Fusion bridge saves power by using many thousands of connections clocked at a slow speed.) There was never much adoption, probably because it costs a lot more to build than ordinary DRAM.
Nope, in the real world, they are separable. There are many examples. Companies will often produce a single silicon die to cover an entire product line, and then disable features on it to create their lower-end models. When it's disabling features on those lower-end models, it's not doing that to optimize their functionality. In fact, it's doing the opposite. It's reducing fuctionality to create product segmentation, thus explicitly separating what's optimum for the prouduct (allowing that functionality to remain), from what they believed was optimum for their business (disabling it). I.e., this is an action taken purely for a business reason, even though it runs counter to product optimization considerations.
Now you many argue that Apple not offering an additional feature is different from disabling an existing feature. Yes, but this case still falls under the same general concept I'm articulating: Suppose this additional feature would only add marginally to the cost, yet provided a significant benefit. Thus if Apple were operating based purely on product optimization considerations, they would offer it. But suppose that doing so would hurt their produuct segmentation strategy, and they thus decided not to. That would be a clear case of Apple doing something purely for business reasons (product segmentation), while running counter to product optimization.
I'm not saying Apple did this for either one reason, or the other, or both. I'm simply saying all three are possibilities. As I stated before, I don't know which of these applies—only Apple does.
Nope, you misunderstand the terms as I've defined them. You seem to be presuming to lecture me (including presuming to tell me how the "real world" works) on what you don't understand. Take another look at my posts about this.
Last edited:
My 2014 15" MBP thermally throttled more readily (indicating significantly more power consumption) when it was driving three externals instead of one, i.e., a total of four displays instead of two (one external through each of the two TB ports, and the third external via the HDMI port). As you say, the images the monitors are displaying are mostly static.
When at least one external display is connected, this MBP automatically uses the dGPU (an NVIDIA GeForce GT 750M w/ 2 GB GDDR5). Thus based on what you wrote, this sounds like an example of poorly-designed "driver/firmware stacks that force the GPU to clock higher as long as there's more than 1 display attached, even while there's no actual demand for more GPU throughput."
If so, the Apple engineers were at fault for not catching this during testing. But as to how they ended up with this design in the first place, would this have been the fault of Apple, NVIDIA, or both plus a product of bad communication/collaboration between the two?
I vaguely recall reading about Wide I/O. It's basically HBM, but even slower and wider, IIRC. I think even for M chips, heat dissipation would likely be too challenging for them to use this for all DRAM.
I was suggesting a much more specific optimization, though, a much smaller RAM element mounted only on the display controller part of the chip, which presumably generates less heat than an GPU or CPU core. I know this isn't feasible now, but it may well be a few years down the road as packaging tech continues to improve.
I agree they're a good fraction of the die, but just comparing to other things around it they don't seem out of proportion. They're not huge compared to the DDR controller, for example. And TB4 is a pretty complex agglomeration of technologies-- PCIe, video controllers, USB controllers, bus mastering, I'm pretty sure they'd have a microcontroller embedded to handle negotiations...
These types of discussions make it clear why certain decisions are made... Each Thunderbolt bus costs actual money to add, which explains why Apple limits them on the lower end products. It also explains why USB has survived for so long when Thunderbolt appears superior in every way-- USB wins on cost.
The TB controllers are like 1.5-2x the size on Intel Alder Lake, but of course they usually have 4 of them, and that they are nowhere near TSMC 3nm in node size.
Impossible to say. It could even be true that the 750M genuinely must clock up when driving more displays, due to quirks of how its hardware was designed. They didn't have to design it that way; as I said, modern GPUs don't have to be tightly coupled to display refresh hardware at all. However, they might have designed in such a coupling anyways. Whenever you dig into PC industry designs you tend to find lots of weird legacy nonsense that makes no sense in the modern context, but that's how things were done 20 years ago, and if it isn't too badly broken, just keep shipping it.
(or like... I just dreamt up a scenario in my head. Refresh taps into the same memory bandwidth which serves the GPU compute elements. If they designed the 750M such that the lowest power state for the memory controller has about enough bandwidth to serve one display out plus a low level of GPU compute activity, then turning on a second display will probably require moving out of that lowest power state. If, in turn, they didn't design with a lot of granularity in their power states, and/or coupled GPU frequency to memory frequency in some way, well, there's your problem.)
The same thing happened on my 2015 15” which had an AMD dGPU, so it wasn’t Nvidia.
Interesting...or it could be that the NVIDIA and AMD GPU's share the design characteristic that causes the issue. E.g., perhaps they both unnecessarily ramp their clocks when more displays are attached.
Last edited:
I haven’t looked to much at modern Intel designs, but in the past Intel has favored dumb peripherals that require more CPU intervention than smart peripherals that can offload demand from the CPU and manage themselves. I’d expect Apple to favor the opposite.
How did you arrive at that 1.5–2x estimate? If you were comparing the die shots by eye, did you first adjust the two pics to the same scale?
I suspect it can also depend on the connection method being used. It can take a lot of power to run high speed data down long cables. Just look at the 10GB ethernet equipment out there-- it's all heat sinked and huge, but the 40GB Thunderbolt standards are more modern built to more modern tolerances so runs at much lower power. I'm not sure where HDMI and DisplayPort fit into the spectrum, but it's another variable.
This has nothing to do with your larger point, but just a random musing after having just read @theorist9's discussion of energy and power consumption.
Leaving aside that it's illegal to consume energy, conservation laws only permit transforming it, this looks like a good place to reference power rather than energy. When you're talking about a setup like this it's for a rather indeterminant amount of time. Energy is a useful metric for discrete tasks, but power is a better fit for ongoing activities.
I am sorry but, before I go any further in reading this thread, have you actually checked this or are you just making what you think is a logical deduction?
Someone else later makes a comment about the thunderbolt controllers being very large.
Compared to which other thunderbolt controller of same specifications?
Maybe you guys are completely correct in your statements, but can you give any factual equivalent comparison reference?
Well yes I pulled that out of my fuzzy memory and conjecture. With how you questioned what I posted, I went on to actually check. Can't say I was *that* far off but I wasn't close to being correct:

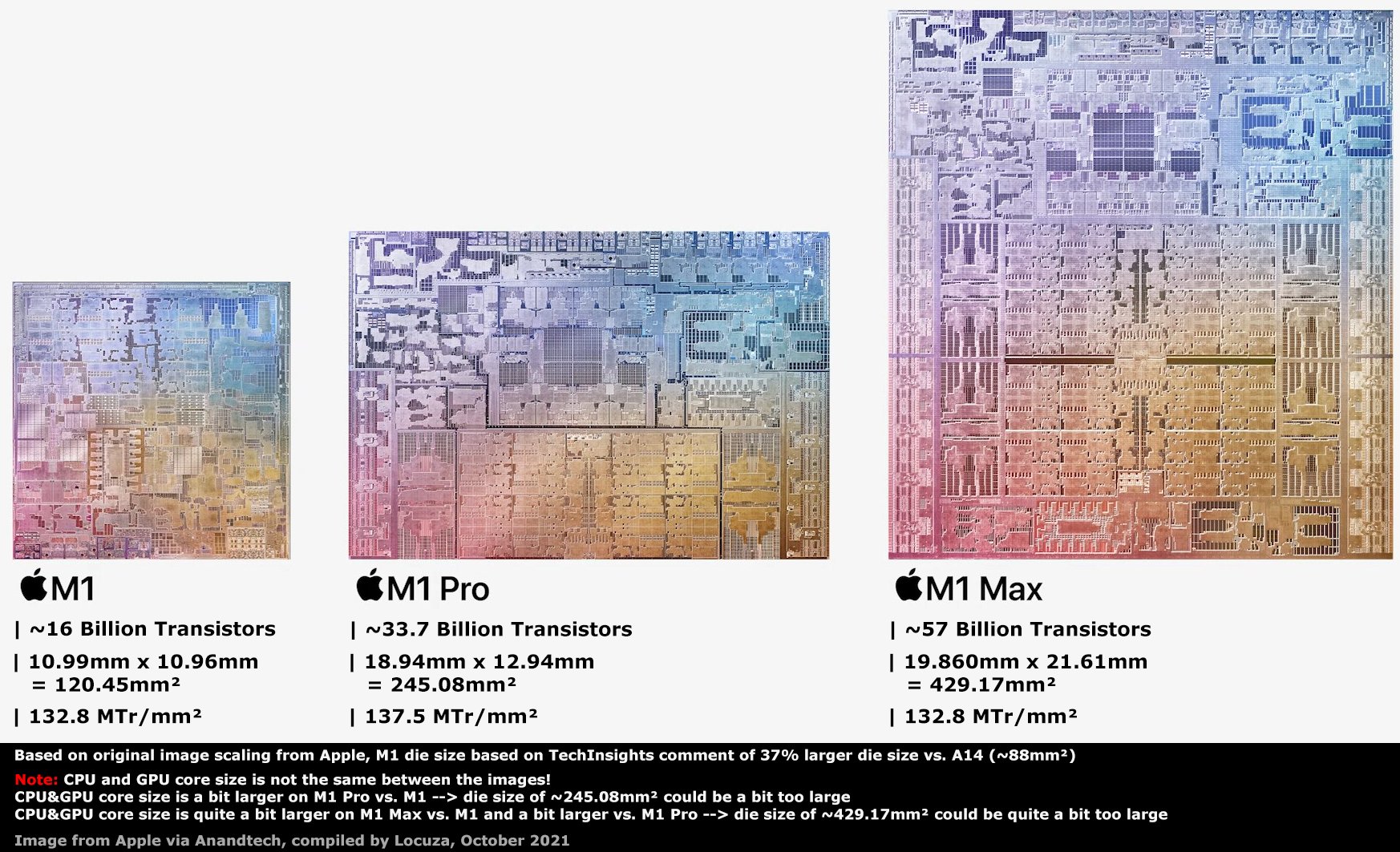

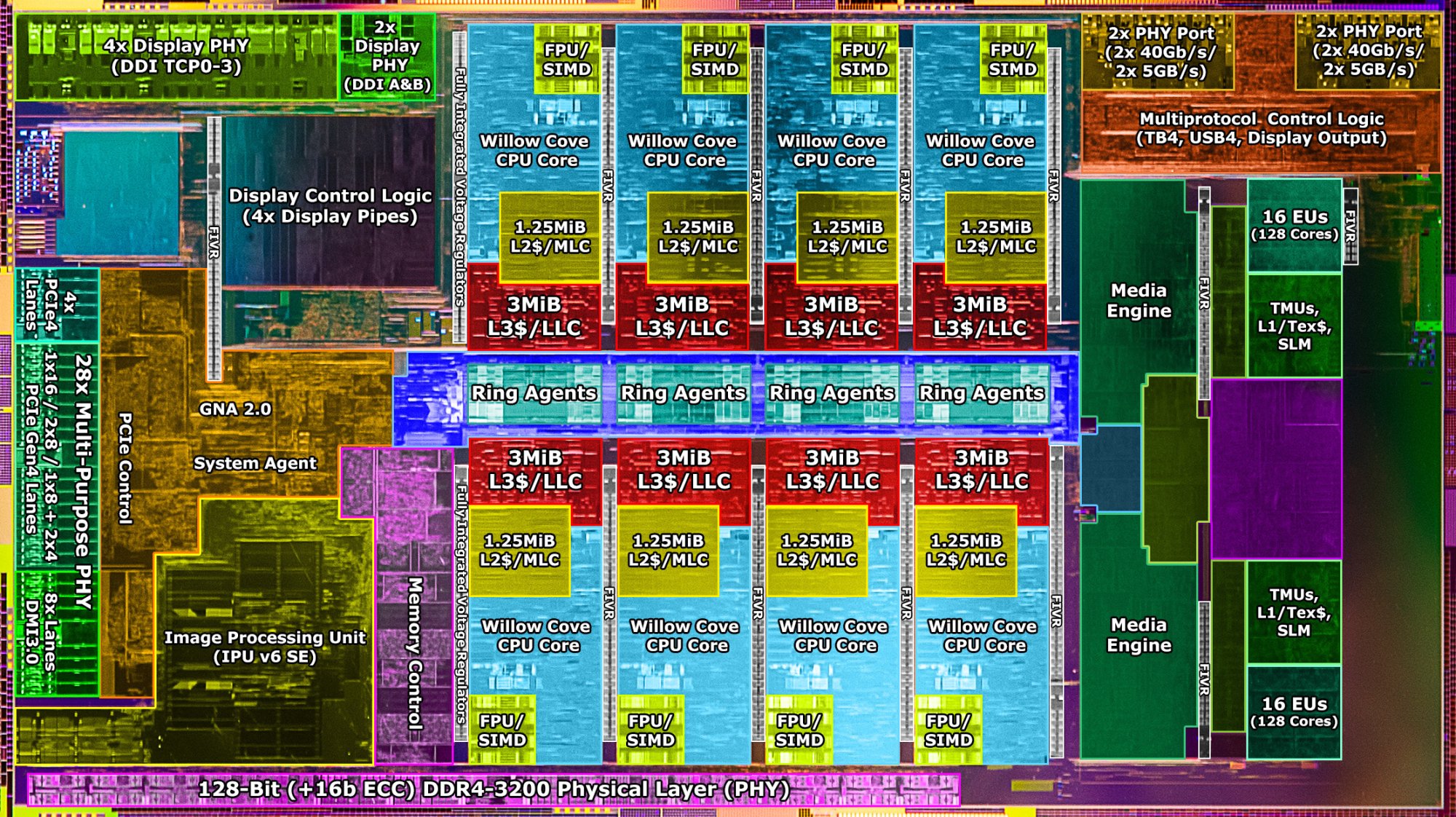

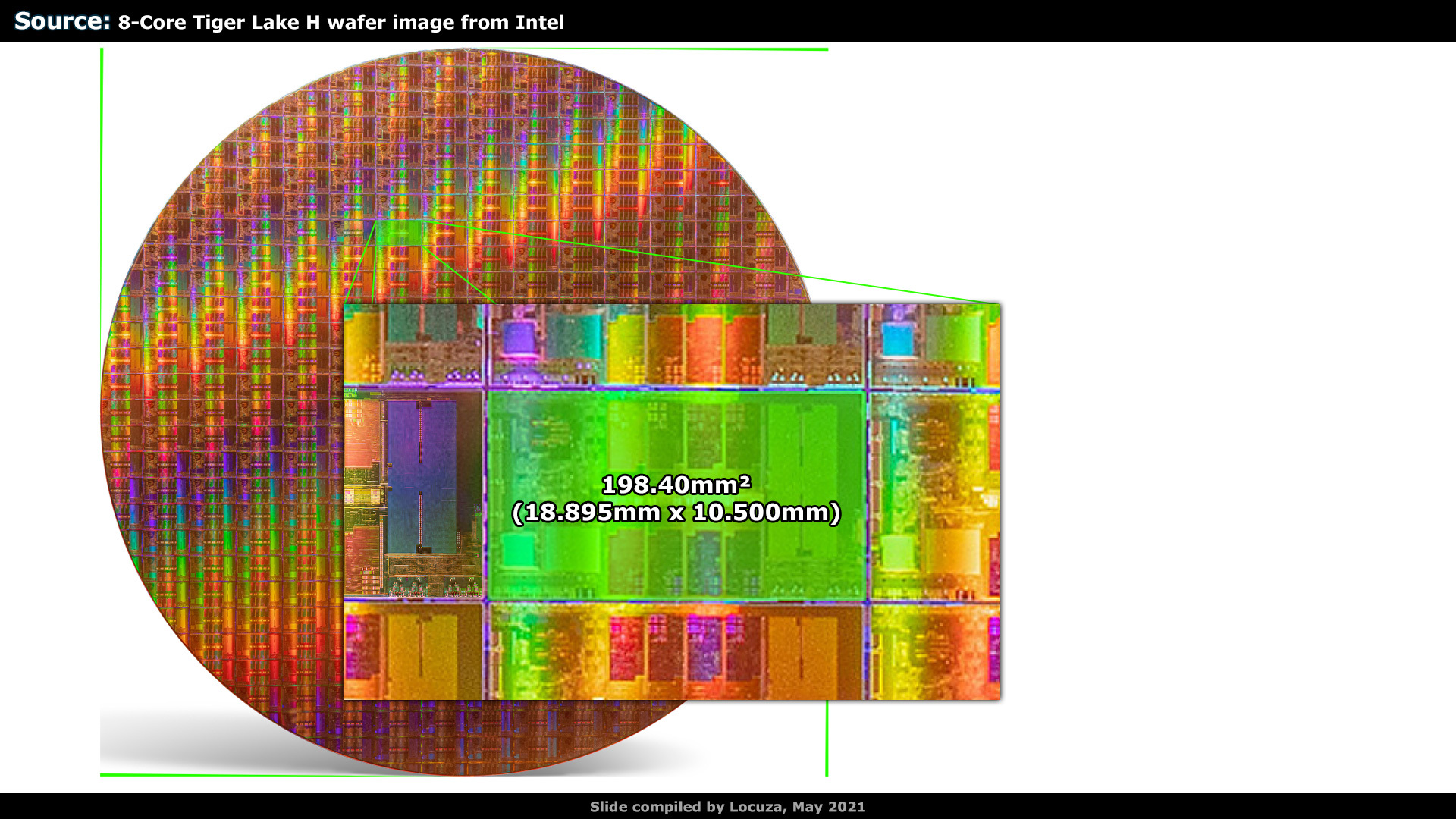

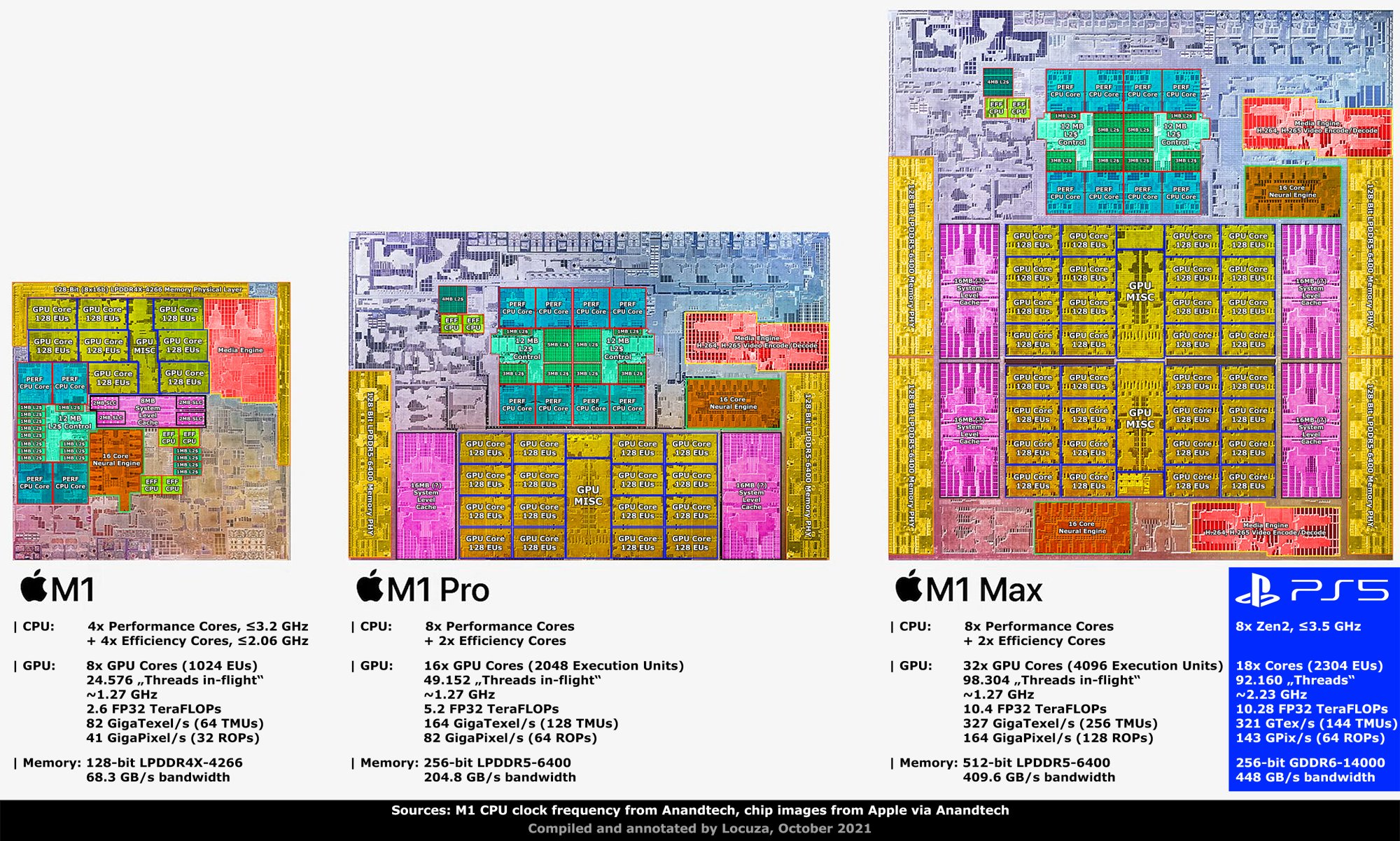

Here are known die details of M1 family vs Tiger Lake H, similar release time frame in 2021.
By counting the pixels here are the respective dimensions:
Tiger Lake H : (4.6057 mm) x (2.0783 mm)
M1 Max : (5.7623 mm) x (2.1583 mm)
Using M1 Max to compare since it carries 4 controllers with corresponding number of 4 ports. Also the I/O portion of Apple Silicon is off to the side, it is unclear to me if we have to add that on top of the TB controllers to be functionally equivalent to what's in the Intel.
With the M3 gen and its process shrink, I naturally expect a slight size down but we don't have enough info to know exactly how much.
The base M SoCs have to support 6K @ 60Hz with 10-bit color because Apple sells a 60Hz 6K display with 10-bit color. And yes, the number of people who connect an MBA or 13"/14" MBP to such a display are probably very rare, but it does happen because I know them.
As to why Apple designed their SOC display controller configurations the way they did, I do believe it is both from a power-savings angle and a product differentiation angle.
As to why Apple designed their SOC display controller configurations the way they did, I do believe it is both from a power-savings angle and a product differentiation angle.
It's an assumption based on the estimated transistor counts in most of the 8th gen lineup of U-series Intel CPUs (most of which have under one billion transistors according to most estimates). Die shots of Coffee Lake era chips can be found on this page, which show the relative size of the system agent (which contains the display controllers, IO bus, among other such things.)
I am using the 8th gen CPUs primarily because this is what I am familiar with from the research I had done previously. If anyone knows where more precise transistor count information can be found, it would be very useful for making better comparisons on this front (Intel doesn't usually share official information for these, so we have to rely on estimations).
Last edited:
It's common knowledge for anyone who has used a PC in the past two decades.
If you've worked in an office of any kind that uses Dell desktops, those systems at minimum supported two displays. The Intel chip itself supported at least three. MacBook Pros of that era also used Intel chips. Here's a $42 Celeron launched in 2013 that supports three displays.
Intel® Celeron® Processor G1610 (2M Cache, 2.60 GHz) Product Specifications
Intel® Celeron® Processor G1610 (2M Cache, 2.60 GHz) quick reference guide including specifications, features, pricing, compatibility, design documentation, ordering codes, spec codes and more.
Transistor count? Ivy Bridge is 1.4B. M3 is 25B.
There is an usefully stark example, Apple got two MBA releases in 2020:
MacBook Air Early 2020, Intel 10th gen Ice Lake Y / Iris Plus G7 iGPU
External display supported: 2
MacBook Air Late 2020, M1 SoC GPU
External display supported: 1
In retrospect, this is quite obviously a conscious (design) decision onwards.
MacBook Air Early 2020, Intel 10th gen Ice Lake Y / Iris Plus G7 iGPU
External display supported: 2
MacBook Air Late 2020, M1 SoC GPU
External display supported: 1
In retrospect, this is quite obviously a conscious (design) decision onwards.
Locuza wrote the following in their die annotation of Alder Lake-P:
"Starting at the top-left again, that's where Intel invested into 4x Thunderbolt 4 ports. The bidirectional bandwidth per port can be 5 GB/s and it’s 20 GB/s in total. That’s a lot of throughput which can be used to exchange data and to drive high-resolution display output. The area required for this featureis quite large, around 10.23 mm²."
locuza.substack.com

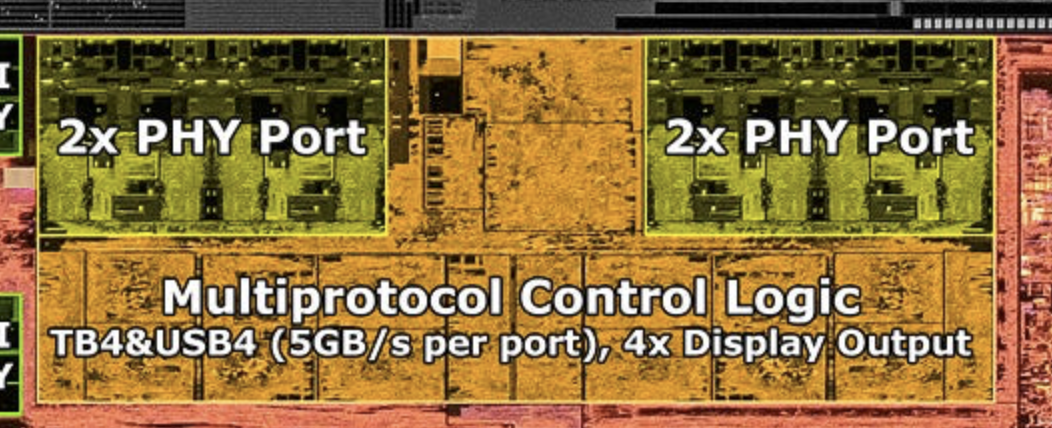

Locuza's 10.23 mm^2 figure refers to the entire area outlined in the first screenshot below (the two 2x PHY blocks plus the Mutiprotocol block).
Since the entire die has an area of 217.18 mm^2, I was able able to do my own measurements by displaying the entire die on my screen. I then determined the area of each block as follows:
block area = (area of block on screen)/(area of die on screen) x 217.18 mm^2
Here's what I got (the 10.3 mm^2 is very close to Locuza's figure):
ALDER LAKE-P
Two 2x PHY blocks: 4.1 mm^2
Multiprotocol block: 6.2 mm^2
Total: 10.3 mm^2
This is harder to do for the M3 because we don't know the die area. Ryan Smith of Anandtech estimated <400 mm^2 for the Max (which, like Alder Lake P, also has 4 x TB4 controllers) (https://www.anandtech.com/show/2111...-family-m3-m3-pro-and-m3-max-make-their-marks)
So let's consider a range of 350-400 mm^2. Given this, I obtained (see screenshot at bottom):
M3 MAX
Four purple "I/O" blocks: 4.0 mm^2 – 4.6 mm^2
Four orange "Thunderbolt blocks": 8.9 mm^2 – 10.1 mm^2
Total: 12.9 mm^2 – 14.7 mm^2
Unfortunately, because they are made on different processes, these areas aren't comparable. I should really be comparing based on transistor counts, but I was unable to find that value for Alder Lake-P. Does anyone know this? Or equivalently, do we know the relative transistor density of Intel 10 nm (Alder Lake) and TSMC N3B (M3)?
Further, somene who understand this better than I will need to let us know if the total region identifie for Alder Lake-P TB4 functionality is equivalent to the total identified for M3 Max, i.e., have these captured the same functional areas?

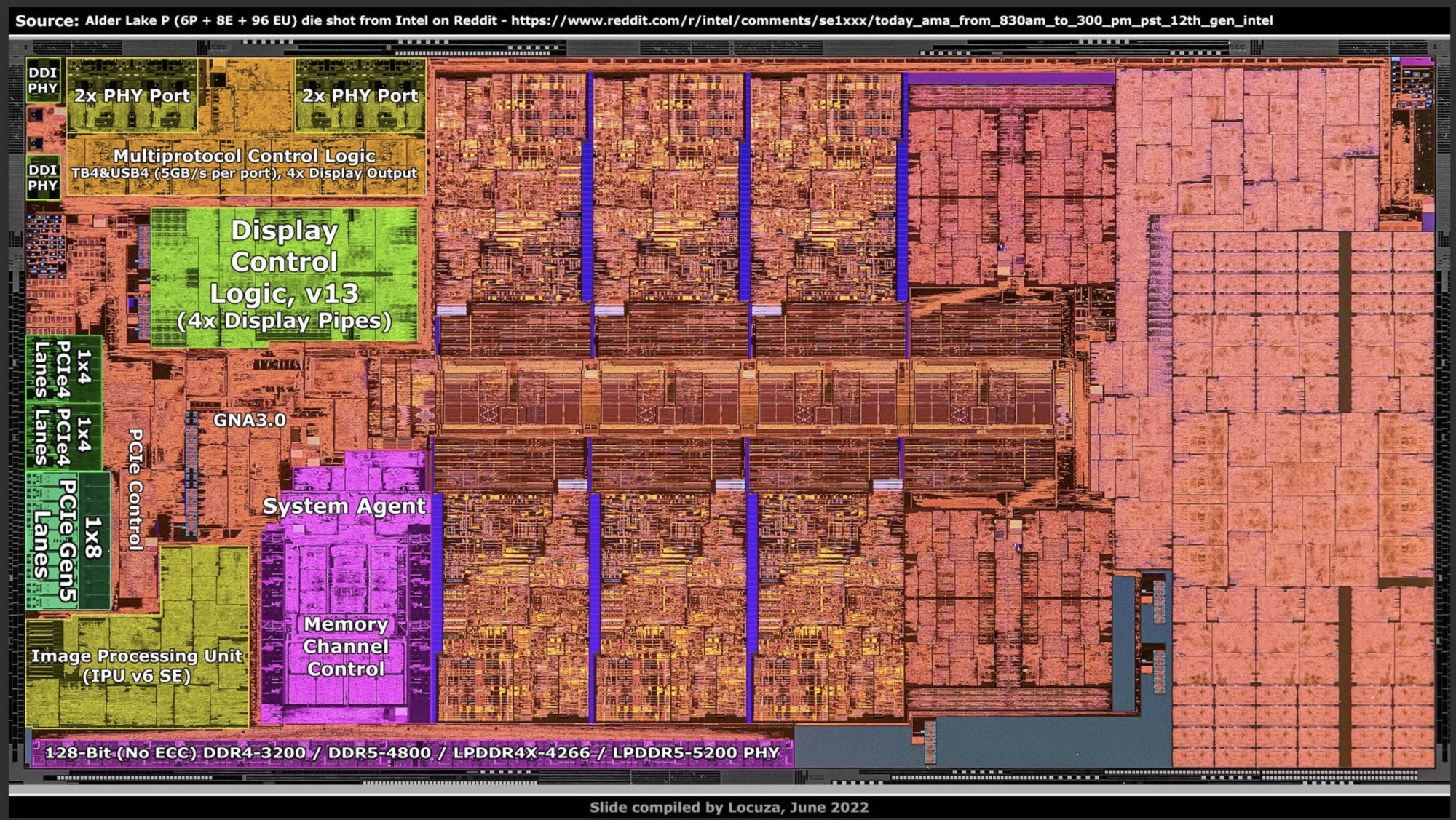

ALDER LAKE-P (FROM: https://locuza.substack.com/p/die-walkthrough-alder-lake-sp-and)

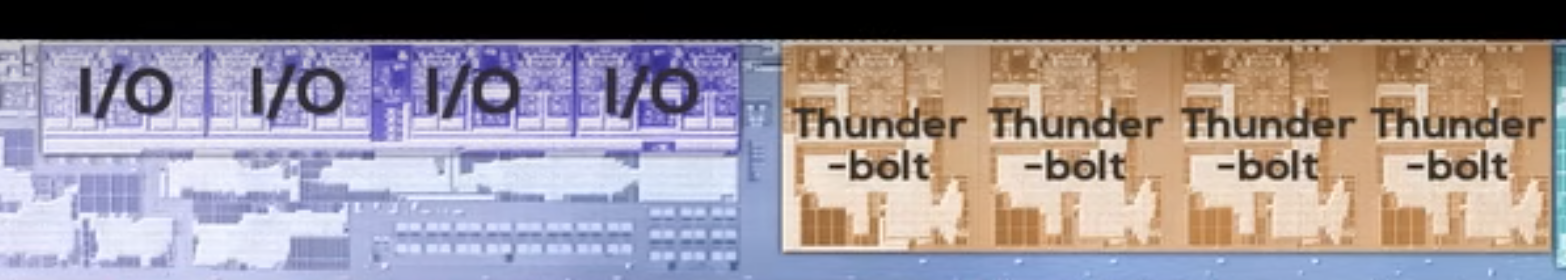

M3 MAX (FROM
)
"Starting at the top-left again, that's where Intel invested into 4x Thunderbolt 4 ports. The bidirectional bandwidth per port can be 5 GB/s and it’s 20 GB/s in total. That’s a lot of throughput which can be used to exchange data and to drive high-resolution display output. The area required for this featureis quite large, around 10.23 mm²."
Die walkthrough: Alder Lake-S/P and a touch of Zen 3
I try to make at least one video project per month and in January I was bouncing back and forth between three different projects.
locuza.substack.com
Locuza's 10.23 mm^2 figure refers to the entire area outlined in the first screenshot below (the two 2x PHY blocks plus the Mutiprotocol block).
Since the entire die has an area of 217.18 mm^2, I was able able to do my own measurements by displaying the entire die on my screen. I then determined the area of each block as follows:
block area = (area of block on screen)/(area of die on screen) x 217.18 mm^2
Here's what I got (the 10.3 mm^2 is very close to Locuza's figure):
ALDER LAKE-P
Two 2x PHY blocks: 4.1 mm^2
Multiprotocol block: 6.2 mm^2
Total: 10.3 mm^2
This is harder to do for the M3 because we don't know the die area. Ryan Smith of Anandtech estimated <400 mm^2 for the Max (which, like Alder Lake P, also has 4 x TB4 controllers) (https://www.anandtech.com/show/2111...-family-m3-m3-pro-and-m3-max-make-their-marks)
So let's consider a range of 350-400 mm^2. Given this, I obtained (see screenshot at bottom):
M3 MAX
Four purple "I/O" blocks: 4.0 mm^2 – 4.6 mm^2
Four orange "Thunderbolt blocks": 8.9 mm^2 – 10.1 mm^2
Total: 12.9 mm^2 – 14.7 mm^2
Unfortunately, because they are made on different processes, these areas aren't comparable. I should really be comparing based on transistor counts, but I was unable to find that value for Alder Lake-P. Does anyone know this? Or equivalently, do we know the relative transistor density of Intel 10 nm (Alder Lake) and TSMC N3B (M3)?
Further, somene who understand this better than I will need to let us know if the total region identifie for Alder Lake-P TB4 functionality is equivalent to the total identified for M3 Max, i.e., have these captured the same functional areas?
ALDER LAKE-P (FROM: https://locuza.substack.com/p/die-walkthrough-alder-lake-sp-and)
M3 MAX (FROM
Last edited:
Yeah, the Intel Air's display support likely wasn't an explicit design decision—that was presumably the best chip for the Air at the time, and support for 3 displays (internal + external) was simply what that chip happend to offer (3 display pipes, each capable of 5k60). So Apple simply needed to decide if 3 displays was acceptable.
That's qualitatively different from the case with the AS Air, where Apple needed to explictly decide how many display pipes to include in the chip they would be designing for it (and the other models that would be using this chip).
