macOS 10.14 Mojave on Unsupported Macs Thread

[nekton1]

Thanks. I'll wait until I hear what happens when you get your card installed!

No it doesn't and you need to follow the linked guide (to the letter).



[Macschrauber]

with help I did the complete Beta 3 install on a 3.1 with a Apple OEM HD5870:

- Took Apart Instal ESD
- patched OSInstall.mpkg
(Distribution File, pulled nonSupported, added Board ID)
- rebuilt OSInstall.mpkg
- copied the content of install esd in a folder plus the patched OSInstall.mpkg
- run OSINstall.mpkg
(system installed by installer app)
(installed system was missing boot.efi)
-copied boot.efi from Mojave bootstick
(or payload usr/i386)
-swapped Platformsupport.plist from High Sierra
-replaced system/library/UserEventPlugins with the content of latest High Sierra Installer

Finder was laggy, fullscreen Video played ok (guess this is missing metal on my gpu)



[Starplayr]

I did two installs on my Mac Pro 3,1. Both times Replacing just the telemetry plug-in. Will transplant this second install to my AMD 7970 Radeon HD Mac and see if it boots as well to GUI.

I noticed MacBookPro5,5 is not on the list / from o.page, I will use this same disk and see if it boots as well. It’s a Core2Duo with NVIDiA. I know it won’t get Metal but will be interesting to see how far it gets.

I did two installs on my Mac Pro 3,1. Both times Replacing just the telemetry plug-in. Will transplant this second install to my AMD 7970 Radeon HD Mac and see if it boots as well to GUI.

I noticed MacBookPro5,5 is not on the list / from o.page, I will use this same disk and see if it boots as well. It’s a Core2Duo with NVIDiA. I know it won’t get Metal but will be interesting to see how far it gets.

no go on my AMD Radeon HD 7970 card. Must be SSE4.2 in the Mac driver.

I tried the legacy video driver patch with my Quad Core Mac 3,1. It’s a NVIDiA GeForce 8800 GT 512MB Mac card and it’s gets video acceleration and translucent menu bar but within 5 seconds it crashes after logging in. Anyone else experience this?



[Macschrauber]

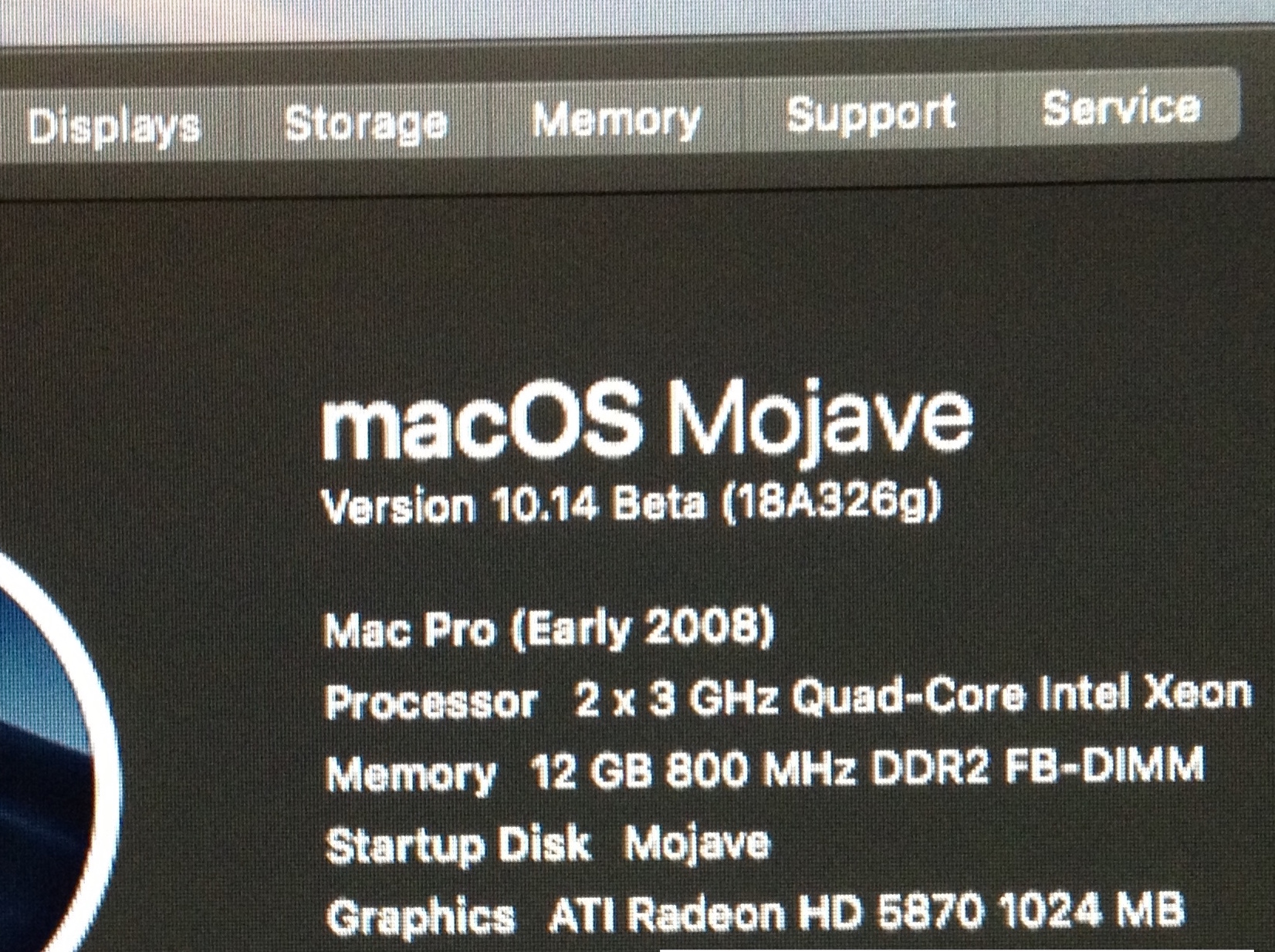

With "my" method the amd5 is not crashing on MacPro3,1 Stock HD5870. But not accellerated in Finder and Safari. Further testing tomorrow, its late here...



[iphone2g&3gfan]

Yeah, I can't wait to see if those work too! Also still got to narrow down exactly which file in UserEventPlugins is causing the crash. I'm sure that just replacing the whole folder will break something downstream

Thanks, I'll take a look for that post.

I had keepsyms=1 and verbose mode, haven't done much more troubleshooting yet. What's debug=0x100 do?

https://superuser.com/questions/255176/is-there-a-list-of-available-boot-args-for-darwin-os-x
Add the hex codes you want up, 0x100=disable graphical panic screen (the one with the languages telling you to restart your computer) which is what you want, so you can see the actual backtrace of the kernel panic. Why keepsyms if you can't even see the backtrace? It'll be how it used to be in the good ol' days of Snow Leopard...
[doublepost=1531097449][/doublepost]

Put my Mojave SSD back on my mini and activated auto login, returned it to my MP3,1. Still the same mouse pointer on the screen. Connected another monitor on the HDMI output and I can move the pointer from one to the other - but no CMD-Option-ESC.

Remote Desktop can't find my MP3,1, will test nmap/ssh.

From single user mode:
sudo /System/Library/CoreServices/RemoteManagement/ARDAgent.app/Contents/Resources/kickstart -activate -configure -access -off -restart -agent -privs -all -allowAccessFor -allUsers
[doublepost=1531097533][/doublepost]

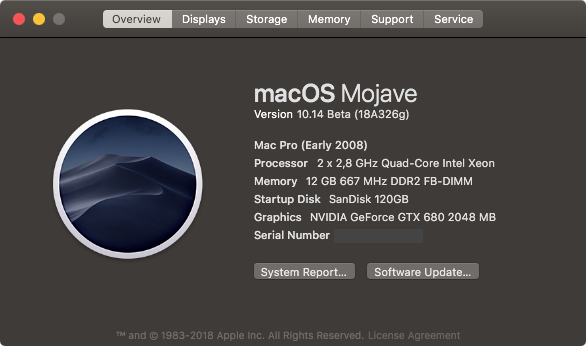

View attachment 769545

Thanks @ASentientBot, @parrotgeek1, @dosdude1

Mojave DP3 on a Mac Pro 2008!!!! SafeMode works.

What I did:

Cloned my Mojave DP3 install onto a HFS+ SSD with CCC (haven't added APFS to the BootROM), copied /System/Library/UserEventPlugins folder from 10.13.5, copied /System/Library/CoreServices/PlatformSupport.plist from El Capitan (easier than add my board-id), added boot-args="-v -no_compat_check" to the nvram.

The first normal boot didn't work but rebooting on SafeMode works.

Rebooted again and this time worked even without SafeMode. eVGA GTX680 for Mac works with native Nvidia drivers with both my monitors (DVI-1 and HDMI). USB and Bluetooth works but no Wi-Fi [Atheros 9380 AirPort Extreme (0x168C, 0x3112)] and no audio.

Edit: SafeMode/SingleUserMode, board-id, USB.

Idk if someone else already told you this, but to enable wifi: copy AirportAtheros40.kext from IO80211Family.kext/Contents/Plugins in HS to the same location in Mojave.



[tsialex]

From single user mode:
sudo /System/Library/CoreServices/RemoteManagement/ARDAgent.app/Contents/Resources/kickstart -activate -configure -access -off -restart -agent -privs -all -allowAccessFor -allUsers

Thx, didn't know that I could do that from the single user mode.

Idk if someone else already told you this, but to enable wifi: copy AirportAtheros40.kext from IO80211Family.kext/Contents/Plugins in HS to the same location in Mojave.

Yes =)

I have a BCM94322MC from a 2009 MacBookWhite to replace the Atheros 9380, I'll do it tomorrow, it's easier on the long run.



[iphone2g&3gfan]

After deep analysis I have found the culprit:

On a Macbook7,1 aka Core 2 duo with penryn architecture Nvidia 320M MCP89 Controller, I suppose this will work on any Penryn c2d Mac too.

There is no need to add and replace all the UserEventPlugins folder instead follow these steps:

- leave the Mojave's S/L/UserEventPlugins untouched;
- replace from a High Sierra's S/L/UserEventPlugins just this plugin: com.apple.telemetry.plugin

Only replacing this plugin you will get no Kernel Panic on C2D.

Someone should dissassemble that plugin and find exactly where the Core2 arch crashes, compared to the Core "i" architectures...
[doublepost=1531098291][/doublepost]

I have a MP3,1 that has upgraded CPUs (among other items) to dual X5482 which support SSE4.1. It's currently running the latest version of Sierra. (I'll upgrade to High Sierra when the last update is released before Mojave.) Anybody else with a processor upgraded MP3,1 tried Mojave, yet?

I think someone has on page 70 or 69 (and got into safe mode at least), I'm quite certain that all MacPro3,1's came with some kind of "Harpertown" xeon (with sse4.1) so I think that person's post applies here. At least if my memory is correct. Please correct me if I'm wrong!
[doublepost=1531098441][/doublepost]

my mac pro 2008 has a gtx 1050 2gb msi can it run the bate or drives

Not until nvidia web drivers are updated for Mojave (which won't happen until public release/gm) or we hack the HS ones to run on Mojave... for now, the only stock supported nvidia gpu's are those of the "Kepler" architecture, so that is most 6xx/7xx series cards, besides a few of the cheap rebrands of older archs.



[MP39]

Snow Leopard 10.6.3 Client Installer booted on my Mac Pro 3,1 2008, Quad Core with the AMD Gigabyte Radeon 7970 3GB Video Ram, 14GB RAM. Installing on an internal SSD. Video on the installer is sharp and no lag or tearing. I also looked up that the Mac Pro 4,1 and Mac Pro 5,1 should be compatible with Snow Leopard. It may depend the amount of RAM, Video RAM or GPU as I believe Snow Leopard hardware wise was made for 16GB Ram or less. The 7970 works great on El Cap. it's okay on High Sierra. I was able to get rid of those pesky red and blue artifacts and get good 2d acceleration with the Radeon. It requires a tiny tweak to one Kext on the MP 3,1 as it's 3d timing is off and anything 3D flickers. That's mainly why I have my Quad Core will the AMD card and the Titan X with the Eight Core. The Titan X is killer on High Sierra. On the 3,1 though, Windows does not like to boot up, the 3,1 has some EFI issues with Windows 8 and 10. It will run it but it takes a lot of finagling. The AMD 7970 Radeon runs Windows flawlessly and its BIOS boot is good.

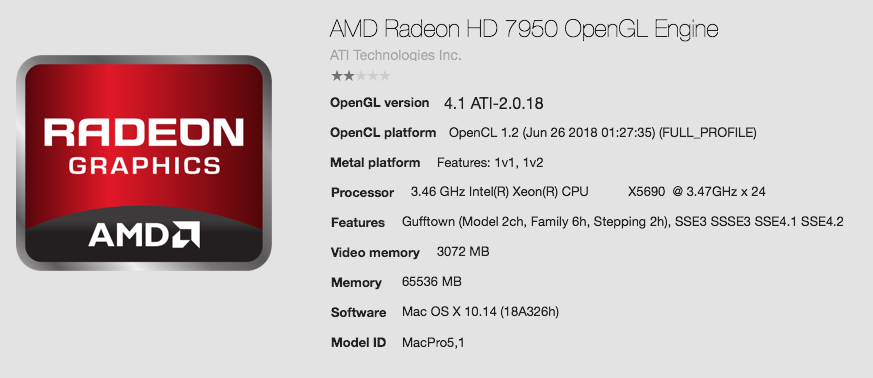

Regarding AMD Radeon HD 7950, was using with 3 x Apple 27" LED Cinema Displays (mDP model) under HS just fine on my cMP 5,1. After successfully installing Mojave -- all versions up to current PB2 -- only the two displays I have connected directly to the Mini DisplayPorts work. The third monitor not working in Mojave I have connected to the DVI port using a DVI to mDP converter. Note that no drivers are needed for this converter. Thoughts as to why? I know we are still in Betas, but just curious for those with more knowledge on the details. If I reboot into HS, all three light up during boot per normal behavior.

My questions are:

1. Is this software-related to Mojave?
2. Is this impacting the DVI port specifically?
3. Is this just limited support at this stage with only supporting 2 monitors max in Beta?



[iphone2g&3gfan]

No, you are right, let's say QE/CI is an old acronym to indicate video graphic acceleration on a Mac OSX, I guess it was strongly used until Mavericks.

Edit:

As we can see nowadays it seems that also OpenGL 4 is becoming old in favor of Metal, Metal 2 and so on.

I think "Quartz Extreme" will always be used to refer to hardware acceleration using the GPU, irrespective of the actual "backend/API" that allows that hardware acceleration to happen. In fact, the Quartz is the rendering engine of macOS, so it's just an API-independent way of referring to having that hardware acceleration...
[doublepost=1531098855][/doublepost]

Has anyone checkout out these two Frameworks:

S/L/Private: CVML.framework
S/L/F: Vision.framework

Both have folders for these:
NVIDIA_GeForce_GT_640M
NVIDIA_GeForce_GTX_675MX
NVIDIA_GeForce_GT_750M
NVIDIA_GeForce_GT_755M
NVIDIA_GeForce_GTX_780M

Both frameworks have JSON files called wisdom.json

Looks like settings for Metal.

{
  "date" : "4\/23\/16, 6:44 AM",
  "device_key" : "20000;1;NVIDIA GeForce GT 640M",
  "device_id" : "",
  "optimal_parameters" : {
    "apple_scenes;66;convolution;17;17;160;160;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 2473,
      "layer_id" : 66,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;47;convolution;17;17;128;128;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 1058,
      "layer_id" : 47,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-224;10;convolution;28;21;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 323,
      "layer_id" : 10,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 14,
      "block_size_y" : 10,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-224"
    },
    "apple_scenes;12;convolution;35;35;96;96;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 5565,
      "layer_id" : 12,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;7;convolution;35;35;192;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 576,
      "layer_id" : 7,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;14;convolution;61;61;96;32;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 327,
      "layer_id" : 14,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;9;convolution;35;35;48;64;1;5;5;1;0;1;2;0;0;" : {
      "cost" : 3984,
      "layer_id" : 9,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-56;5;convolution;28;21;32;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 297,
      "layer_id" : 5,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 14,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-56"
    },
    "apple_scenes;65;convolution;17;17;768;160;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1400,
      "layer_id" : 65,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-56;3;convolution;28;21;32;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 126,
      "layer_id" : 3,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 14,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-56"
    },
    "apple_scenes;8;convolution;35;35;192;48;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 552,
      "layer_id" : 8,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;11;convolution;61;61;96;32;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 327,
      "layer_id" : 11,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;41;convolution;17;17;768;128;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 817,
      "layer_id" : 41,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;12;convolution;61;61;32;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 866,
      "layer_id" : 12,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "fd-224;3;convolution;112;84;32;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 1936,
      "layer_id" : 3,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-224"
    },
    "fd-224;5;convolution;112;84;32;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 3454,
      "layer_id" : 5,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-224"
    },
    "apple_scenes;78;convolution;17;17;192;192;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 3080,
      "layer_id" : 78,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;1;convolution;149;149;32;32;1;3;3;1;1;1;2;0;0;" : {
      "cost" : 6780,
      "layer_id" : 1,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;4;convolution;73;73;64;80;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 777,
      "layer_id" : 4,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;88;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1264,
      "layer_id" : 88,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-112;10;convolution;14;10;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 100,
      "layer_id" : 10,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "apple_scenes;103;convolution;8;8;384;384;1;1;3;1;0;1;2;0;0;" : {
      "cost" : 1624,
      "layer_id" : 103,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;74;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1264,
      "layer_id" : 74,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;101;convolution;8;8;448;384;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 4389,
      "layer_id" : 101,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;89;convolution;17;17;192;320;1;3;3;2;1;1;2;0;0;" : {
      "cost" : 2116,
      "layer_id" : 89,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;60;convolution;17;17;160;192;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 2727,
      "layer_id" : 60,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;5;convolution;61;61;32;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 866,
      "layer_id" : 5,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;32;convolution;35;35;288;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 697,
      "layer_id" : 32,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-112;11;convolution;12;8;32;2;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 16,
      "layer_id" : 11,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 2,
      "block_size_y" : 2,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "apple_scenes;110;convolution;8;8;384;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 635,
      "layer_id" : 110,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;93;convolution;17;17;192;192;1;3;3;2;1;1;2;0;0;" : {
      "cost" : 1373,
      "layer_id" : 93,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 1,
      "network_name" : "apple_scenes"
    },
    "fd-448;8;convolution;112;84;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 7163,
      "layer_id" : 8,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-448"
    },
    "apple_scenes;10;convolution;35;35;192;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 554,
      "layer_id" : 10,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-448;13;convolution;56;42;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 1780,
      "layer_id" : 13,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-448"
    },
    "fd-448;14;convolution;56;42;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 929,
      "layer_id" : 14,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-448"
    },
    "fd-28;0;convolution;28;28;3;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 29,
      "layer_id" : 0,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-28"
    },
    "apple_scenes;96;convolution;8;8;1280;320;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 2093,
      "layer_id" : 96,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;0;convolution;299;299;3;32;1;3;3;2;1;1;2;0;0;" : {
      "cost" : 1018,
      "layer_id" : 0,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 1,
      "network_name" : "apple_scenes"
    },
    "fd-448;11;convolution;54;40;32;2;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 29,
      "layer_id" : 11,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-448"
    },
    "apple_scenes;20;convolution;35;35;64;96;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 3696,
      "layer_id" : 20,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;107;convolution;8;8;2048;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 4365,
      "layer_id" : 107,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "facerec;37;convolution;10;10;64;128;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 135,
      "layer_id" : 37,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;45;convolution;17;17;128;128;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 1087,
      "layer_id" : 45,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;117;convolution;8;8;384;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 635,
      "layer_id" : 117,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;115;convolution;8;8;448;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 892,
      "layer_id" : 115,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 1,
      "network_name" : "apple_scenes"
    },
    "fd-56;14;convolution;7;5;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 100,
      "layer_id" : 14,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 6,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 1,
      "network_name" : "fd-56"
    },
    "apple_scenes;79;convolution;17;17;192;192;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2646,
      "layer_id" : 79,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-448;0;convolution;448;336;3;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 3248,
      "layer_id" : 0,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-448"
    },
    "apple_scenes;40;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1370,
      "layer_id" : 40,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;14;convolution;35;35;192;32;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 305,
      "layer_id" : 14,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;16;convolution;35;35;256;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 727,
      "layer_id" : 16,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-56;7;convolution;14;10;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 222,
      "layer_id" : 7,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-56"
    },
    "apple_scenes;80;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1264,
      "layer_id" : 80,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;37;convolution;35;35;96;96;1;3;3;2;1;1;2;0;0;" : {
      "cost" : 1315,
      "layer_id" : 37,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 10,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;97;convolution;8;8;1280;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 2154,
      "layer_id" : 97,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;112;convolution;8;8;384;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 635,
      "layer_id" : 112,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "facerec;0;convolution;128;128;1;16;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 275,
      "layer_id" : 0,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;86;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1264,
      "layer_id" : 86,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;72;convolution;17;17;160;192;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 2727,
      "layer_id" : 72,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;48;convolution;17;17;128;192;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 2079,
      "layer_id" : 48,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;18;convolution;30;30;96;48;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 164,
      "layer_id" : 18,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;91;convolution;17;17;192;192;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 3066,
      "layer_id" : 91,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;70;convolution;17;17;160;160;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 2473,
      "layer_id" : 70,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-112;8;convolution;28;21;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 653,
      "layer_id" : 8,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "facerec;20;convolution;30;30;48;48;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 371,
      "layer_id" : 20,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "facerec;33;convolution;28;28;64;64;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 641,
      "layer_id" : 33,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;119;convolution;8;8;384;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 635,
      "layer_id" : 119,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;27;convolution;35;35;48;64;1;5;5;1;0;1;2;0;0;" : {
      "cost" : 3984,
      "layer_id" : 27,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;27;convolution;30;30;48;48;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 371,
      "layer_id" : 27,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "fd-448;10;convolution;56;42;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 929,
      "layer_id" : 10,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-448"
    },
    "fd-56;8;convolution;14;10;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 219,
      "layer_id" : 8,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-56"
    },
    "apple_scenes;11;convolution;35;35;64;96;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 3696,
      "layer_id" : 11,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;30;convolution;35;35;96;96;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 4461,
      "layer_id" : 30,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;52;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1321,
      "layer_id" : 52,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;77;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1264,
      "layer_id" : 77,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;108;convolution;8;8;384;320;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 630,
      "layer_id" : 108,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 1,
      "network_name" : "apple_scenes"
    },
    "facerec;35;convolution;24;24;64;64;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 493,
      "layer_id" : 35,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "fd-112;15;convolution;12;8;32;3;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 17,
      "layer_id" : 15,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 2,
      "block_size_y" : 2,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "apple_scenes;98;convolution;8;8;384;384;1;3;1;1;0;1;2;0;0;" : {
      "cost" : 1751,
      "layer_id" : 98,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;82;convolution;17;17;192;192;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 3066,
      "layer_id" : 82,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;25;convolution;35;35;288;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 793,
      "layer_id" : 25,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;92;convolution;17;17;192;192;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2641,
      "layer_id" : 92,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;71;convolution;17;17;160;160;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2227,
      "layer_id" : 71,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-56;10;convolution;7;5;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 100,
      "layer_id" : 10,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 6,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 1,
      "network_name" : "fd-56"
    },
    "fd-56;0;convolution;56;42;3;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 72,
      "layer_id" : 0,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-56"
    },
    "apple_scenes;118;convolution;8;8;384;384;1;3;1;1;0;6;2;0;0;" : {
      "cost" : 295,
      "layer_id" : 118,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "fd-112;0;convolution;112;84;3;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 325,
      "layer_id" : 0,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-112"
    },
    "apple_scenes;56;convolution;17;17;768;160;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1400,
      "layer_id" : 56,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;29;convolution;35;35;64;96;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 3696,
      "layer_id" : 29,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "facerec;19;convolution;30;30;96;48;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 164,
      "layer_id" : 19,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "facerec;7;convolution;61;61;24;32;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 116,
      "layer_id" : 7,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "facerec;4;convolution;61;61;24;32;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 116,
      "layer_id" : 4,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;109;convolution;8;8;384;384;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 635,
      "layer_id" : 109,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "fd-224;15;convolution;26;19;32;3;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 17,
      "layer_id" : 15,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-224"
    },
    "apple_scenes;83;convolution;17;17;192;192;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2641,
      "layer_id" : 83,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;84;convolution;17;17;192;192;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 3066,
      "layer_id" : 84,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;19;convolution;35;35;256;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 672,
      "layer_id" : 19,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-28;8;convolution;7;7;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 101,
      "layer_id" : 8,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-28"
    },
    "apple_scenes;18;convolution;35;35;48;64;1;5;5;1;0;1;2;0;0;" : {
      "cost" : 3984,
      "layer_id" : 18,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;57;convolution;17;17;160;160;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2335,
      "layer_id" : 57,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;58;convolution;17;17;160;160;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 2549,
      "layer_id" : 58,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;64;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1321,
      "layer_id" : 64,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;17;convolution;35;35;256;48;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 689,
      "layer_id" : 17,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;120;convolution;8;8;384;384;1;1;3;1;0;6;2;0;0;" : {
      "cost" : 268,
      "layer_id" : 120,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;50;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1321,
      "layer_id" : 50,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;114;convolution;8;8;384;448;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 843,
      "layer_id" : 114,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;122;convolution;8;8;2048;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 2288,
      "layer_id" : 122,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 1,
      "network_name" : "apple_scenes"
    },
    "fd-224;13;convolution;28;21;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 646,
      "layer_id" : 13,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-224"
    },
    "apple_scenes;21;convolution;35;35;96;96;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 4461,
      "layer_id" : 21,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-56;15;convolution;5;3;32;3;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 16,
      "layer_id" : 15,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 2,
      "block_size_y" : 2,
      "kernel_elements_per_thread" : 1,
      "network_name" : "fd-56"
    },
    "fd-224;14;convolution;28;21;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 323,
      "layer_id" : 14,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 14,
      "block_size_y" : 10,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-224"
    },
    "fd-448;5;convolution;224;168;32;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 10382,
      "layer_id" : 5,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-448"
    },
    "apple_scenes;99;convolution;8;8;384;384;1;1;3;1;0;1;2;0;0;" : {
      "cost" : 1624,
      "layer_id" : 99,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;90;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1264,
      "layer_id" : 90,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-448;7;convolution;112;84;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 7188,
      "layer_id" : 7,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-448"
    },
    "fd-56;11;convolution;5;3;32;2;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 16,
      "layer_id" : 11,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 2,
      "block_size_y" : 2,
      "kernel_elements_per_thread" : 1,
      "network_name" : "fd-56"
    },
    "apple_scenes;55;convolution;17;17;160;192;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2442,
      "layer_id" : 55,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;68;convolution;17;17;768;160;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1400,
      "layer_id" : 68,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;54;convolution;17;17;160;160;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 2549,
      "layer_id" : 54,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;26;convolution;30;30;144;48;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 220,
      "layer_id" : 26,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 10,
      "kernel_elements_per_thread" : 6,
      "network_name" : "facerec"
    },
    "fd-224;0;convolution;224;168;3;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 1001,
      "layer_id" : 0,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-224"
    },
    "facerec;25;convolution;30;30;144;48;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 224,
      "layer_id" : 25,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 10,
      "kernel_elements_per_thread" : 6,
      "network_name" : "facerec"
    },
    "facerec;29;convolution;30;30;144;48;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 219,
      "layer_id" : 29,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 10,
      "kernel_elements_per_thread" : 6,
      "network_name" : "facerec"
    },
    "fd-28;5;convolution;14;14;32;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 88,
      "layer_id" : 5,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-28"
    },
    "apple_scenes;105;convolution;8;8;1280;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1184,
      "layer_id" : 105,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "facerec;32;convolution;30;30;144;64;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 1366,
      "layer_id" : 32,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "fd-112;3;convolution;56;42;32;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 488,
      "layer_id" : 3,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "fd-28;3;convolution;14;14;32;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 58,
      "layer_id" : 3,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-28"
    },
    "apple_scenes;44;convolution;17;17;768;128;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 817,
      "layer_id" : 44,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-28;7;convolution;7;7;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 101,
      "layer_id" : 7,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-28"
    },
    "apple_scenes;34;convolution;35;35;288;384;1;3;3;2;1;1;2;0;0;" : {
      "cost" : 11344,
      "layer_id" : 34,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 10,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "fd-112;5;convolution;56;42;32;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 953,
      "layer_id" : 5,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "apple_scenes;59;convolution;17;17;160;160;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2227,
      "layer_id" : 59,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;43;convolution;17;17;128;192;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 1809,
      "layer_id" : 43,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;36;convolution;35;35;64;96;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 3696,
      "layer_id" : 36,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "facerec;3;convolution;61;61;24;32;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 116,
      "layer_id" : 3,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;53;convolution;17;17;768;160;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1402,
      "layer_id" : 53,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-448;3;convolution;224;168;32;32;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 5274,
      "layer_id" : 3,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-448"
    },
    "apple_scenes;5;convolution;73;73;80;192;1;3;3;1;1;1;2;0;0;" : {
      "cost" : 26936,
      "layer_id" : 5,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 4,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;111;convolution;8;8;384;384;1;3;1;1;0;6;2;0;0;" : {
      "cost" : 316,
      "layer_id" : 111,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "facerec;1;convolution;126;126;16;24;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 929,
      "layer_id" : 1,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;46;convolution;17;17;128;128;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 1313,
      "layer_id" : 46,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;116;convolution;8;8;384;384;1;3;3;1;0;6;2;0;0;" : {
      "cost" : 751,
      "layer_id" : 116,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "fd-56;13;convolution;7;5;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 203,
      "layer_id" : 13,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 4,
      "block_size_y" : 2,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-56"
    },
    "fd-224;11;convolution;26;19;32;2;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 17,
      "layer_id" : 11,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 1,
      "network_name" : "fd-224"
    },
    "fd-112;13;convolution;14;10;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 223,
      "layer_id" : 13,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 4,
      "network_name" : "fd-112"
    },
    "apple_scenes;81;convolution;17;17;192;192;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2646,
      "layer_id" : 81,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;113;convolution;8;8;384;384;1;1;3;1;0;6;2;0;0;" : {
      "cost" : 295,
      "layer_id" : 113,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "fd-112;14;convolution;14;10;64;32;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 100,
      "layer_id" : 14,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "apple_scenes;28;convolution;35;35;288;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 697,
      "layer_id" : 28,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;102;convolution;8;8;384;384;1;3;1;1;0;1;2;0;0;" : {
      "cost" : 1751,
      "layer_id" : 102,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;100;convolution;8;8;1280;448;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 2425,
      "layer_id" : 100,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 4,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;35;convolution;35;35;288;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 697,
      "layer_id" : 35,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;10;convolution;61;61;96;32;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 327,
      "layer_id" : 10,
      "use_4chan" : 0,
      "use_manypar" : 0,
      "block_size_x" : 16,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;69;convolution;17;17;160;160;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2227,
      "layer_id" : 69,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "facerec;22;convolution;30;30;96;48;1;1;1;1;0;1;0;0;0;" : {
      "cost" : 164,
      "layer_id" : 22,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "apple_scenes;76;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1264,
      "layer_id" : 76,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;23;convolution;35;35;256;64;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 672,
      "layer_id" : 23,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;62;convolution;17;17;768;192;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 1321,
      "layer_id" : 62,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;26;convolution;35;35;288;48;1;1;1;1;1;1;2;0;0;" : {
      "cost" : 693,
      "layer_id" : 26,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 18,
      "block_size_y" : 12,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "apple_scenes;42;convolution;17;17;128;128;1;7;1;1;0;1;2;0;0;" : {
      "cost" : 1320,
      "layer_id" : 42,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-224;7;convolution;56;42;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 1762,
      "layer_id" : 7,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-224"
    },
    "facerec;34;convolution;26;26;64;64;1;3;3;1;1;1;0;0;0;" : {
      "cost" : 491,
      "layer_id" : 34,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "facerec"
    },
    "fd-112;7;convolution;28;21;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 653,
      "layer_id" : 7,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-112"
    },
    "apple_scenes;67;convolution;17;17;160;192;1;1;7;1;0;1;2;0;0;" : {
      "cost" : 2393,
      "layer_id" : 67,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 10,
      "block_size_y" : 6,
      "kernel_elements_per_thread" : 6,
      "network_name" : "apple_scenes"
    },
    "fd-224;8;convolution;56;42;64;64;1;3;3;1;0;1;0;0;0;" : {
      "cost" : 1762,
      "layer_id" : 8,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-224"
    },
    "fd-448;15;convolution;54;40;32;3;1;1;1;1;1;1;0;0;0;" : {
      "cost" : 28,
      "layer_id" : 15,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "fd-448"
    },
    "apple_scenes;2;convolution;147;147;32;64;1;3;3;1;0;1;2;0;0;" : {
      "cost" : 13566,
      "layer_id" : 2,
      "use_4chan" : 1,
      "use_manypar" : 0,
      "block_size_x" : 8,
      "block_size_y" : 8,
      "kernel_elements_per_thread" : 2,
      "network_name" : "apple_scenes"
    }
  }
}

Interestingly enough Apple has never used the GT640m in a shipped product, I don't believe... but of course, since they have used all the rest, perhaps I missed one specific machine...



[tsialex]

Regarding AMD Radeon HD 7950, was using with 3 x Apple 27" LED Cinema Displays (mDP model) under HS just fine on my cMP 5,1. After successfully installing Mojave -- all versions up to current PB2 -- only the two displays I have connected directly to the Mini DisplayPorts work. The third monitor not working in Mojave I have connected to the DVI port using a DVI to mDP converter. Note that no drivers are needed for this converter. Thoughts as to why? I know we are still in Betas, but just curious for those with more knowledge on the details. If I reboot into HS, all three light up during boot per normal behavior.

My questions are:

1. Is this software-related to Mojave?
2. Is this impacting the DVI port specifically?
3. Is this just limited support at this stage with only supporting 2 monitors max in Beta?

View attachment 769660

1) Yes, every year this happens when beta testing and sometimes even on GM.
2) No, seems a problem with the frame buffer/personalite, even changes what it's the first output.
3) Yes, the beta driver problem happens every year, since at list ElCapitan betas.



[theone29]

Amazing work guys. Any news/update on Dosdude’s patch release? I’m patiently waiting for my 2011 iMac, 2010-2011 mini and cmp3,1.



[MP39]

1) Yes, every year this happens when beta testing and sometimes even on GM.
2) No, seems a problem with the frame buffer/personalite, even changes what it's the first output.
3) Yes, the beta driver problem happens every year, since at list ElCapitan betas.

Thanks. I'll just wait for the updates. I'm sure one of these releases it will suddenly turn on at boot!



[macdos]

Regarding AMD Radeon HD 7950, was using with 3 x Apple 27" LED Cinema Displays (mDP model) under HS just fine on my cMP 5,1. After successfully installing Mojave -- all versions up to current PB2 -- only the two displays I have connected directly to the Mini DisplayPorts work. The third monitor not working in Mojave I have connected to the DVI port using a DVI to mDP converter. Note that no drivers are needed for this converter. Thoughts as to why? I know we are still in Betas, but just curious for those with more knowledge on the details. If I reboot into HS, all three light up during boot per normal behavior.

My questions are:

1. Is this software-related to Mojave?
2. Is this impacting the DVI port specifically?
3. Is this just limited support at this stage with only supporting 2 monitors max in Beta?

View attachment 769660

Uh, you are using Sierra drivers to enable HD7950? Since 3,1 does not support SSE4.2.

Edit.: Nevermind, 5,1...



[Macbookprodude]

Hopefully, by the time the official Mojave comes out, someone will fix all this so unsupported to can and acceleration will work on 2011 MB Pros. With depression and stress already on me due to my job, I will just wait until that time.



[dosdude1]

Just finished Beta 3 of macOS Mojave Patcher! Here's what's new:

- Added support for Core 2 Duo-based and MacPro3,1 machines (legacy platforms)
- Re-added Software Update Patch
- Fixed platform check patch issue on APFS volumes
- Added a WiFi patch for iMacs utilizing certain Atheros WiFi cards
- Fixed an issue where the tool may not download the latest copy of the Mojave Installer app.

Notes:
- The Legacy Video Card Patch will NOT be applied by default on any machine, as it is very glitchy at this time. If you want to experiment with graphics acceleration, you can install it, but you will have issues with AMD (no acceleration) and nVidia (random kernel panics). It works almost perfectly, though, on machines with Intel HD Graphics (3000 and Arrandale).
- The APFS patch has not been included with the tool, and as such, APFS volumes will not be bootable on machines that don't have APFS-compatible firmware. I am currently finalizing a BootROM patching tool that will add native APFS booting support to these systems, but until then, continue to use HFS volumes.

Download available here.



[theone29]

THANK YOU MR. dosdude1.



[Macbookprodude]

Just finished Beta 3 of macOS Mojave Patcher! Here's what's new:

- Added support for Core 2 Duo-based and MacPro3,1 machines (legacy platforms)
- Re-added Software Update Patch
- Fixed platform check patch issue on APFS volumes
- Added a WiFi patch for iMacs utilizing certain Atheros WiFi cards

Notes:
- The Legacy Video Card Patch will NOT be applied by default on any machine, as it is very glitchy at this time. If you want to experiment with graphics acceleration, you can install it, but you will have issues with AMD (no acceleration) and nVidia (random kernel panics). It works almost perfectly, though, on machines with Intel HD Graphics (3000 and Arrandale).
- The APFS patch has not been included with the tool, and as such, APFS volumes will not be bootable on machines that don't have APFS-compatible firmware. I am currently finalizing a BootROM patching tool that will add native APFS booting support to these systems, but until then, continue to use HFS volumes.

Download available here.

Do you think you will have the AMD situation for 2011 MacBook Pros resolved when Mojave comes out ? On my system I have no issues with the AMD graphics.



[dosdude1]

Do you think you will have the AMD situation for 2011 MacBook Pros resolved when Mojave comes out ? On my system I have no issues with the AMD graphics.

I really don't know at this point. So far, I haven't been able to get pre-Metal AMD acceleration working at all.



[videotape74]

I really don't know at this point. So far, I haven't been able to get pre-Metal AMD acceleration working at all.

@dosdude1 it seems in the new patcher it downloaded High Sierra and not the Mojave beta. Am I doing something incorrectly?
[doublepost=1531106667][/doublepost]

Just finished Beta 3 of macOS Mojave Patcher! Here's what's new:

- Added support for Core 2 Duo-based and MacPro3,1 machines (legacy platforms)
- Re-added Software Update Patch
- Fixed platform check patch issue on APFS volumes
- Added a WiFi patch for iMacs utilizing certain Atheros WiFi cards
- Fixed an issue where the tool may not download the latest copy of the Mojave Installer app.

Notes:
- The Legacy Video Card Patch will NOT be applied by default on any machine, as it is very glitchy at this time. If you want to experiment with graphics acceleration, you can install it, but you will have issues with AMD (no acceleration) and nVidia (random kernel panics). It works almost perfectly, though, on machines with Intel HD Graphics (3000 and Arrandale).
- The APFS patch has not been included with the tool, and as such, APFS volumes will not be bootable on machines that don't have APFS-compatible firmware. I am currently finalizing a BootROM patching tool that will add native APFS booting support to these systems, but until then, continue to use HFS volumes.

Download available here.

@dosdude1 it seems in the new patcher it downloaded High Sierra and not the Mojave beta. Am I doing something incorrectly?



[macsba]

Regarding AMD Radeon HD 7950, was using with 3 x Apple 27" LED Cinema Displays (mDP model) under HS just fine on my cMP 5,1. After successfully installing Mojave -- all versions up to current PB2 -- only the two displays I have connected directly to the Mini DisplayPorts work. The third monitor not working in Mojave I have connected to the DVI port using a DVI to mDP converter. Note that no drivers are needed for this converter. Thoughts as to why? I know we are still in Betas, but just curious for those with more knowledge on the details. If I reboot into HS, all three light up during boot per normal behavior.

My questions are:

1. Is this software-related to Mojave?
2. Is this impacting the DVI port specifically?
3. Is this just limited support at this stage with only supporting 2 monitors max in Beta?

View attachment 769660

Kinda strange. My Mac Pro 5,1 works fine using the Dual DVI connector running Mohave.



[dosdude1]

@dosdude1 it seems in the new patcher it downloaded High Sierra and not the Mojave beta. Am I doing something incorrectly?
[doublepost=1531106667][/doublepost]

@dosdude1 it seems in the new patcher it downloaded High Sierra and not the Mojave beta. Am I doing something incorrectly?

No, I used the wrong catalogURL by mistake. Updated the app already fixing this.



[Macbookprodude]

I really don't know at this point. So far, I haven't been able to get pre-Metal AMD acceleration working at all.

I trust in you that this will be resolved.. maybe need to wait for the actual final version to come out. I usually don't run betas anyway.. but I am sure once the final comes out you might have the solution.



[videotape74]

No, I used the wrong catalogURL by mistake. Updated the app already fixing this.

oh, ok...thank you.



[ASentientBot]

Very quick work with that patcher @dosdude1! Nice!

Would you mind explaining how the nVidia Tesla patch works as of now? I know it's not yet reliable but I'm working on it myself too and I wondered if you had any insights.

So far, I've seen that replacing:
NVDANV50HalTesla.kext
NVDAResmanTesla.kext (dependency of NVDANV50HalTesla)
IONDRVSupport.kext (contains a symbol needed by NVDAResmanTesla, not present in Mojave)
IOGraphicsFamily.kext (symbol needed by IONDRVSupport)
...allows for partial graphics improvements. I can change the brightness, put my laptop to sleep, and it shows the correct MacBook7,1 image in "about this Mac" rather than a generic 21-inch display. However, no acceleration.

Additionally replacing:
GeForceTesla.kext
GeForceTeslaGLDriver.bundle
GeForceTeslaVADriver.bundle
...gives me full acceleration, but the system invariably panics during or shortly after login.

I see in the contents of the post-install patcher, a file called NDRVShim.kext along with the kexts that I'm replacing. What is its purpose?

Edit: Upon further inspection, it seems that it exposes the _VSLGestalt symbol that NVDAResmanTesla.kext complains about under Mojave. This presumably bypasses the need to replace IONDRVSupport and IOGraphicsFamily kexts, right? Very cool

Thank you for all your work!!



[dosdude1]

Very quick work with that patcher @dosdude1! Nice!

Would you mind explaining how the nVidia Tesla patch works as of now? I know it's not yet reliable but I'm working on it myself too and I wondered if you had any insights.

So far, I've seen that replacing:
NVDANV50HalTesla.kext
NVDAResmanTesla.kext (dependency of NVDANV50HalTesla)
IONDRVSupport.kext (contains a symbol needed by NVDAResmanTesla, not present in Mojave)
IOGraphicsFamily.kext (symbol needed by IONDRVSupport)
...allows for partial graphics improvements. I can change the brightness, put my laptop to sleep, and it shows the correct MacBook7,1 image in "about this Mac" rather than a generic 21-inch display. However, no acceleration.

Additionally replacing:
GeForceTesla.kext
GeForceTeslaGLDriver.bundle
GeForceTeslaVADriver.bundle
...gives me full acceleration, but the system invariably panics during or shortly after login.

I see in the contents of the post-install patcher, a file called NDRVShim.kext along with the kexts that I'm replacing. What is its purpose?

Thank you for all your work!!

NDRVShim.kext is a kext written by @parrotgeek1 that implements the functions missing in IONDRVSupport.kext and IOGraphicsFamily.kext, allowing the nVidia Tesla kexts to load properly without replacing IONDRVSupport and IOGraphicsFamily.
