MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
forums.macrumors.com

OpenCore on the Mac Pro

Open config.plist in any text editor (e.g. TextEdit) Search Mac-7BA5B2D9E42DDD94 Replace it by Mac-27AD2F918AE68F61 This will inject the 7,1 board ID rather than iMac Pro board ID.
forums.macrumors.com forums.macrumors.com
okay so I spoofed my Mac Board ID from the iMac Pro Board ID to the Mac Pro 7,1 Board ID and removed lilu and WEG again but now when I boot I get this error sign. How can I fix it without spoofing back to the iMac Pro Board ID and what did I wrong?
Thanks in advance! :)

Last edited:
MacToby said:
forums.macrumors.com

OpenCore on the Mac Pro

Open config.plist in any text editor (e.g. TextEdit) Search Mac-7BA5B2D9E42DDD94 Replace it by Mac-27AD2F918AE68F61 This will inject the 7,1 board ID rather than iMac Pro board ID.
forums.macrumors.com forums.macrumors.com
okay so I spoofed my Mac Board ID from the iMac Pro Board ID to the Mac Pro 7,1 Board ID and removed lilu and WEG again but now when I boot I get this error sign. How can I fix it without spoofing back to the iMac Pro Board ID and what did I wrong?
Thanks in advance! :)

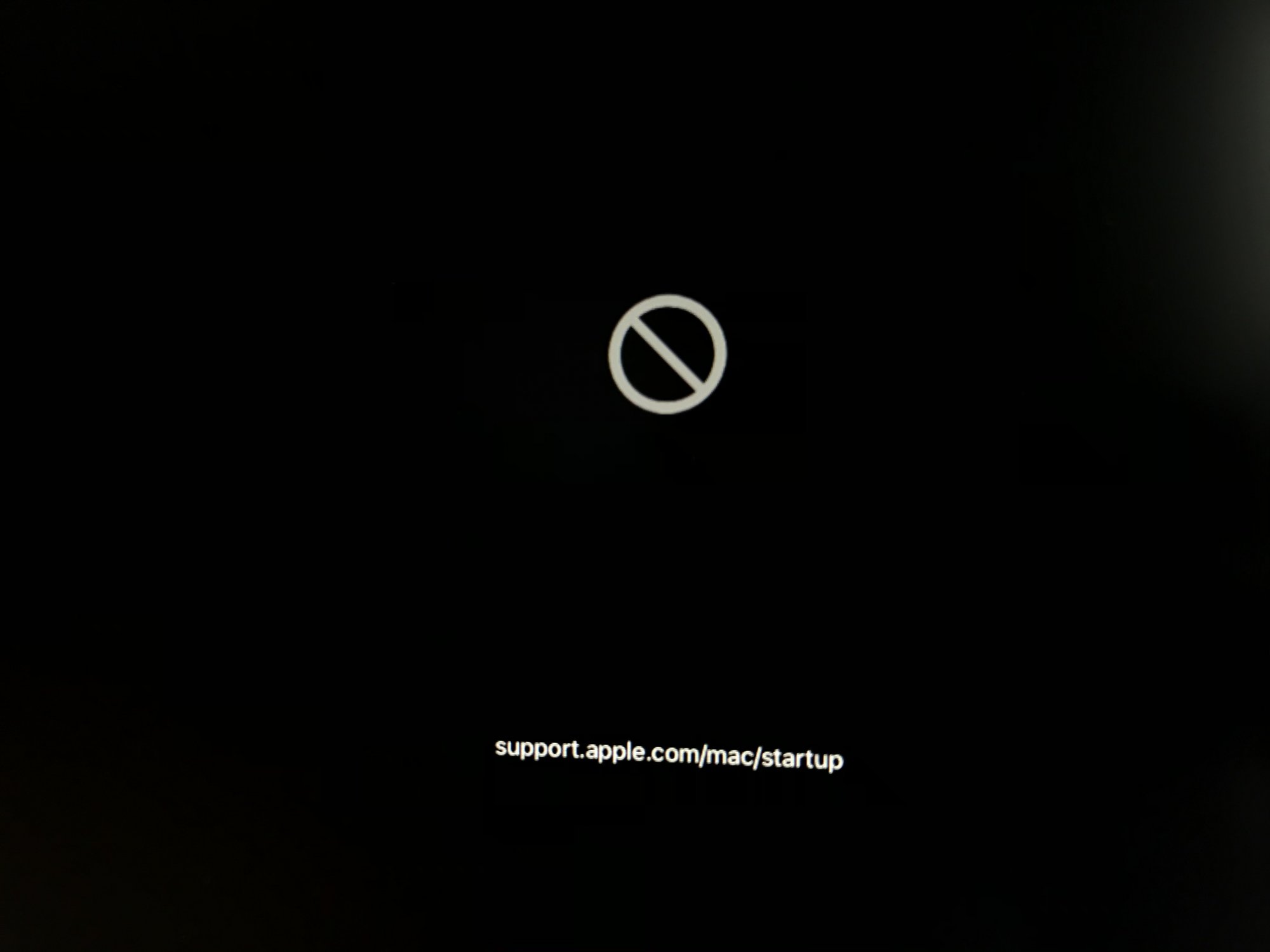

View attachment 1687786
Click to expand...
It looks like that you haven’t mod the config plist correctly (e.g. some typo). You should revert to the default config, or last known good config, then mod it again carefully.

h9826790 said:
It looks like that you haven’t mod the config plist correctly (e.g. some typo). You should revert to the default config, or last known good config, then mod it again carefully.
Click to expand...
I couldn't find any mistake in my config ...

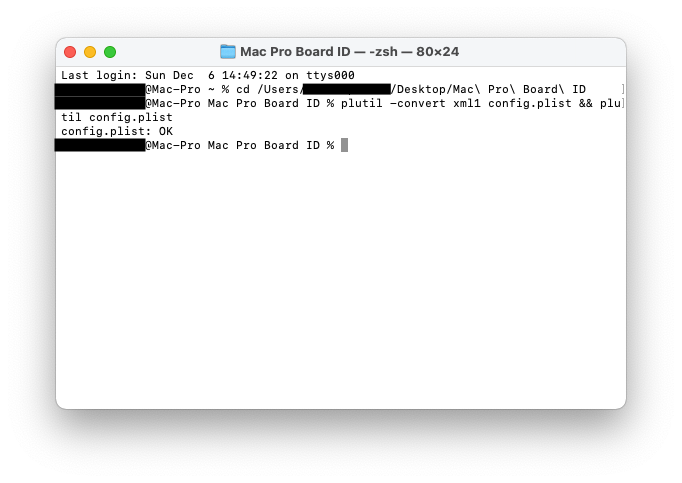

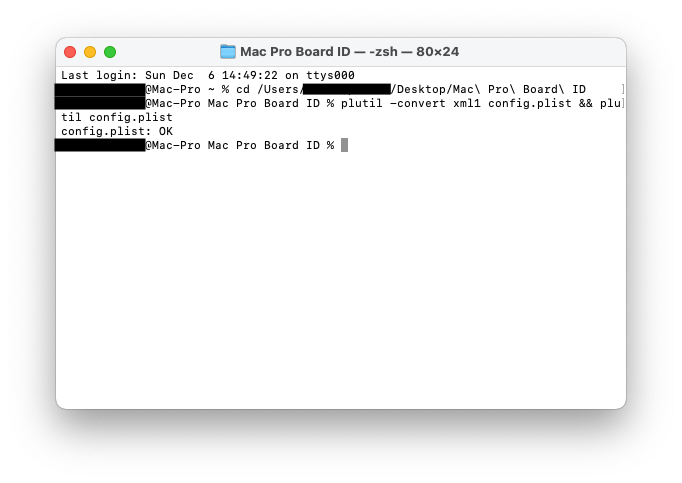

The output I get in Terminal is also okay:
Screen Shot 2020-12-06 at 2.49.47 PM.png



Code:
<key>PlatformInfo</key>
    <dict>
        <key>Automatic</key>
        <false/>
        <key>CustomMemory</key>
        <false/>
        <key>DataHub</key>
        <dict/>
        <key>Generic</key>
        <dict/>
        <key>Memory</key>
        <dict/>
        <key>PlatformNVRAM</key>
        <dict/>
        <key>SMBIOS</key>
        <dict>
            <key>BoardProduct</key>
            <string>Mac-27AD2F918AE68F61</string>
            <key>FirmwareFeatures</key>
            <data>
            A1QM4A==
            </data>
            <key>FirmwareFeaturesMask</key>
            <data>
            P/8f/w==
            </data>
        </dict>
        <key>UpdateDataHub</key>
        <false/>
        <key>UpdateNVRAM</key>
        <false/>
        <key>UpdateSMBIOS</key>
        <true/>
        <key>UpdateSMBIOSMode</key>
        <string>Create</string>
    </dict>
Code:
    <key>NVRAM</key>
    <dict>
        <key>Add</key>
        <dict>
            <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
            <dict>
                <key>DefaultBackgroundColor</key>
                <data>
                AAAAAA==
                </data>
                <key>UIScale</key>
                <data>
                AQ==
                </data>
            </dict>
            <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
            <dict>
                <key>run-efi-updater</key>
                <string>No</string>
            </dict>
        </dict>
        <key>Delete</key>
        <dict>
            <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
            <array>
                <string>UIScale</string>
                <string>DefaultBackgroundColor</string>
            </array>
            <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
            <array>
                <string>run-efi-updater</string>
            </array>

Last edited:
MacToby said:
I don't find any mistake in my config ...
The output I get in Terminal is also okay:
View attachment 1687847


Code:
<key>PlatformInfo</key>
    <dict>
        <key>Automatic</key>
        <false/>
        <key>CustomMemory</key>
        <false/>
        <key>DataHub</key>
        <dict/>
        <key>Generic</key>
        <dict/>
        <key>Memory</key>
        <dict/>
        <key>PlatformNVRAM</key>
        <dict/>
        <key>SMBIOS</key>
        <dict>
            <key>BoardProduct</key>
            <string>Mac-27AD2F918AE68F61</string>
            <key>FirmwareFeatures</key>
            <data>
            A1QM4A==
            </data>
            <key>FirmwareFeaturesMask</key>
            <data>
            P/8f/w==
            </data>
        </dict>
        <key>UpdateDataHub</key>
        <false/>
        <key>UpdateNVRAM</key>
        <false/>
        <key>UpdateSMBIOS</key>
        <true/>
        <key>UpdateSMBIOSMode</key>
        <string>Create</string>
    </dict>
Code:
    <key>NVRAM</key>
    <dict>
        <key>Add</key>
        <dict>
            <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
            <dict>
                <key>DefaultBackgroundColor</key>
                <data>
                AAAAAA==
                </data>
                <key>UIScale</key>
                <data>
                AQ==
                </data>
            </dict>
            <key>7C436110-AB2A-4BBB-A880-FE41995C9F82</key>
            <dict>
                <key>run-efi-updater</key>
                <string>No</string>
            </dict>
Click to expand...
Please just revert to the last known good config.

Then only change the board ID but nothing else.

h9826790 said:
Please just revert to the last known good config.

Then only change the board ID but nothing else.
Click to expand...
Okay so I tried this on my last known good config with only HWAccel, the AppleMCEReporterDisabler and the iMac Pro Board ID enabled. I changed the Board ID again to the Mac Pro 7,1 Board ID and what should I say I doesn’t work for me again. Should I try this again with your configuration?
Thank you for your suggestion and fast replies! I really appreciate it!

MacToby said:
Okay so I tried this on my last known good config with only HWAccel, the AppleMCEReporterDisabler and the iMac Pro Board ID enabled. I changed the Board ID again to the Mac Pro 7,1 Board ID and what should I say I doesn’t work for me again. Should I try this again with your configuration?
Thank you for your suggestion and fast replies! I really appreciate it!
Click to expand...
Yes please, for diagnostic purposes, please use my default config, but just change the board ID.

That works on many cMP, no reason not work on your.

  • Like
Reactions: MacToby
h9826790 said:
Yes please, for diagnostic purposes, please use my default config, but just change the board ID.
That works on many cMP, no reason not work on your.
Click to expand...

Works here without any hassle... your (h9826790) config and only changed the board ID.

Last edited:
  • Like
Reactions: h9826790
h9826790 said:
Yes please, for diagnostic purposes, please use my default config, but just change the board ID.

That works on many cMP, no reason not work on your.
Click to expand...
Thank you so much, Martin!
My Mac Pro boot up now just fine with the Mac Pro 7,1 Board ID without Lilu and WEG with your config!
Now I still have to edit your config for my needs, but at least everything works now.
Thank you!

  • Like
Reactions: h9826790
MacToby said:
Thank you so much, Martin!
My Mac Pro boot up now just fine with the Mac Pro 7,1 Board ID without Lilu and WEG with your config!
Now I still have to edit your config for my needs, but at least everything works now.
Thank you!
Click to expand...
Would you share your EFI folder!? I have a cMP5,1 with some issues with the brightness slider. Maybe your config works better on my machine.

  • Like
Reactions: MacToby
DeppJones said:
Would you share your EFI folder!? I have a cMP5,1 with some issues with the brightness slider. Maybe your config works better on my machine.
Click to expand...
Of course I would but I don't know how to upload the EFI Folder! I'm sorry for that, just use Martins Config instead (https://forums.macrumors.com/threads/activate-amd-hardware-acceleration.2180095/post-28255048). I used Version 0.6.3. After you download it open the config file and search for Mac-7BA5B2D9E42DDD94 and replace it with Mac-27AD2F918AE68F61. It should work for you. My personal config is a bit different configured than Martins one.

H2SO4 said:
I don't follow what you're saying.
I have one and will very likely be running Windows only with it.

Currently have an RX470.
Click to expand...
Why you want to run GTX 1070 with OpenCore, what benefits are you looking for?

Do you mean to run OpenCore -> EFI Windows safely?

Just to let you guys know, RX 5600 XT has native HWAccel in Big Sur even on the iMacPro1,1 board id and all the ports are working without Lilu and WEG.

Now i'm wondering if tere's any benefit to changing the board id to MacPro7,1 in my case? Or just let it be if it's working ? With WEG and Lilu had some weird green boxes and glitches sometimes when editing photos.

  • Like
Reactions: Stefano85
burnthefires said:
Just to let you guys know, RX 5600 XT has native HWAccel in Big Sur even on the iMacPro1,1 board id and all the ports are working without Lilu and WEG.

Now i'm wondering if tere's any benefit to changing the board id to MacPro7,1 in my case? Or just let it be if it's working ? With WEG and Lilu had some weird green boxes and glitches sometimes when editing photos.
Click to expand...
No need. Just -no_compat_check

  • Like
Reactions: Stefano85 and h9826790
MacToby said:
Of course I would but I don't know how to upload the EFI Folder! I'm sorry for that, just use Martins Config instead (https://forums.macrumors.com/threads/activate-amd-hardware-acceleration.2180095/post-28255048). I used Version 0.6.3. After you download it open the config file and search for Mac-7BA5B2D9E42DDD94 and replace it with Mac-27AD2F918AE68F61. It should work for you. My personal config is a bit different configured than Martins one.
Click to expand...
Thanks for the advise but the brightness slider ist still greyed out. Tried so many different settings but nothing helped. I guess, I'm going back to Catalina or Mojave. Interestingly, Windows 10 has absolutely no problems with the brightness adjustment of the display

Last edited:
h9826790 said:
Why you want to run GTX 1070 with OpenCore, what benefits are you looking for?

Do you mean to run OpenCore -> EFI Windows safely?
Click to expand...
Opencore seems so far to have been so far the most reliable way to dual boot Win10 and Mac OS on my Mac Pro.
My current install boots UEFI. It seems plenty safe, is EFI safer?

haralds said:
Does OpenCore resolve the USB issues for Big Sur?
- USB HID devices on system bus not recognized if inserted after boot
- USB 3 add on media devices (auto and video) not smooth
This was not an issue with earlier Big Sur betas, but is a problem now.
Click to expand...
So far it did not. I loaded the plain version of OpenCore and removed all Extensions not from Apple. No luck

Eweie said:
for me some devices have this issue and some others don't.

I also have the compact apple aluminum wired keyboard and I can reconnect it just fine, but my Logitech mouse doesn't .
he even admitted he had to use a hub to fix his midi issues lol.

bottom line is, some devices reconnect, some don't.
Click to expand...
What I see is that the USB polling is not even as required by the USB spec. Devices define a polling interval and the OS is supposed to follow that. There seem to be large gaps on unsupported configurations.

I should not that this was much less of an issue during earlier 11.0 betas until fairly late into the process.

H2SO4 said:
Opencore seems so far to have been so far the most reliable way to dual boot Win10 and Mac OS on my Mac Pro.
My current install boots UEFI. It seems plenty safe, is EFI safer?
Click to expand...
But you won't get boot picker for GTX1070.
forums.macrumors.com

Activate AMD hardware acceleration

Actually, it turns out that when a GOP driver, a UEFI 2.x driver, is implemented according to the associated UEFI 2.x Specs, it does not work on Classic MacPros and that what works for us is what is actually the "Broken" UEFI GOP. Basically, one of the first items in the UEFI 2.x Specs for a...
forums.macrumors.com forums.macrumors.com

In some way, yes, EFI Windows is safer (e.g. has more security features).

h9826790 said:
But you won't get boot picker for GTX1070.
forums.macrumors.com

Activate AMD hardware acceleration

Actually, it turns out that when a GOP driver, a UEFI 2.x driver, is implemented according to the associated UEFI 2.x Specs, it does not work on Classic MacPros and that what works for us is what is actually the "Broken" UEFI GOP. Basically, one of the first items in the UEFI 2.x Specs for a...
forums.macrumors.com forums.macrumors.com

In some way, yes, EFI Windows is safer (e.g. has more security features).
Click to expand...
Ok, that's interesting - thanks.
If rEFInd does give me what I need I may have to go that route instead.

  • Like
Reactions: h9826790

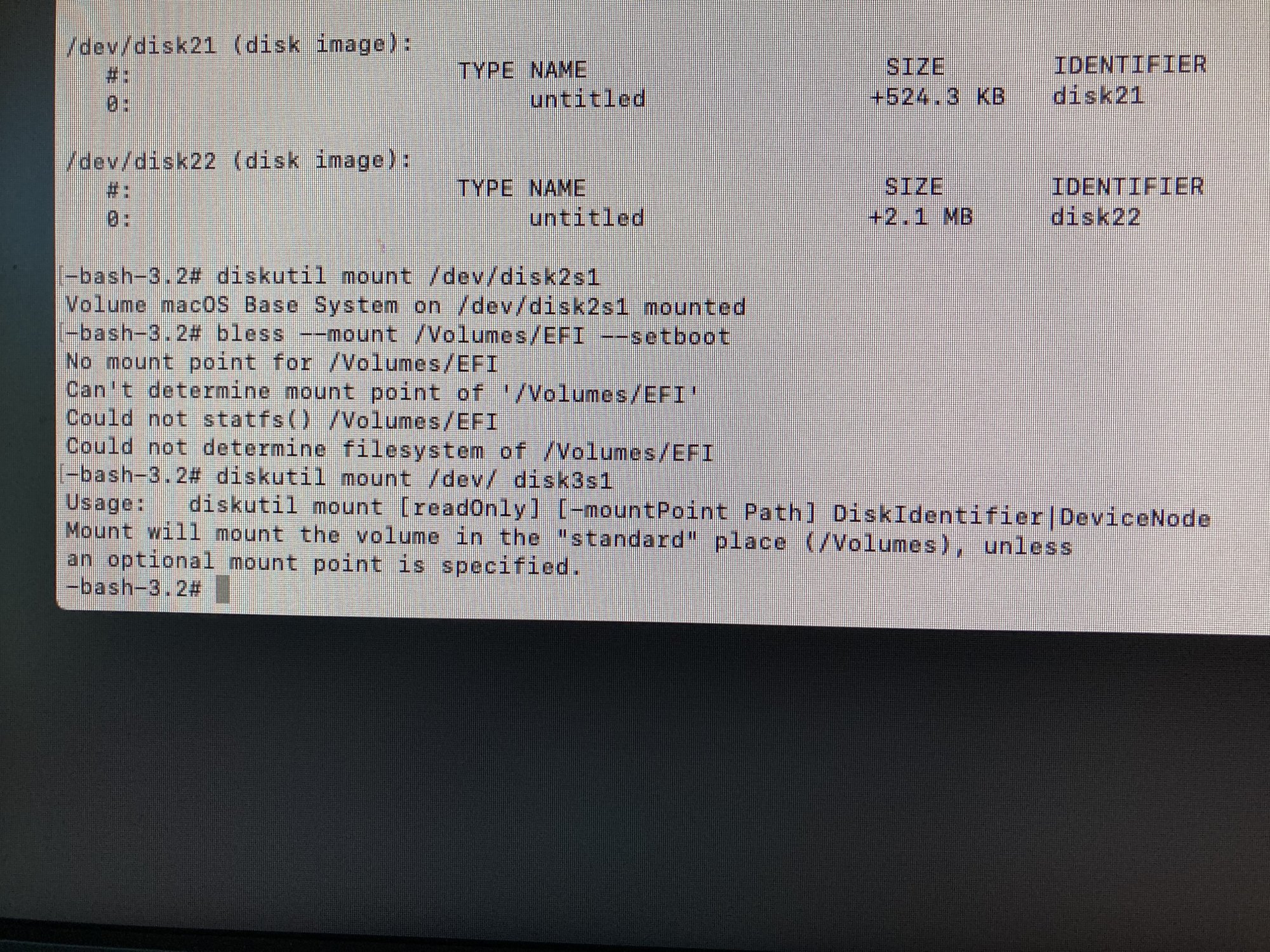

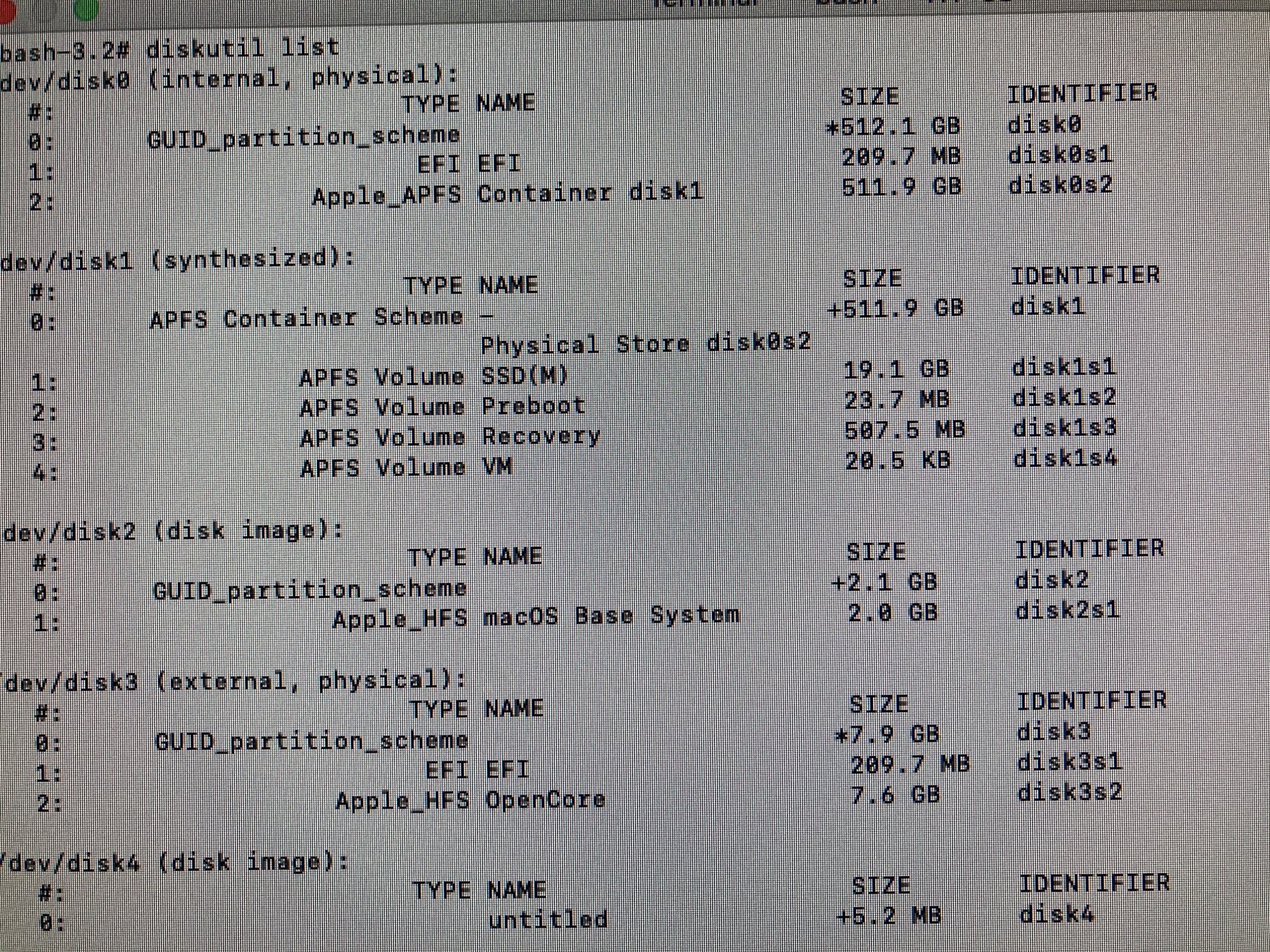

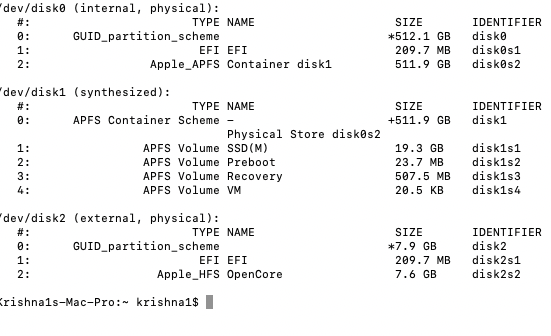

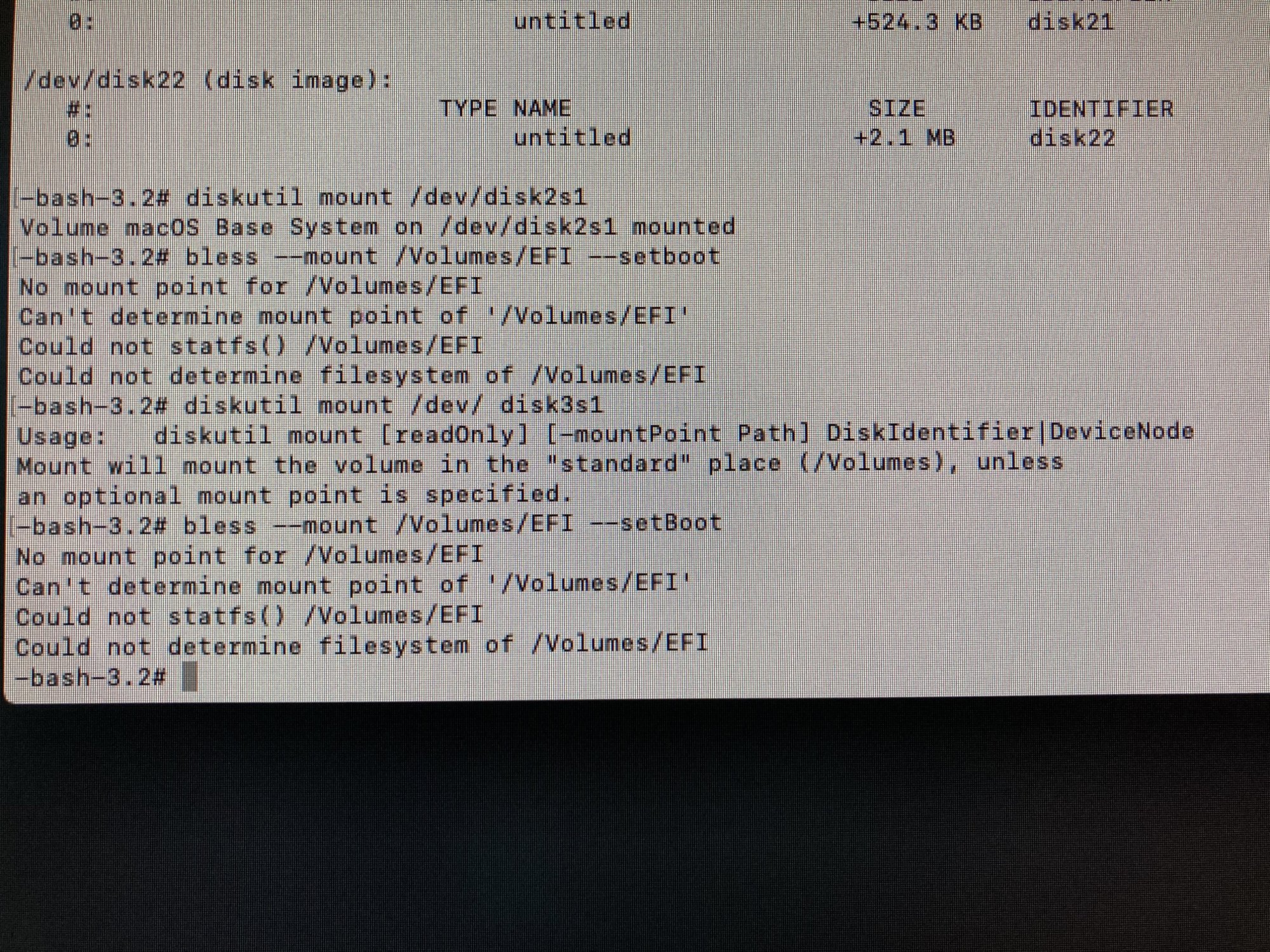

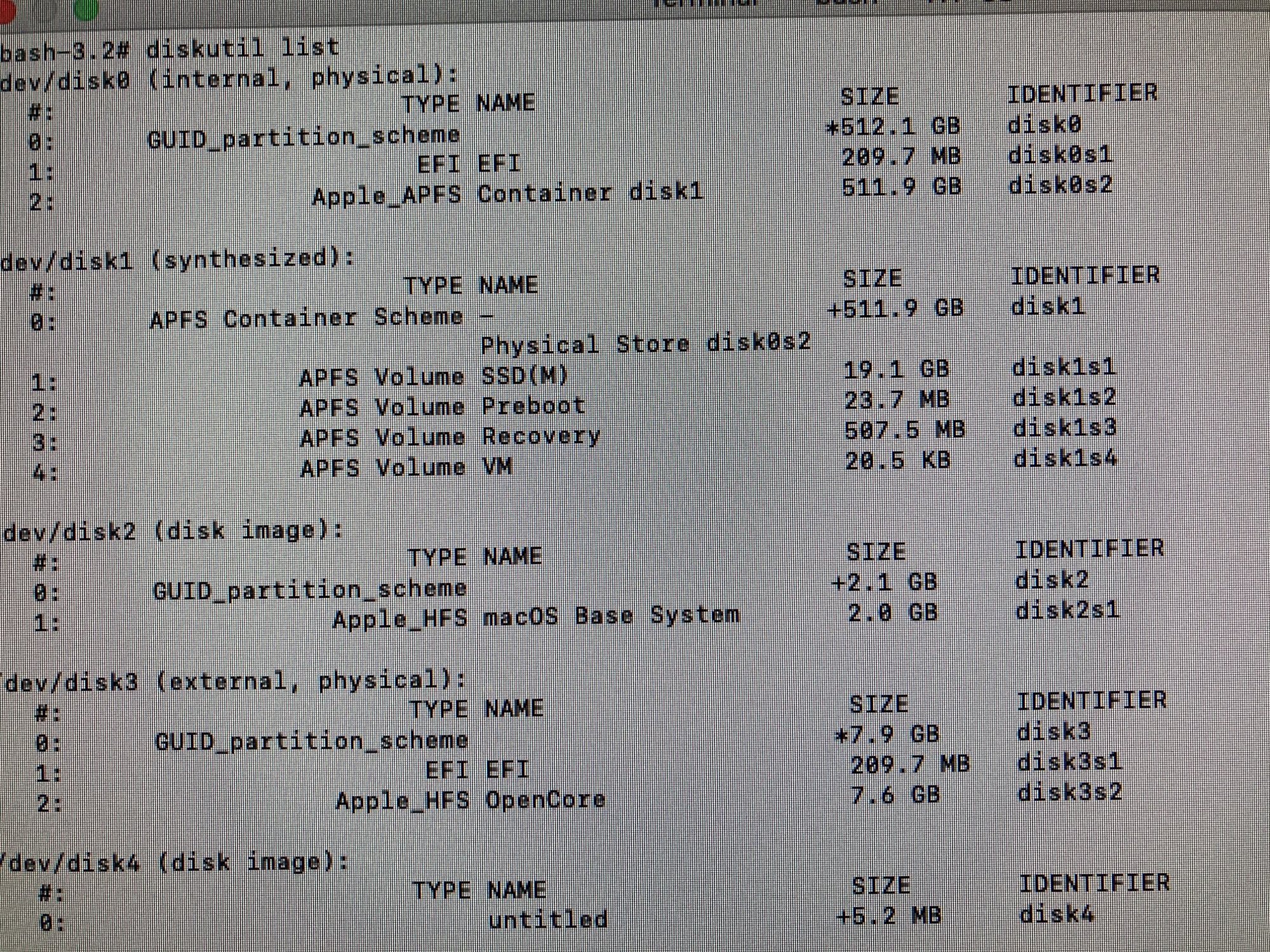

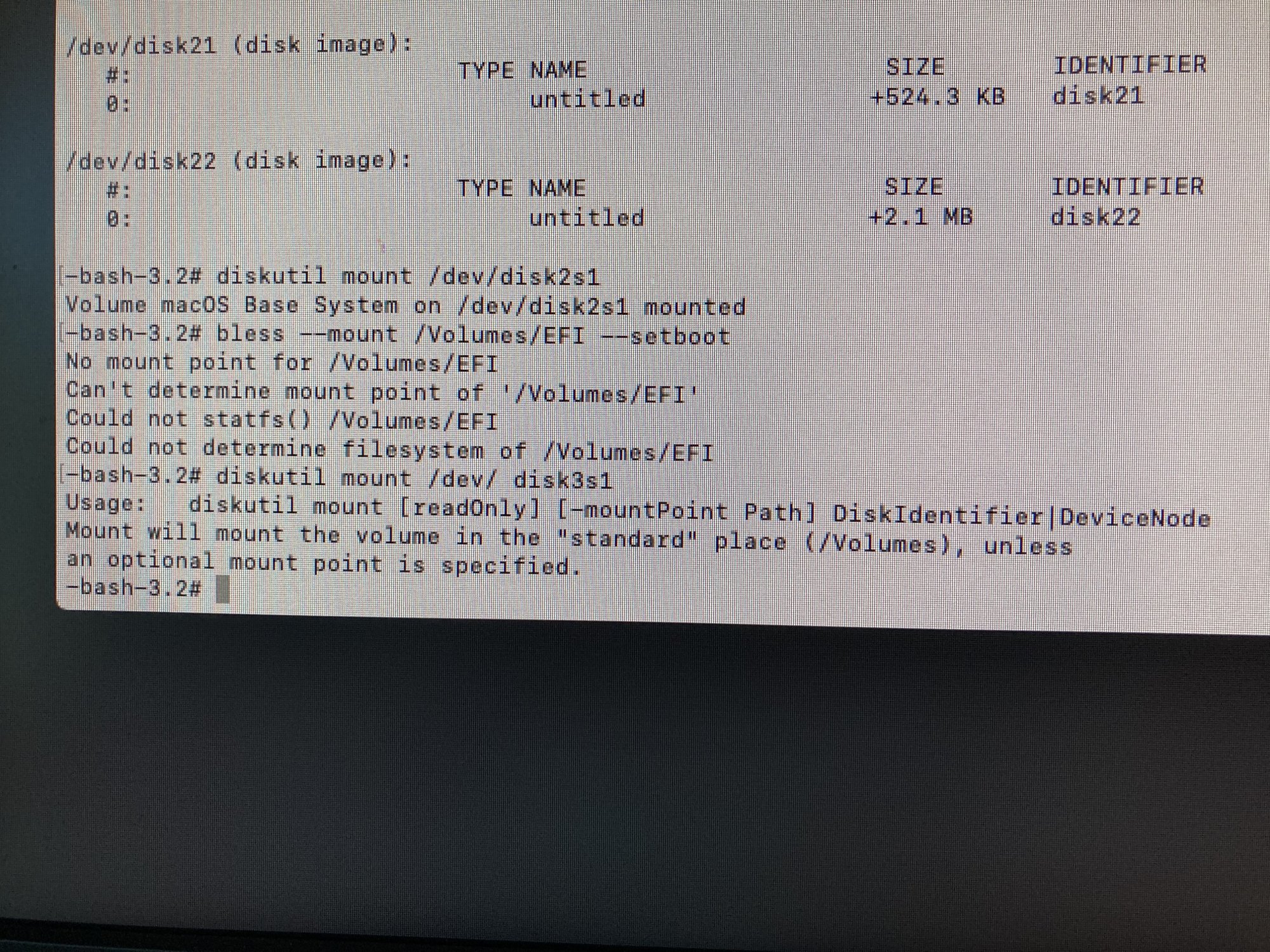

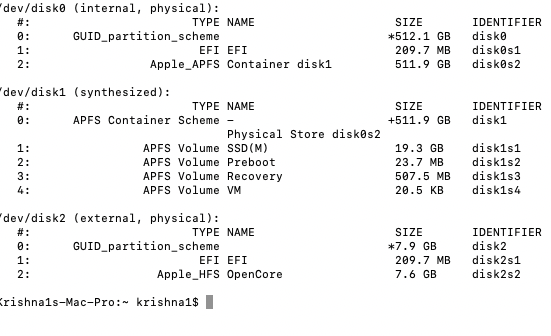

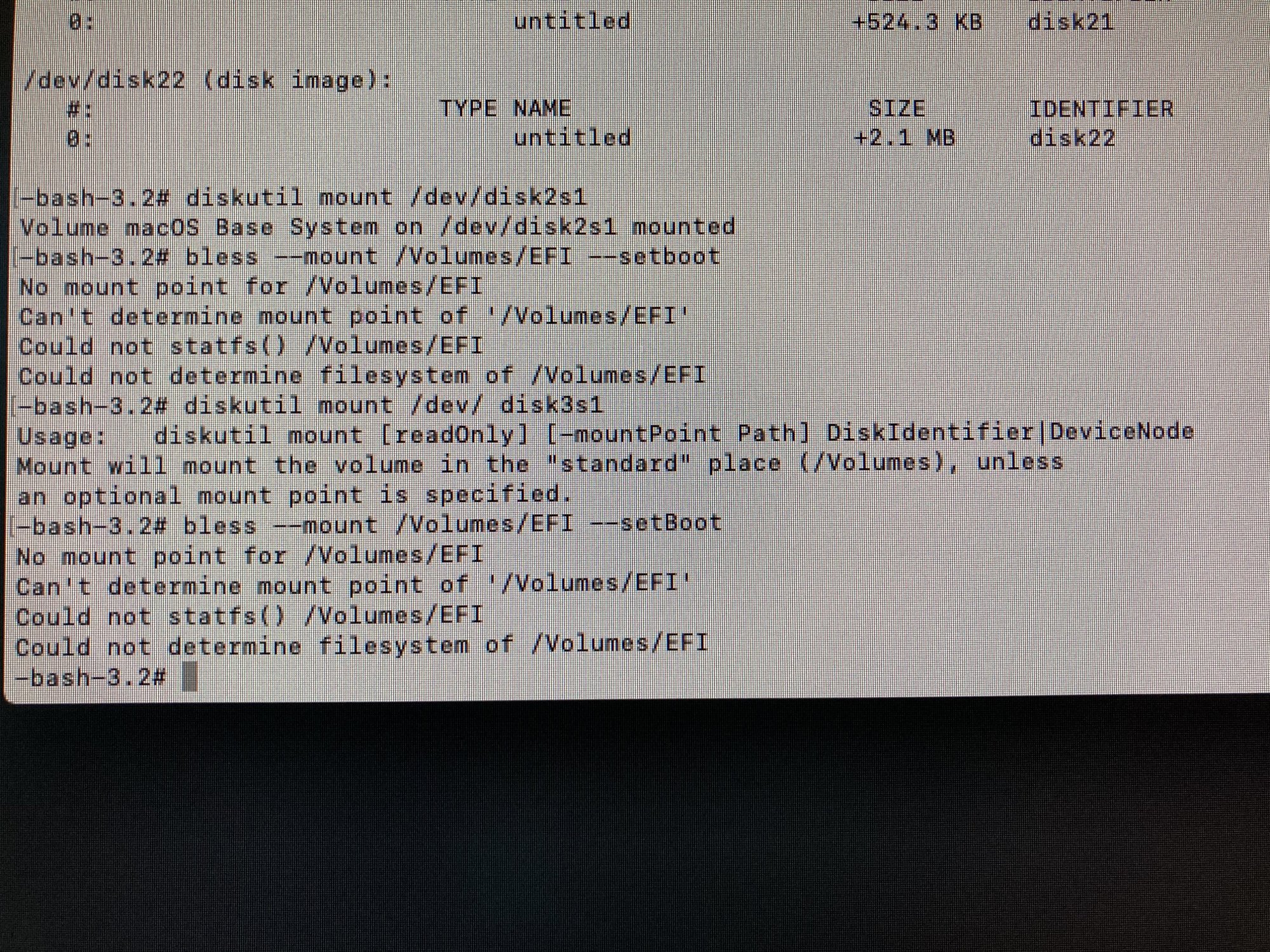

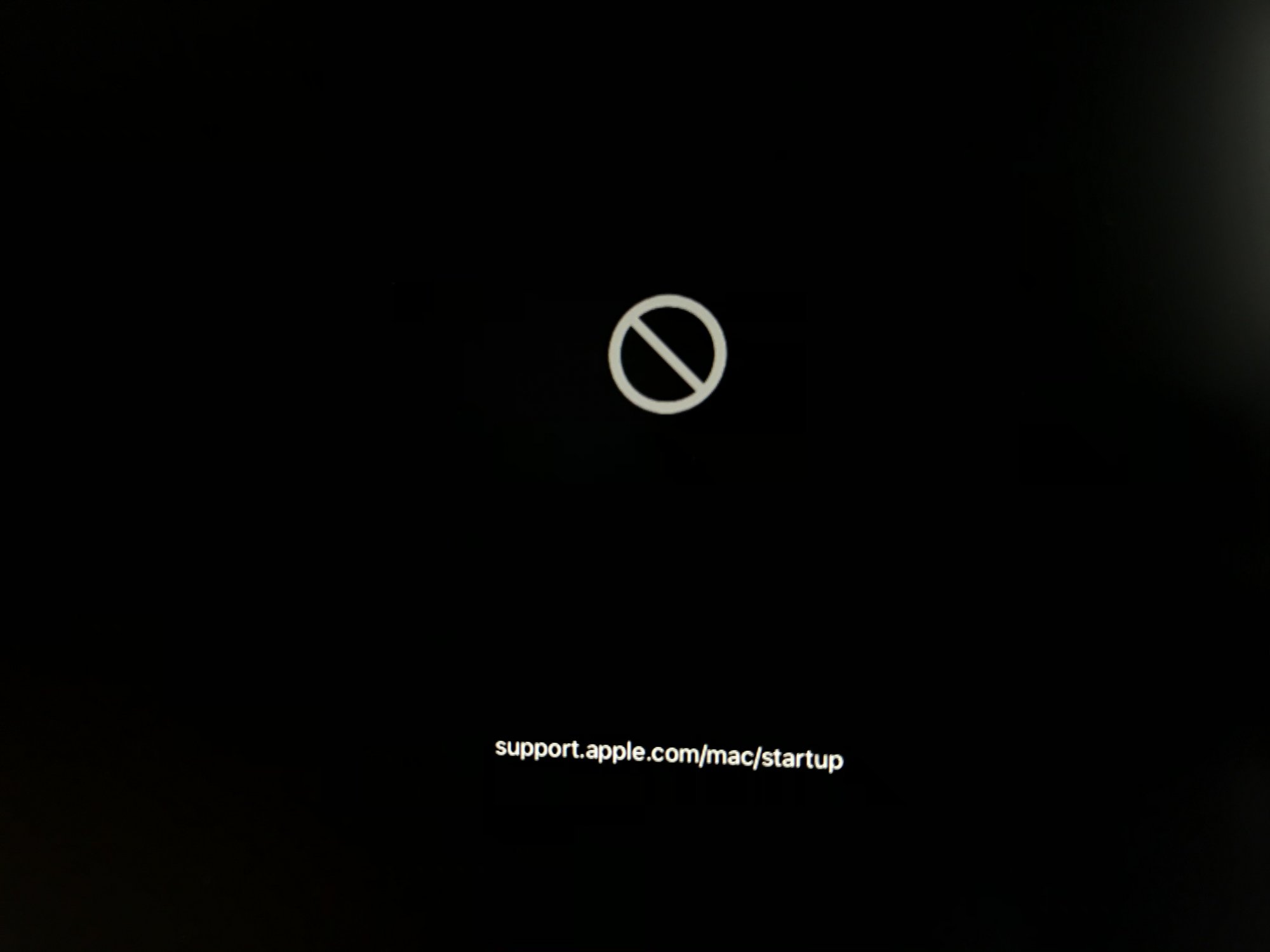

Guys I need help installing the basic open core, I am following the Post1 method (installing on EFI partition of external usb stick, for disk B, I am using a sata ssd with Mojave), in Step3 I was able to reboot to recovery but I am not able to mount the EFI for blessing. I tried to mount disk2s1 first as that was the identifier for EFI partition of usb stick in step 1. Then tried disk3s1 but no good.
I'll appreciate if you can guide me here. Thanks


Attachments

  • 1.jpg
    1.3 MB · Views: 98
  • 2.jpg
    931.3 KB · Views: 117
  • 3.jpg
    1.1 MB · Views: 110
  • 4.png
    109.4 KB · Views: 106
