MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

[358]

hey guys,

I have a 5.1

getting black screen and the following report on reboot, any clues here?





panic(cpu 14 caller 0xffffff80187eba25): userspace watchdog timeout: no successful checkins from com.apple.WindowServer in 120 seconds
service: com.apple.logd, total successful checkins since load (570 seconds ago): 58, last successful checkin: 0 seconds ago
service: com.apple.WindowServer, total successful checkins since load (540 seconds ago): 42, last successful checkin: 120 seconds ago

Backtrace (CPU 14), Frame : Return Address
0xffffffb52ac6b670 : 0xffffff801548e02d
0xffffffb52ac6b6c0 : 0xffffff80155d48e3
0xffffffb52ac6b700 : 0xffffff80155c4eda
0xffffffb52ac6b750 : 0xffffff8015432a2f
0xffffffb52ac6b770 : 0xffffff801548d84d
0xffffffb52ac6b890 : 0xffffff801548db43
0xffffffb52ac6b900 : 0xffffff8015c9d6f4
0xffffffb52ac6b970 : 0xffffff80187eba25
0xffffffb52ac6b980 : 0xffffff80187eb660
0xffffffb52ac6b9a0 : 0xffffff8015c1eede
0xffffffb52ac6b9f0 : 0xffffff80187eaa34
0xffffffb52ac6bb20 : 0xffffff8015c2911b
0xffffffb52ac6bc80 : 0xffffff8015580401
0xffffffb52ac6bd90 : 0xffffff80154936ad
0xffffffb52ac6be00 : 0xffffff8015469c85
0xffffffb52ac6be60 : 0xffffff80154812a2
0xffffffb52ac6bef0 : 0xffffff80155a91fd
0xffffffb52ac6bfa0 : 0xffffff8015433216
Kernel Extensions in backtrace:
com.apple.driver.watchdog(1.0)[57B278ED-0B7C-3544-9CFE-53963BB1DAF3]@0xffffff80187e9000->0xffffff80187ebfff

Process name corresponding to current thread: watchdogd
Boot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0

Mac OS version:
20E241

Kernel version:
Darwin Kernel Version 20.4.0: Thu Apr 22 21:46:47 PDT 2021; root:xnu-7195.101.2~1/RELEASE_X86_64
Kernel UUID: 068F99A3-1DB3-31C0-87D5-09942F122BB6
KernelCache slide: 0x0000000015200000
KernelCache base: 0xffffff8015400000
Kernel slide: 0x0000000015210000
Kernel text base: 0xffffff8015410000
__HIB text base: 0xffffff8015300000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 575287174961
Last Sleep: absolute base_tsc base_nano
Uptime : 0x00000085f1c9b124
Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000
Wake : 0x0000000000000000 0x000000199d492a14 0x0000000000000000



[mode11]

Could anyone tell me how to boot into Safe Mode when using OpenCore?

I've been getting random freezes (beach balls) at times over the past two weeks. Things that should be instant, like opening a browser tab, can take 30 seconds (though often works normally). CPU activity during the freezes is low - it's like it's waiting for something. The Finder isn't locked up - windows can be moved around etc. - but the pauses seems to affect all the running applications.

Also, the login screen after waking from sleep frequently locks up after I've entered a couple of characters of my password, requiring a reboot. Usually there's a crash report afterwards that references the WindowServer, but it doesn't seem to identify any particular process as having caused the WS to crash.

The system log contains regular AMPDeviceDiscoveryAgent 'AMMuxedDeviceDisconnected' notices (about every 5 seconds). I tried quitting the AMPDeviceDiscoveryAgent, which naturally stopped the messages, but still had the login screen issue afterwards, so it's probably irrelevant.



[tsialex]

hey guys,

I have a 5.1

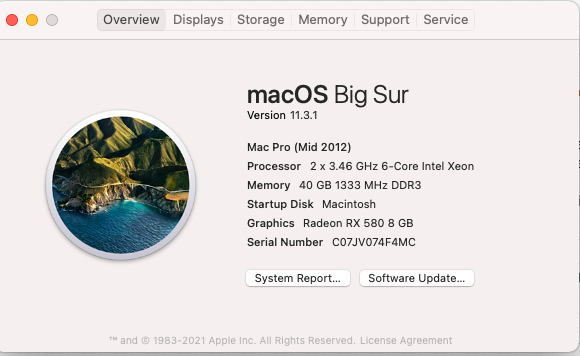

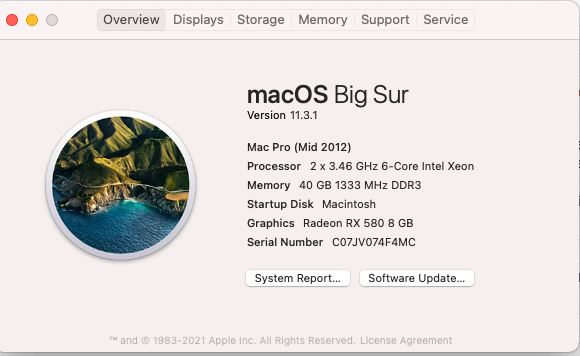

View attachment 2045400

getting black screen and the following report on reboot, any clues here?





panic(cpu 14 caller 0xffffff80187eba25): userspace watchdog timeout: no successful checkins from com.apple.WindowServer in 120 seconds
service: com.apple.logd, total successful checkins since load (570 seconds ago): 58, last successful checkin: 0 seconds ago
service: com.apple.WindowServer, total successful checkins since load (540 seconds ago): 42, last successful checkin: 120 seconds ago

Backtrace (CPU 14), Frame : Return Address
0xffffffb52ac6b670 : 0xffffff801548e02d
0xffffffb52ac6b6c0 : 0xffffff80155d48e3
0xffffffb52ac6b700 : 0xffffff80155c4eda
0xffffffb52ac6b750 : 0xffffff8015432a2f
0xffffffb52ac6b770 : 0xffffff801548d84d
0xffffffb52ac6b890 : 0xffffff801548db43
0xffffffb52ac6b900 : 0xffffff8015c9d6f4
0xffffffb52ac6b970 : 0xffffff80187eba25
0xffffffb52ac6b980 : 0xffffff80187eb660
0xffffffb52ac6b9a0 : 0xffffff8015c1eede
0xffffffb52ac6b9f0 : 0xffffff80187eaa34
0xffffffb52ac6bb20 : 0xffffff8015c2911b
0xffffffb52ac6bc80 : 0xffffff8015580401
0xffffffb52ac6bd90 : 0xffffff80154936ad
0xffffffb52ac6be00 : 0xffffff8015469c85
0xffffffb52ac6be60 : 0xffffff80154812a2
0xffffffb52ac6bef0 : 0xffffff80155a91fd
0xffffffb52ac6bfa0 : 0xffffff8015433216
Kernel Extensions in backtrace:
com.apple.driver.watchdog(1.0)[57B278ED-0B7C-3544-9CFE-53963BB1DAF3]@0xffffff80187e9000->0xffffff80187ebfff

Process name corresponding to current thread: watchdogd
Boot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0

Mac OS version:
20E241

Kernel version:
Darwin Kernel Version 20.4.0: Thu Apr 22 21:46:47 PDT 2021; root:xnu-7195.101.2~1/RELEASE_X86_64
Kernel UUID: 068F99A3-1DB3-31C0-87D5-09942F122BB6
KernelCache slide: 0x0000000015200000
KernelCache base: 0xffffff8015400000
Kernel slide: 0x0000000015210000
Kernel text base: 0xffffff8015410000
__HIB text base: 0xffffff8015300000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 575287174961
Last Sleep: absolute base_tsc base_nano
Uptime : 0x00000085f1c9b124
Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000
Wake : 0x0000000000000000 0x000000199d492a14 0x0000000000000000

This is usually caused by the RTC being stuck, start checking the RTC battery, replace the BR2032 battery for a new one of the same model (CR2032 chemistry can't be used with the temperatures below the GPU) if the voltage is below 3.00V.

After checking the RTC voltage, upgrade to 11.6.8 and current OC (or OCLP) releases. If you still have the KPs after the RTC and everything is already updated, then you probably need to check your BootROM.



[cdf]

I tried the Brigadier step-by-step and the install said it was for Windows 7. Probably for the best because I read up on other people issues. I went into the drivers folder and got the Bluetooth driver installed. I don't have any Bluetooth devices so I'm not sure if it's working. I downloaded the graphics card driver and software from AMD's support page for my RX 580 card. Is there anything else I need to do to be sure things like the CPU fan speed and what not are going to work correctly in Windows 10 on my 5,1?

Use Device Manager to check if any other devices are missing drivers. If your Bluetooth module has been updated, make sure to get the driver from the Boot Camp package for a Mac with that module (iMac15,1 for example). In my case, the only component that I got from the MacPro5,1 Boot Camp package was the Realtek software (Vista installer) to get the internal speaker working.



[cdf]

Could anyone tell me how to boot into Safe Mode when using OpenCore?

Two ways:

1. Add -x to your boot arguments and reboot
2. From the OpenCore boot picker, select your macOS volume with Shift+Enter



[mode11]

Two ways:

1. Add -x to your boot arguments and reboot
2. From the OpenCore boot picker, select your macOS volume with Shift+Enter

Thanks. I tried option 2 but the Mac just reboots back to the picker.

Sorry if a dumb question, but how do you 'add -x to your boot arguments'? Is this in config.plist?

Edit: I assume within:

<key>boot-args</key>
<string>-x</string>

(obviously with other stuff in the string section).



[cdf]

Sorry if a dumb question, but how do you 'add -x to your boot arguments'? Is this in config.plist?

Given that you're using Martin's package, then, yes, you would append -x to the current list of boot arguments (separated by a space) in the config file. To see where boot arguments are added in the config file see the subsection Clean up the NVRAM in post #1 (note that in your case, you'll have more than just the -no_compat_check boot argument shown in the guide).



[mode11]

Given that you're using Martin's package, then, yes, you would append -x to the current list of boot arguments (separated by a space) in the config file. To see where boot arguments are added in the config file see the subsection Clean up the NVRAM in post #1 (note that in your case, you'll have more than just the -no_compat_check boot argument shown in the guide).

I added -x and it resulted in the same issue as when I start with Shift+Enter - just reboots back to the picker. So it seems Safe Mode doesn't work on my machine for some reason, which complicates troubleshooting.

Luckily I also have Windows installed, so mounted the EFI partition with Diskpart, then opened with Explorer++ to edit config.plist and get back to macOS...

By the way - I have 3 screens. When using Recovery I need to disconnect all but one - presumably this is not necessary for SM?



[358]

This is usually caused by the RTC being stuck, start checking the RTC battery, replace the BR2032 battery for a new one of the same model (CR2032 chemistry can't be used with the temperatures below the GPU) if the voltage is below 3.00V.

After checking the RTC voltage, upgrade to 11.6.8 and current OC (or OCLP) releases. If you still have the KPs after the RTC and everything is already updated, then you probably need to check your BootROM.

Thanks for that, ill start there. what is the latest BootrRom? can you send me a link please



[cdf]

By the way - I have 3 screens. When using Recovery I need to disconnect all but one - presumably this is not necessary for SM?

Not sure about this. In my case, with two screens connected, Recovery will show up on one of them.

I just tried safe mode myself on a fresh installation of macOS 12.5.1, and it does what you described. In fact, the problem is that it causes a kernel panic with AppleIntelCPUPowerManagement. Perhaps the reason is because ASPP-Override (required since macOS 12.3) doesn't get loaded in safe mode... In any case, you can still enter safe mode by setting DummyPowerManagement to true (make sure to only use this temporarily).



[358]

This is usually caused by the RTC being stuck, start checking the RTC battery, replace the BR2032 battery for a new one of the same model (CR2032 chemistry can't be used with the temperatures below the GPU) if the voltage is below 3.00V.

After checking the RTC voltage, upgrade to 11.6.8 and current OC (or OCLP) releases. If you still have the KPs after the RTC and everything is already updated, then you probably need to check your BootROM.

you were 100% correct on the battery. even though it was showing 3.05v i changed it for a new one which reads 3.1v and presto!!!! champion



[dataharvested]

Use Device Manager to check if any other devices are missing drivers. If your Bluetooth module has been updated, make sure to get the driver from the Boot Camp package for a Mac with that module (iMac15,1 for example). In my case, the only component that I got from the MacPro5,1 Boot Camp package was the Realtek software (Vista installer) to get the internal speaker working.

I ended up having to reinstall Windows due to having installed Home edition and not realizing it did not support the dual CPU's. I installed Pro edition and had no audio or Bluetooth as before. I then installed the "AppleBluetoothBroadcomInstaller64" from the Brigadier flash drive I created when I had ran that process before. That got Bluetooth enabled. I then installed the "RealTek Setup" driver and audio now works. Besides the driver for my ATTO network card, which I got from their website, all other drivers installed automatically.

One question though. I DO want to install the AMD driver and software from their support site for my RX 580 card correct? I saw that Windows had put in a driver of some sort automatically, but I would think having the AMD software would be the way to go.

Thanks for your help once again.



[cdf]

One question though. I DO want to install the AMD driver and software from their support site for my RX 580 card correct? I saw that Windows had put in a driver of some sort automatically, but I would think having the AMD software would be the way to go.

Either way should be fine. I haven't had any problems with the AMD driver that Windows retrieved automatically.



[KingKongUser]

I just tried to install 12.5.1 but it errored and now I get the infinite reboot loop. I Tried making changes to my OC install and now I get no boot GUI. I put in my original GPU and now see a grey screen.

I removed my SSDs and it’s picked up a HDD version of big sur and booted that.

I updated OC and plist on via bigsur. I then plugged my SSD in with the failed 12.5.1 and get the infinite loop with the occasional “your computer restarted because of a problem” screen

I see the installer on restart which I assume is the failed 12.5.1 install but selecting that it drops out quickly and restarts.

Where to now?

Any help would be appreciated. Hardware is MacPro 5,1 2012.



[OVERKILL338LM]

Had a failed 12.5.1 OTA update today with my main Mac Pro, crash dumped while half way updating.

Lost a lot of time trying to get it working again without messing any of my data unsuccessfully. Booted my High Sierra blade, downloaded 21G83 full installer, made a createinstallmedia USB installer, nuked one of my blades and successfully did a clean install that seems to be working.

Btw, this is the link for the Monterey 12.5.1/21G83 full installer:

https://swcdn.apple.com/content/downloads/18/44/012-51693-A_2W745BUZP7/xtd63whw506llesta7af6cjvcxlyj8mxvf/InstallAssistant.pkg

Mine did too, but different cause I think. Windows would boot fine but could not get the update to complete, just turned into a boot loop.

What tipped me off to mine being different was that I couldn't even do a fresh install on another drive. Ended up doing an NVRAM reset, that fixed that issue, so then I tried my original drive again and the update completed and the system is normal again.



[tsialex]

Thanks for that, ill start there. what is the latest BootrRom? can you send me a link please

Most recent BootROM is 144.0.0.0.0, from Mojave 10.14.5 and 10.14.6 full installer, but I was talking about if your NVRAM volume (part of the whole BootROM image) is still healthy:

https://forums.macrumors.com/threads/macpro5-1-bootrom-thread-144-0-0-0-0.2132317/post-30773207



[Dewdman42]

12.5.1 just KP'd on me after running it a few days. I wasn't here when it happened, I was out of the house, so I have no idea what caused it.

FYI

Seems like there might be another AVX usage case in there perhaps.



[dataharvested]

I'm glad that I did not install it then. I almost did the other day, but decided to hold off. I believe I have automatic updates turned off as well. Not at home right now, so can't check.



[Dewdman42]

When I booted again it also got stuck on the progress bar about half way through and I had to power cycle the machine, and then it booted up. I read some reports of others on the other Monterey thread having similar random Boot up issues with 12.5.1. I usually leave the machine running for weeks at a time without a reboot, so I had not encountered that before this time.

I have since reflashed my never-booted rom just to see if it needed that... but anyway, heads up to all.. Something might be Amis with 12.5.1. I unfortunately already wrote over my 12.5 backup, so It will be a PITA for me to rollback at this point. I will run it a while and see if it happens again or more info comes out about 12.5.1. As I understand it there was some kind of security high priority need to get 12.5.1 updated, Apple sent out an iOS update at the same time. So... if there is an issue with 12.5.1, hopefully we can get to the bottom of it. I have a feeling 12.5.x will be the end of the road for 5,1 Mac Pro.



[danallen]

I hate to ask, so I am going to tell some jokes.

I think I know the answer, but the RISK LEVEL means I have to make sure. Gotta bring the risk down down down.
The question is: do I have what I need to make the right kind of mojave bootable for my cheese grater?

BRIEF BACKGROUND
The last time I installed an OS on my cheese grater was Catalina 15.4. I got through it, but it is not like I a contender for a medal in this event. PatcDude was my savior as were many of his thousands of goodly apostles. At this time, I would like to take this opportunity to thank each and every one of you. [small] Thank you.

I heard a rumor that having bootable thumb of Mohave is basic a survival gear for members of the cheese grating league.

So, I downloaded the 6+G verstion of the Mojave installer from Apple. So, I have this right, there are three commands to run through terminal to make this 6+G of mojave into an installer app on my cheese grater, thanks to the miracle that is Critical Core. All that is documented so I should be good.

THE CRUCIAL QUESTION
But, there is a last step. That mojave installer bootable app needs to be on a thumb drive. I think. To do that, what? Format and copy the app onto a thumbable? Something else?

Anyone who answers this question correctly I will owe a $million.

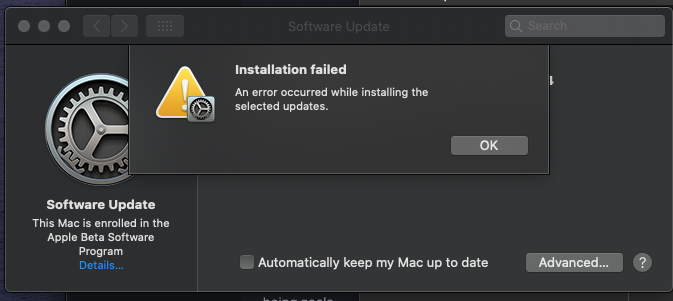

p.s. When I just downloaded the Mojave six gigger, it did this right t the end:

Does that meanI am dead already?



[tsialex]

I have a feeling 12.5.x will be the end of the road for 5,1 Mac Pro.

I'm having issues with 12.5.1 even with fully supported Macs, from the get go I've noticed that the boot time with a MacPro6,1 at least doubled, so, I don't think that this one is a MacPro5,1 related issue (or just a MacPro5,1 issue).

While I don't have much time available right now to track/debug, I double checked my config.plist and enabled verbose boot hoping that I stumble with some clue as where the problem is located at least, you should do the same.



[cdf]

THE CRUCIAL QUESTION
But, there is a last step. That mojave installer bootable app needs to be on a thumb drive. I think. To do that, what? Format and copy the app onto a thumbable? Something else?

Make sure to get the full installer. From your screenshot, it looks like you are going through Software Update. Since you're currently using Catalina, you'll need to create a bootable installer:

Create a bootable installer for macOS - Apple Support

Use an external drive or secondary volume as a startup disk from which to install macOS.

support.apple.com

You can then boot this installer and install Mojave to another external or internal drive to use as your safety net. Good luck!

Note: If you require further assistance, please look for a related thread (or create your own), because this really off topic here...



[Dewdman42]

I'm having issues with 12.5.1 even with fully supported Macs, from the get go I've noticed that the boot time with a MacPro6,1 at least doubled, so, I don't think that this one is a MacPro5,1 related issue (or just a MacPro5,1 issue).

While I don't have much time available right now to track/debug, I double checked my config.plist and enabled verbose boot hoping that I stumble with some clue as where the problem is located at least, you should do the same.

Just had another KP, I was away from my desk again so I have no idea what caused it. It might be the screensaver, though the screensaver seems to work ok when I'm here. The other thing I'm questioning is Parallels, which I usually have running in the background with Windows10.

when I came back to the desk. the screen was black, computer light still on, no response to keyboard or mouse. When I hit the power button I didn't have to hold it down in order to turn off, one click shut off the computer immediately.

Regarding Boot up, this time I Used cmd-V to see the verbose screen, which goes too fast to read anyway. Main reason is because I read on the Monterey thread that people who have been having problems booting are somehow able to avoid the boot up problems by booting in verbose mode.


In case anyone can make sense out of it, here is KP report:

Spoiler: KP Error Report

panic(cpu 12 caller 0xffffff8019b7999f): userspace watchdog timeout: no successful checkins from logd in 120 seconds
service returned not alive with context : unresponsive dispatch queue(s): com.apple.firehose.io-wl
service: logd, total successful checkins since load (142132 seconds ago): 14202, last successful checkin: 120 seconds ago
service: WindowServer, total successful checkins since load (142102 seconds ago): 14198, last successful checkin: 120 seconds ago
service: opendirectoryd, total successful checkins since load (142132 seconds ago): 14213, last successful checkin: 0 seconds ago

Panicked task 0xffffff8bb39ec700: 4 threads: pid 131: watchdogd
Backtrace (CPU 12), panicked thread: 0xffffff9a14354540, Frame : Return Address
0xffffffd100133690 : 0xffffff801667fd6d
0xffffffd1001336e0 : 0xffffff80167e1086
0xffffffd100133720 : 0xffffff80167d03f3
0xffffffd100133770 : 0xffffff801661fa70
0xffffffd100133790 : 0xffffff801668013d
0xffffffd1001338b0 : 0xffffff801667f8f6
0xffffffd100133910 : 0xffffff8016f14ec3
0xffffffd100133a00 : 0xffffff8019b7999f
0xffffffd100133a10 : 0xffffff8019b795f2
0xffffffd100133a30 : 0xffffff8019b78971
0xffffffd100133b60 : 0xffffff8016e8365c
0xffffffd100133cc0 : 0xffffff8016786d86
0xffffffd100133dd0 : 0xffffff801665a9ab
0xffffffd100133e60 : 0xffffff80166711a9
0xffffffd100133ef0 : 0xffffff80167b305a
0xffffffd100133fa0 : 0xffffff8016620256
      Kernel Extensions in backtrace:
         com.apple.driver.watchdog(1.0)[8BE4EE7F-9150-3161-BE84-36874BF82DE2]@0xffffff8019b77000->0xffffff8019b79fff

Process name corresponding to current thread (0xffffff9a14354540): watchdogd
Boot args: chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
21G83

Kernel version:
Darwin Kernel Version 21.6.0: Wed Aug 10 14:25:27 PDT 2022; root:xnu-8020.141.5~2/RELEASE_X86_64
Kernel UUID: D0DC2052-71F4-3DCB-B189-BEE5A59B3B42
KernelCache slide: 0x0000000016400000
KernelCache base:  0xffffff8016600000
Kernel slide:      0x0000000016410000
Kernel text base:  0xffffff8016610000
__HIB  text base: 0xffffff8016500000
System model name: MacPro5,1 (Mac-27AD2F918AE68F61)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 142138267281026
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000814624ee3074
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x0000002472d5b260 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff8078b3f000 - 0xffffffa078b3f000
  . PGZ   : 0xffffff8078b3f000 - 0xffffff8084b40000
  . VM    : 0xffffff8084b40000 - 0xffffff854fb3f000
  . RO    : 0xffffff854fb3f000 - 0xffffff86e8b3f000
  . GEN0  : 0xffffff86e8b3f000 - 0xffffff8bb3b3f000
  . GEN1  : 0xffffff8bb3b3f000 - 0xffffff907eb3f000
  . GEN2  : 0xffffff907eb3f000 - 0xffffff9549b3f000
  . GEN3  : 0xffffff9549b3f000 - 0xffffff9a14b3f000
  . DATA  : 0xffffff9a14b3f000 - 0xffffffa078b3f000
  Metadata: 0xffffffd8be239000 - 0xffffffd8de239000
  Bitmaps : 0xffffffd8de239000 - 0xffffffd8fe239000

last started kext at 137108348335047: @filesystems.udf    2.5 (addr 0xffffff7fafbb8000, size 208896)
last stopped kext at 141986177814009: @filesystems.cd9660    1.4.4 (addr 0xffffff7fafa89000, size 28672)
loaded kexts:
com.parallels.kext.netbridge    17.1.2 51548
com.parallels.kext.vnic    17.1.2 51548
com.parallels.kext.hypervisor    17.1.2 51548
com.parallels.kext.usbconnect    17.1.2 51548
org.virtualbox.kext.VBoxNetFlt    6.1.34
org.virtualbox.kext.VBoxNetAdp    6.1.34
org.virtualbox.kext.VBoxUSB    6.1.34
org.virtualbox.kext.VBoxDrv    6.1.34
com.kensington.trackballworks.driver    1.5.0
com.lynxstudio.driver    1.0.60
com.khronokernel.FeatureUnlock    1.0.9
as.vit9696.WhateverGreen    1.6.1
as.vit9696.Lilu    1.6.2
@filesystems.udf    2.5
@filesystems.smbfs    4.0
>!AUpstreamUserClient    3.6.9
>!AMCCSControl    1.16
@kext.AMDFramebuffer    4.0.8
>AGPM    129
@filesystems.autofs    3.0
>!AMikeyHIDDriver    131
>!AMikeyDriver    340.2
@kext.AMDRadeonX4000    4.0.8
>AudioAUUC    1.70
>!AHDA    340.2
@kext.AMDRadeonServiceManager    4.0.8
>!AGFXHDA    140.3
>!ALPC    3.1
>!AGraphicsDevicePolicy    6.5.7
@AGDCPluginDisplayMetrics    6.5.7
>pmtelemetry    1
>!AFWOHCI    5.7.5
|IOUserEthernet    1.0.1
>usb.!UUserHCI    1
>!AHV    1
>!ADiskImages2    126.141.2
@kext.AMD9500!C    4.0.8
>!A!ISlowAdaptiveClocking    4.0.0
>ACPI_SMC_PlatformPlugin    1.0.0
>usb.!UHostBillboardDevice    1.0
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.lifs    1
@filesystems.hfs.kext    583.100.10
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
|SCSITaskUserClient    456.140.3
@filesystems.apfs    1934.141.2
>AirPort.BrcmNIC    1400.1.1
>!I82574LEthernet    2.7.2
>!AAHCIPort    351.100.4
@private.KextAudit    1.0
>!ARTC    2.0.1
>!AHPET    1.8
>!AACPIButtons    6.1
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
>!A!ICPUPowerManagementClient    222.0.0
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    402
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
@Dont_Steal_Mac_OS_X    7.0.0
>!A!ICPUPowerManagement    222.0.0
@kec.!AEncryptedArchive    1
>driverkit.serial    6.0.0
|IOSerial!F    11
|IOUSBUserClient    900.4.2
|IOAVB!F    1040.6
@plugin.IOgPTPPlugin    1040.3
|IOEthernetAVB!C    1.1.0
@kext.triggers    1.0
>!AHIDKeyboard    228.2
@kext.AMDRadeonX4000HWLibs    1.0
|IOAccelerator!F2    462.8
>DspFuncLib    340.2
@kext.OSvKernDSPLib    529
>!UAudio    416.2
>!AAudioClockLibs    140.1
@kext.AMDRadeonX4000HWServices    4.0.8
>!ASMBus!C    1.0.18d1
>!AHDA!C    340.2
|IOHDA!F    340.2
|IOAudio!F    340.2
@vecLib.kext    1.2.0
>!ASMBusPCI    1.0.14d1
>!AGraphicsControl    6.5.7
|IOFireWire!F    4.8.3
|IO!BSerialManager    9.0.0
|IO!BPacketLogger    9.0.0
|IO!BHost!CUSBTransport    9.0.0
|IO!BHost!CUARTTransport    9.0.0
|IO!BHost!CTransport    9.0.0
>IO!BHost!CPCIeTransport    9.0.0
|CSR!BHost!CUSBTransport    9.0.0
|Broadcom!BHost!CUSBTransport    9.0.0
|Broadcom!B20703USBTransport    9.0.0
>!AIPAppender    1.0
|IONDRVSupport    597
@kext.AMDSupport    4.0.8
@!AGPUWrangler    6.5.7
@!AGraphicsDeviceControl    6.5.7
|IOGraphics!F    597
|IOSlowAdaptiveClocking!F    1.0.0
>IOPlatformPluginLegacy    1.0.0
>IOPlatformPlugin!F    6.0.0d8
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>usb.!UHub    1.2
>!ABSDKextStarter    3
|IOSurface    302.14
@filesystems.hfs.encodings.kext    1
|IOSCSIMultimediaCommandsDevice    456.140.3
|IOBD!S!F    1.8
|IODVD!S!F    1.8
|IOCD!S!F    1.8
>!AXsanScheme    3
|IOAHCIBlock!S    333.140.2
|IOAHCISerialATAPI    270
|IO80211!FLegacy    1200.12.2b1
|IOSkywalk!F    1.0
>mDNSOffloadUserClient    1.0.1b8
>corecapture    1.0.4
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
|IOAHCI!F    297
>usb.!UEHCIPCI    1.2
>usb.!UUHCIPCI    1.2
>usb.!UUHCI    1.2
>usb.!UEHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
|IOSMBus!F    1.1
|IOHID!F    2.0.0
|IOTimeSync!F    1040.3
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    9.0.0
|IOReport!F    47
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
|CoreAnalytics!F    1
>!ASSE    1.0
>!AKeyStore    2
>!UTDM    533.120.2
|IOUSBMass!SDriver    210.120.3
|IOSCSIBlockCommandsDevice    456.140.3
|IO!S!F    2.1
|IOSCSIArchitectureModel!F    456.140.3
>!AMobileFileIntegrity    1.0.5
$!AImage4    4.2.0
@kext.CoreTrust    1
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.Libm    1
@kec.corecrypto    12.0



[tsialex]

Just had another KP, I was away from my desk again so I have no idea what caused it. It might be the screensaver, though the screensaver seems to work ok when I'm here. The other thing I'm questioning is Parallels, which I usually have running in the background with Windows10.

when I came back to the desk. the screen was black, computer light still on, no response to keyboard or mouse. When I hit the power button I didn't have to hold it down in order to turn off, one click shut off the computer immediately.

Regarding Boot up, this time I Used cmd-V to see the verbose screen, which goes too fast to read anyway. Main reason is because I read on the Monterey thread that people who have been having problems booting are somehow able to avoid the boot up problems by booting in verbose mode.


In case anyone can make sense out of it, here is KP report:

Spoiler: KP Error Report

panic(cpu 12 caller 0xffffff8019b7999f): userspace watchdog timeout: no successful checkins from logd in 120 seconds
service returned not alive with context : unresponsive dispatch queue(s): com.apple.firehose.io-wl
service: logd, total successful checkins since load (142132 seconds ago): 14202, last successful checkin: 120 seconds ago
service: WindowServer, total successful checkins since load (142102 seconds ago): 14198, last successful checkin: 120 seconds ago
service: opendirectoryd, total successful checkins since load (142132 seconds ago): 14213, last successful checkin: 0 seconds ago

Panicked task 0xffffff8bb39ec700: 4 threads: pid 131: watchdogd
Backtrace (CPU 12), panicked thread: 0xffffff9a14354540, Frame : Return Address
0xffffffd100133690 : 0xffffff801667fd6d
0xffffffd1001336e0 : 0xffffff80167e1086
0xffffffd100133720 : 0xffffff80167d03f3
0xffffffd100133770 : 0xffffff801661fa70
0xffffffd100133790 : 0xffffff801668013d
0xffffffd1001338b0 : 0xffffff801667f8f6
0xffffffd100133910 : 0xffffff8016f14ec3
0xffffffd100133a00 : 0xffffff8019b7999f
0xffffffd100133a10 : 0xffffff8019b795f2
0xffffffd100133a30 : 0xffffff8019b78971
0xffffffd100133b60 : 0xffffff8016e8365c
0xffffffd100133cc0 : 0xffffff8016786d86
0xffffffd100133dd0 : 0xffffff801665a9ab
0xffffffd100133e60 : 0xffffff80166711a9
0xffffffd100133ef0 : 0xffffff80167b305a
0xffffffd100133fa0 : 0xffffff8016620256
      Kernel Extensions in backtrace:
         com.apple.driver.watchdog(1.0)[8BE4EE7F-9150-3161-BE84-36874BF82DE2]@0xffffff8019b77000->0xffffff8019b79fff

Process name corresponding to current thread (0xffffff9a14354540): watchdogd
Boot args: chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
21G83

Kernel version:
Darwin Kernel Version 21.6.0: Wed Aug 10 14:25:27 PDT 2022; root:xnu-8020.141.5~2/RELEASE_X86_64
Kernel UUID: D0DC2052-71F4-3DCB-B189-BEE5A59B3B42
KernelCache slide: 0x0000000016400000
KernelCache base:  0xffffff8016600000
Kernel slide:      0x0000000016410000
Kernel text base:  0xffffff8016610000
__HIB  text base: 0xffffff8016500000
System model name: MacPro5,1 (Mac-27AD2F918AE68F61)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 142138267281026
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000814624ee3074
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x0000002472d5b260 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff8078b3f000 - 0xffffffa078b3f000
  . PGZ   : 0xffffff8078b3f000 - 0xffffff8084b40000
  . VM    : 0xffffff8084b40000 - 0xffffff854fb3f000
  . RO    : 0xffffff854fb3f000 - 0xffffff86e8b3f000
  . GEN0  : 0xffffff86e8b3f000 - 0xffffff8bb3b3f000
  . GEN1  : 0xffffff8bb3b3f000 - 0xffffff907eb3f000
  . GEN2  : 0xffffff907eb3f000 - 0xffffff9549b3f000
  . GEN3  : 0xffffff9549b3f000 - 0xffffff9a14b3f000
  . DATA  : 0xffffff9a14b3f000 - 0xffffffa078b3f000
  Metadata: 0xffffffd8be239000 - 0xffffffd8de239000
  Bitmaps : 0xffffffd8de239000 - 0xffffffd8fe239000

last started kext at 137108348335047: @filesystems.udf    2.5 (addr 0xffffff7fafbb8000, size 208896)
last stopped kext at 141986177814009: @filesystems.cd9660    1.4.4 (addr 0xffffff7fafa89000, size 28672)
loaded kexts:
com.parallels.kext.netbridge    17.1.2 51548
com.parallels.kext.vnic    17.1.2 51548
com.parallels.kext.hypervisor    17.1.2 51548
com.parallels.kext.usbconnect    17.1.2 51548
org.virtualbox.kext.VBoxNetFlt    6.1.34
org.virtualbox.kext.VBoxNetAdp    6.1.34
org.virtualbox.kext.VBoxUSB    6.1.34
org.virtualbox.kext.VBoxDrv    6.1.34
com.kensington.trackballworks.driver    1.5.0
com.lynxstudio.driver    1.0.60
com.khronokernel.FeatureUnlock    1.0.9
as.vit9696.WhateverGreen    1.6.1
as.vit9696.Lilu    1.6.2
@filesystems.udf    2.5
@filesystems.smbfs    4.0
>!AUpstreamUserClient    3.6.9
>!AMCCSControl    1.16
@kext.AMDFramebuffer    4.0.8
>AGPM    129
@filesystems.autofs    3.0
>!AMikeyHIDDriver    131
>!AMikeyDriver    340.2
@kext.AMDRadeonX4000    4.0.8
>AudioAUUC    1.70
>!AHDA    340.2
@kext.AMDRadeonServiceManager    4.0.8
>!AGFXHDA    140.3
>!ALPC    3.1
>!AGraphicsDevicePolicy    6.5.7
@AGDCPluginDisplayMetrics    6.5.7
>pmtelemetry    1
>!AFWOHCI    5.7.5
|IOUserEthernet    1.0.1
>usb.!UUserHCI    1
>!AHV    1
>!ADiskImages2    126.141.2
@kext.AMD9500!C    4.0.8
>!A!ISlowAdaptiveClocking    4.0.0
>ACPI_SMC_PlatformPlugin    1.0.0
>usb.!UHostBillboardDevice    1.0
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.lifs    1
@filesystems.hfs.kext    583.100.10
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
|SCSITaskUserClient    456.140.3
@filesystems.apfs    1934.141.2
>AirPort.BrcmNIC    1400.1.1
>!I82574LEthernet    2.7.2
>!AAHCIPort    351.100.4
@private.KextAudit    1.0
>!ARTC    2.0.1
>!AHPET    1.8
>!AACPIButtons    6.1
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
>!A!ICPUPowerManagementClient    222.0.0
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    402
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
@Dont_Steal_Mac_OS_X    7.0.0
>!A!ICPUPowerManagement    222.0.0
@kec.!AEncryptedArchive    1
>driverkit.serial    6.0.0
|IOSerial!F    11
|IOUSBUserClient    900.4.2
|IOAVB!F    1040.6
@plugin.IOgPTPPlugin    1040.3
|IOEthernetAVB!C    1.1.0
@kext.triggers    1.0
>!AHIDKeyboard    228.2
@kext.AMDRadeonX4000HWLibs    1.0
|IOAccelerator!F2    462.8
>DspFuncLib    340.2
@kext.OSvKernDSPLib    529
>!UAudio    416.2
>!AAudioClockLibs    140.1
@kext.AMDRadeonX4000HWServices    4.0.8
>!ASMBus!C    1.0.18d1
>!AHDA!C    340.2
|IOHDA!F    340.2
|IOAudio!F    340.2
@vecLib.kext    1.2.0
>!ASMBusPCI    1.0.14d1
>!AGraphicsControl    6.5.7
|IOFireWire!F    4.8.3
|IO!BSerialManager    9.0.0
|IO!BPacketLogger    9.0.0
|IO!BHost!CUSBTransport    9.0.0
|IO!BHost!CUARTTransport    9.0.0
|IO!BHost!CTransport    9.0.0
>IO!BHost!CPCIeTransport    9.0.0
|CSR!BHost!CUSBTransport    9.0.0
|Broadcom!BHost!CUSBTransport    9.0.0
|Broadcom!B20703USBTransport    9.0.0
>!AIPAppender    1.0
|IONDRVSupport    597
@kext.AMDSupport    4.0.8
@!AGPUWrangler    6.5.7
@!AGraphicsDeviceControl    6.5.7
|IOGraphics!F    597
|IOSlowAdaptiveClocking!F    1.0.0
>IOPlatformPluginLegacy    1.0.0
>IOPlatformPlugin!F    6.0.0d8
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>usb.!UHub    1.2
>!ABSDKextStarter    3
|IOSurface    302.14
@filesystems.hfs.encodings.kext    1
|IOSCSIMultimediaCommandsDevice    456.140.3
|IOBD!S!F    1.8
|IODVD!S!F    1.8
|IOCD!S!F    1.8
>!AXsanScheme    3
|IOAHCIBlock!S    333.140.2
|IOAHCISerialATAPI    270
|IO80211!FLegacy    1200.12.2b1
|IOSkywalk!F    1.0
>mDNSOffloadUserClient    1.0.1b8
>corecapture    1.0.4
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
|IOAHCI!F    297
>usb.!UEHCIPCI    1.2
>usb.!UUHCIPCI    1.2
>usb.!UUHCI    1.2
>usb.!UEHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
|IOSMBus!F    1.1
|IOHID!F    2.0.0
|IOTimeSync!F    1040.3
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    9.0.0
|IOReport!F    47
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
|CoreAnalytics!F    1
>!ASSE    1.0
>!AKeyStore    2
>!UTDM    533.120.2
|IOUSBMass!SDriver    210.120.3
|IOSCSIBlockCommandsDevice    456.140.3
|IO!S!F    2.1
|IOSCSIArchitectureModel!F    456.140.3
>!AMobileFileIntegrity    1.0.5
$!AImage4    4.2.0
@kext.CoreTrust    1
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.Libm    1
@kec.corecrypto    12.0

Most of the time, com.apple.driver.watchdog KPs are related to a stuck RTC, check the BR2032 battery.



[Dewdman42]

I just barely replaced that when you did my never-booted rom last year. how long do those last?
