I just barely replaced that when you did my never-booted rom last year. how long do those last?
10+ years for a real BR2032, some months for a CR2032.

Even if you have a recently installed BR2032, double check the voltage with a voltmeter/multimeter, you don't really know how much time the BR2032 was in storage. Disconnect the power cable from the PSU and carefully remove the battery and check the voltage - replace it whenever is below 3.00V. Doing this will completely reset the RTC SRAM after 5 minutes or so with the battery out of the battery holder and you will start with fresh RTC counters.

You should do it even if it's just to eliminate the RTC being the cause of the com.apple.driver.watchdog crashes - most of the time the RTC being stuck is the cause for com.apple.driver.watchdog KPs that happen right after the Mac Pro enters sleep (the 120s).


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
I'm in temporary housing at the moment so I won't be able to check the existing voltage any time soon. I will try to remove the battery to reset the clock in any case. I always have SLEEP set to "never", so I don't think that is related in my case...and I just put the BR2032 in last year...so its always possible that is the case and when I can check the voltage I will, but I also think that is not likely...and I think its not coincidental that this started happening since recently updating to 12.5.1. But I will look into the battery. thanks.


MacHosehead

macrumors member
May 21, 2022
83
54
I'm having issues with 12.5.1 even with fully supported Macs
I have updated my MacPro 3,1 & 5,1 to 12.5.1 with no issues so far. The incremental update wouldn't "take" on my hackintosh so I used the full installer. I'm wondering if there will be another update to fix the problems people are having with this one.


startergo

macrumors 603
Sep 20, 2018
5,022
2,283
Just had another KP, I was away from my desk again so I have no idea what caused it. It might be the screensaver, though the screensaver seems to work ok when I'm here. The other thing I'm questioning is Parallels, which I usually have running in the background with Windows10.

when I came back to the desk. the screen was black, computer light still on, no response to keyboard or mouse. When I hit the power button I didn't have to hold it down in order to turn off, one click shut off the computer immediately.

Regarding Boot up, this time I Used cmd-V to see the verbose screen, which goes too fast to read anyway. Main reason is because I read on the Monterey thread that people who have been having problems booting are somehow able to avoid the boot up problems by booting in verbose mode.


In case anyone can make sense out of it, here is KP report:
Code:
panic(cpu 12 caller 0xffffff8019b7999f): userspace watchdog timeout: no successful checkins from logd in 120 seconds
service returned not alive with context : unresponsive dispatch queue(s): com.apple.firehose.io-wl
service: logd, total successful checkins since load (142132 seconds ago): 14202, last successful checkin: 120 seconds ago
service: WindowServer, total successful checkins since load (142102 seconds ago): 14198, last successful checkin: 120 seconds ago
service: opendirectoryd, total successful checkins since load (142132 seconds ago): 14213, last successful checkin: 0 seconds ago

Panicked task 0xffffff8bb39ec700: 4 threads: pid 131: watchdogd
Backtrace (CPU 12), panicked thread: 0xffffff9a14354540, Frame : Return Address
0xffffffd100133690 : 0xffffff801667fd6d
0xffffffd1001336e0 : 0xffffff80167e1086
0xffffffd100133720 : 0xffffff80167d03f3
0xffffffd100133770 : 0xffffff801661fa70
0xffffffd100133790 : 0xffffff801668013d
0xffffffd1001338b0 : 0xffffff801667f8f6
0xffffffd100133910 : 0xffffff8016f14ec3
0xffffffd100133a00 : 0xffffff8019b7999f
0xffffffd100133a10 : 0xffffff8019b795f2
0xffffffd100133a30 : 0xffffff8019b78971
0xffffffd100133b60 : 0xffffff8016e8365c
0xffffffd100133cc0 : 0xffffff8016786d86
0xffffffd100133dd0 : 0xffffff801665a9ab
0xffffffd100133e60 : 0xffffff80166711a9
0xffffffd100133ef0 : 0xffffff80167b305a
0xffffffd100133fa0 : 0xffffff8016620256
      Kernel Extensions in backtrace:
         com.apple.driver.watchdog(1.0)[8BE4EE7F-9150-3161-BE84-36874BF82DE2]@0xffffff8019b77000->0xffffff8019b79fff

Process name corresponding to current thread (0xffffff9a14354540): watchdogd
Boot args: chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
21G83

Kernel version:
Darwin Kernel Version 21.6.0: Wed Aug 10 14:25:27 PDT 2022; root:xnu-8020.141.5~2/RELEASE_X86_64
Kernel UUID: D0DC2052-71F4-3DCB-B189-BEE5A59B3B42
KernelCache slide: 0x0000000016400000
KernelCache base:  0xffffff8016600000
Kernel slide:      0x0000000016410000
Kernel text base:  0xffffff8016610000
__HIB  text base: 0xffffff8016500000
System model name: MacPro5,1 (Mac-27AD2F918AE68F61)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 142138267281026
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x0000814624ee3074
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x0000002472d5b260 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff8078b3f000 - 0xffffffa078b3f000
  . PGZ   : 0xffffff8078b3f000 - 0xffffff8084b40000
  . VM    : 0xffffff8084b40000 - 0xffffff854fb3f000
  . RO    : 0xffffff854fb3f000 - 0xffffff86e8b3f000
  . GEN0  : 0xffffff86e8b3f000 - 0xffffff8bb3b3f000
  . GEN1  : 0xffffff8bb3b3f000 - 0xffffff907eb3f000
  . GEN2  : 0xffffff907eb3f000 - 0xffffff9549b3f000
  . GEN3  : 0xffffff9549b3f000 - 0xffffff9a14b3f000
  . DATA  : 0xffffff9a14b3f000 - 0xffffffa078b3f000
  Metadata: 0xffffffd8be239000 - 0xffffffd8de239000
  Bitmaps : 0xffffffd8de239000 - 0xffffffd8fe239000

last started kext at 137108348335047: @filesystems.udf    2.5 (addr 0xffffff7fafbb8000, size 208896)
last stopped kext at 141986177814009: @filesystems.cd9660    1.4.4 (addr 0xffffff7fafa89000, size 28672)
loaded kexts:
com.parallels.kext.netbridge    17.1.2 51548
com.parallels.kext.vnic    17.1.2 51548
com.parallels.kext.hypervisor    17.1.2 51548
com.parallels.kext.usbconnect    17.1.2 51548
org.virtualbox.kext.VBoxNetFlt    6.1.34
org.virtualbox.kext.VBoxNetAdp    6.1.34
org.virtualbox.kext.VBoxUSB    6.1.34
org.virtualbox.kext.VBoxDrv    6.1.34
com.kensington.trackballworks.driver    1.5.0
com.lynxstudio.driver    1.0.60
com.khronokernel.FeatureUnlock    1.0.9
as.vit9696.WhateverGreen    1.6.1
as.vit9696.Lilu    1.6.2
@filesystems.udf    2.5
@filesystems.smbfs    4.0
>!AUpstreamUserClient    3.6.9
>!AMCCSControl    1.16
@kext.AMDFramebuffer    4.0.8
>AGPM    129
@filesystems.autofs    3.0
>!AMikeyHIDDriver    131
>!AMikeyDriver    340.2
@kext.AMDRadeonX4000    4.0.8
>AudioAUUC    1.70
>!AHDA    340.2
@kext.AMDRadeonServiceManager    4.0.8
>!AGFXHDA    140.3
>!ALPC    3.1
>!AGraphicsDevicePolicy    6.5.7
@AGDCPluginDisplayMetrics    6.5.7
>pmtelemetry    1
>!AFWOHCI    5.7.5
|IOUserEthernet    1.0.1
>usb.!UUserHCI    1
>!AHV    1
>!ADiskImages2    126.141.2
@kext.AMD9500!C    4.0.8
>!A!ISlowAdaptiveClocking    4.0.0
>ACPI_SMC_PlatformPlugin    1.0.0
>usb.!UHostBillboardDevice    1.0
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.lifs    1
@filesystems.hfs.kext    583.100.10
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
|SCSITaskUserClient    456.140.3
@filesystems.apfs    1934.141.2
>AirPort.BrcmNIC    1400.1.1
>!I82574LEthernet    2.7.2
>!AAHCIPort    351.100.4
@private.KextAudit    1.0
>!ARTC    2.0.1
>!AHPET    1.8
>!AACPIButtons    6.1
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
>!A!ICPUPowerManagementClient    222.0.0
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    402
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
@Dont_Steal_Mac_OS_X    7.0.0
>!A!ICPUPowerManagement    222.0.0
@kec.!AEncryptedArchive    1
>driverkit.serial    6.0.0
|IOSerial!F    11
|IOUSBUserClient    900.4.2
|IOAVB!F    1040.6
@plugin.IOgPTPPlugin    1040.3
|IOEthernetAVB!C    1.1.0
@kext.triggers    1.0
>!AHIDKeyboard    228.2
@kext.AMDRadeonX4000HWLibs    1.0
|IOAccelerator!F2    462.8
>DspFuncLib    340.2
@kext.OSvKernDSPLib    529
>!UAudio    416.2
>!AAudioClockLibs    140.1
@kext.AMDRadeonX4000HWServices    4.0.8
>!ASMBus!C    1.0.18d1
>!AHDA!C    340.2
|IOHDA!F    340.2
|IOAudio!F    340.2
@vecLib.kext    1.2.0
>!ASMBusPCI    1.0.14d1
>!AGraphicsControl    6.5.7
|IOFireWire!F    4.8.3
|IO!BSerialManager    9.0.0
|IO!BPacketLogger    9.0.0
|IO!BHost!CUSBTransport    9.0.0
|IO!BHost!CUARTTransport    9.0.0
|IO!BHost!CTransport    9.0.0
>IO!BHost!CPCIeTransport    9.0.0
|CSR!BHost!CUSBTransport    9.0.0
|Broadcom!BHost!CUSBTransport    9.0.0
|Broadcom!B20703USBTransport    9.0.0
>!AIPAppender    1.0
|IONDRVSupport    597
@kext.AMDSupport    4.0.8
@!AGPUWrangler    6.5.7
@!AGraphicsDeviceControl    6.5.7
|IOGraphics!F    597
|IOSlowAdaptiveClocking!F    1.0.0
>IOPlatformPluginLegacy    1.0.0
>IOPlatformPlugin!F    6.0.0d8
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>usb.!UHub    1.2
>!ABSDKextStarter    3
|IOSurface    302.14
@filesystems.hfs.encodings.kext    1
|IOSCSIMultimediaCommandsDevice    456.140.3
|IOBD!S!F    1.8
|IODVD!S!F    1.8
|IOCD!S!F    1.8
>!AXsanScheme    3
|IOAHCIBlock!S    333.140.2
|IOAHCISerialATAPI    270
|IO80211!FLegacy    1200.12.2b1
|IOSkywalk!F    1.0
>mDNSOffloadUserClient    1.0.1b8
>corecapture    1.0.4
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
|IOAHCI!F    297
>usb.!UEHCIPCI    1.2
>usb.!UUHCIPCI    1.2
>usb.!UUHCI    1.2
>usb.!UEHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
|IOSMBus!F    1.1
|IOHID!F    2.0.0
|IOTimeSync!F    1040.3
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    9.0.0
|IOReport!F    47
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
|CoreAnalytics!F    1
>!ASSE    1.0
>!AKeyStore    2
>!UTDM    533.120.2
|IOUSBMass!SDriver    210.120.3
|IOSCSIBlockCommandsDevice    456.140.3
|IO!S!F    2.1
|IOSCSIArchitectureModel!F    456.140.3
>!AMobileFileIntegrity    1.0.5
$!AImage4    4.2.0
@kext.CoreTrust    1
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.Libm    1
@kec.corecrypto    12.0
What do you use these boot arguments for?


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
I didn't add those in my config.plist or anywhere else...I have no idea what they are or why they would be there.


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
I just did that yesterday. Nothing I have done has added those variables. Its possible the 12.5.1 update is stuffing stuff in there.


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
I will add that before today, I had my config.plist configured with boot-args completely removed. Today I added it back with "-v" (after the KP). When I look at nvram variables now I don't see anything other than "-v" in the boot args.

Before today I updated to 12.5.1, nothing else. Got KP. Then I cleared my NVRAM and loaded never-booted ROM and and after a day or so, another KP (report above). Now I changed my config.plist to use boo-args=-v" and we'll see what happens.


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
I have no idea what those variables are... I haven't installed anything that should be messing with boot-args.


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
See near the bottom of this page: https://steipete.com/posts/kernel-panic-surprise-boot-args/

chunklist-security-epoch=0 -chunklist-no-rev2-dev — I link these together because they sound related, and they often show up in combination in random kernel panic reports. Apparently they have to do with EFI signatures.

My guess is that when you get a KP, MacOS inserts those boot-args into the next boot in order to display the crash report. Something like that...

"EFI signatures", what's that about..?


startergo

macrumors 603
Sep 20, 2018
5,022
2,283
See near the bottom of this page: https://steipete.com/posts/kernel-panic-surprise-boot-args/



My guess is that when you get a KP, MacOS inserts those boot-args into the next boot in order to display the crash report. Something like that...

"EFI signatures", what's that about..?

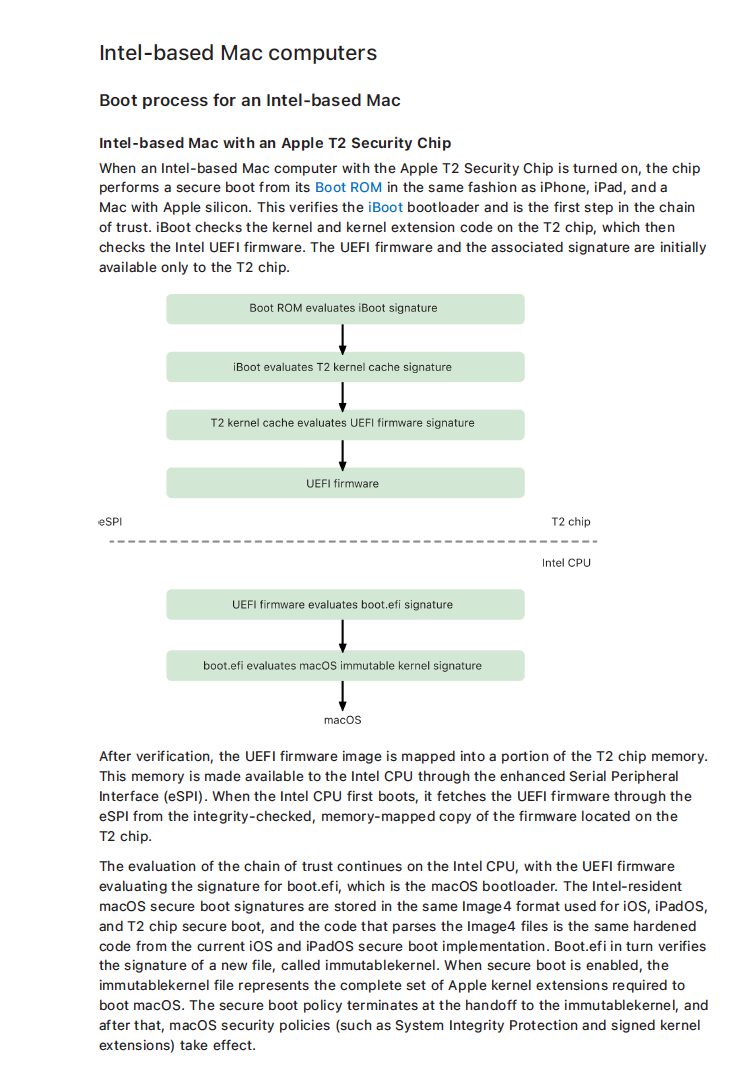

Something related to security:
Using an online signing server also provides better protection against rollback attacks than typical global signature approaches. In a global signing system, the security epoch could have rolled many times, but a system that has never seen the latest firmware won’t know this. For example, a computer that currently believes it’s in security epoch 1 accepts software from security epoch 2, even if the current actual security epoch is 5. With an Apple silicon online signing system, the signing server can reject creating signatures for software that’s in anything except the latest security epoch.


Additionally, if an attacker discovers a vulnerability after a security epoch change, they can’t simply pick up the vulnerable software from a previous epoch off system A and apply it to system B in order to attack it. The fact that the vulnerable software from an older epoch was personalized to system A helps prevent it from being transferable and thus being used to attack a system B. All these mechanisms work together to provide much stronger guarantees that attackers can’t purposely place vulnerable software on a Mac in order to circumvent the protections provided by the latest software. But a user that’s in possession of an administrator user name and password for the Mac can always choose the security policy that works best for their use cases.



Last edited:

Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
12.5.1 was allegedly a rushed out update, along with an update for iOS...related to some kind of urgent security hole Apple found...I read that somewhere. Dunno...Something is Amiss, that's all I can say... Is apple now doing something that has broken OpenCore under some situations?


tsialex

Contributor
Jun 13, 2016
13,455
13,601
It's not just me and @Dewdman42 that had 12.5.1/21G83 crashes, this PanicLog was extracted from the System Report of another user:

Code:
Panic (system crashes) log:

  Source:	/Library/Logs/DiagnosticReports/Kernel-2022-08-22-073941.panic
  Size:	4 KB (4.443 bytes)
  Last Modified:	22/08/22 01:39
  Recent Contents:	{"timestamp":"2022-08-22 07:39:41.00 +0300","bug_type":"210","os_version":"macOS 12.5.1 (21G83)","incident_id":"16528639-8A82-4C86-A63C-1EC798C35377"}
{"macOSProcessedStackshotData":"bm8gb24gZGlzayBvciBzbGVlcC93YWtlIGZhaWx1cmUgcGFuaWMgc3RhY2tzaG90IGZvdW5k","macOSPanicString":"mp_kdp_enter() timed-out on cpu 12, NMI-ing\nmp_kdp_enter() NMI pending on cpus: 0 14 15\nmp_kdp_enter() timed-out during locked wait after NMI;expected 24 acks but received 22 after 32206145 loops in 1662499788 ticks\npanic(cpu 12 caller 0xffffff800ada72f3): IPI timeout, unresponsive CPU bitmap: 0x4000, NMIPI acks: 0x0, now: 0x0, deadline: 5565255254, pre-NMIPI time: 0x14bb71129, current: 0x169847810, global: 1 @pmap.c:3064\nPanicked task 0xffffff953cc01350: 1 threads: pid 1: launchd\nBacktrace (CPU 12), panicked thread: 0xffffff8ba6550540, Frame : Return Address\n0xffffffd933f2b200 : 0xffffff800ac7fd6d \n0xffffffd933f2b250 : 0xffffff800ade1086 \n0xffffffd933f2b290 : 0xffffff800add03f3 \n0xffffffd933f2b2e0 : 0xffffff800ac1fa70 \n0xffffffd933f2b300 : 0xffffff800ac8013d \n0xffffffd933f2b420 : 0xffffff800ac7f8f6 \n0xffffffd933f2b480 : 0xffffff800b514e03 \n0xffffffd933f2b570 : 0xffffff800ada72f3 \n0xffffffd933f2b630 : 0xffffff800adae582 \n0xffffffd933f2b700 : 0xffffff800adaf311 \n0xffffffd933f2b750 : 0xffffff800ad37aa9 \n0xffffffd933f2b880 : 0xffffff800ad36f19 \n0xffffffd933f2b8e0 : 0xffffff800ad62719 \n0xffffffd933f2b920 : 0xffffff800af757a2 \n0xffffffd933f2ba90 : 0xffffff800df5e808 \n0xffffffd933f2bb40 : 0xffffff800af4fe19 \n0xffffffd933f2bc20 : 0xffffff800b22771a \n0xffffffd933f2bf40 : 0xffffff800b38918b \n0xffffffd933f2bfa0 : 0xffffff800ac20236 \n      Kernel Extensions in backtrace:\n         com.apple.filesystems.apfs(1934.141.2)[A4D6592B-135F-3622-BBFA-2FB698814463]@0xffffff800df07000->0xffffff800e085fff\n            dependency: com.apple.driver.AppleEFINVRAM(2.1)[7201FB4A-CE2A-3EDA-92DE-053285346974]@0xffffff800c1b2000->0xffffff800c1bbfff\n            dependency: com.apple.driver.AppleEffaceableStorage(1.0)[53D12D3C-8326-3B2E-8FD6-204D97AEEF08]@0xffffff800c1c8000->0xffffff800c1cdfff\n            dependency: com.apple.iokit.CoreAnalyticsFamily(1)[752EFEA5-C07D-3246-AC42-A2C447402B68]@0xffffff800c6d3000->0xffffff800c6dafff\n            dependency: com.apple.iokit.IOStorageFamily(2.1)[24743B95-072D-31C4-A59D-7FF38502C0C4]@0xffffff800d978000->0xffffff800d98efff\n            dependency: com.apple.kec.corecrypto(12.0)[864DE2A3-7343-32A3-AC76-68DF89128C87]@0xffffff800e0bf000->0xffffff800e13ffff\n            dependency: com.apple.security.AppleImage4(4.2.0)[C55B9734-D46F-3F23-9B96-13FD4402B872]@0xffffff800c24f000->0xffffff800c267fff\n\nProcess name corresponding to current thread (0xffffff8ba6550540): launchd\nBoot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0\n\nMac OS version:\nNot yet set\n\nKernel version:\nDarwin Kernel Version 21.6.0: Wed Aug 10 14:25:27 PDT 2022; root:xnu-8020.141.5~2\/RELEASE_X86_64\nKernel UUID: D0DC2052-71F4-3DCB-B189-BEE5A59B3B42\nKernelCache slide: 0x000000000aa00000\nKernelCache base:  0xffffff800ac00000\nKernel slide:      0x000000000aa10000\nKernel text base:  0xffffff800ac10000\n__HIB  text base: 0xffffff800ab00000\nSystem model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)\nSystem shutdown begun: NO\nPanic diags file unavailable, panic occurred prior to initialization\nHibernation exit count: 0\n\nSystem uptime in nanoseconds: 7065935898\nLast Sleep:           absolute           base_tsc          base_nano\n  Uptime  : 0x00000001a529a816\n  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000\n  Wake    : 0x0000000000000000 0x00000015f2070e52 0x0000000000000000\nCompressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space\nZone info:\n  Zone map: 0xffffff806bb40000 - 0xffffffa06bb40000\n  . PGZ   : 0xffffff806bb40000 - 0xffffff8077b41000\n  . VM    : 0xffffff8077b41000 - 0xffffff8542b40000\n  . RO    : 0xffffff8542b40000 - 0xffffff86dbb40000\n  . GEN0  : 0xffffff86dbb40000 - 0xffffff8ba6b40000\n  . GEN1  : 0xffffff8ba6b40000 - 0xffffff9071b40000\n  . GEN2  : 0xffffff9071b40000 - 0xffffff953cb40000\n  . GEN3  : 0xffffff953cb40000 - 0xffffff9a07b40000\n  . DATA  : 0xffffff9a07b40000 - 0xffffffa06bb40000\n  Metadata: 0xffffffa06bb50000 - 0xffffffa08bb50000\n  Bitmaps : 0xffffffa08bb50000 - 0xffffffa0abb50000\n\n\n\n"}

I really hate this compressed form.

Edit: changed the \n to newlines:

Code:
Panic (system crashes) log:

  Source:	/Library/Logs/DiagnosticReports/Kernel-2022-08-22-073941.panic
  Size:	4 KB (4.443 bytes)
  Last Modified:	22/08/22 01:39
  Recent Contents:	{"timestamp":"2022-08-22 07:39:41.00 +0300","bug_type":"210","os_version":"macOS 12.5.1 (21G83)","incident_id":"16528639-8A82-4C86-A63C-1EC798C35377"}
{"macOSProcessedStackshotData":"bm8gb24gZGlzayBvciBzbGVlcC93YWtlIGZhaWx1cmUgcGFuaWMgc3RhY2tzaG90IGZvdW5k","macOSPanicString":"mp_kdp_enter() timed-out on cpu 12, NMI-ing
mp_kdp_enter() NMI pending on cpus: 0 14 15
mp_kdp_enter() timed-out during locked wait after NMI;expected 24 acks but received 22 after 32206145 loops in 1662499788 ticks
panic(cpu 12 caller 0xffffff800ada72f3): IPI timeout, unresponsive CPU bitmap: 0x4000, NMIPI acks: 0x0, now: 0x0, deadline: 5565255254, pre-NMIPI time: 0x14bb71129, current: 0x169847810, global: 1 @pmap.c:3064
Panicked task 0xffffff953cc01350: 1 threads: pid 1: launchd
Backtrace (CPU 12), panicked thread: 0xffffff8ba6550540, Frame : Return Address
0xffffffd933f2b200 : 0xffffff800ac7fd6d
0xffffffd933f2b250 : 0xffffff800ade1086
0xffffffd933f2b290 : 0xffffff800add03f3
0xffffffd933f2b2e0 : 0xffffff800ac1fa70
0xffffffd933f2b300 : 0xffffff800ac8013d
0xffffffd933f2b420 : 0xffffff800ac7f8f6
0xffffffd933f2b480 : 0xffffff800b514e03
0xffffffd933f2b570 : 0xffffff800ada72f3
0xffffffd933f2b630 : 0xffffff800adae582
0xffffffd933f2b700 : 0xffffff800adaf311
0xffffffd933f2b750 : 0xffffff800ad37aa9
0xffffffd933f2b880 : 0xffffff800ad36f19
0xffffffd933f2b8e0 : 0xffffff800ad62719
0xffffffd933f2b920 : 0xffffff800af757a2
0xffffffd933f2ba90 : 0xffffff800df5e808
0xffffffd933f2bb40 : 0xffffff800af4fe19
0xffffffd933f2bc20 : 0xffffff800b22771a
0xffffffd933f2bf40 : 0xffffff800b38918b
0xffffffd933f2bfa0 : 0xffffff800ac20236
      Kernel Extensions in backtrace:
         com.apple.filesystems.apfs(1934.141.2)[A4D6592B-135F-3622-BBFA-2FB698814463]@0xffffff800df07000->0xffffff800e085fff
            dependency: com.apple.driver.AppleEFINVRAM(2.1)[7201FB4A-CE2A-3EDA-92DE-053285346974]@0xffffff800c1b2000->0xffffff800c1bbfff
            dependency: com.apple.driver.AppleEffaceableStorage(1.0)[53D12D3C-8326-3B2E-8FD6-204D97AEEF08]@0xffffff800c1c8000->0xffffff800c1cdfff
            dependency: com.apple.iokit.CoreAnalyticsFamily(1)[752EFEA5-C07D-3246-AC42-A2C447402B68]@0xffffff800c6d3000->0xffffff800c6dafff
            dependency: com.apple.iokit.IOStorageFamily(2.1)[24743B95-072D-31C4-A59D-7FF38502C0C4]@0xffffff800d978000->0xffffff800d98efff
            dependency: com.apple.kec.corecrypto(12.0)[864DE2A3-7343-32A3-AC76-68DF89128C87]@0xffffff800e0bf000->0xffffff800e13ffff
            dependency: com.apple.security.AppleImage4(4.2.0)[C55B9734-D46F-3F23-9B96-13FD4402B872]@0xffffff800c24f000->0xffffff800c267fff

Process name corresponding to current thread (0xffffff8ba6550540): launchd
Boot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0

Mac OS version:
Not yet set

Kernel version:
Darwin Kernel Version 21.6.0: Wed Aug 10 14:25:27 PDT 2022; root:xnu-8020.141.5~2\/RELEASE_X86_64
Kernel UUID: D0DC2052-71F4-3DCB-B189-BEE5A59B3B42
KernelCache slide: 0x000000000aa00000
KernelCache base:  0xffffff800ac00000
Kernel slide:      0x000000000aa10000
Kernel text base:  0xffffff800ac10000
__HIB  text base: 0xffffff800ab00000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file unavailable, panic occurred prior to initialization
Hibernation exit count: 0

System uptime in nanoseconds: 7065935898
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x00000001a529a816
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x00000015f2070e52 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
  Zone map: 0xffffff806bb40000 - 0xffffffa06bb40000
  . PGZ   : 0xffffff806bb40000 - 0xffffff8077b41000
  . VM    : 0xffffff8077b41000 - 0xffffff8542b40000
  . RO    : 0xffffff8542b40000 - 0xffffff86dbb40000
  . GEN0  : 0xffffff86dbb40000 - 0xffffff8ba6b40000
  . GEN1  : 0xffffff8ba6b40000 - 0xffffff9071b40000
  . GEN2  : 0xffffff9071b40000 - 0xffffff953cb40000
  . GEN3  : 0xffffff953cb40000 - 0xffffff9a07b40000
  . DATA  : 0xffffff9a07b40000 - 0xffffffa06bb40000
  Metadata: 0xffffffa06bb50000 - 0xffffffa08bb50000
  Bitmaps : 0xffffffa08bb50000 - 0xffffffa0abb50000



"}

  • Like
Reactions: OVERKILL338LM

startergo

macrumors 603
Sep 20, 2018
5,022
2,283
It looks like processor became unresponsive and missed 2 acks after which it panicked. Processor went out of sync.


w1z

macrumors 6502a
Aug 20, 2013
692
481
@tsialex @Dewdman42 I may have missed it but have you tried disabling the AVX/APFS patch?

The only minor issue I have been experiencing since updating to 12.5/.1 is with UVFSService (never seen or heard of it before) hogging the CPU until it is manually terminated. Occurs once and randomly after a fresh boot until the process is killed, not sure why.

Edit: Found the fix for UVFSService - https://www.reddit.com/r/MacOS/comments/rrwbfu

Last edited:
  • Wow
Reactions: dataharvested

cdf

macrumors 68020
Original poster
Jul 27, 2012
2,256
2,583
I may have missed it but have you tried disabling the AVX/APFS patch?
You may be onto something. When I originally installed 12.5.1 (clean install), I kept AVXpel disabled as a precautionary measure. I haven't had any issues with that installation, but it turns out that I also never re-enabled the patch...

  • Like
Reactions: Dewdman42

w1z

macrumors 6502a
Aug 20, 2013
692
481
You may be onto something. When I originally installed 12.5.1 (clean install), I kept AVXpel disabled as a precautionary measure. I haven't had any issues with that installation, but it turns out that I also never re-enabled the patch...

The debug log shared by @tsialex references APFS as the first line item in the backtrace which triggered the KP. It also reminded me of the KPs I had when AVX/APFS issues first came to light in 12.3 which the patch/kext resolved without reinstallation. I then decided to disable the patch before updating to 12.5, to see if it was still needed, and it has been smooth sailing since without it.


PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441
You may be onto something. When I originally installed 12.5.1 (clean install), I kept AVXpel disabled as a precautionary measure. I haven't had any issues with that installation, but it turns out that I also never re-enabled the patch...
Are you saying that AVXpel may be no longer necessary with 12.5.1+? If so, would that refer to the 12.5.1 install process or to running 12.5.1 itself? My Activity Monitor doesn't seem to contain a UVFSService line. What would that mean?

Last edited:

Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
You may be onto something. When I originally installed 12.5.1 (clean install), I kept AVXpel disabled as a precautionary measure. I haven't had any issues with that installation, but it turns out that I also never re-enabled the patch...
Have you tried the AVX test to see if its fine now without the patch?


Gustav Holdoff

macrumors regular
Oct 23, 2020
201
82
Have you tried the AVX test to see if its fine now without the patch?
I accidentally worked for several days without a patch and without a kext (I turned off the patch, thinking that I turned on the kext). but when before the next editing I saw that I turned everything off, I turned on the patch just in case
I didn't find any change in performance at all.


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
I accidentally worked for several days without a patch and without a kext (I turned off the patch, thinking that I turned on the kext). but when before the next editing I saw that I turned everything off, I turned on the patch just in case
I didn't find any change in performance at all.

Can you try this test: try enabling Voice Control (System Preferences > Accessibility > Voice Control).


Dewdman42

macrumors 6502a
Jul 25, 2008
513
103
You may be onto something. When I originally installed 12.5.1 (clean install), I kept AVXpel disabled as a precautionary measure. I haven't had any issues with that installation, but it turns out that I also never re-enabled the patch...

I am going to disable the patch until we hear more from syncretic about it. Its possible that this binary has changed in 12.5.1 resulting in only a partial patch, or who knows what.. Its clear to me that every new OS update from Apple from here on out is going to require a discovery period to find out if and when AVX is problematic...and potentially updating patches or other hacks to work around it. I also was never using voice control, though I have some concerns about boot up issues without the patch, but since you are now running with out the patch...really WTF knows...we are just making blind guesses now.

Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
