MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

tommy chen · May 3, 2020

@h9826790

for me it only uses os_mac.icns although the icon names are the same as yours
so I renamed the mojave icon to os_mac.icns

tsialex · May 4, 2020

OpenCore v0.5.8 released:

v0.5.8

Fixed invalid CPU object reference in SSDT-PLUG
Fixed incorrect utilities and resources packaging
Fixed Custom UpdateSMBIOSMode modifying SMBIOSv3 table
Updated docs to cover separating SMBIOS via UpdateSMBIOSMode
Fixed rendering macOS installer icons in OpenCanopy
Added APFS support with Fusion Drive and enhanced security
Added AppleEvent mouse support in OpenCanopy
Fixed AppleEvent and OpenCanopy compatibility with OVMF TPL restrictions
Added mouse drivers to the package as OVMF needs one
Added memory region reservation support
Added RtcRw tool to manipulate RTC memory
Added PatchAppleRtcChecksum kernel quirk
Added AppleRtcRam protocol implementation
Renamed Protocols to ProtocolOverrides for clarity
Added ResetSystem tool to allow shutdown/reset actions in the menu
Added experimental BootProtect Security option
Fixed kext injection in 10.8 installer
Added timeout support to OpenCanopy user interface
Fixed handling 24-bit screen resolutions
Added Ps2KeyboardDxe driver for DuetPkg
Updated BootInstall DuetPkg version (now opensource)
Added partial HiDPI support in OpenCanopy
Update builtin firmware
Fixed invalid checksum checks when creating vault (thx @dakanji)

TECK · May 4, 2020

@cdf 0.5.8 is out.

h9826790 · May 4, 2020

IndioX said:
@h9826790

for me it only uses os_mac.icns although the icon names are the same as yours
so I renamed the mojave icon to os_mac.icns

AFAIK, the icon assignment base on the drive's name.

If it contain the word Mojave (or may be part of it), then will use Mojave icon, otherwise, macOS icon.

You may test if this is correct.

cdf · May 4, 2020

The guide has been updated to OpenCore version 0.5.8.

leoaf79 · May 4, 2020

h9826790 said:
AFAIK, the icon assignment base on the drive's name.

If it contain the word Mojave (or may be part of it), then will use Mojave icon, otherwise, macOS icon.

You may test if this is correct.

Indeed, you have to rename the drives matching OS name: Catalina, Mojave or Bootcamp for Windows.

dataid · May 4, 2020

leoaf79 said:
Wow, what a nice background picture. Would you share it?

So, I have to rename the drivers, right? I didn't get that before.

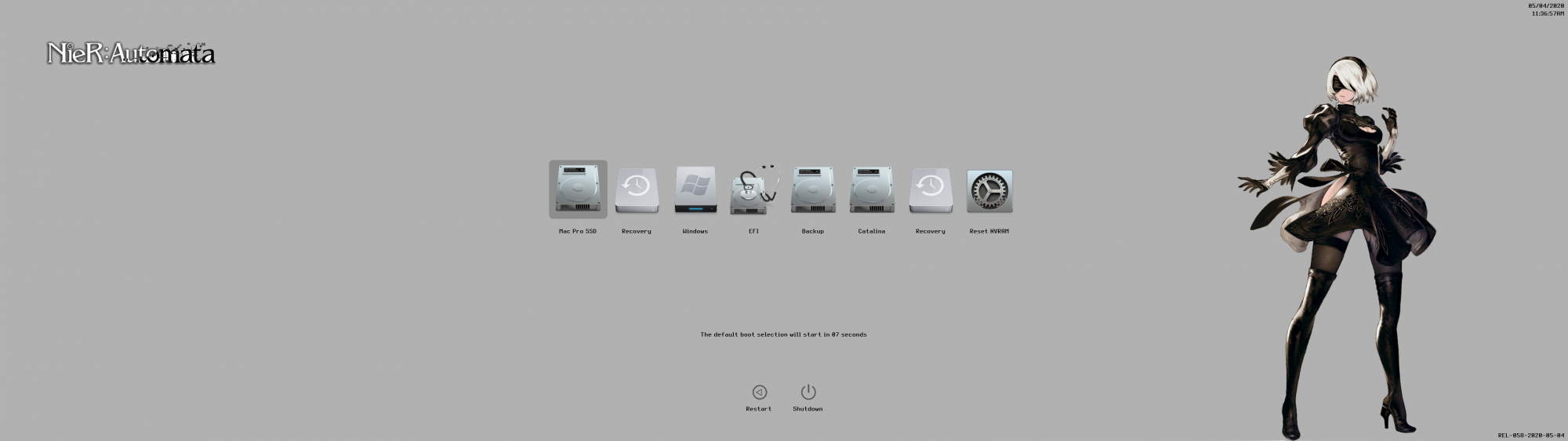

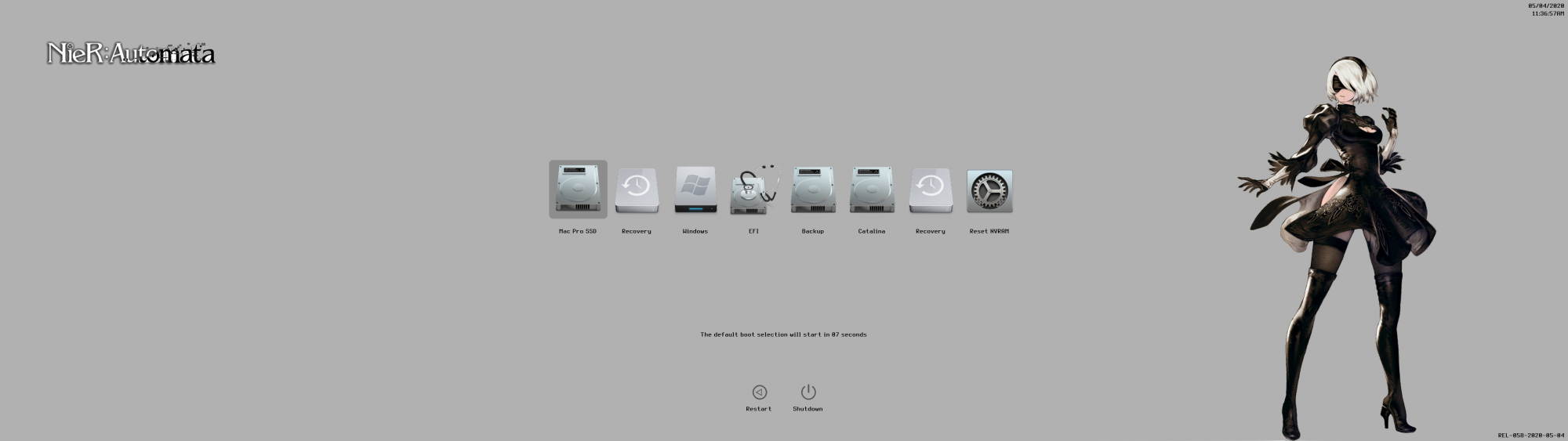

Attached is the background picture I am using for NDK BootPicker, it is 1920x1200 pixels, you may have to re-size it for your monitor resolution. I used Apple's Preview for resizing. I also included an improved graphic for the pointer. This version is black with a white outline and shadowing. This gives the pointer improved visibility when over any background.

zozomester · May 4, 2020

Has anyone already done Opencore 0.5.8 for cMP and OpenCore 0.5.8 NdkBootPicker?
Thank!

lbuisson · May 4, 2020

leoaf79 said:
Wow, what a nice background picture. Would you share it?

So, I have to rename the drivers, right? I didn't get that before.

You will find in my original post (bottom)

https://forums.macrumors.com/thread...80.2231649/page-2?post=28399065#post-28399065

TheSwissMatrix · May 4, 2020

h9826790 said:

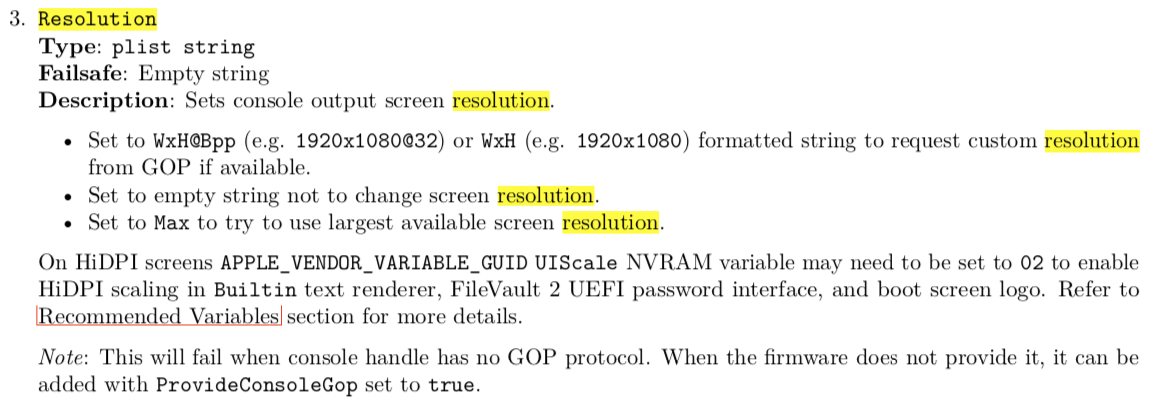

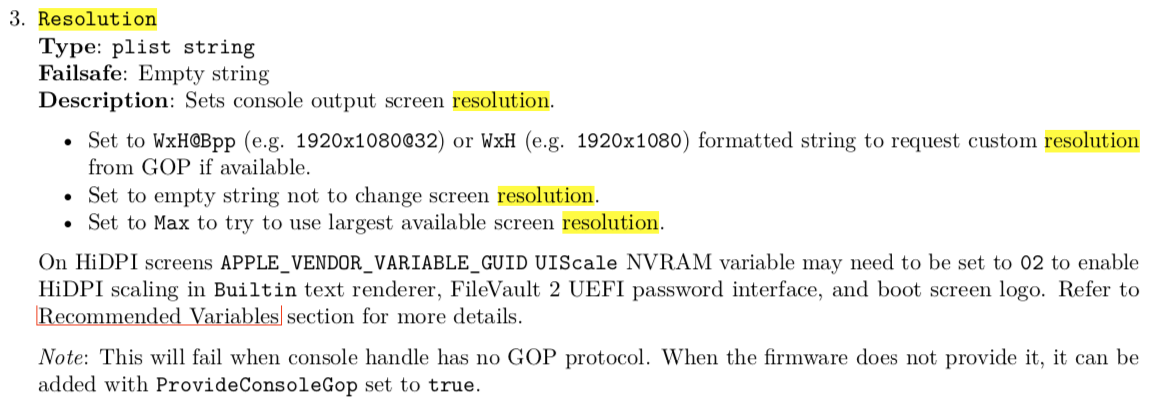

You may try force the resolution to 3840x1080
View attachment 911893

But if your WX9100's GOP can't do that, then nothing we can do.

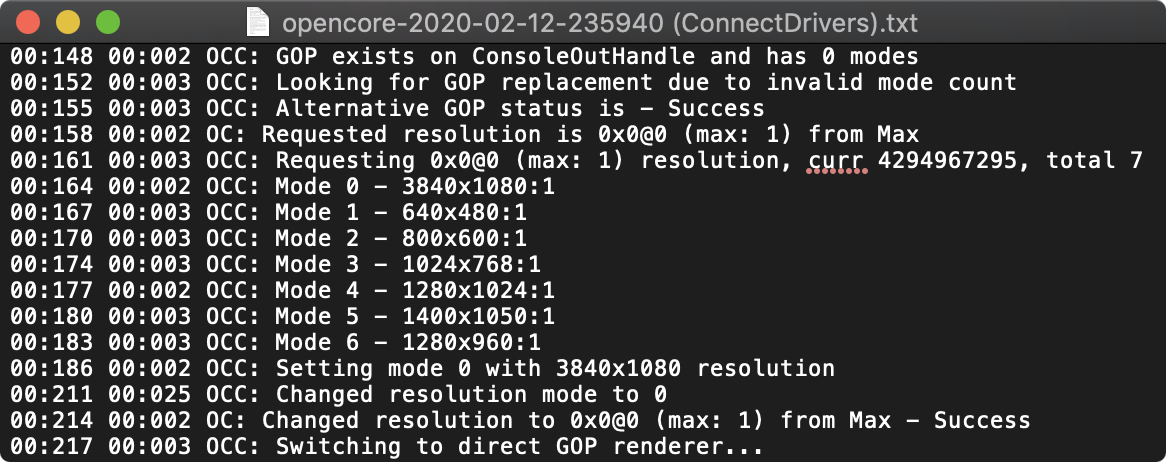

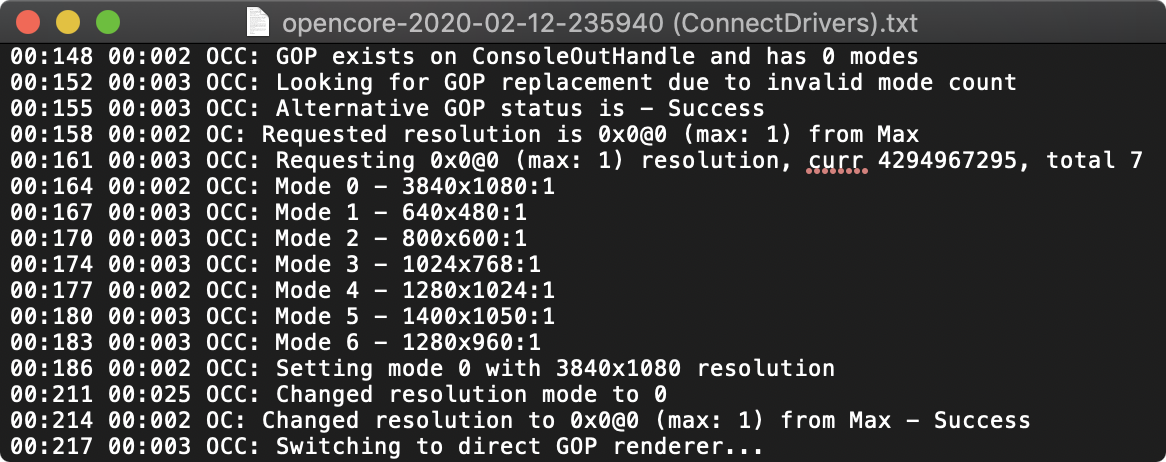

For your info, debug mode can log all the available resolutions.
View attachment 911895

You better use a USB drive to test this resolution settings. In case that cause black screen or system hang, you can simply remove the USB drive and use your current setup.

That NVMe patching is to make it shows up as internal drive.

Thank you very much for your answer.
I have already tried to force to the resolution 3840x1080 but unfortunately this did not help.
My log writes the following:
01:300 00:032 OCC: GOP exists on ConsoleOutHandle and has 0 modes
01:311 00:010 OCC: Looking for GOP replacement due to invalid mode count
01:322 00:011 OCC: Alternative GOP status is - Success
01:332 00:010 OC: Requested resolution is 0x0@0 (max: 1) from Max
01:344 00:011 OCC: Requesting 0x0@0 (max: 1) resolution, curr 4294967295, total 5
01:354 00:010 OCC: Mode 0 - 1280x1024:1
01:364 00:010 OCC: Mode 1 - 640x480:1
01:375 00:010 OCC: Mode 2 - 800x600:1
01:386 00:011 OCC: Mode 3 - 1024x768:1
01:400 00:013 OCC: Mode 4 - 1280x960:1
01:410 00:010 OCC: Setting mode 0 with 1280x1024 resolution
01:448 00:038 OCC: Changed resolution mode to 0
01:459 00:010 OC: Changed resolution to 0x0@0 (max: 1) from Max - Success

It seems that the Radeon Pro WX9100 doesn't work with this resolution... It's a pity, but it's only an esthetic point and the actual (the boot screen) works very well. So I am very satisfied for this.
Thank you for your help.

hwojtek · May 4, 2020

TheSwissMatrix said:
It's a pity, but it's only an esthetic point and the actual (the boot screen) works very well.

Try to make your icons 3 times narrower without touching the height.

startergo · May 4, 2020

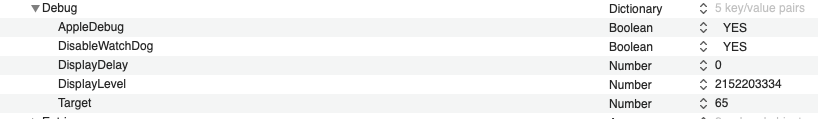

Interesting... 0.5.8 release version provides some debug logging when logging is enabled. No need to replace with full debug version for troubleshooting.

00:000 00:000 OCE: Registered custom GUI protocol
00:362 00:362 OCUI: Performing OcScanForBootEntries...
00:395 00:033 OCB: Found 20 potentially bootable filesystems
00:430 00:035 OCB: Filesystem 0 (759E8798) named EFI (Not Found) has 0 entries
00:477 00:046 OCB: Filesystem 1 (759E8418) named High Sierra (Success) has 1 entries
00:520 00:043 OCB: Filesystem 2 (759E8198) named Recovery HD (Success) has 1 entries
00:553 00:033 OCB: Filesystem 3 (759E0F18) named Refind (Success) has 1 entries
00:587 00:033 OCB: Filesystem 4 (7549AE18) named EFI (Not Found) has 0 entries
00:632 00:045 OCB: Filesystem 5 (74600C18) named EFI (Not Found) has 0 entries
00:670 00:037 OCB: Filesystem 6 (741A7E98) named EFI (Not Found) has 0 entries
00:703 00:033 OCB: Filesystem 7 (73293598) named EFI (Not Found) has 0 entries
00:744 00:041 OCB: Filesystem 8 (73293318) named SierraSSD (Not Found) has 0 entries
00:793 00:048 OCB: Filesystem 9 (72464B98) named Preboot (Success) has 1 entries
00:837 00:043 OCB: Filesystem 10 (72464618) named CAT2 - Data (Not Found) has 0 entries
00:879 00:041 OCB: Filesystem 11 (72464098) named Recovery (Not Found) has 0 entries
00:912 00:033 OCB: Filesystem 12 (71B05B18) named VM (Not Found) has 0 entries
00:946 00:033 OCB: Filesystem 13 (71B05598) named CAT2 (Not Found) has 0 entries
00:983 00:037 OCB: Filesystem 14 (71A92F18) named Preboot (Success) has 1 entries
01:020 00:037 OCB: Filesystem 15 (71A92998) named MojaveSSD (Not Found) has 0 entries
01:062 00:041 OCB: Filesystem 16 (71A92418) named Recovery (Not Found) has 0 entries
01:095 00:033 OCB: Filesystem 17 (71A53E98) named VM (Not Found) has 0 entries
01:128 00:033 OCB: Filesystem 18 (7549AA18) named WIN10NVME (Not Found) has 0 entries
01:161 00:033 OCB: Filesystem 19 (7549A818) named NO NAME (Not Found) has 0 entries
01:195 00:034 OCB: Adding entry 0, external - 0, skip recovery - 0
01:228 00:033 DevicePath - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,860087C0-6306-4753-9F12-34A1ACE33C56,0x64028,0x742E9290)/\System\Library\CoreServices\boot.efi
01:261 00:033 OCB: Adding entry 1, external - 0, recovery (<null>) - Not Found
01:295 00:034 OCB: Adding entry 1, external - 0, skip recovery - 0
01:328 00:033 DevicePath - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(3,GPT,355CDF59-D5B2-49BE-8359-CD12836001A3,0x7434D2B8,0x135F20)/\com.apple.recovery.boot\boot.efi
01:361 00:033 OCB: Adding entry 2, external - 0, recovery (<null>) - Not Found
01:394 00:033 Skipping equal alternate device path 759E8198
01:428 00:034 OCB: Adding entry 2, external - 0, skip recovery - 0
01:470 00:041 DevicePath - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(4,GPT,8475B9E7-22E9-4B61-B17B-9CEFEEE18667,0x744831D8,0x243BB0)/\System\Library\CoreServices\boot.efi
01:512 00:042 OCB: Adding entry 3, external - 0, recovery (<null>) - Not Found
01:553 00:041 OCB: Adding entry 3, external - 0, skip recovery - 0
01:586 00:033 DevicePath - PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3ED82950160EB41B1D19E1271DEEAB5)/\16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
01:626 00:039 OCB: Adding entry 4, external - 0, recovery (\16E4A6AB-1134-4AC5-AB60-115323676F86\) - Success
01:669 00:043 OCB: Adding entry 5, external - 0, skip recovery - 0
01:704 00:034 DevicePath - PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8C29C86F-7E0B-47C8-93AD-2D9D409DA583,0x64028,0x1BEC0460)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2A3DC8E360E6124D83290186B6B8CEAE)/\39478632-04D5-3449-A309-89B5FD1BBD12\System\Library\CoreServices\boot.efi
01:740 00:036 OCB: Adding entry 6, external - 0, recovery (\39478632-04D5-3449-A309-89B5FD1BBD12\) - Success
01:786 00:046 OCB: Scanning got 7 entries
01:828 00:042 OCBM: Trying to get label from \System\Library\CoreServices\.contentDetails
01:862 00:033 OCBM: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
01:905 00:043 OCB: Entry 0 is High Sierra at \System\Library\CoreServices\ (T:2|F:0)
01:953 00:048 OCB: Entry 0 is High Sierra at dp PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,860087C0-6306-4753-9F12-34A1ACE33C56,0x64028,0x742E9290)/\System\Library\CoreServices\boot.efi
01:995 00:041 OCBM: Trying to get label from \com.apple.recovery.boot\.contentDetails
02:028 00:033 OCBM: Trying to get label from \com.apple.recovery.boot\.disk_label.contentDetails
02:062 00:034 Trying to get recovery from \com.apple.recovery.boot\SystemVersion.plist
02:117 00:055 OCB: Entry 1 is Recovery 10.13.6 at \com.apple.recovery.boot\ (T:4|F:0)
02:177 00:059 OCB: Entry 1 is Recovery 10.13.6 at dp PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(3,GPT,355CDF59-D5B2-49BE-8359-CD12836001A3,0x7434D2B8,0x135F20)/\com.apple.recovery.boot\boot.efi
02:211 00:034 OCBM: Trying to get label from \System\Library\CoreServices\.contentDetails
02:244 00:033 OCBM: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
02:298 00:053 OCB: Entry 2 is Refind at \System\Library\CoreServices\ (T:2|F:0)
02:362 00:063 OCB: Entry 2 is Refind at dp PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(4,GPT,8475B9E7-22E9-4B61-B17B-9CEFEEE18667,0x744831D8,0x243BB0)/\System\Library\CoreServices\boot.efi
02:410 00:048 OCBM: Trying to get label from \16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\.contentDetails
02:455 00:045 OCBM: Trying to get label from \16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\.disk_label.contentDetails
02:507 00:052 OCB: Entry 3 is CAT2 at \16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\ (T:2|F:0)
02:561 00:053 OCB: Entry 3 is CAT2 at dp PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3ED82950160EB41B1D19E1271DEEAB5)/\16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
02:615 00:054 OCBM: Trying to get label from \16E4A6AB-1134-4AC5-AB60-115323676F86\.contentDetails
02:654 00:038 OCBM: Trying to get label from \16E4A6AB-1134-4AC5-AB60-115323676F86\.disk_label.contentDetails
02:696 00:041 Trying to detect Microsoft BCD
02:736 00:040 Trying to get recovery from \16E4A6AB-1134-4AC5-AB60-115323676F86\SystemVersion.plist
02:773 00:037 OCB: Entry 4 is Recovery 10.15.4 at \16E4A6AB-1134-4AC5-AB60-115323676F86\ (T:4|F:1)
02:812 00:038 OCB: Entry 4 is Recovery 10.15.4 at dp PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C1948E91E6023498178A5F77BD086D9)/\16E4A6AB-1134-4AC5-AB60-115323676F86\
02:848 00:035 OCBM: Trying to get label from \39478632-04D5-3449-A309-89B5FD1BBD12\System\Library\CoreServices\.contentDetails
02:894 00:046 OCB: Entry 5 is MojaveSSD at \39478632-04D5-3449-A309-89B5FD1BBD12\System\Library\CoreServices\ (T:2|F:0)
02:937 00:042 OCB: Entry 5 is MojaveSSD at dp PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8C29C86F-7E0B-47C8-93AD-2D9D409DA583,0x64028,0x1BEC0460)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2A3DC8E360E6124D83290186B6B8CEAE)/\39478632-04D5-3449-A309-89B5FD1BBD12\System\Library\CoreServices\boot.efi
03:006 00:069 OCBM: Trying to get label from \39478632-04D5-3449-A309-89B5FD1BBD12\.contentDetails
03:046 00:039 OCBM: Trying to get label from \39478632-04D5-3449-A309-89B5FD1BBD12\.disk_label.contentDetails
03:103 00:057 Trying to detect Microsoft BCD
03:170 00:067 Trying to get recovery from \39478632-04D5-3449-A309-89B5FD1BBD12\SystemVersion.plist
03:216 00:045 OCB: Entry 6 is Recovery 10.14.6 at \39478632-04D5-3449-A309-89B5FD1BBD12\ (T:4|F:1)
03:253 00:037 OCB: Entry 6 is Recovery 10.14.6 at dp PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8C29C86F-7E0B-47C8-93AD-2D9D409DA583,0x64028,0x1BEC0460)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,703C0BE24E90044ABF4A89617AFE5EEC)/\39478632-04D5-3449-A309-89B5FD1BBD12\
03:286 00:033 OCB: Custom entry 7 is W
03:320 00:034 OCB: Custom entry 8 is W
03:353 00:033 OCB: Performing OcShowSimpleBootMenu... 0 - 13 entries found
03:386 00:033 OCB: BootNext has not been found
03:420 00:034 OCB: efi-boot-device-data = PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8C29C86F-7E0B-47C8-93AD-2D9D409DA583,0x64028,0x1BEC0460)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2A3DC8E360E6124D83290186B6B8CEAE)/\39478632-04D5-3449-A309-89B5FD1BBD12\System\Library\CoreServices\boot.efi
03:453 00:033 OCB: efi-backup-boot-device-data - Success
03:486 00:033 OCB: efi-apple-recovery-data - Not Found
03:519 00:033 OCB: Dumping BootOrder
03:553 00:034 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3ED82950160EB41B1D19E1271DEEAB5)/\16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
03:586 00:033 OCB: Predefined list
03:619 00:033 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3ED82950160EB41B1D19E1271DEEAB5)/\16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
03:654 00:034 OCB: 1 -> Boot0081 - failed to read
03:687 00:033 OCB: 2 -> Boot0082 - failed to read
03:720 00:033 OCB: Predefined list
03:753 00:033 OCB: Default DP pre-fix - PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3ED82950160EB41B1D19E1271DEEAB5)/\16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
03:787 00:034 OCB: Default DP post-fix - PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3ED82950160EB41B1D19E1271DEEAB5)/\16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
03:820 00:033 OCB: Default DP post-fix remainder - \16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
03:853 00:033 OCB: Matched default boot option: CAT2
03:886 00:033 OCB: Initial default is 3
03:920 00:034 OCUI: FileSystem Found!
03:953 00:033 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
03:986 00:033 OCC: Mode 0 - 1680x1050:1
04:020 00:034 OCC: Current mode matches desired mode 0
04:068 00:048 OCUI: Initialize Graphic Screen...Success
04:291 00:222 OCUI: No PointerSpeed setting found! - Not Found
14:413 10:122 OCUI: Select to boot from CAT2 (T:2|F:0)
14:461 00:048 OCB: Perform boot CAT2 to dp PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,7A3D4CD7-9125-462E-9227-E7DE645E5EAB,0x64028,0xDEF0B60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,C3ED82950160EB41B1D19E1271DEEAB5)/\16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi (0/0)
14:512 00:050 OCB: Matching <> args on type 2 0
14:552 00:040 AAPL: [EB|#LOG:INIT] 2020-05-04T21:33:26
14:586 00:034 AAPL: [EB|#VERSION] boot.efi 422.100.16~12 (Official), built 2020-02-29T00:57:17-0800
14:619 00:033 AAPL: [EB|#BUILD] BUILD-INFO[302]:{"DisplayName":"boot.efi","DisplayVersion":"422.100.16~12","RecordUuid":"AAF42922-13FE-44A3-A69C-7D0198F7BFA2","BuildTime":"2020-02-29T00:57:17-0800","ProjectName":"efiboot","ProductName":"boot.efi","SourceVersion":"422.100.16","BuildVersion":"12","BuildConfiguration":"Release","BuildType":"Official"}
14:652 00:033 AAPL: [EB|`H:IS] Err(0xE) @ GV boot-signature
14:686 00:034 AAPL: [EB|`H:IS] Err(0xE) @ GV boot-image-key
14:719 00:033 AAPL: [EB|#H:IS] 0
14:752 00:033 AAPL: [EB|#WL:MODE] 0
14:786 00:034 AAPL: [EB|#CONFIG:SRC] <default>
14:819 00:033 AAPL: [EB|#CONFIG| 0] boot-save-log : 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) <default>
14:852 00:033 AAPL: [EB|#CONFIG| 1] wake-save-log : 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) <default>
14:885 00:033 AAPL: [EB|#CONFIG| 2] console : 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) <default>
14:919 00:034 AAPL: [EB|#CONFIG| 3] serial : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
14:953 00:033 AAPL: [EB|#CONFIG| 4] embed-log-dt : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
14:986 00:033 AAPL: [EB|#CONFIG| 5] timestamps : 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) <default>
15:020 00:034 AAPL: [EB|#CONFIG| 6] log-level : 0x0000000000000001 (0x0000000000000001 & 0x0000000000000001) <default>
15:053 00:033 AAPL: [EB|#CONFIG| 7] breakpoint : 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) <default>
15:086 00:033 AAPL: [EB|#CONFIG| 8] kc-read-size : 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) <default>
15:119 00:033 AAPL: [EB|#WL|0] 0x01 0x01 0 0x00
15:153 00:034 AAPL: [EB|#BRD:SMBIOS] Mac-7BA5B2D9E42DDD94
15:186 00:033 AAPL: [EB|#WL|1] 0x01 0x01 2 0x00
15:219 00:033 AAPL: [EB|#B:RRVAR] 70cd6093a784
15:252 00:033 AAPL: [EB|#B:MLBVAR] J51473H3FBH9A
15:286 00:034 AAPL: [EB|`BST:IDT] {
15:331 00:044 AAPL: [EB|`BST:IDT] }
15:376 00:045 AAPL: [EB|#WL|2] 0x01 0x01 3 0x00
15:419 00:042 AAPL: [EB|#WL|3] 0x01 0x01 4 0x00
15:453 00:034 AAPL: [EB|#BRD:SMBIOS] Mac-7BA5B2D9E42DDD94
15:486 00:033 AAPL: [EB|#WL|4] 0x01 0x01 5 0x00
15:519 00:033 AAPL: [EB|`H:CHK] BM: 0x0000000000000000
15:553 00:034 AAPL: [EB|`H:CHK] Err(0xE) @ GV boot-signature
15:586 00:033 AAPL: [EB|#WL|5] 0x01 0x01 23 0x0E
15:619 00:033 AAPL: [EB|`H:CPM] Err(0xE), (24, 24) @ GV Persistent-memory-note
15:652 00:033 AAPL: [EB|`SB:EN] Err(0xE) @ LocP 24B73556-2197-4702-82A8-3E1337DAFBF2
15:686 00:034 AAPL: [EB|#LIMGP] Acpi(PNP0A03,0)/Pci(1|0)/Pci(0|0)/Pci(4|0)/Pci(0|0)/Pci(1|0)/Pci(0|0)/SATA(0,0)/HD(Part2,Sig7A3D4CD7-9125-462E-9227-E7DE645E5EAB)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842)
15:719 00:033 AAPL: [EB|#LIMG:FP] \16E4A6AB-1134-4AC5-AB60-115323676F86\System\Library\CoreServices\boot.efi
15:752 00:033 AAPL: [EB|#LIMG:OPT] ()
15:787 00:034 AAPL: [EB|`OPT:LXF] 'LF (\\16E4A6AB-1134-4AC5-AB60-115323676F86\\System\\Library\\CoreServices\\com.apple.Boot.plist)
15:826 00:039 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\16E4A6AB-1134-4AC5-AB60-115323676F86\\System\\Library\\CoreServices\\com.apple.Boot.plist, DP: 0
15:863 00:036 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (\\16E4A6AB-1134-4AC5-AB60-115323676F86\\System\\Library\\CoreServices\\com.apple.Boot.plist)
15:903 00:040 AAPL: [EB|`OPT:LXF] Err(0xE) @ 'LF
15:944 00:041 AAPL: [EB|`OPT:LXF] 'LF (Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist)
15:977 00:033 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist, DP: 0
16:013 00:035 AAPL: [EB:#KF] ()
16:053 00:040 AAPL: [EB|#MBA:CL] ()
16:094 00:041 AAPL: [EB|#MBA:NV] (agdpmod=pikera -no_compat_check no32exec=0 shikigva=144 debug=0x164 keepsyms=1 wegtree=1 keepsyms=1 debug=0x144)
16:135 00:041 AAPL: [EB|#MBA:KF] ()
16:169 00:034 AAPL: [EB|#MBA:OUT] (agdpmod=pikera -no_compat_check no32exec=0 shikigva=144 debug=0x164 keepsyms=1 wegtree=1)
16:202 00:033 AAPL: [EB|#OPT:BM] 0x84180
16:244 00:041 AAPL: [EB|`PCCPR] Err(0xE) @ GV AAPL,CoProcessorReboot
16:278 00:034 AAPL: [EB|`PCMOSP] Err(0xE) @ GV AAPL,PanicInfo0000 (0)
16:311 00:033 AAPL: [EB|`CS:CSKSD] {
16:344 00:033 AAPL: [EB|`CS:CSKSD] Err(0xE) @ GV 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF:boot-info-payload
16:377 00:033 AAPL: [EB|#WL|6] 0x01 0x01 6 0x0E
16:411 00:034 AAPL: [EB|`CS:LFC] {
16:444 00:033 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: System\\Library\\Caches\\com.apple.corestorage\\EncryptedRoot.plist.wipekey, DP: 0
16:494 00:050 AAPL: [EB|`FS:AGSVH] Err(0xE) @ LocHB 59D76AE4-37E3-55A7-B460-EF13D46E6020
16:527 00:033 AAPL: [EB|`G:CS] } Ok(0)
16:676 00:148 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: <null string>, DP: 1
16:719 00:043 AAPL: [EB|`B:SBS] SZ: 617016
16:765 00:045 AAPL: [EB|#B:SHA] ddb8f6e752073ca434bd7737e0fde6c51af2f965
16:802 00:037 AAPL: [EB|`WLWLFNV] Err(0xE) @ GV wake-failure
16:835 00:033 AAPL: [EB|`WLT] Err(0xE) @ WLWLFNV
16:877 00:041 AAPL: [EB|`WLWLFRTC] ! @ RTC:R
16:927 00:050 AAPL: [EB|`WLT] Err(0xE) @ WLWLFRTC
16:978 00:050 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.0
17:027 00:049 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.1
17:077 00:050 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.2
17:111 00:033 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.3
17:144 00:033 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.4
17:186 00:042 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.5
17:235 00:049 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.6
17:286 00:050 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.7
17:327 00:041 AAPL: [EB|`FS:AGSVH] Err(0xE) @ 'AGU.8
17:361 00:034 AAPL: [EB|`LD:LKC] BPDK -> (System\Library\PrelinkedKernels\prelinkedkernel.development)
17:423 00:061 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (System\\Library\\PrelinkedKernels\\prelinkedkernel.development)
17:461 00:038 AAPL: [EB|`LD:LKC] BPDK,!R -> (System\Library\PrelinkedKernels\prelinkedkernel)
20:322 02:861 AAPL: [EB|`LD:LKFS] } Ok(0)
20:368 00:046 AAPL: [EB|`LD:LKC] } Ok(0)
20:411 00:042 AAPL: [EB|#FWFM] 0xFF1FFF3F
20:444 00:033 AAPL: [EB|#FWFT] 0xE00C5417
20:477 00:033 AAPL: [EB|#CSR:IN] 0x00000077
20:511 00:034 AAPL: [EB|#CSR:OUT] 0x00000067
20:544 00:033 AAPL: [EB|`BST:FBS] {
20:577 00:033 AAPL: [EB|`BST:FBS] BA.ADSZ: 0
20:619 00:041 AAPL: [EB|`BST:FBS] BA.KSDSZ: 0
20:653 00:034 AAPL: [EB|`B:WFDW] Err(0xE), 0 @ LocHB 71B4903C-14EC-42C4-BDC6-CE1449930E49
20:694 00:040 AAPL: [EB|#LOGT] 2020-05-04T21:33:32
20:727 00:033 AAPL: [EB|#LOG:EXITBS:START] 2020-05-04T21:33:32

tommy chen · May 4, 2020

h9826790 said:
AFAIK, the icon assignment base on the drive's name.

If it contain the word Mojave (or may be part of it), then will use Mojave icon, otherwise, macOS icon.

You may test if this is correct.

ok, I didn't know that and that makes a lot of sense

h9826790 · May 4, 2020

zozomester said:
Has anyone already done Opencore 0.5.8 for cMP and OpenCore 0.5.8 NdkBootPicker?
Thank!

0.5.8 is fine with the current NDKBootPicker

zozomester · May 4, 2020

h9826790 said:
0.5.8 is fine with the current NDKBootPicker
View attachment 912218

Ok, thank! Where can I download it?

h9826790 · May 4, 2020

zozomester said:
Ok, thank! Where can I download it?

No need to change anything in NDKBootPicker.

You just need to update OpenCore. As per post #2080, cdf already updated post #1

lbuisson · May 4, 2020

Where we can see how to update from 0.5.7 to 0.5.8 on cMP?
Just to copy and past folder?

Dayo · May 5, 2020

lbuisson said:
Where we can see how to update from 0.5.7 to 0.5.8 on cMP?

See: https://dortania.github.io/OpenCore-Desktop-Guide/post-install/update.html#updating-opencore

Dayo · May 5, 2020

h9826790 said:
0.5.8 is fine with the current NDKBootPicker

Hi, Do you have a link to the iconset where the windows and timemachine type icons came from?

lbuisson · May 5, 2020

Dayo said:
See: https://dortania.github.io/OpenCore-Desktop-Guide/post-install/update.html#updating-opencore

This is the same process for cMP?
because this one is also for hackintosh
thx

cdf · May 5, 2020

lbuisson said:
Where we can see how to update from 0.5.7 to 0.5.8 on cMP?
Just to copy and past folder?

lbuisson said:
This is the same process for cMP?
because this one is also for hackintosh
thx

There are update instructions in the guide. See "Updating OC" in the "Further Adjustments" part.

lbuisson · May 5, 2020

cdf said:
There are update instructions in the guide. See "Updating OC" in the "Further Adjustments" part.

Great sorry I didn't see it

h9826790 · May 5, 2020

Dayo said:
Hi, Do you have a link to the iconset where the windows and timemachine type icons came from?

Activate AMD hardware acceleration

Thanks for the report, do you want me to update that "Time Machine" icon as well? If yes: Option A Option B Option C Option D

forums.macrumors.com

Dayo · May 5, 2020

@h9826790,
Thanks for the response. What I meant was the actual set of icons from where those two specific ones came from originally.

The TimeMachine and Windows icons look different from the others in your image and I presume they came from a specific set.

zozomester · May 5, 2020

h9826790 said:
0.5.8 is fine with the current NDKBootPicker
View attachment 912218

Please this Icon Pack give for me. Like this! Thank!

MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

macrumors 6502a

Contributor

macrumors 65816

macrumors P6

macrumors 68020

macrumors member

macrumors regular

Attachments

macrumors 6502

macrumors member

macrumors newbie

macrumors 68020

macrumors 603

macrumors 6502a

macrumors P6

macrumors 6502

macrumors P6

macrumors member

macrumors 68020

macrumors 68020

macrumors member

macrumors 68020

macrumors member

macrumors P6

macrumors 68020

macrumors 6502

Our Staff
