h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
For anyone else troubleshooting - this didn't do anything for me.

Unfortunately, sudo bless didn't work either - apparently it's because my copy of windows 10 is installed in EFI mode.

Resetting the NVRAM (command-option-P-R) got my Mac to boot directly into windows 10. Unfortunately, I forgot this also resets SIP and disables the NVIDIA web driver. :eek: Once I managed to get SIP re-disabled and the NVIDIA drivers reinstalled, I found out that restarting via Bootchamp still makes the Mac boot from the wrong volume (no boot device found screen).

On top of that, all of my sound devices except my c-media USB device have disappeared. That's... unfortunate.

So I think my next course of action is to wipe my boot drive clean and reinstall MacOS, then look into using rEFInd as my boot manager. Overall though, keeping these things running is such a pain in the butt I might as well be running a hackintosh :p

My Windows 10 also installed in EFI mode.

Did you bless the correct partition?


Synchro3

macrumors 68000
Jan 12, 2014
1,987
850
That means if one didn't download last week before Sunday the full 10.13.6 installer, one can no more upgrade to MP51.0089.B00 at the moment?


thomasthegps

macrumors regular
Sep 23, 2015
220
145
France
Things look grim. Apple is probably not going to fix bootscreen or 2,5gt/sec or add NVME. Normally companies have a feature freeze pretty early on In order to fix issues. I'd be surprised if things changed before the Mojave release.

Mac Pro 4.1 - 5.1 R.I.P.

Last edited:

tsialex

Contributor
Original poster
Jun 13, 2016
13,461
13,613
Things look grim. Apple is probably not going to fix bootscreen or 2,5gt/sec or add NVME. Normally companies have a feature freeze pretty early on In order to fix issues. I'd be surprised if things changed before the Mojave release.

Mac Pro 4.1 - 5.1 R.I.P.
Did you really expected those? I never really expected that Apple will completely change EFI for a 6/8 year old Mac.

I'd be surprised if Cupertino create new support articles specifying what to do with bootscreens/FV2/firmware updates from now on with the suggested GPUs. If they just document what to do and what not, it will be nice.

MP4,1/5,1 are alive because it's users, not Apple.


thomasthegps

macrumors regular
Sep 23, 2015
220
145
France
To a certain extent users are keeping the Mac Pro alive but, it's being crippled for no understanble reason. Next year Apple will compile Mac OS with an extension westmere CPUS do not have. So I guess it's the end of the road.

I Wasn't expecting anything like a new EFI to arrive but I sincerely hoped it would.

"Oh no, planned obsolescence is terrible, we would never slow down your phones to entice you to buy the newer model..."
"Oh no, we would never intentionally disable key features to prevent you from upgrading your GPU in a 5000$ machine"
"Oh no, we would never flash custom firmware on your iMac SSD so that its irreplaceable."
"Oh no, we love the environment, could you upgrade every year to the latest product ?..."


I love Apple but sometimes I feel like I shouldn't.



LOL ENOUGH DRAMA. We already gained HEVC decoding with Mojave and hopefully with a bit of luck we might get encoding!

Last edited:

bookemdano

macrumors 68000
Jul 29, 2011
1,514
846
I was not expecting nvme nor the 2.5gt/sec fix. I was hopeful for a bootscreen fix simply because I didn't think Apple would actually recommend GPUs that:

1. Prevent firmware updates from installing (some of which could be for major yet-to-be-discovered vulnerabilities). Remember the 2012 cMP was sold up until December of 2013. That's less than five years ago.
2. Prevent FileVault2 encryption from working--a major feature of MacOS
3. Prevent debugging of issues due to not being able to see the boot text in verbose mode

I mean they've obviously known many people over the years have replaced their GPUs with PC models that also eliminate those things, but that was never done with Apple's blessing. It just seems out-of-character for Apple to recommend third party hardware purchases that disable key functionality of one of their pro-level (but really, any of their) products.

I agree time is starting to get short with no new guidance announced. I'm not going to completely give up hope, but no one should be expecting anything additional at this point.

That said, I think anyone running the beta on a cMP should report those things as bugs. If no one is complaining about these things via official channels Apple may feel there's no demand to come up with a solution for cMPs & Mojave.


crjackson2134

macrumors 601
Mar 6, 2013
4,847
1,957
Charlotte, NC
That said, I think anyone running the beta on a cMP should report those things as bugs. If no one is complaining about these things via official channels Apple may feel there's no demand to come up with a solution for cMPs & Mojave.

This can’t be overstated. EVERYONE needs to flood Apple with bug reports/requests. Bloggers need to flood the Internet with harsh criticism over the boot screen / FileVault (security issue). If it makes them look bad and waives people off, to be cautious about their products, they may at least acknowledge it’s an issue.

Last edited:

goMac

macrumors 604
Apr 15, 2004
7,663
1,694
I was not expecting nvme nor the 2.5gt/sec fix. I was hopeful for a bootscreen fix simply because I didn't think Apple would actually recommend GPUs that:

1. Prevent firmware updates from installing (some of which could be for major yet-to-be-discovered vulnerabilities). Remember the 2012 cMP was sold up until December of 2013. That's less than five years ago.
2. Prevent FileVault2 encryption from working--a major feature of MacOS
3. Prevent debugging of issues due to not being able to see the boot text in verbose mode

Things aren't looking super great, but it's also too soon to tell. Mojave is just an incomplete beta.

Still, bug reports can't hurt.

  • Like
Reactions: mbosse

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Hello!

I downloaded BootChamp once more and installed it over the old BootChamp (Drag and drop it into the program folder.) Now my BootChamp works again. :) Ofcourse do I have SIP disable.

BootChamp v 1,7

HS 10.13.6 MP51_0089_B00_NVMe.bin


/Per

Tested, nil help in my case.


cococheaf

macrumors regular
Jul 10, 2018
102
54
Austria - Lake of Constance
Does someone know if there is the possibility to disable the RAM check at POST in the bootrom?
It isn't really necessary to me, and it would bring the benefints of faster boot times before the chime...
My Machine chimes ~30secs after i pressed the power button.


thomasthegps

macrumors regular
Sep 23, 2015
220
145
France
I was not expecting nvme nor the 2.5gt/sec fix. I was hopeful for a bootscreen fix simply because I didn't think Apple would actually recommend GPUs that:

1. Prevent firmware updates from installing (some of which could be for major yet-to-be-discovered vulnerabilities). Remember the 2012 cMP was sold up until December of 2013. That's less than five years ago.
2. Prevent FileVault2 encryption from working--a major feature of MacOS
3. Prevent debugging of issues due to not being able to see the boot text in verbose mode

I mean they've obviously known many people over the years have replaced their GPUs with PC models that also eliminate those things, but that was never done with Apple's blessing. It just seems out-of-character for Apple to recommend third party hardware purchases that disable key functionality of one of their pro-level (but really, any of their) products.

I agree time is starting to get short with no new guidance announced. I'm not going to completely give up hope, but no one should be expecting anything additional at this point.

That said, I think anyone running the beta on a cMP should report those things as bugs. If no one is complaining about these things via official channels Apple may feel there's no demand to come up with a solution for cMPs & Mojave.

Ok I sent a bug repport.


minifridge1138

macrumors 65816
Jun 26, 2010
1,175
197
My system was running perfectly fine before the last FW and OS update. Now It locks up whenever the screensaver starts. I have to hold the power button to kill it.

Anyone else seen that?

MP4,1 -> 5,1
Mac HD7950
SSD in a Tempo Sonnet PCIE SATA card


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Sad to hear! Still works for me.

/Per

No worries. If it works in your cMP, that means the hope still there :D

Also, I can simply use the bless command to replace BootChamp. Anyway, I rarely boot to Windows on my cMP now, my 8700K 1080Ti Hackintosh is already in use.


minifridge1138

macrumors 65816
Jun 26, 2010
1,175
197
I re-installed 10.13.4 (I don't have a full installer for 10.13.5, but will combo-update to it) and have no more locking / freezing problems. So the problem is in the OS, not the firmware.


tu2thepoo

macrumors member
Nov 14, 2017
75
59
My Windows 10 also installed in EFI mode.

Did you bless the correct partition?
I thought I did but who knows :D Also, I re-discovered that Refind doesn't actually help with the lack of boot screen (I learned this the last time I tried it, and apparently forgot).

However, downgrading to 10.13.5 solved the reboot/bootchamp/bless problem, so seems to be an issue with 10.13.6. Specifically, I did a clean installation of 10.13.5 and bootchamped to the same EFI installation of Windows 10 I've been using, and it's all working as expected.

(I'm still on MP51.0089.B00, so it's not a firmware problem.)

I'm planning to test further by reinstalling windows 10 in legacy/BIOS mode (I bought some DL DVD+RWs to burn an install disc). I've been meaning to try this anyway since my EFI Win10 has some weird behavior (laggy windows, crashes on shutdown, etc). Once Win10 is installed in BIOS mode, I'll:
  1. clone my 10.13.5 installation
  2. Upgrade the clone to 10.13.6
  3. Try bootcamp/bless and see if the bad reboot behavior returns.
If bootchamp/bless work fine with win10 in BIOS mode, I'm guessing it's an issue with how 10.13.6 is parsing EFI partitions. If it still acts funky even with win10 in bios mode... then I dunno.

Last edited:

tu2thepoo

macrumors member
Nov 14, 2017
75
59
Probably the last update from my end - it definitely seems like an issue between 10.13.6 and EFI partitions. I'm posting from my test/clone drive, updated to 10.13.6, and bootchamp works perfectly fine with my Win10 drive, which was wiped and reinstalled in legacy/BIOS mode. My guess is that 10.13.6 is incorrectly attempting to boot from the EFI/MS reserved partitions on EFI Win10 installations.

Summary: if you want to dual-boot between Win10 and High Sierra 10.13.6, it's best to install/reinstall Win10 in legacy/BIOS mode from a DVD drive.

Since Win10 is unsupported with the Mac Pro 4,1/5,1 Boot Camp software, and EFI mode already known to be buggy (missing sound, etc), I'm guessing this will be very low on Apple's list of issues to fix.

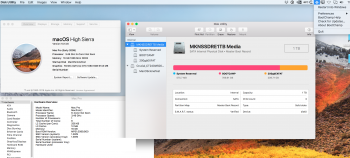

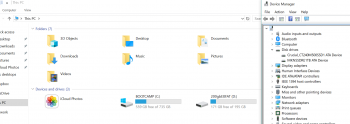

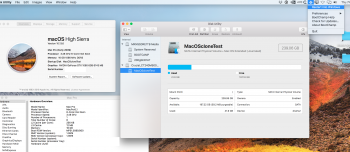

Pertinent info and screenshots below:
  • Mac Pro 2009 4,1 flashed to 5,1
  • Geforce GT120 for updating MacOS swapped with Geforce 1060 for regular use (PCIe slot 1)
  • MacOS 10.13.6 on SATA SSD - formatted as HFS+ (installed high Sierra with --noapfs) - MacOS filesystem probably not important but figured I'd mention it.
  • Win10 (latest version as of July 2018), installed in Legacy mode (MBR+NTFS), SATA SSD
  • SATA ASUS BD-DVD drive
Screen Shot 2018-07-19 at 7.00.09 PM.png
Screen Shot 2018-07-19 at 7.00.42 PM.png

  • Like
Reactions: h9826790

Squuiid

macrumors 68000
Oct 31, 2006
1,877
1,713
Since Win10 is unsupported with the Mac Pro 4,1/5,1 Boot Camp software, and EFI mode already known to be buggy (missing sound, etc), I'm guessing this will be very low on Apple's list of issues to fix.
Weird. I have Windows 10 Pro installed in UEFI mode on my 2009 5,1 and don’t have a single problem with it. Everything works perfectly, including AHCI on the disk controller. See signature for details.
I use BootCamp 6.1.7066 drivers which can be obtained using "Brigadier -m MacBookPro15,1".
Apple software update will then install the latest WiFi driver for you:
https://support.apple.com/kb/HT208847
(Have not yet gotten around to updating the firmware however, still on 084.)

Windows 10 has been upgraded multiple times and is currently running 1803.

What issues are people seeing with UEFI mode specifically, and are they tied to the new firmware?

Last edited:
  • Like
Reactions: AndreaDT

Pressure

macrumors 603
May 30, 2006
5,183
1,546
Denmark
Probably the last update from my end - it definitely seems like an issue between 10.13.6 and EFI partitions. I'm posting from my test/clone drive, updated to 10.13.6, and bootchamp works perfectly fine with my Win10 drive, which was wiped and reinstalled in legacy/BIOS mode. My guess is that 10.13.6 is incorrectly attempting to boot from the EFI/MS reserved partitions on EFI Win10 installations.

Summary: if you want to dual-boot between Win10 and High Sierra 10.13.6, it's best to install/reinstall Win10 in legacy/BIOS mode from a DVD drive.

Since Win10 is unsupported with the Mac Pro 4,1/5,1 Boot Camp software, and EFI mode already known to be buggy (missing sound, etc), I'm guessing this will be very low on Apple's list of issues to fix.

Pertinent info and screenshots below:
  • Mac Pro 2009 4,1 flashed to 5,1
  • Geforce GT120 for updating MacOS swapped with Geforce 1060 for regular use (PCIe slot 1)
  • MacOS 10.13.6 on SATA SSD - formatted as HFS+ (installed high Sierra with --noapfs) - MacOS filesystem probably not important but figured I'd mention it.
  • Win10 (latest version as of July 2018), installed in Legacy mode (MBR+NTFS), SATA SSD
  • SATA ASUS BD-DVD drive

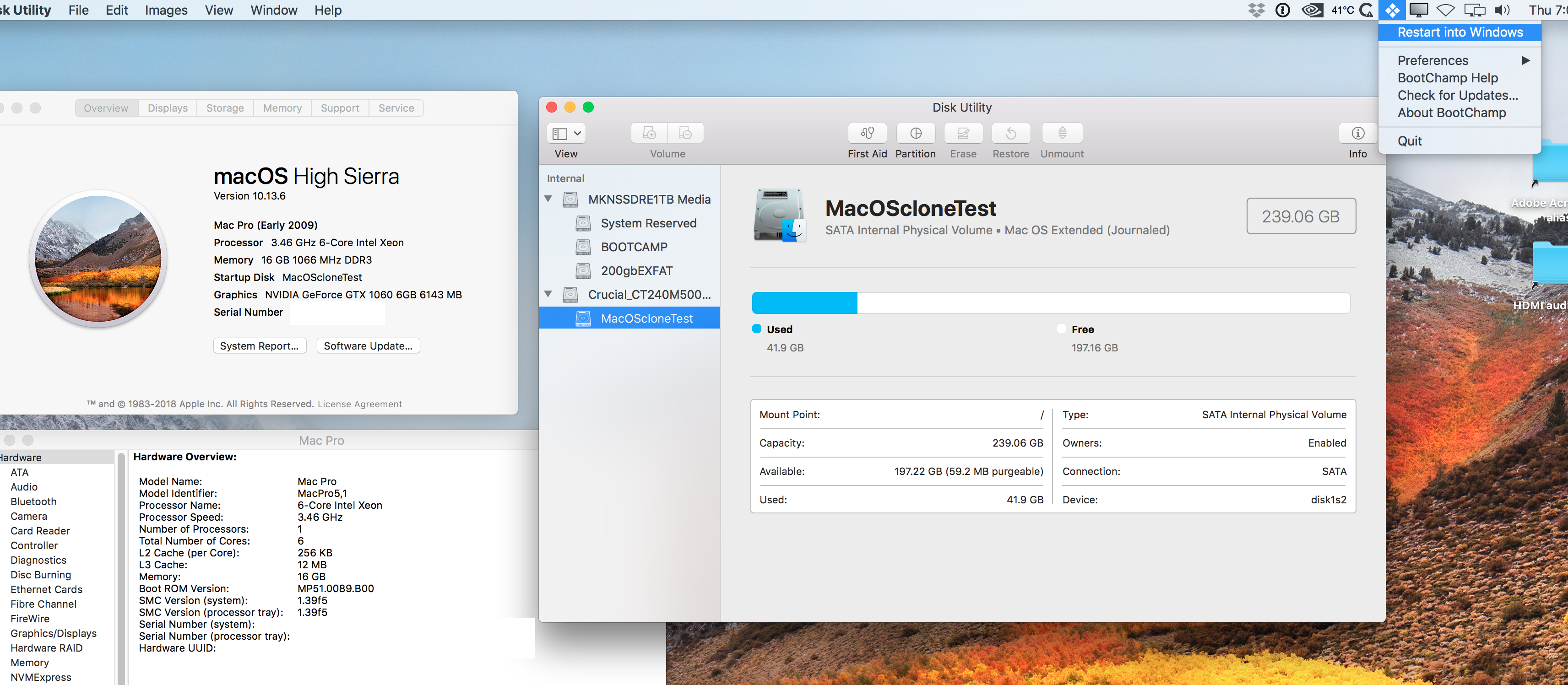

View attachment 771645

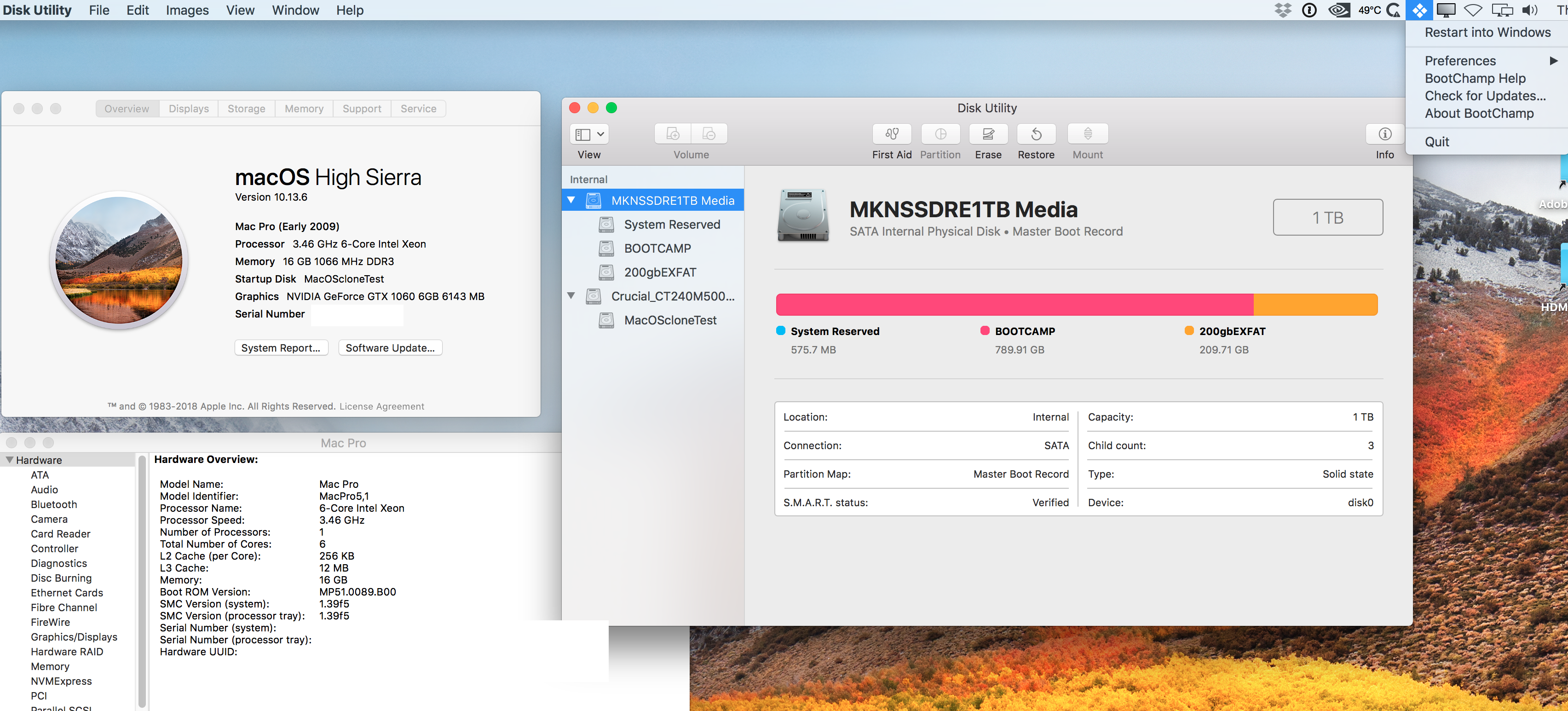

View attachment 771646

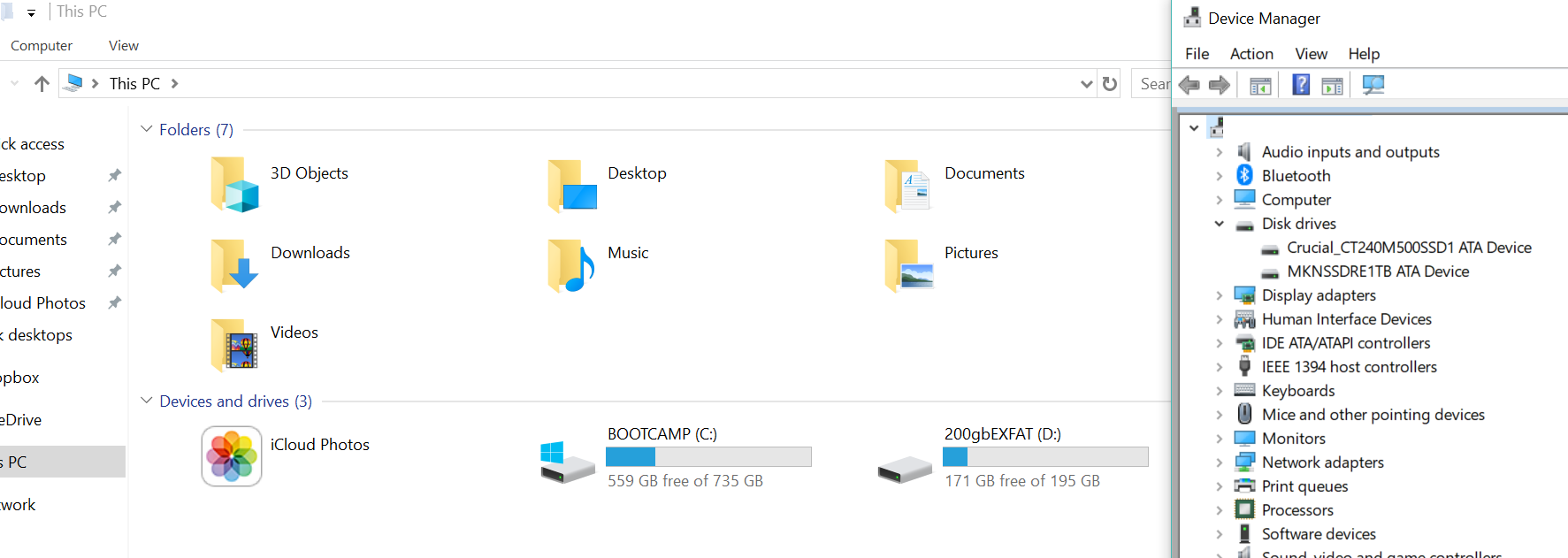

View attachment 771647

It will be low priority unless people take their time to give proper product feedback.


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Since Win10 is unsupported with the Mac Pro 4,1/5,1 Boot Camp software, and EFI mode already known to be buggy (missing sound, etc), I'm guessing this will be very low on Apple's list of issues to fix.

My EFI Windows 10 also work flawlessly.

However, I agree that's not natively supported on the 5,1 at all. And the "start up disk" selection in macOS system preferences won't work.

  • Like
Reactions: Squuiid

jameslmoser

macrumors 6502a
Sep 18, 2011
697
672
Las Vegas, NV
My EFI Windows 10 also work flawlessly.

However, I agree that's not natively supported on the 5,1 at all. And the "start up disk" selection in macOS system preferences won't work.

So I have installed Windows 10 in efi mode several times, and once on a Samsung xp941. It doesn’t appear to work when I remove my efi gpu. Is this a known limitation or is there some way to get that to work? Also, how exactly do you switch between OS X and Windows without using System Preferences/Startup Disk?
