bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713
if you're using an Apricorn PCIe product, clone the drive to HFS+ formatted SSD (or via another drive then back to SSD) with Carbon Copy Cloner. Then use HFS+ in Apricorn and re-test. Unsure if their firmware supports APFS properly. Had NUMEROUS issues with APFS in my machine with majorly reduced write speeds back around 10.13.2.


Socket

macrumors regular
Jul 9, 2015
144
16
if you're using an Apricorn PCIe product, clone the drive to HFS+ formatted SSD (or via another drive then back to SSD) with Carbon Copy Cloner. Then use HFS+ in Apricorn and re-test. Unsure if their firmware supports APFS properly. Had NUMEROUS issues with APFS in my machine with majorly reduced write speeds back around 10.13.2.
I tried this now, but also with High Sierra installated in HFS+...no results! With the SSD alone it works, but when I put the SSD on Apricorns...nothing happens

It's like a power down isuue, because if I work with another system disc, sometimes i see the alert "the (SSD) disc has not been ejected correctly"


bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713
Was worth a shot... only thing you could try is another PCIe slot and double check to make sure it's seated properly in the slot to have full pin contact. Cleaning out the slot and pins on card would help if it's extremely dusty inside the machine.

Believe Apricorn stopped making the DUO X2, and assume the SOLO X2's that can be found are leftover stock or used units.


LightBulbFun

macrumors 68030
Nov 17, 2013
2,900
3,195
London UK
Yeah, Windows still there. Nothing broken, just BootChamp doesn't work anymore. I can still easily use the following command to simulate BootChamp (only boot to EFI Windows 10 once).
Code:
sudo bless -device /dev/disk0s2 -mount /Volumes/BOOTCAMP -setBoot -nextonly

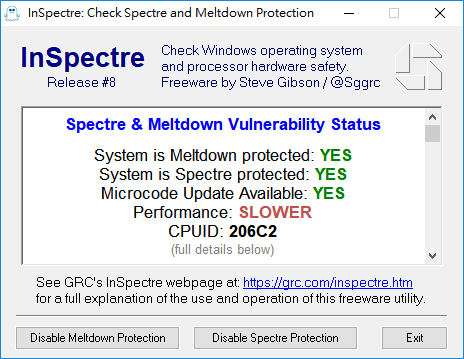

As expected, Spectre is fixed.
View attachment 770244

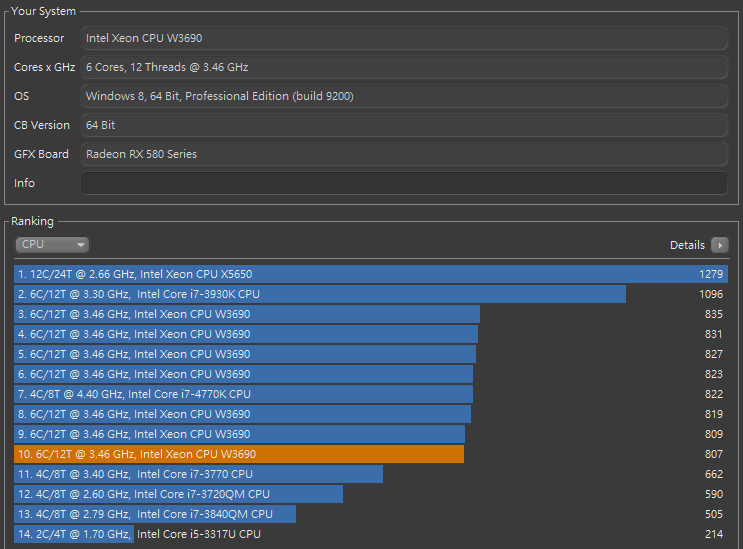

It says performance is slower. But CineBench shows roughly the same figure as pre-spectre fix.
View attachment 770243

It's a bit slower, however, there were some Windows update doing in the background. And one of the previous attempts also only got 809 points. So, 807 point after spectre fix isn't too bad. Even compare to the best score, that's just 3.3% slower. Not too significant.

Looks like BootChamp has now broke for me too as well

the only change between my last report on this and now was I updated to 10.13.6... so it might be a 10.13.6 bug rather then a BootROM issue (before I was on 10.13.5 but with the 0089 BootROM and I had no issues with boot champ) where you running 10.13.5 or 6 when the issue showed up?


Raunien

macrumors 6502a
Aug 3, 2011
535
57

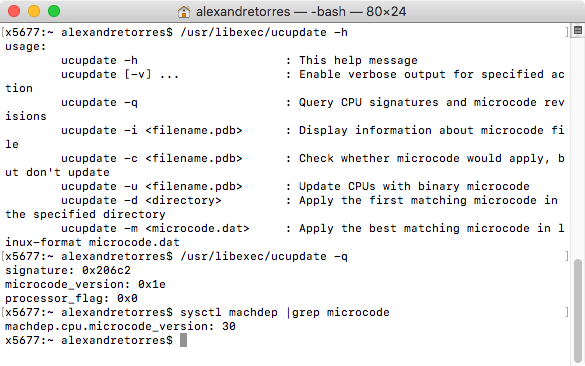

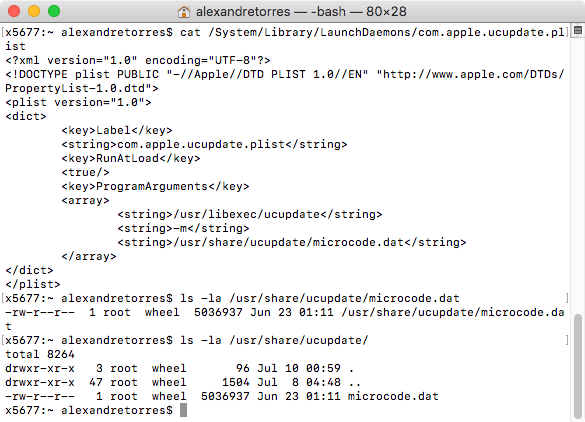

Recent macOS has a microcode updater daemon (ucupdate) and it will automatically update the microcode on the running macOS, that's how 31 showed on my sysctl.

On my work Mac Pro, the update has not been done yet, so it's like yours:
View attachment 770401 View attachment 770404

Hi tsialex,

What's the best way to update to 31 using ucupdate? Do I need the actual microcode file?

Thanks

  • Like
Reactions: MaxxT

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Looks like BootChamp has now broke for me too as well

the only change between my last report on this and now was I updated to 10.13.6... so it might be a 10.13.6 bug rather then a BootROM issue (before I was on 10.13.5 but with the 0089 BootROM and I had no issues with boot champ) where you running 10.13.5 or 6 when the issue showed up?

10.13.6. I never try BootChamp with 0089.B00 and 10.13.5, so, no idea if that make the difference.


tsialex

Contributor
Original poster
Jun 13, 2016
13,461
13,613
Hi tsialex,

What's the best way to update to 31 using ucupdate? Do I need the actual microcode file?

Thanks

I'm trying to understand how to do it too. My home Mac Pro had 31, my work Mac Pro still has 30.

More people received 31, was not just me. I'm thinking Apple was testing 31 on one of the last 10.13.6 betas and on Mojave betas. I'll have to investigate more.

The Intel website microcode site changed the format of the microcodes, so no more microcode.dat for forcing the update with xucode, I've asked the author of xucode to take a look on the new Intel format, maybe he can update his tool to it.

Perhaps we just need to get the microcode.dat from Mojave and copy it on 10.13.6.


expede

macrumors regular
Jan 15, 2018
236
67
Sweden
Hello!

I downloaded BootChamp once more and installed it over the old BootChamp (Drag and drop it into the program folder.) Now my BootChamp works again. :) Ofcourse do I have SIP disable.

BootChamp v 1,7

HS 10.13.6 MP51_0089_B00_NVMe.bin


/Per

Looks like BootChamp has now broke for me too as well

the only change between my last report on this and now was I updated to 10.13.6... so it might be a 10.13.6 bug rather then a BootROM issue (before I was on 10.13.5 but with the 0089 BootROM and I had no issues with boot champ) where you running 10.13.5 or 6 when the issue showed up?

  • Like
Reactions: h9826790

crjackson2134

macrumors 601
Mar 6, 2013
4,847
1,957
Charlotte, NC
On a side note, has anyone else noticed a slowdown in GUI performance since this new firmware was released?

My OS GUI felt much snappier to me before the firmware update. Maybe it's my imagination, but I'm disappointed with the perception anyway.


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Hello!

I downloaded BootChamp once more and installed it over the old BootChamp (Drag and drop it into the program folder.) Now my BootChamp works again. :) Ofcourse do I have SIP disable.

BootChamp v 1,7

HS 10.13.6 MP51_0089_B00_NVMe.bin


/Per

Thanks for providing this work around. Will test this in few days.

  • Like
Reactions: expede

expede

macrumors regular
Jan 15, 2018
236
67
Sweden
Hi!
I’ve noticed that the wake-up time has increased from 5 to 10 sec. Otherwise it is responsive as it should.

/Per

On a side note, has anyone else noticed a slowdown in GUI performance since this new firmware was released?

My OS GUI felt much snappier to me before the firmware update. Maybe it's my imagination, but I'm disappointed with the perception anyway.


tsialex

Contributor
Original poster
Jun 13, 2016
13,461
13,613
Apple released yesterday, yes Sunday, a new version of 10.13.6. Seems that's the build for the new MacBook Pros, 17G2112.
Screen Shot 2018-07-16 at 00.55.12.png

I'm downloading now to check the Firmware folder.
[doublepost=1531715637][/doublepost]

Screen Shot 2018-07-16 at 01.31.36.png Screen Shot 2018-07-16 at 01.33.21.png
Weird, Apple downgraded the BootROM again?!? What's going on?

Edit: since it's a build specific for the 2018 MacBook Pros, Apple could have based the image on a earlier version of the tree or something along the lines. Maybe they just not upgraded the Firmware for a Mac that it's not supported by this build/supposed to run it.

Last edited:

tsialex

Contributor
Original poster
Jun 13, 2016
13,461
13,613
The firmware thing is becoming a nuisance. It makes it hard to have confidence with all the jumping around on versions.
Maybe it's not a downgrade thing, since it's a build specific for the 2018 MacBook Pros, Apple could have based the image on a earlier version of the tree or something along the lines.

Let's see what's going to be the firmware on Mojave Developer Preview 4.

  • Like
Reactions: crjackson2134

MisterAndrew

macrumors 68030
Sep 15, 2015
2,895
2,390
Portland, Ore.
Looks like BootChamp has now broke for me too as well

the only change between my last report on this and now was I updated to 10.13.6... so it might be a 10.13.6 bug rather then a BootROM issue (before I was on 10.13.5 but with the 0089 BootROM and I had no issues with boot champ) where you running 10.13.5 or 6 when the issue showed up?

Ah, so it was the 10.13.6 update that broke it. 10.14 beta broke it too for me, but it didn’t matter because I still had 10.13.5 as my main install.

Perhaps we should submit bug reports saying something like “Boot Camp can no longer boot from Startup Disk in System Preferences.” So it would be a Startup Disk bug. Mine is on a separate disk. I’m not sure if that makes a difference. Of course no reason to state anything about the BootChamp app since Apple wouldn’t support that.


Demigod Mac

macrumors 6502a
Apr 25, 2008
842
288
If a microcode update fails / gets interrupted / is a mismatch... Does that brick your CPU or are there recovery options?


tsialex

Contributor
Original poster
Jun 13, 2016
13,461
13,613
If a microcode update fails / gets interrupted / is a mismatch... Does that brick your CPU or are there recovery options?
Some problems are solved with the Firmware Restoration CD, but if it's something more serious, you have to desolder the SPI Flash memory and reprogram it with a SPI Flash Programmer.

I had to do that =(


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Maybe it's not a downgrade thing, since it's a build specific for the 2018 MacBook Pros, Apple could have based the image on a earlier version of the tree or something along the lines.

Let's see what's going to be the firmware on Mojave Developer Preview 4.

This is what I think as well.
[doublepost=1531719745][/doublepost]
Ah, so it was the 10.13.6 update that broke it. 10.14 beta broke it too for me, but it didn’t matter because I still had 10.13.5 as my main install.

Perhaps we should submit bug reports saying something like “Boot Camp can no longer boot from Startup Disk in System Preferences.” So it would be a Startup Disk bug. Mine is on a separate disk. I’m not sure if that makes a difference. Of course no reason to state anything about the BootChamp app since Apple wouldn’t support that.

And Apple never says cMP support UEFI Windows either. AFAIK, the start up disk selection still works for legacy Windows installation.

Of course we can still submit bug report. But that’s basically ask for extra function more than a bug report.


tu2thepoo

macrumors member
Nov 14, 2017
75
59
Hello!
I downloaded BootChamp once more and installed it over the old BootChamp (Drag and drop it into the program folder.) Now my BootChamp works again. :) Ofcourse do I have SIP disable.
BootChamp v 1,7
HS 10.13.6 MP51_0089_B00_NVMe.bin
/Per
For anyone else troubleshooting - this didn't do anything for me.

Unfortunately, sudo bless didn't work either - apparently it's because my copy of windows 10 is installed in EFI mode.

Resetting the NVRAM (command-option-P-R) got my Mac to boot directly into windows 10. Unfortunately, I forgot this also resets SIP and disables the NVIDIA web driver. :eek: Once I managed to get SIP re-disabled and the NVIDIA drivers reinstalled, I found out that restarting via Bootchamp still makes the Mac boot from the wrong volume (no boot device found screen).

On top of that, all of my sound devices except my c-media USB device have disappeared. That's... unfortunate.

So I think my next course of action is to wipe my boot drive clean and reinstall MacOS, then look into using rEFInd as my boot manager. Overall though, keeping these things running is such a pain in the butt I might as well be running a hackintosh :p
