Hi, please forgive my ignorance on the following matter. I changed my MacPro 5.1 mid 2010 machine Graphic card to Radeon Sapphire RX 580 Nitro+. I have FW 084 and 10.13.6 installed. Can I try to do the Firmware upgrade with my new RX 580 Nitro Graphic card installed even if it does not give me boot loader screen? Second question is that does any of you think Apple will make the boot loader visible with RX 580 card and other Mojave supported cards?
Third question is that if RX 580 Pulse card is supported, do you think RX 580 Nitro card is too or are they so different that Nitro card will not be supported.
Thank you for your answers.


tsialex

Contributor
Original poster
Jun 13, 2016
13,461
13,613
I've made a full installation of HS 10.13.6 but he don't upgrade my Firmware! I'm still with 0084!!! Why???
You need a GPU with EFI to update the Mac Pro firmware.

Saw on your previous posts that you have a Nvidia 960GTX, so that will not work for flashing your Mac Pro firmware.

Reinstall the original one back (Apple GT120/HD4870 with a 2009 or HD5770/HD5870 if a 2010/2012). Start macOS and rerun the 10.13.6 full installer, don't try via USB. The full installer will ask for you to shutdown with this screen:

10-13-6_firmwareupdate-png.769847


[doublepost=1531471823][/doublepost]
Hi, please forgive my ignorance on the following matter. I changed my MacPro 5.1 mid 2010 machine Graphic card to Radeon Sapphire RX 580 Nitro+. I have FW 084 and 10.13.6 installed. Can I try to do the Firmware upgrade with my new RX 580 Nitro Graphic card installed even if it does not give me boot loader screen? Second question is that does any of you think Apple will make the boot loader visible with RX 580 card and other Mojave supported cards?
Third question is that if RX 580 Pulse card is supported, do you think RX 580 Nitro card is too or are they so different that Nitro card will not be supported.
Thank you for your answers.
No, you need a EFI supported GPU to update the firmware.

For the other questions, no one out of Apple know the answers.

At the moment, you need to put back your EFI GPU to update the firmware (Apple GT120/HD4870 with a 2009 or HD5770/HD5870 if a 2010/2012), even on a Apple suggested one like the Sapphire RX580 Pulse.

Please note that Apple only suggested the RX560/RX580 without telling anything about the level of support yet. Maybe Apple will change the Mac Pro firmware to provide boot screens / firmware upgrades / FileVault 2 with the suggested GPUs, but I don't bet anything on this radical change.

Last edited:

Socket

macrumors regular
Jul 9, 2015
144
16
You need a GPU with EFI to update the Mac Pro firmware.

Saw on your previous posts that you have a Nvidia 960GTX, so that will not work for flashing your Mac Pro firmware.

Reinstall the original one back (Apple GT120/HD4870 with a 2009 or HD5770/HD5870 if a 2010/2012). Start macOS and rerun the 10.13.6 full installer, don't try via USB. The full installer will ask for you to shutdown with this screen:

10-13-6_firmwareupdate-png.769847


[doublepost=1531471823][/doublepost]
No, you need a EFI supported GPU to update the firmware.

For the other questions, no one out of Apple know the answers.

At the moment, you need to put back your EFI GPU to update the firmware (Apple GT120/HD4870 with a 2009 or HD5770/HD5870 if a 2010/2012), even on a Apple suggested one like the Sapphire RX580 Pulse.

Please note that Apple only suggested the RX560/RX580 without telling anything about the level of support yet. Maybe Apple will change the Mac Pro firmware to provide boot screens / firmware upgrades / FileVault 2 with the suggested GPUs, but I don't bet anything on this radical change.


OK thank you! With GT120 worked, now I have 0089

  • Like
Reactions: h9826790 and mbosse

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
No it din't!
System installed, in the panel control i see 10.13.6 but in the system panel i see ROM 0084

Strange!

Now I'm trying to download installer again and re-made the usb key

Just download and run the 10.13.6 full installer. Do NOT make any USB key, that’s totally unnecessary and only cause more trouble.

You can do that even you are already with 10.13.6. It’s straight forward and simple. Don’t make it more complicated.

Update: I miss your last post. Just see that problem fixed.

  • Like
Reactions: frou

mbosse

macrumors 6502a
Apr 29, 2015
629
199
Vienna, Austria
Just download and run the 10.13.6 full installer. Do NOT make any USB key, that’s totally unnecessary and only cause more trouble.

You can do that even you are already with 10.13.6. It’s straight forward and simple. Don’t make it more complicated.

Useful if you have to update several Mac’s...


Socket

macrumors regular
Jul 9, 2015
144
16
Just download and run the 10.13.6 full installer. Do NOT make any USB key, that’s totally unnecessary and only cause more trouble.

You can do that even you are already with 10.13.6. It’s straight forward and simple. Don’t make it more complicated.

Update: I miss your last post. Just see that problem fixed.


Thanks, now I have troubles installing 10.13.6 in my SSD! I don't kow why, but the ssd disk is not recognised.

It's mounted on an Apricorn PCI, it's possibile that is not supported?


expede

macrumors regular
Jan 15, 2018
236
67
Sweden
Hi there!

I have updated to MP51_0089_B00.bin and when I check my microcode it says 30, not 31 as your did?



But when I check the files as You showed they are the same?



Probably nothing important, but strange anyway.

Best regards

/Per


bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713
Using Apricorn Velocity Solo X2 and Duo X2 in my 5,1 with 10.13.6 with 3 SSDs without any issues at all. Planning to update to the latest firmware early next week with EFI GPU back in, but have not had issues updating the firmware in the past with any Apricorn PCIe cards being used with SSDs.


tsialex

Contributor
Original poster
Jun 13, 2016
13,461
13,613
Hi there!

I have updated to MP51_0089_B00.bin and when I check my microcode it says 30, not 31 as your did?

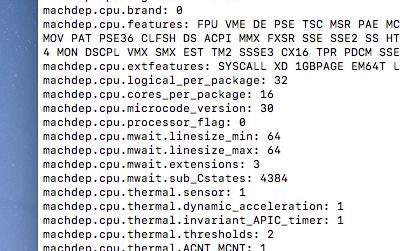

Recent macOS has a microcode updater daemon (ucupdate) and it will automatically update the microcode on the running macOS, that's how 31 showed on my sysctl.

On my work Mac Pro, the update has not been done yet, so it's like yours:

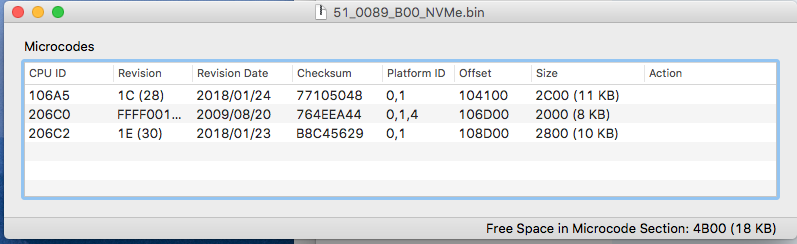

Screen Shot 2018-07-13 at 10.17.02.png
Screen Shot 2018-07-13 at 10.23.22.png

Last edited:
  • Like
Reactions: expede

Socket

macrumors regular
Jul 9, 2015
144
16
Using Apricorn Velocity Solo X2 and Duo X2 in my 5,1 with 10.13.6 with 3 SSDs without any issues at all. Planning to update to the latest firmware early next week with EFI GPU back in, but have not had issues updating the firmware in the past with any Apricorn PCIe cards being used with SSDs.
I think mine is dead :-(


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Thanks, now I have troubles installing 10.13.6 in my SSD! I don't kow why, but the ssd disk is not recognised.

It's mounted on an Apricorn PCI, it's possibile that is not supported?

If in doubt, install the SSD back on the native SATA port.


Socket

macrumors regular
Jul 9, 2015
144
16
If in doubt, install the SSD back on the native SATA port.
Yes i did it...when the ssd is in a normal slot, it works, when i put the Apricorn, osx starts but after few minutes it freezes...so I suppose that the Apricorn is dead o quite dead...Now i'm trying to do a speed test and he tells me that WRITE = 0 and READ = 491,7


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Yes i did it...when the ssd is in a normal slot, it works, when i put the Apricorn, osx starts but after few minutes it freezes...so I suppose that the Apricorn is dead o quite dead...Now i'm trying to do a speed test and he tells me that WRITE = 0 and READ = 491,7

Yeah, sounds like the Apricorn card is faulty.


Socket

macrumors regular
Jul 9, 2015
144
16
Yeah, sounds like the Apricorn card is faulty.
but...it's possible that could be something in the 10.13.6? And/or AFPS ? Because if i boot with a normal HHD and make the benchmark, the ssd go well and fast also in the apricorn.
It seems that in 10.13.6 the ssd have not the write permissions but i don't know why
[doublepost=1531500861][/doublepost]
but...it's possible that could be something in the 10.13.6? And/or AFPS ? Because if i boot with a normal HHD and make the benchmark, the ssd go well and fast also in the apricorn.
It seems that in 10.13.6 the ssd have not the write permissions but i don't know why
no, not true...it's 0 also in another boot disc


bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713
Yes i did it...when the ssd is in a normal slot, it works, when i put the Apricorn, osx starts but after few minutes it freezes...so I suppose that the Apricorn is dead o quite dead...Now i'm trying to do a speed test and he tells me that WRITE = 0 and READ = 491,7

APFS or HFS+?


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
but...it's possible that could be something in the 10.13.6? And/or AFPS ? Because if i boot with a normal HHD and make the benchmark, the ssd go well and fast also in the apricorn.
It seems that in 10.13.6 the ssd have not the write permissions but i don't know why
[doublepost=1531500861][/doublepost]
no, not true...it's 0 also in another boot disc

APFS is something that I highly recommend to avoid.
