OS X 10.10.4 Experiences (and trimforce)

[flowrider]

I have a new iMac 5K which I've just successfully upgraded to 10.10.4.

I have an external Thunderbolt drive bay with a Samsung 840 EVO in it, and looking in system profile I can't find it anywhere. (I do see it in finder). I've enabled TrimForce for it, but would like to be able to see it in the profile to verify that Trim is in fact enabled for it. I've looked both in the thunderbolt section as well as the SATA, where of course it doesn't show up. Any suggestions?

Have you looked in "Storage"? What is the message in the "Thunderbolt " section?

Lou



[DHKaplan]

Have you looked in "Storage"? What is the message in the "Thunderbolt " section?

Lou

Storage just shows a volume, not a drive:
Shared Drive SSD:
Available:703.32 GB (703,318,663,168 bytes)
Capacity:999.86 GB (999,860,912,128 bytes)
Mount Point:/Volumes/Shared Drive SSD
File System:Journaled HFS+
Writable:Yes
Ignore Ownership:Yes
BSD Name:disk2s2
Volume UUIDE2CF011-0245-3A62-A430-BC1AB9CB971D
Physical Drive:
Media Name:Samsung SSD 840 EVO 1TB Media
Medium Type:SSD
Protocol:SATA
Internal:No
Partition Map Type:GPT (GUID Partition Table)
S.M.A.R.T. Status:Verified

Thunderbolt shows nothing either:

Thunderbolt Bus:
Vendor Name:Apple Inc.
Device Name:iMac
UID:0x00010011007B05A0
Route String:0
Firmware Version:26.1
Domain UUID:FF21CB6D-BCC5-C553-BC24-3A9058BA835B

Port:
Status:No device connected
Link Status:0x7
Speed:Up to 20 Gb/s x1
Current Link Width:0x1
Receptacle:1
Link Controller Firmware Version:0.14.0

Port:
Statusevice connected
Link Status:0x2
Speed:Up to 20 Gb/s x1
Current Link Width:0x2
Receptacle:2
Cable Firmware Version:1.1.0
Link Controller Firmware Version:0.14.0

Thunderbolt 2 Dock:
Vendor Name:Other World Computing, Inc.
Device Name:Thunderbolt 2 Dock
Vendor ID:0x5A
Device ID:0xDE10
Device Revision:0x1
UID:0x005A0000000167A0
Route String:3
Firmware Version:25.1
Port (Upstream):
Statusevice connected
Link Status:0x2
Speed:Up to 20 Gb/s x1
Current Link Width:0x
Cable Firmware Version:1.1.0
Link Controller Firmware Version:0.14.0

Port:
Statusevice connected
Link Status:0x2
Speed:Up to 20 Gb/s x1
Current Link Width:0x2
Cable Firmware Version:1.0.16
Cable Serial Number:C4M316201W2F798AM
Link Controller Firmware Version:0.14.0



ThunderBay 4:

Vendor Name:Other World Computing
Device Name:ThunderBay 4
Vendor ID:0x5A
Device ID:0xDE08
Device Revision:0x1
UID:0x005ADE0814904280
Route String:103
Firmware Version:24.2
Port (Upstream):
Statusevice connected
Link Status:0x2
Speed:Up to 20 Gb/s x1
Current Link Width:0x2
Cable Firmware Version:1.0.16
Cable Serial Number:C4M316201W2F798AM
Link Controller Firmware Version:0.14.0

Port:
Status:No device connected
Link Status:0x7
Speed:Up to 20 Gb/s x1
Current Link Width:0x1
Link Controller Firmware Version:0.14.0



[bobbba]

This is exactly what I've got and it's listed under SATA/SATA Express>Thunderbolt as below:

Thunderbolt AHCI Controller:

Vendor: Thunderbolt
Product: AHCI Controller
Link Speed: 6 Gigabit
Negotiated Link Speed: 6 Gigabit
Physical Interconnect: SATA
Description: AHCI Version 1.20 Supported

Samsung SSD 840 EVO 500GB:

Capacity: 500.11 GB (500,107,862,016 bytes)
Model: Samsung SSD 840 EVO 500GB
Revision: EXT0BB6Q
Serial Number: S1DHNSADB53682A
Native Command Queuing: Yes
Queue Depth: 32
Removable Media: Yes
Detachable Drive: No
BSD Name: disk1
Medium Type: Solid State
TRIM Support: Yes
Partition Map Type: GPT (GUID Partition Table)
S.M.A.R.T. status: Verified



[DHKaplan]

This is exactly what I've got and it's listed under SATA/SATA Express>Thunderbolt as below:

Thunderbolt AHCI Controller:

Vendor: Thunderbolt
Product: AHCI Controller
Link Speed: 6 Gigabit
Negotiated Link Speed: 6 Gigabit
Physical Interconnect: SATA
Description: AHCI Version 1.20 Supported

Samsung SSD 840 EVO 500GB:

Capacity: 500.11 GB (500,107,862,016 bytes)
Model: Samsung SSD 840 EVO 500GB
Revision: EXT0BB6Q
Serial Number: S1DHNSADB53682A
Native Command Queuing: Yes
Queue Depth: 32
Removable Media: Yes
Detachable Drive: No
BSD Name: disk1
Medium Type: Solid State
TRIM Support: Yes
Partition Map Type: GPT (GUID Partition Table)
S.M.A.R.T. status: Verified

Thank you bobbba. I looked and looked before and didn't see it... looked again after your post and there it was... with Trim enabled.



[Clown]

Using MacBook Pro 2009 with 10.10.4 with Trim Enabler.
I wanted to use the sudo trimforce command and messed up my SSD.
I forgot enabling kext signing and now, after I did the trimforce my MBP
is showing the Gray sign.
Tried to enter Recovery HD mode but it shows the Gray sign too.


Any ways I can fix this without reinstalling OS X?



[flowrider]

^^^^Of course you know you would have turned Trim Enabler off before updating, but the fix for your Gray Screen issue is here:

https://www.cindori.org/trim-enabler-and-yosemite/

Thank Goodness that after 10.10.4, that will no longer be necessary.

Lou



[Clown]

Thanks man. Work like a charm. Typing these message from my machine again



[Clown]

What should I do in order to enable trimforce again without make any damage?
I need to restore the kext signing back? If the answer is yes, how do I do it? What is the command I should use?



[flowrider]

^^^^Look here:

http://apple.stackexchange.com/ques...sable-kext-signing-in-mac-os-x-10-10-yosemite

Although I bet it's turned on if you followed the above steps.

To enable Trim - In Terminal:

sudo trimforce enable

As explained on Page 1 of this thread.

Lou



[Clown]

^^^^Look here:

http://apple.stackexchange.com/ques...sable-kext-signing-in-mac-os-x-10-10-yosemite

Although I bet it's turned on if you followed the above steps.

To enable Trim - In Terminal:

sudo trimforce enable

As explained on Page 1 of this thread.

Lou

Well, I followed this article before.
I deleted Trim Enabler, then applied the command mentioned in this article
above ("sudo nvram -d boot-args") to enable back kext signing.
Then I ran the "sudo trimforce enable" command.
When my MPB did a restart, it showed the Gray sign.

I am afraid to do the "sudo nvram -d boot-args" and run into trouble again.
Any suggestions?



[kwamayze]

Well, I followed this article before.
I deleted Trim Enabler, then applied the command mentioned in this article
above ("sudo nvram -d boot-args") to enable back kext signing.
Then I ran the "sudo trimforce enable" command.
When my MPB did a restart, it showed the Gray sign.

I am afraid to do the "sudo nvram -d boot-args" and run into trouble again.
Any suggestions?

I followed those steps to get my MBA to boot again today.



[kwamayze]

but what is the problem, is there any real difference using TRIM enabled with DiskSensei or TrimEnabler ... and now the latest "trimforce" by Apple?

With those apps you have to disable kext sign and that causes problems with OS updates unless re-enabled before updating. Trimforce doesn't disable kept signing and is built into the OS



[kwamayze]

The scariest update ever! MBP made a weird sour nd after restart(read about that so was cool) and kept restarting every 2 seconds or so like it couldn't boot for about 5 times. Didn't know whether to switch it off or leave it on, but glad I waited and it booted successfully



[Cindori]

With those apps you have to disable kext sign and that causes problems with OS updates unless re-enabled before updating. Trimforce doesn't disable kept signing and is built into the OS

Wrong. Both Trim Enabler and Disk Sensei no longer disables kext signing.

https://www.cindori.org/safely-enable-trim-on-yosemite-and-el-capitan/



[kwamayze]

Wrong. Obviously referring to all cases as the new method wouldn't work prior to 10.10.3



[ccontreras]

With those apps you have to disable kext sign and that causes problems with OS updates unless re-enabled before updating. Trimforce doesn't disable kept signing and is built into the OS

if it is clear ... it should now be "safer" to use the front door that put Apple.
but those rumors have turned SSD TRIM failing to use as the Samsung 840/850 had me worried .. although I have not seen anyone on the forum who has lost data by using TRIM.

https://blog.algolia.com/?p=3735



[kwamayze]

if it is clear ... it should now be "safer" to use the front door that put Apple.
but those rumors have turned SSD TRIM failing to use as the Samsung 840/850 had me worried .. although I have not seen anyone on the forum who has lost data by using TRIM.

https://blog.algolia.com/?p=3735

Just read somewhere there's a new firmware update for Samsung 840



[ccontreras]

Just read somewhere there's a new firmware update for Samsung 840

In March there were news about a corrupt firmware update on Samsung 850 Pro
mine has the EXM01B6Q and that is flawed is the EXM02B6Q have not updated for fear that lower performance or cause you problems as seen elsewhere.

http://www.tomshardware.com/answers...riginal-firmware-exm01b6q-worked-perfect.html

http://patchwork.ozlabs.org/patch/442574/



[tgd85]

Has anyone noticed their machines running significantly hotter on 10.10.4? The area right above my hard drive is warm to the touch. Temperature says its 37 C. Not sure if that's a 10.10.4 issue or if its at all related to the TRIM command. A quick look at the activity monitor doesn't show any unexpected disk activity.

Was thinking about disabling native TRIM and reinstalling Trim Enabler to see if that makes any type of difference. Because I switched to native TRIM right after upgrading to 10.10.4, I'm lacking cause / effect.

MBP early 15" 2011 with Samsung 840 Pro 256gb



[sstyle]

Follow Weaselboy's advice in the following post:
https://forums.macrumors.com/threads/slow-ssd-samsung-840-pro.1812724/#post-20271507

Did not help. Another thing: Last week I bought a new mac mini and install there SSD Sandisk Ultra II. But it also shows me a 150-160mb\s with trim enabled. System is clean with some apps.

First test shows 300Mb\s speed, but second and next one only 160.



[kwamayze]

Did not help. Another thing: Last week I bought a new mac mini and install there SSD Sandisk Ultra II. But it also shows me a 150-160mb\s with trim enabled. System is clean with some apps.

First test shows 300Mb\s speed, but second and next one only 160.

Try using Disk Sensei to trim the entire drive



[sstyle]

Try using Disk Sensei to trim the entire drive

Done. But nothing changes. Still 300->160. Looks like that Sandisk ultra II is slow drive based on TLC NAND. That`s it.



[navaira]

I'm sitting here being all jealous about you people with superfast 160 MB/s speeds... here's my Kingston SV300S37A120G


DO NOT BUY KINGSTON SSDS. Unless you want to buy mine. Then by all means please do.

(TRIM enabled, fsck -fy performed)



[m4v3r1ck]

I closely followed the workflows here in this thread about disabling and deleting Trim Enabler, updated to 10.10.4 with the ComboUpdater. Used the TrimForce command line, smooth as a hot knife cutting butter updated release of OS X 10.10. No issues so far.

Samsung 840 EVO 1 TB:

Thanks all for your contributions & advise here.

Cheers



[navaira]

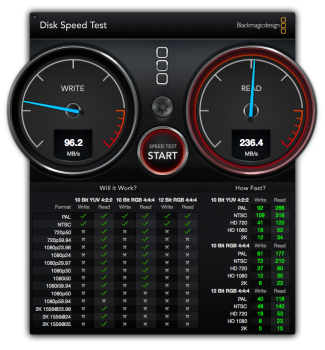

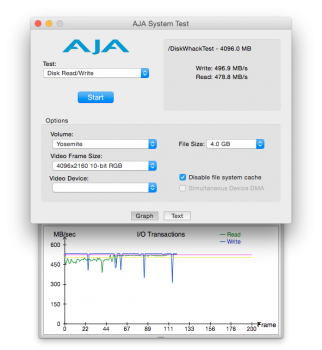

Wow. It makes me wonder how accurate either Black Magic or AJA System Test are. Because AJA gave me this result:


That's 496.9 MB vs 96.2 MB write and 478.8 vs 236.4 MB read!!!
