Just follow:
download this file, change to the downloaded directory in terminal and run:
sudo ./AHT-my-disk.sh
Nobody is asking you to code. Just follow instructions .
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP All Models PCIe SSDs - NVMe & AHCI
- Thread starter MisterAndrew
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
download this file, change to the downloaded directory in terminal and run:
sudo ./AHT-my-disk.sh
Nobody is asking you to code. Just follow instructions .
Downloaded this file: AHT-my-disk.sh
To run this X-Code ask for adittional components to install before it can run the script.
??
Also "change to the downloaded directory in terminal", how do I do that?
To run this X-Code ask for adittional components to install before it can run the script.
??
Also "change to the downloaded directory in terminal", how do I do that?
Last edited:
This is not the place to discuss AHT install, people. Open a thread or discuss via PM.
Please be on topic, I shouldn't have to keep reminding this anymore…
[doublepost=1550065040][/doublepost]
tsialex, I'm sorry, got carried away. I'll wait for my new carriercard to arrive and check if the startup problem persists.
tsialex, I'm sorry, got carried away. I'll wait for my new carriercard to arrive and check if the startup problem persists.
Changed to new PCI card (DT-120). No success: after three hours running, sudden reboot.
Can't get AHT to work. Desperation setting in.
Can't get AHT to work. Desperation setting in.
What other PCIe cards do you have in your system?
What brand/model is your GPU and how is it being powered?
What monitor and resolution?
What USB devices are connected?
How much RAM in the system? Have you tried reducing to only 1 or 2 sticks?
Are you running any specific tasks that could trigger this restart? Rendering video?
What brand/model is your GPU and how is it being powered?
What monitor and resolution?
What USB devices are connected?
How much RAM in the system? Have you tried reducing to only 1 or 2 sticks?
Are you running any specific tasks that could trigger this restart? Rendering video?
Im beginning to suspect the pci-slot. Had never problems, removed a USB-3 card to place the new Kyro-NVMe card, had the strange reboots on idle or wathever application, replaced the carriercard with a D-120. Or could it be the SSD itself?
cMP 5.1, system HS, 96GB ram, GT 640, GTX 970, USB scanner (not connected at this time, becose the prob!).
cMP 5.1, system HS, 96GB ram, GT 640, GTX 970, USB scanner (not connected at this time, becose the prob!).
Why would that make a difference now? I had these GPU installed since last september in order to upgrade to HS and 140 bootrom because of metal compatibility.
Really sounds like a power draw issue, especially given the 3-hour window of everything being fine. Realize it or not, your NVMe adapter pulls power from PCIe and likely more than the card that was there before (USB3 PCIe). Remove the GT 640 GPU to see if it makes a difference.
BTW, NVIDIA Web Drivers are only supposed to work correctly with matched GPUs according to NVIDIA support, in case you care to hear that...
BTW, NVIDIA Web Drivers are only supposed to work correctly with matched GPUs according to NVIDIA support, in case you care to hear that...
This thread has now totally lost it's way
Lou
Lou
Just for the sake of information:
I couldn't wait, so I made the upgrade with Samsung 970 EVO 2 tb without the plus. The plus-version was not available in Amazon and it still isn't. And somehow also Sintech adapters were out at the moment, so I bought Kalea-Informatique adapter with screwdrivers. Found out that the screwdrivers were too small - meant for MacBooks perhaps? I had some torxes of my own though. For the heatsink I chose Glotrends because it was small and can be put on without metal parts.
So everything went fine and is ok now. SSD-temperatures are ok too, but around 10 degrees celsius hotter - in light use (Safari) used to be with original SSUAX 256 Gb about 38-40 C and now it's about 48-52 C. Now I have solved this with iStat pro that has the possibility to make fan rules - I made 4 step-rules to keep the Pro cooler in rising ssd-temperatures.
And now I'm happy. Hope this helps someone looking for upgrading nMP (6,1).
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I just cancelled my order for a Samsung M.2 970 Pro . .I came across the new 970 EVO Plus which Samsung says is up to 53% faster than the 970 EVO !
That's fast enough for my immediate needs.
https://www.samsung.com/us/computin...sd-970-evo-plus-nvme-m-2-500gb-mz-v7s500b-am/
One of these as my High Sierra boot drive with my 960 EVO & 970 EVO Plus raided together in an IOCrest would be my next logical ( and ultimately comparatively cheap ) next upgrade.
Has anyone tried the 970 EVO Plus ?
That's fast enough for my immediate needs.
https://www.samsung.com/us/computin...sd-970-evo-plus-nvme-m-2-500gb-mz-v7s500b-am/
One of these as my High Sierra boot drive with my 960 EVO & 970 EVO Plus raided together in an IOCrest would be my next logical ( and ultimately comparatively cheap ) next upgrade.
Has anyone tried the 970 EVO Plus ?
You'll hear an argument that the PRO models are still better for sustained. Have not personally used EVO PLUS in my own machines or benchmarked with MacPro5,1 but the EVO PLUS were impressive on PC workstations. If you're looking for 1TB+ you'll need to look at the older model. For 250GB/500GB/1TB needs I'd probably pick up EVO PLUS as well.
Would suggest looking into mixed RAID more closely if that is your end goal. "OFFICIALLY" the specs call for matching sticks.
Would suggest looking into mixed RAID more closely if that is your end goal. "OFFICIALLY" the specs call for matching sticks.
I'm buying an IOCrest PCIe x 16 adapter with a PCIe switch -goes in PCIe slot 1 or 2.
You can put two M.2 blades on the IOCrest.
. . . . . . then one gets the speed . .around 2,500 mb/s
this was the speed of one 970 evo in a HP7101
and this is the speed of 2 x 970 evo in a HP7101
and this is the speed of 2 x 970 evo in a HP7101

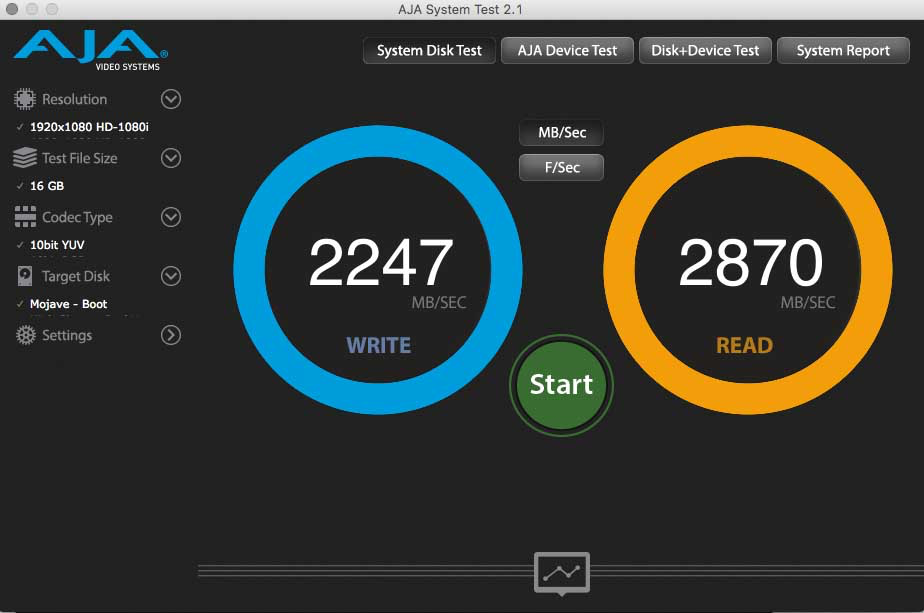

And this is the speed in my cMP 5,1 with the I/O Crest card and one Samsung 970 pro:
Lou
Lou
Most people that buy 970 Pros are buying it not for the speed, but because warranty, cache and cell technology. A 970 Evo will have cache saturation into a lot of big write scenarios, 970 Pro won't.
