Thanx. super!!! Hooray!!! so I did everything right.
I will look for how to fix with Wi-Fi
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP All Models PCIe SSDs - NVMe & AHCI
- Thread starter MisterAndrew
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
I will look for how to fix with Wi-Fi
Wi-Fi has nothing to do to NVMe. Perhaps your AirPort is one from MP4,1 that is not supported anymore. Buy an Apple AirPort Extreme BCM94322MC, $10 on eBay.
I beg your pardon.
and apologize again.
I will look for information. at 10.13 high sierra works without problems
Mojave removed support for all MP4,1 AirPort Extreme cards, Atheros and Broadcom. Do a search, this is throughly documented.
You have to buy one from MP5,1, Apple AirPort Extreme BCM94322MC.

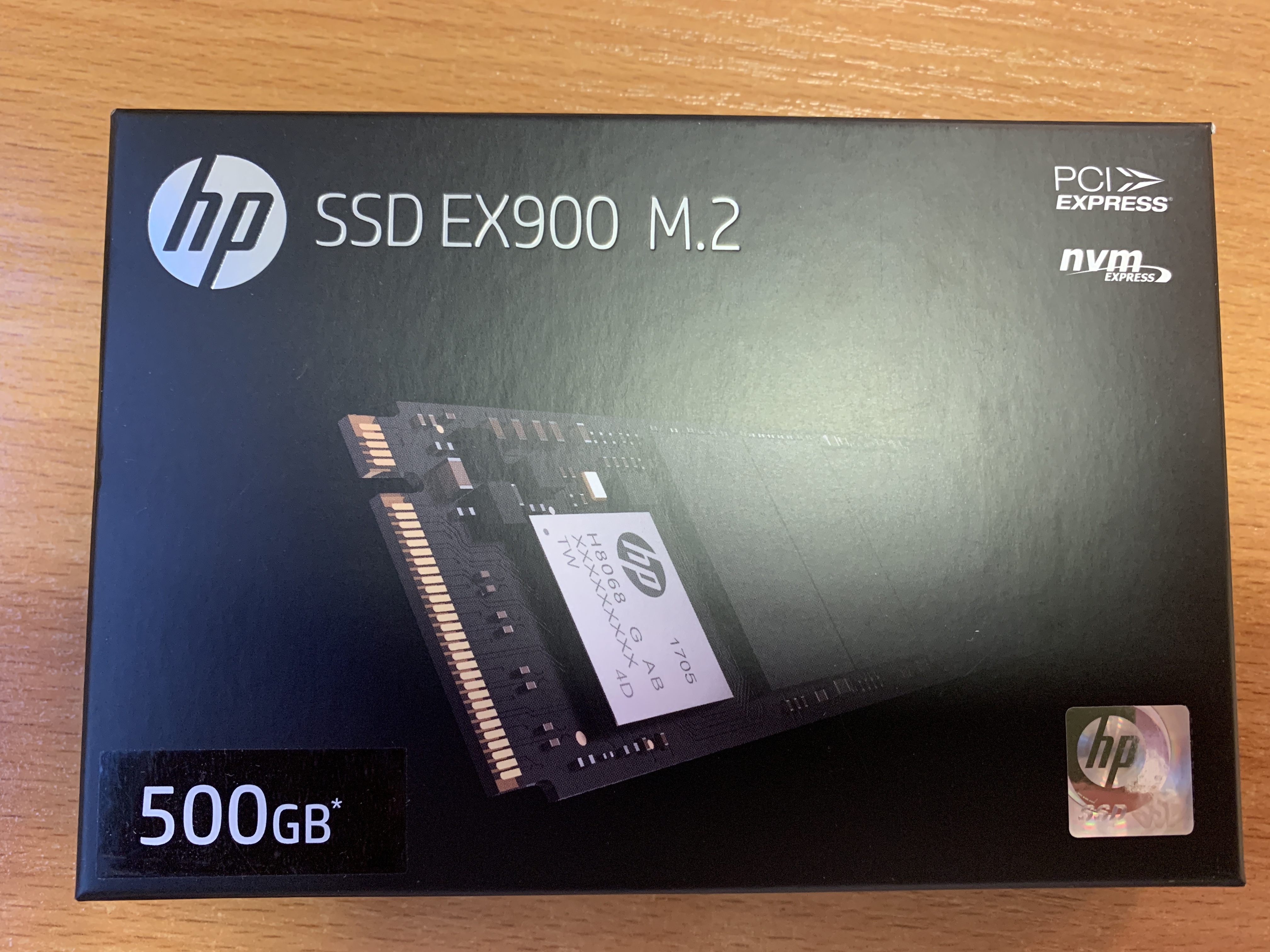

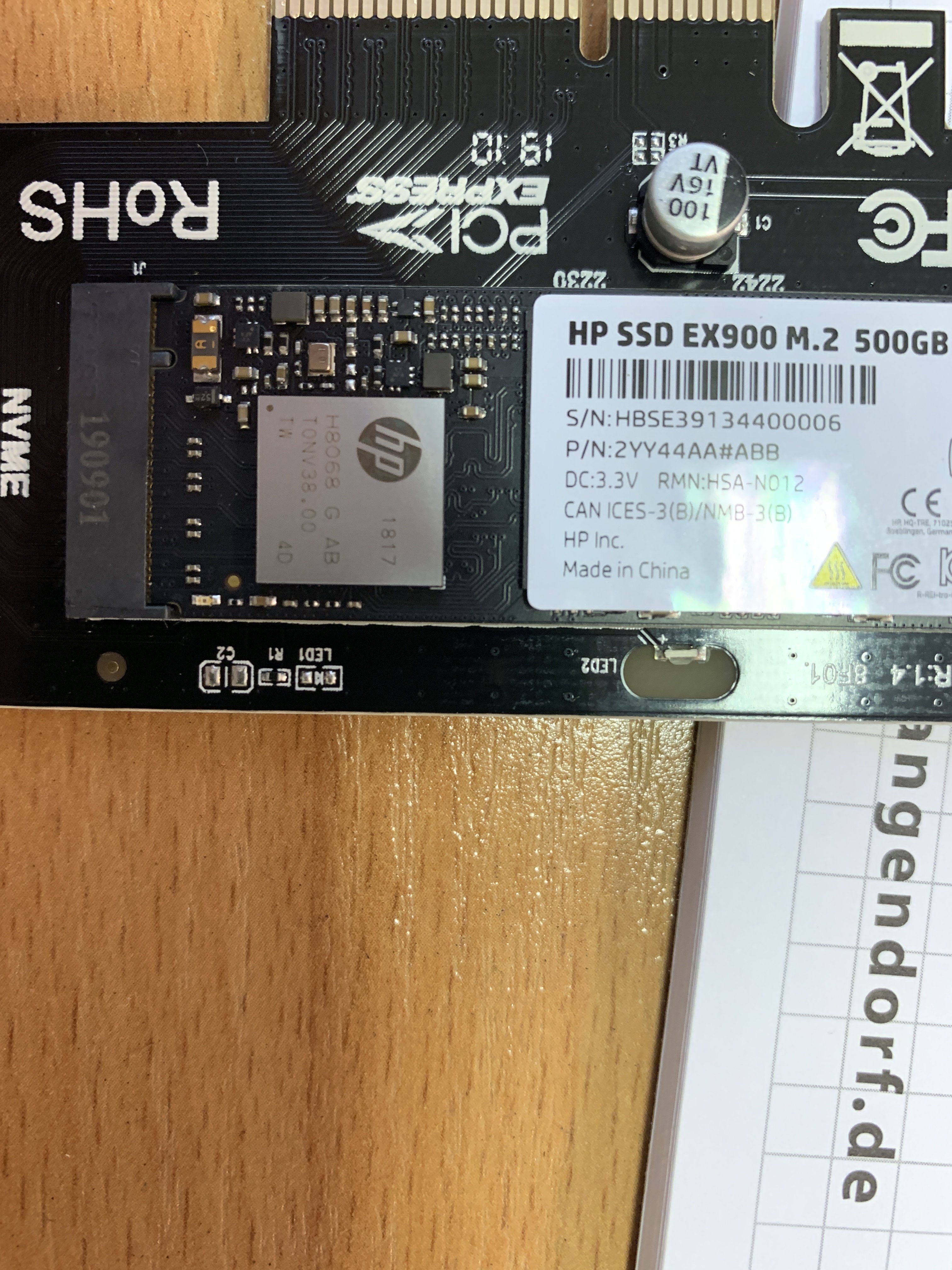

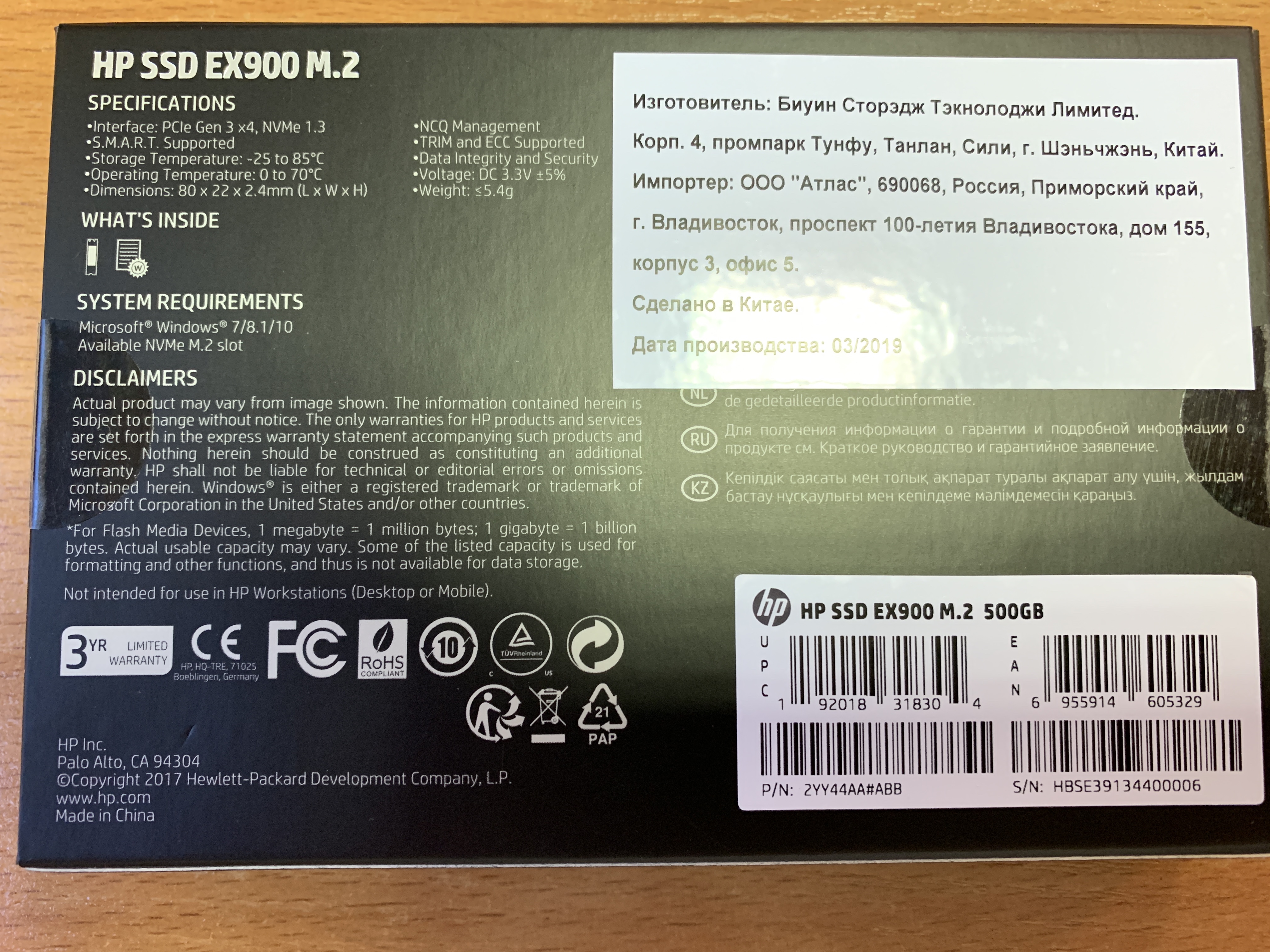

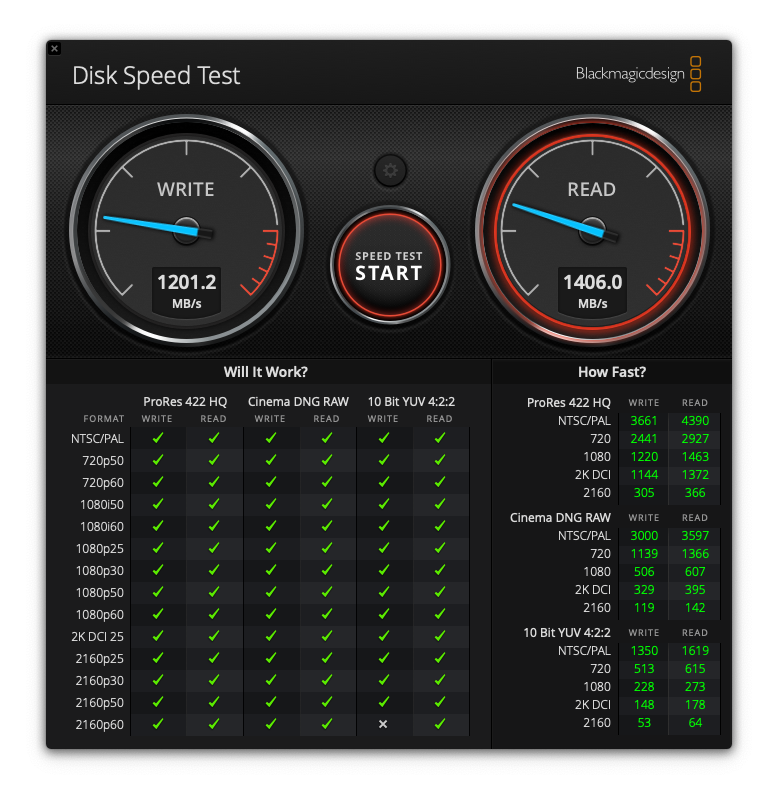

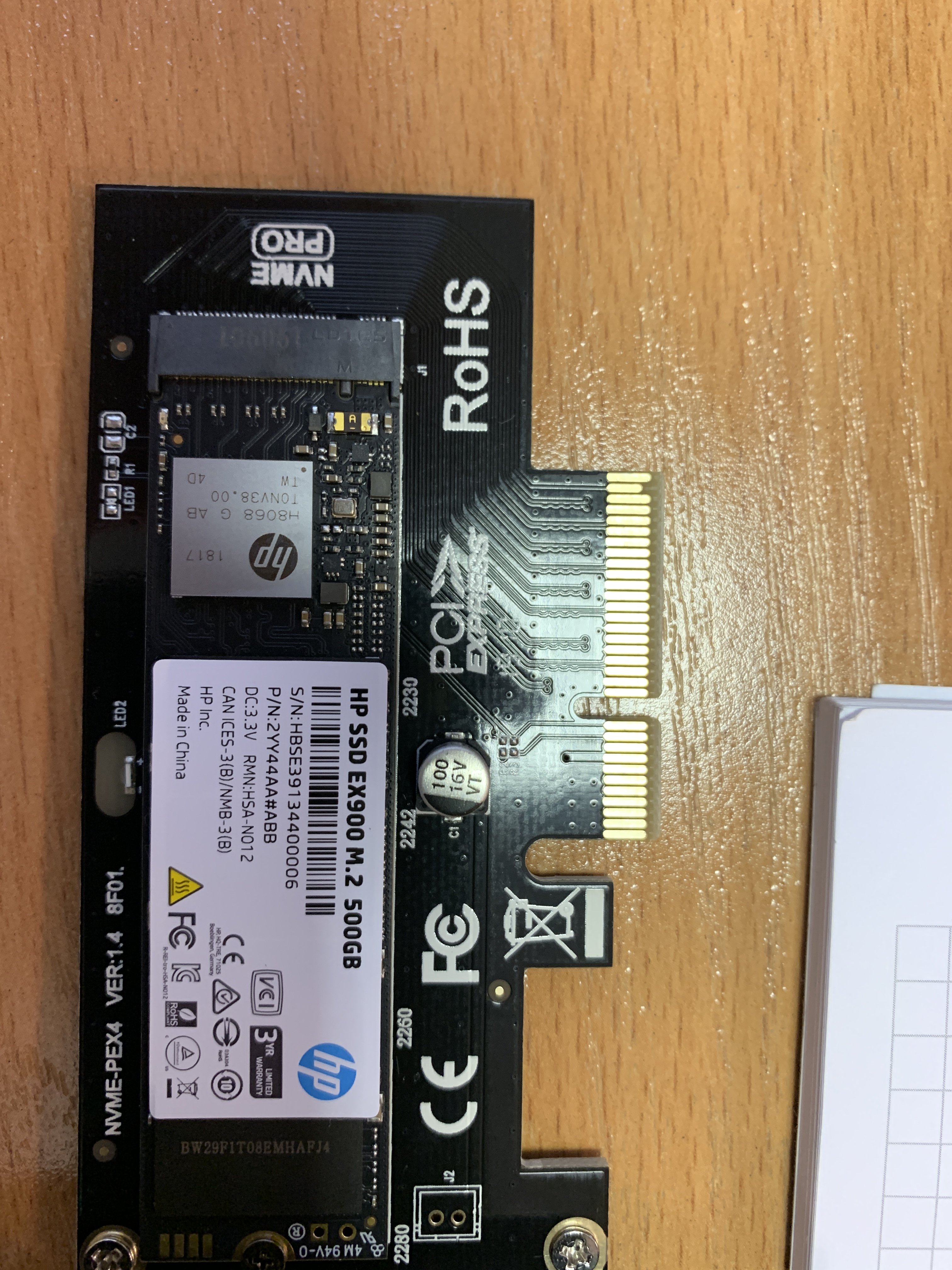

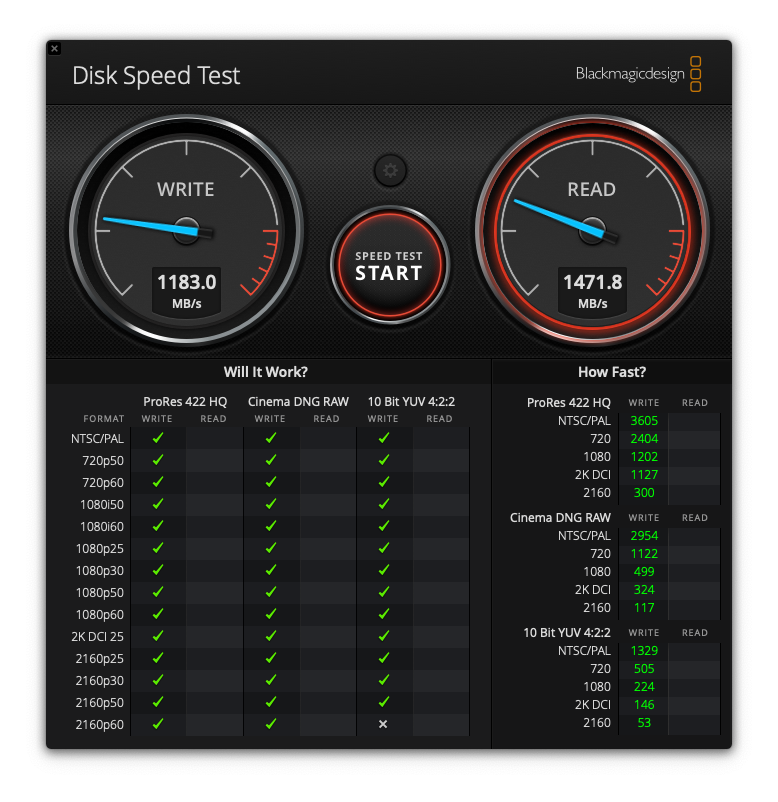

for information (in the piggy bank data of the first page). blade HP SSD EX900 (Silicon Motion SM2262) works as a boot (Mojave).
not super fast but cheap
https://yadi.sk/i/BaCwriSefLsdQQ
not super fast but cheap
https://yadi.sk/i/BaCwriSefLsdQQ
Last edited:
Just another data point for the IO Crest PLX card: A third user on reddit reported the same crashing that I experienced when copying large files. The problem appears to have gone away since he installed a second blade on the card. Not definitive proof, but looking more and more like the card has problems with just one blade installed.
On a side note, both his and my card arrived with the wrong screws to hold the blade in place.
On a side note, both his and my card arrived with the wrong screws to hold the blade in place.
Last edited:
You can't get it faster with those adapters anyway. Even 970 Pro will have similar speeds with those adapters
Hi tsialex,
To update the firmware do you know if it would be easier to put the 970 EVO plus into an external adapter (USB, seen a bunch of them on Amazon) and plug it into a Windows PC to run the updater (Samsung Magician or whatever it is)?
I'm sure I could figure out the tonymacx86 method but it seems like doing it on a Windows PC would be failsafe, assuming that you can update firmware on an external NVMe device …
Thanks
Just adding an edit: I'm running a non EFI GPU so I may have an issue with UNetbootin. I could run it on my laptop but then I will still need to put the 970 Plus in an external enclosure in that case.
Last edited:
A firmware updater probably requires access to PCIe registers, therefore a USB stick wouldn't work. You need a M.2 NVMe slot or a PCIe card M.2 NVMe adapter or a Thunderbolt to NVMe M.2 adapter.
Yes, If you are able to connect Thunderbolt devices. It's just PCIe once it's connected and working properly.
Firmware updates don't work via USB or Thunderbolt, you need to install via PCIe.
But Thunderbolt is PCIe. Devices connected via Thunderbolt use standard PCIe drivers. Does the updater check the connection for latency or something?
Didn’t work via TB when I tried to upgrade a 960EVO, searched Samsung and found a support article somewhere warning about this.
Did the device appear at least in the firmware updater? What was the error message? I can't find the support article.
Thanks for the info. I guess i'll have to find a PC to do it, assuming there is no way to choose the UNetbootin USB without a boot screen. I guess I could put my old EFI GPU back in to run it (better check if it supports Metal).
I'm guessing running the UNetbootin off a USB 2 port isn't an issue? And what's the chance that I could just buy a new 970 Plus that has updated firmware already: I guess that would be hard to know in advance.
Edit: or I could just buy a new 2019 Mac Pro to do the update and the put it back in my 2010 model ha ha!
It was over a year ago, Magician didn’t detected the 960EVO in the TB M.2 case. Booting from the ISO updated didn’t work either, had to install via PCIe to do the firmware upgrade.
[doublepost=1559693611][/doublepost]
Samsung firmware upgrade has nothing to do with METAL, that’s a requirement of Mojave MP5,1 EfiFlasher.
You can burn a CD with the ISO of the firmware and boot from it too, after you install your original GPU.
All MacPro5,1 slots have at least 4x and 5GT/s support. If you can install in slot 2, it will be marginally faster, since slots 3 and 4 share bandwidth via a PCIe switch.
Thanks. I just meant if I wanted to install the old GPU the machine won't work if it's not Metal compatible (just checked and it's a 5770 so it's not unfortunately). Wouldn't I need a boot screen to boot from a CD too?
I might just install an older version of Mac OS on another internal drive, boot from that with the 5770 installed and do the firmware update then revert back to my other system. Assuming that I can still read the NVMe device in the older version of MacOS, or I can find an installer. Maybe finding a PC will be easier.
High Sierra works with 144.0.0.0.0 and works with HD 5770 too, use it. After you have flashed the 970 EVO Plus with the compatible firmware, install your METAL GPU and then install Mojave.
Thanks. The problem now is getting High Sierra now that the old OS's don't show up in the App store. Is there something like Mojave patcher to download High Sierra?
Edit: sorry ignore that one, a quick search shows up a link on the apple site that goes to a page on the app store to download.
Read MP5,1: What you have to do to upgrade to Mojave (BootROM upgrade instructions), all links needed for installing are on the first post.
Actually I do have another question, I have a 960 Pro already in my system (and currently booting of a separate older AHCI blade). Is it worth updating the firmware on them at the same time (mostly the 960)? They already have data on them but I'm assuming the flash can be done without wiping them.
[doublepost=1559708099][/doublepost]
Thanks, you must have relied after I edited my last post, sorry about that.
Some firmware updates wipe the SSDs, you have to check. I lost all data on a 840 some years ago.
