The DingusPPC IDE works. I can boot CDs in the DPPC B&W G3 but not HDs. I don't know why. There's no emulation of the CMD646 in DingusPPC yet.

interesting it should work! but I do wonder if the G3 B&W suffers from the same 8GB boot bug that the G3 beige and iMac suffer from when it comes to their Heathrow/Paddington ATA controllers? that might be worth keeping in mind (its why I keep all my Mac OS X 10.0-10.4 images on 6GB image files)

BTW what are you doing for video output for the emulated G3 Blue and white? I figured out that for the 9600 you need to place the fCode ROM file from here http://www.bitsavers.org/pdf/ati/109-32900-10_Mach64_Mac_1995/

next to the dingusppc binary and then it all works along with --pci_A1=AtiMach64Gx (although I notice weirdly with the 9600 machine the mouse does not work, you can click but you cant move it)

so I am just wondering if theres a similar thing I need to do for the G3 B&W? (I have not yet actually played with that option in dingusPPC since I still need to either dump own G3 B&W bootROM or find one from somewhere! so forgive me if it actually tells me what to do when I try it out LOL)



[joevt]

interesting it should work! but I do wonder if the G3 B&W suffers from the same 8GB boot bug that the G3 beige and iMac suffer from when it comes to their Heathrow/Paddington ATA controllers? that might be worth keeping in mind (its why I keep all my Mac OS X 10.0-10.4 images on 6GB image files)

BTW what are you doing for video output for the emulated G3 Blue and white? I figured out that for the 9600 you need to place the fCode ROM file from here http://www.bitsavers.org/pdf/ati/109-32900-10_Mach64_Mac_1995/

next to the dingusppc binary and then it all works along with --pci_A1=AtiMach64Gx (although I notice weirdly with the 9600 machine the mouse does not work, you can click but you cant move it)

so I am just wondering if theres a similar thing I need to do for the G3 B&W? (I have not yet actually played with that option in dingusPPC since I still need to either dump own G3 B&W bootROM or find one from somewhere! so forgive me if it actually tells me what to do when I try it out LOL)

AtiMach64Gx is the only DPPC PCI GPU that's usable currently. You can use my flashrom to dump your G3 B&W bootROM. Or you can extract a copy from a firmware updater (piecing the parts together into the right place). Or you can find PowerMacG3BW_BootROM.bin in the dingusppc discord channel.



[joevt]

there's a bug in dingus, the actual IDE devices don't receive the device number, so on the device side they're all device 0

AtaBaseDevice::set_host() and IdeChannel::register_device() need to be changed to fix this, with that done ide0/@1 will work lol

I made the change to my fork and I can now connect the 8.5.1 installer CD and a HD to the DPPC B&W G3 and it will boot the CD and show both the CD and the HD in the Finder desktop.
Booting HD still has issues. Sometimes a happy Mac appears.



[LightBulbFun]

AtiMach64Gx is the only DPPC PCI GPU that's usable currently. You can use my flashrom to dump your G3 B&W bootROM. Or you can extract a copy from a firmware updater (piecing the parts together into the right place). Or you can find PowerMacG3BW_BootROM.bin in the dingusppc discord channel.

is there a special command line for getting that to play ball with the emulated G3 BW? if I attach to slot "A1" (even tho a real G3 BW does not have such a slot) it crashes the emulator, if I try all the other slots B1 C1 PERCH and GPU, then the GPU is just not seen in the emulated G3 BW, but I can get to an OpenFirmware prompt via serial at least



[joevt]

is there a special command line for getting that to play ball with the emulated G3 BW? if I attach to slot "A1" (even tho a real G3 BW does not have such a slot) it crashes the emulator, if I try all the other slots B1 C1 PERCH and GPU, then the GPU is just not seen in the emulated G3 BW, but I can get to an OpenFirmware prompt via serial at least

My fork has some Yosemite additions. See the commit "mpc106: Add Yosemite GPU slot.".



[LightBulbFun]

My fork has some Yosemite additions. See the commit "mpc106: Add Yosemite GPU slot.".

Oooh now this is getting exciting! I cloned your fork/repo, compiled it, and I was able to boot an image of 10.4.11 I had made earlier, almost to the desktop!

but thats where it seems to stop. still its mighty impressive I can boot single user mode no problems for example

trying to boot Mac OS 9.1 or Mac OS X Server 1.2v3 hard drive images ends up with this

(for those trying this at home I note the hard drive ends up as the slave hard drive on the ODD bus so you have to use the zip alias, boot zip:,\\:tbxi for example)



[DearthnVader]

Oooh now this is getting exciting! I cloned your fork/repo, compiled it, and I was able to boot an image of 10.4.11 I had made earlier, almost to the desktop!

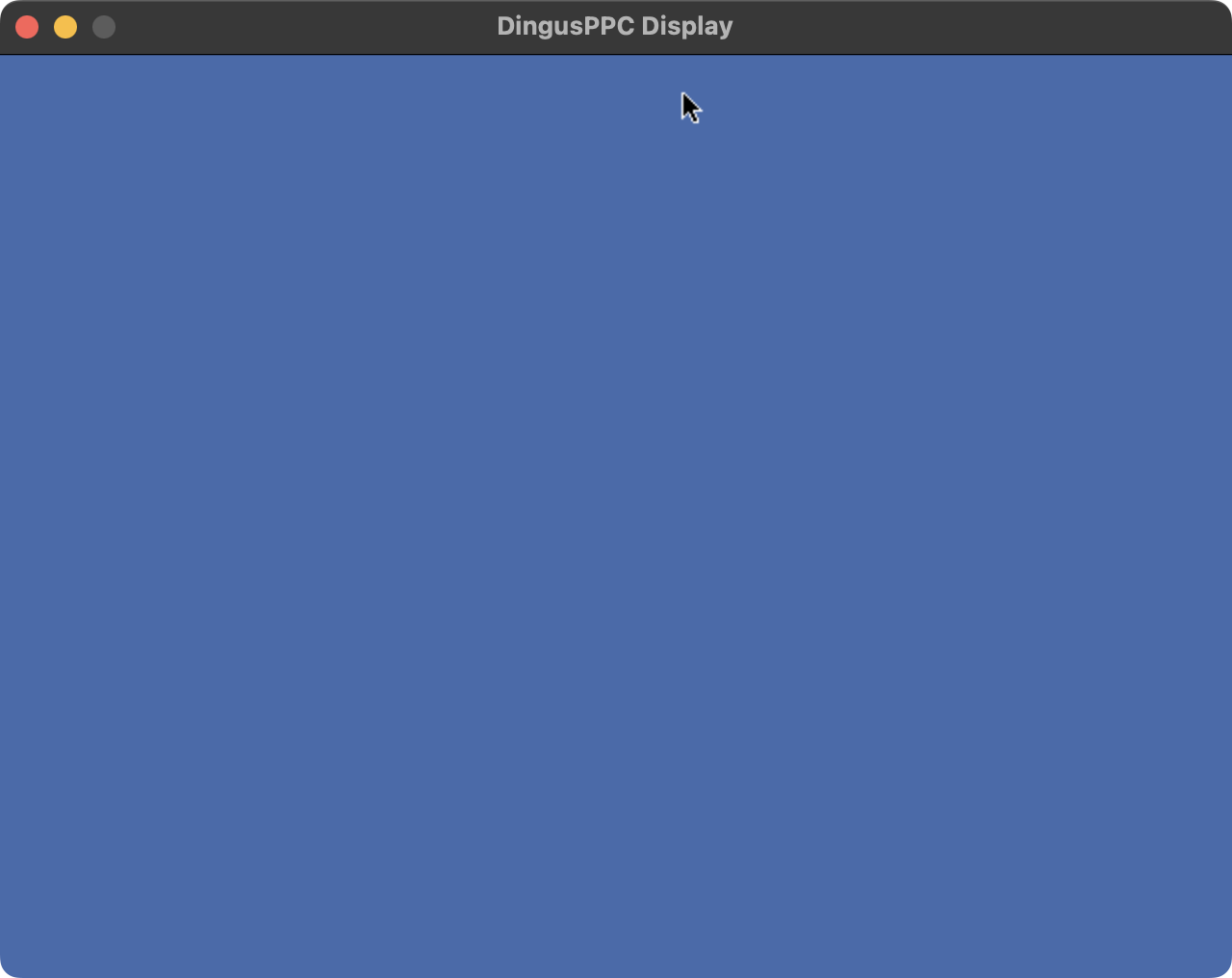

View attachment 2394944

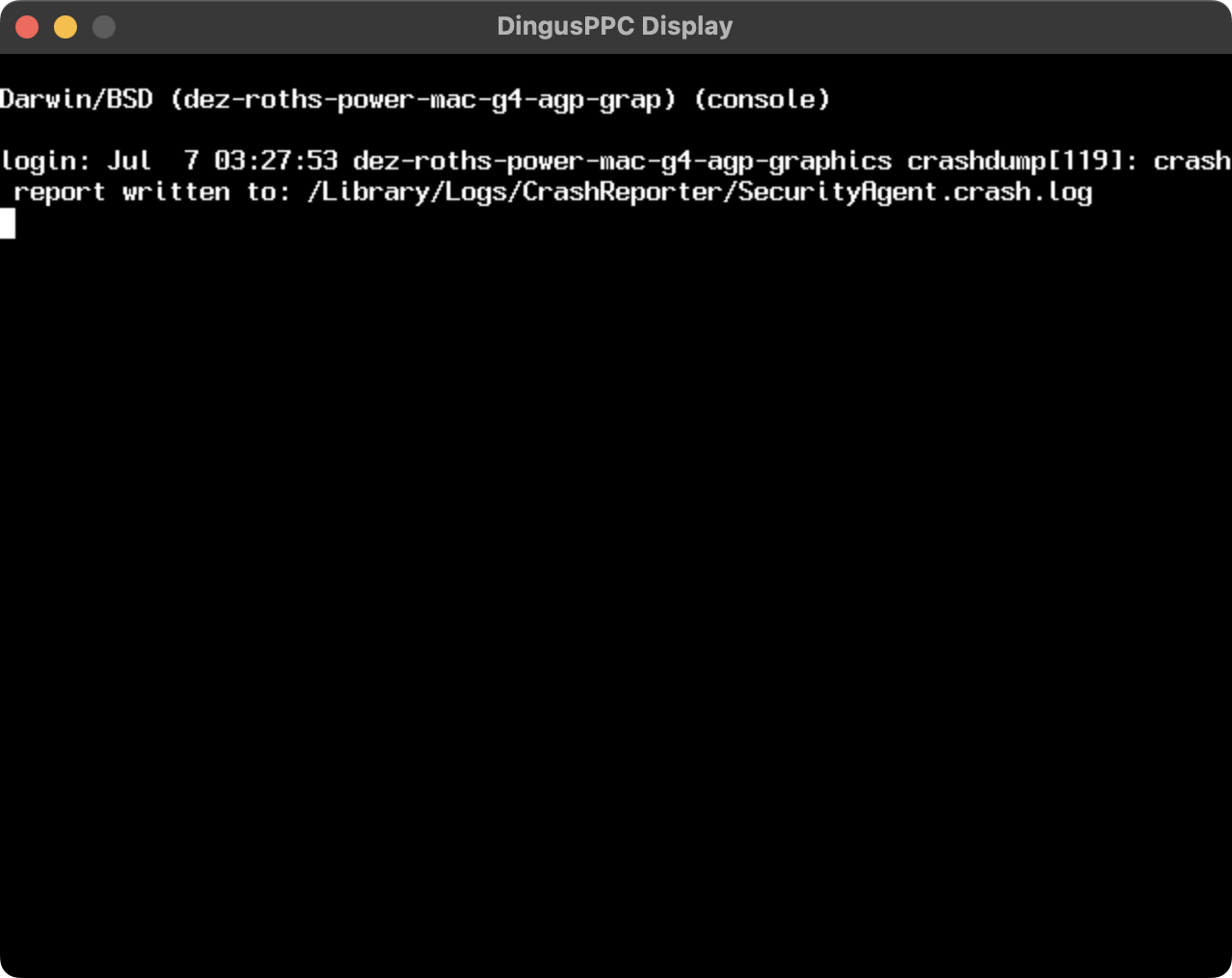

View attachment 2394945

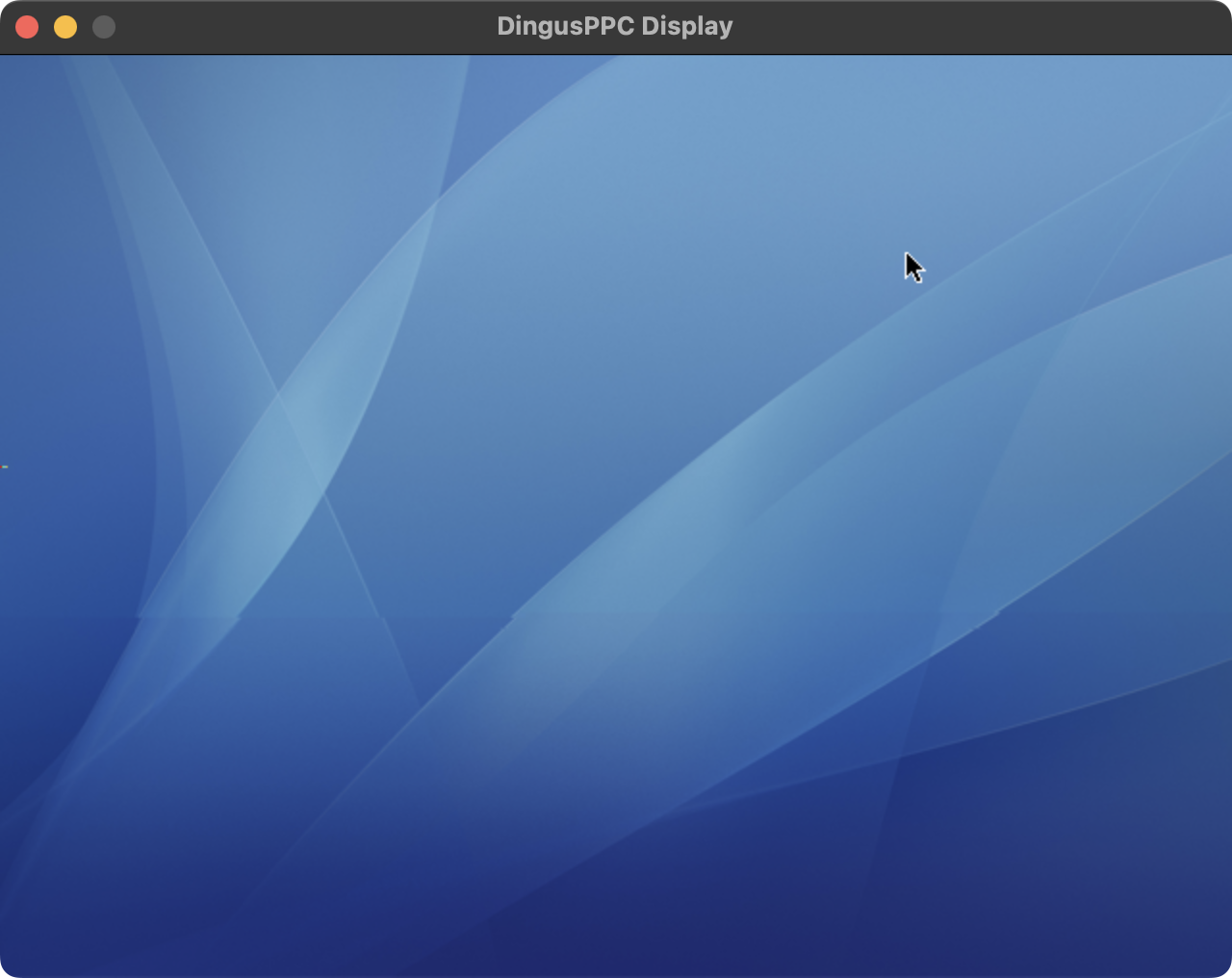

View attachment 2394943

but thats where it seems to stop. still its mighty impressive I can boot single user mode no problems for example

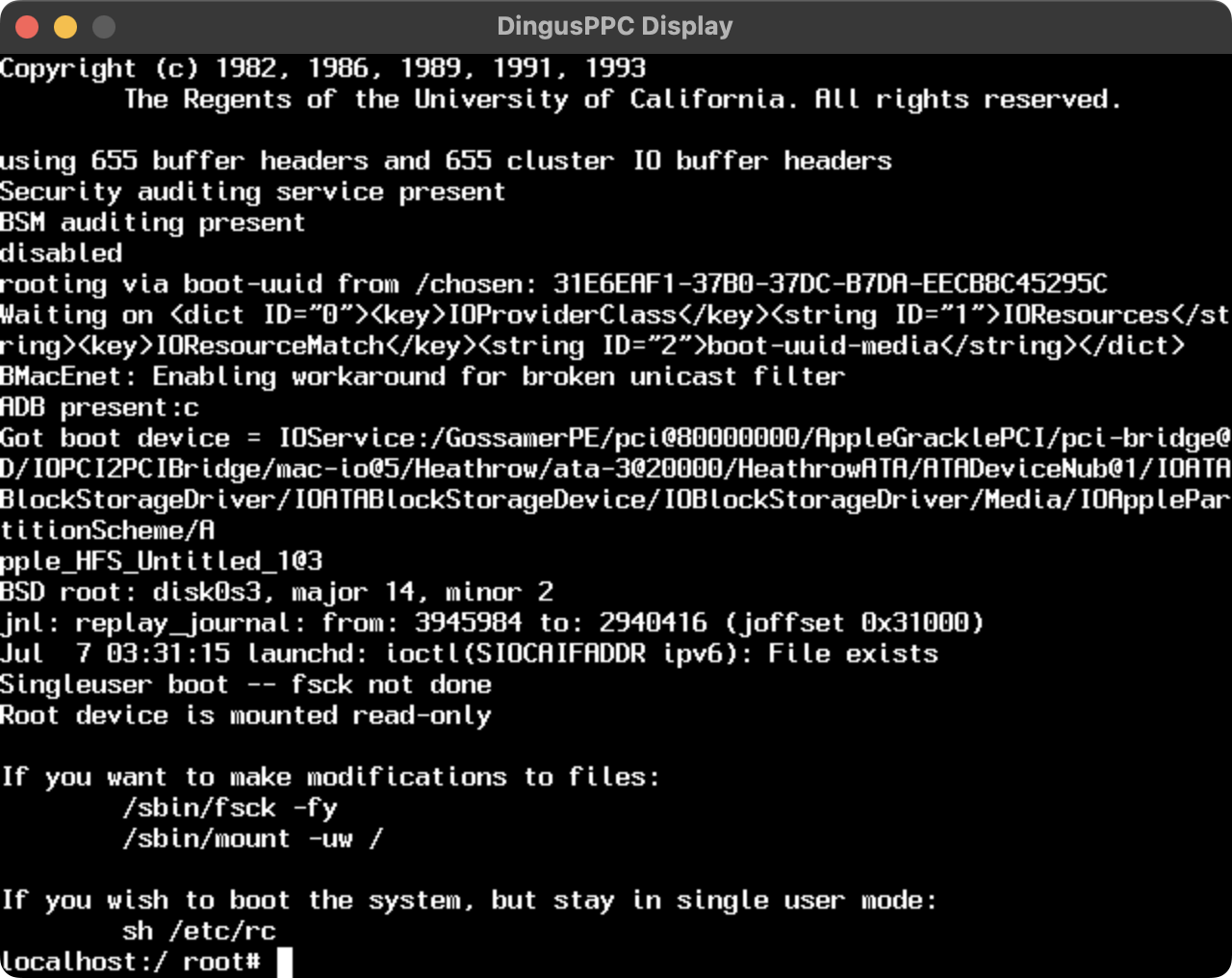

View attachment 2394949

trying to boot Mac OS 9.1 or Mac OS X Server 1.2v3 hard drive images ends up with this

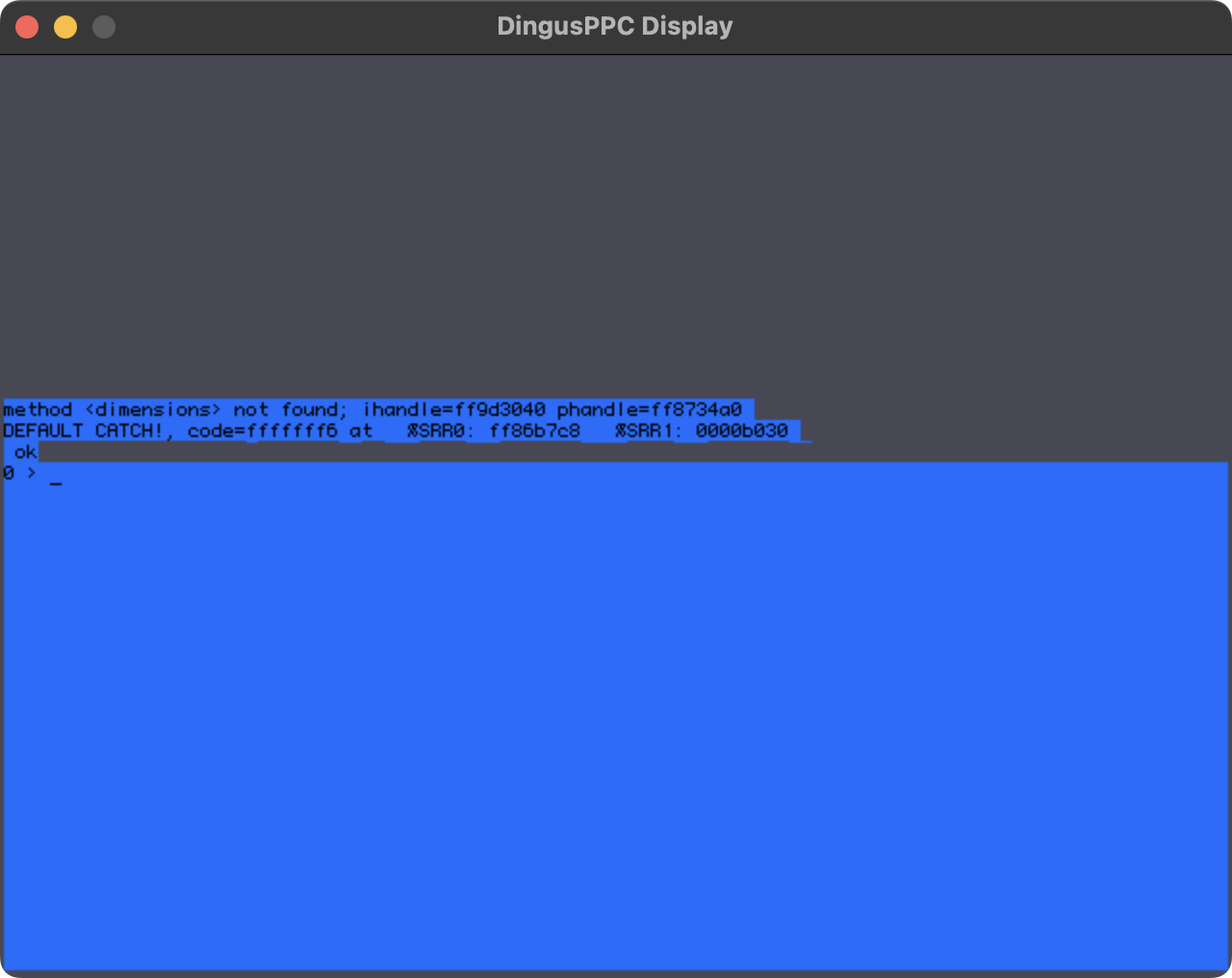

View attachment 2394951

(for those trying this at home I note the hard drive ends up as the slave hard drive on the ODD bus so you have to use the zip alias, boot zip:,\\:tbxi for example)

Try and boot the 9.2.1 CD, it should boot fine. Tiger and Panther Installers will boot just fine, but the graphics are not right, you'll see, so you can't proceed with the install.

If you try the Beige G3 target and the Patched Rage Pro from XPF you may get further, but I think I tried the Jaguar install CD too on the Beige and it still had the graphics issues. As Jaguar doesn't need a Rage Pro patch, or shouldn't, there is still some work to be done on GFX emulation if we want to boot OS X in Dingus.



[LightBulbFun]

Try and boot the 9.2.1 CD, it should boot fine. Tiger and Panther Installers will boot just fine, but the graphics are not right, you'll see, so you can't proceed with the install.

If you try the Beige G3 target and the Patched Rage Pro from XPF you may get further, but I think I tried the Jaguar install CD too on the Beige and it still had the graphics issues. As Jaguar doesn't need a Rage Pro patch, or shouldn't, there is still some work to be done on GFX emulation if we want to boot OS X in Dingus.

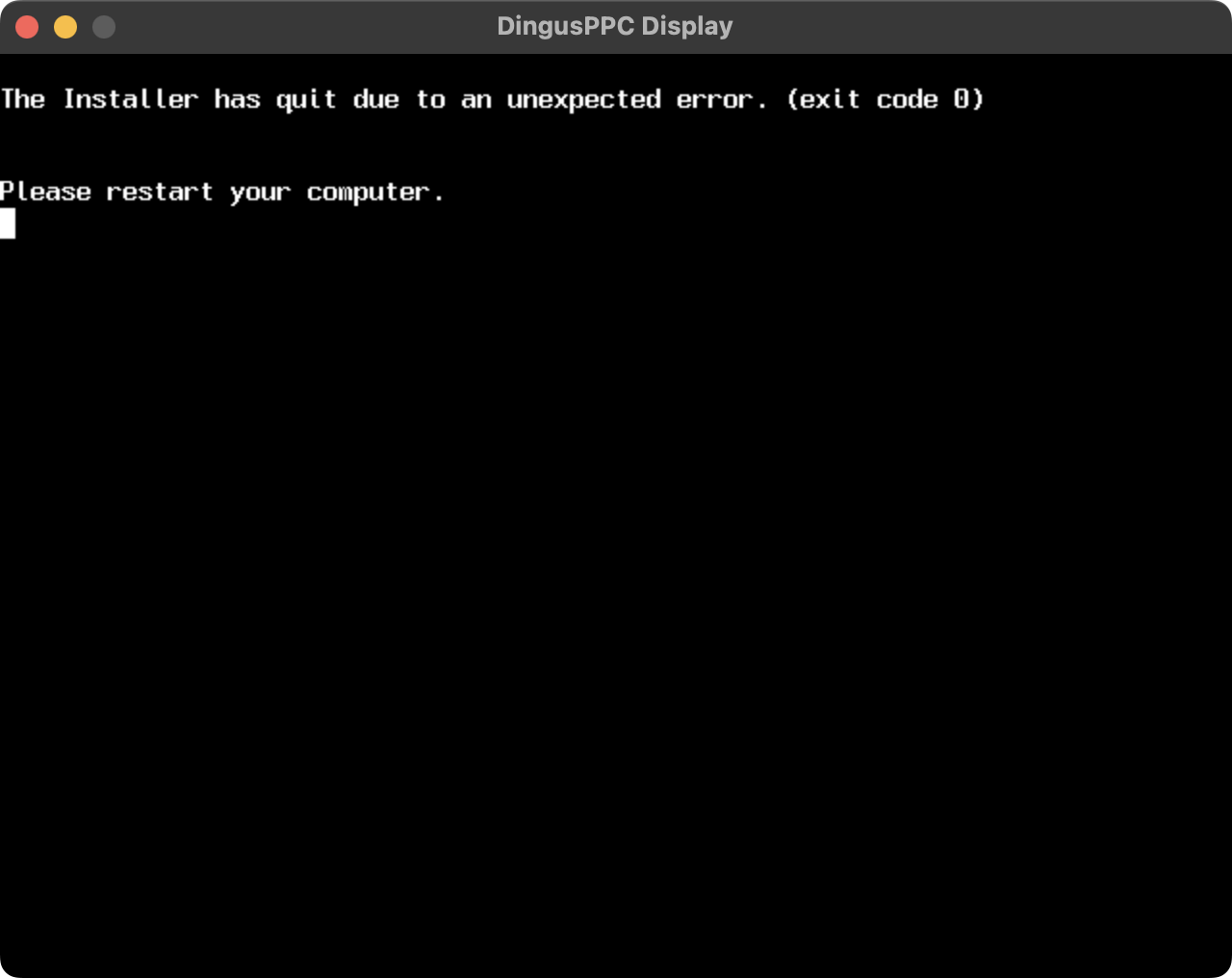

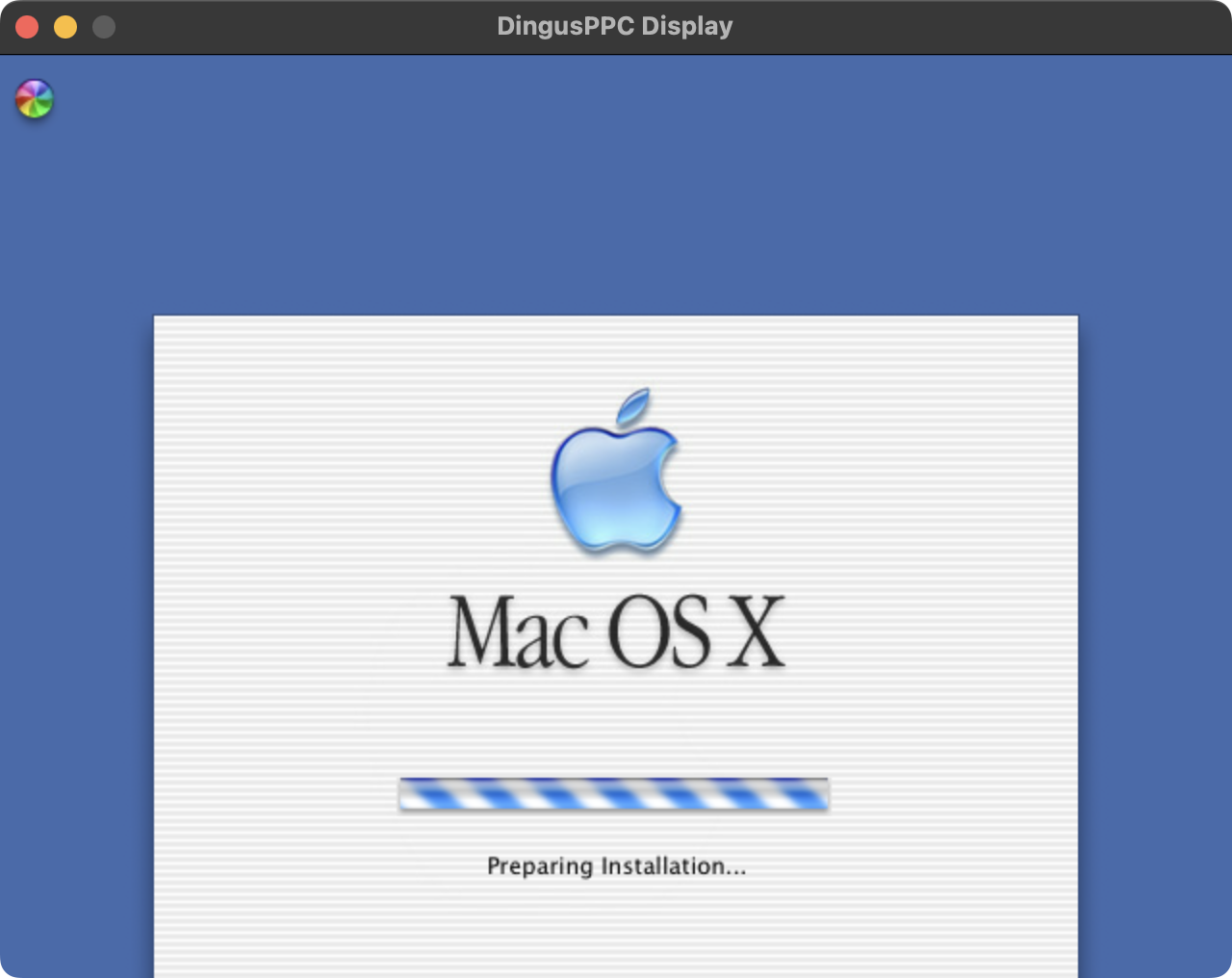

10.2 and 10.4.6 installers crash at the Window Server loading point for me, so it seems it might be graphical issue with the Mach 64 emulation? (tho while OS X does have disk based NDRV's thankfully for the Mach 64 I am not sure anyones actually tried one for real with 10.4.x etc)

I tried a 9.2.2 installer just now and its no go, same default catch as above sadly



[DearthnVader]

I had luck with 9.2.1, didn't test 9.2.2.

WinWorld: Apple Mac OS 9.2.1 (ISO)

WinWorld is an online museum dedicated to providing free and open access to one of the largest archives of abandonware software and information on the web.

winworldpc.com

Also note that not all disk images are equal, just because an ISO will boot in Qemu or SS doesn't mean it will work with Dingus. Dingus seems to work best with properly made disk images.



[Rairii]

I made the change to my fork and I can now connect the 8.5.1 installer CD and a HD to the DPPC B&W G3 and it will boot the CD and show both the CD and the HD in the Finder desktop.
Booting HD still has issues. Sometimes a happy Mac appears.

probably related to open firmware. I have a similar issue on my lombard where the optical drive is IDE device 1; multi-boot won't enumerate it, for booting OSX from optical media I have to use "boot ide1/@1:x,\\:tbxi" passing the correct partition number, otherwise bootx won't work.



[DearthnVader]

I made the change to my fork and I can now connect the 8.5.1 installer CD and a HD to the DPPC B&W G3 and it will boot the CD and show both the CD and the HD in the Finder desktop.
Booting HD still has issues. Sometimes a happy Mac appears.

Maybe try Mac OS 9 as it has the built-in NanoKernel debugger and it will give you everything from the loading to the :tbxi to Off to MacOS. The next (and last) call into OpenFirmware is quiesce().

dev / 13fff encode-int " AAPL,debug" property



[LightBulbFun]

BTW as an aside to all of this I realised I dont think theres a publicly avliable BootROM dump for the PowerBook G3 Kanga AAPL,3500 so I have gone ahead and made one and also heres a dump of its device tree also,

0 > dump-device-tree
/
PROPERTIES:
name                    device-tree
model                   PowerBook
compatible              AAPL,3500
                        MacRISC
AAPL,cpu-id             10010000
#address-cells          00000001
#size-cells             00000001
clock-frequency         02FAF080

METHODS:
make-cpu-properties             dma-sync        dma-map-out     dma-map-in      dma-free
dma-alloc       map-out         map-in          decode-unit     close           open
?pdm

/cpus@0
PROPERTIES:
name                    cpus
device_type             cpus

#address-cells          00000001
#size-cells             00000000

METHODS:
close           open

/cpus@0/PowerPC,750@0
PROPERTIES:
name                    PowerPC,750
device_type             cpu
reg                     00000000
cpu-version             00080201
graphics
external-control
performance-monitor
clock-frequency         0EE6B280
bus-frequency           02FAF080
timebase-frequency      00BEBC20
reservation-granule-size00000020
tlb-split
d-tlb-sets              00000040
d-tlb-size              00000080
i-tlb-sets              00000040
i-tlb-size              00000080
tlb-sets                00000040
tlb-size                00000080
d-cache-size            00008000
i-cache-size            00008000
d-cache-sets            00000080
i-cache-sets            00000080
i-cache-block-size      00000020
d-cache-block-size      00000020
l2-cache                FF829778
existing                00000000 80000000 80000000 80000000
available               00000000 F2000000 F4000000 0B800000 FF900000 00300000
translations            F2000000 00010000 F2000000 00000028 F2800000 00001000 F2800000 00000028
                        F2C00000 00001000 F2C00000 00000028 F3000000 01000000 F3000000 00000028
                        F8000000 00001000 F8000000 00000028 FF800000 00100000 00400000 00000010
                        FFC00000 00400000 FFC00000 00000000 FFC00000 00400000 FFC00000 00000028

METHODS:
translate       modify          unmap           map             release         claim
close           open

/cpus@0/PowerPC,750@0/l2-cache@0,0
PROPERTIES:
name                    l2-cache
device_type             cache
i-cache-size            00080000
d-cache-size            00080000
i-cache-sets            00002000
d-cache-sets            00002000
cache-unified
ram-type                70697065 6C696E65 642D7379 6E63726F 2D627572 737400


/chosen@0
PROPERTIES:
name                    chosen
stdin                   FF8D9E40
stdout                  FF8D9CC0
memory                  FF8DD800
mmu                     FF8DD8C0
bootpath                00
bootargs                00


/memory@0
PROPERTIES:
name                    memory
device_type             memory
reg                     00000000  06000000
available               00000000 00400000 00500000 05B00000

METHODS:
release         claim           close           open

/openprom@0
PROPERTIES:
name                    openprom
model                   Open Firmware, 2.0.1
relative-addressing


/AAPL,ROM@FFC00000
PROPERTIES:
name                    AAPL,ROM
device_type             rom
reg                     FFC00000  00400000

METHODS:
dumpbytes       load            open

/options@0
PROPERTIES:
name                    options
little-endian?          66616C73 6500
real-mode?              66616C73 6500
auto-boot?              66616C73 6500
diag-switch?            66616C73 6500
fcode-debug?            66616C73 6500
oem-banner?             66616C73 6500
oem-logo?               66616C73 6500
use-nvramrc?            74727565 00
real-base               FFFFFFFF
real-size               00100000
virt-base               FFFFFFFF
virt-size               00100000
load-base               00600000
pci-probe-list          FFFFFFFF
screen-#columns         00000064
screen-#rows            00000028
selftest-#megs          00000000
boot-device             61746130 2F40303A 3900
boot-file               00
diag-device             00
diag-file               00
input-device            6B626400
output-device           73637265 656E00
oem-banner              00
oem-logo                00
nvramrc                 6865780D 3A202444 2066696E 642D6465 76696365 203B0D3A 20244520 64657669
                        63652D65 6E64203B 0D3A2024 4C20424C 70617463 68203B20 3A202452 20425270
                        61746368 203B0D3A 20245820 65786563 75746520 3B0D3A20 24702030 20746F20
                        6D792D73 656C6620 70726F70 65727479 203B0D3A 20246120 22202F63 686F7365
                        6E222024 44202470 20244520 3B0D3A20 68656C70 62202220 6261636B 6C696768
                        742D6F6E 22205F70 6D752D69 68616E64 6C652024 63616C6C 2D6D6574 686F6420
                        3B0D3130 20627566 6665723A 206B6D0D 64657620 6B62640D 6765742D 6B65792D
                        6D617020 6B6D2073 77617020 6D6F7665 0D24450D 3A20636B 20302064 6F207377
                        ... 0000031B bytes total
