Speedstar

macrumors regular
Oct 10, 2008
116
37
Thanks, now another issue, I have windows 7 64bit install and it does not seem to wanting to but on.. I I think I'll go ahead and install windows 10, weird it should work on 7 ..
[doublepost=1540236541][/doublepost]

If you have problems boating with Boot Camp , Windows on your Macintosh maybe you need to fix your master boot record :


EasyBCD might help you


Bion1nc

macrumors member
May 3, 2014
39
31
I never install windows with Bootcamp windows does not need bootcamp as long as windows I a 64bit version, it will install on the drive directly. the problem I am having is with the drive itself, that does not want to format properly since it was previously APFS formatted. I very mambo jambo problem ... something that should take 15 min turns into hours ... disgusting ...


tsialex

Contributor
Jun 13, 2016
13,455
13,601
I never install windows with Bootcamp windows does not need bootcamp as long as windows I a 64bit version, it will install on the drive directly. the problem I am having is with the drive itself, that does not want to format properly since it was previously APFS formatted. I very mambo jambo problem ... something that should take 15 min turns into hours ... disgusting ...
Open terminal and find the drive you want to format:
Code:
diskutil list
Unmount the disk you want to format, change diskXX to the correct one:
Code:
diskutil unmountdisk diskXX
Destroy the GPT:
Code:
sudo gpt destroy diskXX

Done, now you have an un-formatted drive.

  • Like
Reactions: Synchro3

Bion1nc

macrumors member
May 3, 2014
39
31
Open terminal and find the drive you want to format:
Code:
diskutil list
Unmount the disk you want to format, change diskXX to the correct one:
Code:
diskutil unmountdisk diskXX
Destroy the GPT:
Code:
sudo gpt destroy diskXX

Done, now you have an un-formatted drive.


Thank you but Gparted will do the job too...

Though should I PM the rom or just post it here?


tsialex

Contributor
Jun 13, 2016
13,455
13,601

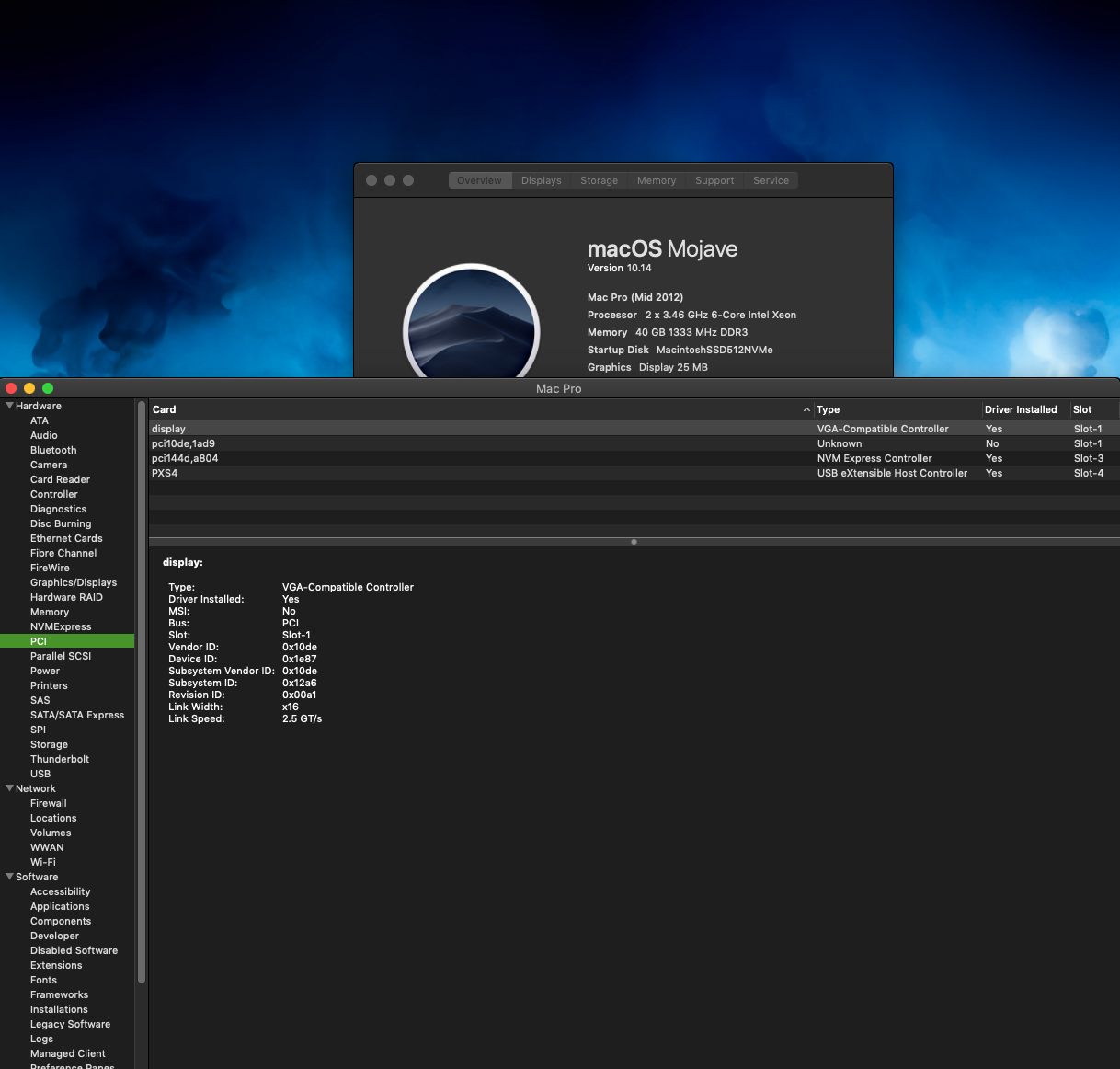

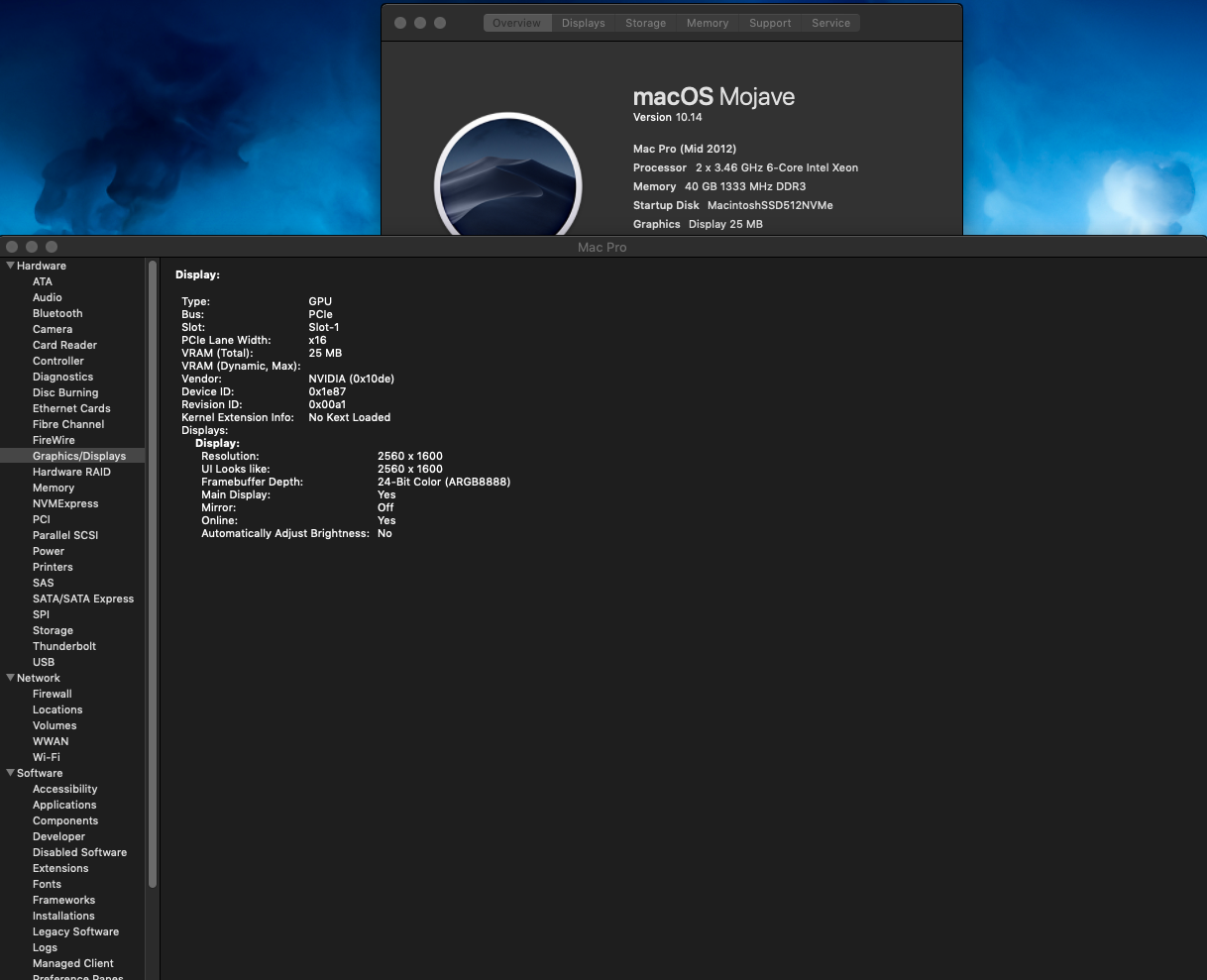

Post it here or upload to TechPowerUp. We are really interested in the drivers -b and the system profiler (since that have some personal info, you can PM me or @LightBulbFun).


Bion1nc

macrumors member
May 3, 2014
39
31
Finally, I got that done, how to turn a 15 mins max job into a hours job with that F******* Windobe...
[doublepost=1540250990][/doublepost]
Open terminal and find the drive you want to format:
Code:
diskutil list
Unmount the disk you want to format, change diskXX to the correct one:
Code:
diskutil unmountdisk diskXX
Destroy the GPT:
Code:
sudo gpt destroy diskXX

Done, now you have an un-formatted drive.
how do I PM you I do not see where? thank you I have the screenshot


Attachments

  • Orig2080TU104.rom.zip
    686.3 KB · Views: 174
  • Like
Reactions: turluttu

tsialex

Contributor
Jun 13, 2016
13,455
13,601
Finally, I got that done, how to turn a 15 mins max job into a hours job with that F******* Windobe...
[doublepost=1540250990][/doublepost]
how do I PM you I do not see where? thank you I have the screenshot
Sent you a PM.

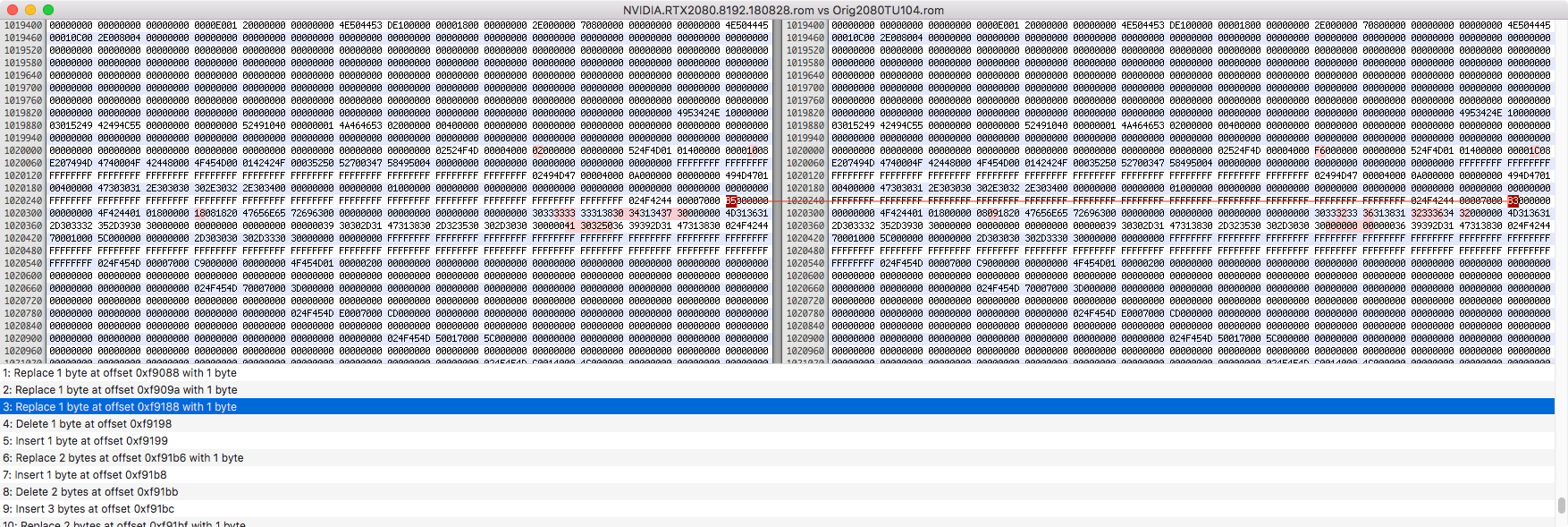

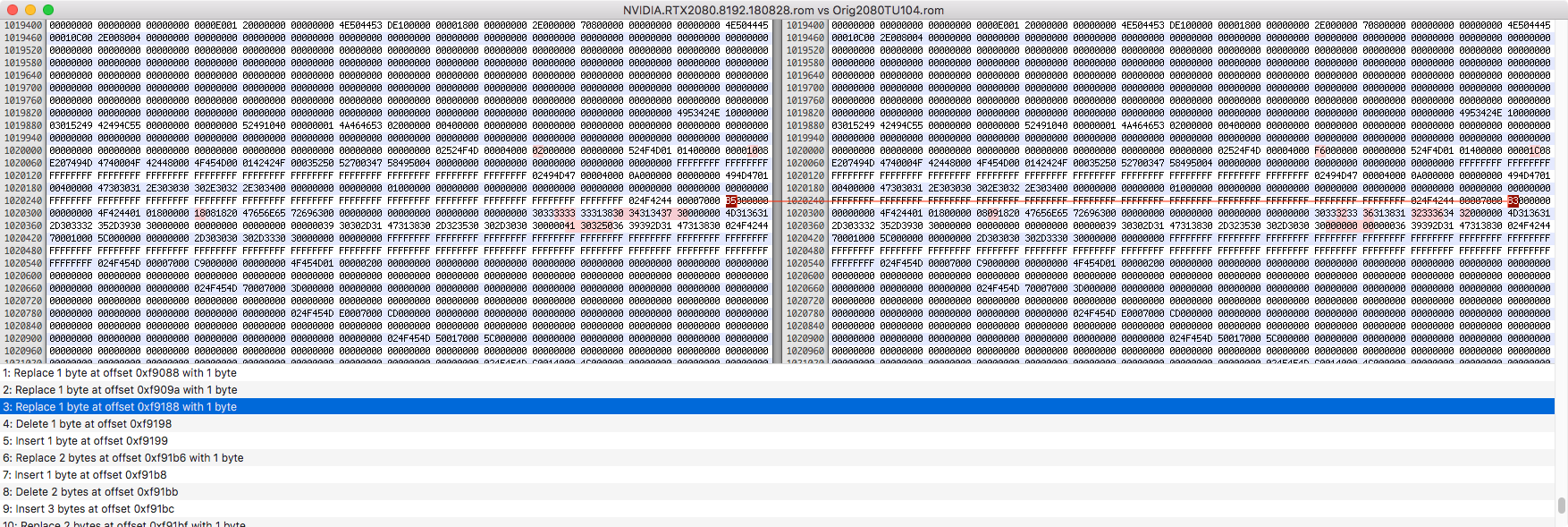

[doublepost=1540252586][/doublepost]It's 99.99999999% identical as the TechPowerUp RTX2080, just some bytes differ.

Screen Shot 2018-10-22 at 20.54.47.png

Last edited:

tsialex

Contributor
Jun 13, 2016
13,455
13,601
What app are you using to compare the binary files? Love how it even takes into consideration offsets/inserts.
Hexfiend 2.9, I love it.
[doublepost=1540253098][/doublepost]
Bion1nc sent you PM? what's interesting?

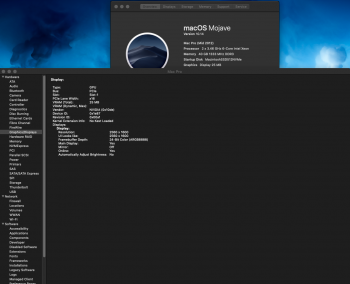

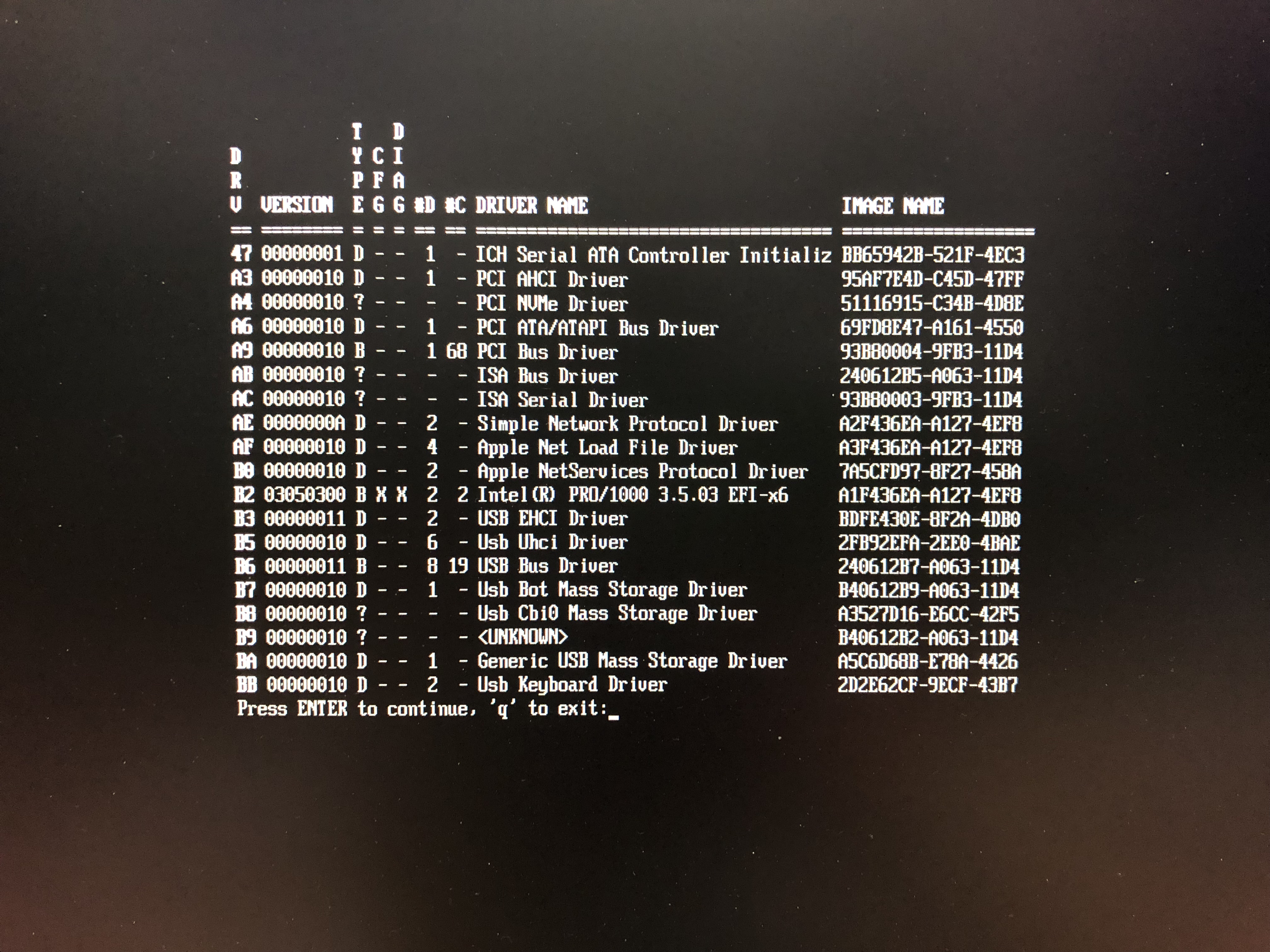

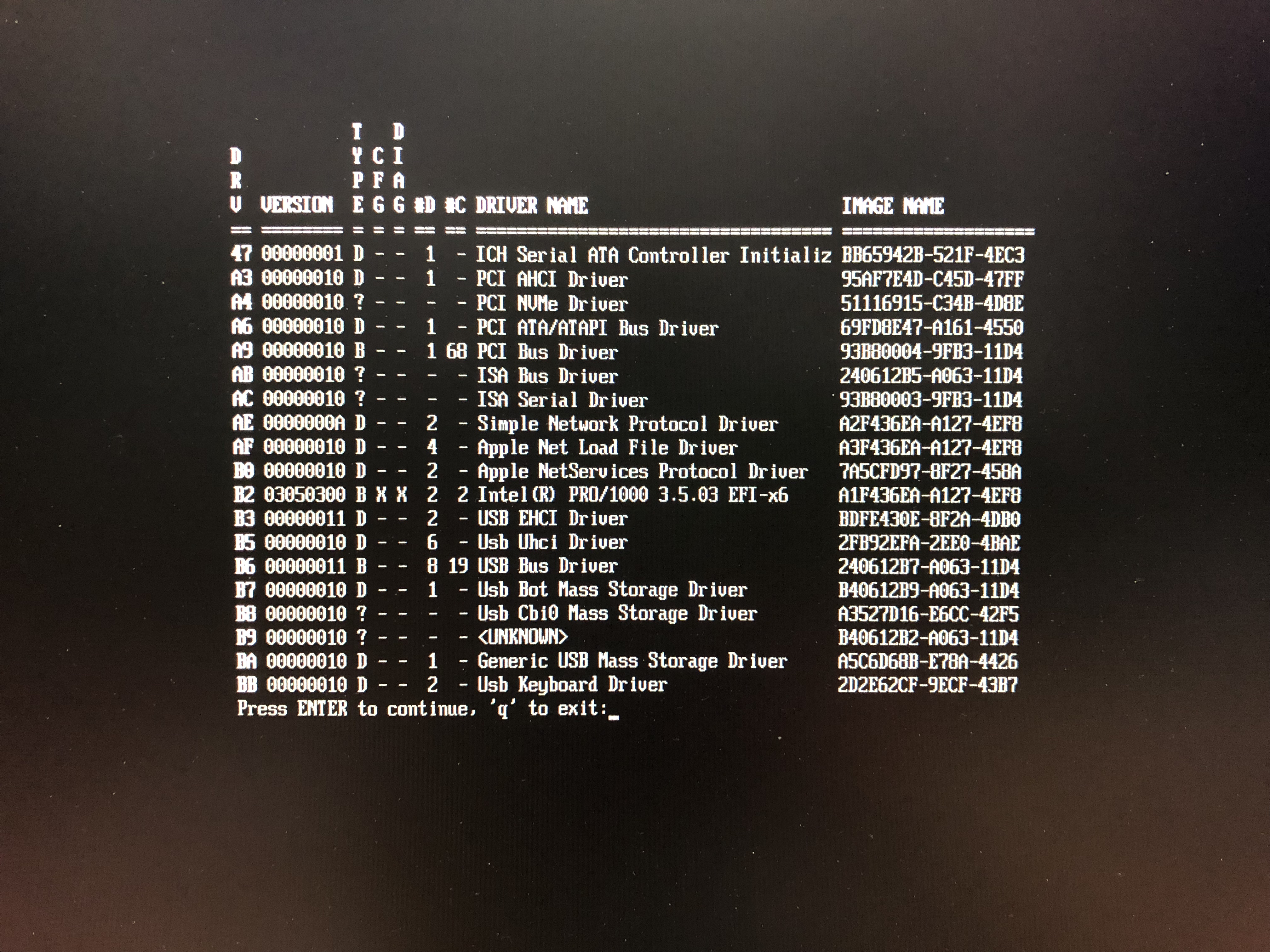

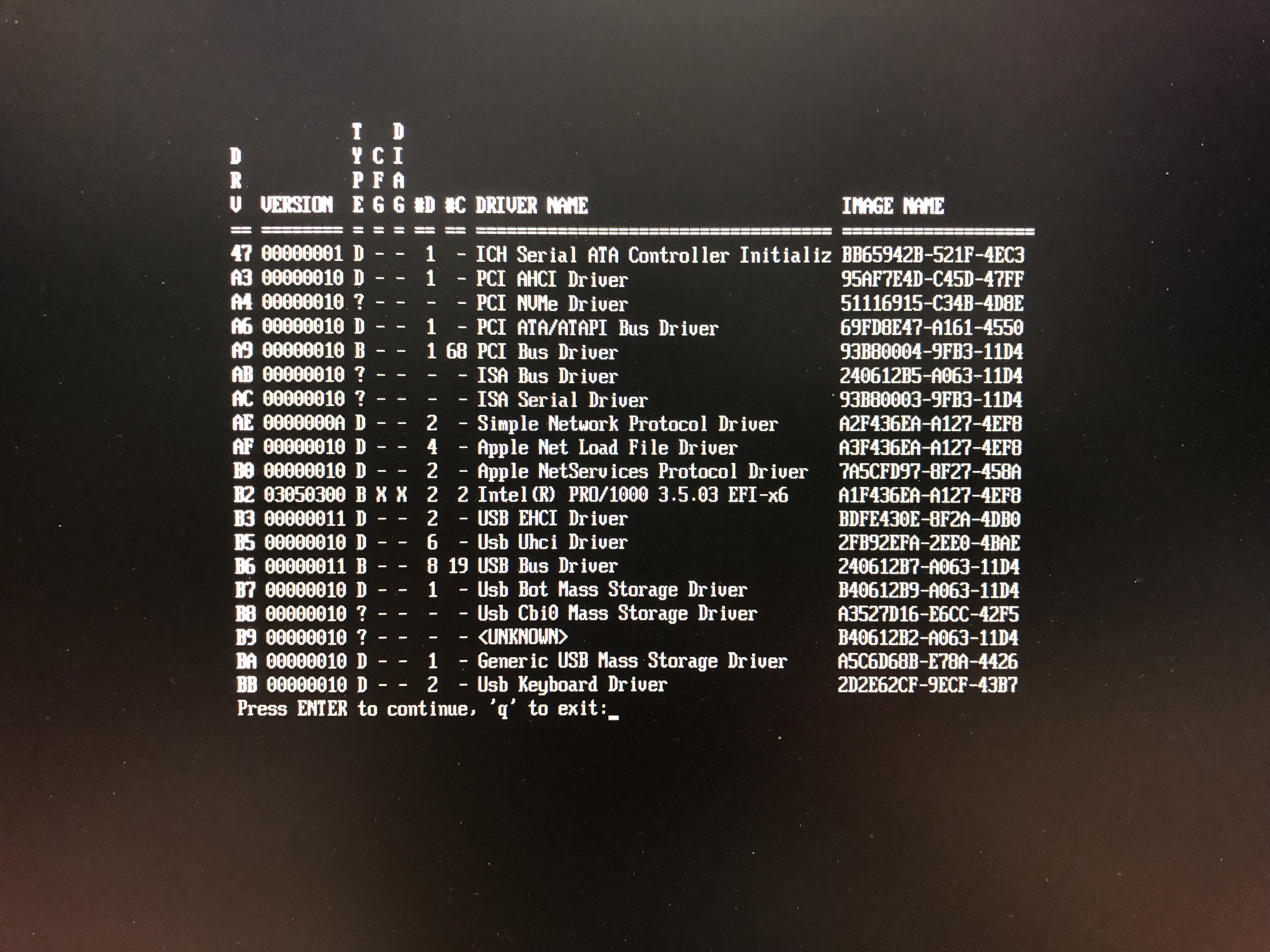

He is doing the drivers -b and the full System Profiler. He did the first page of the drivers -b, but it's not there.

Last edited:

tsialex

Contributor
Jun 13, 2016
13,455
13,601
I understand correctly, in the report there is a UGA Console Driver, does this mean that we have BootScreen?

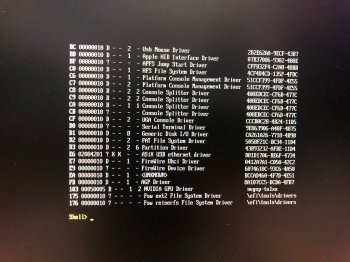

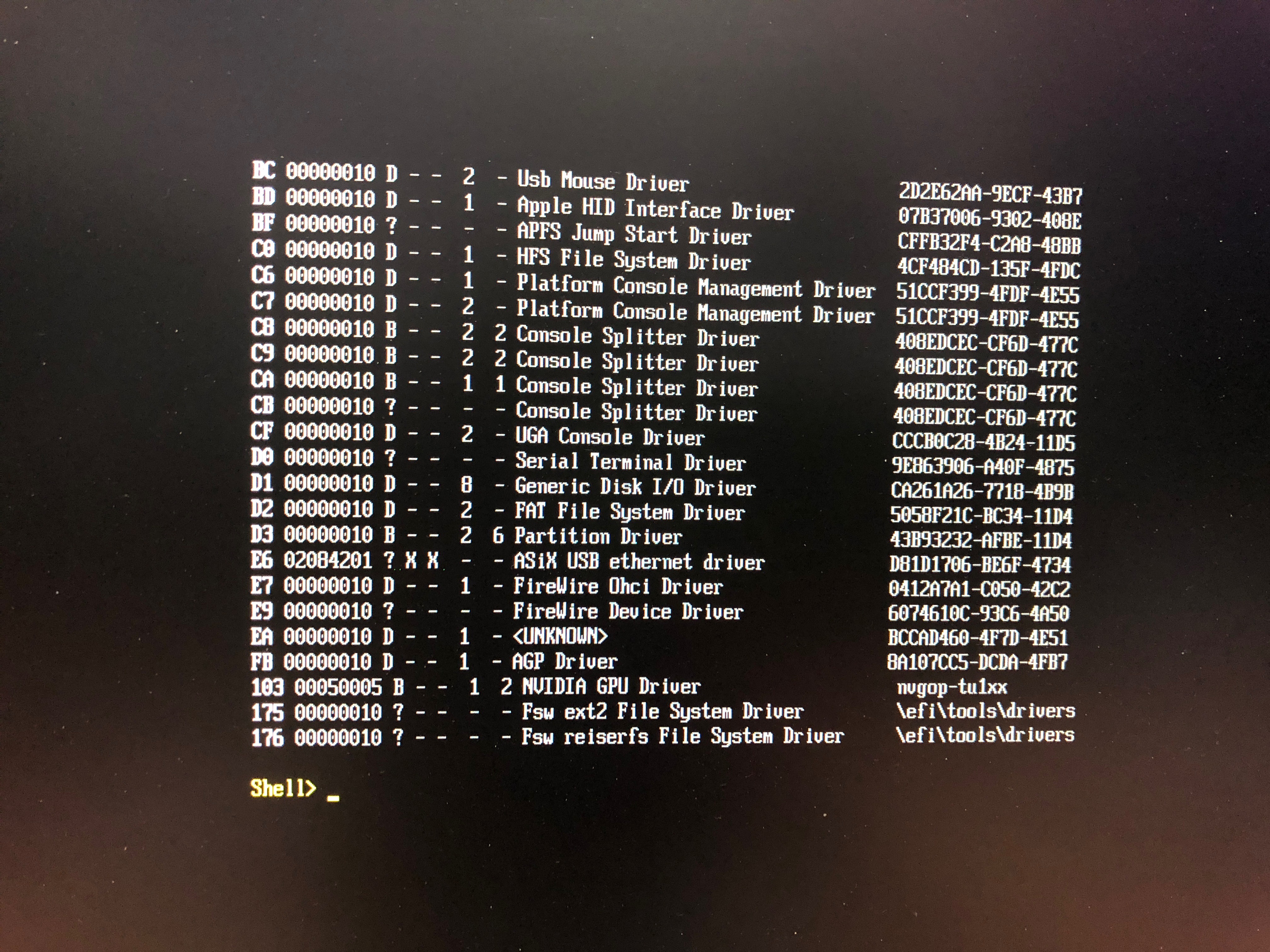

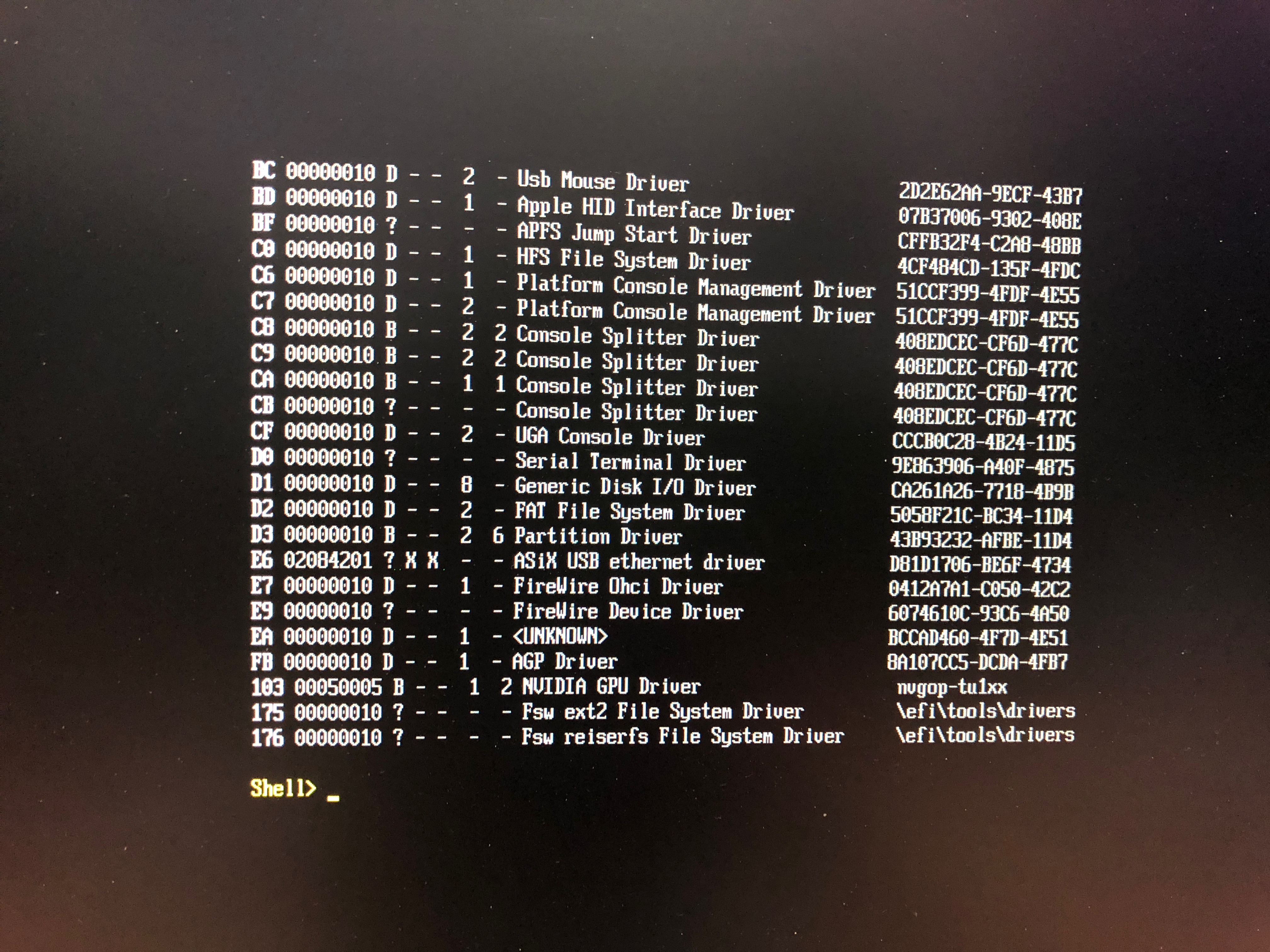

UGA Console Driver is from the Mac BootROM. The Nvidia EFI driver is shown in the second image. The card have boot selector/picker, now we need to see if has support for single mode/verbose.


Bion1nc

macrumors member
May 3, 2014
39
31
UGA Console Driver is from the Mac BootROM. The Nvidia EFI driver is shown in the second image. The card have boot selector/picker, now we need to see if has support for single mode/verbose.


In that is about to come in a few...


Bion1nc

macrumors member
May 3, 2014
39
31
with this it will be the end of the sewing chapter if you see what I mean....lol


LightBulbFun

macrumors 68030
Nov 17, 2013
2,900
3,195
London UK
thanks @tsialex and @Bion1nc for the screen shots :)

its very interesting

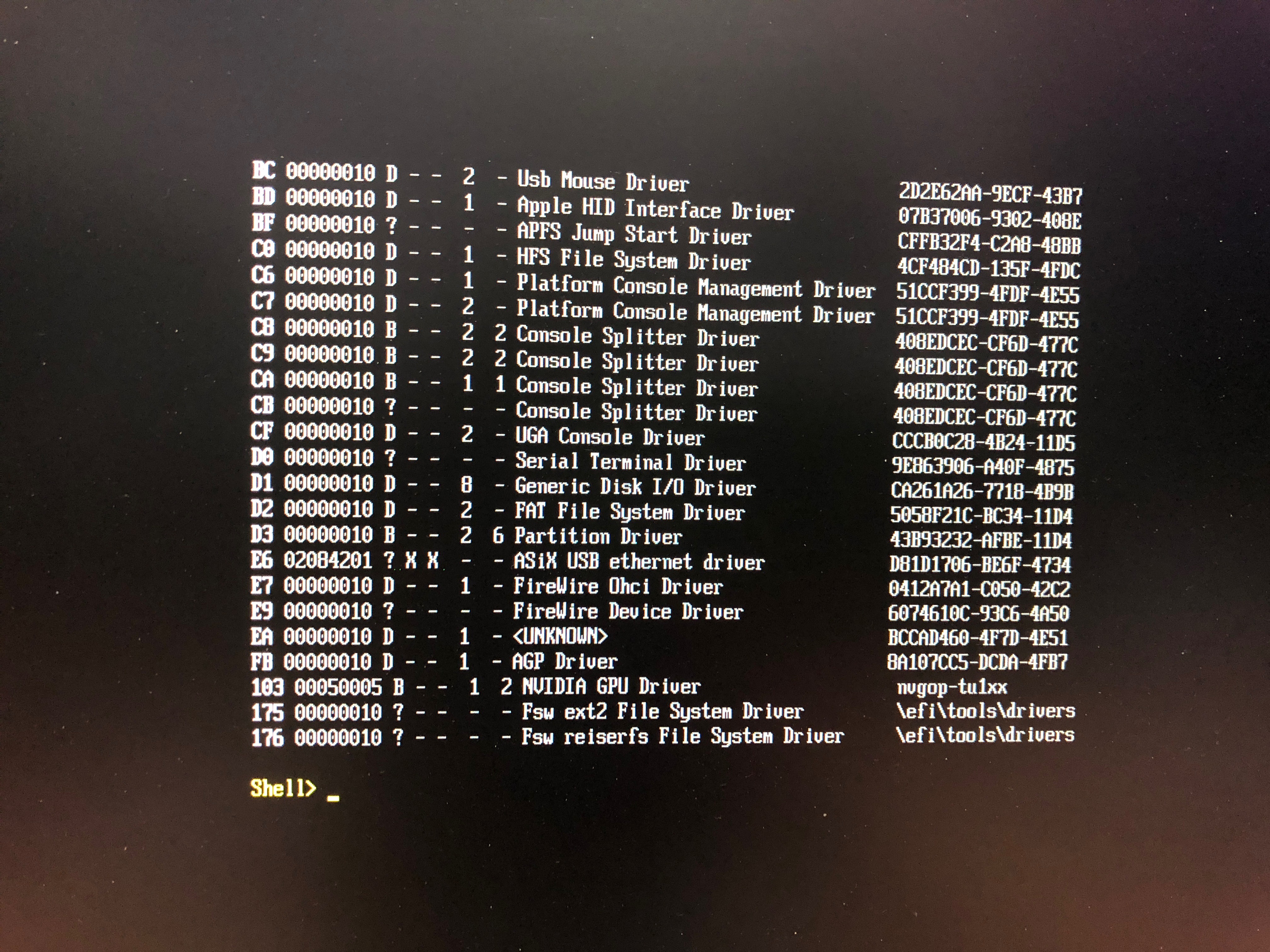

especially as the Loaded driver is "nvgop-tu1xx" TU being Turing, 1xx being the GPU series, but GOP is Graphics Output protocol, being a MP5,1 I would of expected to have seen UGA not GOP, so I wonder whats going on there

its all very interesting and intriguing :) (I wonder if we will be able to extract bits from the RTXs ROM image and apply/load it against other cards?)
