OK so I've been
slightly obsessed with the size of the upcoming iPhone fold since it was rumoured that the outer screen would be 5.5" and wanted to know how it compared to my beloved iPhone mini.
One article the other day suggested an
exact resolution and sizes for screens so that let me sketch out the device, using these as a fix and working my way outwards. I've done two or three versions of this over the last month and this is my latest, based on all the collated rumours with a little bit of artistic licence. Apologies, there's a lot of images here. I don't expect it will look
exactly like this, but I think I got the size pretty close now.

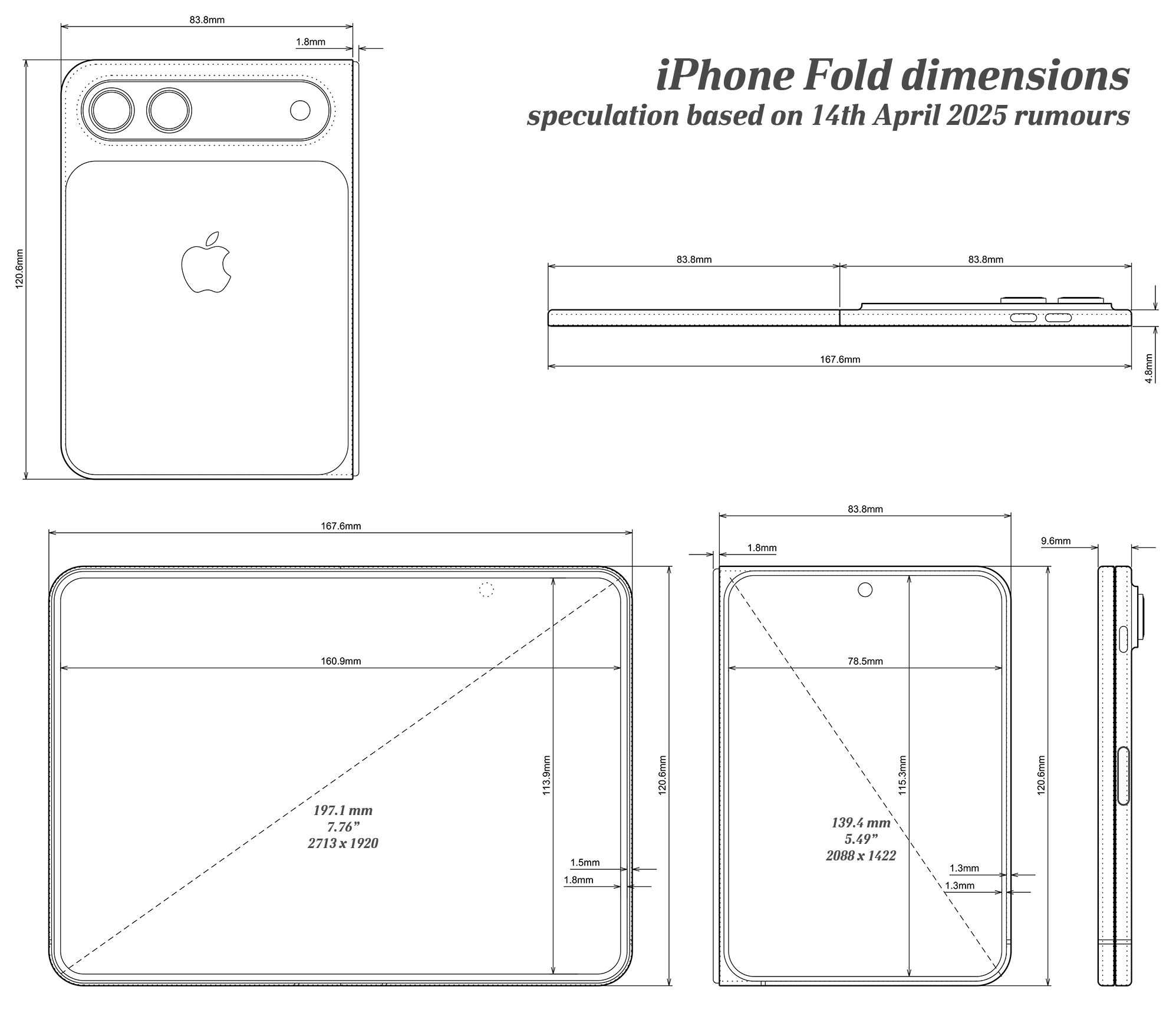

Animated gif comparing a 16 pro max silhouette and 13 mini silhouette:
View attachment 2507700
Assorted comparisons with a 15 Pro max and 12 mini (the only two other 3D models I had to hand) -

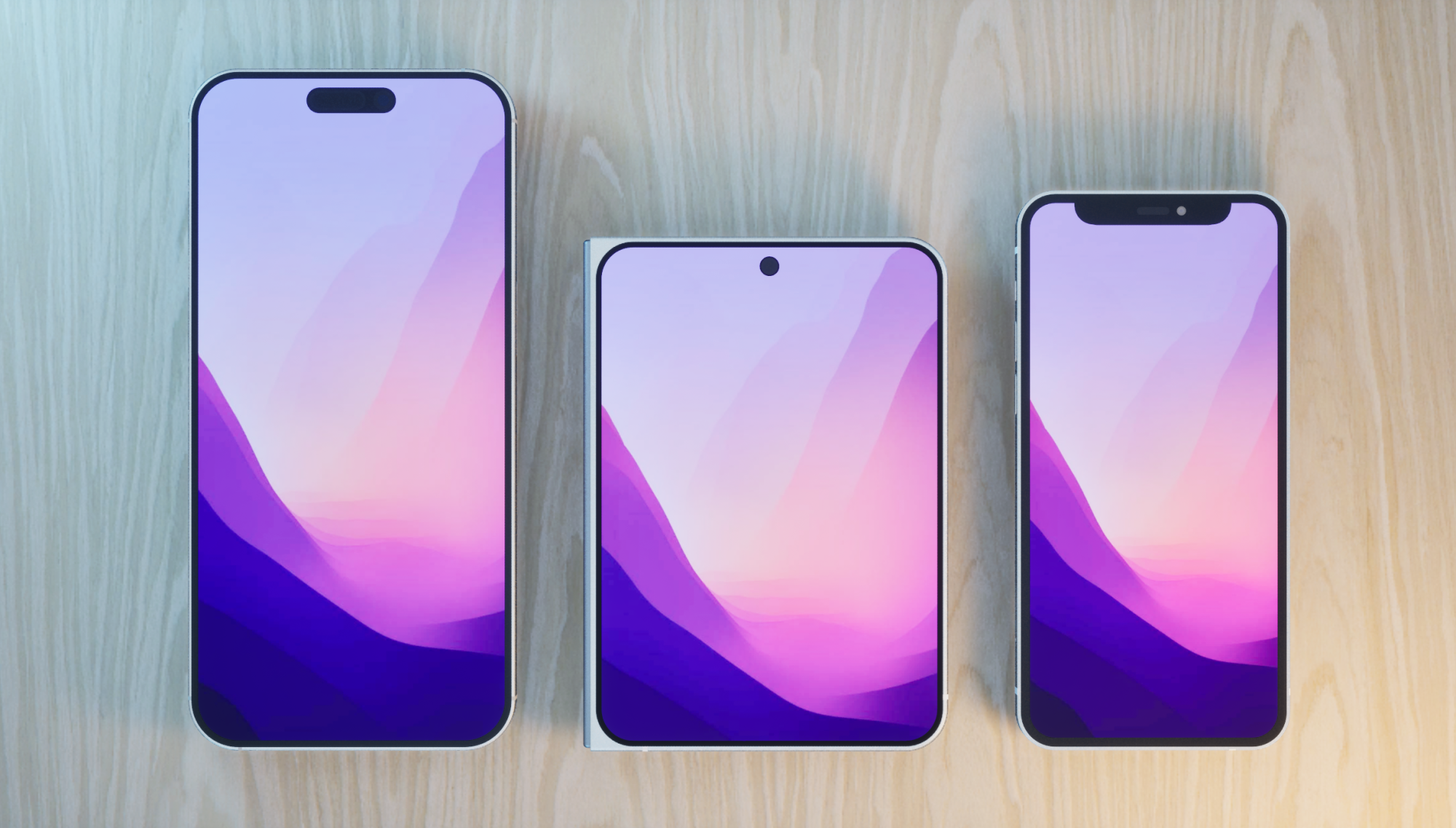

Closed:
View attachment 2507702

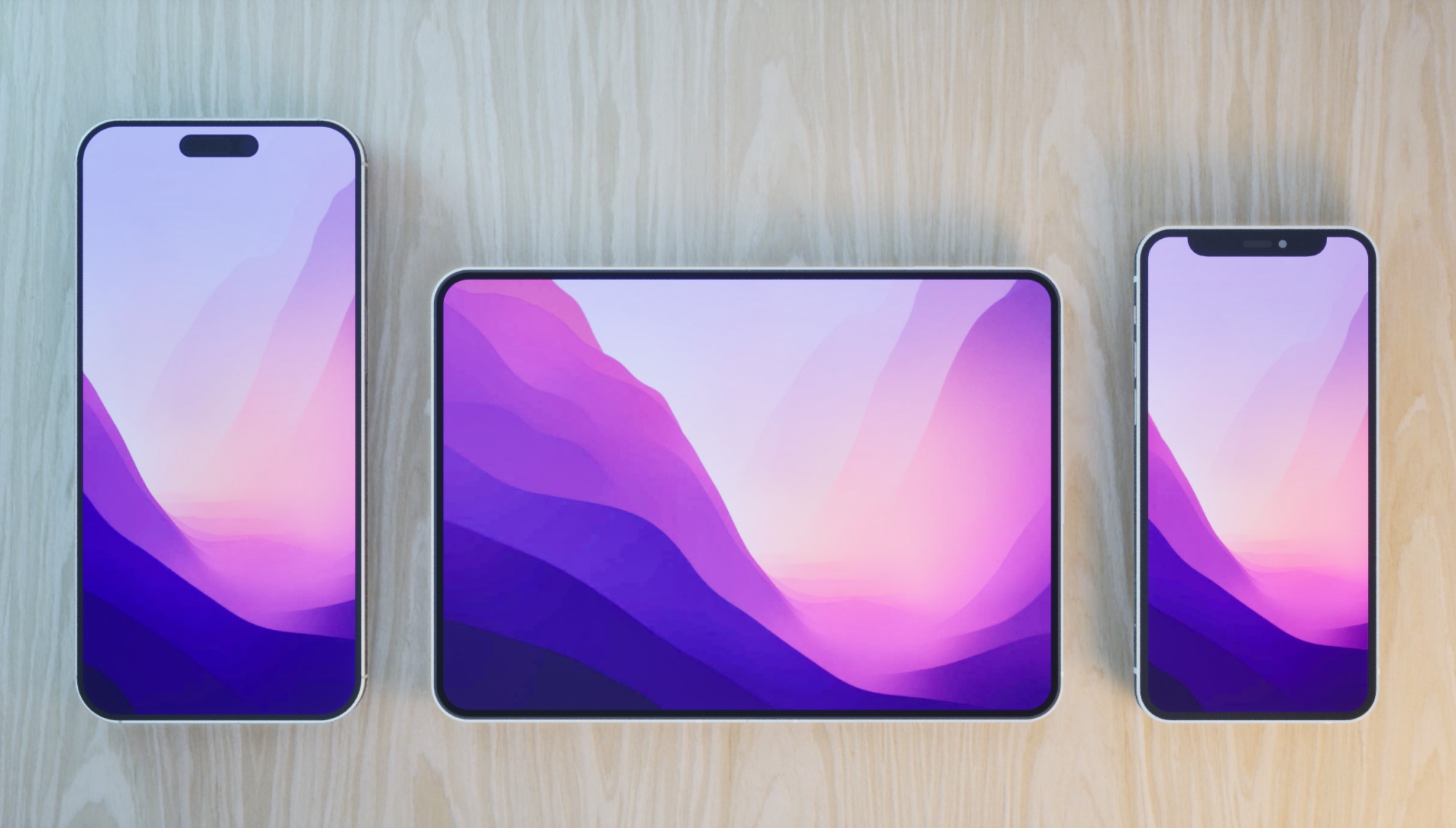

Open:
View attachment 2507703

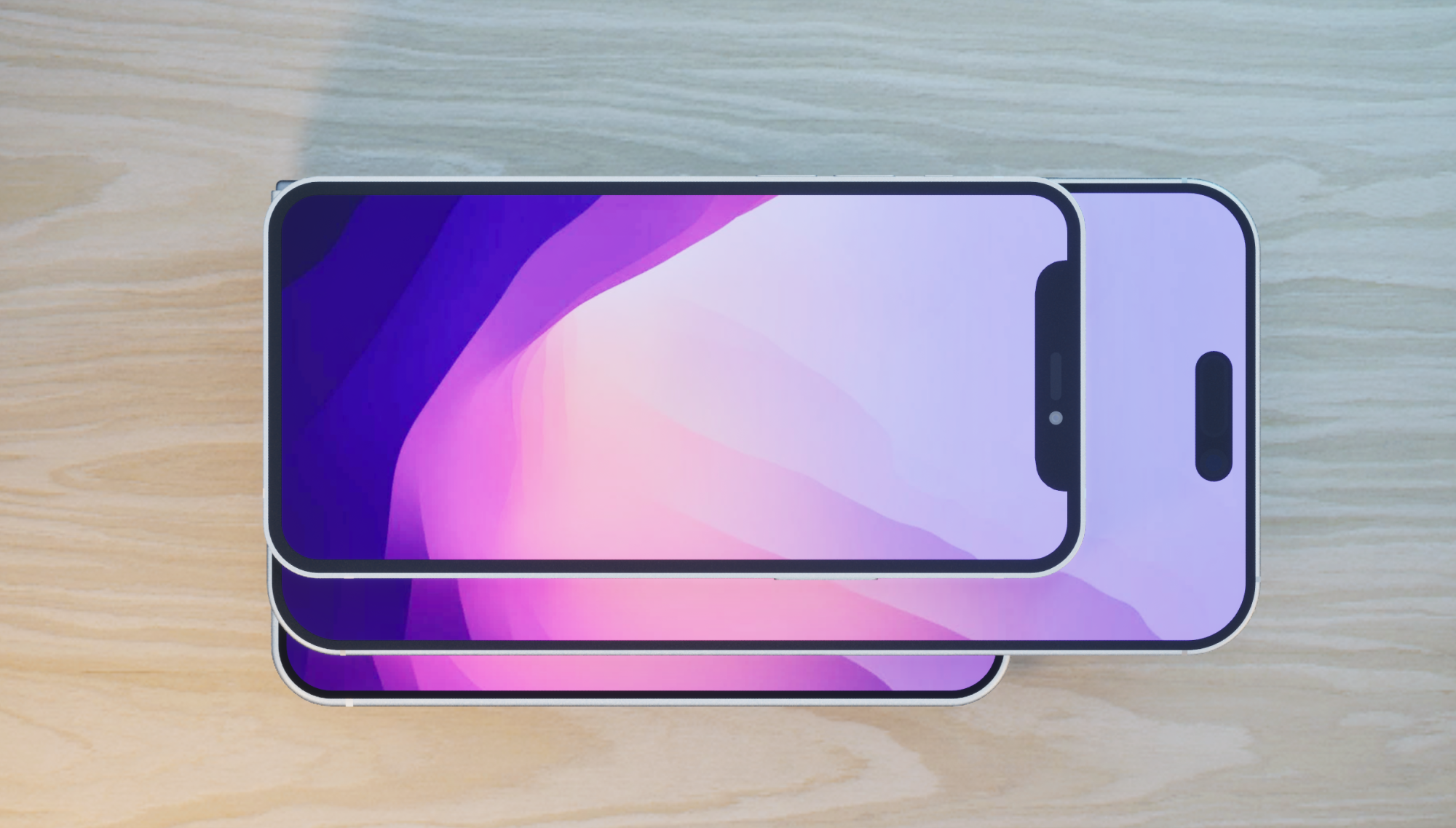

Stacked:
View attachment 2507704

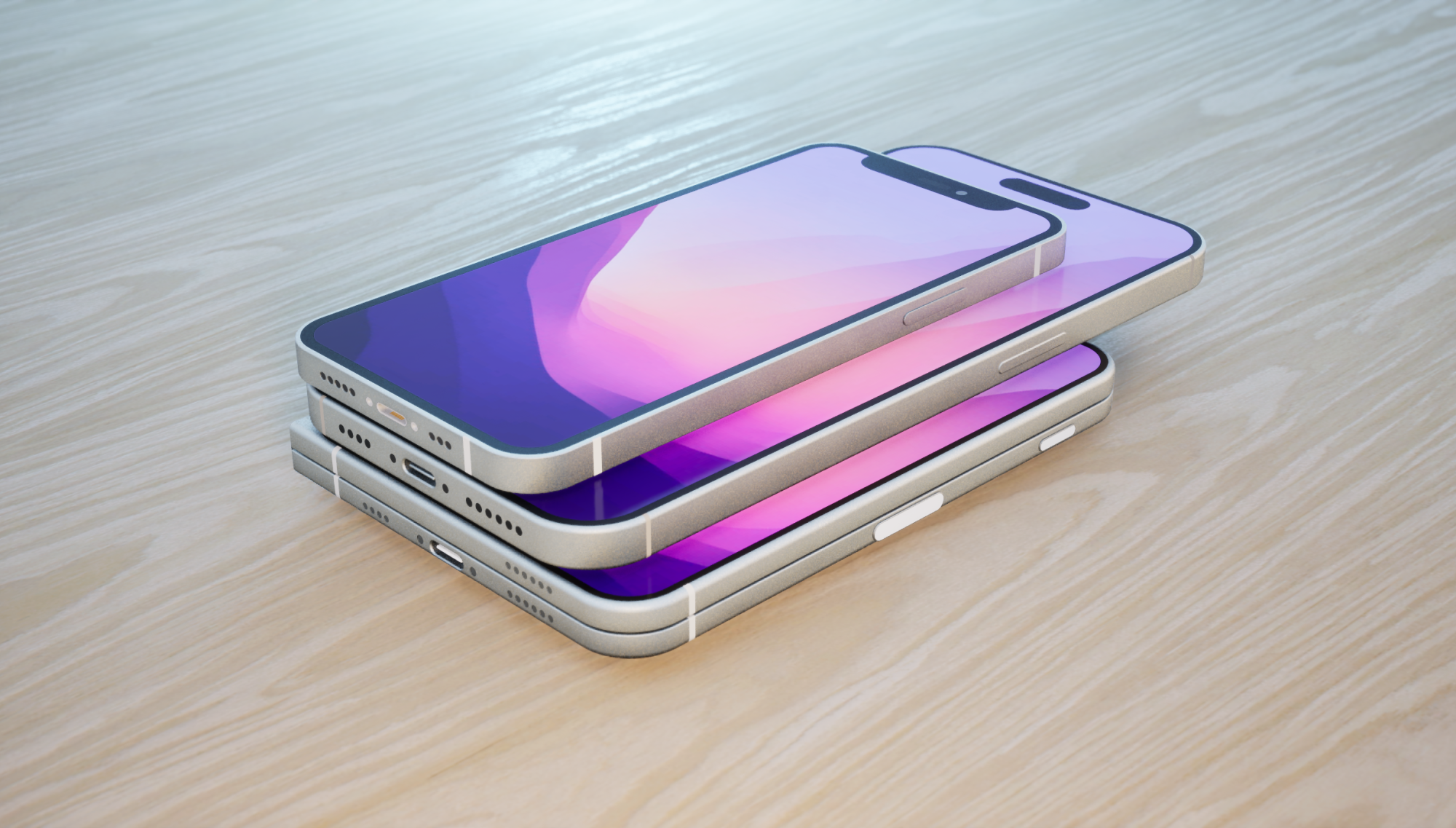

(note the need for a sharp corner on the left edge to accommodate the opening screen - bad luck left handed users)
View attachment 2507705

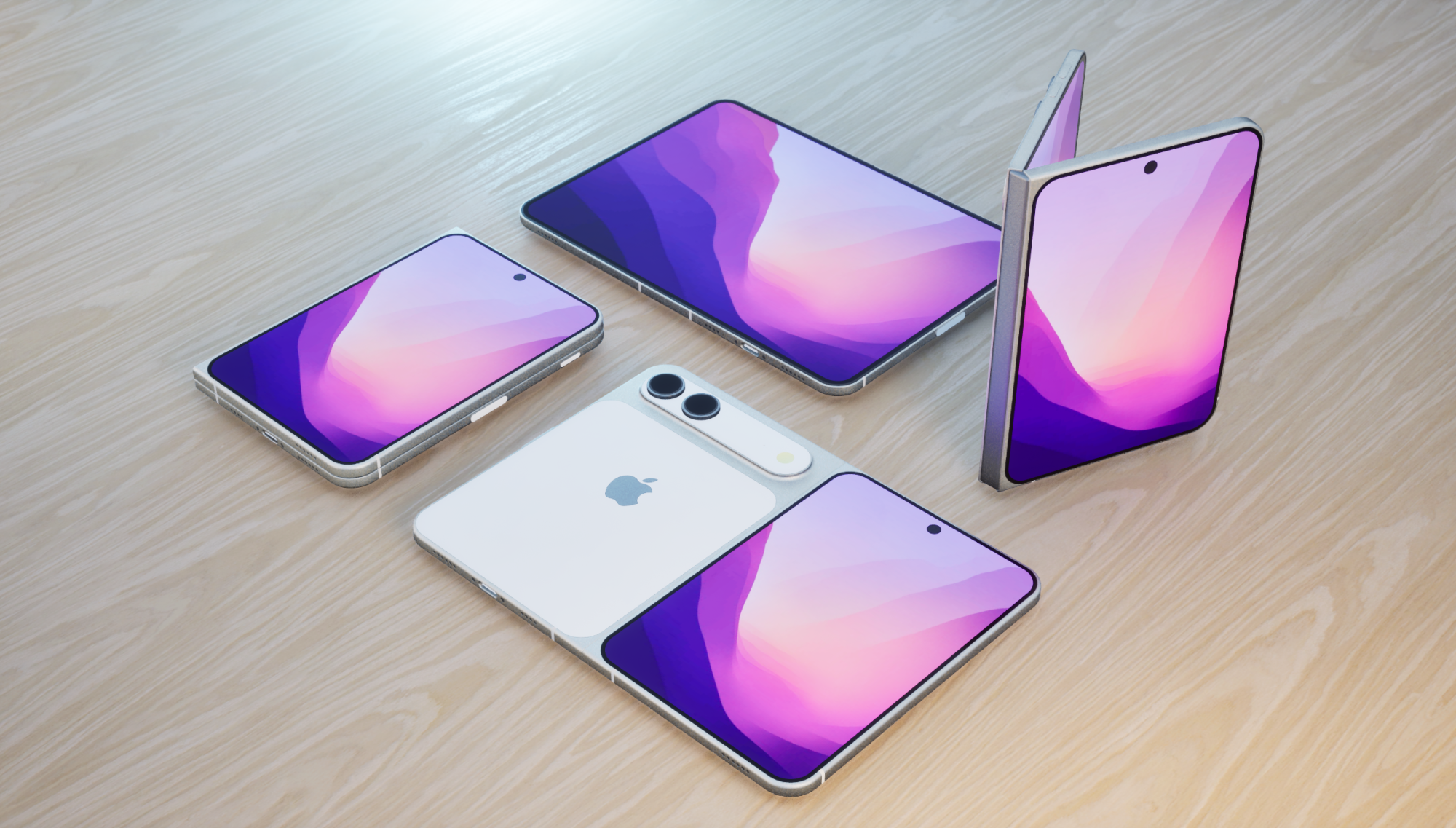

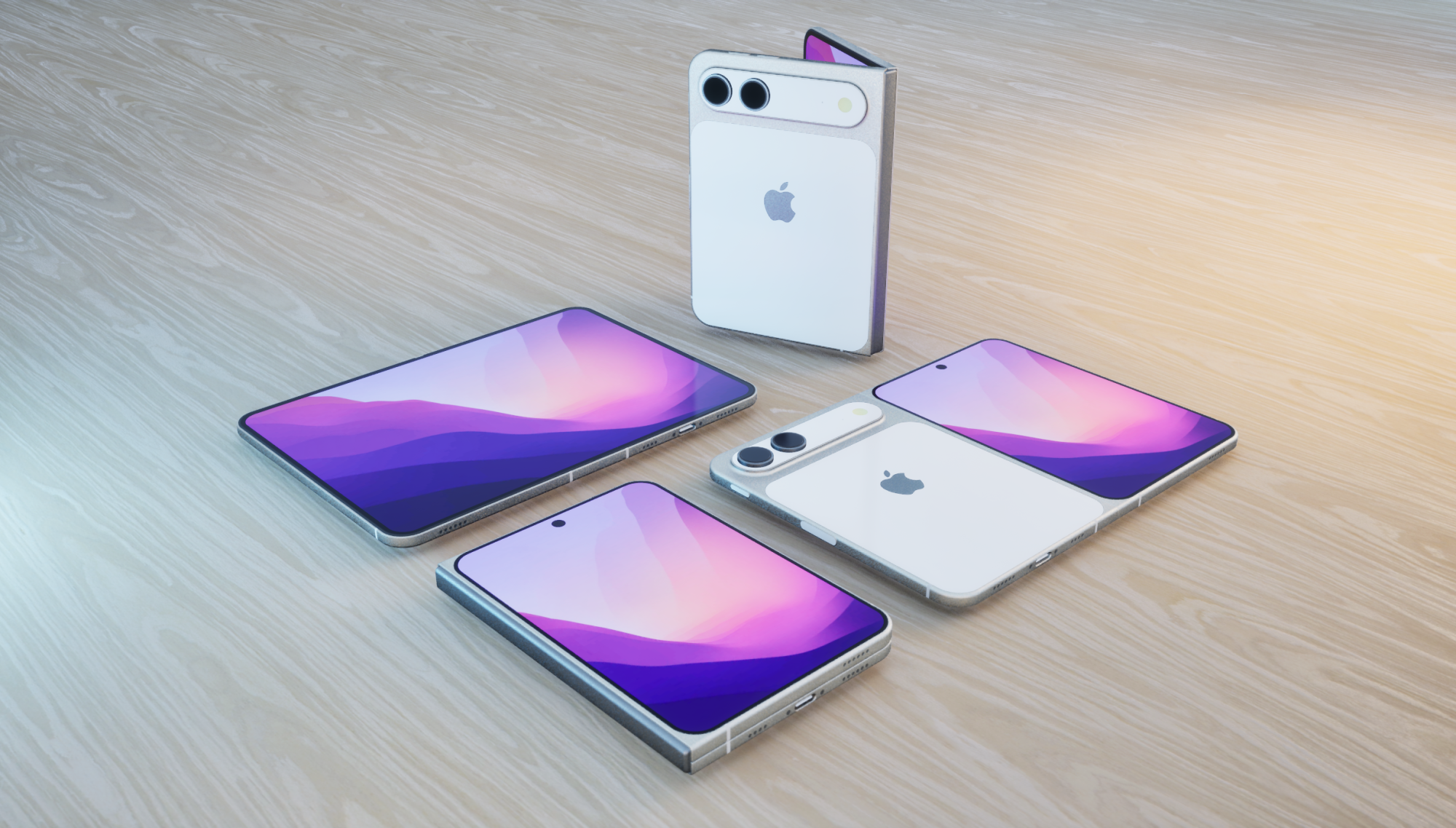

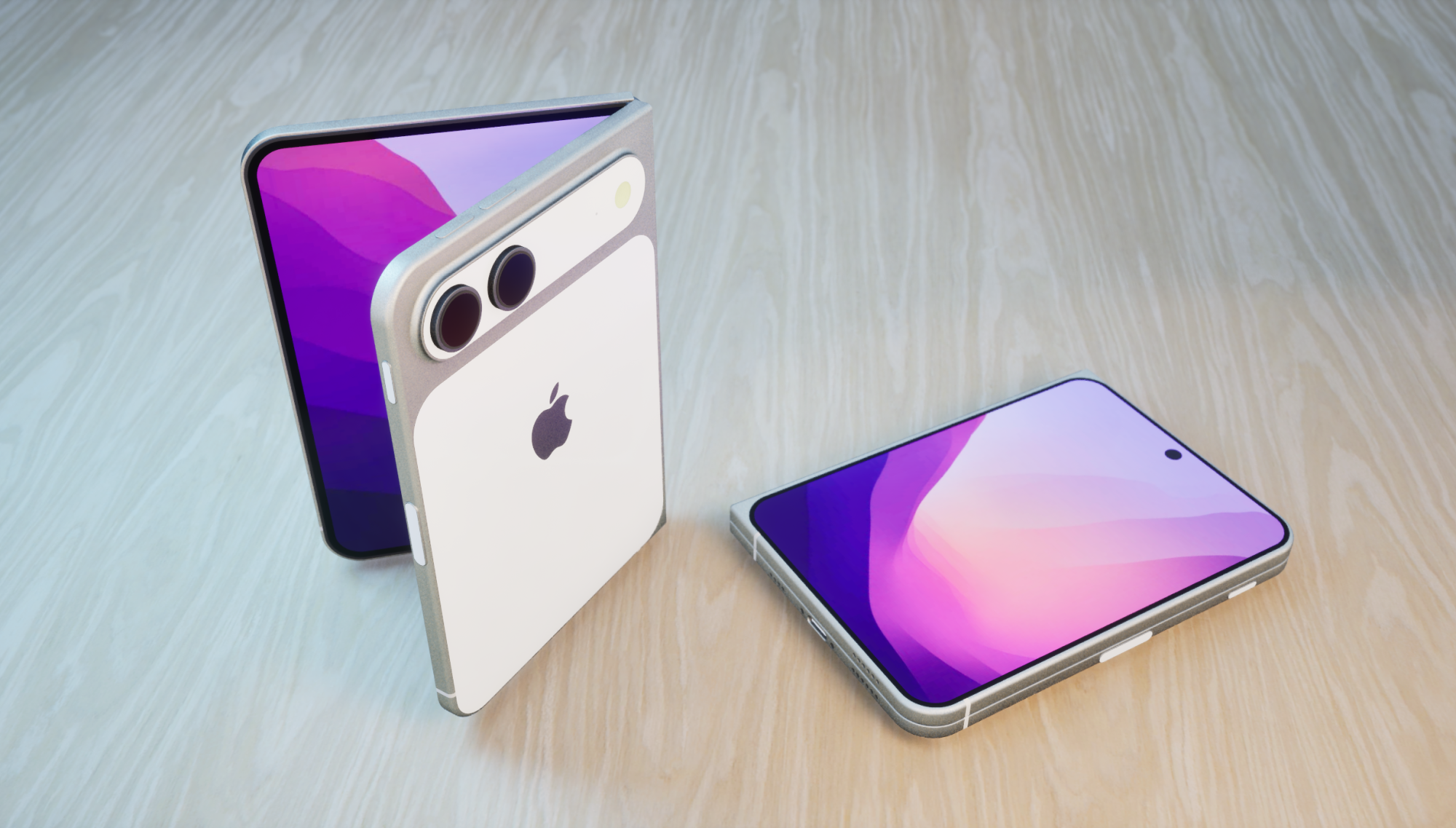

Assorted shots:
View attachment 2507706
View attachment 2507707
View attachment 2507710

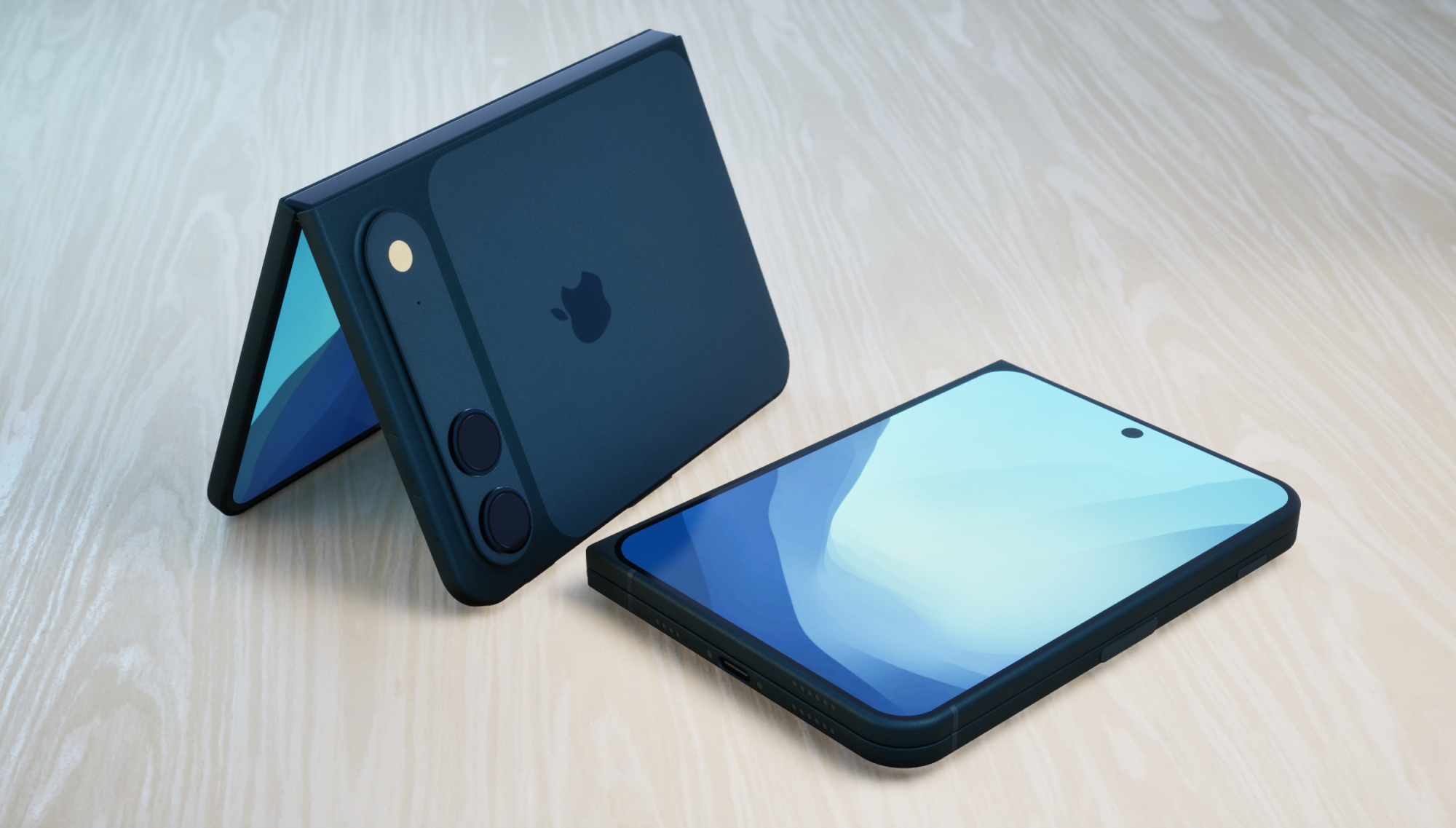

A midnight colourway test:
View attachment 2507711
Some animated renders:
EDIT:

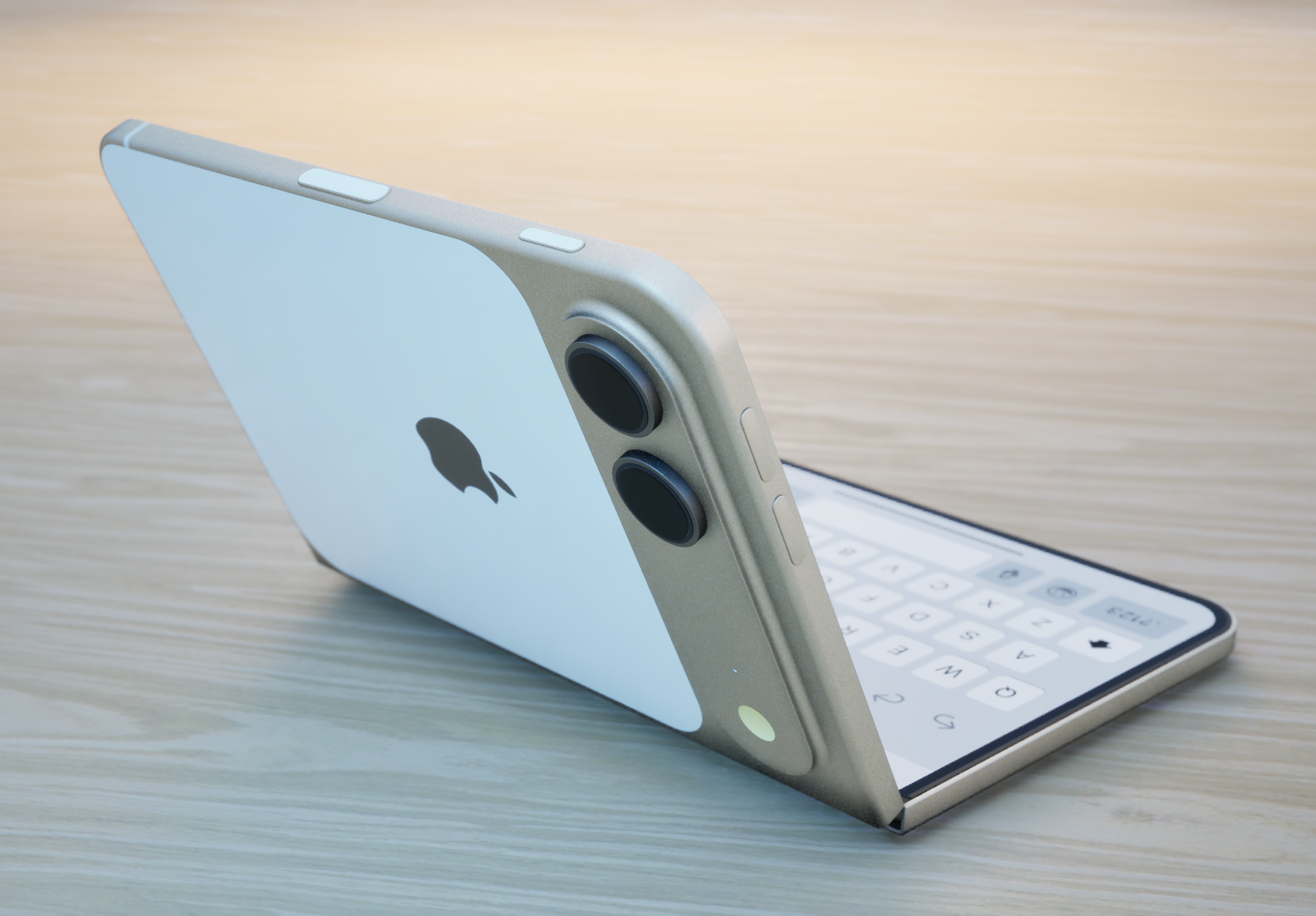

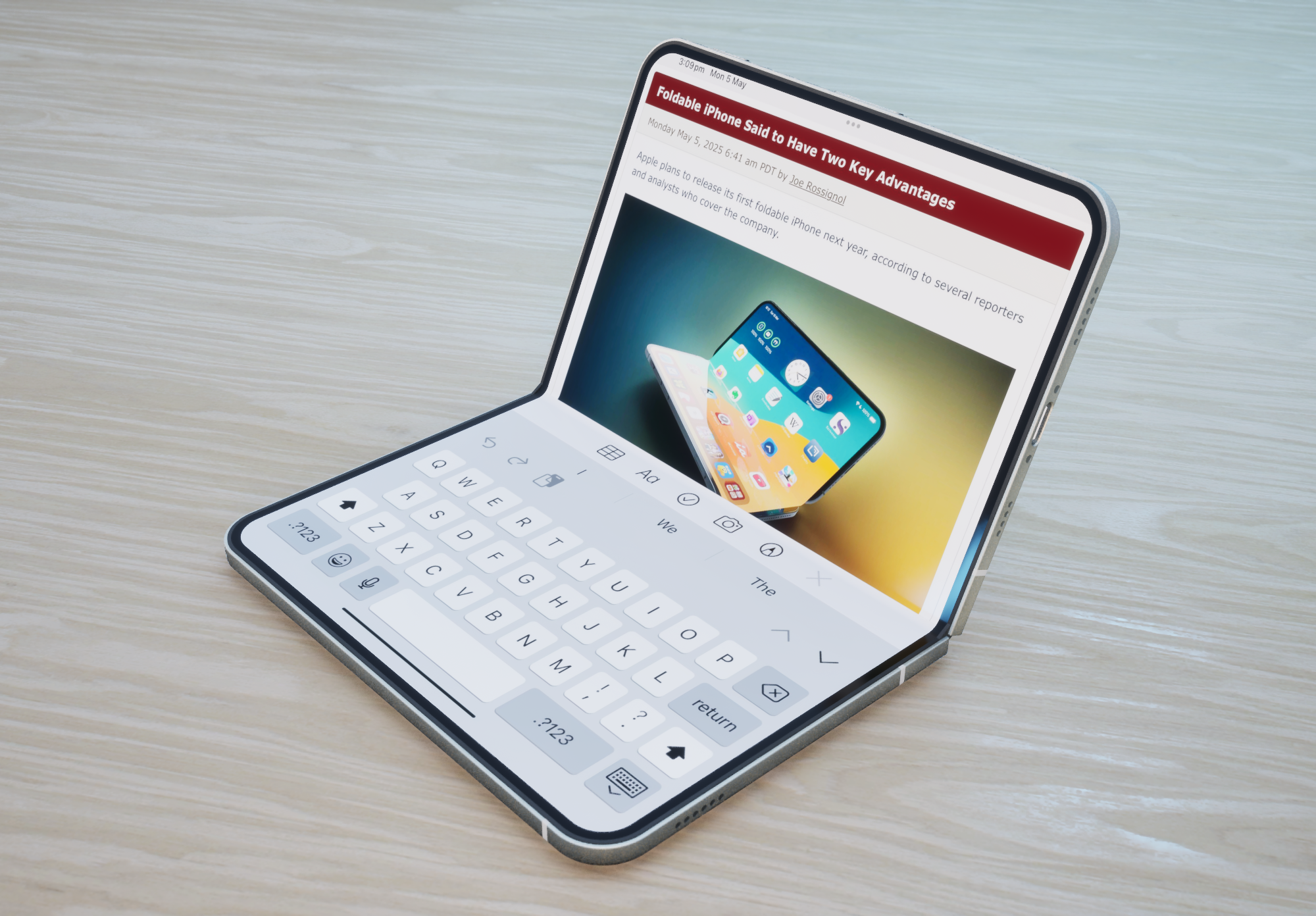

a mock-up of the device with a keyboard in a 'laptop' orientation and an aluminium camera bump since that's been seen in some of the recent dummy models:
View attachment 2508217View attachment 2508218
