SAS card for G5Quad
- Thread starter Tratkazir_the_1st
- Start date
-
- Tags
- sas
- Sort by reaction score
Hadn't tested yet. It seems I have to buy ifixit toolkit & try to work with cooling a bit.
Strange thing - SATA drive with installed Tiger & Tiger Server not shown in boot picker (it is third on SAS channel). But it was when drive was connected to built-in SATA port.
BTW, which toolkit fits better for G5 quad?
www.ifixit.com
or
www.ifixit.com
???
iFixit Mako Driver Kit: Precision Screwdriver Bit Set for Electronics
iFixit's 4 mm aluminum screwdriver handle with magnetic bit socket, knurled grip, and swivel top — plus 64 essential precision bits to tackle sneaky security screws.
www.ifixit.com
iFixit Manta Driver Kit: Ultimate Household Tech Precision Bit Set
Our most comprehensive bit kit for the ultimate repair enthusiast. 112 bits designed to fix every household tech device.
www.ifixit.com
I hab frequent issues in particular wit the rearmost of the ports (#0 ?) to be visible at boot or after. Also the LSI seems to be a bit picky about the disks themselfs.
Did not ever find any torx or somehow special screws inside this case. So any set of phillips-head-screwdrivers in different sizes should do.
Last edited:
So here's just another "final" upgrade to the Quad!

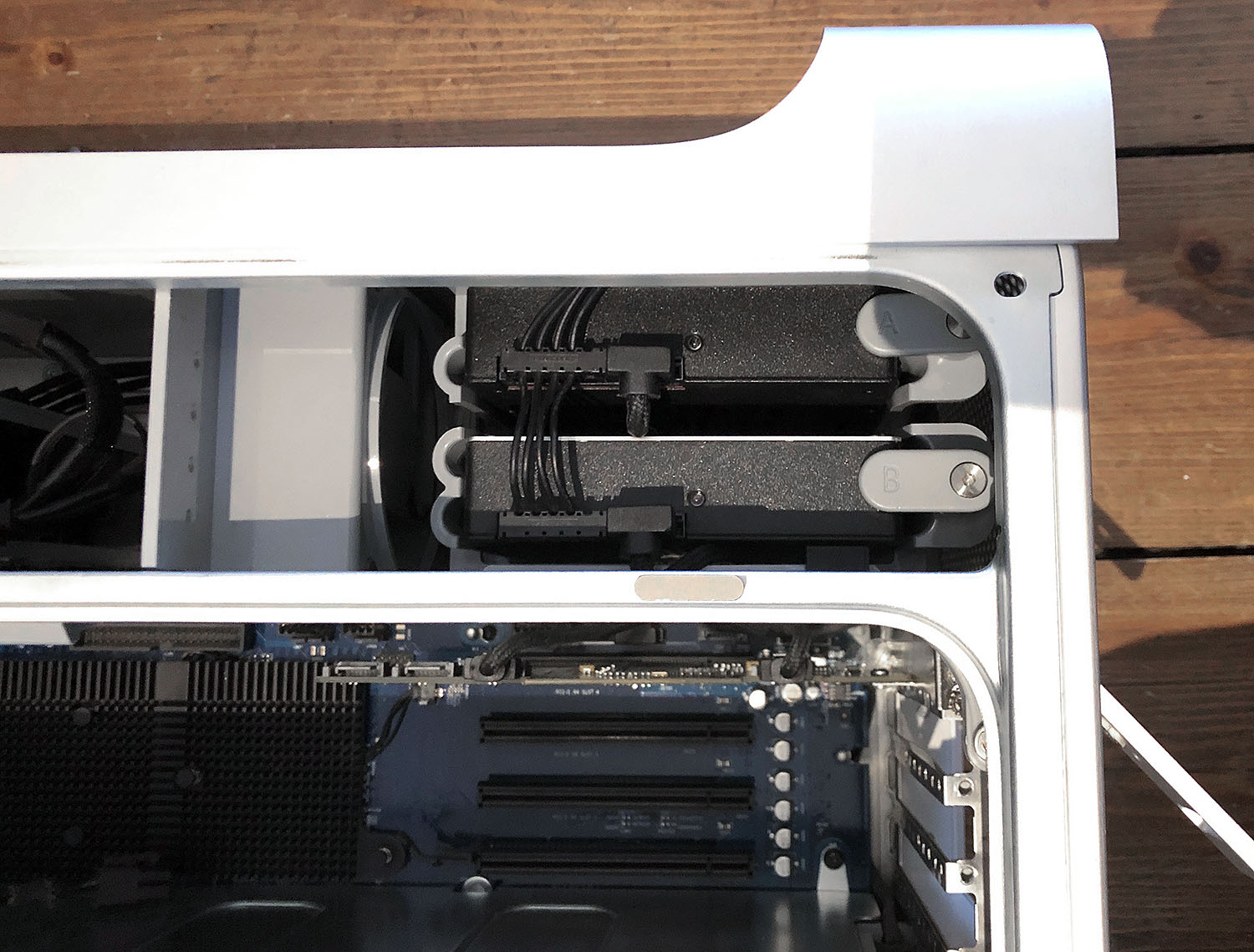

It went from this...

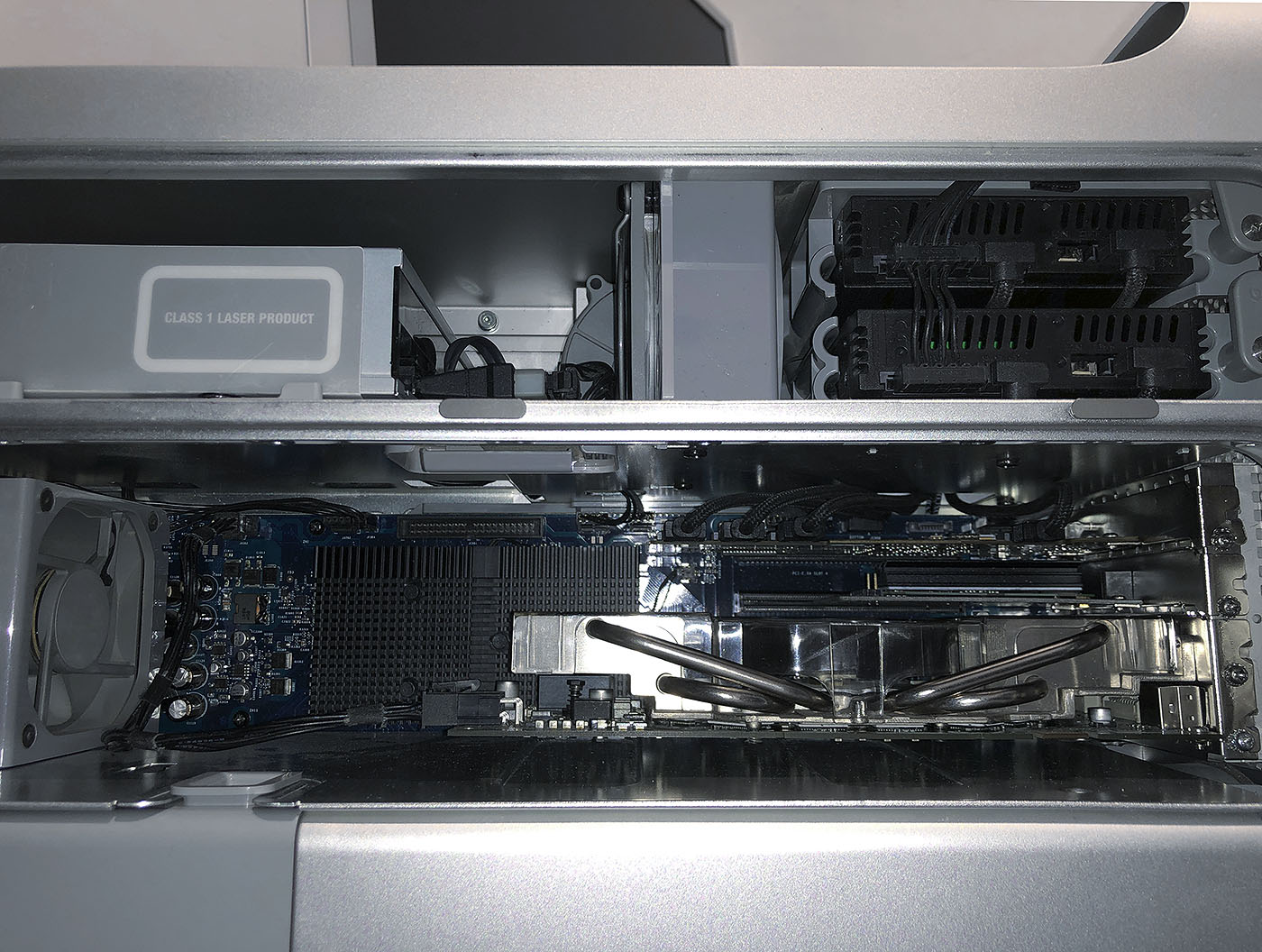

...to this...

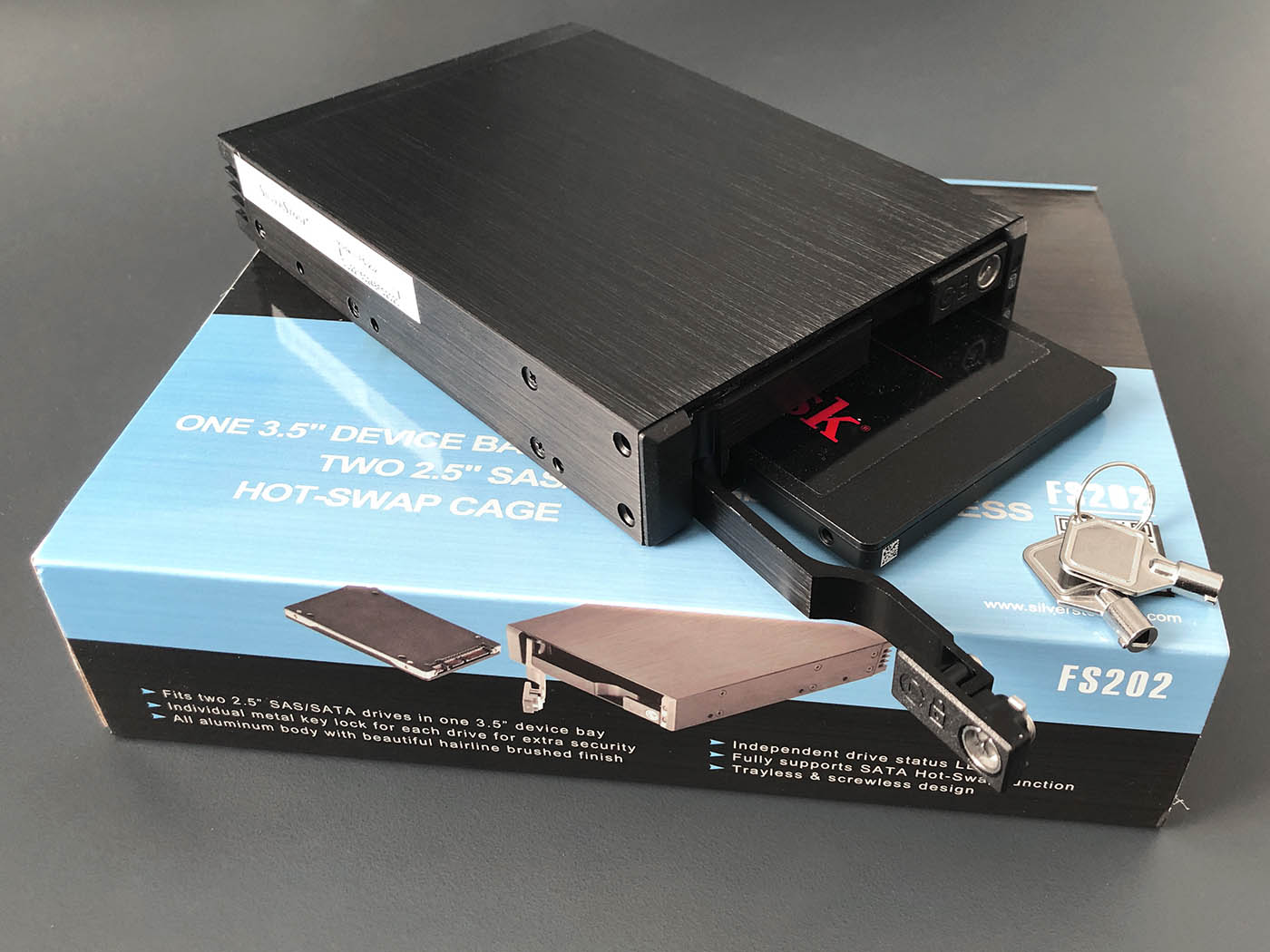

...involving two of these!
They give such a perfect companion to make use of the full potential of these SAS-cards in particular in a Powermac G5, that – again – i could not resist.

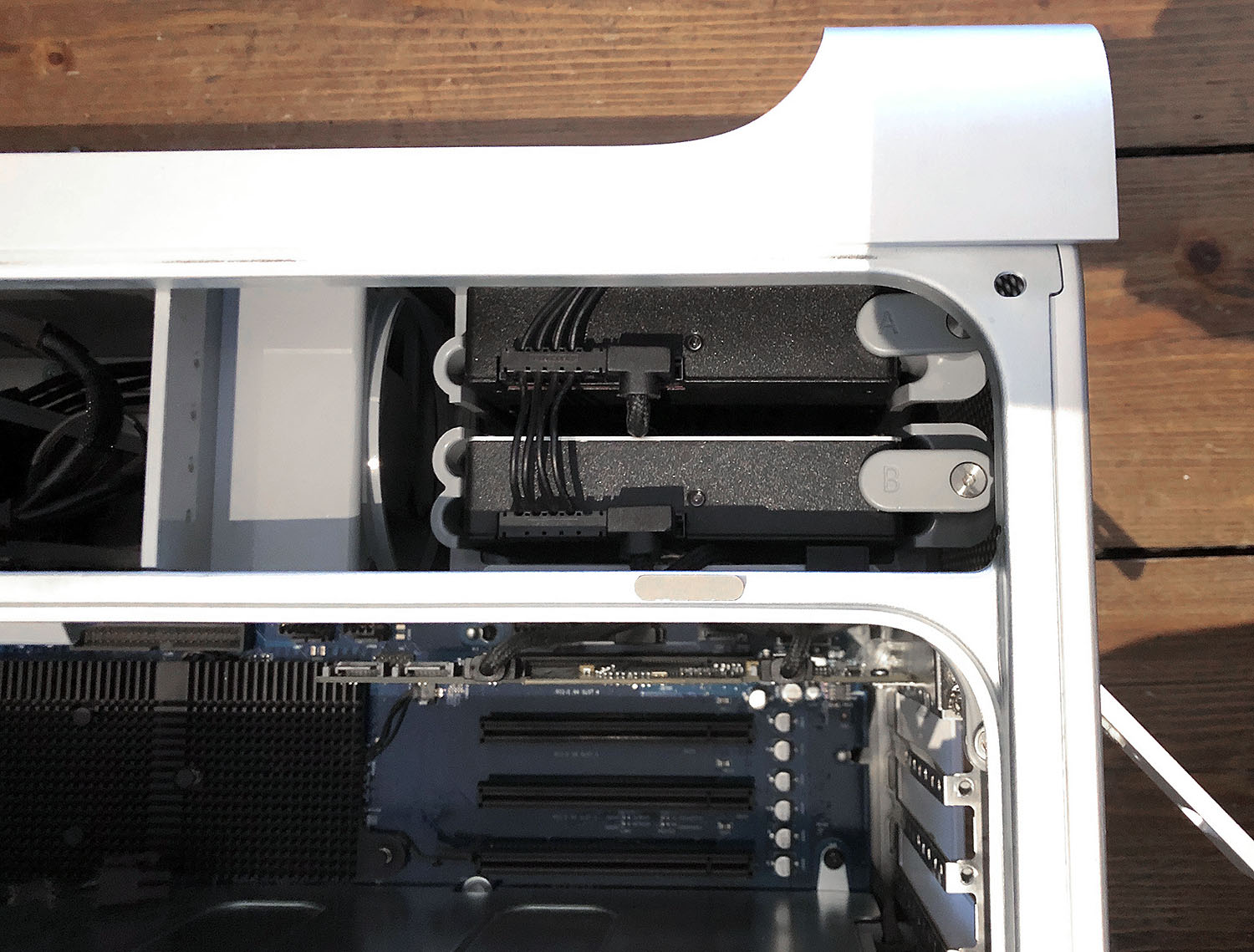

Holding two 2.5" SSDs each in one tray...
...in very solid metal cases. Even with locks for that "professional server looks", sadly not visible when mounted to the G5.

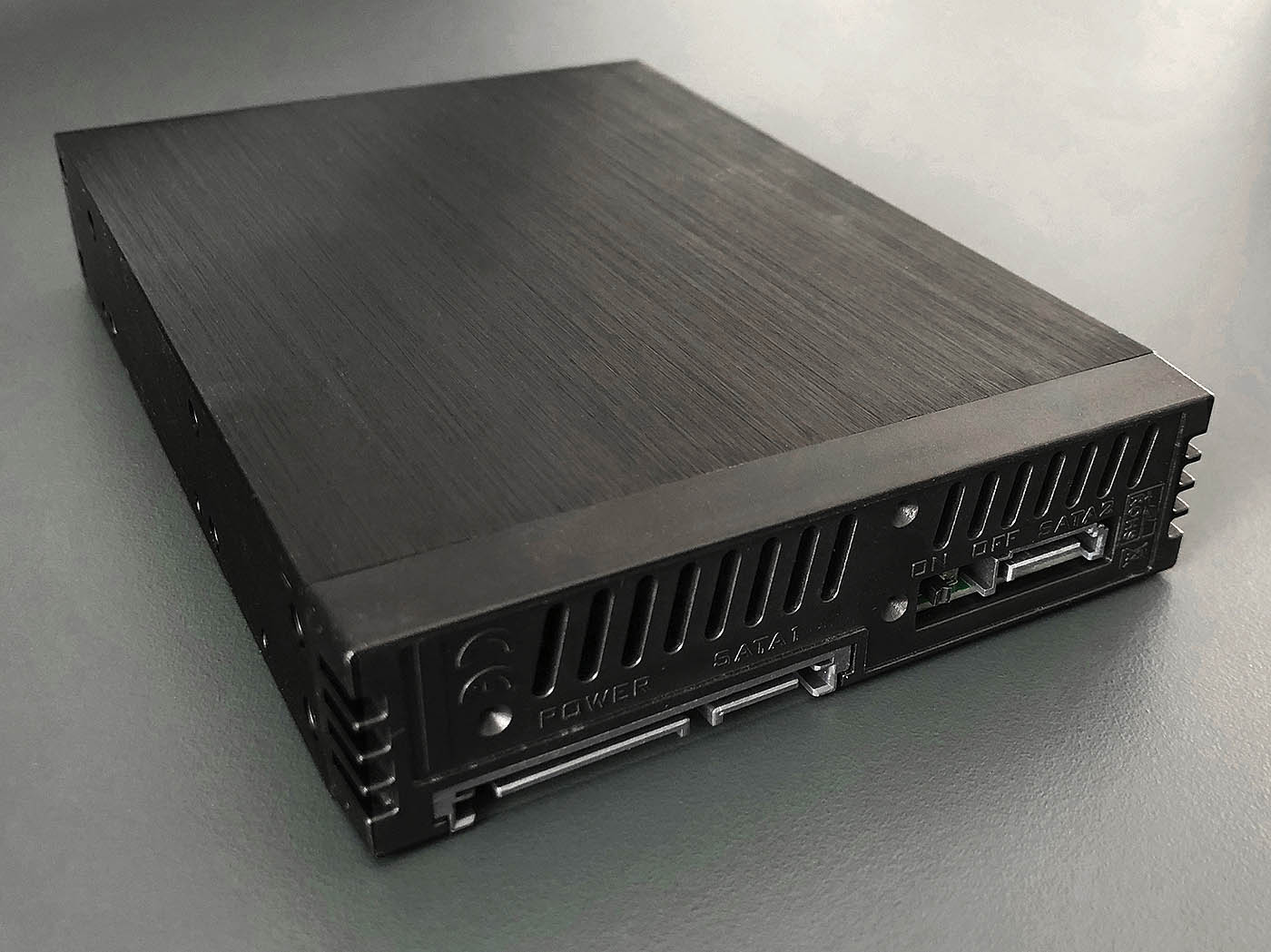

But only requiering one power plug each!
So no additional cables needed, except for data. A perfect match for what the G5 has to offer. Also an on/off-switch is available, if the second drive is not needed.
Sadly they do not 100% follow the formfactor, beeing about 1,5mm too long in the back, causing the lock for the lower tray to not be closeable anymore. So i left both of them open. Held by three cables each, they won't go that far anyway.
I used one of the drives for the main bootdisk, a Sorbet install, one for a standard Leo 10.5.8, along with a backup of the apps and user data and the other two for a RAID 0 mirror of the sorbet disk, which can boot as well.
Main storage for apps and user data is the AHCI-SSD in the PCIe below, which is even faster but sadly not bootable.
So G5 Quad-mass-storage-case should be finally closed by now!
...as long as nobody far more skilled than me gets that FCode driver for AHCI figured.
😁
It went from this...
...to this...
...involving two of these!
They give such a perfect companion to make use of the full potential of these SAS-cards in particular in a Powermac G5, that – again – i could not resist.
Holding two 2.5" SSDs each in one tray...
...in very solid metal cases. Even with locks for that "professional server looks", sadly not visible when mounted to the G5.
But only requiering one power plug each!
So no additional cables needed, except for data. A perfect match for what the G5 has to offer. Also an on/off-switch is available, if the second drive is not needed.
Sadly they do not 100% follow the formfactor, beeing about 1,5mm too long in the back, causing the lock for the lower tray to not be closeable anymore. So i left both of them open. Held by three cables each, they won't go that far anyway.
I used one of the drives for the main bootdisk, a Sorbet install, one for a standard Leo 10.5.8, along with a backup of the apps and user data and the other two for a RAID 0 mirror of the sorbet disk, which can boot as well.
Main storage for apps and user data is the AHCI-SSD in the PCIe below, which is even faster but sadly not bootable.
So G5 Quad-mass-storage-case should be finally closed by now!
...as long as nobody far more skilled than me gets that FCode driver for AHCI figured.
😁
Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I wish I could buy that enclosures here...
BTW, does they support SAS drives or SATA-only?

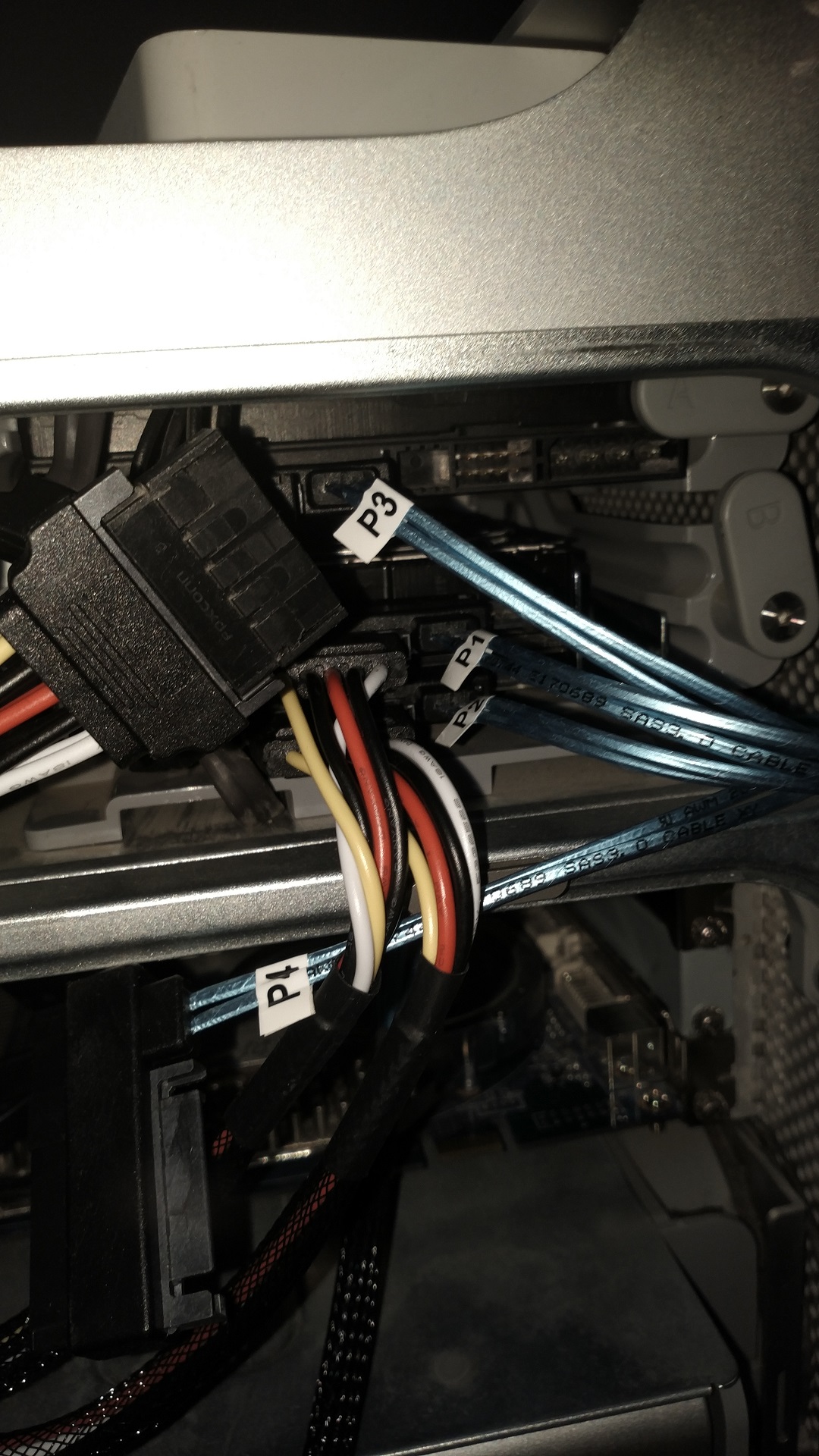

It seems you replaced stock IDE DVD drive with one SATA-conencted? Why not replace it completely with another enclosure, you can get 4 more drives (molex-powered, y-type splitter & all is up ). I started with 1 such thing, but now 1068E-based controller allows to connect 8 drives .
BTW, does they support SAS drives or SATA-only?It seems you replaced stock IDE DVD drive with one SATA-conencted? Why not replace it completely with another enclosure, you can get 4 more drives
(molex-powered, y-type splitter & all is up ). I started with 1 such thing, but now 1068E-based controller allows to connect 8 drives .
Yes! Item description says "SAS/SATA-HDD or SSD".I wish I could buy that enclosures here...
Yes, it's a BluRay-burning-drive. There are no IDE BluRay-devices.
It is attached to one of the G5's SATA-ports. So bootable too.
Because i just don't need any more drives nor have i any more free PCIe-slots available. The only one not used is blocked by the GPU's cooler.Why not replace it completely with another enclosure, you can get 4 more drives
If i'd need mor space in this machine some day i'd simply swap out the drives for bigger ones.
Last edited:
Got it. My primariry goal was not space but number of drives, for several OSes
.
Ok, got your point! 😉Got it. My primariry goal was not space but number of drives, for several OSes
But me, i do not intend to use anything else but Leo or Sorbet. Only other option, running this card, could be Tiger Server which i don't even have. I once did a test-install of the Snow Leo Beta. But IMHO it is far from beeing usable on the G5. So i think i will get along nicely with what i have. 😊
I won't allow Linux to even come close to one of my computers! 😝
This turned out to be an issue with my install of Leopard, KP happening anyway for unknown reasons unrelated to the SAS card or the PCI to PCI-E bridge.
10.5.8 works just fine with the SAS card.
Sadly this card in a PCI adapter has issues with the builtin USB of the MDD and QS.Now I'm in search for SAS card (or at least SATA2) for G4 (MDD)
But it was faster in the MDD than it was the PCI G5.
Maybe one day we can resolve whatever the conflict is tho....
