The New Dock
- Thread starter GoGa
- Start date
- Sort by reaction score
Many Thanks!

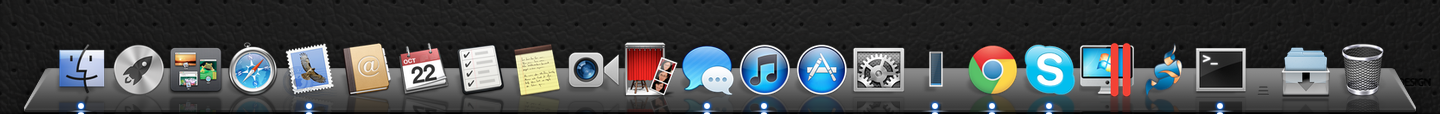

I just want to thank everyone in this thread for offering all the guidance. I now have an acceptable Dock in Mountain Lion:
Credits:
It's only been a few moments since getting it all sorted, and I already believe that I like it better than how it looked in Lion / Snow Leopard / Leopard! It's almost as if the blue indicators are "reflecting" the black glass bezel of my MBP! Thanks again!
I just want to thank everyone in this thread for offering all the guidance. I now have an acceptable Dock in Mountain Lion:
Credits:
It's only been a few moments since getting it all sorted, and I already believe that I like it better than how it looked in Lion / Snow Leopard / Leopard! It's almost as if the blue indicators are "reflecting" the black glass bezel of my MBP! Thanks again!
So what, its his computer and he will do whatever he wants with it despite your disliking towards it and especially despite Apple's obsession over lack of customization.
sorry.. but i've to replace the entry Dock of ML 10.8.2 to change this damn dock background?
Unfortunately, yes, but not in its entirety.sorry.. but i've to replace the entry Dock of ML 10.8.2 to change this damn dock background?
You need to build it yourself from the links.
- Back up your current Dock.app
- Install the DP4 Test Dock form the first link
- Copy over the scurve and indicator assets from the second link
- Reboot or do a killall Dock.
Here's a few different things I found that I can do with it. (see attachments)
In the meantime, I'm writing up a short guide so that others can see how I accomplished this and I'll post it here shortly!
In the meantime, I'm writing up a short guide so that others can see how I accomplished this and I'll post it here shortly!
Attachments
Well, it was pretty hard to make this as simple as possible, and I'm not quite sure I got there. But here's the guide on how to hack the dock. If you make a mistake and don't know how to restore your backed up Dock, you could mess your computer up. Don't hold me responsible for that.
ONLY TRY THIS ON OS X 10.8.2.... You've been warned!
https://forums.macrumors.com/threads/1495519/
ONLY TRY THIS ON OS X 10.8.2.... You've been warned!
https://forums.macrumors.com/threads/1495519/
Last edited:
Thanks for the guide.
May I ask a question?
After vmmap command, my __TEXT line is the following:
Code:
00000001091e1000-0000000109420000 [ 2300K] r-x/rwx SM=COW ...s/MacOS/DockYeah, the difference in size will cause a problem. Are you on 10.8.2? Try this command in Terminal:
md5 /System/Library/CoreServices/Dock.app/Contents/MacOS/Dock
This should be before you made any modifications to the binary. Your md5 should be: f0ac7d2380e2489013d9288983fd608d
If it's not, the only thing I can think of is that we are on different OS X versions.
md5 /System/Library/CoreServices/Dock.app/Contents/MacOS/Dock
This should be before you made any modifications to the binary. Your md5 should be: f0ac7d2380e2489013d9288983fd608d
If it's not, the only thing I can think of is that we are on different OS X versions.
Thank you for your answer.
Yes, I'm on 10.8.2.
This is the md5:
Some days ago I tried to modify my dock as showed in this post https://forums.macrumors.com/posts/16100107/, than I changed it back to the default, or so I thought.
I've restored the original Dock.app from the installation disk and now the size seems to be right:
but the md5 is still different:
Yes, I'm on 10.8.2.
This is the md5:
Code:
d78941145fd3c8e090190a4719a7476fI've restored the original Dock.app from the installation disk and now the size seems to be right:
Code:
__TEXT 00000001011ca000-0000000101425000 [ 2412K] r-x/rwx SM=COW ...p/Contents/MacOS/Dock
Code:
b611fb46f32b561ee8e5a52b4044627fIf you pulled it from the ML installation disk, then it's the Dock.app from 10.8.0. You'll have to download the 10.8.2 combo update and get your dock back to where it's supposed to be
Thanks for this info!
I got as far as Step Three, but have no idea how to edit the modified Dock.exec in order to use the recommended settings. I searched for the offsets listed in Hex spotlight in 0xED, but have no idea what I need to do or if this is correct.
Any help would be greatly appreciated. Thanks again!
I got as far as Step Three, but have no idea how to edit the modified Dock.exec in order to use the recommended settings. I searched for the offsets listed in Hex spotlight in 0xED, but have no idea what I need to do or if this is correct.
Any help would be greatly appreciated. Thanks again!
In 0xED, there's a textfield in the upper-right that says "Go To Offset" underneath it. You'll type the offset in there and press "enter". Once you do that, the cursor will be positioned at that offset (you can double-check that you're at the correct offset by looking at the value for offset in the lower-right corner of the window). Make sure that your write mode is set to overwrite, and then you just type in the patch values and it will overwrite the values at that offset.
So, for example, if you were changing the frontline color, you would type "DC664" (don't type in the 0x) in the "Go to offset" field and press enter. (You *may* have to click on the byte that the selection indicator moved to in the hex view to transfer keyboard focus there). Then after checking you were at the correct offset, you would just begin typing in the patch values "57C0" and you'll watch those values overwrite the old ones at that offset.
So, for example, if you were changing the frontline color, you would type "DC664" (don't type in the 0x) in the "Go to offset" field and press enter. (You *may* have to click on the byte that the selection indicator moved to in the hex view to transfer keyboard focus there). Then after checking you were at the correct offset, you would just begin typing in the patch values "57C0" and you'll watch those values overwrite the old ones at that offset.
Wow, that's so simple! Thank you so much! It's people such as yourself that make MacRumors so helpful.
Also, for the frontline color offset at 0xDC664, I believe the original bytes there were 28 C1 or something like that. So, you'd be changing 28 C1 to 57 C0. Understand?
----------
Also, I've created a separate thread for people to talk about this particular way as it seems more appropriate. If you're having issues, please ask your questions there. Thank you!
https://forums.macrumors.com/threads/1495519/
----------
Also, I've created a separate thread for people to talk about this particular way as it seems more appropriate. If you're having issues, please ask your questions there. Thank you!
https://forums.macrumors.com/threads/1495519/
