That speed is about right, 2013 model only support 2x4 . Only 2015 15" model can do 3x4, so nothing wrong with your setup
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Upgrading 2013-2015 Macbook Pro SSD to M.2 NVMe
- Thread starter maxthackray
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
That speed is about right, 2013 model only support 2x4 . Only 2015 15" model can do 3x4, so nothing wrong with your setup
Hi
I found this ssd ADATA XPG GAMMIX S11
US $52.05 17％ dto. | ADATA XPG GAMMIX S11 256GB 512GB Lite PCIe 3D Gen3x4 M.2 NVMe 2280 SSD unidad de estado sólido para ordenador portátil de escritorio disco duro interno
US $52.05 17％ dto. | ADATA XPG GAMMIX S11 256GB 512GB Lite PCIe 3D Gen3x4 M.2 NVMe 2280 SSD unidad de estado sólido para ordenador portátil de escritorio disco duro internoa.aliexpress.com
I have MacBook Pro 2015 - 13”
Gammix wont fit into macbook clearance, it has preinstalled heatsink.
Better go for SX8200 if you want adata. And get short adapter.
I have a weird problem with NVMeFix. It installs and loads just fine with Hackintool. I disable SIP while installing and enable again after installing. Both NVMeFix and Lilu kext load fine the first day or 2, even after multiple restarts, but after that they stop loading on around the third day. Any idea why? It's like the permission to load unsigned kexts get revoked.
Catalina 10.15.6.
Catalina 10.15.6.
Did you enable debug boot args ?
or even better, just dont use catalina at all if you aint have to. Lol
As some of you might remember, I use two (512 and 1TB) Silicon Power on my MacBook Air Early 2015 and MacBook Pro Mid 2014.
I had been having at least one kernel panic a day lately (it did not happen in the first four months) in my Air.
I open the laptop and removed the SSD. When I unscrewed it, I felt like if the SSD was loose inside the Sintech short adapter.
Anyways, because I used the original screw, I thought maybe it was my perception only.
What I did that resolved the problem (it's been running without any panics for about 3 weeks now):
I put Kapton Tape on the board UNDER the SSD. There are some metal points there and maybe there were some capacitive effects between the SSD and the board, which caused the panics.
This is my experience and I hope it helps someone!!
Do panics happen with other applications?
It still shows as lane width x4 in system report?
Hi @Shrimply Pibbles,
Thanks for the info! If someday I learn more about how BlackMagic works I'll post it for sure.
About the iMac speeds:
- The iMac with Samsung 860 EVO giving ~400MB/s do you think is slow? I think it's not the best but I do not know what else to do. This mid2011 iMac is the product of replacing an HDD with the SSD and then filling the info directly by hand (I mean selecting the folders and reinstalling the apps one by one, not using any Time Machine copy). I did it that way in order to not to copy the junk of the previous HDD. Any suggestion to improve the performance? (I know it is a SUPERgeneric question because there is need to know more about the machine, but maybe the community has a cooking-book-recipe MO on improving the speeds, which I would be very glad to hear about)
- The iMac with HDD, I know it is amazingly slow. The iMac is from 2017 and it takes about 1.5~2 minutes to start up, in order to open a folder with a reasonable number of files it takes maybe 10 seconds, the preferences app takes a lot to open too, and I could go on and on. Actually, it has been a PC which always took a long time to boot. The last month I decided to take all the information into an external drive, wipe the entire machine out in recovery mode (but not cleaning the HDD with maximum security, I think I cleaned with the lowest value -which I think it is like putting all 0s-, I do not know if it matters or not), install Catalina using a USB boot and then put the info again folder by folder (as you can see I am a bit hypocondriac when cleaning stuff and I just go raw selecting the folders by hand). However it did not improve much more, actually I think it improved NOTHING and the placebo effect of me cleaning stuff is kicking in. I am planning to reformat the HDD again with the maximum number of random number overwrites (7) and installing Catalina from scratch. I hope to get better performance but I am not very confident to get any results. Any suggestion? Do you think that maybe the disk had a manufacturing error and never went well, or the problem can come from another thing? If I am too desperate I will try to change the HDD with another SSD, however I am trying to avoid this because the Apple engineer fams thought it would be nice to replace the magnets of the plastic cover with some adhesive much more difficult to remove.
Sorry for the long post, today I woke up feeling like a writer even though English is not my mother tongue and I did not want to kill the roll
Thanks again!
Last edited:
This is not bad at all for a SATA3 drive. To get much higher speeds, a NVMe drive is necessary but I'm not sure if your iMac is compatible.
Hi @macpro_mid2014, I'm glad you solved it! When you say you put Kapton tape on the board, you mean in the PC board, or in the SSD? The first time I knew about Kapton tape was in this forum and I have never used it. I am planning to buy a roll because I remember reading somewhere to put Kapton tape on the sintech adapter (but not directly on the metal pins). Is it correct to put it there? Completely newbie here
Thanks,
Last edited:
I've recently installed the samsung 970 Evo 1TB into my Early 2015 13 inch MBP. (macOS 10.15.7)
Yes it's generating more heat then the stock apple ssd & it's draining my battery faster.
Reading through this topic, I've devided to switch it for the Sabrent Rocket 1TB.
I live in Turkey. There's no way I won't get Sabrent here. Do you think I should buy ADATA XPG SX8200 PRO?
I offcourse don't know that one, but looking at the graphs at the start of this topic, the adata also should be fine.
Same problem here, it may be related to deep sleep (closing the lid at <5% battery power). Generally a restart fixes it.
I've also noticed I can't re-enable SIP and have NVMeFix work reliably without having the symptoms you've mentioned.
How is the battery doing? Does the processor heat up quicker?
Last edited:
Hi all,
I upgraded my MBP 15" Mid-2015 to a Samsung Evo Plus 1TB today. No snags, apart from me realizing I needed a pentalobe screwdriver *after* I started and already wiped the original Apple SSD.
I upgraded Sierra to High Sierra (clean install) and then to Mojave (clean install.) With Mojave I got bootrom 199.0.0.0.0.
My adapter is the Sintech short one, straight from Sintech. No exposed pcb traces so no need for Kapton tape. I was going to see if Samsung Magician would boot on a MacBook but since everything went swimmingly, I've put that off.
If there's anything someone wants to know, just ask.
Many thanks to you all. I already fell into the GPU Upgrade iMac 2009-2011 rabbit hole...
Cheers!
How is the battery doing? Does the processor heat up quicker?
Is there a guide to installing NVMEfix? I did not come across this at the beginning of the topic.
Thats's because this thing only known later,
Installation is pretty simple and straight forward. And it will be better if you are on mojave
1. Boot to recovery.
2. Open Terminal, and type this two commands
3. csrutil disable
4. nvram boot-args="0x144"
5. Boot back to system
6. Download LiLu.kext, NVMeFix.kext and Hackintools all from GitHub
7. Use Hackintools to install both kext to S/L/E and rebuild kext cache.
8. Reboot, at least two times
You are done. Shall you have problem or crash when reboot, it means your ssd doesnt support APST and play funny when it enabled. Simply boot to safe mode and remove the kext.
As far as i can remember, SX8200 pro doesnt really get along with NVMeFix, it doesnt crash, but it doesnt improve either. Lol
970 is surprisingly a good idler after the fix. Although it's kinda pricey (especially in my country) but if you manage to snatch a good deal, then go for it.
Hi Guys, I've been lurking around for the past year and decided to took the plunge and upgraded my SSD recently.
So here I am today, sharing items and links that I used for this project.
Specs:
MacBook Pro (Retina, 15-inch, Mid 2014)
macOS Catalina 10.15.7
1) Sarbent Rocket 512 (https://www.amazon.com/Sabrent-SB-R...coding=UTF8&psc=1&refRID=BQMZVN9HT50FNV0PE2S6)
2) M.2 NVME SSD adaptor (https://www.aliexpress.com/item/400...d5c4876227f6f&templateKey=white_backgroup_101)
So here I am today, sharing items and links that I used for this project.
Specs:
MacBook Pro (Retina, 15-inch, Mid 2014)
macOS Catalina 10.15.7
1) Sarbent Rocket 512 (https://www.amazon.com/Sabrent-SB-R...coding=UTF8&psc=1&refRID=BQMZVN9HT50FNV0PE2S6)
2) M.2 NVME SSD adaptor (https://www.aliexpress.com/item/400...d5c4876227f6f&templateKey=white_backgroup_101)
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I have today install both kext ( Lilu & NVMeFix ) with Hackintool but on my Mojave System ( its current up to date ) both kext will only load if I installed them in L/E in S/L/E there will not load on booting the system !!
I can confirm that NVMeFix work properly on my MBP11.1 with EVO970 1TB and the IDLE power reduce from 2,5 to 0,4-0,5 W.
Now im happy cause that was the last step after im successfully patch the BootRom with CH341A Mini Programmer and the J6100 adapter - thanks for the great manual here !!
I can confirm that NVMeFix work properly on my MBP11.1 with EVO970 1TB and the IDLE power reduce from 2,5 to 0,4-0,5 W.
Now im happy cause that was the last step after im successfully patch the BootRom with CH341A Mini Programmer and the J6100 adapter - thanks for the great manual here !!
Last edited:
Looking awesome, thank you for sharing the details....waiting for the 1TB to come down in price so I can do mine. ;-)Hi Guys, I've been lurking around for the past year and decided to took the plunge and upgraded my SSD recently.

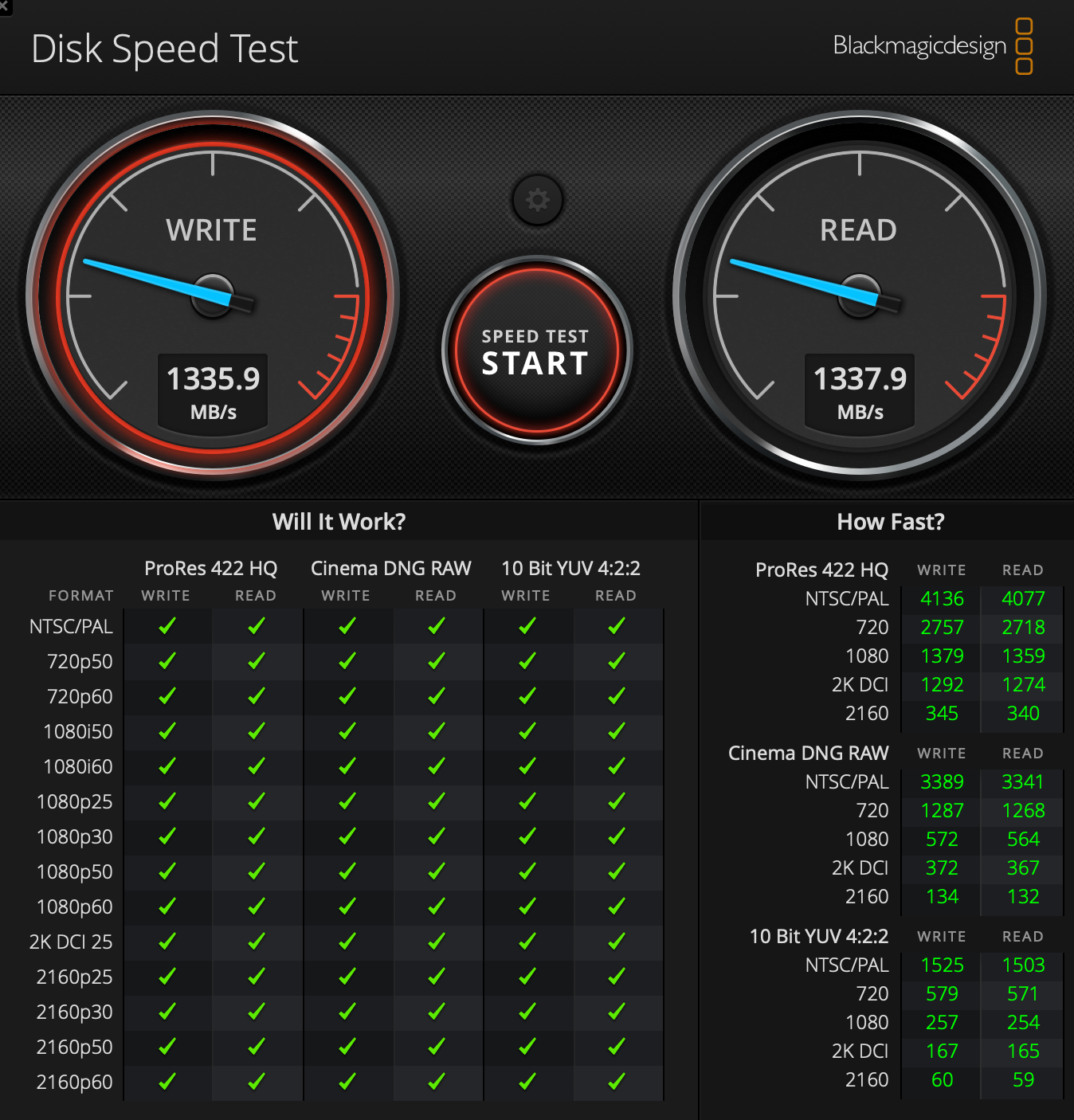

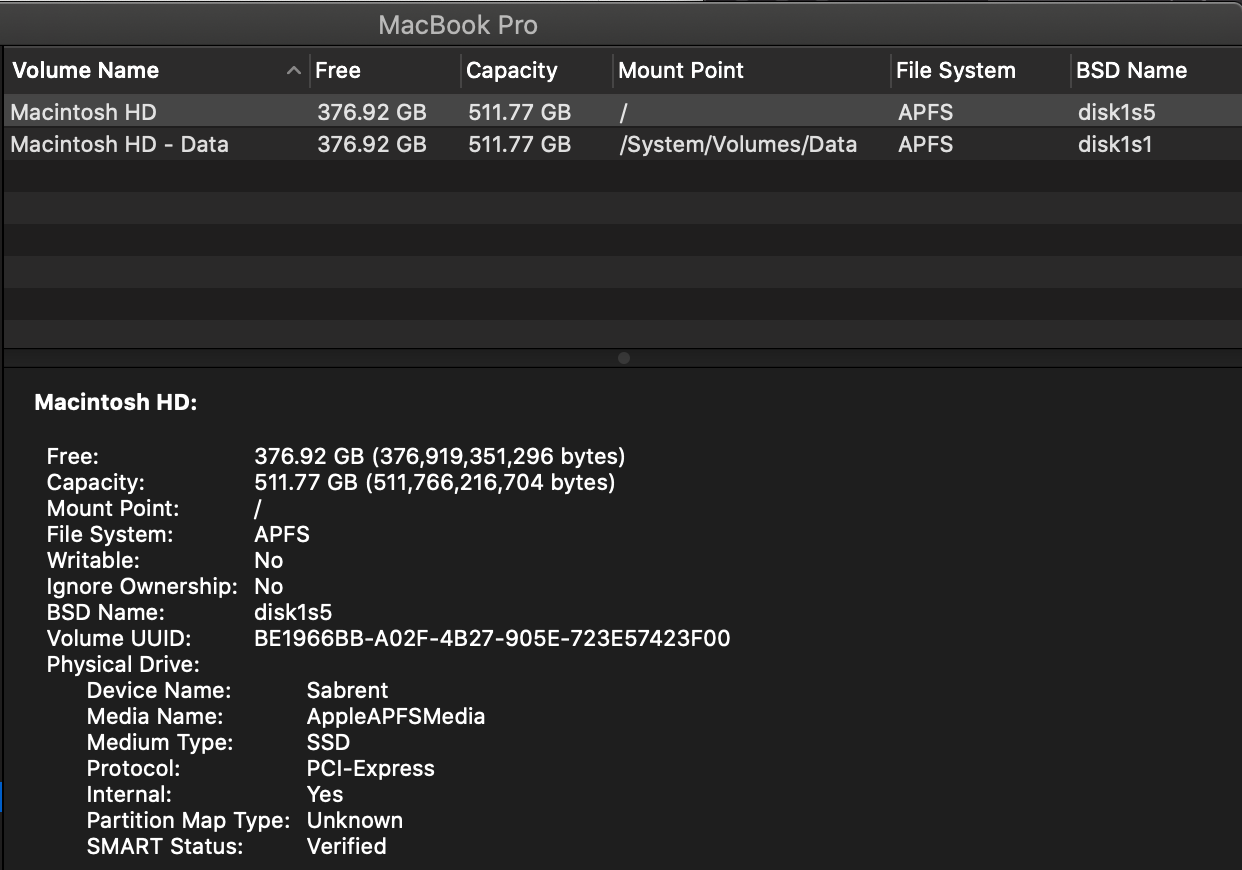

So here I am today, sharing items and links that I used for this project.

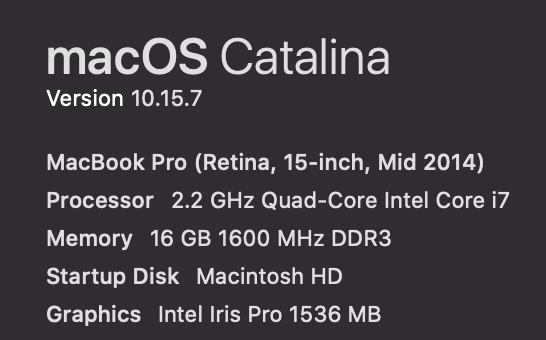

Specs:
MacBook Pro (Retina, 15-inch, Mid 2014)
macOS Catalina 10.15.7
1) Sarbent Rocket 512 (https://www.amazon.com/Sabrent-SB-R...coding=UTF8&psc=1&refRID=BQMZVN9HT50FNV0PE2S6)
2) M.2 NVME SSD adaptor (https://www.aliexpress.com/item/4000328849156.html?srcSns=sns_WhatsApp&spreadType=socialShare&bizType=ProductDetail&tt=MG&aff_platform=default&sk=_mP3avld&mergeHashcode=38663352691&description=SG$+3.82++9％+Off+|+M.2+NVME+SSD+Convert+Adapter+Card+for+MacBook+Air+Pro+Retina+2013-2017+NVME/AHCI+SSD+Upgraded+Kit+For+A1465+A1466+A1398+A1502+M2&aff_trace_key=32c62b02a0fc461b9c9d090342b9abe2-1602936922666-02410-_mP3avld&businessType=ProductDetail&title=SG$+3.82++9％+Off+|+M.2+NVME+SSD+Convert+Adapter+Card+for+MacBook+Air+Pro+Retina+2013-2017+NVME/AHCI+SSD+Upgraded+Kit+For+A1465+A1466+A1398+A1502+M2&platform=AE&terminal_id=324602b6715a408d860d5c4876227f6f&templateKey=white_backgroup_101)
View attachment 967876
View attachment 967874
View attachment 967875
