USB 3.x PCIe Cards for Classic Mac Pro

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
M

Mac_User 0101

macrumors regular
Oct 8, 2017
133
43
Hey guys, I'm wondering about this StarTech USB 3.1 gen 2 hub I'm thinking of ordering. It connects to the computer with a USB type C cable and the hub provides x4 USB type A ports. The thing is, there aren't many reviews online but there few that I've read sound negative. There aren't too many options for USB 3.1 gen 2 hubs, which makes me think it's not really a thing yet. Anyone have this or recommend a different reliable hub? I recently ordered a GC TITAN RIDGE per joevt's recommendation and this is just to split one of it's type C ports into x4 type A ports. I'm not expecting to get near full gen 2 speeds from the hub but hopefully something a little faster than gen 1 if possible.

https://www.amazon.com/StarTech-com-USB-C-Hub-USB-Thunderbolt/dp/B07FB94VJY

Last edited:
VaZ

VaZ

macrumors 6502
Aug 31, 2012
322
84
I've used this for several years now when it first came out and it's working quite wonderfully to this day no complaints whatsoever.

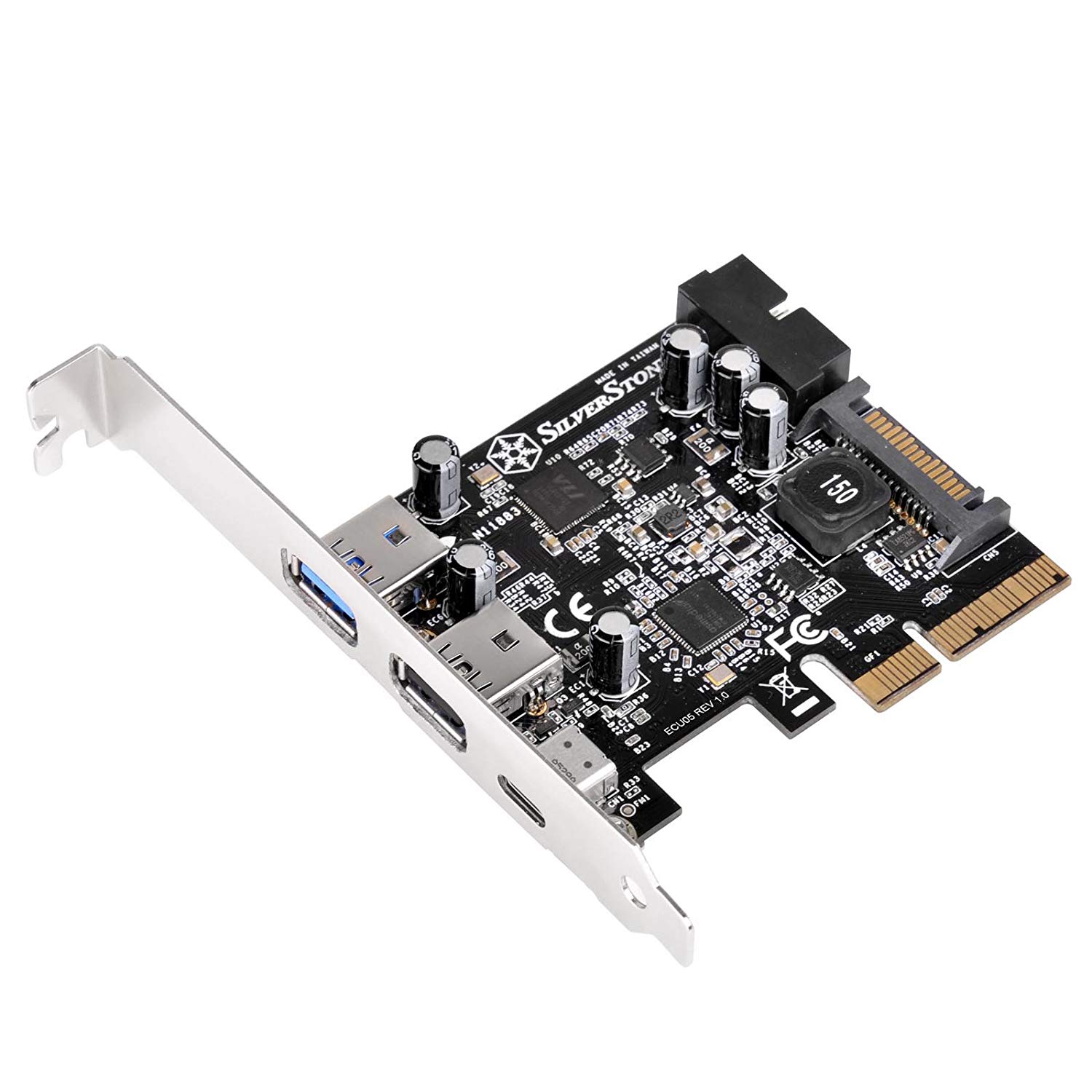

'SilverStone Technology Silverstone USB 3.1 and 3.0 PCIe Card with External Type C and Internal 19 Pin Connector Model ECU05'

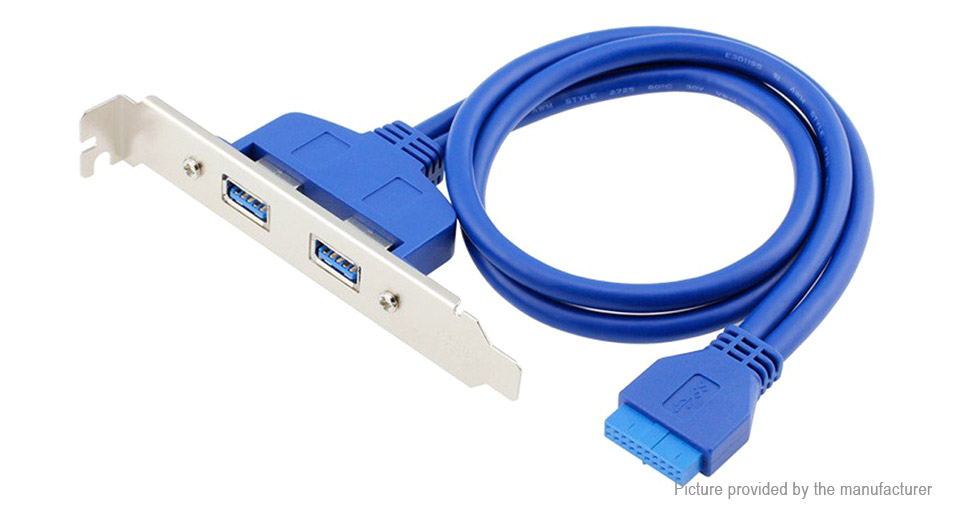

Highly recommend it. I've also expanded it with a usb 3.0 header to a pcie plate for 2 extra ports. Does not need external sata power from what i can tell..but then again i've never maxed out all 5 ports at the same time.

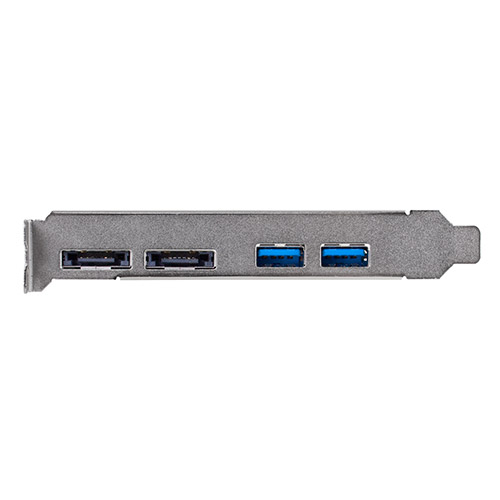

THEN i bought another plate to replace the last one to include 2 eSATA ports from the 2 spare SATA ports from the dvd-drive bays.


ECU05 .jpg
esata usb3.jpg

  • Like
Reactions: MIKX and jklash1987
J

joevt

macrumors 604
Jun 21, 2012
6,966
4,259
Mac_User 0101 said:
Hey guys, I'm wondering about this StarTech USB 3.1 gen 2 hub I'm thinking of ordering. It's connects to the computer with a USB type C cable and the hub provides x4 USB type A ports. The thing is, there aren't many reviews online but there few that I read sell negative. There aren't too many options for USB 3.1 gen 2 hubs which makes me think it's not really a thing yet. Anyone have this or recommend a different reliable hub? I recently ordered a GC TITAN RIDGE per joevt's recommendation and this is just to split one of it's type C ports into x4 type A ports. I'm not expecting to get near full gen 2 speeds from the hub but hopefully something a little faster than gen 1 if possible.

https://www.amazon.com/StarTech-com-USB-C-Hub-USB-Thunderbolt/dp/B07FB94VJY
Click to expand...
The Startech hub appears to use the same VIA Labs, Inc. VL820 USB 3.1 gen 2 hub as the HP Thunderbolt Dock G2 that I have.
https://www.startech.com/ca/Cards-Adapters/USB-3.0/Hubs/4-port-usb-c-hub~HB31C4AB
You can search the web for other products that use the VL820 hub chip.

The HP Thunderbolt Dock G2 exposes three of the USB 3.1 gen 2 ports of the VL820 hub (USB-A, USB-C, and USB-C with DisplayPort alt mode). The fourth port is used to connect a USB 3.0 hub to support the rest of the dock's capabilities. The Dock uses a Titan Ridge Thunderbolt controller so it can be connected by USB instead of Thunderbolt for computers that don't support Thunderbolt.

A JMS853 based USB 3.1 gen 2 drive (Plugable usbc-nvme) is able to get 989/981 MB/s write/read connected directly to a GC-TITAN RIDGE. Connected to the dock in usb mode (using a USB-C to USB-A female and USB-A male to USB-C cable), I got 943/963 MB/s write/read but sometimes there were stalls which might be caused by using chained cables. Using a regular USB-C cable causes the dock to connect using Thunderbolt mode and I would have to warm boot from Windows to get the dock to work in that mode. In Thunderbolt mode, the VL820 hub is connected to the Titan Ridge USB controller inside the dock, instead of the Titan Ridge USB controller of the GC-TITAN RIDGE. There might be extra overhead in Thunderbolt mode because of that.

VaZ said:
'SilverStone Technology Silverstone USB 3.1 and 3.0 PCIe Card with External Type C and Internal 19 Pin Connector Model ECU05'
Click to expand...
That is a PCIe 2.0 x2 ASM1142 based USB card. It only has one USB 3.1 gen 2 port limited to 8 Gbps because of PCIe 2.0 x2 so it can't do more than approximately 765 MB/s. The other four USB ports are provided by a VIA Lab VL812 hub (USB 3.0 four port hub) so they are limited to approximately 400 MB/s.

  • Like
Reactions: Mac_User 0101
Mac Hammer Fan

Mac Hammer Fan

macrumors 65816
Jul 13, 2004
1,328
498
I have a Fresco Logic pci card usb 3.0 with Host Controller Driver: AppleUSBXHCIFL1100 (bought on ebay) and when I put the computer to sleep, it ejects the connected drive improperly. To avoid this, I have always used Jettison and it worked well in High Sierra. However, in Mojave, I have problems. The drive doesn't appear again, unless I zap the PRAM with the usb cable connected. I think the card is the culprit.
I was going to buy the Sonnet Allegro 3.0 superspeed or the MAXPower 4-Port USB 3.1 Gen 1 but are these compatible with Mojave? And do they interfere with bluetooth?

P

peterc18st

macrumors member
Dec 28, 2015
31
5
Mac Hammer Fan said:
I was going to buy the Sonnet Allegro 3.0 superspeed or the MAXPower 4-Port USB 3.1 Gen 1 but are these compatible with Mojave? And do they interfere with bluetooth?
Click to expand...

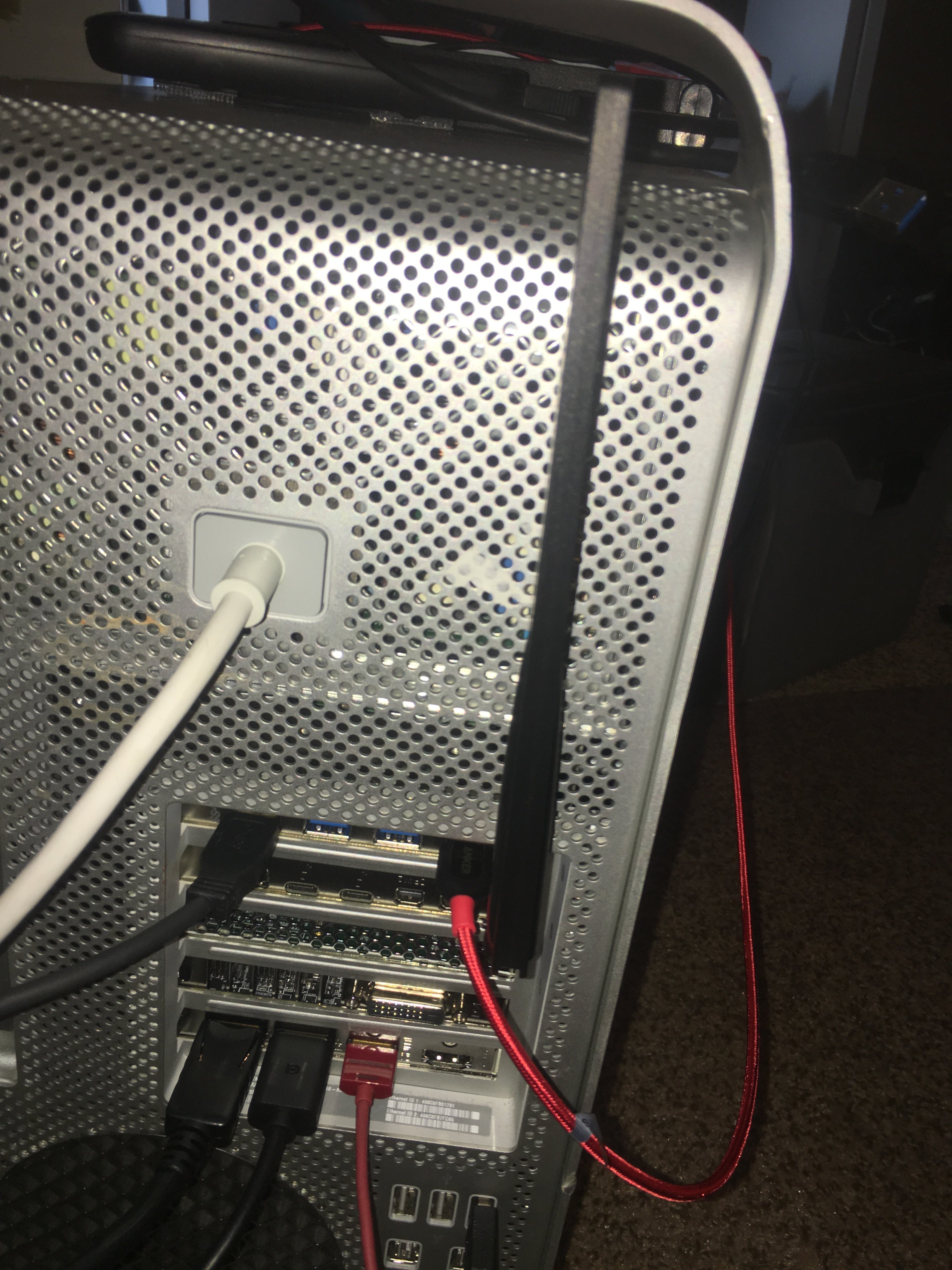

I currently use the Sonnet Allegro Pro 3.1 card with an updated bluetooth card and I haven't had any issues. I drilled the antenna into the usb plate and when transferring any files through the usb card my mouse and keyboard still work properly no stuttering nor lag.

Mac Hammer Fan

Mac Hammer Fan

macrumors 65816
Jul 13, 2004
1,328
498
Can I put a PCI card USB 3.0 safely in slot 2 of my PowerMac 5,1? (PCI-E x16)
It's a card that was installed in a PCI-E x4 slot 3 of my previous Mac.

M

mavots

macrumors regular
Feb 15, 2019
124
20
Seattle, WA
Mac Hammer Fan said:
Can I put a PCI card USB 3.0 safely in slot 2 of my PowerMac 5,1? (PCI-E x16)
It's a card that was installed in a PCI-E x4 slot 3 of my previous Mac.[/QUOTE

The only card I have that fits neatly above the RX580 is an Inatek K4004 USB 3.0 card. Its small and has almost nothing on the underside to possibly interfere with the RX580's fans.
I had a Sonnet USB card in Slot 2 and the RX580 fans hit it.
Click to expand...

P

peterc18st

macrumors member
Dec 28, 2015
31
5
Mac Hammer Fan said:
Can I put a PCI card USB 3.0 safely in slot 2 of my PowerMac 5,1? (PCI-E x16)
It's a card that was installed in a PCI-E x4 slot 3 of my previous Mac.
Click to expand...
Are slots 3 & 4 being used? It seems like a waste to use a 4x usb 3 card in a 16x slot.
If you're worried about any interference between the graphics card and slot 2 some people have used popsicle sticks to separate the cards. I personally used a folded up Sams Club card, wedged between the cards.

P

peterc18st

macrumors member
Dec 28, 2015
31
5
MIKX

MIKX

macrumors 68000
Dec 16, 2004
1,815
691
Japan
Today, here in Japan I bought a TWO bay 2,5" & 3,5" Logitec LGB-2BDPU3ES USAP USB 3,1 external dock for ¥3,400 ( US$ 23). I'm not sure that this dock is available outside of Japan.

I haven't opened the dock case yet but I assume it has an ASMEDIA chip. I'll edit this post after I check it.

As the pic shows, it's not exactly fast but I like that it has two bays as I'm very busy consolidating a ton of files to various drives.

Logitec 2 bay USB 3.1 DOCK.JPG

J

joevt

macrumors 604
Jun 21, 2012
6,966
4,259
MIKX said:
Today, here in Japan I bought a TWO bay 2,5" & 3,5" Logitec LGB-2BDPU3ES USAP USB 3,1 external dock for ¥3,400 ( US$ 23). I'm not sure that this dock is available outside of Japan.

I haven't opened the dock case yet but I assume it has an ASMEDIA chip. I'll edit this post after I check it.

As the pic shows, it's not exactly fast but I like that it has two bays as I'm very busy consolidating a ton of files to various drives.
Click to expand...
This thread is mostly about usb controllers. The LGB-2BDPU3ES is a usb device (maybe a USB hub with a USB device for each bay). It appears to support only USB 3.1 gen 1 (or USB 3.0) so the speeds will be less than 5 Gbps (≈ 400 MB/s). Use System Information.app to examine the USB product IDs used by the devices, or use the following command and post the text file result:
Code:
system_profiler SPUSBDataType > system_profiler_usb.txt

MIKX

MIKX

macrumors 68000
Dec 16, 2004
1,815
691
Japan
Joevt,

. . . that's too easy. . . :p I'm going to pull it apart and eyeball the chip :D . .

You can see the AJA speeds on the monitor in the photo it posted.

Slow but useful because of the two drive ports.

Last edited:
J

joevt

macrumors 604
Jun 21, 2012
6,966
4,259
MIKX said:
OK ! This Logitec LGB-2BDPU3ES USAP USB 3.1 ( 2 bay) Dock has an Asmedia 1156 !
Click to expand...
I can't find info on the ASM1156. Post the system_profiler result so we can see if it's implemented as a hub (to support two drives).

J

joevt

macrumors 604
Jun 21, 2012
6,966
4,259

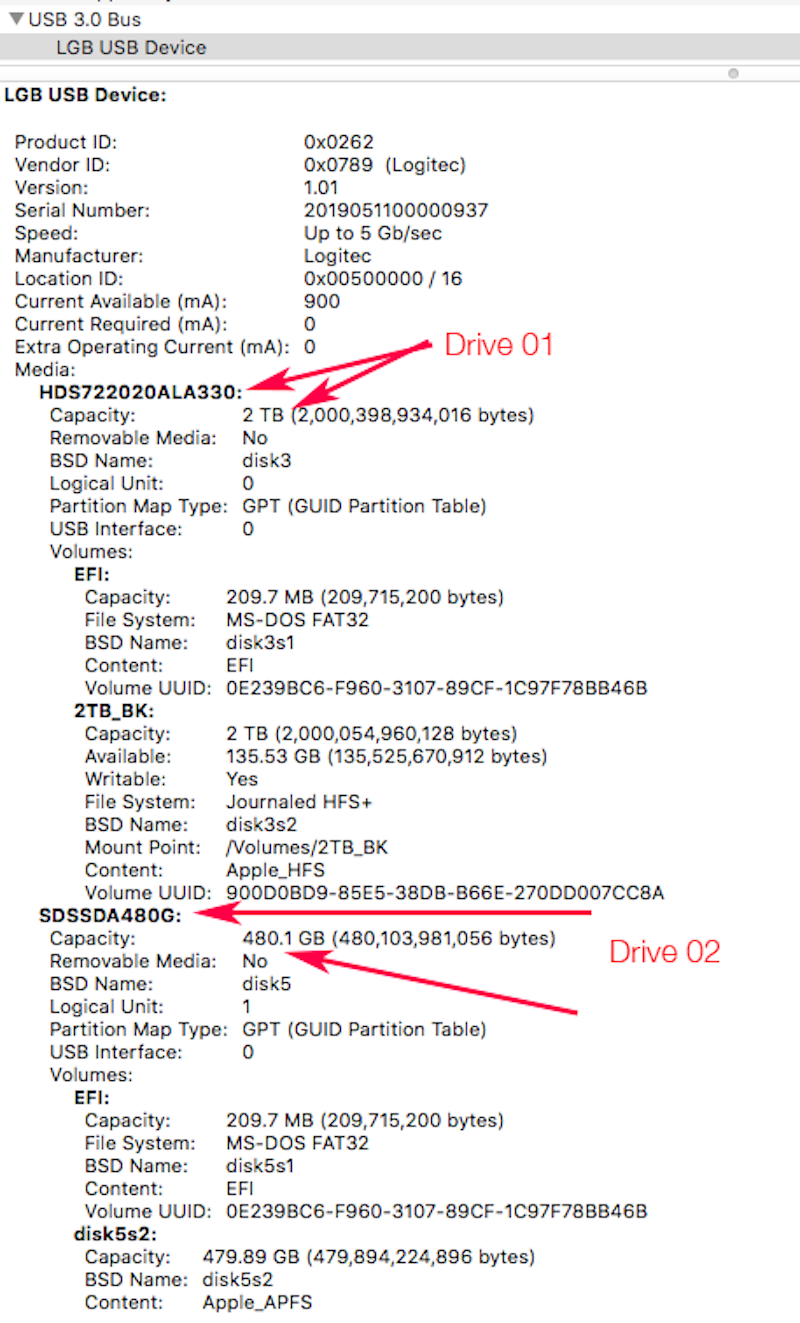

That only shows one drive. Is there a second LGB USB Device? What hub or bus is it connected to? Show the entire chain starting from the USB bus, please.

J

joevt

macrumors 604
Jun 21, 2012
6,966
4,259
MIKX said:
I put the correct grab in just now.
Click to expand...
Thanks. I didn't understand that USB allows for multiple media devices under a single USB device (no hub). I guess that makes sense since a USB device can have multiple functions/interfaces/endpoints. Without reading the USB spec, I don't know if multiple media is provided by multiple interfaces or a single mass storage device class interface. ioreg and USB Prober.app would probably make that clear.

startergo

startergo

macrumors 603
Sep 20, 2018
5,020
2,282
joevt said:
Thanks. I didn't understand that USB allows for multiple media devices under a single USB device (no hub). I guess that makes sense since a USB device can have multiple functions/interfaces/endpoints. Without reading the USB spec, I don't know if multiple media is provided by multiple interfaces or a single mass storage device class interface. ioreg and USB Prober.app would probably make that clear.
Click to expand...
Joe you wanted the LSPCI output of the HighPoint RocketU 1344A? Let me know if you need different LSPCI view
Code:
 sudo lspci -s 10:00.0 -nnvvpM
10:00.0 USB controller [0c03]: ASMedia Technology Inc. Device [1b21:2142] (prog-if 30 [XHCI])
    Subsystem: ASMedia Technology Inc. Device [1b21:2142]
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 256 bytes
    Interrupt: pin A routed to IRQ 18
    Region 0: Memory at c3400000 (64-bit, non-prefetchable)
    Capabilities: [50] MSI: Enable+ Count=1/8 Maskable- 64bit+
        Address: 00000000fee00000  Data: 408c
    Capabilities: [68] MSI-X: Enable- Count=8 Masked-
        Vector table: BAR=0 offset=00002000
        PBA: BAR=0 offset=00002080
    Capabilities: [78] Power Management version 3
        Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0+,D1-,D2-,D3hot-,D3cold-)
        Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
    Capabilities: [80] Express (v2) Legacy Endpoint, MSI 00
        DevCap:    MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <2us
            ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
        DevCtl:    CorrErr- NonFatalErr- FatalErr- UnsupReq-
            RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+
            MaxPayload 128 bytes, MaxReadReq 512 bytes
        DevSta:    CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
        LnkCap:    Port #0, Speed 8GT/s, Width x2, ASPM L0s L1, Exit Latency L0s unlimited, L1 unlimited
            ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
        LnkCtl:    ASPM Disabled; RCB 64 bytes Disabled- CommClk-
            ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
        LnkSta:    Speed 8GT/s (ok), Width x2 (ok)
            TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
        DevCap2: Completion Timeout: Not Supported, TimeoutDis-, NROPrPrP-, LTR+
             10BitTagComp-, 10BitTagReq-, OBFF Not Supported, ExtFmt-, EETLPPrefix-
             EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
             FRS-
        DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-, LTR-, OBFF Disabled
             AtomicOpsCtl: ReqEn-
        LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
             Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
             Compliance De-emphasis: -6dB
        LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+, EqualizationPhase1+
             EqualizationPhase2+, EqualizationPhase3+, LinkEqualizationRequest-
    Capabilities: [100 v1] Advanced Error Reporting
        UESta:    DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
        UEMsk:    DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
        UESvrt:    DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
        CESta:    RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
        CEMsk:    RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
        AERCap:    First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap- ECRCChkEn-
            MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
        HeaderLog: 00000000 00000000 00000000 00000000
    Capabilities: [200 v1] Secondary PCI Express
        LnkCtl3: LnkEquIntrruptEn-, PerformEqu-
        LaneErrStat: 0
    Capabilities: [300 v1] Latency Tolerance Reporting
        Max snoop latency: 0ns
        Max no snoop latency: 0ns

J

joevt

macrumors 604
Jun 21, 2012
6,966
4,259
startergo said:
Joe you wanted the LSPCI output of the HighPoint RocketU 1344A? Let me know if you need different LSPCI view
Click to expand...
I might remember if you quoted that post instead of an unrelated post.

I don't think you need -p or -M in the lspci parameters. Your lspci output shows only one USB controller. The 1344A has a PCIe upstream bridge, two downstream bridges, and two USB controllers. To be complete, you should include a tree view and all 5 devices/bridges.
Code:
sudo lspci -nnvt

The following output is from my pcitree.sh script. It shows my MacPro3,1 slot 4 (PCIe 1.0 x4) and the upstream bridge, two downstream bridges (PCIe 2.0 x2), and two devices of a CalDigit FASTA-6GU3 Plus.
Code:
││├┬13:00.0-[14-17]   # g1x4           [8086:3510] [0604] (rev 01) PCI bridge: Intel Corporation 6311ESB/6321ESB PCI Express Downstream Port E1
│││└┬14:00.0-[15-17]  # g2x4 > g1x4    [12d8:2308] [0604] PCI bridge: Pericom Semiconductor Device
│││ ├┬15:01.0-[16]    # g2x2           [12d8:2308] [0604] PCI bridge: Pericom Semiconductor Device
│││ │└─16:00.0        # g2x2           [1b21:1242] [0c03] USB controller: ASMedia Technology Inc. ASM1142 USB 3.1 Host Controller
│││ └┬15:02.0-[17]    # g2x2           [12d8:2308] [0604] PCI bridge: Pericom Semiconductor Device
│││  └─17:00.0        # g2x2           [1b21:0625] [0106] (rev 01) SATA controller: ASMedia Technology Inc. Device

startergo

startergo

macrumors 603
Sep 20, 2018
5,020
2,282
joevt said:
I might remember if you quoted that post instead of an unrelated post.

I don't think you need -p or -M in the lspci parameters. Your lspci output shows only one USB controller. The 1344A has a PCIe upstream bridge, two downstream bridges, and two USB controllers. To be complete, you should include a tree view and all 5 devices/bridges.
Code:
sudo lspci -nnvt

The following output is from my pcitree.sh script. It shows my MacPro3,1 slot 4 (PCIe 1.0 x4) and the upstream bridge, two downstream bridges (PCIe 2.0 x2), and two devices of a CalDigit FASTA-6GU3 Plus.
Code:
││├┬13:00.0-[14-17]   # g1x4           [8086:3510] [0604] (rev 01) PCI bridge: Intel Corporation 6311ESB/6321ESB PCI Express Downstream Port E1
│││└┬14:00.0-[15-17]  # g2x4 > g1x4    [12d8:2308] [0604] PCI bridge: Pericom Semiconductor Device
│││ ├┬15:01.0-[16]    # g2x2           [12d8:2308] [0604] PCI bridge: Pericom Semiconductor Device
│││ │└─16:00.0        # g2x2           [1b21:1242] [0c03] USB controller: ASMedia Technology Inc. ASM1142 USB 3.1 Host Controller
│││ └┬15:02.0-[17]    # g2x2           [12d8:2308] [0604] PCI bridge: Pericom Semiconductor Device
│││  └─17:00.0        # g2x2           [1b21:0625] [0106] (rev 01) SATA controller: ASMedia Technology Inc. Device
Click to expand...
Code:
-[0000:00]-+-00.0  Intel Corporation 5520 I/O Hub to ESI Port [8086:3406]
           +-01.0-[01-07]----00.0-[02-07]--+-02.0-[03]--
           |                               \-04.0-[04-07]----00.0-[05-07]--+-01.0-[06]----00.0  ASMedia Technology Inc. Device [1b21:0625]
           |                                                               \-02.0-[07]----00.0  ASMedia Technology Inc. Device [1b21:0625]
           +-03.0-[08]--+-00.0  NVIDIA Corporation GK107 [GeForce GT 640 OEM] [10de:0fc0]
           |            \-00.1  NVIDIA Corporation GK107 HDMI Audio Controller [10de:0e1b]
           +-07.0-[09-14]----00.0-[0a-14]--+-04.0-[0b]--+-00.0  Advanced Micro Devices, Inc. [AMD/ATI] Ellesmere [Radeon RX 470/480/570/570X/580/580X] [1002:67df]
           |                               |            \-00.1  Advanced Micro Devices, Inc. [AMD/ATI] Ellesmere [Radeon RX 580] [1002:aaf0]
           |                               +-08.0-[0c]--+-00.0  NVIDIA Corporation GK110 [GeForce GTX TITAN] [10de:1005]
           |                               |            \-00.1  NVIDIA Corporation GK110 HDMI Audio [10de:0e1a]
           |                               +-10.0-[0d-12]----00.0-[0e-12]--+-01.0-[0f]--
           |                               |                               +-02.0-[10]----00.0  ASMedia Technology Inc. Device [1b21:2142]
           |                               |                               +-03.0-[11]--
           |                               |                               \-04.0-[12]----00.0  ASMedia Technology Inc. Device [1b21:2142]
           |                               +-14.0-[13]----00.0  Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981 [144d:a808]
           |                               \-15.0-[14]----00.0  Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981 [144d:a808]
           +-0d.0  Intel Corporation Device [8086:343a]
           +-0d.1  Intel Corporation Device [8086:343b]
           +-0d.2  Intel Corporation Device [8086:343c]
           +-0d.3  Intel Corporation Device [8086:343d]
           +-0d.4  Intel Corporation 7500/5520/5500/X58 Physical Layer Port 0 [8086:3418]
           +-0d.5  Intel Corporation 7500/5520/5500 Physical Layer Port 1 [8086:3419]
           +-0d.6  Intel Corporation Device [8086:341a]
           +-0d.7  Intel Corporation Device [8086:341b]
           +-0e.0  Intel Corporation Device [8086:341c]
           +-0e.1  Intel Corporation Device [8086:341d]
           +-0e.2  Intel Corporation Device [8086:341e]
           +-0e.3  Intel Corporation Device [8086:341f]
           +-0e.4  Intel Corporation Device [8086:3439]
           +-0f.0  Intel Corporation Device [8086:3424]
           +-10.0  Intel Corporation 7500/5520/5500/X58 Physical and Link Layer Registers Port 0 [8086:3425]
           +-10.1  Intel Corporation 7500/5520/5500/X58 Routing and Protocol Layer Registers Port 0 [8086:3426]
           +-11.0  Intel Corporation 7500/5520/5500 Physical and Link Layer Registers Port 1 [8086:3427]
           +-11.1  Intel Corporation 7500/5520/5500 Routing & Protocol Layer Register Port 1 [8086:3428]
           +-13.0  Intel Corporation 7500/5520/5500/X58 I/O Hub I/OxAPIC Interrupt Controller [8086:342d]
           +-14.0  Intel Corporation 7500/5520/5500/X58 I/O Hub System Management Registers [8086:342e]
           +-14.1  Intel Corporation 7500/5520/5500/X58 I/O Hub GPIO and Scratch Pad Registers [8086:3422]
           +-14.2  Intel Corporation 7500/5520/5500/X58 I/O Hub Control Status and RAS Registers [8086:3423]
           +-14.3  Intel Corporation 7500/5520/5500/X58 I/O Hub Throttle Registers [8086:3438]
           +-15.0  Intel Corporation 7500/5520/5500/X58 Trusted Execution Technology Registers [8086:342f]
           +-16.0  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3430]
           +-16.1  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3431]
           +-16.2  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3432]
           +-16.3  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3433]
           +-16.4  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:3429]
           +-16.5  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:342a]
           +-16.6  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:342b]
           +-16.7  Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device [8086:342c]
           +-1a.0  Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #4 [8086:3a37]
           +-1a.1  Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #5 [8086:3a38]
           +-1a.2  Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6 [8086:3a39]
           +-1a.7  Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #2 [8086:3a3c]
           +-1b.0  Intel Corporation 82801JI (ICH10 Family) HD Audio Controller [8086:3a3e]
           +-1c.0-[15]--
           +-1c.1-[16]--
           +-1c.2-[17]----00.0  Intel Corporation 82574L Gigabit Network Connection [8086:10f6]
           +-1c.3-[18]----00.0  Intel Corporation 82574L Gigabit Network Connection [8086:10f6]
           +-1c.4-[19-1a]----00.0-[1a]----00.0  Texas Instruments XIO2213A/B/XIO2221 IEEE-1394b OHCI Controller [Cheetah Express] [104c:823f]
           +-1c.5-[1b]----00.0  Broadcom Inc. and subsidiaries BCM4322 802.11a/b/g/n Wireless LAN Controller [14e4:432b]
           +-1d.0  Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1 [8086:3a34]
           +-1d.1  Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2 [8086:3a35]
           +-1d.2  Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3 [8086:3a36]
           +-1d.7  Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1 [8086:3a3a]
           +-1e.0-[1c]--
           +-1f.0  Intel Corporation 82801JIB (ICH10) LPC Interface Controller [8086:3a18]
           +-1f.2  Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller [8086:3a22]
           \-1f.3  Intel Corporation 82801JI (ICH10 Family) SMBus Controller [8086:3a30]
[doublepost=1561682136][/doublepost]Where is the pcitree.sh script?

You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
