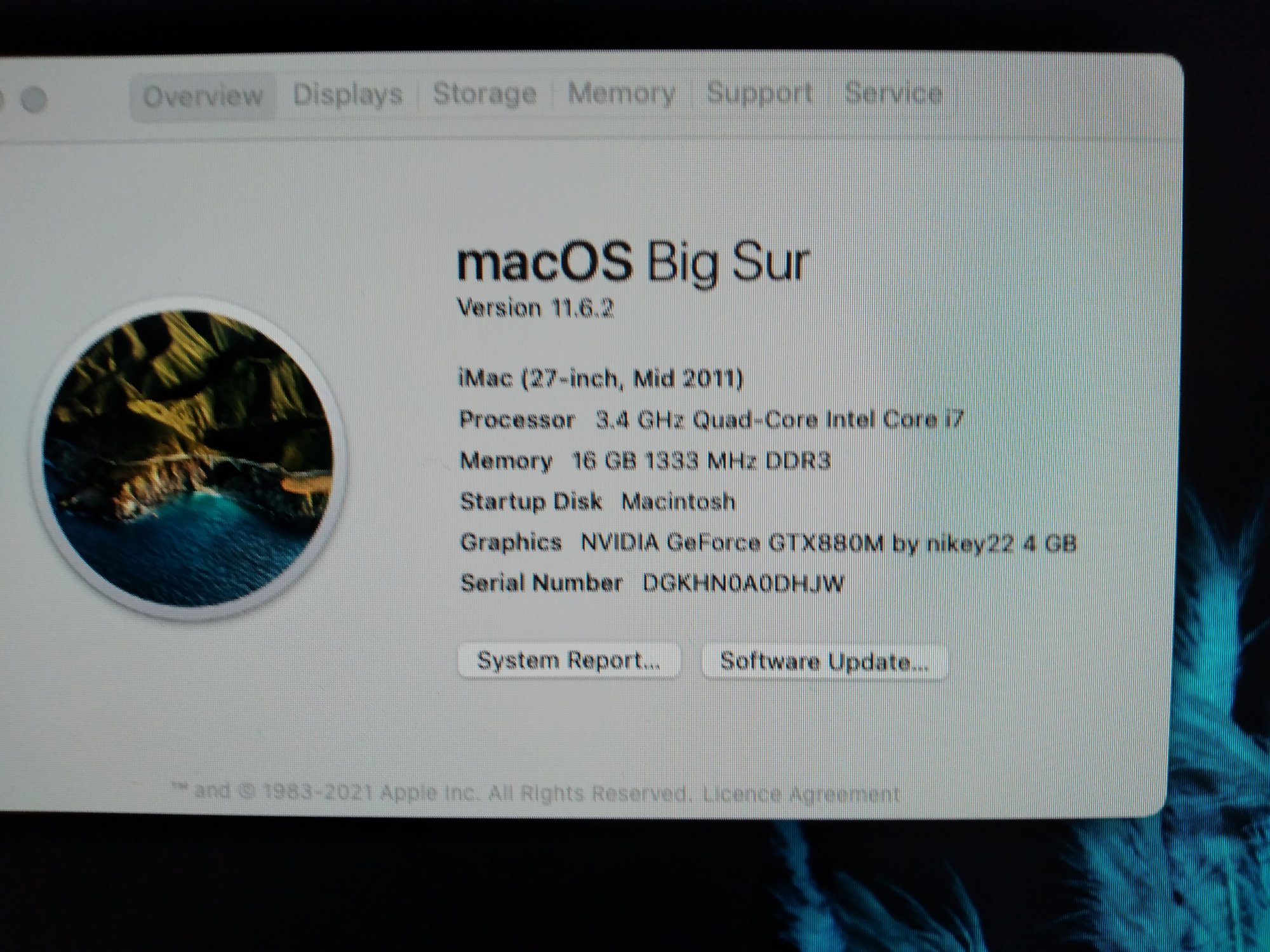

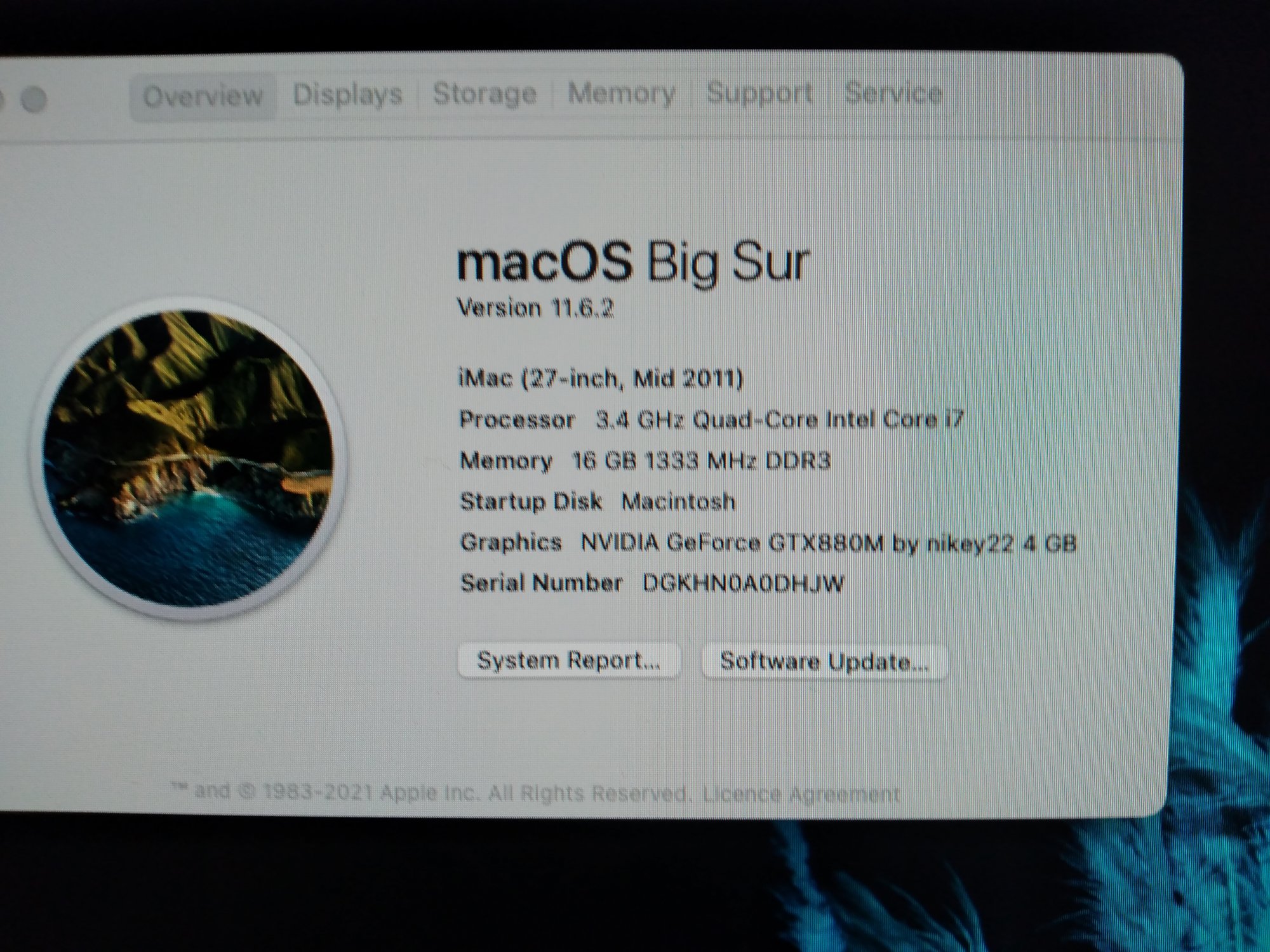

Hi, I bought gtx 880m 8gb flash it with the rom.here on the website but is recognize only 4gb, it's a video card problem or the rom here ?View attachment 1979822

Post pictures of your card and the original vBIOS you saved before flashing it with a new version from this thread.
Otherwise help is nearly impossible…



[r2p]

The M6100 is a Bonaire card which should work even now on High Sierra without any OpenCore.
OpenCore only switches on the LCD before booting macOS.

Thanks for the tip. I've now formatted my hard drive on another iMac and installed High Sierra and the latest updates, but unfortunately the M6100 still doesn't work, but i have no problems with the original 6770m. The card isn't broken either, so I'm starting to despair. If you have any idea, why it doesn't work yet.

Thanks in advance.



[ChrizLoud]

Other problem with K3100M with Windows 10 after install nvidia drivers, and then reboot machine, windows stuck on 30-60 sec. before show "login screen" or desktop. few time initialize display before show desktop.

in mac os this problem not detected.

and no one didnt help with this problem.
no one care with bad bios for k3100m once again.

I have the same problem with K4100M



[LegoNickD]

I discovered that there seems to be an even harder to find RX 6600 MXM card that can be harvested out of a sonnet puck inspired product called TaiDu TCX-230DA RX 6600.

淘宝网 - 淘！我喜欢

淘宝网(Taobao.com)作为专业的购物网站拥有全球时尚前沿的消费者购物集市,100%认证网上商城及超值二手商品区，同时购物安全，产品丰富，应有尽有,任你选购,让你尽享网上在线购物乐趣！

item.taobao.com

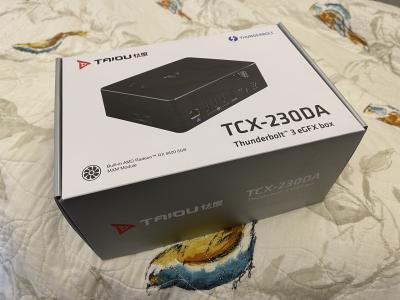

[Unboxing] TaiDu TCX-230DA RX 6600 Thunderbolt 3 eGFX Box (a...

Lucky or unlucky, because of the stuff going on around the world I'm stuck in my home country with my secondary setup (see my signature). I saw some g...

egpu.io

The user on egpu.io did not post any photos of the card itself. The price for the TaiDu is around $700 so it's not at all a practical option, but might just be the last MXM card.



[FireAlarm87]

Update:
Experimental AMD M5100 2GB support (AMD Radeon R9 M370X 2GB)

This card has been produced in many variants, currently I know of at least three different types and ident strings:

Type	ident	BIOS version	device-id	working
Green AMD PCB	109-C93157-00A_03	W5170M	6820	yes
Blue AMD PCB	109-C42271-01_02	W5170M	6820	most likely
Red DELL PCB	109-C42241-01_02	M5100-DELL	6821	yes

This GPU will be identified by the macOS as AMD FirePro M5100 and by MetalBench and GeekBench5 as AMD Radeon R9 M370X. The current vBIOS supports Elpida video memory.

Warning:
This card is easy to install but complex to manage during the initial software installation.
You need to install OpenCore in advance and add the changes posted before booting into macOS.

The card will not boot into macOS without the adjusted CAIL values in the config.plist.

Test:
iMac11,x, and iMac 12,2 sleep and wake fully functional with OCLP 0.3.2
iMac12,1, no tested, assume it will work with OCLP 0.3.2
iMac10,1: tested

Use the M5100-DELL vBIOS for the red Dell card, only!

After installing the card it will not simply boot directly into any macOS version (WindowServer crash) unless you install and use OpenCore and apply the settings described below (I will try to get the changes added to OCLP, later).

So you need to install OpenCore onto your boot disk before booting in your current installation in normal multi user mode.

Run OLCP to create an AMD (metal) config and add the lines starting with the <key>rebuild-device-tree</key> into the DeviceProperties section (this is an iMac12,2 example):

                        <key>PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)</key>
                        <dict>
                                <key>shikigva</key>
                                <integer>80</integer>
                                <key>unfairgva</key>
                                <integer>1</integer>
                                <key>rebuild-device-tree</key>
                                <integer>1</integer>
                                <key>agdpmod</key>
                                <string>pikera</string>
                                <key>CAIL,CAIL_DisableDrmdmaPowerGating</key>
                                <data>AQAAAA==</data>
                                <key>CAIL,CAIL_DisableGfxCGPowerGating</key>
                                <data>AQAAAA==</data>
                                <key>CAIL,CAIL_DisableUVDPowerGating</key>
                                <data>AQAAAA==</data>
                                <key>CAIL,CAIL_DisableVCEPowerGating</key>
                                <data>AQAAAA==</data>
                        </dict>

These settings are equivalent with adding radpg=15 -wegtree apdpmod=pikera shikigva=80 to the boot-args in the config.plist of OpenCore.

This GPU type has been used in 2015 15" MacBookPro models.

Tested systems:
- iMac12,2: no problems
- iMac12,1: not tested
- iMac11,1: no problems
- iMac11,2: green AMD card has SMBUS problem, some temp sensor readings are weird, card needs a mod, red Dell card works fine!
- iMac11,3: no problems

Memory support:
The vBIOS attached here supports Elpida memory.
There is another vBIOS with Hynix BFR memory support.
And there is a third vBIOS with Hynix AFR memory support.

Known issues:
- external display sync is difficult on all systems and needs the main LCD or the system to go to display sleep once after connecting the external display

Known features:
- Airplay is working until Catalina as with any other AMD metal card on iMac11,x and iMac12,2 (without using QuickSync)
- high metal scores
- boot screen with OpenCore
- brightness control working
- GPU power management working
- needs macOS 10.8.3 or better (HD7000 support)
- still full Monterey support (no root patching needed unlike Kepler)

Performance:
- GeekBench Metal and OpenCL: > 10.000
- Valley DELL: 23.46 FPS, 981 Score
- MetalBench: 31 MRays/s
- CoreClock: 300 MHz idle - 850 MHz max
- MemoryClock: 150 MHz idle - 1125 MHz max
- PowerDraw: 5W idle - 35W max

Warnings:
- do not use this vBIOS on the Red DELL card, it will cause a bad flash and will make the card unusable
- do not flash the vBIOS from the DELL card onto the other two cards, it will cause a bad flash and will make the card unusable
- a bad flash prevents the iMac from booting and running the Linux flash utility, again!
- bad flashes can only be cured by using a clip or some other nasty tricks

News:
- OCLP 0.3.2 and later support this card. So you can update OC using OCLP in future. Nevertheless the boot strap

The 1st post says that sleep is broken on the 2011, but this post says it works? Is the 1st post just not updated?



[m0bil]

I have the same problem with K4100M

Yes, this is well known problem with iMac UEFI/GOP patched Nvidia cards and UEFI Windows 10, you'll get a ~30 seconds black screen (brightness changes but display stays black) when Nvidia drivers are loaded.



[Schprecher]

Yes, this is well known problem with iMac UEFI/GOP patched Nvidia cards and UEFI Windows 10, you'll get a ~30 seconds black screen (brightness changes but display stays black) when Nvidia drivers are loaded.

i need previous version bios, please someone post here. K3100M old version bios.

or... i think test it with old version windows 10.



[Schprecher]

I have the same problem with K4100M

this problem start with new version Windows 10, and newer version modded version bios for all cards from 3100 to 5100. i`ll check few cards from 3100 to 5100 and they getting back same problem with stuck on login for 30sec. this time maybe from 30 to 60-70sec. its too sad and looking bad!



[Ausdauersportler]

The 1st post says that sleep is broken on the 2011, but this post says it works? Is the 1st post just not updated?

It is broken on some 2011, it is a hit and miss.



[FireAlarm87]

It is broken on some 2011, it is a hit and miss.

I have a 21.5”, so I am limited to MXM-A (The WX 4170 might work though because it has a low TDP), so I might just get a WX 4130 or WX 4150



[PsychoSync]

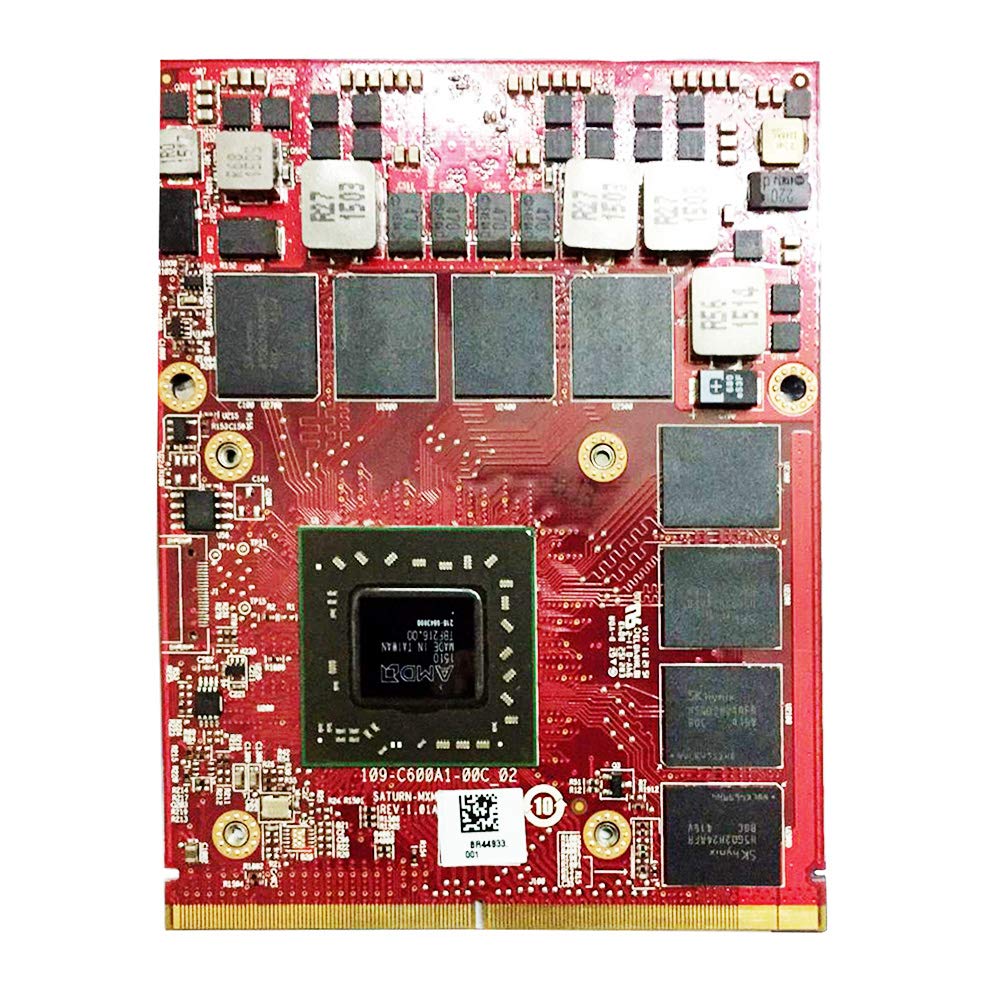

Something strange just happened to my 2009 iMac upgraded with an AMD M6100 gpu...

About 2 weeks ago i flashed the card with ROM2 and installed Monterey with OCLP and everything was running just fine. I had some graphical glitches once in window borders or on buttons but i just thought that i was a bug related to the fact that these cards are experimental upgrades like stated on the first page that by the way, i always read again before posting and asking questions.

But today while watching a video on Youtube the screen just went black. I could still hear the video playing but the screen just shut itself off for no reason. Restarted the computer, i could see OCLP's bootpicker, booted to the desktop, played around a little and the screen went black again for no reason.

I am not using this iMac much, maybe 1-2h every week, temps are always fine, fans are quiet, Mac Fan Control reports gpu temps at around 45 and heatsink at 40 at idle. When the screen was ok, i stress tested the gpu with Unigine Heaven and it was not overheating at all.

Now it's gotten worse and the screen won't turn on at all unless the iMac has been off for a long time but it shuts down in a matter of minutes. I can see the card when booting from the linux boot usb and even flashed it again successfully.

Maybe the card just died slowly? I did the usual: PRAM reset and SMC reset. That did not help. I reopened the iMac to look for a loose ribbon cable, everything looks good.

Any ideas?



[r2p]

Something strange just happened to my 2009 iMac upgraded with an AMD M6100 gpu...

About 2 weeks ago i flashed the card with ROM2 and installed Monterey with OCLP and everything was running just fine. I had some graphical glitches once in window borders or on buttons but i just thought that i was a bug related to the fact that these cards are experimental upgrades like stated on the first page that by the way, i always read again before posting and asking questions.

But today while watching a video on Youtube the screen just went black. I could still hear the video playing but the screen just shut itself off for no reason. Restarted the computer, i could see OCLP's bootpicker, booted to the desktop, played around a little and the screen went black again for no reason.

I am not using this iMac much, maybe 1-2h every week, temps are always fine, fans are quiet, Mac Fan Control reports gpu temps at around 45 and heatsink at 40 at idle. When the screen was ok, i stress tested the gpu with Unigine Heaven and it was not overheating at all.

Now it's gotten worse and the screen won't turn on at all unless the iMac has been off for a long time but it shuts down in a matter of minutes. I can see the card when booting from the linux boot usb and even flashed it again successfully.

Maybe the card just died slowly? I did the usual: PRAM reset and SMC reset. That did not help. I reopened the iMac to look for a loose ribbon cable, everything looks good.

Any ideas?

Unfortunately, the m6100 didn't work with my imac, but i'm still trying to find the error

First try to boot from another (USB) drive, it's best to disconnect your hard drive first, maybe your boot data is faulty, but I don't think so. Alternatively connect an external monitor and try to boot into safe mode while holding down the shift key at the start.

From your description, it sounds like the GPU has said goodbye. I had this problem several times with the Terascale 2 cards. Everything was going great until the screen with graphic errors disappeared and then only black screen came up.

Unplug the iMac for a while and if nothing helps, you can try baking the graphics card for 10 minutes or using a heat gun to heat the processor.

Good luck!



[WingedFrost]

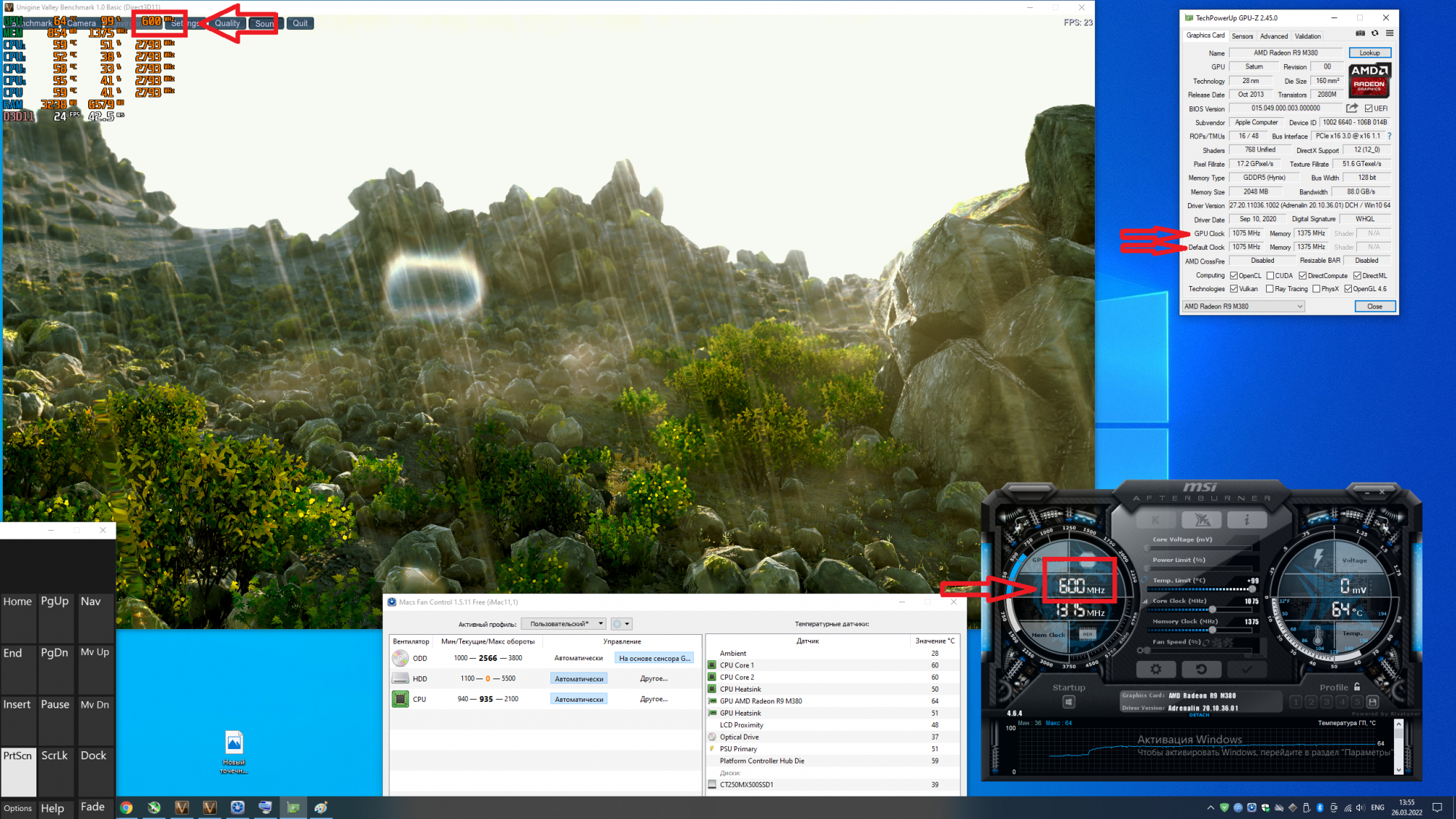

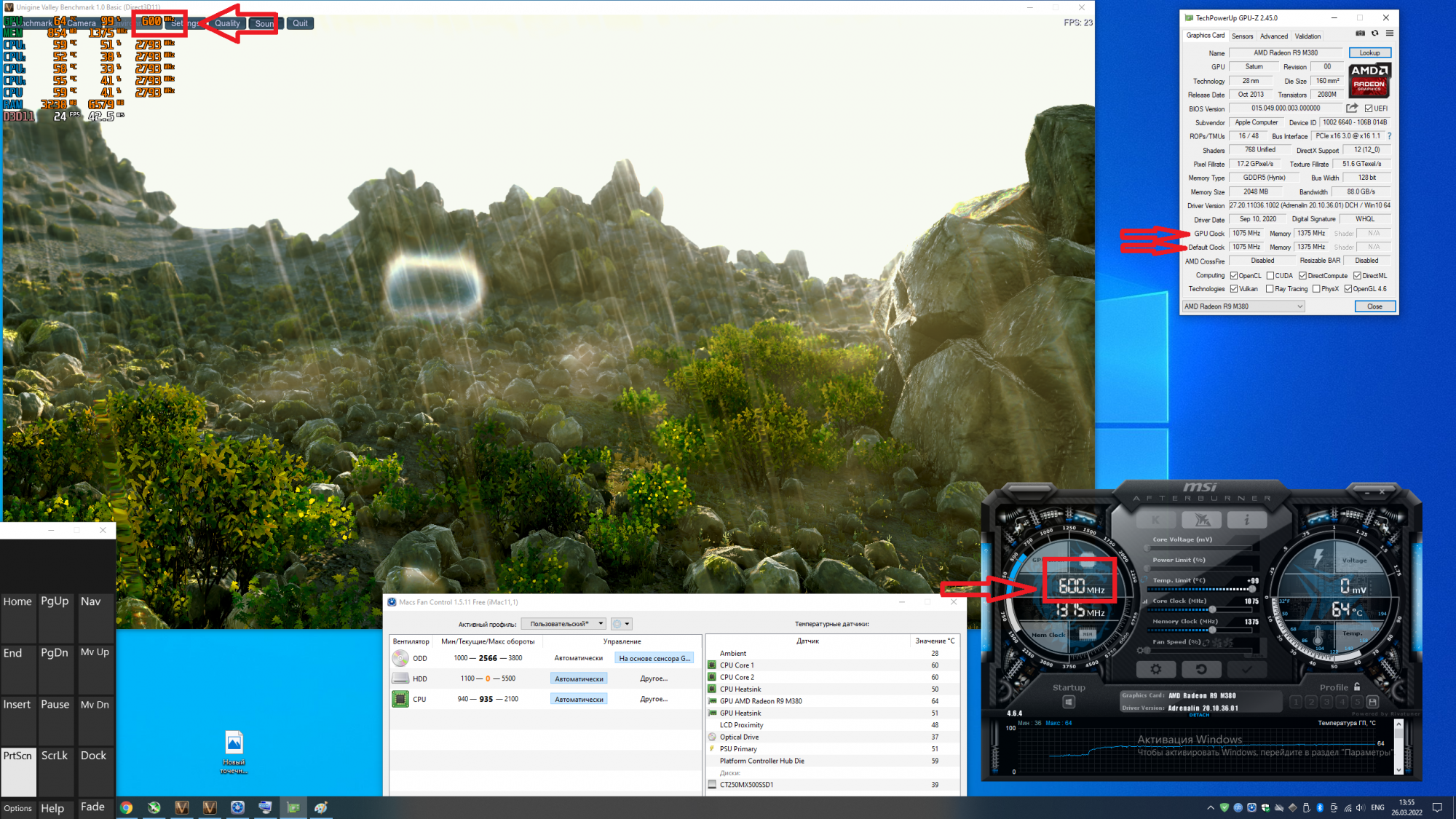

Tell me why the AMD FirePro M6100 GPU runs at 600 MHz? Can this be fixed somehow? Bios installed from the first page of ROM1. Drivers for Windows 10 installed from R9 M380. Perhaps you need to edit the BIOS?



[xbox3605]

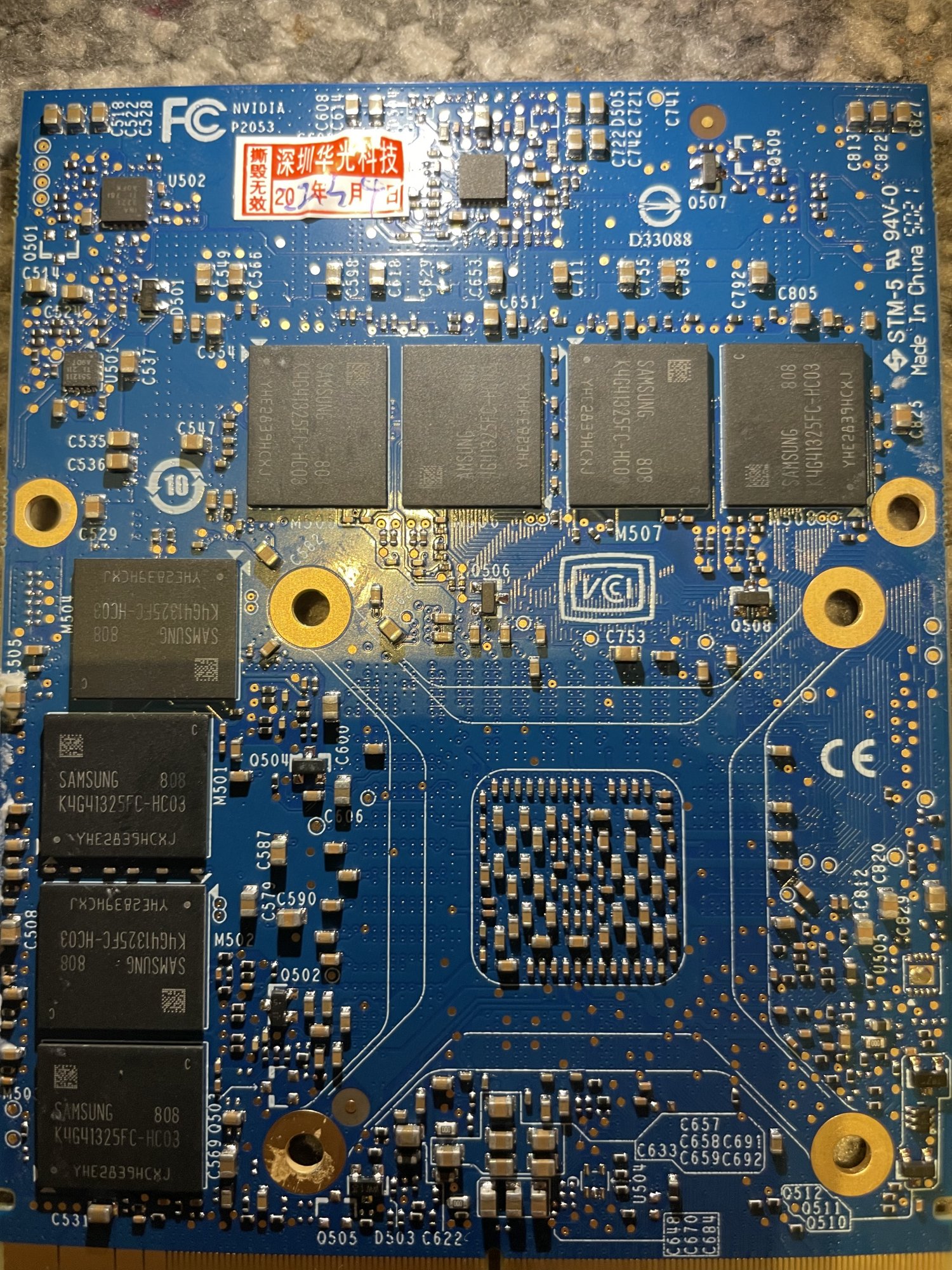

Post pictures of your card and the original vBIOS you saved before flashing it with a new version from this thread.
Otherwise help is nearly impossible…

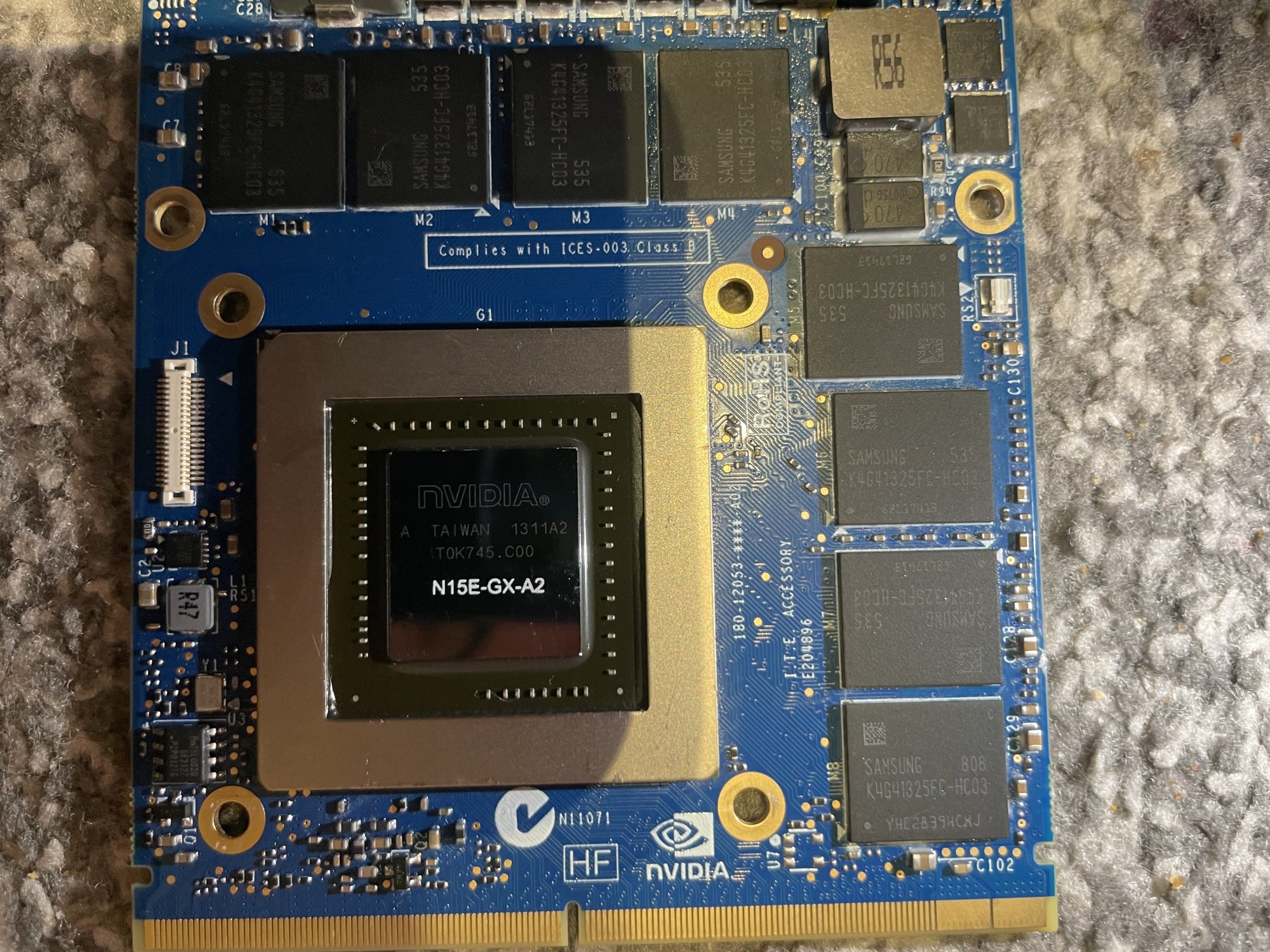

hi, unfortunately the video card had no rom since i have it the only rom is from here any back up made it before was empty, i have this video card for free.... it will be possible to fix it if i will send it to you? if you want let me the address and price in pm



[Ausdauersportler]

hi, unfortunately the video card had no rom since i have it the only rom is from here any back up made it before was empty, i have this video card for free.... it will be possible to fix it if i will send it to you? if you want let me the address and price in pm

I cannot fix it but on a picture one would see which memory has been used and which card it is. Need to have a clean view in GPU and at least on memory chip.



[r2p]

I cannot fix it but on a picture one would see which memory has been used and which card it is. Need to have a clean view in GPU and at least on memory chip.

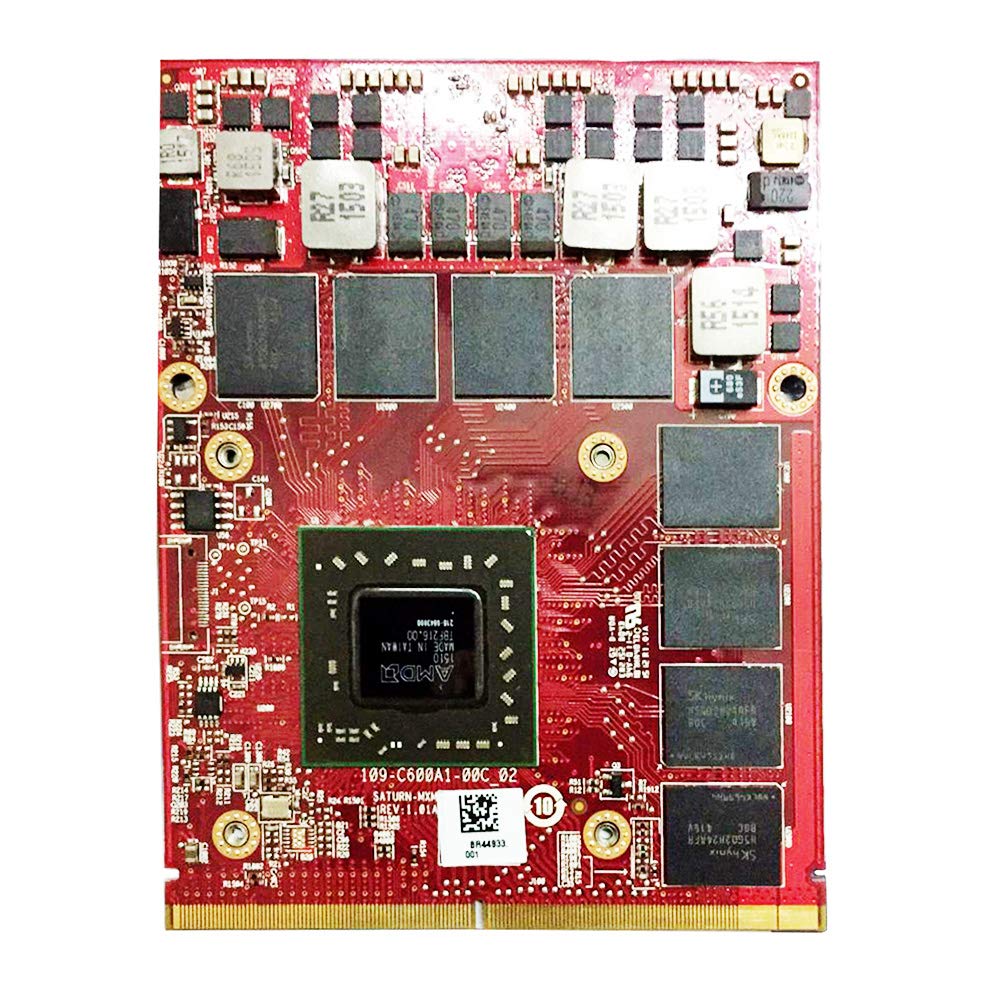

My M6100 have the memory with the extension AFR, which is compatible with most vbios versions, this also works with the dispenser dell laptop. I have tested the card on a 2010 imac and on a 2011 imac with 27" and the screen is black, i think the card is incompatible in some way. My Card have the same Partnumber with the Card in attachement.



[Schprecher]

can someone post here old rom for k4100m from 2020 year, please.
rom in download table deadly bad for Windows. just black screen after drivers install, auto or manual no matter
just black screen and all.



[hashbot]

Is your memory chips AFR? or BFR? I just got a k4100m with AFR and the windows drivers will not load. artifacts and tearing with the @nikey22 BIOS from the table. If you have BFR chips, the rom on the post #1 table should work. It could be failing AFR card or the rom is not correct.

Does anyone know how to add AFR memory compatibility to the rom from post#1 ?



[bahersaleh]

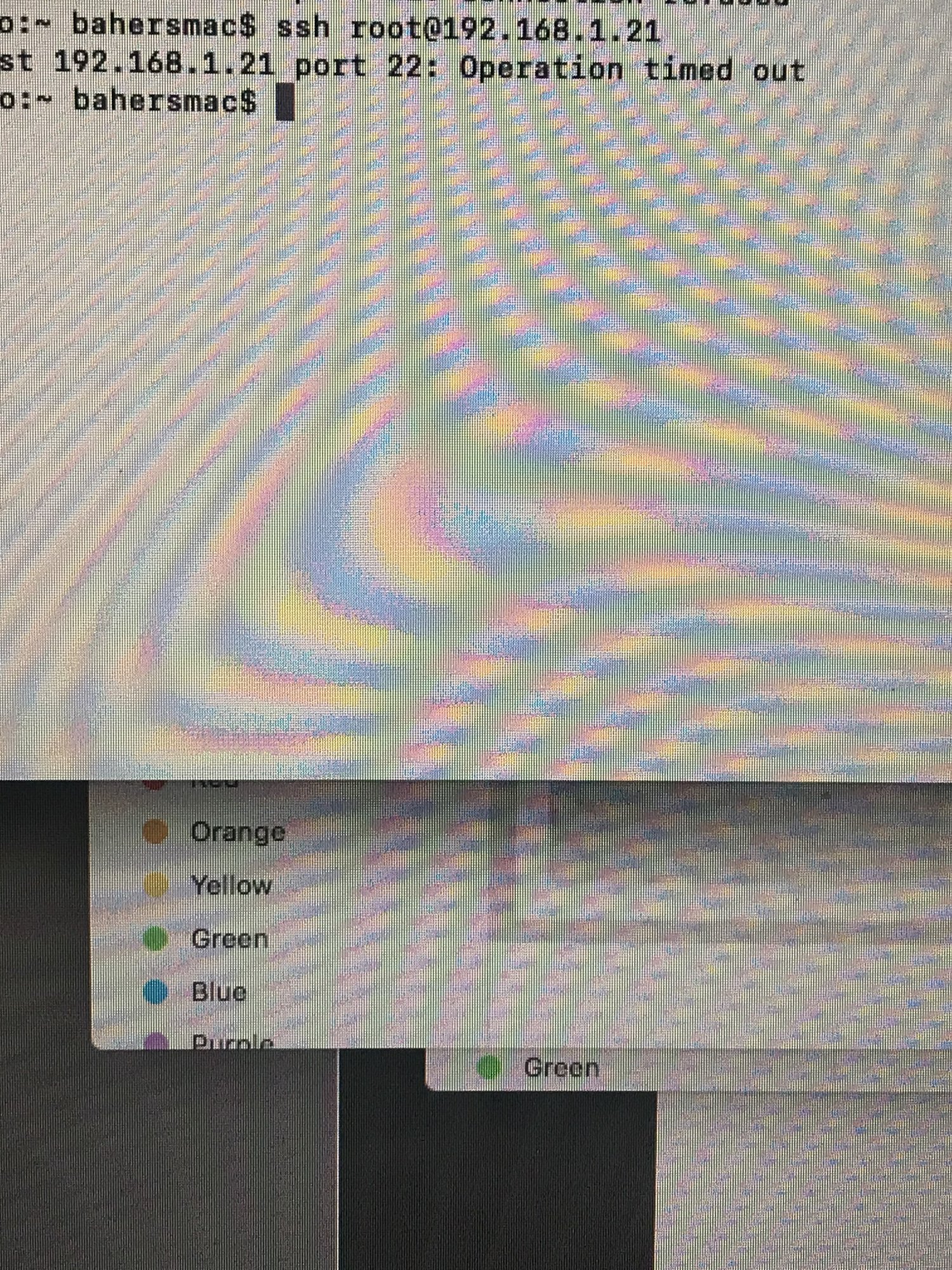

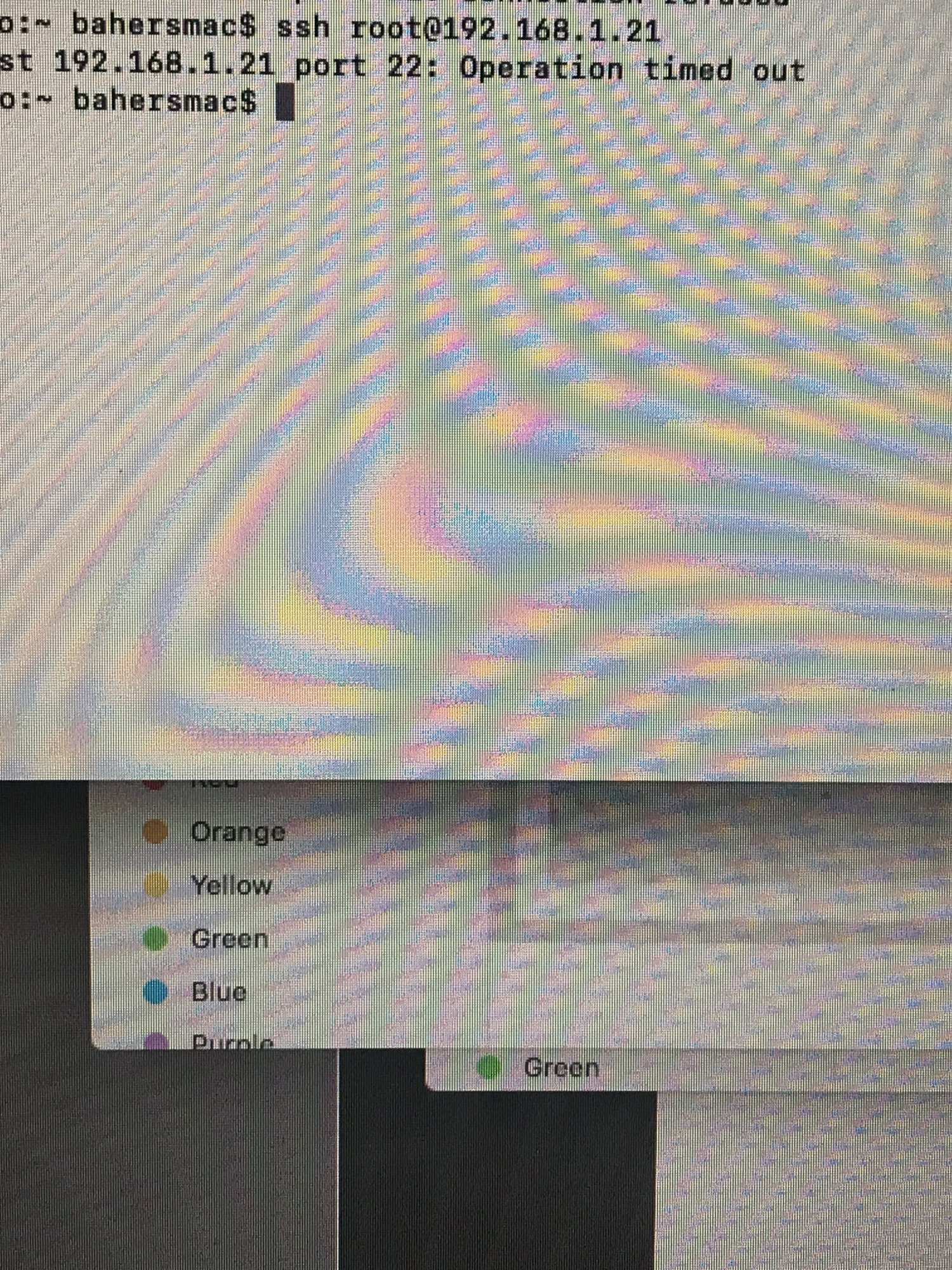

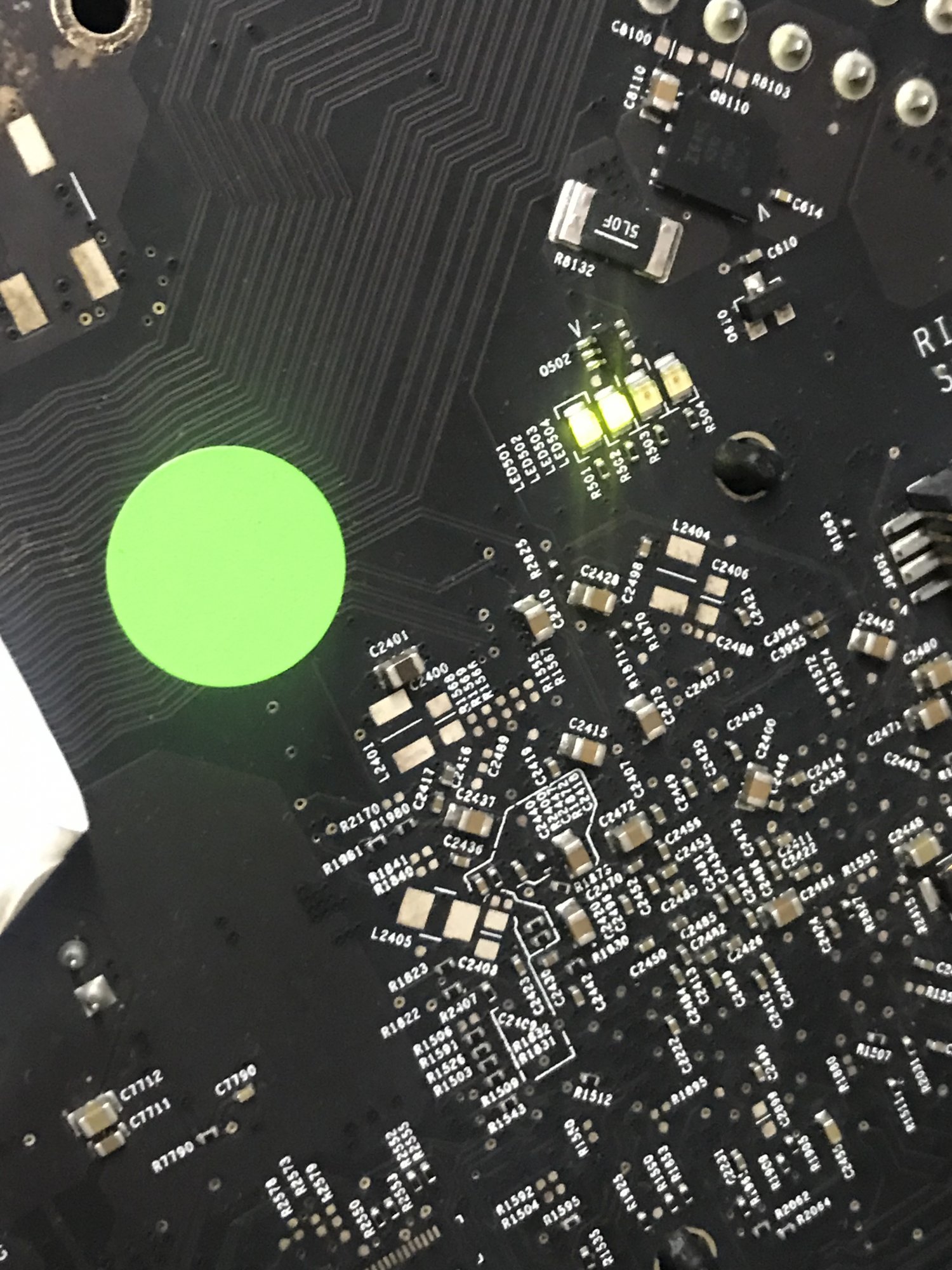

My 2011 27” imac with k3100m has no display and only 2 leds indicator on , I tried to use usb pen method to flash , but when i try to ssh my imac it gives me port 22 : operation timed out like shown in pics . My imac online and have an ip adress on router page , any help pls



[xbox3605]

I cannot fix it but on a picture one would see which memory has been used and which card it is. Need to have a clean view in GPU and at least on memory chip.



[Fauxly]

Hi all. what can i replace the IS25LQ040 bios chip with??? was installed on WX4150 HP. Need help



[dfranetic]

Hi all. what can i replace the IS25LQ040 bios chip with??? was installed on WX4150 HP. Need help

With the same IC? Those types are easily available… (My question would be: Why would you need to replace it?)



[zoran]

If one makes the OCLP update and then changes his mind, can he go back to using the Ati original cards he used in the first place?



[PrazJunkie]

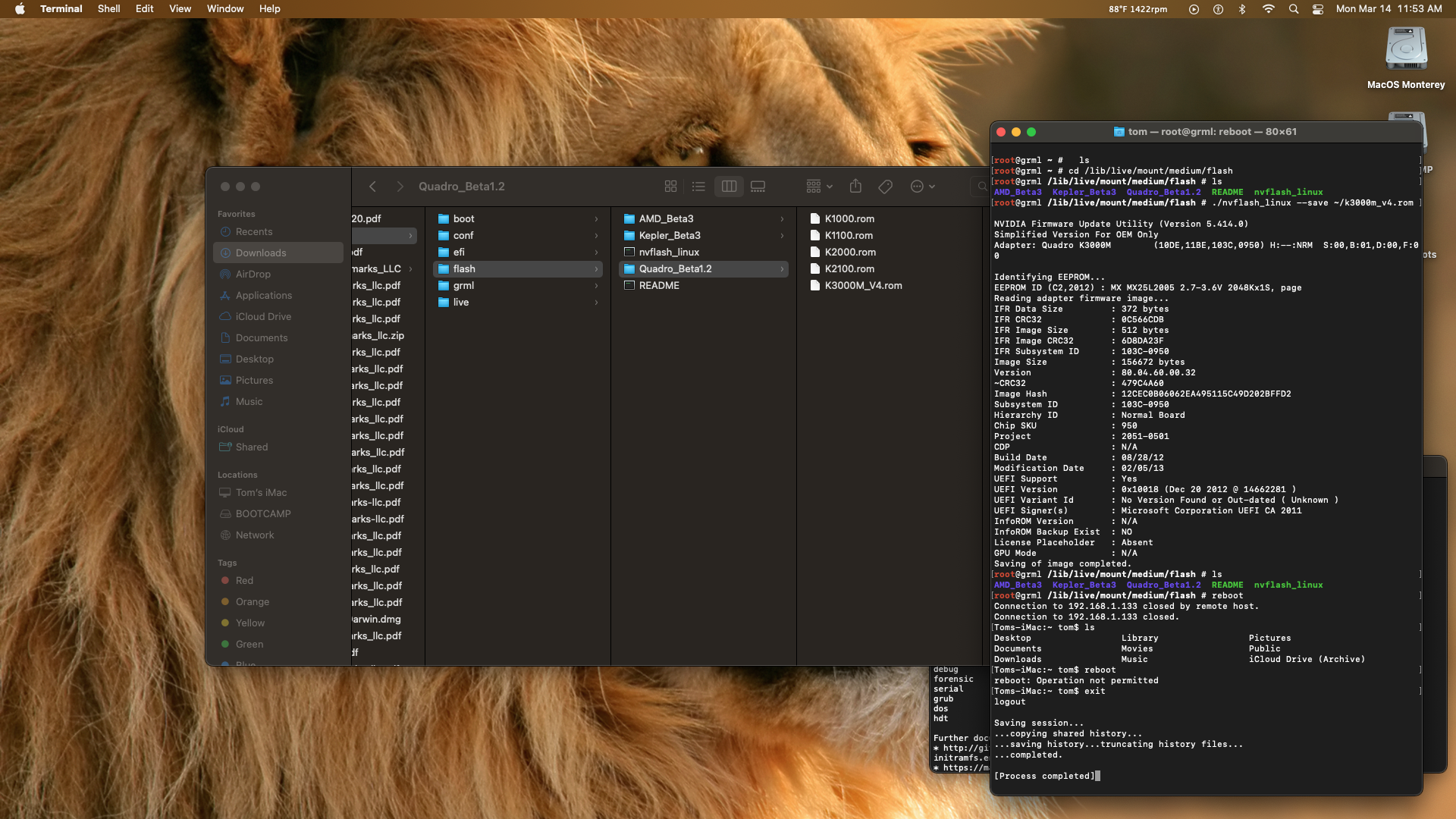

Hi, everyone! New to the forum. Trying to flash an NVIDIA Quadro K3000M N14E-Q1-A2, using Nikkey22's ROM. Have tried multiple times to flash - no success (attaching screen shot of results). I copied Nikkey22's ROM into folder "Quadro_Beta1.2" on thumb drive, then followed Curtis Gross's instructions (continued below YouTube link)

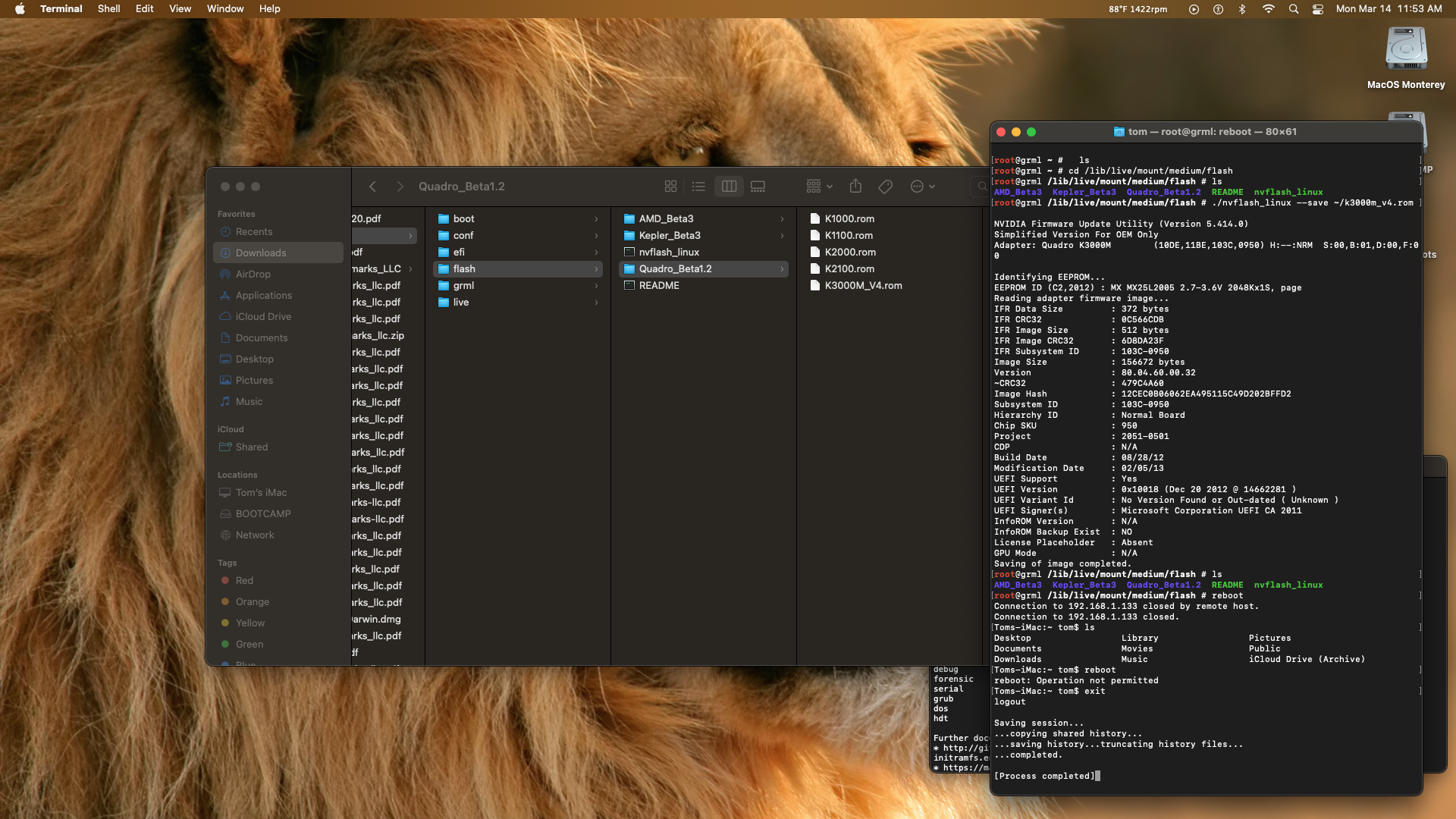

..., by SSH'ing into my 2011 imac 27" (running latest High Sierra) from my 2015 imac (running Monterey), but it didn't work. Am I doing something wrong?
MUCH THANKS!!
T.M.

Do these results look correct? Am I missing a step???



[madvinegar]

Hi, everyone! New to the forum. Trying to flash an NVIDIA Quadro K3000M N14E-Q1-A2, using Nikkey22's ROM. Have tried multiple times to flash - no success (attaching screen shot of results). I copied Nikkey22's ROM into folder "Quadro_Beta1.2" on thumb drive, then followed Curtis Gross's instructions (continued below YouTube link)

..., by SSH'ing into my 2011 imac 27" (running latest High Sierra) from my 2015 imac (running Monterey), but it didn't work. Am I doing something wrong?
MUCH THANKS!!
T.M.
View attachment 1981662
Do these results look correct? Am I missing a step???

You just saved the GPU's original bios. You did not flash the new one.
