iM 4,1-14,4 2011 iMac Graphics Card Upgrade

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
madvinegar said:
Mine is the MXIC MX 25L6406E M2I-12GF. I made a mistake when dumping my bootrom. The chip had some glue on it from the audio cable (also it is a very small chip and I could hardly see the letters on it) and I thought it said 25L6408E. (i.e. I thought the six was an 8). So when AsProgrammer showed the list of possible chips and I had to select one, I chose the 25L6408E. And this is the bootrom I have. Is that problem?
Click to expand...
I don’t know. If you don’t mind (see below why), you can send me the dumped bootrom via direct message.
madvinegar said:
In any case if someone has the same chip as mine on a 12.1 imac I would appreciate to send me copy of his bootrom. It wouldn't hurt trying flashing it and see if it revives my iMac.
Click to expand...
Most of us would be reluctant to send you a copy of iMac bootrom. It contains the iMac serial number, and Apple/iCloud services depend on it. (Otherwise we could just create modded bootroms for the 5 iMac models this thread is about and facilitate the whole process…)

  • Like
Reactions: Ausdauersportler
Nubedj said:
I'm sorry, I've looked at the messages on page 1 and I can't find the solution....

With the screen off, the Imac stays in a loop with the sound on and no key combination works.
I can't install patches or anything because the screen is off and I can't connect an external monitor either....

I'm a little desperate and I don't know what to do... I would appreciate any advice ¡

By the way, I'll leave the stl files here so I don't have to cut or modify the x-bracket.

Thanks!
Click to expand...
Post 1 and some linked posts are full of such advices! And yes, it is long and it takes time to read and study.
In all likelihood you won’t have display output until you flash a proper VBIOS (that’s in post 1). If you have consecutive cut-off chimes, there is likely a hardware problem.
Again, read post 1 on how to flash the VBIOS via remote access. (It is very likely that you’ll have to disconnect all internal drives. If those consecutive chimes persist after that, you have a hardware problem.)

dfranetic said:
I don’t know. If you don’t mind (see below why), you can send me the dumped bootrom via direct message.

Most of us would be reluctant to send you a copy of iMac bootrom. It contains the iMac serial number, and Apple/iCloud services depend on it. (Otherwise we could just create modded bootroms for the 5 iMac models this thread is about and facilitate the whole process…)
Click to expand...
I have just send you a pm with my oem bootrom and the modded bootrom.

dfranetic said:
Post 1 and some linked posts are full of such advices! And yes, it is long and it takes time to read and study.
In all likelihood you won’t have display output until you flash a proper VBIOS (that’s in post 1). If you have consecutive cut-off chimes, there is likely a hardware problem.
Again, read post 1 on how to flash the VBIOS via remote access. (It is very likely that you’ll have to disconnect all internal drives. If those consecutive chimes persist after that, you have a hardware problem.)
Click to expand...
I'm still trying...

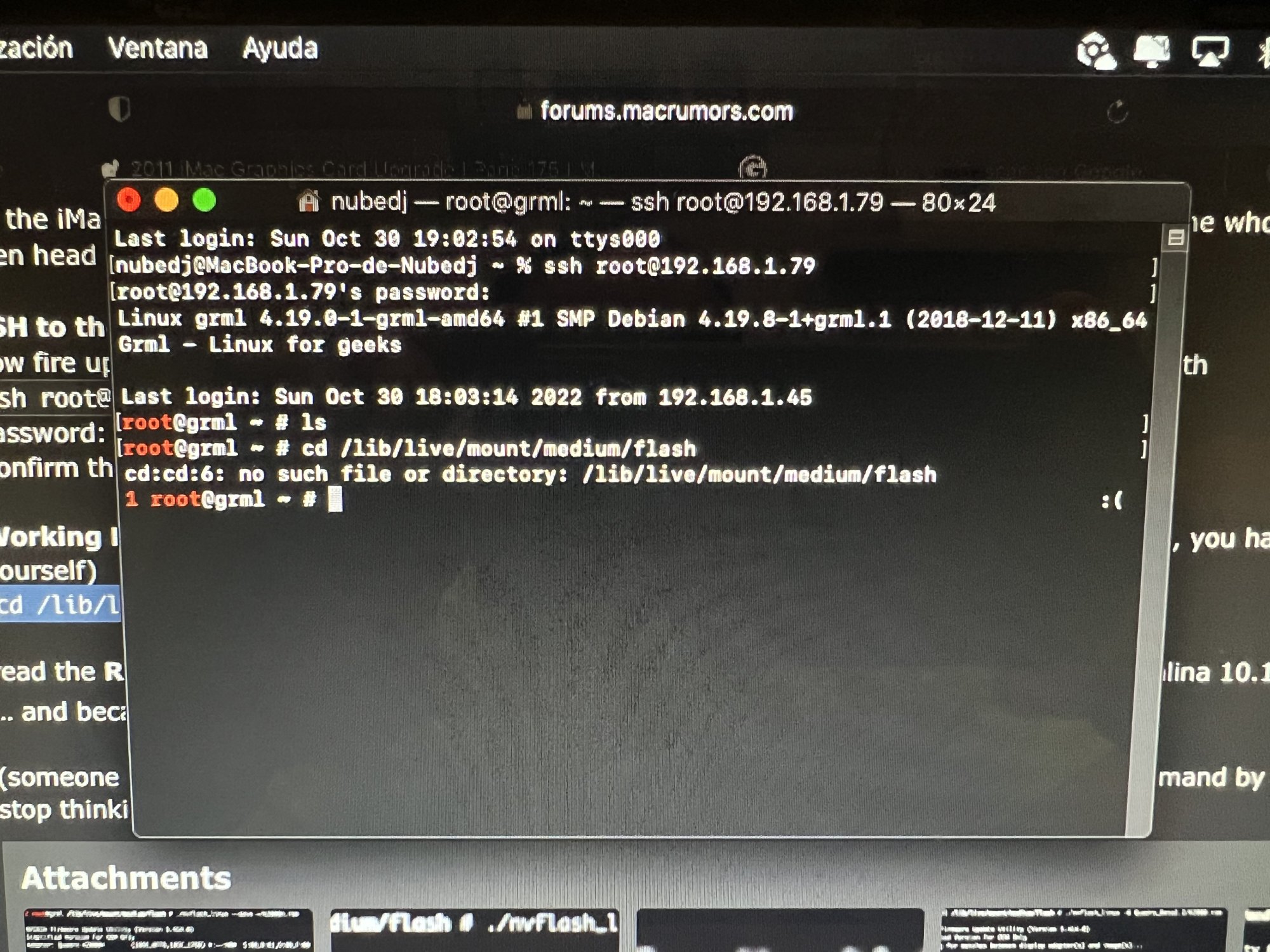

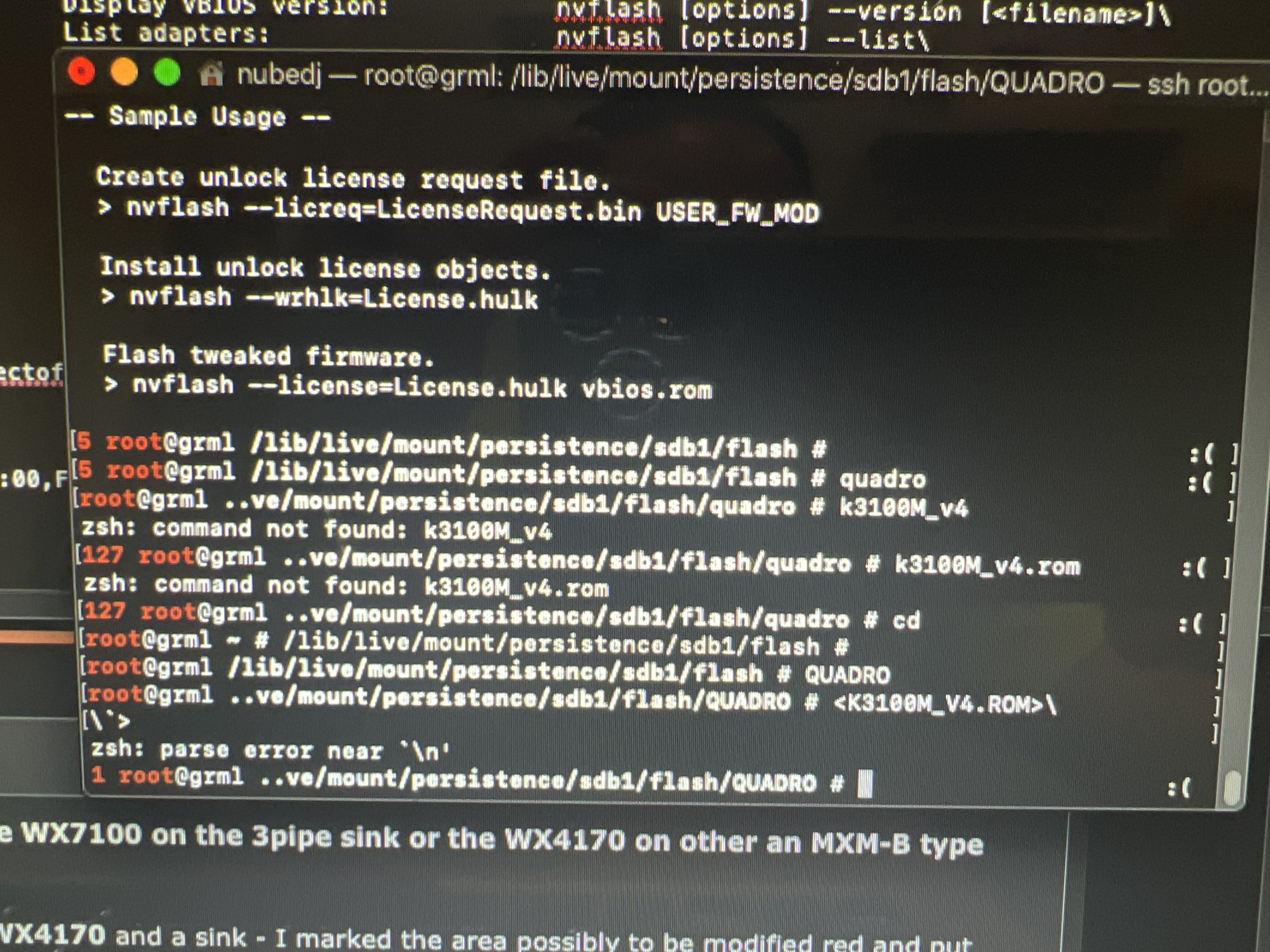

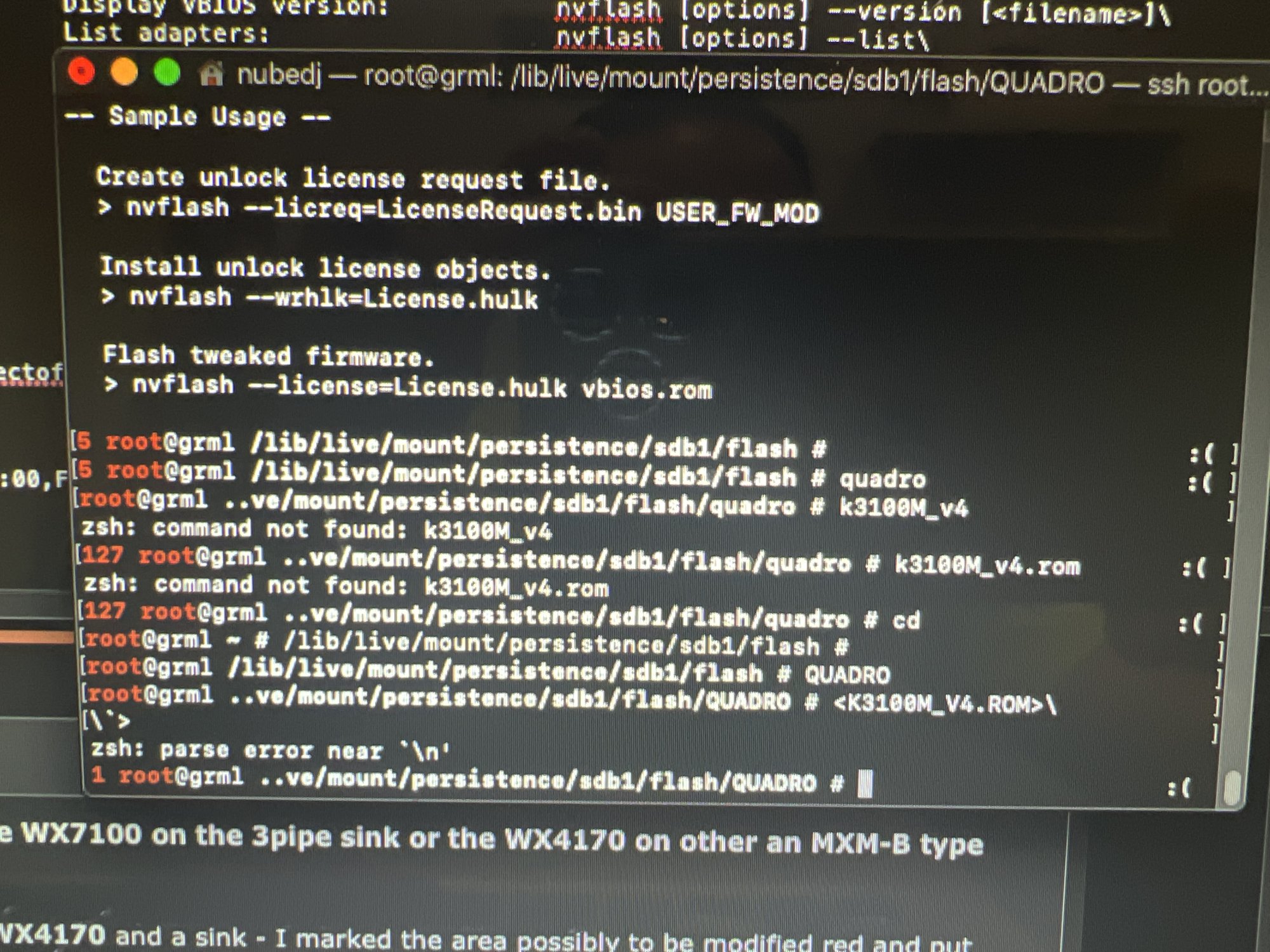

I can't get into the route, am I typing something wrong?

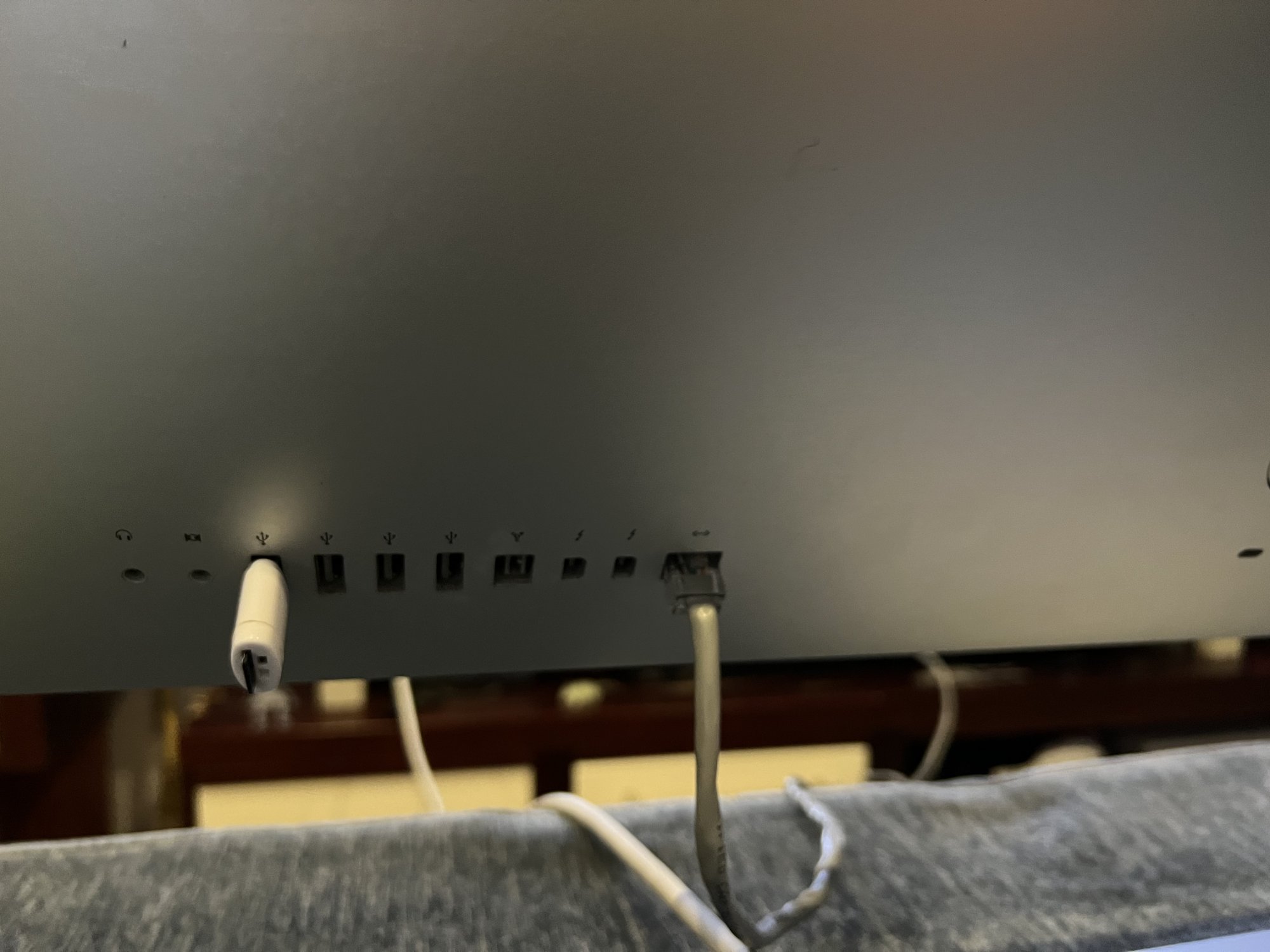

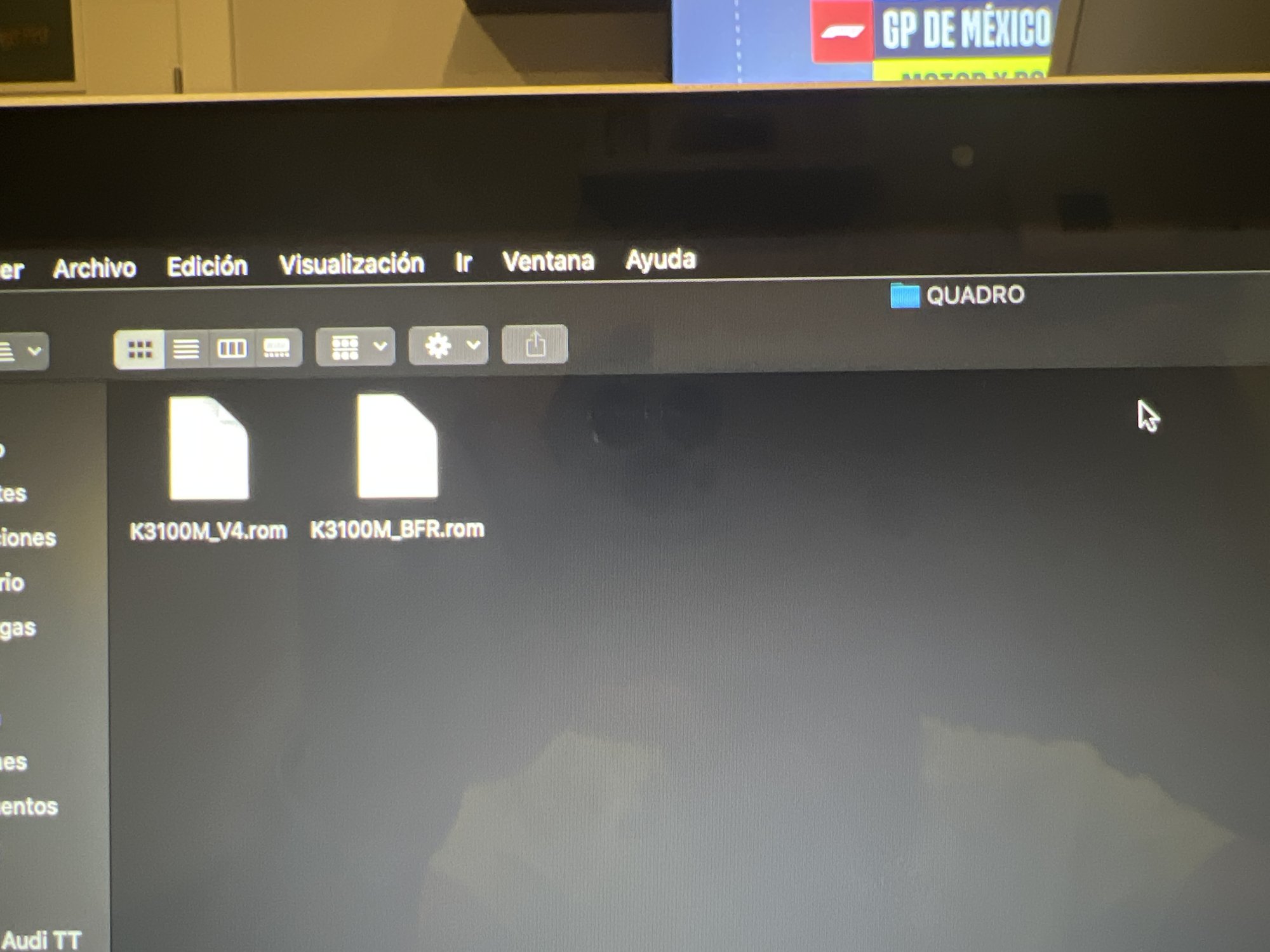

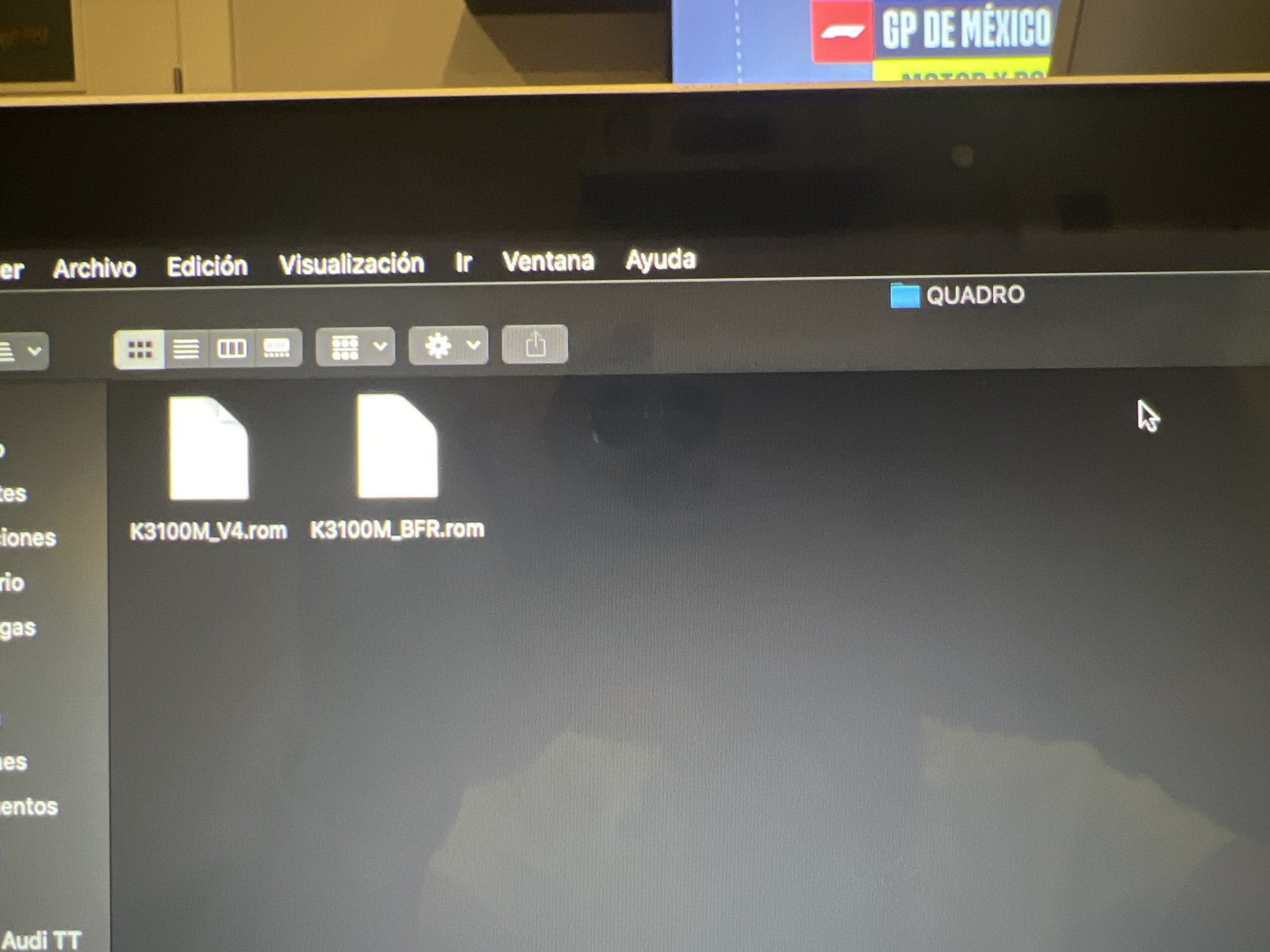

I have copied the 6 folders directly to the root of the usb but I don't know what is the problem…
Please, help me…


Attachments

  • 9553A4BD-45AD-48F5-9258-03A1D99257E4.jpeg
    528.4 KB · Views: 120
  • 18C25178-6D72-444D-A79C-986C026A8C92.jpeg
    263.5 KB · Views: 116
dfranetic said:
You really just need to follow instructions and write Unix-like terminal commands properly. Or get some local help...
Click to expand...

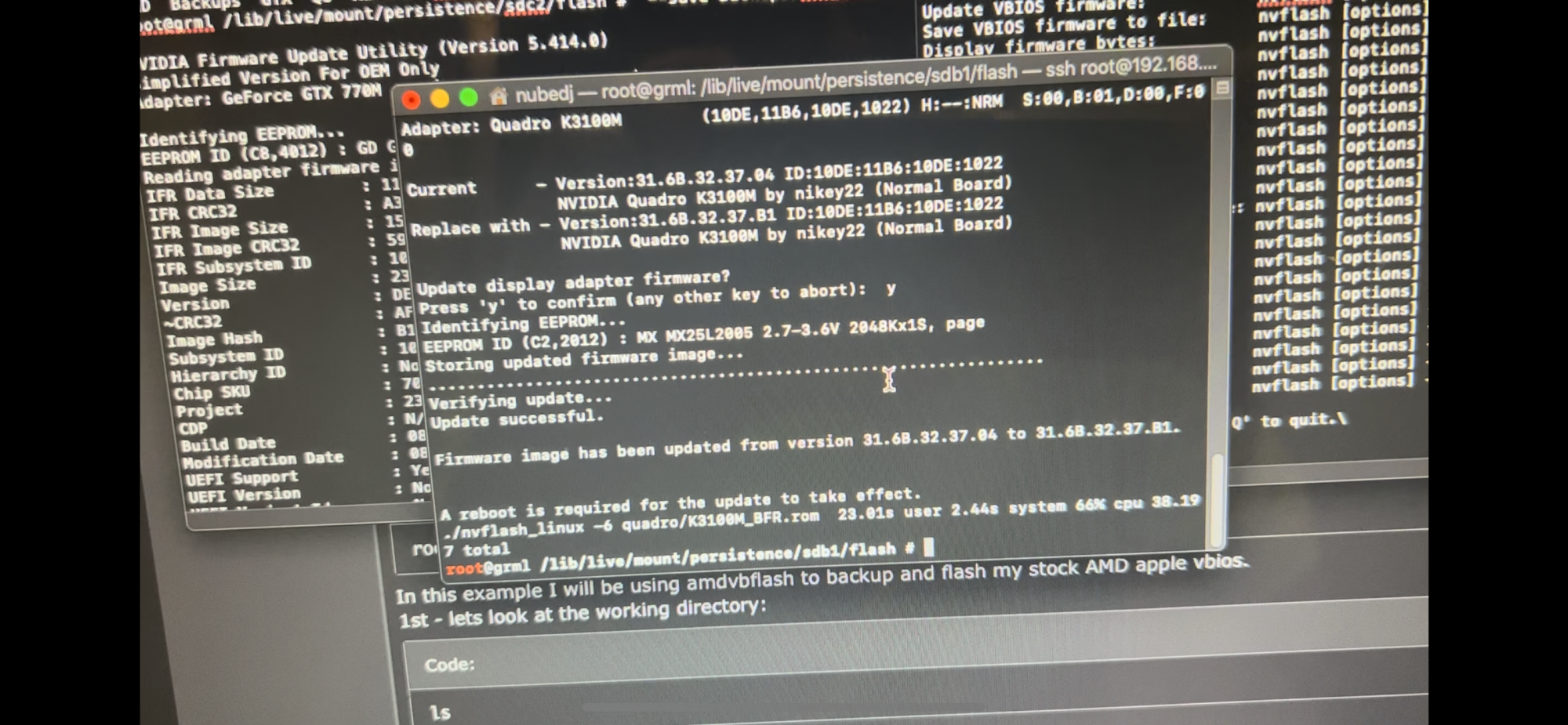

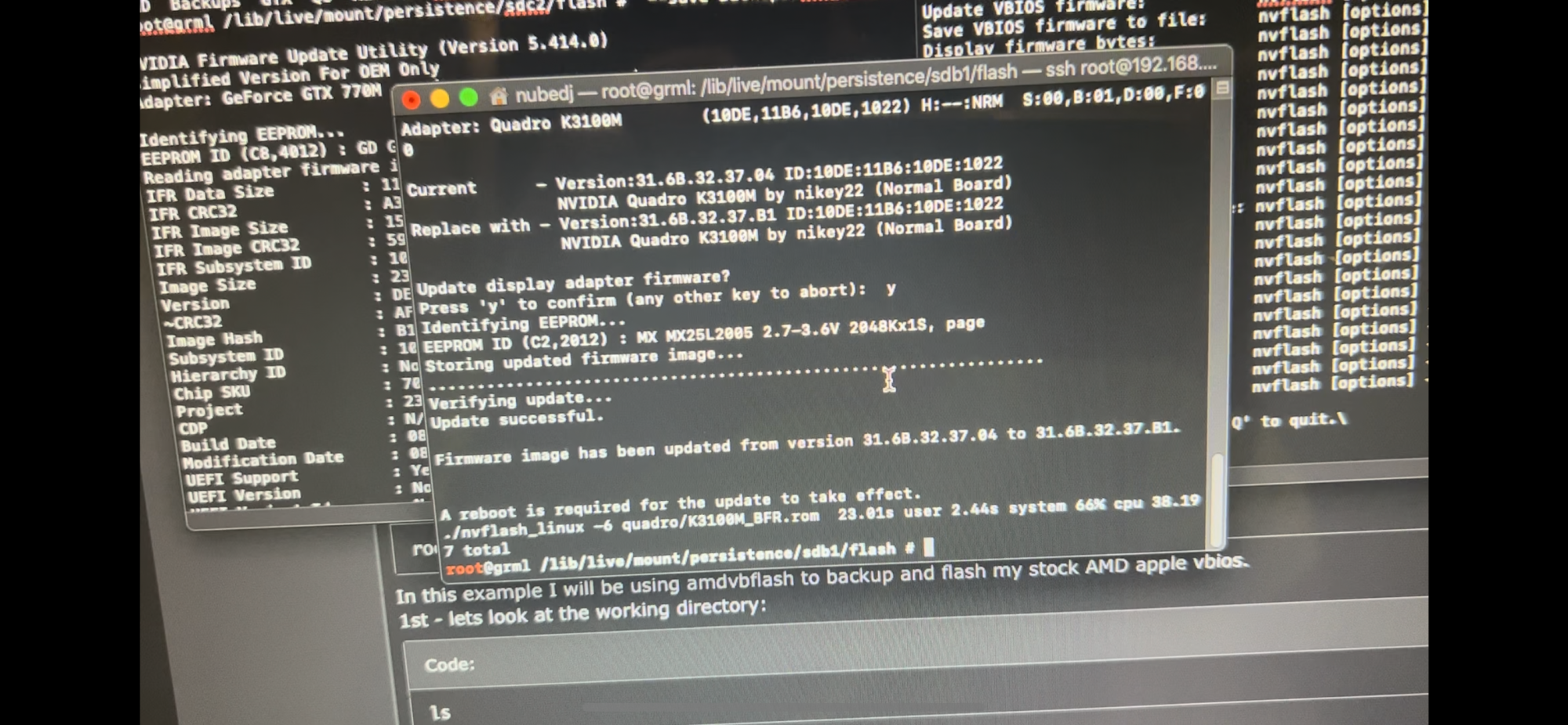

I have finally managed to install the vbios¡¡¡

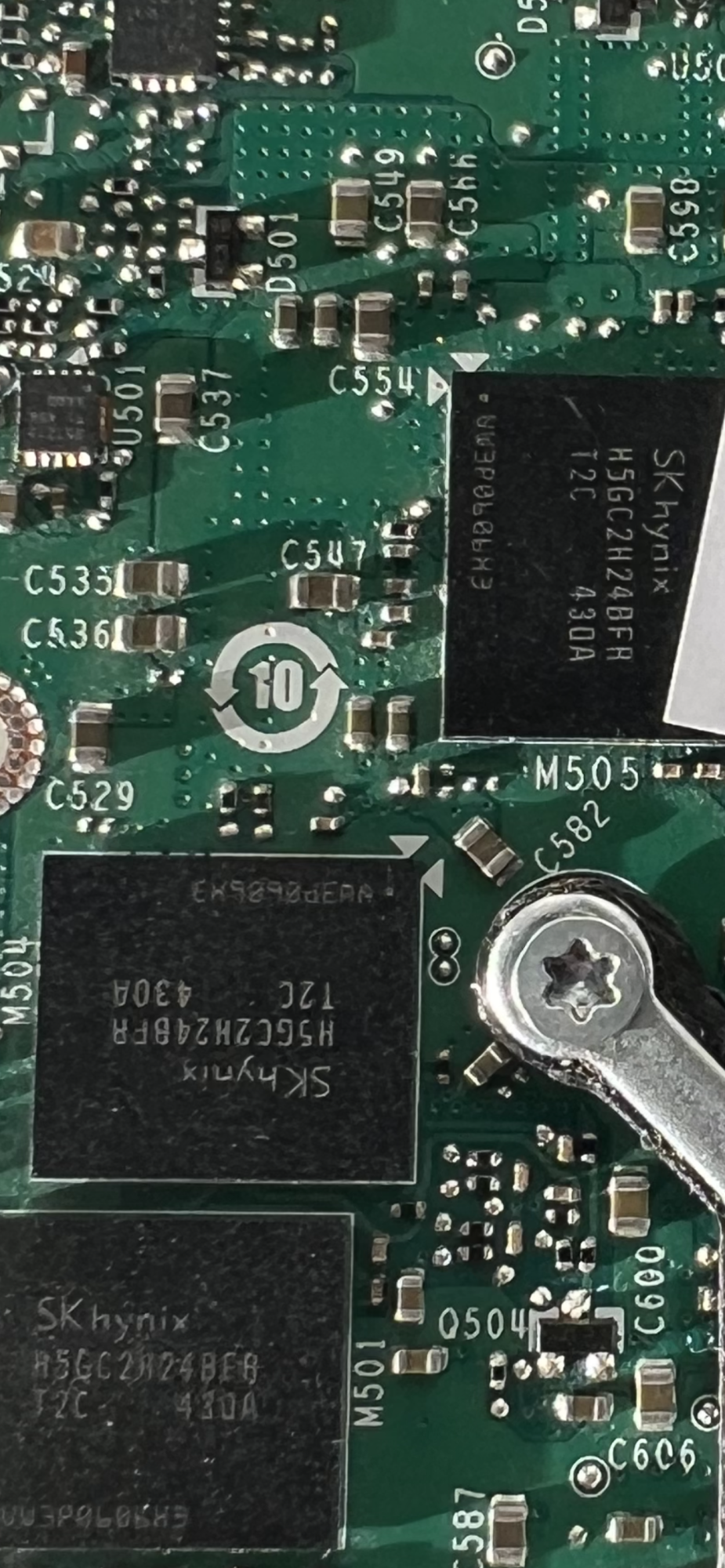

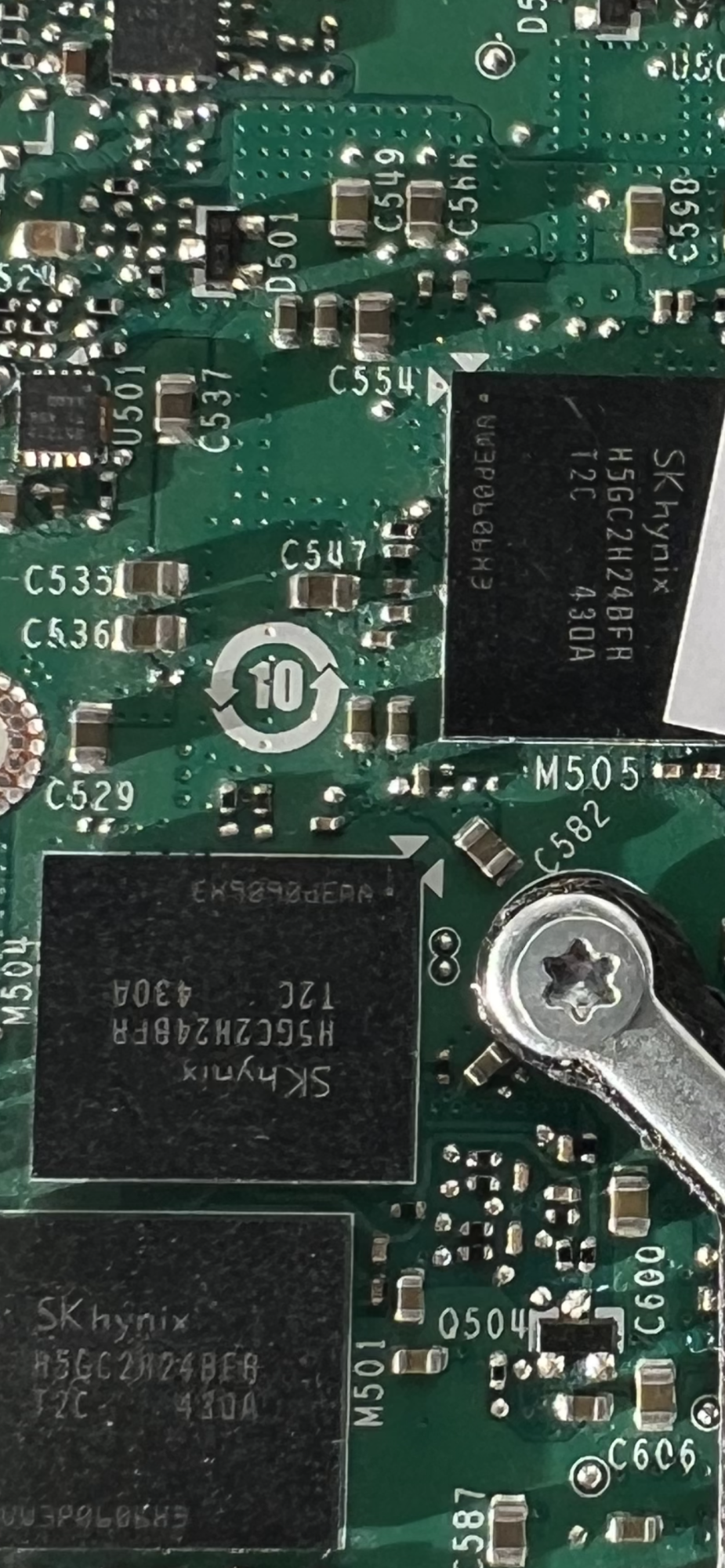

I have used the K3100M BFR rom (my chip are Hynix BFR), then I have reset pram but the screen is still black and any connected monitor does not work.
How do I install the patch if it doesn't turn on the screen by holding down the alt key?

thanks¡


Attachments

  • IMG_3369.png
    2.3 MB · Views: 102
  • IMG_3370.png
    2.2 MB · Views: 97
Nubedj said:
I have finally managed to install the vbios¡¡¡

I have used the K3100M BFR rom (my chip are Hynix BFR), then I have reset pram but the screen is still black and any connected monitor does not work.
How do I install the patch if it doesn't turn on the screen by holding down the alt key?

thanks¡
Click to expand...

The patch can be run on another working machine, including the one you are trying to upgrade with its stock GPU.
The above statement is to encourage you read the document about OCLP and post 1, not to encourage you raise another question.

Personally, I think the symptom you are facing indicate a hardware issue. A properly flashed K3100m is assumed to function natively in High Sierra, both boot screen and brightness control should work without any patches.


Last edited:
  • Like
Reactions: dfranetic
Hi! need some help here please, got my imac 27" 2009 upgraded with Quadro K610M (patched) and after building and booting Big Sur installer with Opencore Legacy getting black screen before installer menu, how can i fix it??

Hello! this is my first post. I did read a lot of the thread and did a search but can't find a similar problem, maybe some of you can help. I installed a Geforce GTX 675MX 4GB on My Imac mis 2011 27". I works perfect, with boot screen,and everything (has Mac Bios), but I can´t get a second monitor working. I have an Elgato dock which has VGA output wich works in my MBP, but doesn´t work on the Imac (Dock´s USB ports does), neither an Thunderbolt to VGA adapter (also works on MBP). Any idea?

Last edited:
gpiccolini said:
Hello! this is my first post. I did read a lot of the thread and did a search but can't find a similar problem, maybe some of you can help. I installed a Geforce GTX 675MX 4GB on My Imac mis 2011 27". I works perfect, with boot screen,and everything (has Mac Bios), but I can´t get a second monitor working. I have an Elgato dock which has VGA output wich works in my MBP, but doesn´t work on the Imac (Dock´s USB ports does), neither an Thunderbolt to VGA adapter (also works on MBP). Any idea?
Click to expand...
No VGA support! You need a display with HDMI or miniDP or DP and an active connector. The port closer to USB will work, the other one can be used for TB, only.

  • Like
Reactions: highvoltage12v and gpiccolini
neosho said:
Hi! need some help here please, got my imac 27" 2009 upgraded with Quadro K610M (patched) and after building and booting Big Sur installer with Opencore Legacy getting black screen before installer menu, how can i fix it??
Click to expand...

As usual, first post -> supported cards -> NVIDIA -> known issuse -> black screen.

If you guys read more before modding it could be much more easy.

Last edited:
Ausdauersportler said:
As usual, first post -> supported cards -> NVIDIA -> known issuse -> black screen.

If you guys read more before modding it could be much more easy.
Click to expand...
sorry if it's a language problem, but I stated everything is ok minus second monitor... I'm aware of the old black screen problem, but this is different IMO

Ausdauersportler said:
No VGA support! You need a display with HDMI or miniDP or DP and an active connector. The port closer to USB will work, the other one can be used for TB, only.
Click to expand...
One more question: Elgato Dock 2 has HDMI output, but no signal is present in the monitor I have (previously I was using a HDMI to VGA adapter with a different monitor). I ordered a MiniDv to HDMI adapter to check if it works... fingers crossed...

gpiccolini said:
One more question: Elgato Dock 2 has HDMI output, but no signal is present in the monitor I have (previously I was using a HDMI to VGA adapter with a different monitor). I ordered a MiniDv to HDMI adapter to check if it works... fingers crossed...
Click to expand...
Yes, finger crossed!
Not all cards support a 2nd display using the Legato TB2 dock. But at least one external displays works in all cases.

  • Like
Reactions: gpiccolini
Hi, I have an iMac (27 inch, Mid 2010) iMac11,3, I'm using High Sierra and I want to upgrade the software, the current video card is HD 5750 1GB, I want to replace my video card with w6170m, would it be the right choice? Or what would your suggestion be? Thank you for your answer.

Ausdauersportler said:
As usual, first post -> supported cards -> NVIDIA -> known issuse -> black screen.

If you guys read more before modding it could be much more easy.
Click to expand...
Btw noticed thats not my problem, got image on alt / boot menu, did try edit on config.plist with agdpmod=vit9696 and still no image, on boot menu after going on big sur install installation bar loads, mouse cursor blinks and then image gone forever

neosho said:
Thanks! having hard time in how to edit config.plist to edit that parameter, any app to easy this task?
Click to expand...
How about just downloading OCLP and just installing OpenCore automatically? You have literally missed everything while reading the documentation?

sunrisedx said:
Hi, I have an iMac (27 inch, Mid 2010) iMac11,3, I'm using High Sierra and I want to upgrade the software, the current video card is HD 5750 1GB, I want to replace my video card with w6170m, would it be the right choice? Or what would your suggestion be? Thank you for your answer.
Click to expand...
You need a bigger (2011) heat sink as noted on the first post within the tables of supported cards. It is a fast card, power hungry. Literally all cards listed will run on your iMac - it is your choice.
