MP All Models AMD Polaris, Vega, & Navi GPU macOS Support
- Thread starter MisterAndrew
- Start date
- Sort by reaction score
Glad to help.
Peeking into the System folder I did see a ton of .kexts for various AMD GPU classes as noted in the first post. Officially the WX7100 and 9100 are supported alongside various RX / Vega cards but I suppose it can’t hurt to try if someone’s got a card that’s close?
I had tried the WX3100 (also Polaris) but it wasn’t recognized under Sierra. I sold it, but now I wonder if it would work under High Sierra 10.13.4.
Thanking the various guys for the tests done:
How about making a summary of the various AMD Radeon GPUs that currently work permanently in the mac pro 4.1 5.1?
In terms of performance, how can they be classified?
I am referring to the RX580 - VEGA 56 or 64 - WX 4100 - WX 5100 - WX 7100 - WX 9100
What do you think?
How about making a summary of the various AMD Radeon GPUs that currently work permanently in the mac pro 4.1 5.1?
In terms of performance, how can they be classified?
I am referring to the RX580 - VEGA 56 or 64 - WX 4100 - WX 5100 - WX 7100 - WX 9100
What do you think?
hi everybody,
today I found out that my Vega 64 (Fan Version) on latest Beta 10.13.5 is at 750-800 rpm Fan Speed at min. load and it ramps up to 1500-1600 rpm at LuxMark Stress Test.
My conclusion is, that the Fans are not running on full Speed all the time anymore.
Have it installed on the bottom PCI running an extra PSU in the Optical bay.
Regards
today I found out that my Vega 64 (Fan Version) on latest Beta 10.13.5 is at 750-800 rpm Fan Speed at min. load and it ramps up to 1500-1600 rpm at LuxMark Stress Test.
My conclusion is, that the Fans are not running on full Speed all the time anymore.
Have it installed on the bottom PCI running an extra PSU in the Optical bay.
Regards
WX 3100 is not supported. Only WX 4100 and above.
[doublepost=1524677237][/doublepost]
That’s basically what the first post is. In general, the higher the number the higher the performance. Except WX cards that have a little lower performance than their RX counterparts in MacOS. A good website to compare cards is userbenchmark.com. Of course that uses a Windows benchmark, but gives us a general indication of relative performance.
Interesting. I encourage those with Vegas that have the fan issue to test the latest beta. I could try it with a reference bios on my Pulse, but I don’t really want to keep risking putting different bioses on it. A couple things I noticed with the first 10.13.5 beta is that the HDMI audio kext didn’t load and a few times the Mac booted to a blank white screen. I haven’t tried the second beta yet. I reverted back to 10.13.4.
Last edited:
Interesting question. I don’t know either. I suppose you could use a sound level meter next to the graphics card to find out the decibels and then go into Windows and use GPU-Z to see what the fan speed is at that sound level (running a benchmark to speed up the fans).

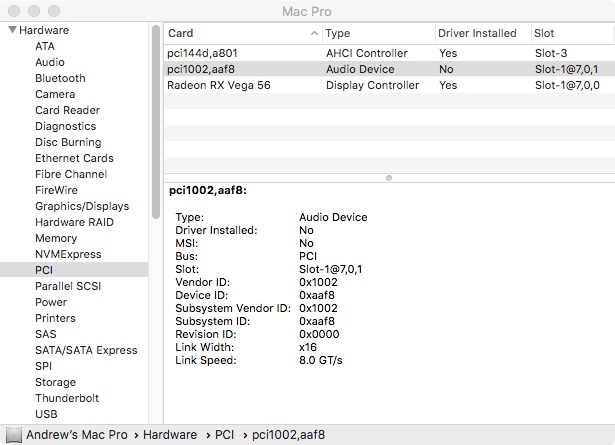

[doublepost=1524721479][/doublepost]Here's 10.13.5 beta 2 showing HDMI audio driver not installed.
[doublepost=1524722955][/doublepost]
Hmm, I'm having issues with DisplayPort on mine. The display flashes on connected to DisplayPort, but then it goes black. Same behavior on 10.13.4 and 10.13.5 beta and all 3 ports. It works great on HDMI. So perhaps Nitro+ is a better choice if you want 2 monitors connected since it has 2 HDMI ports.
[doublepost=1524721479][/doublepost]Here's 10.13.5 beta 2 showing HDMI audio driver not installed.
[doublepost=1524722955][/doublepost]
Hmm, I'm having issues with DisplayPort on mine. The display flashes on connected to DisplayPort, but then it goes black. Same behavior on 10.13.4 and 10.13.5 beta and all 3 ports. It works great on HDMI. So perhaps Nitro+ is a better choice if you want 2 monitors connected since it has 2 HDMI ports.
Last edited:
I wonder if it could be the DP cable I'm using.
Update: Hmm, nope. Tried a different one. Does the same thing.
Update: Hmm, nope. Tried a different one. Does the same thing.
Last edited:
I have a Software that is called Monity...
You can get it via AppStore. Works pretty well and shows pretty much everything you can measure.
Costs only 5 CHF...
Good news.
It's safe to use the Pulse RX Vega bios on the reference RX Vega cards and also other cards such as the XFX Double Edition and Powercolor Red Dragon which use the same nano pcb design. The issue would be using a higher power bios on the smaller Pulse pcb such as the 64 liquid cooled bios because it's smaller it'll generate more heat. But the cooler is great on the Pulse so it should be able to handle at least a 64 air bios fine (you'd just want to keep the VRM under 105 °C according to the video). So the reference cards would run cooler with the Pulse bios. As always, flash a different bios at your own risk, but it should be perfectly safe. It looks like you don't have to worry about whether it has Hynix or Samsung memory either since it seems the bioses are set up to autodetect the memory type.
It's safe to use the Pulse RX Vega bios on the reference RX Vega cards and also other cards such as the XFX Double Edition and Powercolor Red Dragon which use the same nano pcb design. The issue would be using a higher power bios on the smaller Pulse pcb such as the 64 liquid cooled bios because it's smaller it'll generate more heat. But the cooler is great on the Pulse so it should be able to handle at least a 64 air bios fine (you'd just want to keep the VRM under 105 °C according to the video). So the reference cards would run cooler with the Pulse bios. As always, flash a different bios at your own risk, but it should be perfectly safe. It looks like you don't have to worry about whether it has Hynix or Samsung memory either since it seems the bioses are set up to autodetect the memory type.
Last edited:
Hi, I just installed a Gigabyte vega 64 Gigabyte GV-RXVEGA64GAMING OC-8GD in my Mac Pro (5.1 2010, dual x5690, 64Gb RAM) it is recognized under osx, except boot screen and i just realized a few things:
1) idling, this monster's fans are loud
2) when putting the mac to sleep, about every 10 min, the mac will start running fans then after a minute back to sleep
Also because of in games strange behaviour i'm asking if the vega 64 is not overkill for the mac CPU so maybe a vega 56 or RX580 would be a best option.
what do you think?
1) idling, this monster's fans are loud
2) when putting the mac to sleep, about every 10 min, the mac will start running fans then after a minute back to sleep
Also because of in games strange behaviour i'm asking if the vega 64 is not overkill for the mac CPU so maybe a vega 56 or RX580 would be a best option.
what do you think?
For “CPU limiting”, it really depends on the game and setting.
What I observed is that even my 1080Ti is not bottlenecked in most games (Windows 10). The utilisation rate can still easily hit 100% at max setting. And I am not even running any games at 4k yet, but just 3840x1080 ultrawide.
You could exchange it for a Sapphire Nitro+ 64 or 56, or Pulse 56 for the fan issue.
i’m gonna do exactly that, and with price difference buy a gt120 in case i need a boot screen!
It looks like the PowerColor Red Dragon RX Vega 56 may also be a winner in terms of fan noise. Under load the fans have the same volume of 34.5 dB (A) as the Sapphire Pulse RX Vega 56. However, we don't know if the fans run at full speed under MacOS 10.13.4 since this card (or bios) hasn't been tested yet. But even if they do, it would still be much quieter than the reference 56 that has a volume of 47 dB (A) under load. It's also nice that it's a 2 slot card and has 8+6 pin power connectors.
https://www.computerbase.de/2018-04/powercolor-radeon-rx-vega-56-red-dragon-test/3/
https://www.computerbase.de/2018-04/powercolor-radeon-rx-vega-56-red-dragon-test/3/
Last edited:
The fan speed issue is not fixed for 10.13.5 beta 2. I just tried it with the reference 56 bios. It’s not likely this is something Apple will fix on their end unless it’s just by accident.
I tried the XFX Double Edition RX Vega 64 bios and it works great on the Pulse 56, except it definitely has the fan issue under MacOS. The fans spun up very high. That's the only Nano PCB 64 bios I could find. For Windows or Linux it's a great bios for the Pulse 56. The VRM temp targets are safe for the smaller PCB (under 105 °C), unlike a bios for a full size PCB (which are often 115 °C). The temperatures were just slightly higher running luxmark and the same at idle. It consumed 220W max so that's pretty good for a Vega 64. I expect the Pulse 64 to have a similar TDP.
Thanks.
I would like to ask if there is a gpu Vega 56 compatible with the mac pro 5.1 (High Sierra 10.13.4) that has the cooling system as the Ati Radeon HD 5770.
Last edited:
You mean the reference card? Yeah it works, but it has the fan issue so you’d have to live with it or try the Pulse or Nitro+ bios.
I tried a DisplayPort to HDMI cable on my Pulse 56 and it works perfectly (DP connected to card and HDMI to monitor). So if you're having issues with DisplayPort maybe it's your monitor or cable. Very happy to find out there’s nothing wrong with the DP output on the graphics card.
Last edited:
