try this
(run in terminal assuming your in the same directory as the file: php frame-buffer-lister.php ) edit: remember to install otool, typing otool into terminal should trigger the xcode command line utilities installer
It worked. At first it didn't, but I changed AMD6000Controller.kext to AMD9500Controller.kext and then it runs. It shows the GPU for Yelcho frame-buffer has 5 DP and 1 HDMI port. So I'm going to say it's probably not a PCIe card, but it could be (compared to the Orinoco frame-buffer for the Pulse RX 580 which has 2 DP, 2 HDMI, and 1 DVI).
interesting, its worth mentioning that most Apple stuff these days dont have HDMI ports,
so I wonder what it could be... (do you think you could fit 5 mDPs and a HDMI port on a PCI bracket?) theres a bunch of Frame-buffers like this that Apple never used some quite obviously match PC Video cards (especially back in the ATI Radeon 5xxx days) and others that dont.... also I wonder who is the poor guy that has to come up with names for all of these LOL
granted if this "card" was meant for VR then i would expect it to have 2 HDMI ports (I hate how they do that in the PC space tho, are they not aware that Display port can easily be adapted to HDMI but not the other way round?) an AMD Reference RX 580 has 3 display ports and 1 HDMI port, the Pulse frame buffer is the first time Apple have released a Frame-buffer personality for a non reference PC AMD card I think
(all the Framebuffer personalities for PC cards have always just been for the reference port layout)
You can fit 6 mDPs on a card like WX 9100, but not 5 mDPs and an HDMI in a single row. You could in 2 rows. So it would be an unusual card. If it was built-in to a Mac you wouldn’t think Apple would list the model number in the driver. I guess we’ll have to wait to see if Apple does release this custom Radeon Pro 580 card.
If they do, I guess I'll buy the overpriced unit even if my current card works. May never see another one
If they do, I guess I'll buy the overpriced unit even if my current card works. May never see another one
If they do, and we are luck enough (Sapphire and Apple still use the same technique as the HD7950 to make the RX580 a Mac Edition card). Then we should able to easily create our own Mac EFI ROM for the RX580. That's nothing more than a simple copy and paste (especially for UEFI ROM)
If they do, I guess I'll buy the overpriced unit even if my current card works. May never see another one
I'd buy it too. If I had to guess on price, I'd say $399-599 range.
[doublepost=1528521124][/doublepost]
It might be a little more complicated than that if it has an unusual port configuration.
It’s not that hard “for them”, AFAIK, the EFI part assign the Framebuffer. As long as they assign Radeon Framebuffer in the Mac EFI, all card should work.
And in fact, they don’t need to do that. They just need to create a tailor made Mac EFI for the PULSE RX580 with specific Framebuffer is not a problem. Then we can try to figure out which card is compatible to that Mac EFI.
Of course, this is not the best case. But I really don’t think that they will put anything universal in any specific card. For them, it’s no reason to do so.

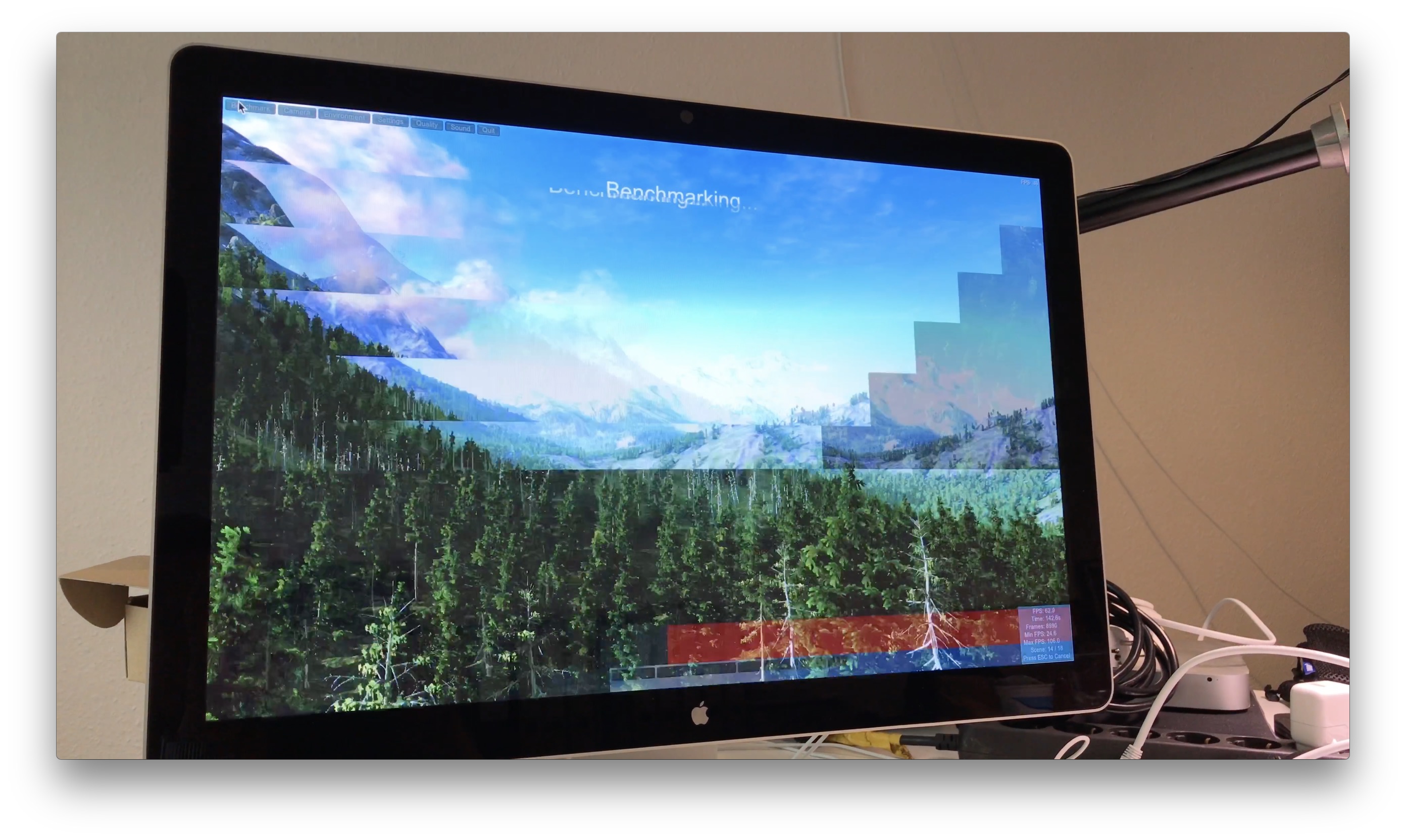

EDIT: The glitches mentioned below are only present with my old 24" Apple LED Cinema Display connected through a mDP to DP adapter. I just discovered that while connected to my main setup consisting of Sharp PN-K321 (needs a little hack to AppleGraphicsControl.kext to work in MST mode) and LG 27MU67 there are NO GLITCHES.
/*
Sadly it's a good example for another major caveat. There are very short full-screen glitches from time to time (see below). They do happen immediately when some visually taxing application is running, so they are not temperature related. Maybe it's limited to OpenGL2, I will have to investigate this further.
I have exactly the same glitches on Frontier edition while under load, had to to a slow-mo movie to catch it to compare. Exactly same shape, for like a frame or two, repeating every 10 - 20 seconds. On Windows PC using the same card/monitor/cable it works fine, no artifacts. The kext you mentioned above was to enable DP 1.2? Did you do it yourself or got it from someplace, I can't find it, I'd appreciate a link. But that just sounds weird, I would expect more people reporting the same issue, because it looks like you need DP 1.2, which is not supported on cMP.
I modded the PSU soldering 12V wires to the bottom of it and using EPS plug, so I can easily use modular power cables from other PSU's.
And reporting on fan behavior on Frontier Edition - my fan stays at 40% all the time regardless of load or the reported temperature, whether it's 25c or 85c it just runs at 2000 rpm. Clock goes only to 1400MHz and utilization is never higher than 85% when running benchmarks - on windows 1600 and 100%). On idle still same rpm, temp 26C, utilization 0%. This is on 10.13.5, so while the fan is audible it doesn't bother me, just a little of background noise drowns it, but I guess this is still a sort of high speed fan issue.
Any news of any other good vega cards without the fan issue beside the pulse and the red dragon?
No the .kext modification is for re-enabling MST support over DP 1.2. DP 1.2 itself is supported when your card supports it. As far as I know this has nothing to do with the OS. I used my Sharp PN K321 (the first 4K screen that was publicly available) with a Sapphire 7950 Mac Edition card back in the day. I think with 10.9 Mavericks. The tricky thing about that screen is that it uses MST or MultiStreamTransport. That means that the screen is split in two halves and each of them appears as a seperate screen to the system and combining them needs support from the OS. In Mavericks and Yosemite that just worked but I think with some El Capitan Pointrelease they dropped it. I needed some time to find a way to re-enable it. In essence you open up that mentioned .kext and alter a string in a .plist resembling a blacklist of unsupported configurations for MST displays and suddenly it works again. I can write that up for anyone who needs the info on how to do that.
Hey everyone,
I'm coming over from the folks at tonymac and we're having quite the same troubles with the graphic cards you mentioned in the beginning. It seems like you did far more thorough testing – on the whole hackintosh sites I can only find the Fan Issue related to some cards but not a whole post that condensed all the information into one text. So thanks for that!
Did I get the fact right, that right now you'd recommend getting the Sapphire Pulse RX Vega 56 (model 11276-02) for both internal and external usage with a Mac because there have been no issues whatsoever?
I'm coming over from the folks at tonymac and we're having quite the same troubles with the graphic cards you mentioned in the beginning. It seems like you did far more thorough testing – on the whole hackintosh sites I can only find the Fan Issue related to some cards but not a whole post that condensed all the information into one text. So thanks for that!
Did I get the fact right, that right now you'd recommend getting the Sapphire Pulse RX Vega 56 (model 11276-02) for both internal and external usage with a Mac because there have been no issues whatsoever?
For those still having fan issues. I suggest you go to this link. You can modify the AMD10000Controller.kext and change the fan curve.
https://www.insanelymac.com/forum/topic/325120-vega-frontier-edition-on-high-sierra/?page=6
Now for anyone who whines that you have to modify the kext – you are just adding a property to the plist. There really is nothing major about this modification. It's simple as can be... I've been running this change for almost 2 months now and it's been working flawlessly. When you update the OS just keep a copy of the plist to update in the future.
Honestly, if you don't take advantage of this fix – then you probably deserve to deal with the loud fans.
Totally true, although if you can avoid doing the fix by picking a card thats better supported right away – why not do that? That's what I intended with my question – if theres a more hassle free approach I'd gladly take that.
That is correct. The Sapphire Pulse, Sapphire Nitro+, and PowerColor Red Dragon Vega cards have zero known issues (except trouble displaying over DisplayPort 1.2 or higher and the Nitro+ cards are too long to fit inside a Mac Pro without removing or modifying the PCIe case fan.)
Also, the Nitro+ secondary bios seems to work fine with the reference RX Vega card, alleviating the fan issue.
[doublepost=1530210286][/doublepost]Has anyone tested one of the cards with the fan issue in Mojave? Since Polaris cards are officially supported in the cMP for Mojave, perhaps they will also give support to Vega cards. Therefore, Apple may respond to a bug report for the fan issue sent using Feedback Assistant in Mojave beta.
[doublepost=1530211185][/doublepost]Some of us, including myself, previously reported issues with DisplayPort. It appears to be an issue with monitors that support DisplayPort 1.2 or higher. I set my monitor to DisplayPort 1.1 mode and now the Pulse RX Vega 56 has no issues displaying over DisplayPort.
Last edited:
Thank you for your reply – thats exactly the info I needed. I have no info about the current state im Mojave but I'll post if I find anything.
I installed this exact card in my flashed 4,1 Mac Pro to 5,1. It works well, but the fans on it only run during boot (which is black screen of course). Tested and works in 10.4 and 10.3.5. I wish the fans would cycle a little but but they just sit dead after log in. So far no issues. If I boot into boot camp and use Win 10, I can change the SAPPHIRE Led color, but any changes to fan settings do not hold in OSX. Seems to work well overall, but I'm not a gamer. I only installed it so that I can keep up to date with Mojave.
That's normal, the card is programmed to "zero dB (fan stop)" when GPU at low temperature.
And you can only override that by editing the ROM image and flash the card.
By considering the Nitro+ is a dual ROM card. It's very very safe to do that.
In fact, I also edited and flashed my single ROM PUSLE RX580, to lower the voltage, make it run faster (no thermal throttling), cooler, quieter.

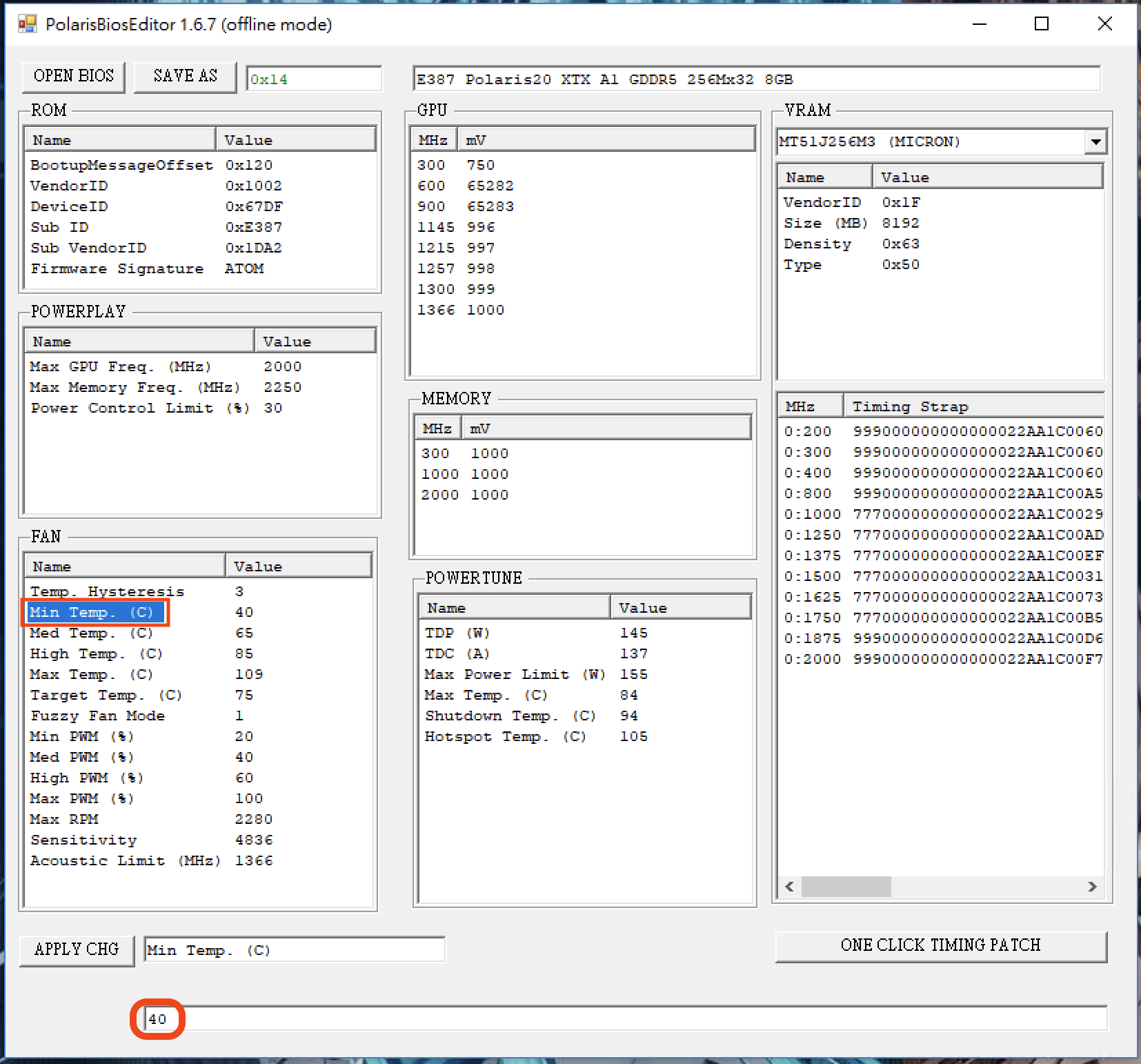

The tool is quite easy to use. All you need is just PolarisBiosEditor 1.6.7 and the latest ATIWinFlash.
Use ATIWinFlash to dump the RX580's ROM.
Open it by the PolarisBiosEditor 1.6.7
Click on the Min Temp. (C) box, then edit the number at the bottom.
e.g. Change it to 20, then the fan should spin whenever the GPU is above 20C. Which effectively make the fan always spinning (assuming normal ambient temperature).
Then save the ROM, flash it back to the card.
Now, your RX580 should has "always on fan" in macOS.
Great instructions! Followed them to a T and modified the card Bios with your suggested minimum threshold at 20 deg. C. Booted up in both HS and Mojave and fans are both still full stop once I log in. It seems that maybe the Mac driver kext is overriding the bios? I didn't think that was possible but it is true that the Sapphire's TriXX software overrides the bios in win10. It was worth a try though, now I know how to save the card bios, flash it, and reprogram, so that's something
Thanks for the education!Great instructions! Followed them to a T and modified the card Bios with your suggested minimum threshold at 20 deg. C. Booted up in both HS and Mojave and fans are both still full stop once I log in. It seems that maybe the Mac driver kext is overriding the bios? I didn't think that was possible but it is true that the Sapphire's TriXX software overrides the bios in win10. It was worth a try though, now I know how to save the card bios, flash it, and reprogram, so that's something
Interesting, I didn't expect that, may be you can try change the Fuzzy fan mode from 1 to 0.
P.S. Did you click "APPLY CHG" after replace the 40 by 20? Also, did you re-open the modded ROM to check if that number is changed?
[doublepost=1530836064][/doublepost]
Great instructions! Followed them to a T and modified the card Bios with your suggested minimum threshold at 20 deg. C. Booted up in both HS and Mojave and fans are both still full stop once I log in. It seems that maybe the Mac driver kext is overriding the bios? I didn't think that was possible but it is true that the Sapphire's TriXX software overrides the bios in win10. It was worth a try though, now I know how to save the card bios, flash it, and reprogram, so that's something
If you want the card run cooler. One of the good way to do it is to downvolt the card.
As you can see from my screen capture, in the GPU section, I modded the voltage table. That 1000mV at 1366MHz is not random pick, but using Wattman and quite a few benchmarks / stress tests to find out this is the minimum stable voltage for my own RX580 at that max boost clock speed.
Your Nitro+ should come with a higher clock speed and voltage. You may try to find out the minimum stable voltage, and then mod that table. Once done that, the card will run cooler in macOS, this can also effectively avoid thermal throttling when under extreme stress.
Last edited:
well Custom Radeon Pro 580 Yes for cMP? it seems not sadly
https://www.macrumors.com/2018/07/12/apple-blackmagic-egpu/
if I had to guess, this is what what the new frame-buffer is for but it still dosent quite add up as 2 TB3 ports = 4 DP streams not 5. so it would be to the OS as 4 DP+HDMI... (tho if you daisy chain stuff through TB3... perhaps you could do 5 Apple TB displays off of the thing?)
its especially interesting as Apple/black magic say this is a Radeon Pro 580 which up until this point has been a "custom" Apple "exclusive" GPUs just found in iMacs etc, it will be interesting to see a full System profiler dump if anyone does pick up one of these eGPU boxes
well Custom Radeon Pro 580 Yes for cMP? it seems not sadly
https://www.macrumors.com/2018/07/12/apple-blackmagic-egpu/
if I had to guess, this is what what the new frame-buffer is for but it still dosent quite add up as 2 TB3 ports = 4 DP streams not 5. so it would be to the OS as 4 DP+HDMI... (tho if you daisy chain stuff through TB3... perhaps you could do 5 Apple TB displays off of the thing?)
its especially interesting as Apple/black magic say this is a Radeon Pro 580 which up until this point has been a "custom" Apple "exclusive" GPUs just found in iMacs etc, it will be interesting to see a full System profiler dump if anyone does pick up one of these eGPU boxes
That totally has to be what it is. Good find!
Edited original post since that rumor is dead. Still holding out hope for a new Mac edition card or special EFI firmware update.
Last edited:
That totally has to be what it is. Good find!
Edited original post since that rumor is dead. Still holding out hope for a new Mac edition card or special EFI firmware update.
as I thought
http://forum.netkas.org/index.php/topic,13818.0.html

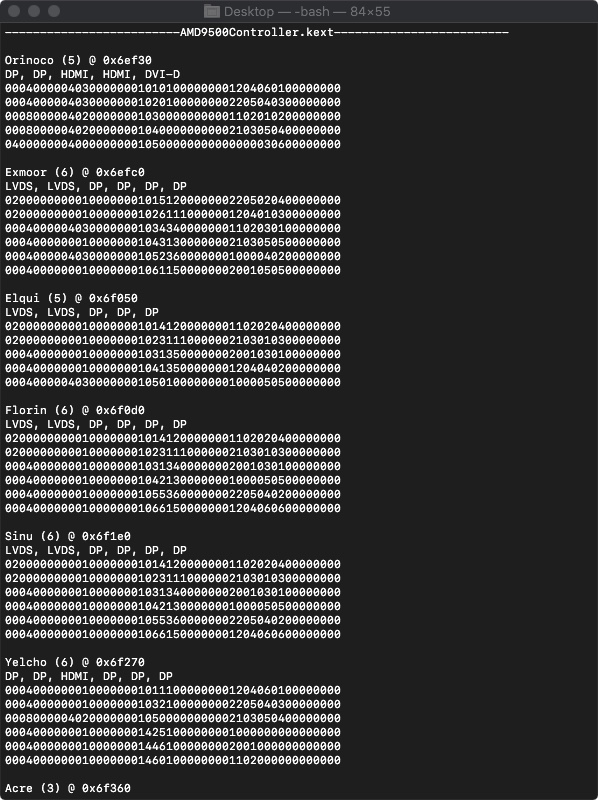

MVC got ahold the new black magic eGPU and indeed it uses the "Yelcho" frame-buffer.
best keep eyes peeled incase any more frame-buffer personalities show up
Code:
------------------------AMD10000Controller.kext-------------------------
Ucayali (6) @ 0x5e580
LVDS, LVDS, DP, DP, DP, DP
020000000001000008010141220000001102020400000000
020000000001000008010231130000002103010300000000
000400000001000000010313400000002001030100000000
000400000001000000010421300000001000050500000000
000400000001000000010553600000002205040200000000
000400000001000000010661500000001204060600000000
Exmoor (6) @ 0x5e610
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151200000002205020400000000
020000000001000000010261110000001204010300000000
000400000403000000010343400000001102030100000000
000400000001000000010431300000002103050500000000
000400000403000000010523600000001000040200000000
000400000001000000010611500000002001050500000000
Wenamu (6) @ 0x5e9d0
DP, DP, DP, DP, DP, DP
000400000403000000010153200000002205020200000000
000400000403000000010263100000001204010100000000
000400000403000000010313400000002001050600000000
000400000403000000010423300000001000060500000000
000400000403000000010533600000002103040400000000
000400000403000000010643500000001102030300000000
Valdivia (6) @ 0x5ea60
LVDS, LVDS, DP, DP, DP, DP
020000000001000008010141220000001102020400000000
020000000001000008010231120000002103010300000000
000400000001000000010313400000002001030100000000
000400000001000000010423300000001000050500000000
000400000001000000010553600000002205040200000000
000400000001000000010663500000001204060600000000
Xingu (5) @ 0x5ecb0
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001060600000000
000400000001000000010243300000001000050500000000
000400000001000000010313200000002103040400000000
000400000001000000010463500000001102030300000000
000400000001000000010533400000002205020200000000
Kamarang (4) @ 0x5ed30
DP, DP, DP, HDMI
000400000403000000010101000000002205020200000000
000400000403000000010201000000001204010100000000
000400000403000000010300000000001000050500000000
000800000402000000010400000000002001060600000000
Zutia (6) @ 0x60f80
DP, DP, DP, DP, DP, DP
000400000403000000010101000000001000060600000000
000400000403000000010201000000002001050500000000
000400000403000000010301000000001102040400000000
000400000403000000010401000000002103030300000000
000400000403000000010501000000002205010100000000
000400000403000000010601000000001204020200000000
Japura (6) @ 0x611a0
LVDS, LVDS, DP, DP, DP, DP
020000000001000008010151220000002205020200000000
020000000001000008010261120000001204010100000000
000400000001000000010313400000002001050600000000
000400000001000000010423300000001000060500000000
000400000001000000010543600000001102030300000000
000400000001000000010633500000002103040400000000
Araguaia (6) @ 0x613a0
DP, DP, DP, DP, DP, DP
000400000001000000010123200000001000050600000000
000400000001000000010213100000002001060500000000
000400000001000000010343400000001102040400000000
000400000001000000010433300000002103030300000000
000400000001000000010563600000001204020200000000
000400000001000000010653500000002205010100000000
Rapel (4) @ 0x676d0
DP, DP, DP, DP
000400000403000000010101000000002205020200000000
000400000403000000010201000000001102030300000000
000400000403000000010301000000001000050500000000
000400000403000000010401000000002001060600000000
Iriri (4) @ 0x6f730
DP, DP, DP, HDMI
000400000403000000010101000000002205020200000000
000400000403000000010201000000001204010100000000
000400000403000000010300000000001000050500000000
000800000402000000010400000000002001060600000000
Baladi (6) @ 0x70470
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000
-------------------------AMD7000Controller.kext-------------------------
Ramen (6) @ 0x58ee0
LVDS, HDMI, DP, DP, DP, DP
020000000001000039050108000000002001050600000000
000800000402000000010200000000001000030500000000
000400000403000000010343400000001102010100000000
000400000001000000010431300000002103040300000000
000400000403000000010563600000001204020200000000
000400000001000000010651500000002205040300000000
Tako (6) @ 0x58fe0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151200000002205020400000000
020000000001000000010261110000001204010300000000
000400000403000000010343400000001102030100000000
000400000001000000010431300000002103050500000000
000400000403000000010523600000001000040200000000
000400000001000000010611500000002001050500000000
Namako (4) @ 0x59070
LVDS, LVDS, DP, DP
020000000001000000010151200000002205020200000000
020000000001000000010261110000001204010100000000
000400000403000000010343400000001102030300000000
000400000403000000010433300000002103040400000000
Aji (4) @ 0x59150
DP, DP, DVI-D, HDMI
000400000403000000010101000000001204050100000000
000400000403000000010201000000002205040200000000
040000001402000000010300000000000000030600000000
000800000402000000010400000000001102010400000000
Buri (4) @ 0x591b0
LVDS, DP, DP, HDMI
020000000001000039050100000000001000050500000000
000400000403000000090200000000001102010100000000
000400000403000000090300000000002103020200000000
000800000402000000010400000000001204030300000000
Chutoro (5) @ 0x59210
LVDS, DP, DP, DP, DP
020000000001000019010100000000001204030300000000
000400000403000000010201000000001102010100000000
000400000001000000090300000000002103020200000000
000400000001000000090400000000002205040400000000
000400000403000000010500000000001000050500000000
Dashimaki (4) @ 0x59290
DP, DP, DVI-D, HDMI
000400000403000000010101000000001204020200000000
000400000403000000010200000000002205030500000000
040000001402000000010301000000000000040400000000
000800000402000000010400000000001102010100000000
Ebi (5) @ 0x59300
LVDS, DP, DP, DP, DP
020000000001000019010100000000001204030300000000
000400000403000000010201000000001102010100000000
000400000001000000090301000000002103020200000000
000400000001000000090401000000002205040400000000
000400000403000000010501000000001000050500000000
Gari (5) @ 0x59380
LVDS, DP, DP, DP, DP
020000000001000019010100000000001204030300000000
000400000403000000010201000000001102010100000000
000400000001000000090300000000002103020200000000
000400000001000000090400000000002205040400000000
000400000403000000010500000000001000050500000000
Futomaki (4) @ 0x59400
DP, DP, DVI-D, HDMI
000400000403000000010101000000001204040100000000
000400000403000000010201000000002205050200000000
040000001402000000010300000000000000060600000000
000800000402000000010400000000001102010300000000
Hamachi (4) @ 0x59460
DP, DP, DVI-D, HDMI
000400000403000000010101000000001204050100000000
000400000403000000010201000000002205040200000000
040000001402000000010300000000000000030600000000
000800000402000000010400000000001102010400000000
OPM (6) @ 0x59500
DP, DP, DP, DP, DP, DP
000400000403000000010001000000001102010100000000
000400000403000000010001000000002103020200000000
000400000403000000010001000000001204030300000000
000400000403000000010001000000002205040400000000
000400000403000000010001000000001000050500000000
000400001403000000010001000000002001060600000000
Ikura (1) @ 0x595a0
HDMI
000800000402000000010100000000001204030100000000
IkuraS (6) @ 0x595c0
DP, DP, DP, DP, DP, DP
000400000403000000010143200000001102010300000000
000400000403000000010233100000002103020400000000
000400000403000000010363400000001204030100000000
000400000403000000010453300000002205040200000000
000400000403000000010523600000001000050500000000
000400000403000000010613500000002001060600000000
Junsai (6) @ 0x59650
DP, DP, DP, DP, DP, DP
000400000403000000010001000000001204030100000000
000400000403000000010001000000002205040200000000
000400000403000000010001000000001102010300000000
000400000403000000010001000000002103020400000000
000400000403000000010001000000001000050500000000
000400000403000000010001000000002001060600000000
Kani (1) @ 0x596e0
HDMI
000800000402000000010100000000001204030100000000
KaniS (6) @ 0x59700
DP, DP, DP, DP, DP, DP
000400000403000000010143200000001102010300000000
000400000403000000010233100000002103020400000000
000400000403000000010363400000001204030100000000
000400000403000000010453300000002205040200000000
000400000403000000010523600000001000050500000000
000400000403000000010613500000002001060600000000
DashimakiS (4) @ 0x59790
DP, DP, DVI-D, HDMI
000400000403000000010101000000001204020200000000
000400000403000000010201000000002205030500000000
040000001402000000010300000000000000040400000000
000800000402000000010400000000001102010100000000
Maguro (1) @ 0x597f0
HDMI
000800000402000000010100000000001204030100000000
MaguroS (6) @ 0x59810
DP, DP, DP, DP, DP, DP
000400000403000000010143200000001102010300000000
000400000403000000010233100000002103020400000000
000400000403000000010363400000001204030100000000
000400000403000000010453300000002205040200000000
000400000403000000010523600000001000050500000000
000400000403000000010613500000002001060600000000
-------------------------AMD8000Controller.kext-------------------------
Exmoor (6) @ 0x5a0f0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151200000002205020400000000
020000000001000000010261110000001204010300000000
000400000403000000010343400000001102030100000000
000400000001000000010431300000002103050500000000
000400000403000000010523600000001000040200000000
000400000001000000010611500000002001050500000000
Baladi (6) @ 0x5a2a0
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000
-------------------------AMD9000Controller.kext-------------------------
Exmoor (6) @ 0x5db90
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151200000002205020400000000
020000000001000000010261110000001204010300000000
000400000403000000010343400000001102030100000000
000400000001000000010431300000002103050500000000
000400000403000000010523600000001000040200000000
000400000001000000010611500000002001050500000000
OPM (6) @ 0x5dc20
DP, DP, DP, DP, DP, DP
000400000403000000000001000000001000010100000000
000400000403000000000001000000002001020200000000
000400000403000000000001000000001102030300000000
000400000403000000000001000000002103040400000000
000400000403000000000001000000001204050500000000
000400000403000000000001000000002205060600000000
MalteseS (1) @ 0x5dcd0
HDMI
000800000402000000010100000000001204030100000000
Lagotto (4) @ 0x5dcf0
DP, HDMI, DVI-D, DVI-D
000400000403000000010100000000001102040100000000
000800000402000000010200000000002103050300000000
040000000402000000010300000000000000010500000000
040000000402000000010400000000000204060600000000
GreyhoundS (1) @ 0x5dd60
HDMI
000800000402000000010100000000001204030100000000
Maltese (6) @ 0x5ddf0
DP, DP, DP, DP, DP, DP
000400000403000000010123200000001000010300000000
000400000403000000010213100000002001020400000000
000400000403000000010343400000001102030100000000
000400000403000000010433300000002103040200000000
000400000403000000010563600000001204050500000000
000400000403000000010653500000002205060600000000
Labrador (6) @ 0x5deb0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010131200000002103020400000000
020000000001000000010241110000001102010300000000
000400000403000000010323400000001000030100000000
000400000001000000010411300000002001050500000000
000400000403000000010563600000001204040200000000
000400000001000000010651500000002205050500000000
Basset (4) @ 0x5df40
LVDS, LVDS, DP, DP
020000000001000000010131200000002103020200000000
020000000001000000010241110000001102010100000000
000400000403000000010323400000001000030300000000
000400000403000000010413300000002001040400000000
Greyhound (6) @ 0x5e000
DP, DP, DP, DP, DP, DP
000400000403000000010123200000001000010300000000
000400000403000000010213100000002001020400000000
000400000403000000010343400000001102030100000000
000400000403000000010433300000002103040200000000
000400000403000000010563600000001204050500000000
000400000403000000010653500000002205060600000000
Baladi (6) @ 0x5e090
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000
-------------------------AMD9500Controller.kext-------------------------
Orinoco (5) @ 0x6ef30
DP, DP, HDMI, HDMI, DVI-D
000400000403000000010101000000001204060100000000
000400000403000000010201000000002205040300000000
000800000402000000010300000000001102010200000000
000800000402000000010400000000002103050400000000
040000000400000000010500000000000000030600000000
Exmoor (6) @ 0x6efc0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151200000002205020400000000
020000000001000000010261110000001204010300000000
000400000403000000010343400000001102030100000000
000400000001000000010431300000002103050500000000
000400000403000000010523600000001000040200000000
000400000001000000010611500000002001050500000000
Elqui (5) @ 0x6f050
LVDS, LVDS, DP, DP, DP
020000000001000000010141200000001102020400000000
020000000001000000010231110000002103010300000000
000400000001000000010313500000002001030100000000
000400000001000000010413500000001204040200000000
000400000403000000010501000000001000050500000000
Florin (6) @ 0x6f0d0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010141200000001102020400000000
020000000001000000010231110000002103010300000000
000400000001000000010313400000002001030100000000
000400000001000000010421300000001000050500000000
000400000001000000010553600000002205040200000000
000400000001000000010661500000001204060600000000
Sinu (6) @ 0x6f1e0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010141200000001102020400000000
020000000001000000010231110000002103010300000000
000400000001000000010313400000002001030100000000
000400000001000000010421300000001000050500000000
000400000001000000010553600000002205040200000000
000400000001000000010661500000001204060600000000
Yelcho (6) @ 0x6f270
DP, DP, HDMI, DP, DP, DP
000400000001000000010111000000001204060100000000
000400000001000000010321000000002205040300000000
000800000402000000010500000000002103050400000000
000400000001000000014251000000001000000000000000
000400000001000000014461000000002001000000000000
000400000001000000014601000000001102000000000000
Acre (3) @ 0x6f360
DP, HDMI, DVI-D
000400000403000000010101000000001102020100000000
000800000402000000010200000000002103050400000000
040000000402000000010300000000000000030500000000
Huallaga (3) @ 0x6f3b0
DP, DP, HDMI
000400000403000000010101000000001204040300000000
000400000403000000010201000000001102010200000000
000800000402000000010300000000002103050400000000
Berbice (5) @ 0x6f430
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243300000001000020200000000
000400000001000000010313200000002103030300000000
000400000001000000010453500000001102040400000000
000400000001000000010533400000001204050500000000
Longavi (5) @ 0x6f4b0
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243300000001000020200000000
000400000001000000010313200000002103030300000000
000400000001000000010453500000001102040400000000
000400000001000000010533400000001204050500000000
Tolten (5) @ 0x6f570
LVDS, LVDS, DP, DP, DP
020000000001000000010141200000001102020400000000
020000000001000000010231110000002103010300000000
000400000001000000010313500000002001030100000000
000400000001000000010413500000001204040200000000
000400000001000000010501000000001000050500000000
Palena (5) @ 0x6f5f0
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243300000001000020200000000
000400000001000000010313200000002103030300000000
000400000001000000010453500000001102040400000000
000400000001000000010533400000001204050500000000
Caroni (5) @ 0x6f670
LVDS, LVDS, DP, DP, DP
020000000001000000010141200000001102020400000000
020000000001000000010231110000002103010300000000
000400000001000000010313500000002001030100000000
000400000001000000010413500000001204040200000000
000400000001000000010501000000001000050500000000
Salado (5) @ 0x6f6f0
DP, DP, DP, DP, DP
000400000403000000000001000000001000020200000000
000400000403000000000001000000002001010100000000
000400000403000000000001000000001102040400000000
000400000403000000000001000000002103030300000000
000400000403000000000001000000001204050500000000
Guariba (6) @ 0x6f770
DP, DP, DP, HDMI, DVI-D, DP
000400000403000000010101000000001204060100000000
000400000403000000010201000000002205040300000000
000400000403000000010301000000001102010200000000
000800000402000000010400000000002103050400000000
040000000402000000010500000000000000030600000000
000400000001000000010601000000002001020500000000
Dayman (6) @ 0x6f800
DP, DP, DP, HDMI, DVI-D, DP
000400000403000000010101000000001204060100000000
000400000403000000010201000000002205040300000000
000400000403000000010301000000001102010200000000
000800000402000000010400000000002103050400000000
040000000402000000010500000000000000030600000000
000400000001000000010601000000002001020500000000
Baladi (6) @ 0x6f890
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000
OPM (5) @ 0x6f920
DP, DP, DP, DP, DP
000400000403000000000001000000001102020200000000
000400000403000000000001000000002103030300000000
000400000403000000000001000000001204010100000000
000400000403000000000001000000001000040400000000
000400000403000000000001000000002001050500000000
