APFS support enabled in High Sierra for cMP

[LightBulbFun]

May be I do the test now.


Thanks, I am just about to do the same thing (purely for test purpose), you save me 2 hours

So, when you boot back to 10.12.6. Sierra can read / write the APFS partition, but cannot check / first aid via disk utility, right? Also, is it correctly identify it as a case non-sensitive file system?

seems like 10.12.6 will happily RW to the APFS volume, but oddly 10.12.6s DU says its case sensitive, im pretty sure i explicitly formatted the disk as case insensitive in the 10.13 installer...



[h9826790]

seems like 10.12.6 will happily RW to the APFS volume, but oddly 10.12.6s DU says its case sensitive, im pretty sure i explicitly formatted the disk as case insensitive in the 10.13 installer...

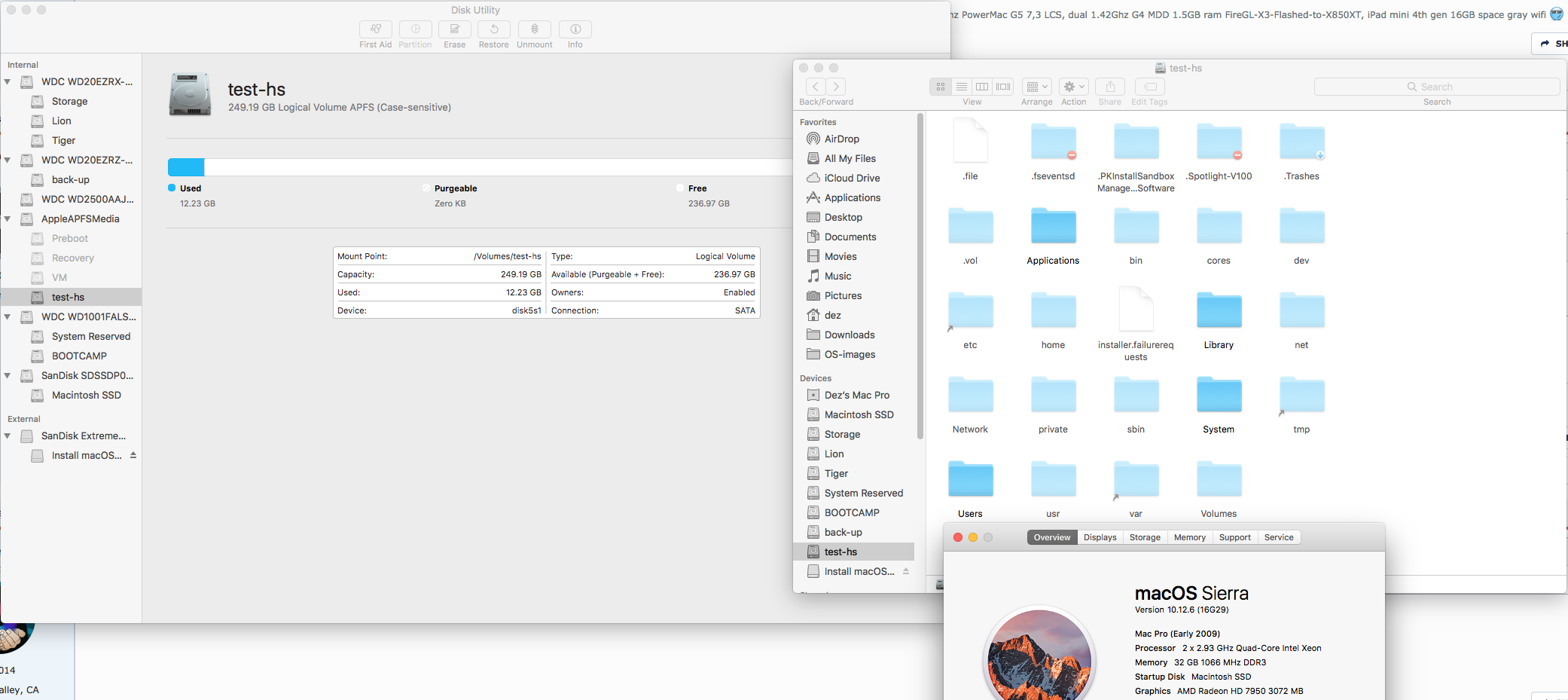

View attachment 712148

Yeah, I think this is a bug. Which makes APFS is a very risky file system under Sierra. Even DU can't identify it correctly.



[eksu]

Re-run the installer doesn't allow (or prompt) for APFS conversion either. No matter I choose the HS beta internal HDD, "external (SATA III card)" Sierra SSD, or internal pure data HDD.

You convert to APFS when running the beta installer?

No I never do any in place conversions.

I create a bootable usb, and when it launches I first go to disk utility and format my selected disk as an APFS volume. I then leave disk utility, and install from the usb onto the newly formatted drive.

Make sure you've updated your firmware first.



[Pavo]

Just found out APFS conversion only available on "Internal" storage, that means all PCIe SSD, or SSD / HDD mounted on the a PCIe SATA III card cannot be converted to APFS.

I will now try to connect my backup HDD to one of the internal SATA port and then boot from it.

I can boot fine off my PCIe M.2 SSD that is APFS



[Factionrider]

Another working flashed 4.1, everything went really smoothly. Def not ready to use it as my main OS but this is cool.



[Nermal]

but oddly 10.12.6s DU says its case sensitive, im pretty sure i explicitly formatted the disk as case insensitive in the 10.13 installer...

If I'm remembering correctly then case-insensitive APFS didn't exist until 10.13. The older Disk Utility is presumably reporting it as case-sensitive because it doesn't know any better.

Edit: Apparently I'm not remembering correctly! This blog says that it came in 10.12.4.



[SoyCapitanSoyCapitan]

Another working flashed 4.1, everything went really smoothly. Def not ready to use it as my main OS but this is cool.

When system can't name the card correctly but Geekbench can. Please send this as a bug to Apple so that they implement proper card identification. Now that they officially supported the use of the RX 580 (and so on) and eGPU, they will need this feedback from users.



[h9826790]

I can boot fine off my PCIe M.2 SSD that is APFS

Yeah, I realise it's OK to "format + clean install", but can you "convert" the current bootable partition into APFS without clean install?

Also, may I know if TRIM work properly on 3rd party SSD?



[Squuiid]

Took the plunge and updated my cMP to High Sierra beta 5.
It has a single SM951 and it was upgraded to APFS when I did the upgrade. No prompts, it just did it.

I ran trimforce and despite it appearing to run as normal TRIM was not enabled.
It would seem as though TRIM does not work on APFS volumes with 3rd party SSDs. Or perhaps it's just PCIe SSDs.



[mikeboss]

I ran trimforce and despite it appearing to run as normal TRIM was not enabled.
It would seem as though TRIM does not work on APFS volumes with 3rd party SSDs. Or perhaps it's just PCIe SSDs.

see this thread -> https://forums.macrumors.com/threads/macos-high-sierra-10-13-trim-working.2058880/

it appears to me as if TRIM is not supported on 3rd party SSDs as soon as the volume is formatted with APFS.



[SoyCapitanSoyCapitan]

Crippling features again. They should list it on the macOS website as one of the things that make it the "most advanced OS in the world" alongside the crap GPU drivers and old APIs.
[doublepost=1502273961][/doublepost]- I'm seeing reports that Carbon Copy Cloner and Suped Duper can't make bootable back ups of APFS volumes at the moment.



[weckart]

Updated my B4 to B5 by running the full installer. Firmware was updated but all the options in DU for converting to APFS remain greyed out. Even tried running the conversion from Recovery. Still no go. Zapped the PRAM but still nada. Disk is still HPFS+.



[Pavo]

Yeah, I realise it's OK to "format + clean install", but can you "convert" the current bootable partition into APFS without clean install?

Also, may I know if TRIM work properly on 3rd party SSD?

Well it auto converted my HFS+ install to APFS after it flashed the new firmware and it looks like TRIM isn't supported on PCIe SSDs as of right now or its a bug.



[h9826790]

Well it auto converted my HFS+ install to APFS after it flashed the new firmware and it looks like TRIM isn't supported on PCIe SSDs as of right now or its a bug.

So, you upgrade the OS, but not clean installation?



[Draeconis]

Crippling features again. They should list it on the macOS website as one of the things that make it the "most advanced OS in the world" alongside the crap GPU drivers and old APIs.

GM isn't out yet, I'd hold fire on judgement until then. We know that APFS supports TRIM, and trimforce still exists in High Sierra, so no reason to get upset just yet.



[Pavo]

So, you upgrade the OS, but not clean installation?

No I did a clean install but formatted the drive as Mac Journeled and after install it was APFS, so I am assuming it auto converted itself during install.



[SoyCapitanSoyCapitan]

GM isn't out yet, I'd hold fire on judgement until then. We know that APFS supports TRIM, and trimforce still exists in High Sierra, so no reason to get upset just yet.

I would bet 10 forum bucks it won't change. Generally when we see these things show up even in beta...takes Apple a couple of years to relent.



[h9826790]

GM isn't out yet, I'd hold fire on judgement until then. We know that APFS supports TRIM, and trimforce still exists in High Sierra, so no reason to get upset just yet.

I am wondering if TRIM Enabler can do anything about it (in case the official release still no TRIM)



[FrancoisC]

I can boot fine off my PCIe M.2 SSD that is APFS

Just to confirm: before High Sierra and the new firmware update, could you do that already? (without any hacks I mean)



[Draeconis]

I am wondering if TRIM Enabler can do anything about it (in case the official release still no TRIM)

I'm not really a fan of stuff like that. Either I have a binary I can leverage, or I'll edit the KEXT myself



[SoyCapitanSoyCapitan]

Just to confirm: before High Sierra and the new firmware update, could you do that already? (without any hacks I mean)

APFS couldn't boot on cMP before this firmware update.



[FrancoisC]

APFS couldn't boot on cMP before this firmware update.

Yup, this part I know I’m talking about booting from the pcie m.2. Is it a sata or NVMe?



[h9826790]

Yup, this part I know I’m talking about booting from the pcie m.2. Is it a sata or NVMe?

https://forums.macrumors.com/thread...he-09-mac-pro-bootable-ngff-pcie-ssd.1685821/



[FrancoisC]

https://forums.macrumors.com/thread...he-09-mac-pro-bootable-ngff-pcie-ssd.1685821/

Thanks!



[weckart]

After updating the firmware, I find I can no longer boot a ML volume I have on on dedicated internal disk. It gets most of the way through the boot just before the graphics load and then it restarts with a grey crash screen. DU doesn't find any corruption. Time to dig out DW. Sigh.
