m0bil

macrumors 6502
Sep 29, 2020
453
527
Are you still interesting in patching this BIOS? I'm working on something similar.
Yes, I've been researching and testing this for some months now.
It's not just updating microcode or ME version, that's the "easy" part, but main problem seems to be the FSB and memory controller initialization, which are done straight from the CPU and different between architectures and cpu stepping.
Of course all help is very welcome, I'll publish here my findings on a few days.


jay508

macrumors regular
Jul 11, 2020
243
153

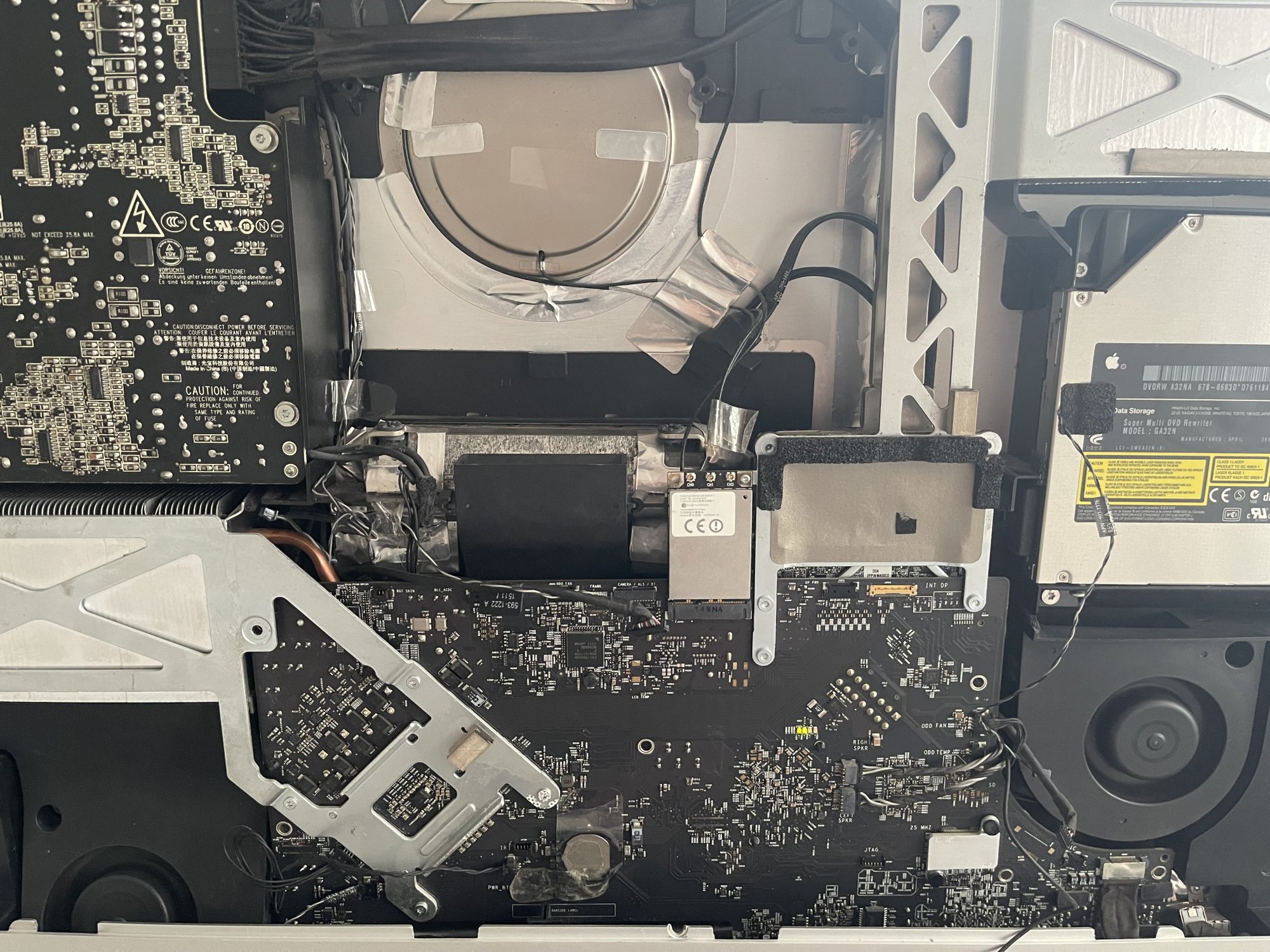

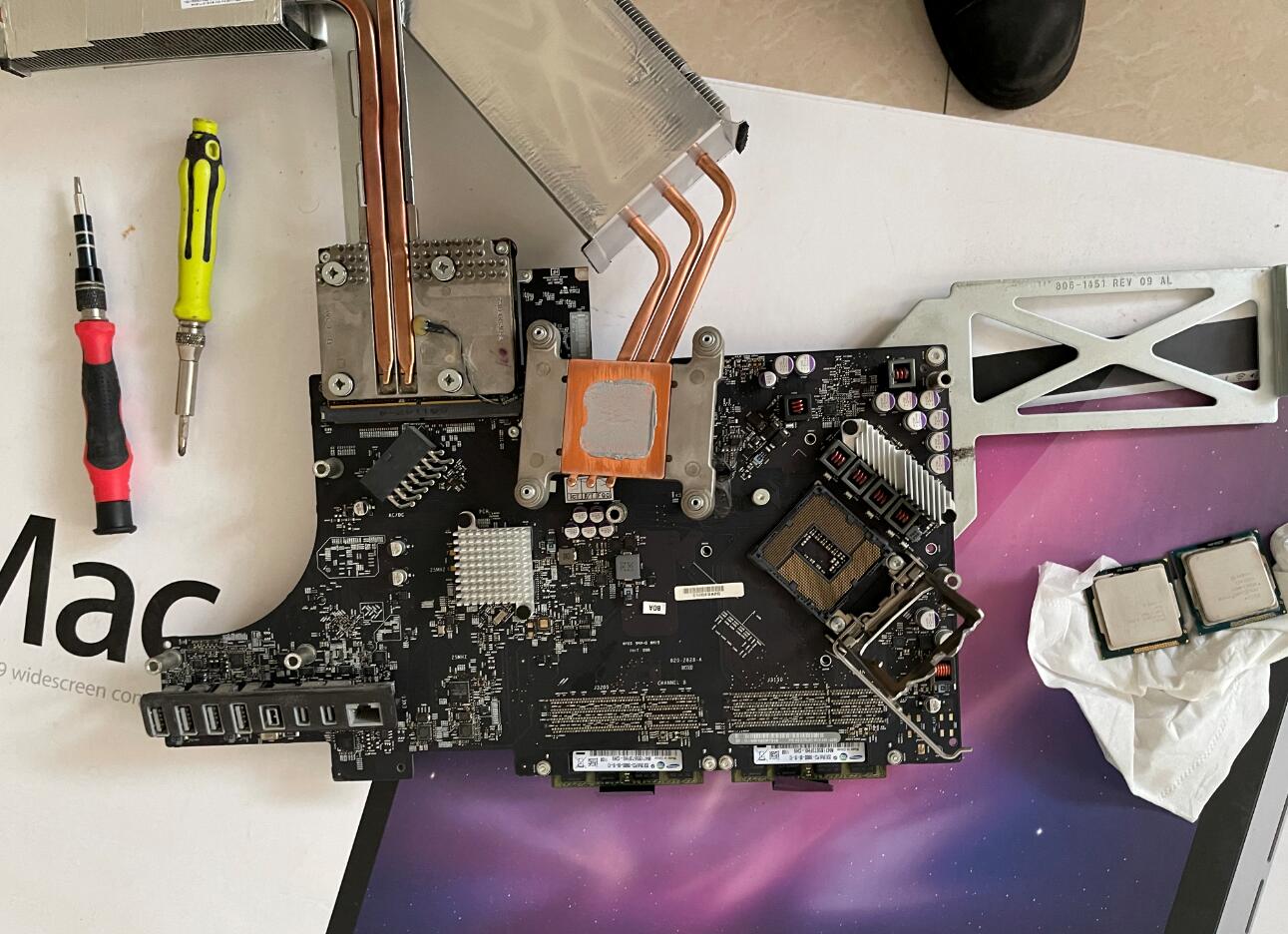

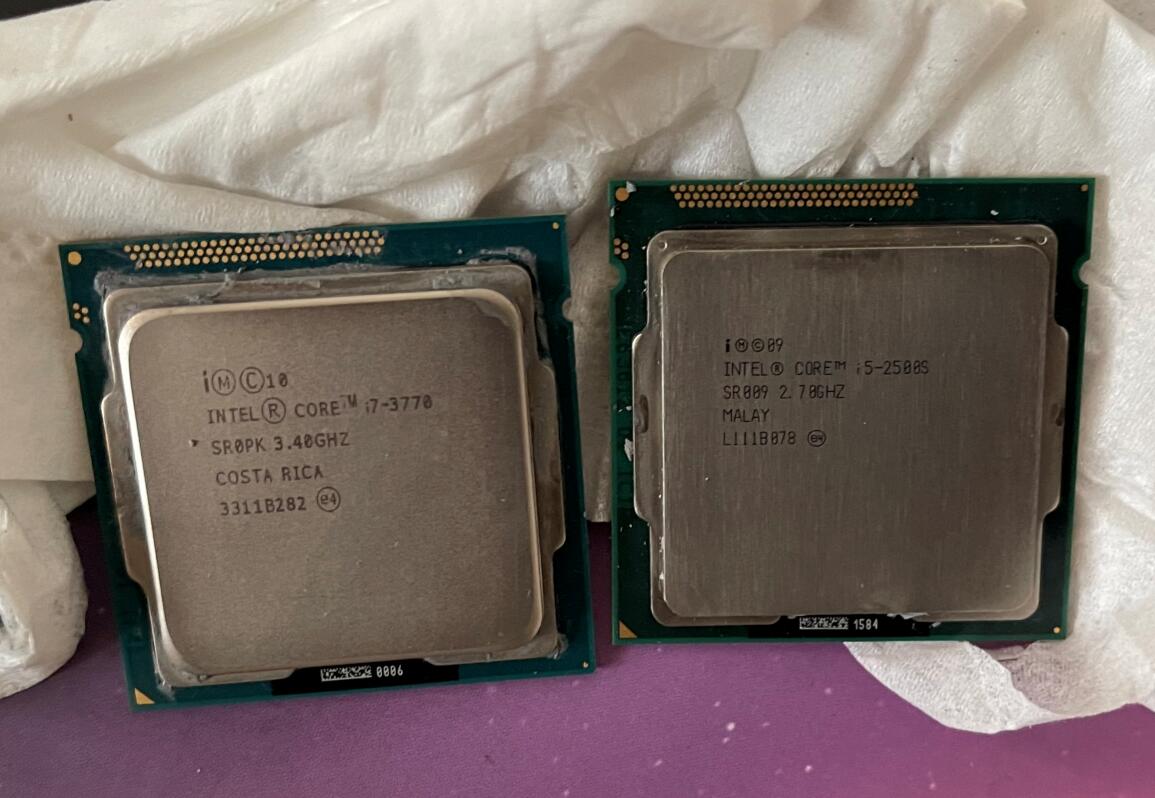

Today I upgraded my iMac 2011 27" i5 2500s with i7 2600 2700k and it works fine.

I got the machine system has been corrupted can not enter the system, installed the SSD with windows 10 system inserted into the boot to detect the bootrom version IM121.88Z.0047.B1D.111017110

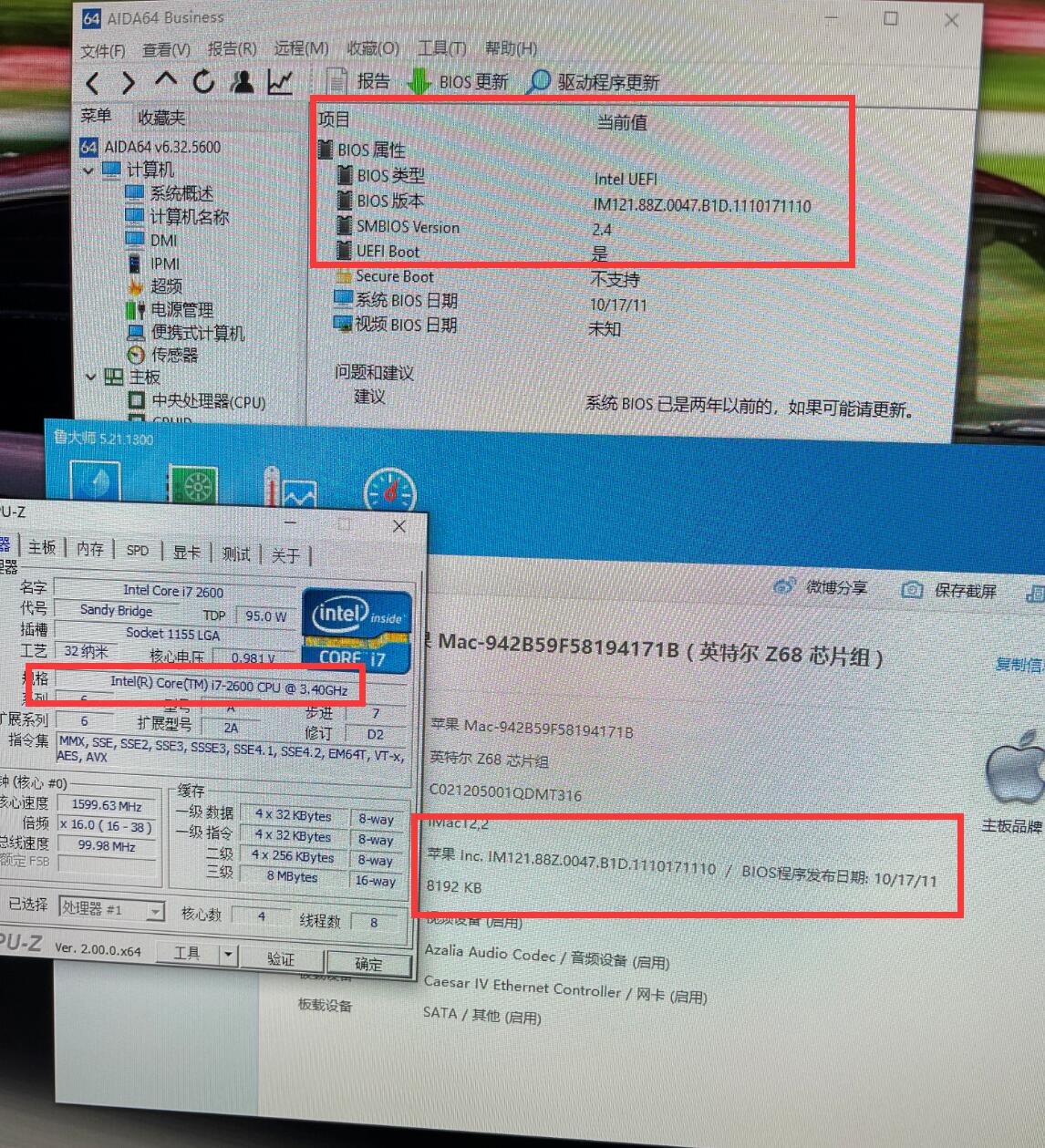

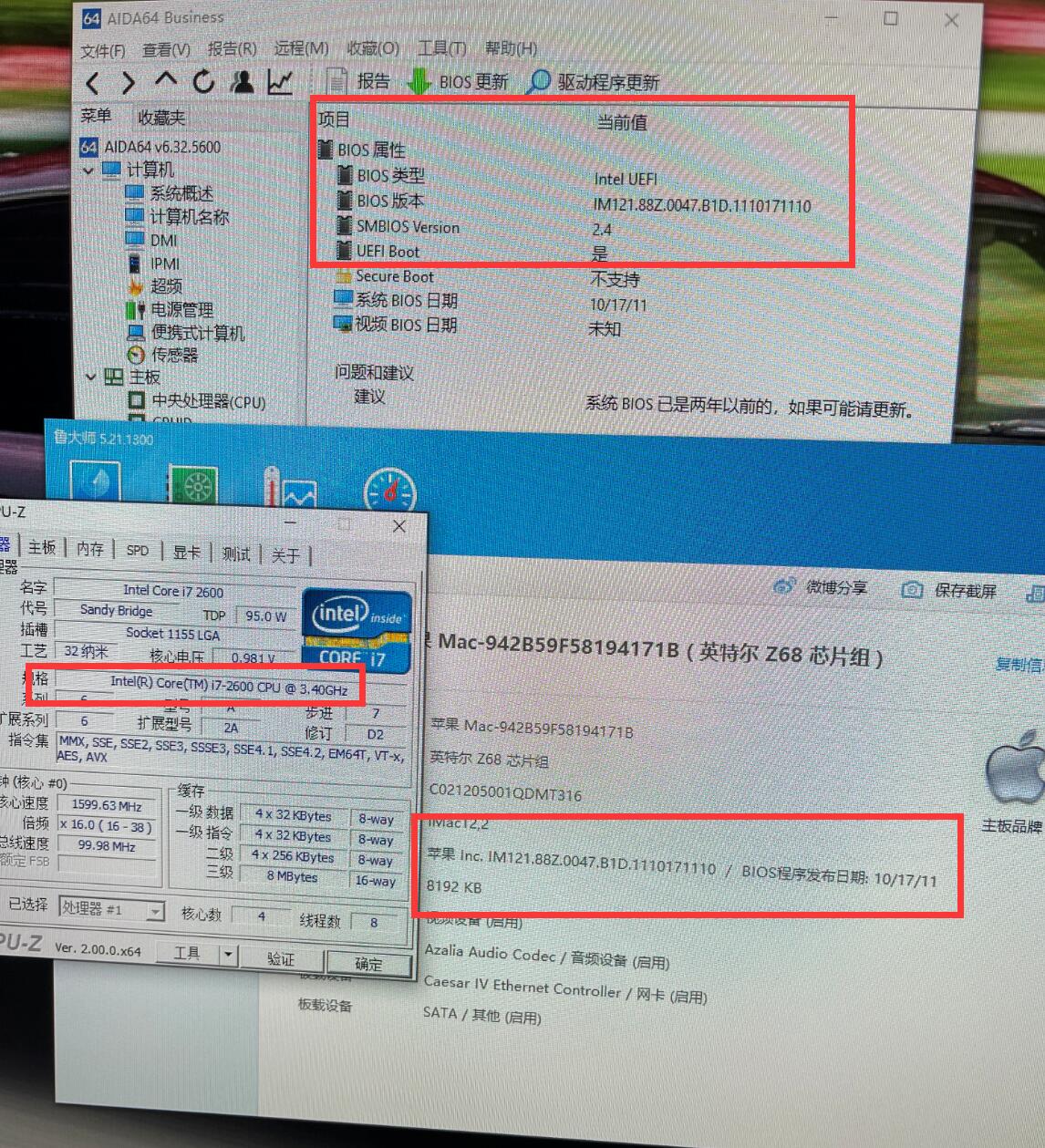

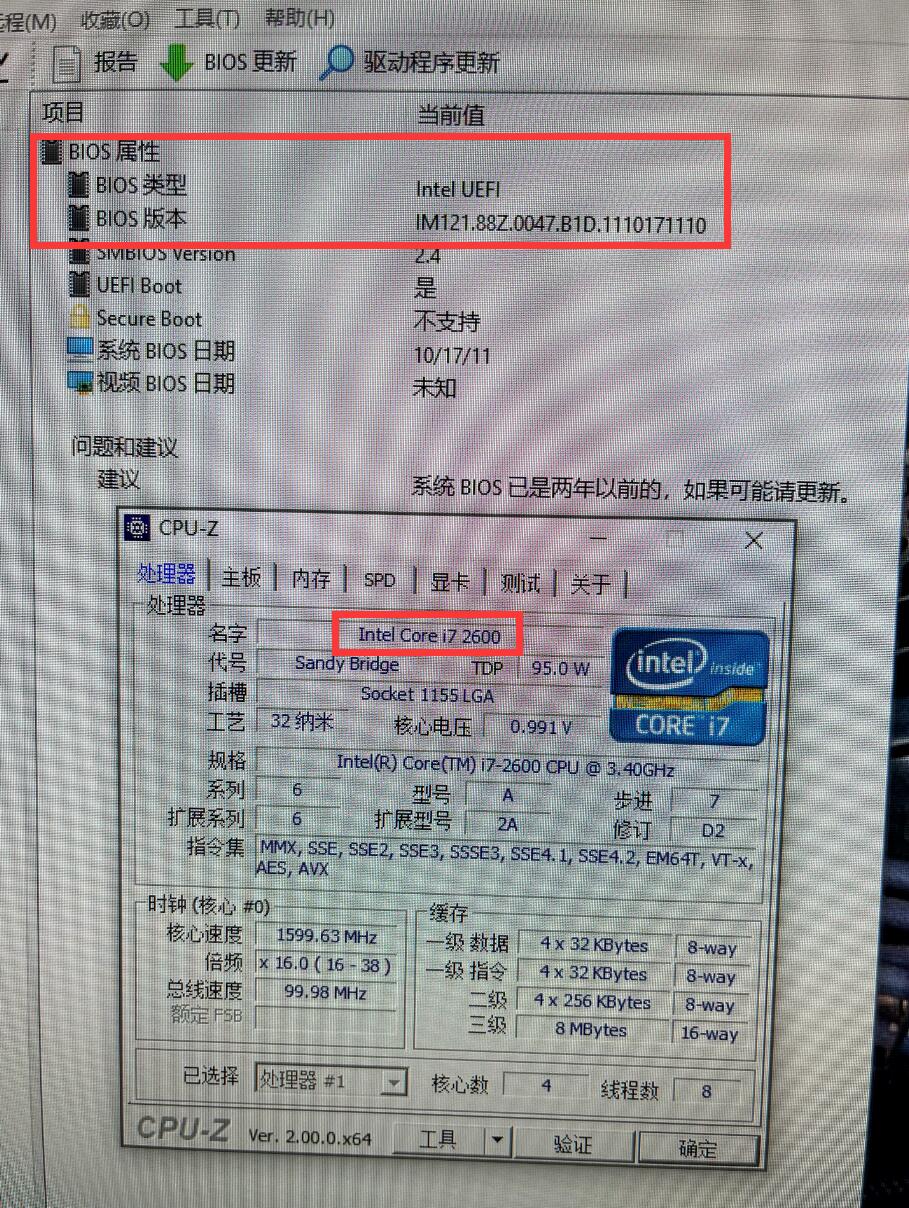

Check the bios version for the original version of 2011.10.17 system should also be the most original macOS 10.6.8 version.

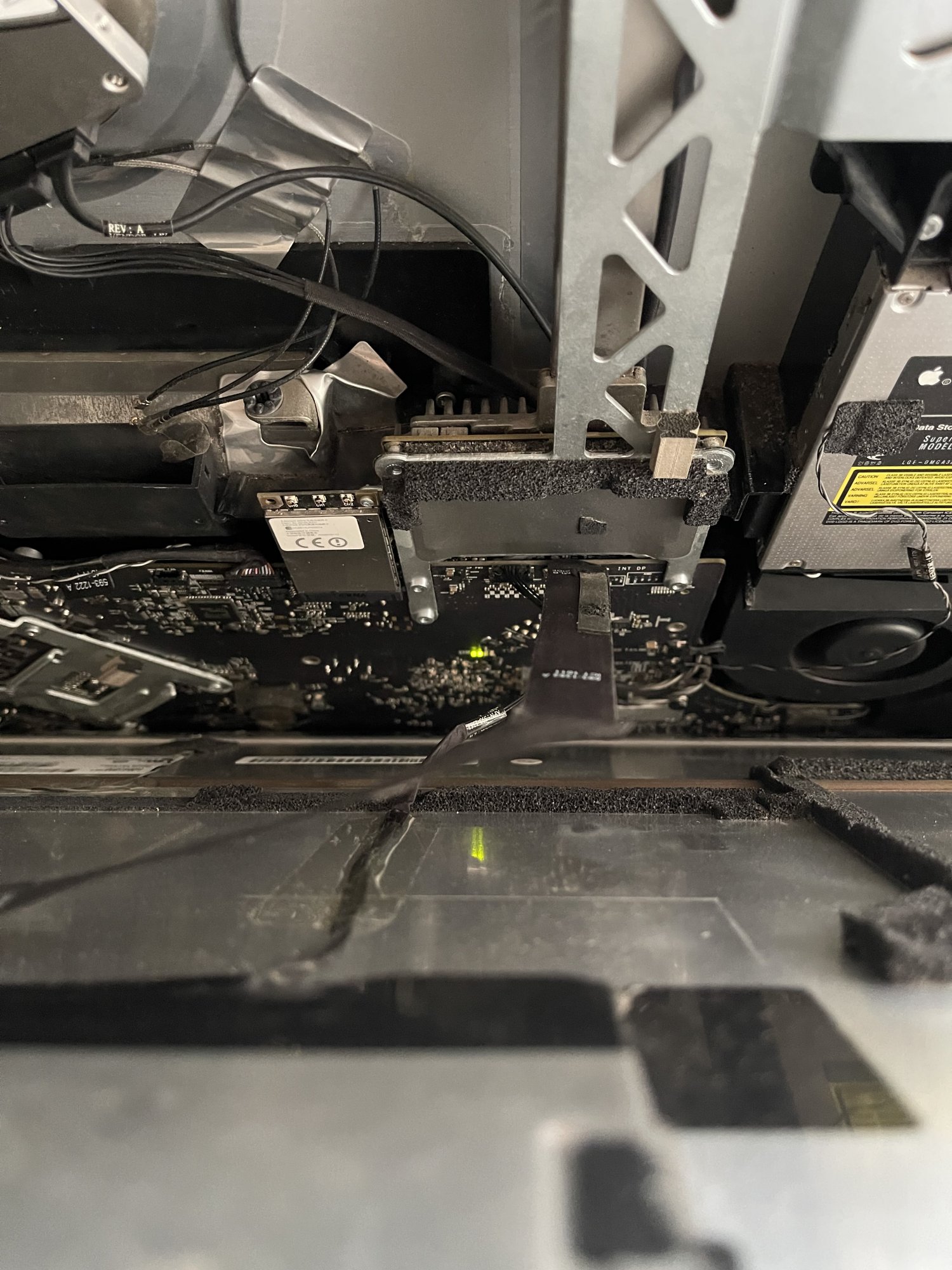

Replaced the i7 3700 boot normal power on the motherboard light front two LEDs, did not light up the screen is a pity, I talk about installing macOS version 10.7.2 to test whether the normal recognition of i7 3770.



Translated with www.DeepL.com/Translator (free version)


Attachments

  • 20220504233903.jpg
    97.2 KB · Views: 352
  • 20220504233936.jpg
    172.1 KB · Views: 282
  • 20220504234045.jpg
    303 KB · Views: 277
  • 20220504234145.jpg
    322.9 KB · Views: 282
  • IMG_3168.JPG
    651.7 KB · Views: 254
  • IMG_3170.JPG
    447.2 KB · Views: 214
  • IMG_3169.JPG
    618.2 KB · Views: 280
  • Like
Reactions: Ausdauersportler

jay508

macrumors regular
Jul 11, 2020
243
153

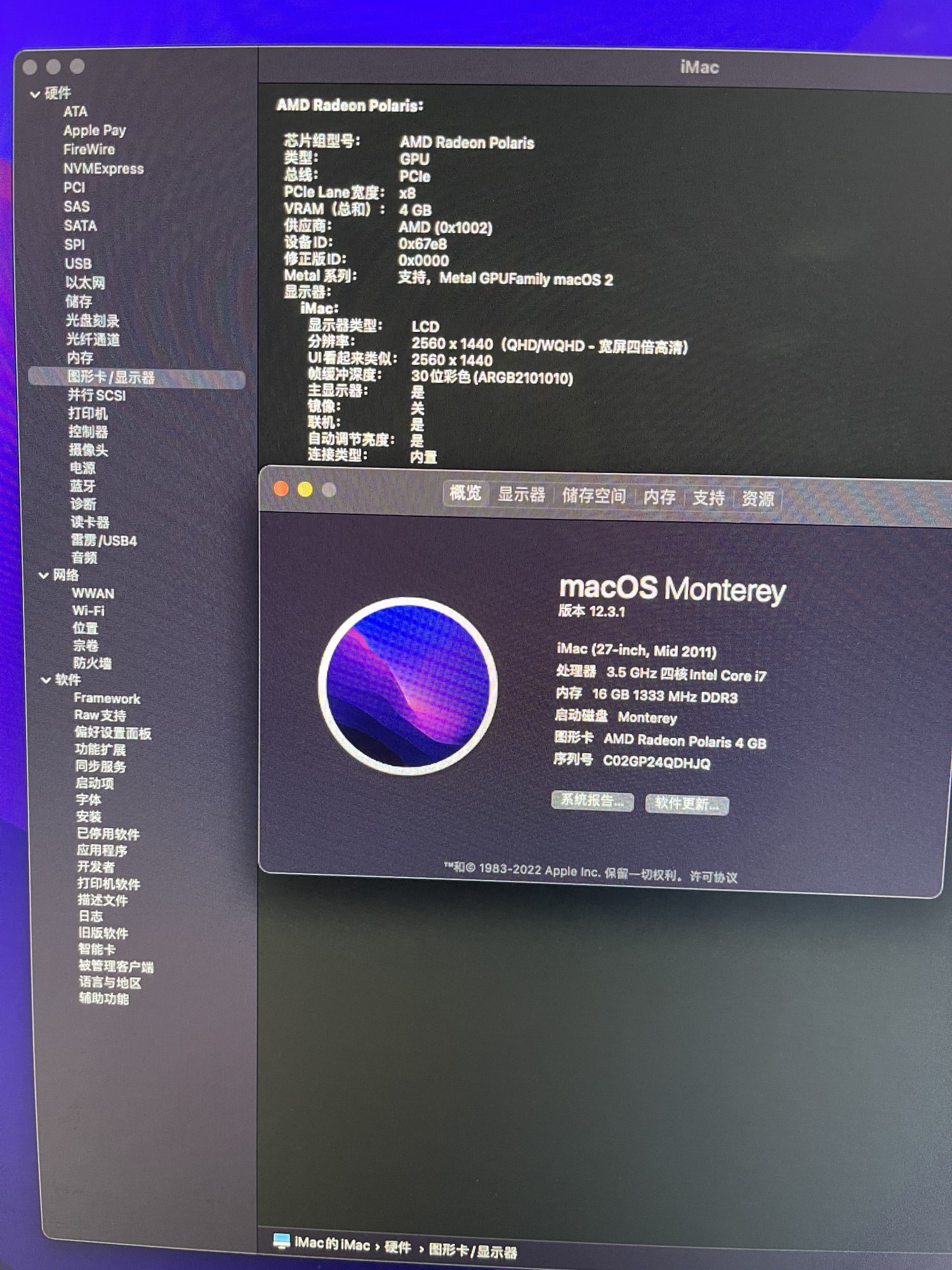

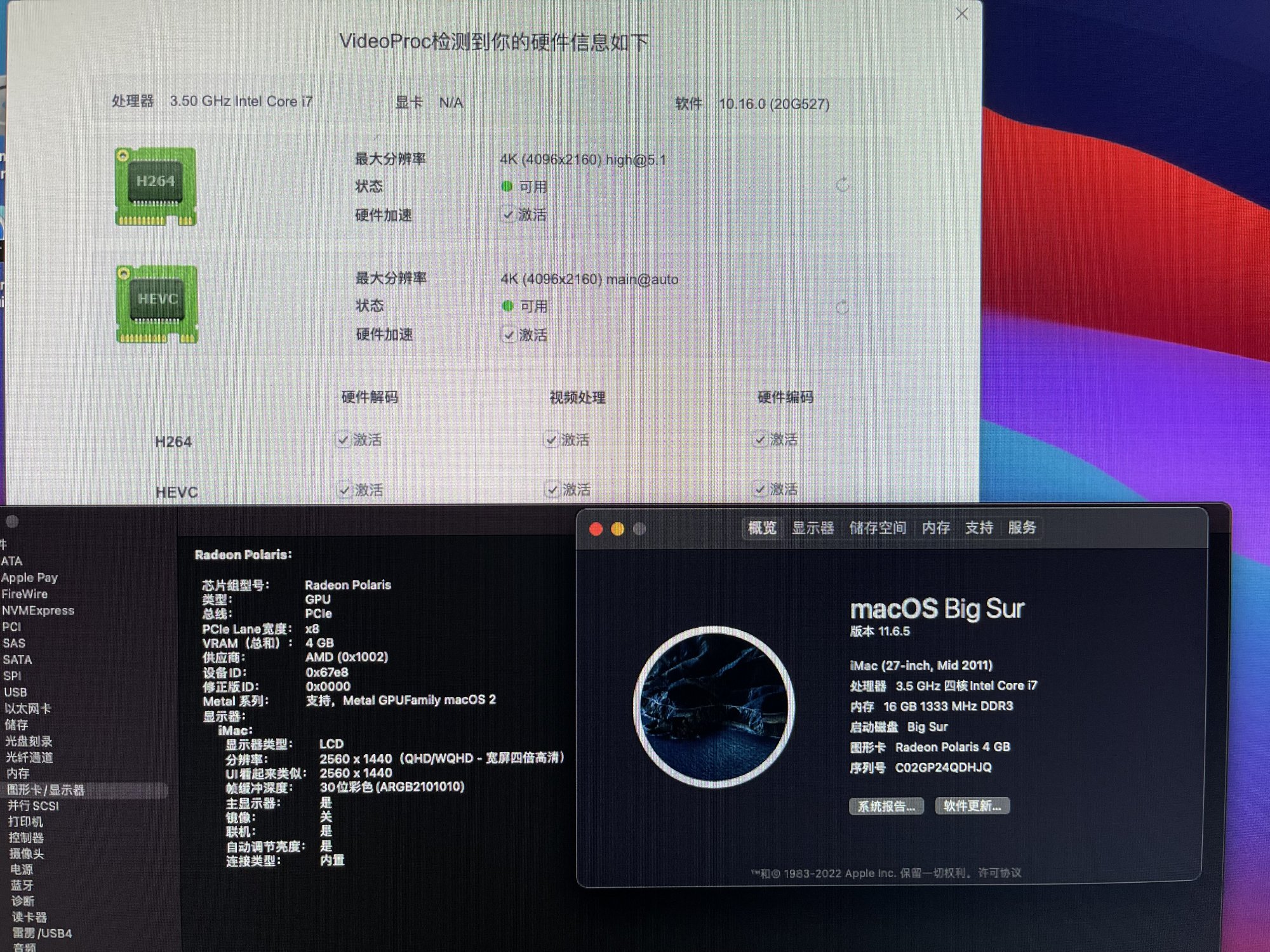

This is another model with i7 2700k wx4170 installed

Installed two SSDs, the first sata 2.5 inch SSD installed 10.13.6 and windows 10 system, the second SSD M.2 NGFF Samsung PM871A 1TB installed 11.6.5 12.3.1 system using all normal including sleep


Attachments

  • IMG_3182.JPG
    589 KB · Views: 244
  • IMG_3183.JPG
    759.3 KB · Views: 255

jay508

macrumors regular
Jul 11, 2020
243
153
Who can provide the original DMG image of lion 10.7.2 to install the file, too old to find.


Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
Who can provide the original DMG image of lion 10.7.2 to install the file, too old to find.

Cannot promise you will be able to use it, but I this may work. Additionally I have a series of original install media for some iMacs from 2009-2011.

Edit: Another link...

But both files may only work on systems already loaded with 10.6 or 10.7.

  • Like
Reactions: Aii

jay508

macrumors regular
Jul 11, 2020
243
153
Cannot promise you will be able to use it, but I this may work. Additionally I have a series of original install media for some iMacs from 2009-2011.

Edit: Another link...

But both files may only work on systems already loaded with 10.6 or 10.7.
Downloaded the certificate expired can not unzip the production of installation U disk installation, there is no image file can be made to install the U disk to install it?


Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
Downloaded the certificate expired can not unzip the production of installation U disk installation, there is no image file can be made to install the U disk to install it?
You may reset your system date and time (before Oct 24th 2019) to recover from expired certificates....

  • Like
Reactions: Aii

jay508

macrumors regular
Jul 11, 2020
243
153

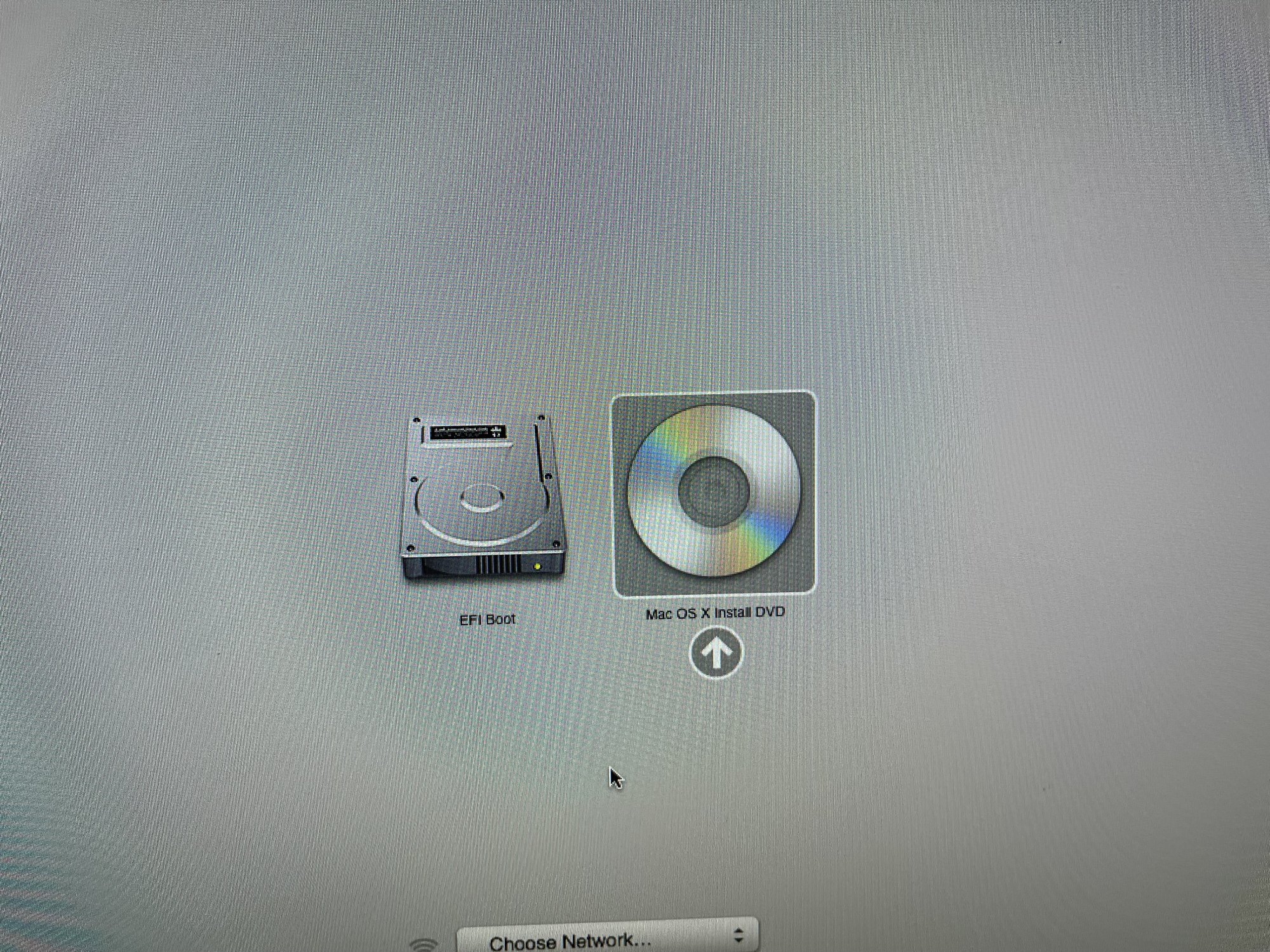

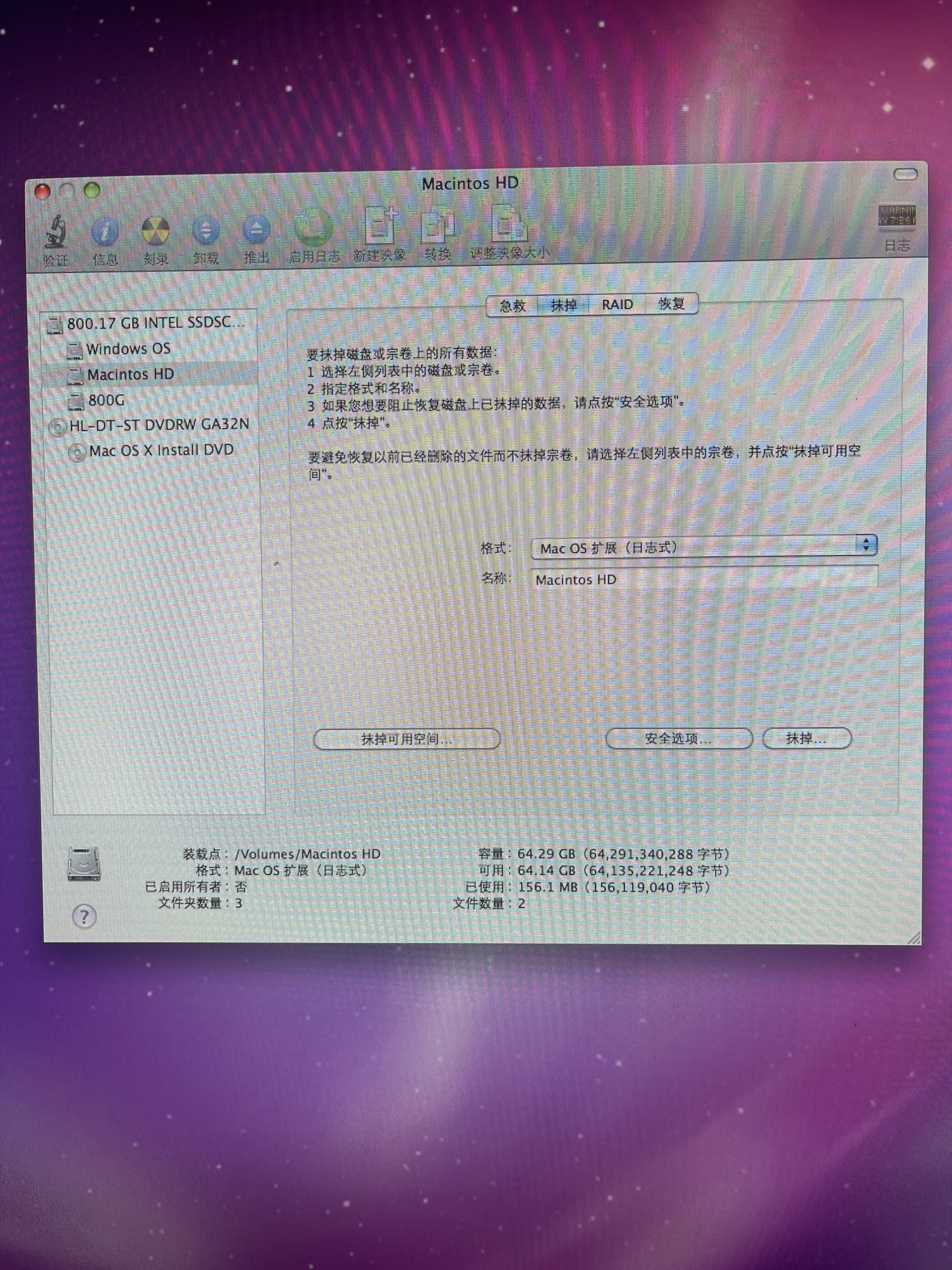

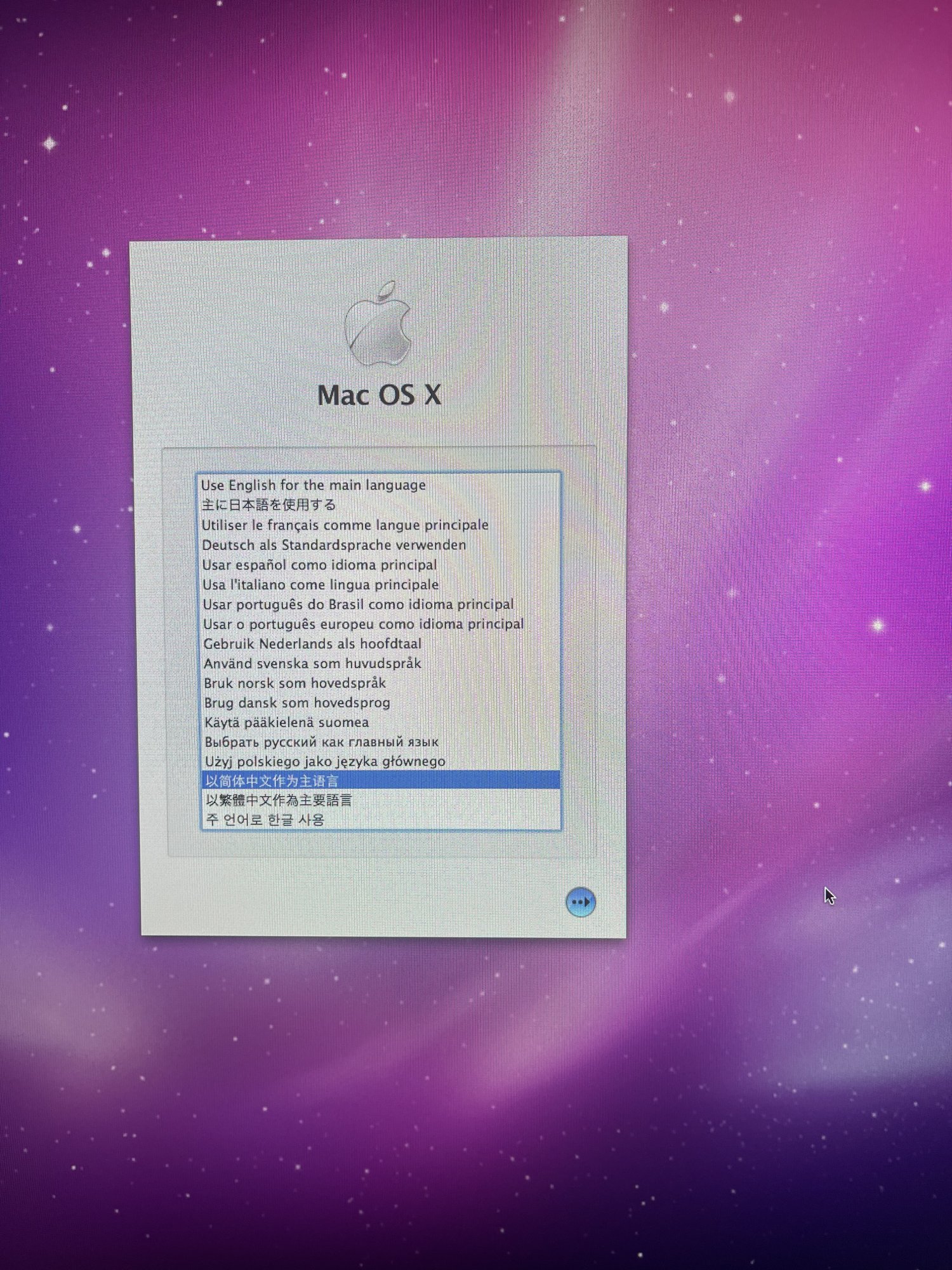

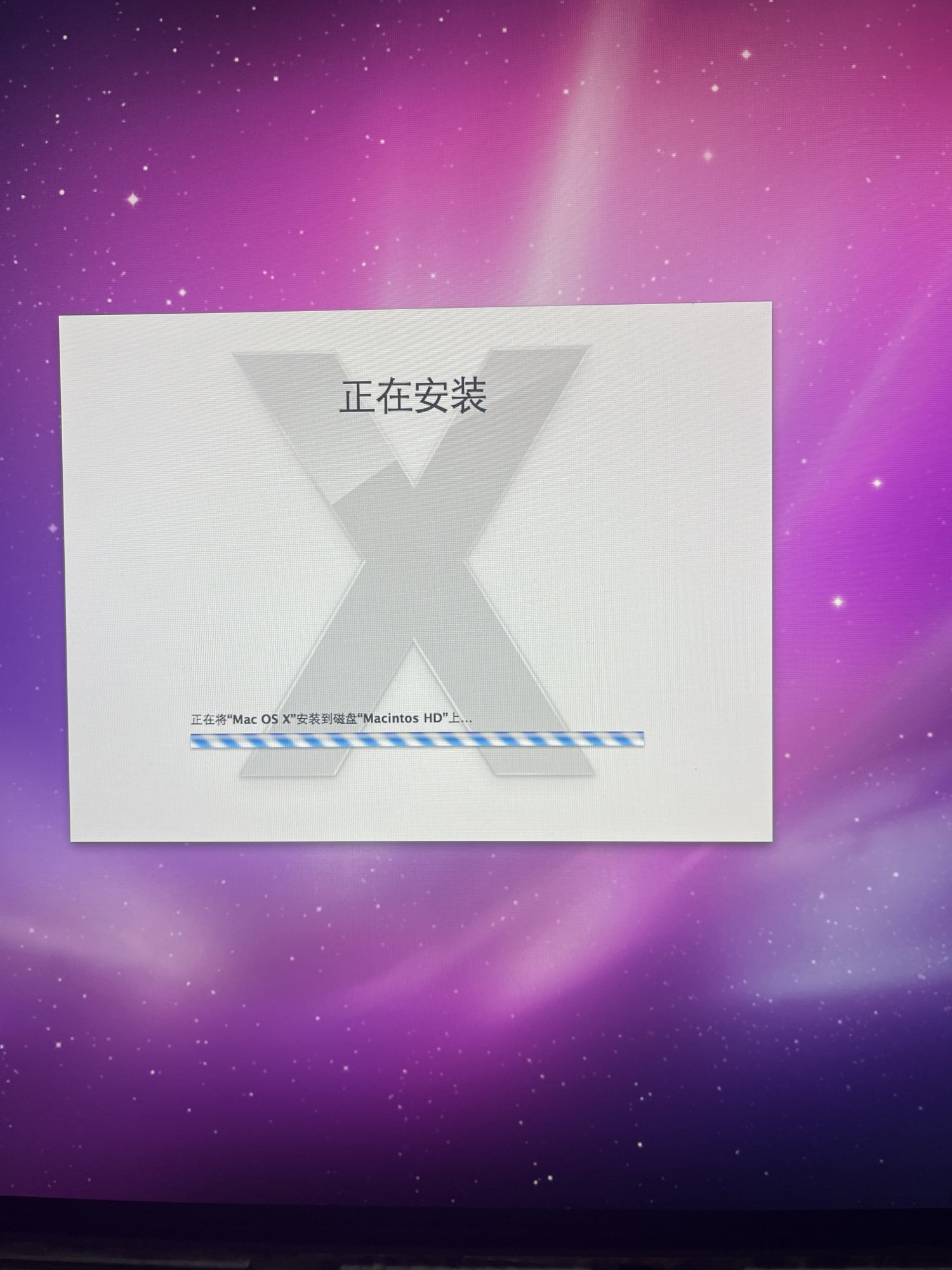

Found the original complimentary CD-ROM DVD to boot up and install the original system before upgrading to 10.7.


Attachments

  • IMG_3187.JPG
    1.1 MB · Views: 129
  • IMG_3188.JPG
    721.5 KB · Views: 138
  • IMG_3189.JPG
    830 KB · Views: 130
  • IMG_3190.JPG
    341.3 KB · Views: 121
  • Like
Reactions: Ausdauersportler

jay508

macrumors regular
Jul 11, 2020
243
153
You may reset your system date and time (before Oct 24th 2019) to recover from expired certificates....

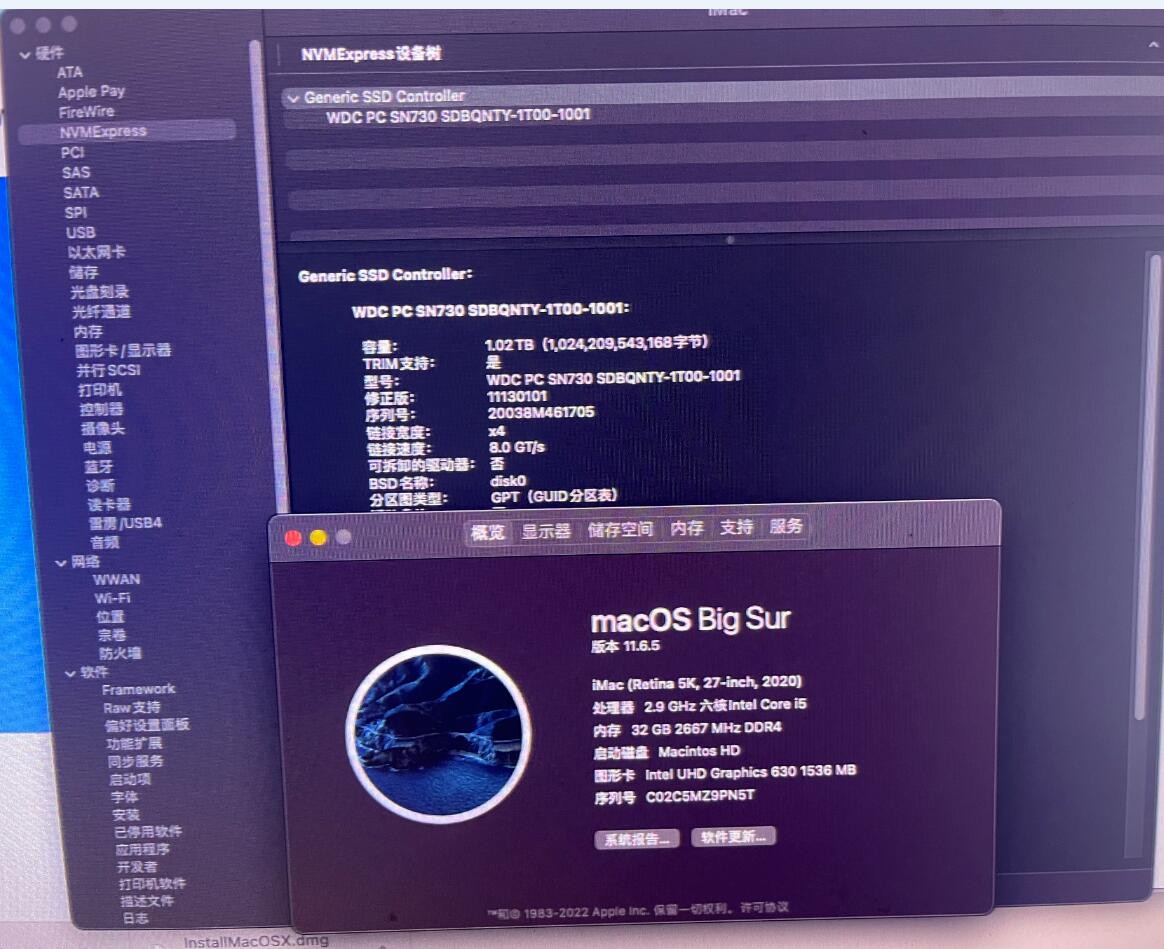

Using the Black Apple model has nvme SSD 1T SSD USB3.1 interface plug USB3.1 interface U disk production and installation read and write faster.

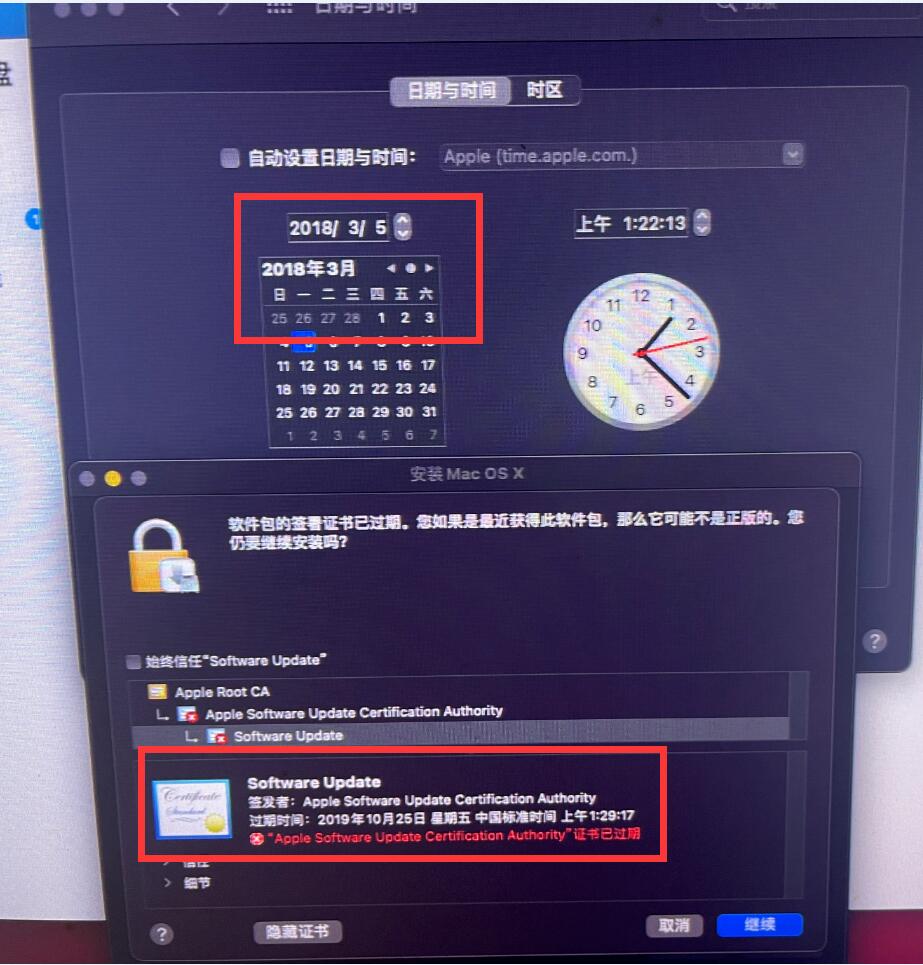

Modify the system time to open the certificate or the past can not decompress the production and installation of U disk.

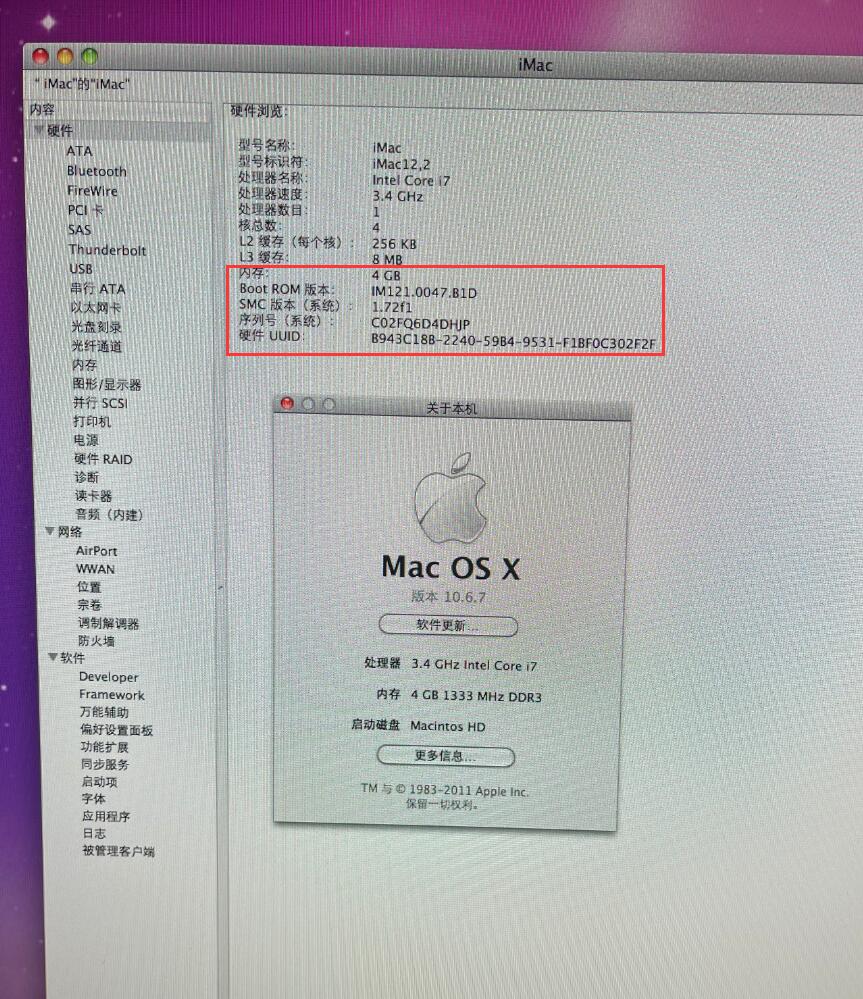

Installed the 10.6.7 system through the original CD-ROM boot, now how to upgrade to 10.7.2 system?


Attachments

  • 20220505013227.jpg
    163.8 KB · Views: 191
  • 20220505012400.jpg
    126.6 KB · Views: 200
  • 20220505012433.jpg
    99.3 KB · Views: 190

jay508

macrumors regular
Jul 11, 2020
243
153
Can you confirm that your iMac booted the i3770 with two green led?
Yes I'm pretty sure it was the i7 3770 motherboard that lit up the front two LEDs screen without any display, I replaced the i5 2500s now it's the i7 2600 installed with the original 10.6.7.

i7 2600 i7 2700k i7 3770 i7 4790 I have it all!


Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
Yes I'm pretty sure it was the i7 3770 motherboard that lit up the front two LEDs screen without any display, I replaced the i5 2500s now it's the i7 2600 installed with the original 10.6.7.

i7 2600 i7 2700k i7 3770 i7 4790 I have it all!
So please do not update the macOS!

First save the firmware! Boot from an external USB disk with High Sierra installed and use the Romtool to save it. You need to disable SIP from the recovery in advance.

  • Like
Reactions: Aii

jay508

macrumors regular
Jul 11, 2020
243
153
First of all: Do not upgrade! You may update the firmware and loose the ability to boot the i7 3770.
Just used the oldest macOS version you can get!

Second: Dump the current firmware and save it.

--

The internet archive has most old images, like this:

macOS Lion 10.7

macOS Snow Leopard 10.6.7

Use an 8GB FAT32 USB and Balena etcher to create an USB installer.

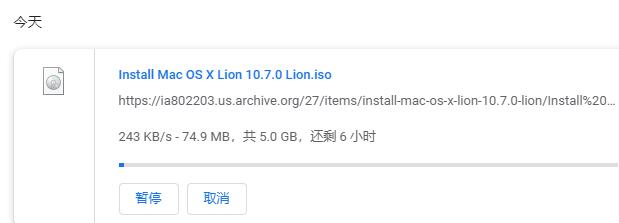

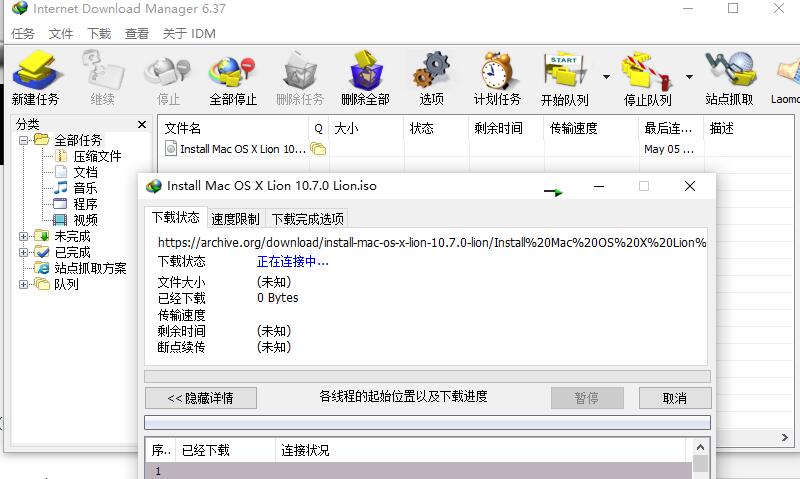

Tried a variety of download tools are too slow only Google Chrome can download but too slow only poor 200kb / s or so

The normal speed of my broadband is 50mb/s, and this speed is a torture.


Attachments

  • 20220505014632.jpg
    10.3 KB · Views: 111
  • 20220505014610.jpg
    60.3 KB · Views: 104

jay508

macrumors regular
Jul 11, 2020
243
153
Cannot promise you will be able to use it, but I this may work. Additionally I have a series of original install media for some iMacs from 2009-2011.

Edit: Another link...

But both files may only work on systems already loaded with 10.6 or 10.7.

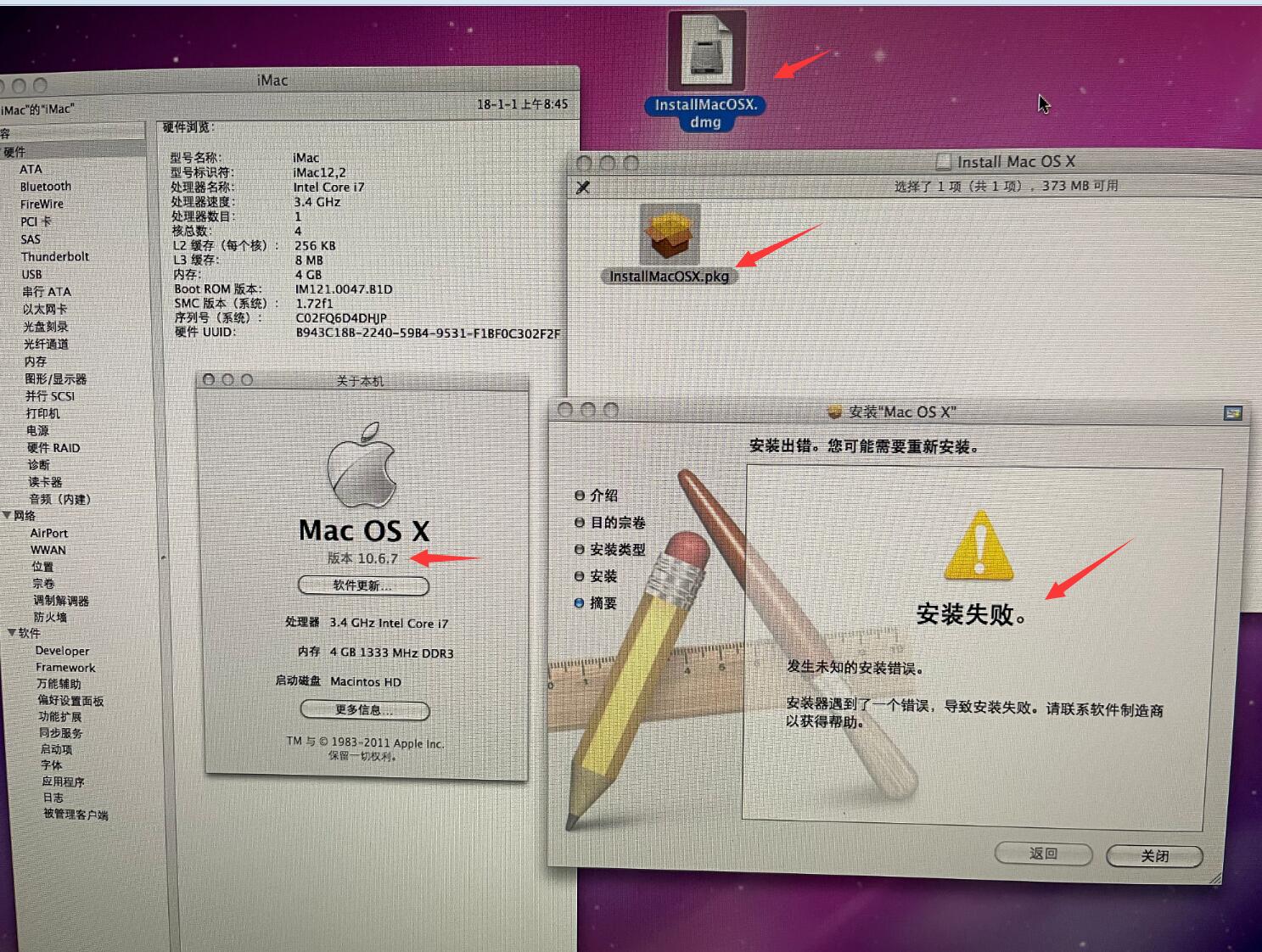

10.6.7 system under the direct installation upgrade error installation failure


Attachments

  • 20220505021127.jpg
    352.8 KB · Views: 136

jay508

macrumors regular
Jul 11, 2020
243
153

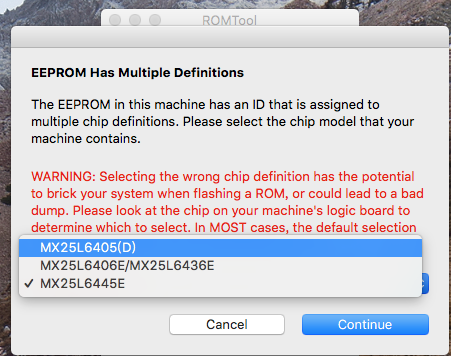

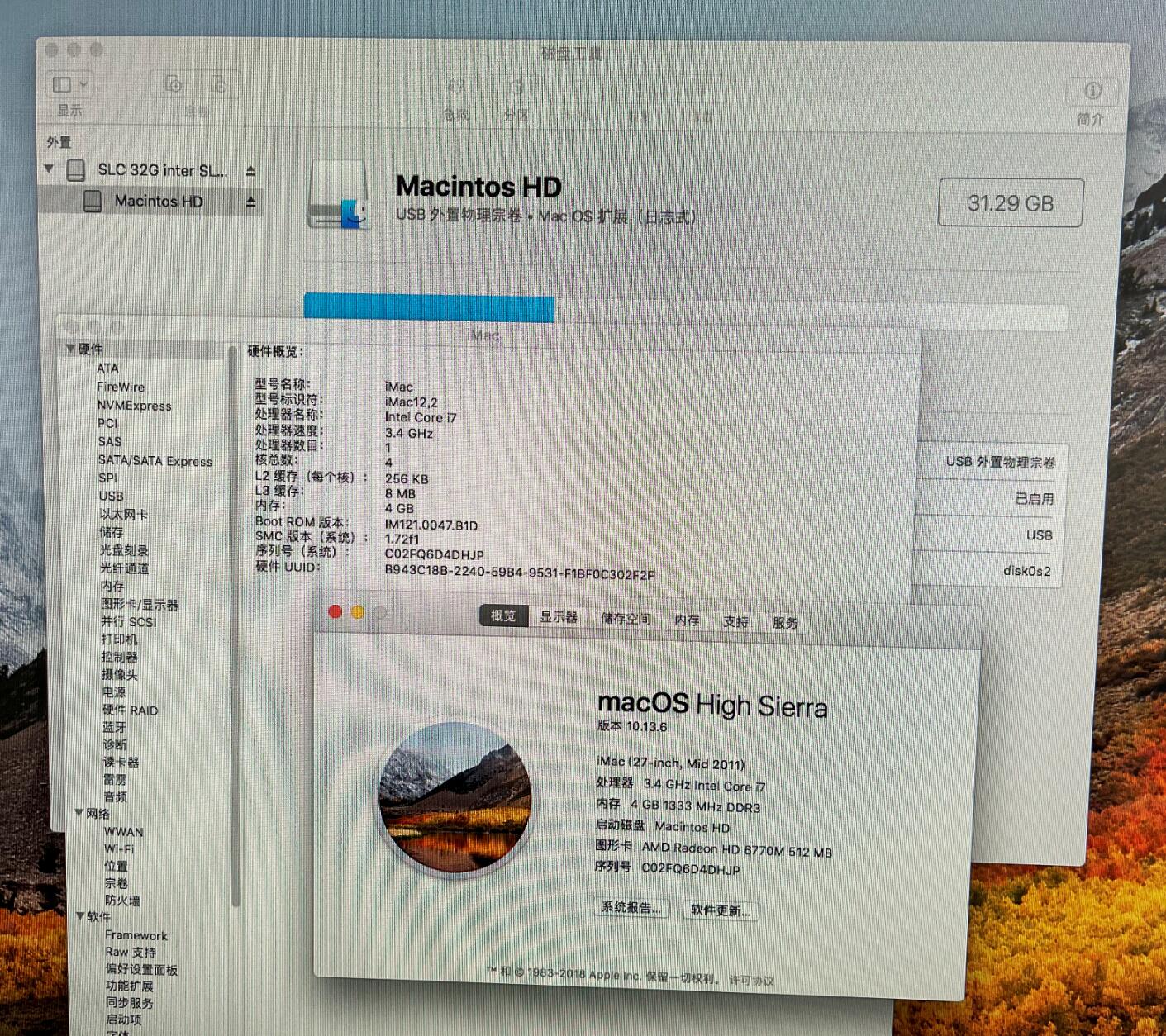

Using USB 3.0 32G USB flash drive to create 10.13.6 boot disk into the system backed up IM121.0047.B1D firmware romtool recognized as three chip models, respectively, are backed up with notes.


Attachments

  • 2022-05-04 下午10.17.45.png
    2022-05-04 下午10.17.45.png
    92 KB · Views: 160
  • 1.jpg
    446.2 KB · Views: 171
  • IM121.0047.B1D.zip
    10.5 MB · Views: 105
  • Like
Reactions: m0bil and man132

jay508

macrumors regular
Jul 11, 2020
243
153

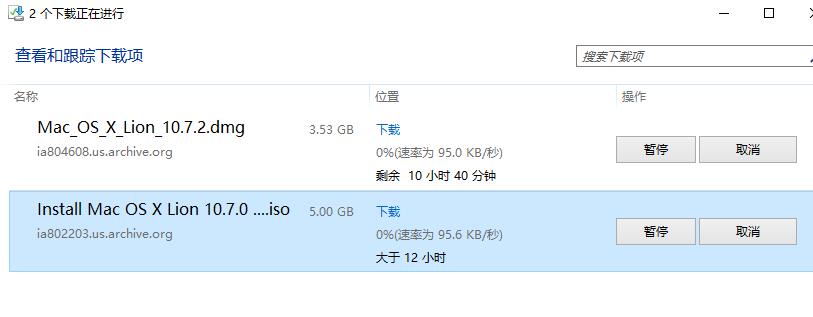

Who can provide
Mac OS X Lion 10.7.2 (11C74)
Mac OS X Lion 10.7 (11A511)
A link to a faster download address for the original image

These two addresses are too slow to try a variety of download tools are interrupted on the way. Only a poor 150-200kb/s, my broadband normal modest is 50mb/s speed.

Translated with www.DeepL.com/Translator (free version)


Attachments

  • 20220505150704.jpg
    21.4 KB · Views: 110

Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
Using USB 3.0 32G USB flash drive to create 10.13.6 boot disk into the system backed up IM121.0047.B1D firmware romtool recognized as three chip models, respectively, are backed up with notes.
All the three files are the same, there is a simple terminal command called diff to check this:
Code:
% diff file1 file2
%
If you get no output printed both binary/text files are the same, otherwise differences are print out for text files and for binary files a line like this will be shown:
Code:
% diff file1 file2
binary files file1 and file2 differ
%
Normally I do the same when saving the firmware using Romtool, then perform the comparison and delete all duplicates. I have never found a difference from different chip definitions, but never say never…

  • Like
Reactions: Aii

jay508

macrumors regular
Jul 11, 2020
243
153

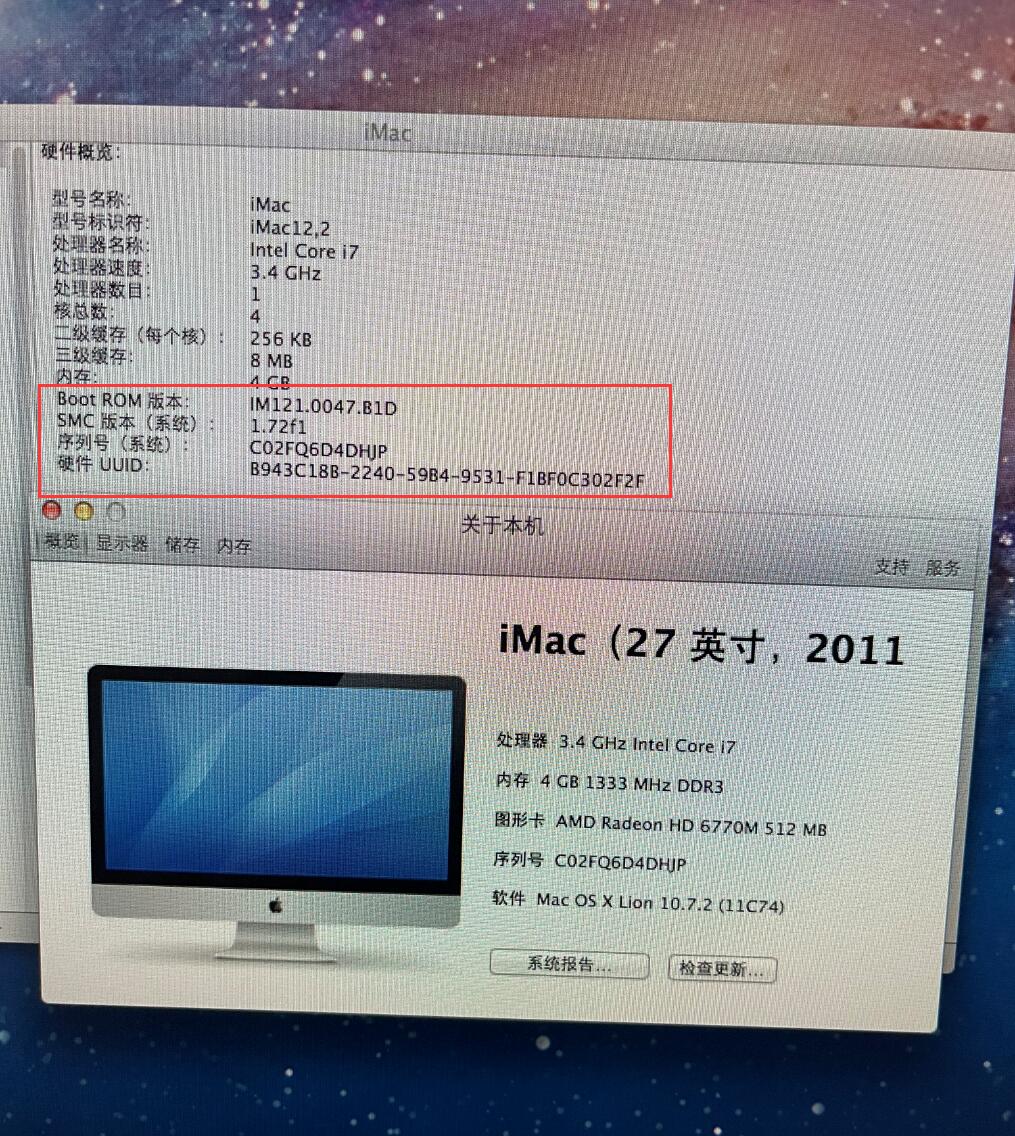

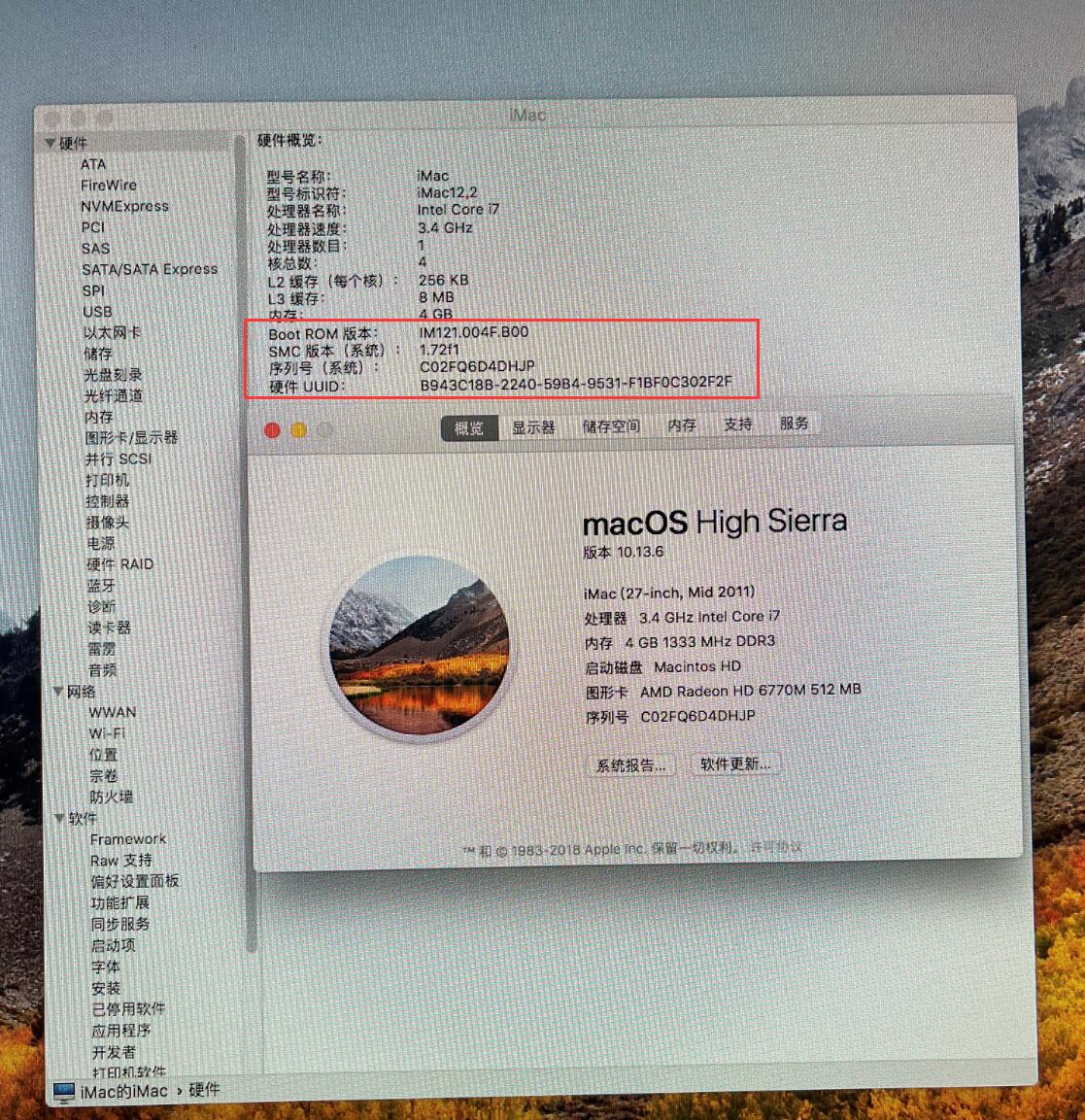

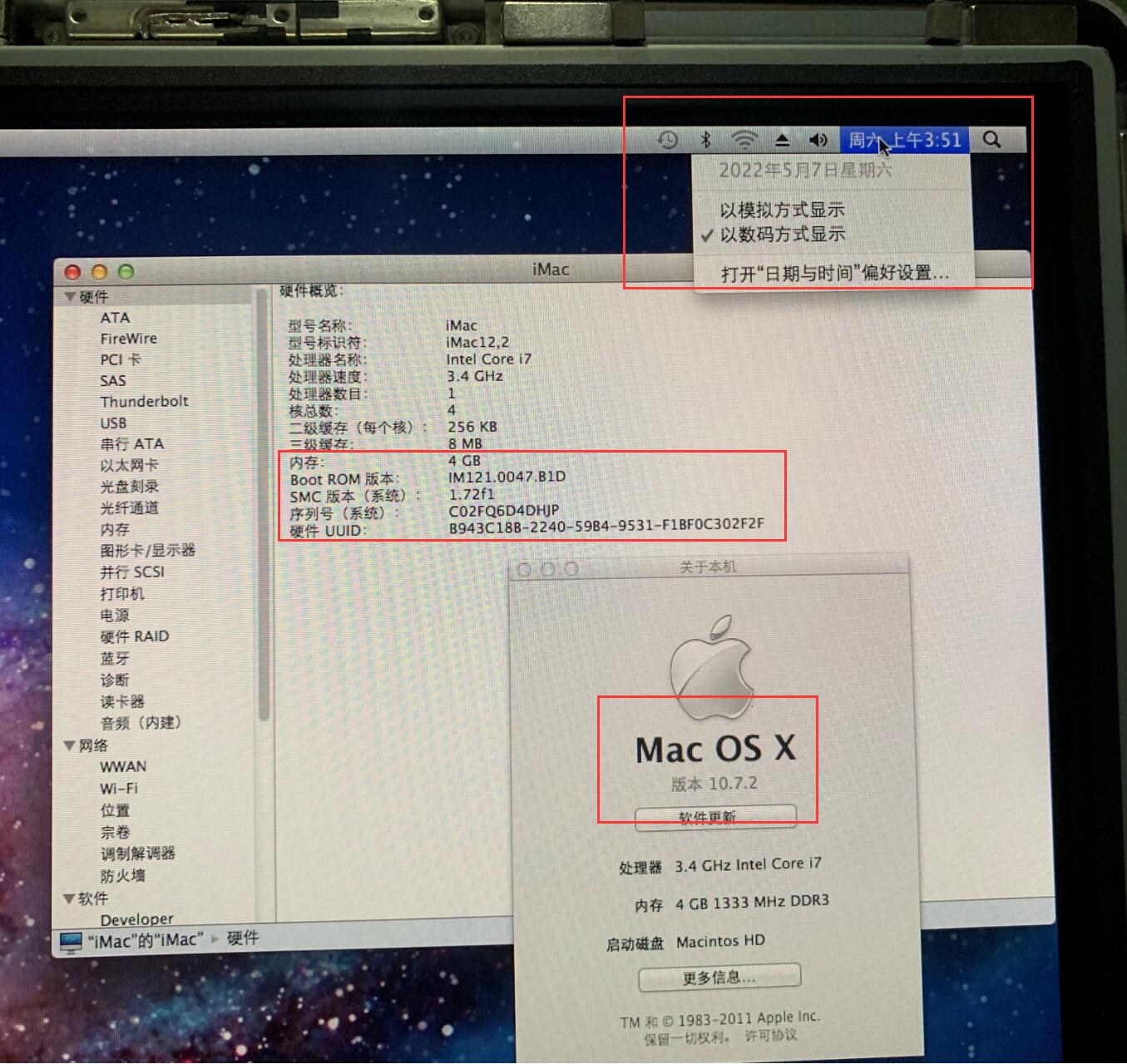

Installed 10.7.2 system respectively Checked bootrom firmware did not change to keep IM121.0047.B1D

10.13.6 changed the bootrom firmware result is still the same.

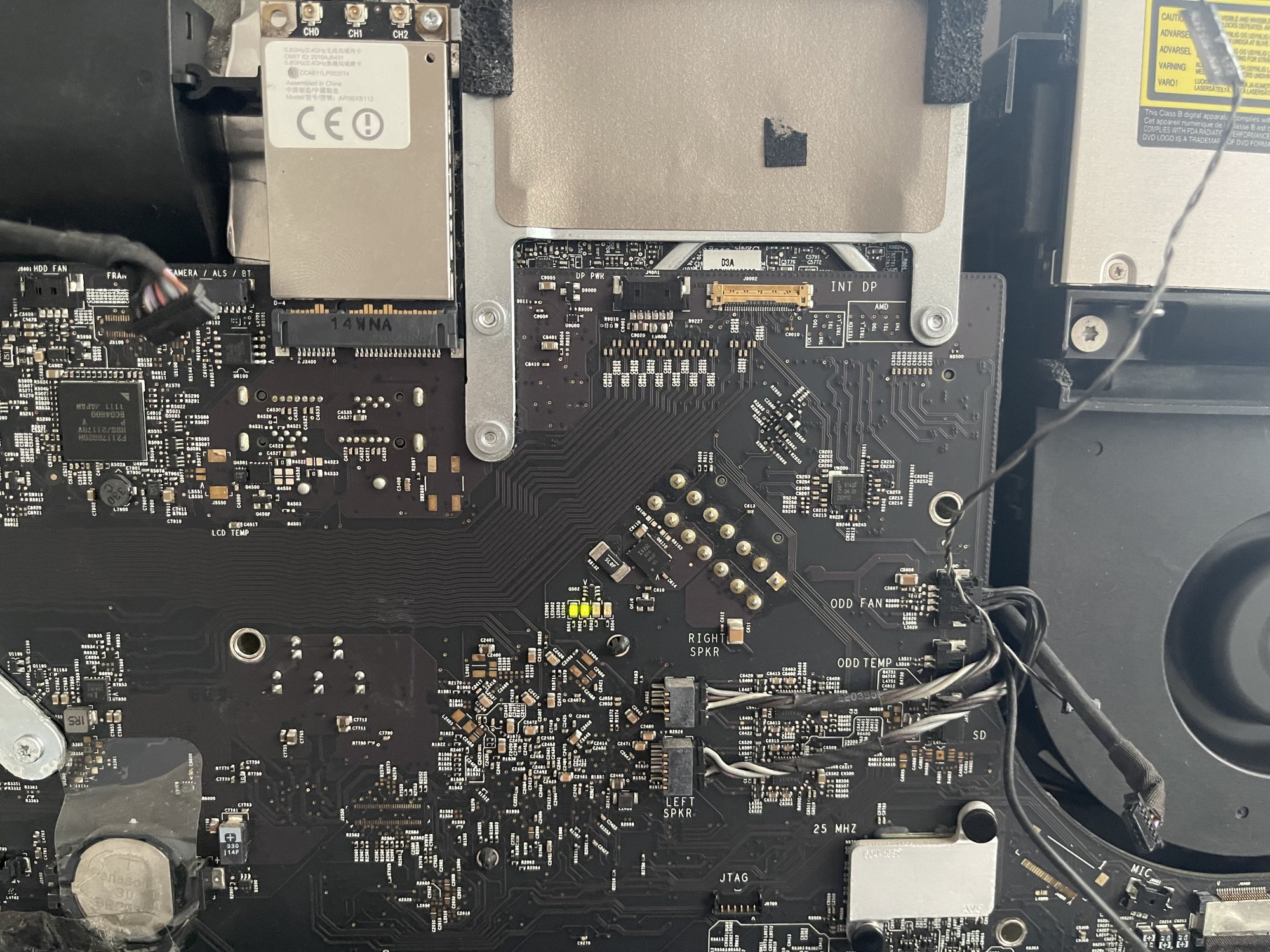

Both systems are the same result replacing the i7 3770 boot only the two LEDs on the front of the motherboard

I guess the bootrom firmware is included in the image installation file and the bootrom is upgraded when the system is installed and upgraded.

Translated with www.DeepL.com/Translator (free version)


Attachments

  • 2.jpg
    302.7 KB · Views: 174
  • 1.jpg
    265.3 KB · Views: 232

Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
Yes, the firmware updates are included within the macOS updates.

We are looking for a way to find the mysterious version IM121.0047.B1G (which is slightly newer than the IM212.0047.B1D you found). I guess one has to find this macOS 10.8.1 update to get it from the B1G.

But I have not much hope and believe the post made back in 2012 is a complete scam.

Edit:

Apple published in 2021 the Mountain Lion 10.8 installer...maybe an update from the original 10.6.x DVD version you had will bring you to this B1G firmware level? You would have to flash back the old firmware using a CH341A clip using flashrom.

Last edited:
  • Like
Reactions: Aii

jay508

macrumors regular
Jul 11, 2020
243
153
Yes, the firmware updates are included within the macOS updates.

We are looking for a way to find the mysterious version IM121.0047.B1G (which is slightly newer than the IM212.0047.B1D you found). I guess one has to find this macOS 10.8.1 update to get it from the B1G.

But I have not much hope and believe the post made back in 2012 is a complete scam.

Edit:

Apple published in 2021 the Mountain Lion 10.8 installer...maybe an update from the original 10.6.x DVD version you had will bring you to this B1G firmware level? You would have to flash back the old firmware using a CH341A clip using flashrom.

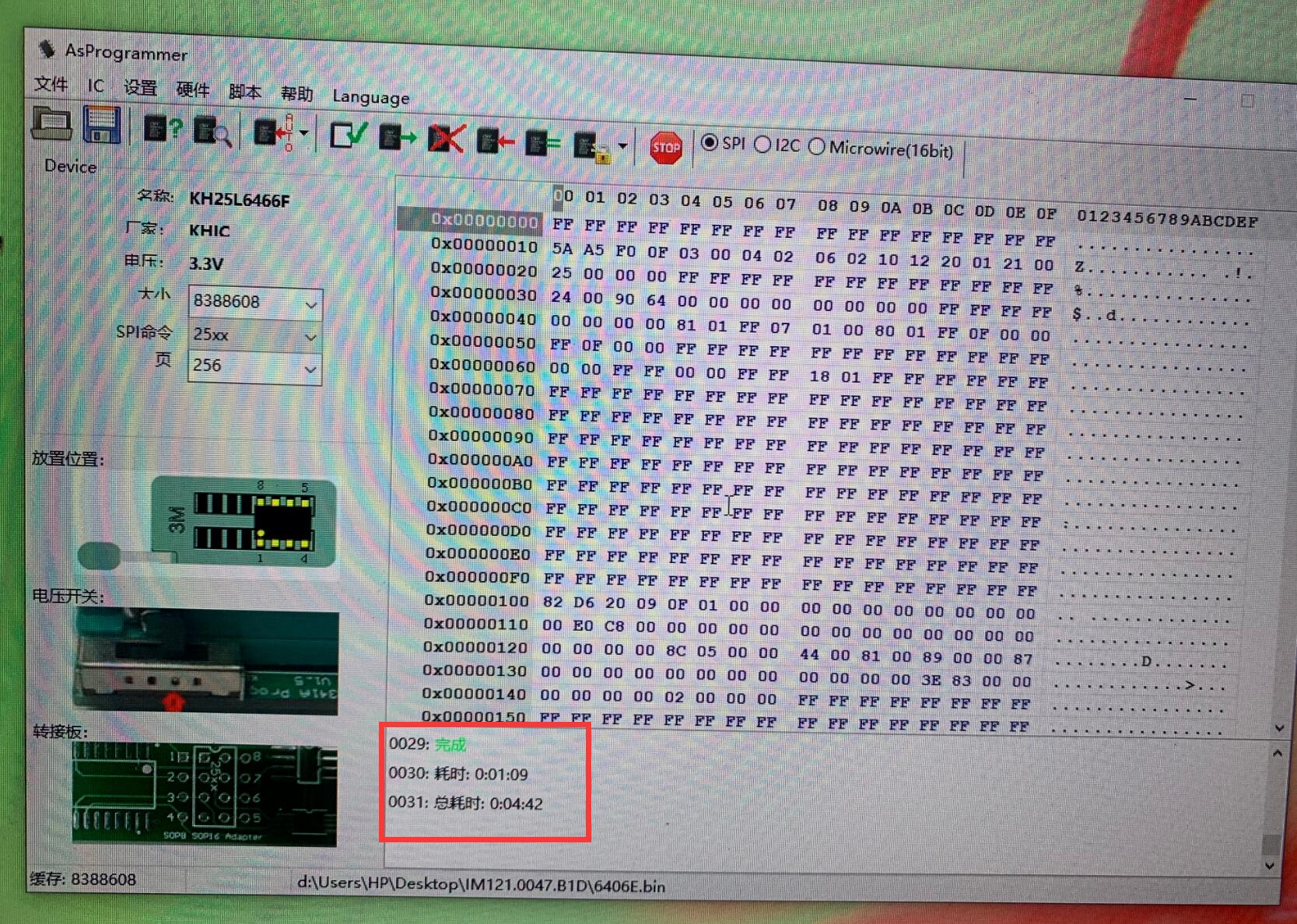

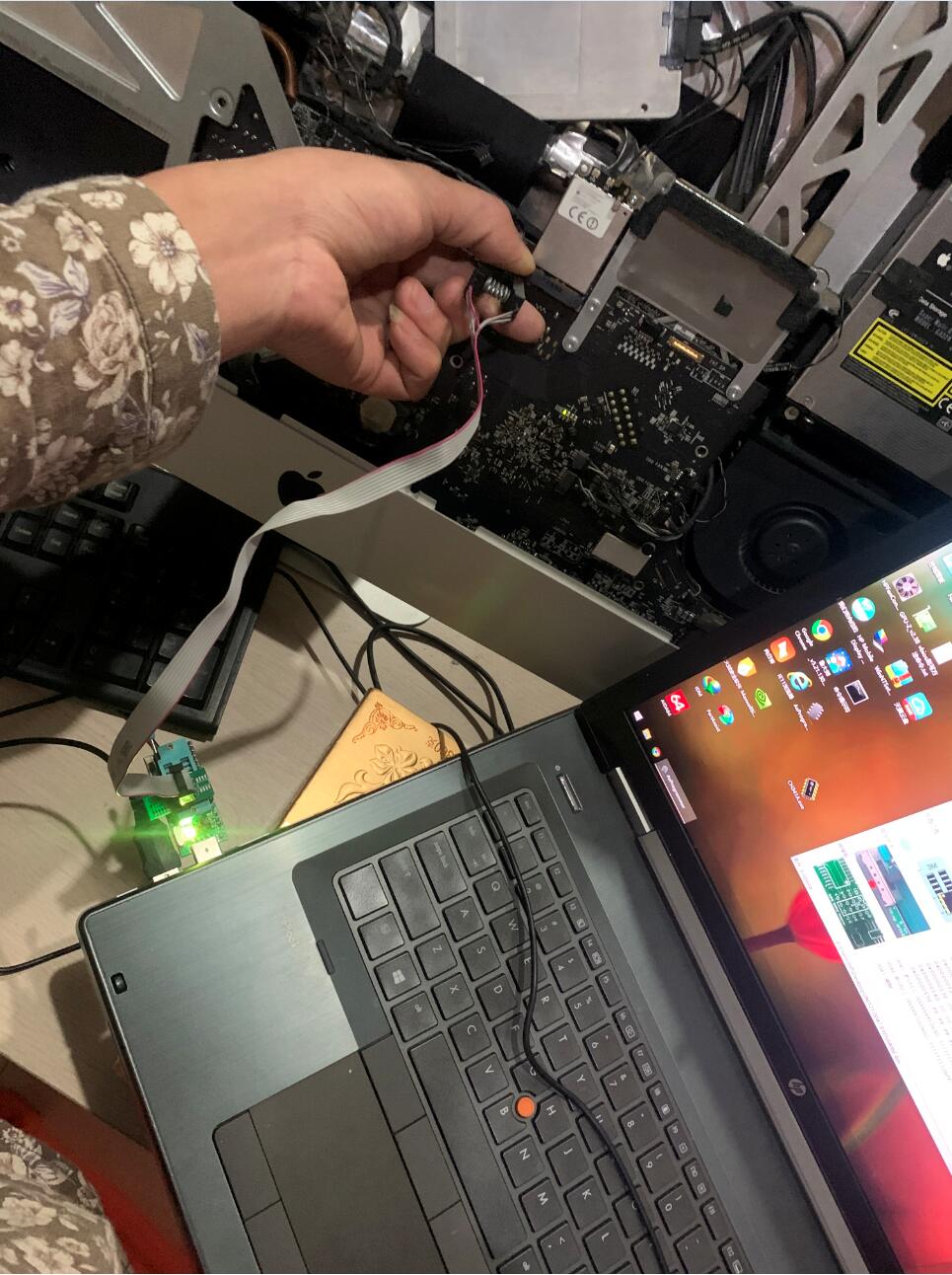

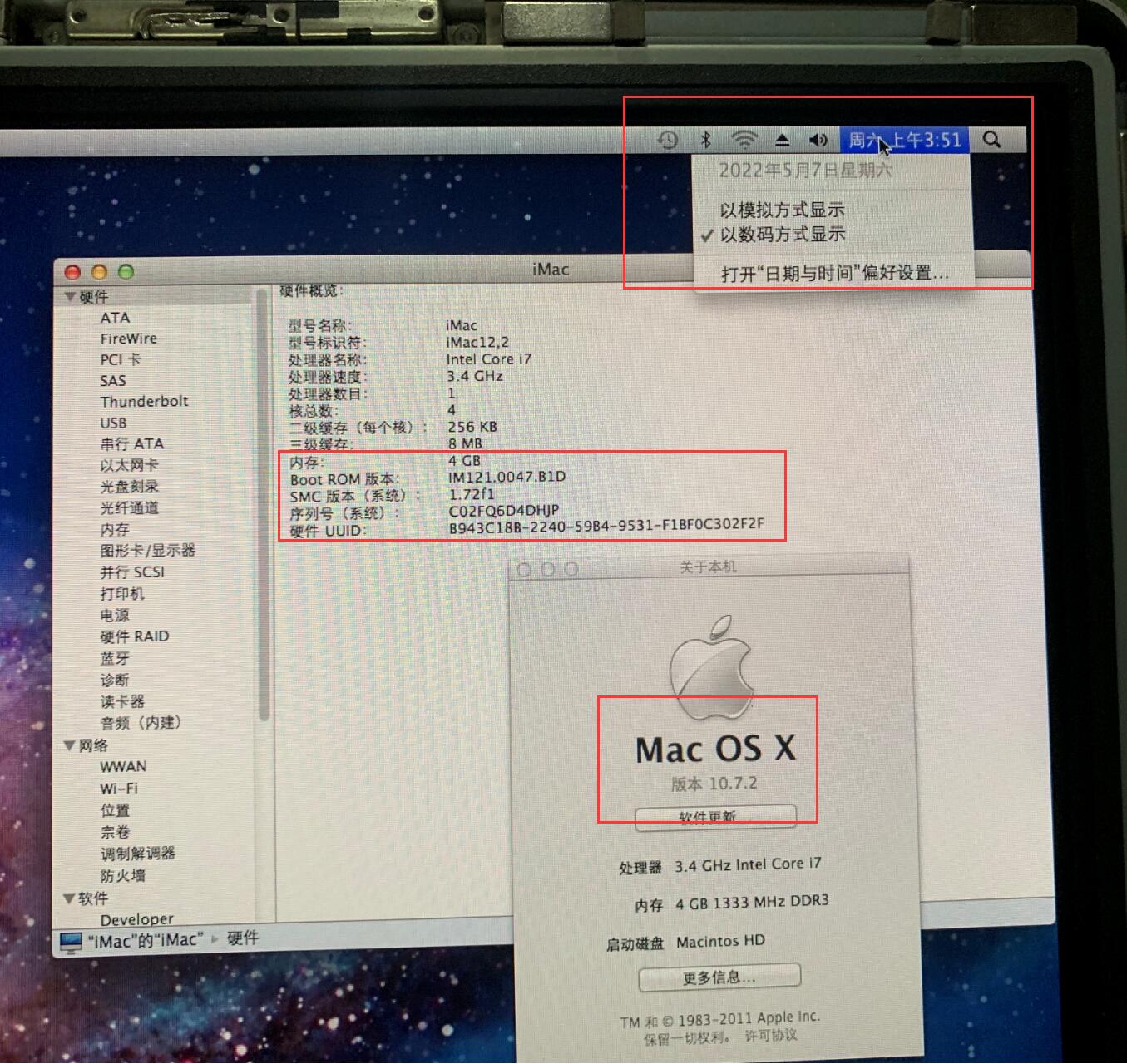

Installed 10.7.2 again with a USB stick, then the programmer refreshed the backup IM212.0047.B1D version.

The clip is very bad to operate total time spent close to five minutes, ROM capacity is relatively large this is a long process.

I will install and test this version feedback results.


Attachments

  • 5.jpg
    171.3 KB · Views: 204
  • 7.jpg
    239.3 KB · Views: 226
  • 6.jpg
    485.4 KB · Views: 191
  • Like
Reactions: Ausdauersportler

Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
Unfortunately it is not sure which update you need to apply to get to this famous IM121.0047.B1G.
Hope you are lucky with that. Yes, flashing the iMac firmware is a pain :)


BTW: Recently I got a Pomona clip, this one can be used without holding it the whole 6 minutes.

Last edited:

jay508

macrumors regular
Jul 11, 2020
243
153
Installed 10.7.2 again with a USB stick, then the programmer refreshed the backup IM212.0047.B1D version.

The clip is very bad to operate total time spent close to five minutes, ROM capacity is relatively large this is a long process.

I will install and test this version feedback results.

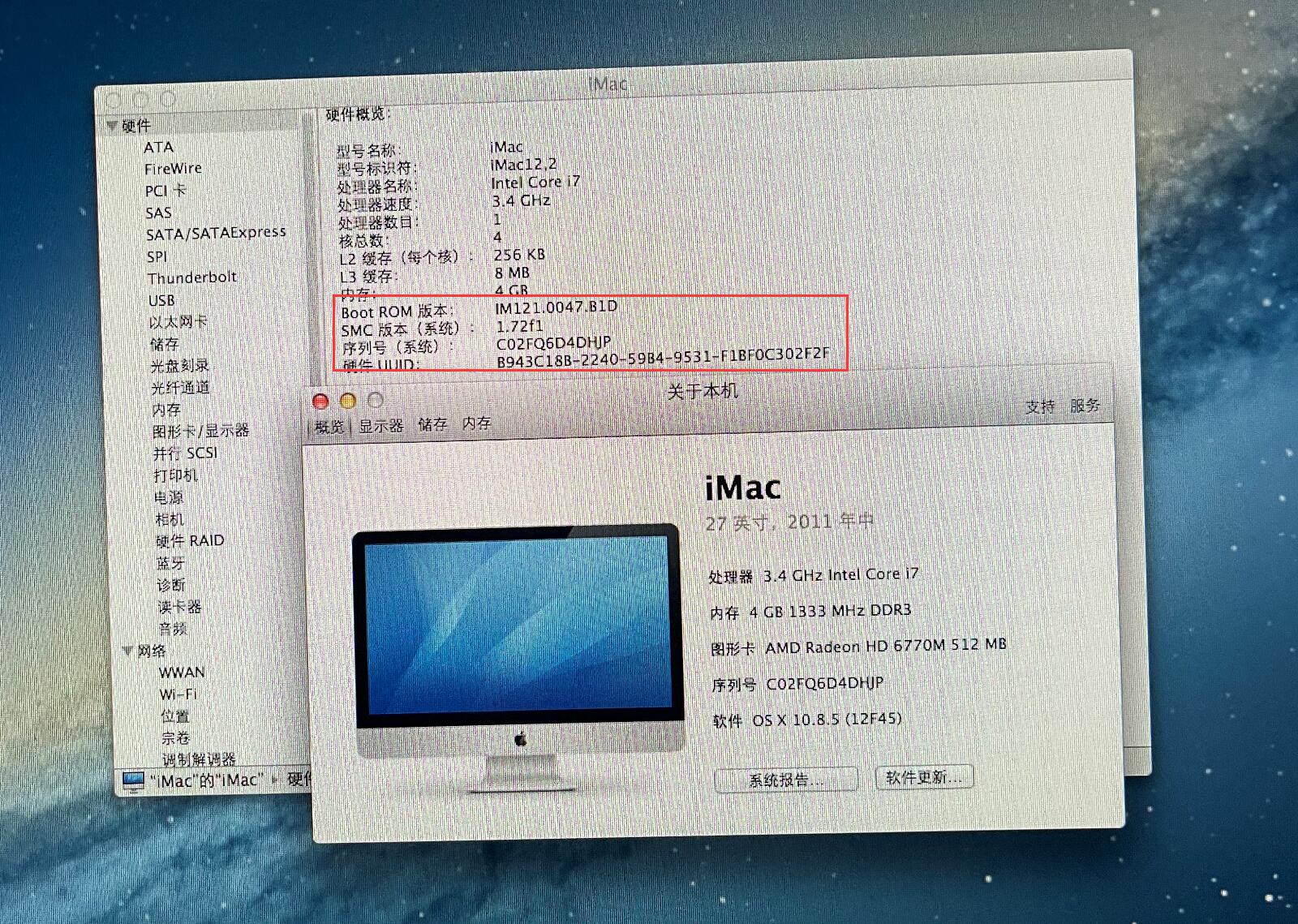

Installed this version bootrom firmware did not change no or have to update


Attachments

  • 8.jpg
    474.7 KB · Views: 140
