Dual RX 480s in Mac Pro 5,1 running MacOS (w/ How-to)

Still works the same way. I updated and ran benchmarks on a R9 Fury X, same speed.

Did somebody tested some steam games or pro apps (Photoshop, FCPX, etc etc)?
I've read about benchmarks but I would appreciate some real-life usage comments.

Caesar_091 said:
Did somebody tested some steam games or pro apps (Photoshop, FCPX, etc etc)?
I've read about benchmarks but I would appreciate some real-life usage comments.
Click to expand...
I have no problems in FCPX (apart from NeatVideo, which doesn't support RX4x0 on OSX at the moment).
With an RX480 and an HD5770, BruceX takes 45sec. to finish. With a 750Ti and the HD5770 it would need the double the time.

CIV VI and Modern Warfare III are running just fine.
I didn't test StarCraft II yet, but that should be fine too.

Last edited:
im having trouble updating from 10.12.1, it doesnt show in the updates panel and when i try to download the standalone package and run it it says:

"macOS 10.12.2 Update cant be installed on this disk. This volume does not meet the requirements for this update."

Its a 256gb AHCI Samsung in PCI slot 4

The reason im running Sierra is for the RX480 and wanted to see if there was any improved performance on 10.12.2.

I have tried with and without the RX480 installed and with and without SIP enabled.

Any ideas?

Ivan Ebrahim said:
im having trouble updating from 10.12.1, it doesnt show in the updates panel and when i try to download the standalone package and run it it says:

"macOS 10.12.2 Update cant be installed on this disk. This volume does not meet the requirements for this update."

Its a 256gb AHCI Samsung in PCI slot 4

The reason im running Sierra is for the RX480 and wanted to see if there was any improved performance on 10.12.2.

I have tried with and without the RX480 installed and with and without SIP enabled.

Any ideas?
Click to expand...
Do you have a supported Mac Pro?

Do these look right for an RX 480?

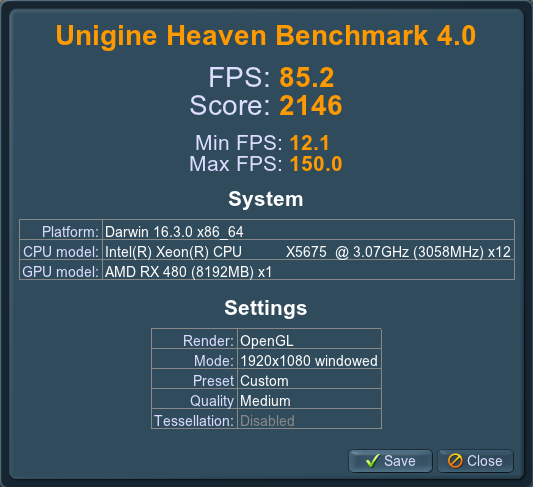

Screen Shot 2017-01-17 at 7.51.12 PM.png

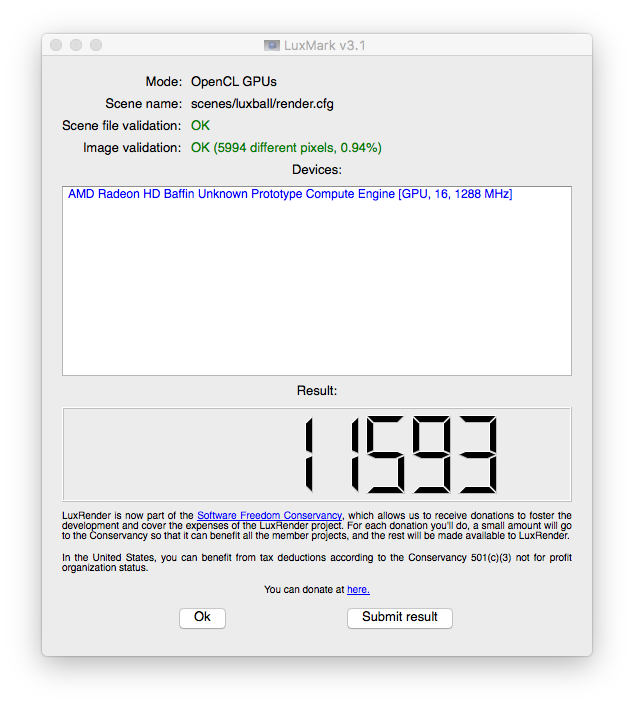

Screen Shot 2017-01-17 at 8.09.44 PM.png

  • Like
Reactions: theitsage
theitsage said:
What's wrong with kext? I'll get on my Mac Pro later this week and upload one.
Click to expand...
Sorry. Saw this before and forgot to action. How do I get it to you, just add the file here, (it’s 9.8MB)?
It’s from 10.12.2 BTW.

theitsage said:
What's wrong with kext? I'll get on my Mac Pro later this week and upload one.
Click to expand...

H2SO4 said:
Sorry. Saw this before and forgot to action. How do I get it to you, just add the file here, (it’s 9.8MB)?
It’s from 10.12.2 BTW.
Click to expand...

I was messing with trying to get all the CU's and lost all my acceleration. I signed up for the public beta and now with the update I have the unmolested kext.

lowendlinux said:
I was messing with trying to get all the CU's and lost all my acceleration. I signed up for the public beta and now with the update I have the unmolested kext.
Click to expand...
No problem. That’s b4 right, are the AMD kexts identical to 10.12.2?

H2SO4 said:
No problem. That’s b4 right, are the AMD kexts identical to 10.12.2?
Click to expand...

I didn't pay close attention but it seems like there was an extra ID in there.

Code:
?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>CFBundleDevelopmentRegion</key>
    <string>English</string>
    <key>CFBundleExecutable</key>
    <string>AMDRadeonX4100</string>
    <key>CFBundleGetInfoString</key>
    <string>AMDRadeonX4100 1.48.21 18303</string>
    <key>CFBundleIdentifier</key>
    <string>com.apple.kext.AMDRadeonX4100</string>
    <key>CFBundleInfoDictionaryVersion</key>
    <string>6.0</string>
    <key>CFBundleName</key>
    <string>AMDRadeonX4100 Graphics Accelerator Kernel Extension</string>
    <key>CFBundlePackageType</key>
    <string>KEXT</string>
    <key>CFBundleShortVersionString</key>
    <string>1.48.21</string>
    <key>CFBundleSignature</key>
    <string>????</string>
    <key>CFBundleVersion</key>
    <string>1.4.8</string>
    <key>IOKitPersonalities</key>
    <dict>
        <key>AMDBaffinGraphicsAccelerator</key>
        <dict>
            <key>ATIEnableWideBlitSupport</key>
            <true/>
            <key>ATIUseTearingWideBlit</key>
            <false/>
            <key>CFBundleIdentifier</key>
            <string>com.apple.kext.AMDRadeonX4100</string>
            <key>GpuDebugPolicy</key>
            <integer>0</integer>
            <key>IOClass</key>
            <string>AMDRadeonX4100_AMDBaffinGraphicsAccelerator</string>
            <key>IODVDBundleName</key>
            <string>AMDRadeonVADriver</string>
            <key>IOKitDebug</key>
            <integer>0</integer>
            <key>IOMatchCategory</key>
            <string>IOAccelerator</string>
            <key>IOPCIMatch</key>
            <string>0x67E01002 0x67FF1002 0x67EF1002 067DF1002</string>
            <key>IOProbeScore</key>
            <integer>250</integer>
            <key>IOProviderClass</key>
            <string>IOPCIDevice</string>
            <key>IOSourceVersion</key>
            <string>0.0.0.0.0</string>
            <key>IOVARendererID</key>
            <integer>16908288</integer>
            <key>cail_properties</key>
            <dict>
                <key>CAIL_DisableQuickGfxMGPowerGating</key>
                <integer>0</integer>
                <key>CAIL_DisableStaticGfxMGPowerGating</key>
                <integer>1</integer>
                <key>CAIL_EnableLBPWSupport</key>
                <integer>0</integer>
            </dict>
        </dict>
    </dict>
    <key>NSHumanReadableCopyright</key>
[
    <string>Copyright © 2005-2016 Apple Inc. All rights reserved.</string>
    <key>OSBundleLibraries</key>
    <dict>
        <key>com.apple.iokit.IOAcceleratorFamily2</key>
        <string>2.0.0</string>
        <key>com.apple.iokit.IOGraphicsFamily</key>
        <string>1.0.0b1</string>
        <key>com.apple.iokit.IOPCIFamily</key>
        <string>1.0.0b1</string>
        <key>com.apple.iokit.IOSurface</key>
        <string>87.0</string>
        <key>com.apple.kpi.bsd</key>
        <string>8.0.0</string>
        <key>com.apple.kpi.iokit</key>
        <string>8.0.0</string>
        <key>com.apple.kpi.libkern</key>
        <string>8.0.0</string>
        <key>com.apple.kpi.mach</key>
        <string>8.0.0</string>
        <key>com.apple.kpi.unsupported</key>
        <string>8.0.0</string>
    </dict>
</dict>
</plist>

Screen Shot 2017-01-18 at 8.46.15 PM.png

lowendlinux said:
I didn't pay close attention but it seems like there was an extra ID in there.

Code:
            <key>IOPCIMatch</key>
            <string>0x67E01002 0x67FF1002 0x67EF1002 067DF1002</string>

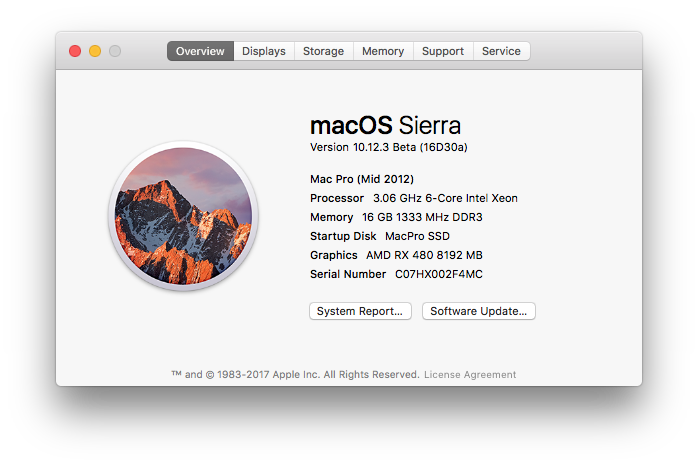

View attachment 684332
Click to expand...
Ok so that is exactly the kind of thing I was hoping to see. That’s on Baffin tho. Weirdly enough I thought the 470 and 480 were Ellesmere.

H2SO4 said:
Ok so that is exactly the kind of thing I was hoping to see. That’s on Baffin tho. Weirdly enough I thought the 470 and 480 were Ellesmere.
Click to expand...

It is but trying to change that and add the CU's is what lead to the issues with the kext..so I'm not going to play with it right now, I'll just wait and see if a 480 ends up in a Mac.

lowendlinux said:
It is but trying to change that and add the CU's is what lead to the issues with the kext..so I'm not going to play with it right now, I'll just wait and see if a 480 ends up in a Mac.
Click to expand...
Happy with that. As soon as 10.12.3 is out I’ll pop my 470 back in.

I've just installed an Rx 480 in my 5,1. All seems okay after the 4100 kext edit and the CU script from the r9 thread.

I've noticed during valley benchmark 'Extreme HD' setting, the motion stutters, like a okay for a second, pause, okay, pause...

it's fine on medium settings, all smooth. Is there a reason why it's stuttering rather than moving smoothly, but slowly?

This is my progress from an HD5870

michaelwalkertoye said:
I've just installed an Rx 480 in my 5,1. All seems okay after the 4100 kext edit and the CU script from the r9 thread.

I've noticed during valley benchmark 'Extreme HD' setting, the motion stutters, like a okay for a second, pause, okay, pause...

it's fine on medium settings, all smooth. Is there a reason why it's stuttering rather than moving smoothly, but slowly?

This is my progress from an HD5870
Click to expand...
Dual booting/cold booting/sleeping all good?
