Frequently Asked Questions About NVIDIA PC (non-EFI) Graphics Cards

[flowrider]

^^^^^^^ Great news. I can verify this with my GTX970, although CUDA-Z still has problems, as does Nvidia CUDA Preferences.

What version of CUDA-Z are you running?

Lou



[MassMacMan]

So now I can report on improved performance with my GTX980 under OS X 10.10.1 using all the new drivers. As was reported above, Adobe FX still can't recognize the CUDA drivers. Also, I realized that I was using the old version of CUDA-Z. Now running beta version 0.9.230, it's reporting good performance (see below). I also saw a modest improvement in Heaven at 1080p, increasing from 44.8 fps to 45.7 fps. I also saw minor improvements in Luxmark, with the Sala test increasing from 2197 to 2213 (see below). Finally, Furmark scores nicely increased, with 1080p performance running with aa off increasing from 3684 to 3958.



[flowrider]

I realized that I was using the old version of CUDA-Z. Now running beta version 0.9.230,

I think I realized it before you, see my post on the previous page. Open CL seems to have a big jump over my GTX 780.

Lou



[m4v3r1ck]

Why is NVidia hiding it's newest CUDA 6.5.25 for prefs pane?

I always have to google for the newest CUDA package

CUDA 6.5.25 download

Running OSX 10.10 (14A389)



[marceli7]

So now I can report on improved performance with my GTX980

But GPU-Z is showing GTX970 ;-)



[nigelbb]

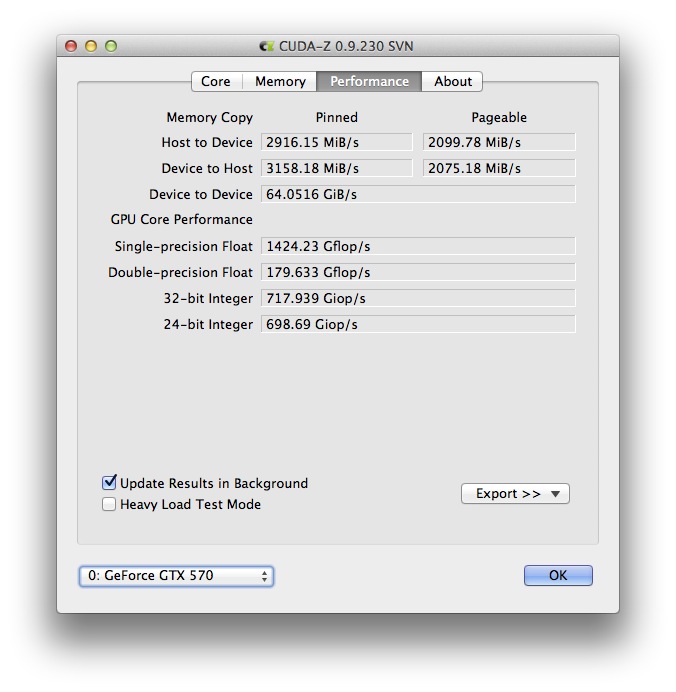

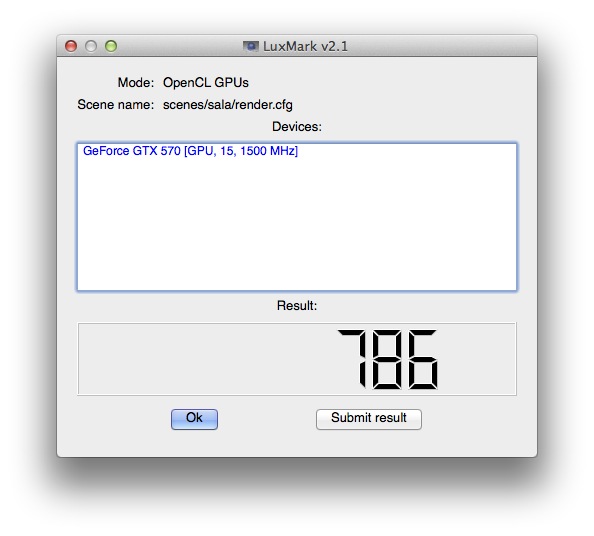

By way of comparison I just tested my GTX570 & it gives me 786 on LuxMark (35% of GTX970) but interestingly while most CUDA scores are lower the Double-precision Float is about 179Gflop/s which is 29% faster than the GTX970.



[marceli7]

So now I can report on improved performance with my GTX980

But GPU-Z is showing GTX970 ;-)



[MassMacMan]

But GPU-Z is showing GTX970 ;-)

Oops - my bad. I WISH it were a 980! LOL



[apphotography]

Hi, I have been reading this board for about a week now to research my new Mac. I did buy a base model 6, 1 on Saturday but then I returned it the next day as I felt it did not give me enough performance over my two year old MacBook Pro, especially for that money. Because of the great advice I have read on this forum I have now ordered a custom Mac Pro 5, 1 from create.pro.

The specs I have ordered are:

12 Core 2.66ghz, 24GB Ram, Samsung XP941 Flash 256GB, GTX 980, GTX 120 emergency graphics card, 2TB 7200RPM HDD, USB 3.0.

The price I got for this great spec with warranty was £200 cheaper than the base model 6,1.



[knowhate]

.



[MassMacMan]

Maybe I ask what brands of 970's you guys are using?

Mine is the EVGA 04G-2974-KR, with ACX 2.0 cooling and superclocked to run at a core clock at 1165 MHz and a boost clock of 1317 MHz. I got it from NewEgg.



[Studio K]

Does anyone know if Yosemite has killed support for the GTX 650? I've got one in my 2009 Mac Pro, and it worked fine in Mavericks (and continues to do so).

In 10.10.0, it still worked but the Mac would reboot 2 or 3 times before reaching the desktop.
I tried updating to 10.10.1, but never again reached the desktop after the restart. There is an endless reboot cycle. I restored from Mavericks backup, and the system boots normally.

An error report would appear in 10.10.0....here is a portion:

Kernel Extensions in backtrace:

com.apple.nvidia.driver.NVDAResman(10.0)[53CC0E05-7382-336C-8239-AE884D6CA71A]@ 0xffffff7f83e95000->0xffffff7f8410afff

dependency: com.apple.iokit.IOPCIFamily(2.9)[766FC23F-452C-3B74-951C-598BB17BCF06]@0xffffff 7f83924000

dependency: com.apple.iokit.IONDRVSupport(2.4.1)[F4738C55-B507-3627-A9CA-3D29A5230A03]@0xff ffff7f83e7f000

dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[6D99A3BE-D531-3780-880B-13F2FC894A4A]@0 xffffff7f83e38000

dependency: com.apple.AppleGraphicsDeviceControl(3.7.21)[4700601D-3FEB-3B86-B2BA-8D71AF84D1 C4]@0xffffff7f83e8f000



[Asgorath]

Does anyone know if Yosemite has killed support for the GTX 650? I've got one in my 2009 Mac Pro, and it worked fine in Mavericks (and continues to do so).

In 10.10.0, it still worked but the Mac would reboot 2 or 3 times before reaching the desktop.
I tried updating to 10.10.1, but never again reached the desktop after the restart. There is an endless reboot cycle. I restored from Mavericks backup, and the system boots normally.

An error report would appear in 10.10.0....here is a portion:

Kernel Extensions in backtrace:

com.apple.nvidia.driver.NVDAResman(10.0)[53CC0E05-7382-336C-8239-AE884D6CA71A]@ 0xffffff7f83e95000->0xffffff7f8410afff

dependency: com.apple.iokit.IOPCIFamily(2.9)[766FC23F-452C-3B74-951C-598BB17BCF06]@0xffffff 7f83924000

dependency: com.apple.iokit.IONDRVSupport(2.4.1)[F4738C55-B507-3627-A9CA-3D29A5230A03]@0xff ffff7f83e7f000

dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[6D99A3BE-D531-3780-880B-13F2FC894A4A]@0 xffffff7f83e38000

dependency: com.apple.AppleGraphicsDeviceControl(3.7.21)[4700601D-3FEB-3B86-B2BA-8D71AF84D1 C4]@0xffffff7f83e8f000

We need the whole thing, hard to know what's going wrong with just that portion. What driver are you using?



[Studio K]

We need the whole thing, hard to know what's going wrong with just that portion. What driver are you using?

I am not using the web driver. Just the OS X driver.

I'll post a full error report when I reinstall Yosemite.



[Asgorath]

I am not using the web driver. Just the OS X driver.

I'll post a full error report when I reinstall Yosemite.

Use the web driver.



[romanboy]

Hey, firstly, thank you Asgorath for all the work you've done.

I've got just a quick question.

In 10.9 and 10.10, I cannot use the web driver with my Mac Pro 2008 3,1 and my EVGA GTX 570. If I do want to use the Nvidia web driver, the system does not boot, gets stuck at a grey screen. I've done a clean fresh install of 10.9, all updates, then installed web driver, and still no go. I have also done a clean install of 10.10, done all updates, and then web driver, but still I get a freeze at the grey screen.
I've also installed the CUDA driver, every time.
I have to turn mac off, reset PRAM so that the OS X driver gets used, and then I get a useable system. Is there anything I'm missing?

Many thanks in advance,
Roman



[mp2006]

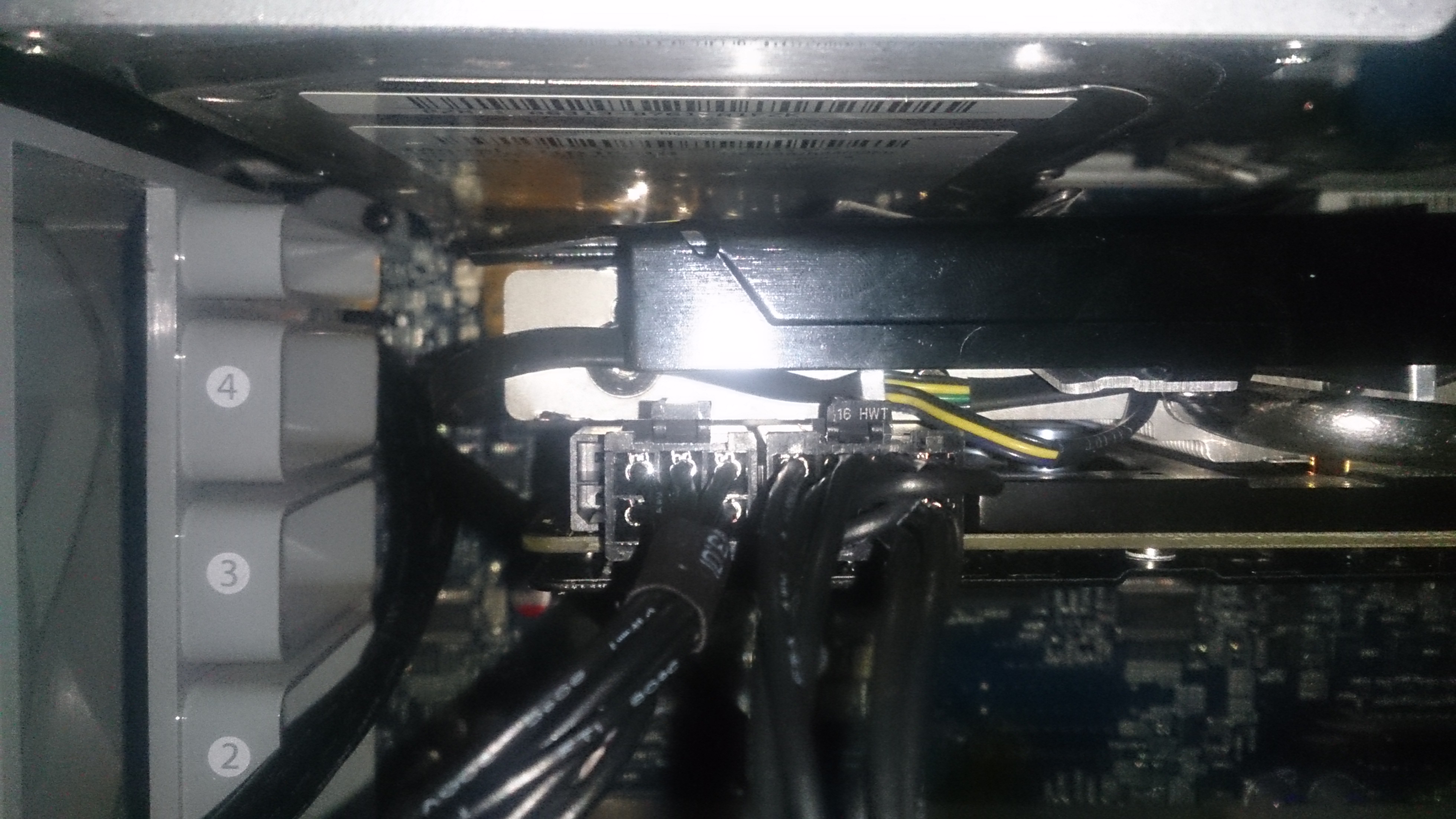

^^^^Two of the pins on the Card need to be shorted. See Photo of my card to see how 6 pin cable is plugged into 8 pin plug, top two pins are shorted to the second set. or you could use a 6 pint to 8 pin adapter.

Lou

So, I ordered an 6pin to 8 pin adapter. Used the 6 to 6 pin cable in the other slot. I was guessing I'd only need the one 8-pin cable.

When I turned the computer on, I get the same message "Please power down and plug in PCie cables". Surely an 8 pin and a 6 pin connector would be enough?

Or do I need another 6 to 8 pin cable ?

Also, how do I know I don't have a fault on the power connector on the motherboard. The second connector came loose when I took out the cable. I plugged it back into place, and it seemed secure, but I wonder if I have damaged it.

As an alternative, I heard about using power from the DVD drive using a molex adapter. Is this worth trying?

I have the Yosemite beta installed on my MacPro 1.1, so keen to get the graphics card sorted out. Currently stuck with 5mb video memory on the old 2300GT !

Thanks for any help.



[MacVidCards]

So, I ordered an 6pin to 8 pin adapter. Used the 6 to 6 pin cable in the other slot. I was guessing I'd only need the one 8-pin cable.

When I turned the computer on, I get the same message "Please power down and plug in PCie cables". Surely an 8 pin and a 6 pin connector would be enough?

Or do I need another 6 to 8 pin cable ?

Also, how do I know I don't have a fault on the power connector on the motherboard. The second connector came loose when I took out the cable. I plugged it back into place, and it seemed secure, but I wonder if I have damaged it.

As an alternative, I heard about using power from the DVD drive using a molex adapter. Is this worth trying?

I have the Yosemite beta installed on my MacPro 1.1, so keen to get the graphics card sorted out. Currently stuck with 5mb video memory on the old 2300GT !

Thanks for any help.

OK, let's think about this.

Here are the facts:

1. You haven't populated all of the power pins.

2. Your computer tells you that you haven't plugged in all of the power.

OK, what was your question again?



[mp2006]

OK, let's think about this.

Here are the facts:

1. You haven't populated all of the power pins.

2. Your computer tells you that you haven't plugged in all of the power.

OK, what was your question again?

Haha I'm not very good at this, am I!!

I'll order another cable.

thanks for fast response.



[Gav Mack]

So, I ordered an 6pin to 8 pin adapter. Used the 6 to 6 pin cable in the other slot. I was guessing I'd only need the one 8-pin cable.

When I turned the computer on, I get the same message "Please power down and plug in PCie cables". Surely an 8 pin and a 6 pin connector would be enough?

Or do I need another 6 to 8 pin cable ?

Also, how do I know I don't have a fault on the power connector on the motherboard. The second connector came loose when I took out the cable. I plugged it back into place, and it seemed secure, but I wonder if I have damaged it.

As an alternative, I heard about using power from the DVD drive using a molex adapter. Is this worth trying?

I have the Yosemite beta installed on my MacPro 1.1, so keen to get the graphics card sorted out. Currently stuck with 5mb video memory on the old 2300GT !

Thanks for any help.

Like with molex connectors the PCIe plugs have these pressed metal connectors inside the holes. Unlike molex which you can clearly see with these types you have to unplug the cable itself and use a small spike, flashlight and possibly a magnifier to check you've broken the insides or not. Hopefully it's the cable itself, the logic board will need a new connector re soldered on and that will cost a lot more than the cable.

I would suggest you buy another or even a second to replace that possibly dodgy one.



[knowhate]

.



[nigelbb]

Hey, firstly, thank you Asgorath for all the work you've done.

I've got just a quick question.

In 10.9 and 10.10, I cannot use the web driver with my Mac Pro 2008 3,1 and my EVGA GTX 570. If I do want to use the Nvidia web driver, the system does not boot, gets stuck at a grey screen. I've done a clean fresh install of 10.9, all updates, then installed web driver, and still no go. I have also done a clean install of 10.10, done all updates, and then web driver, but still I get a freeze at the grey screen.
I've also installed the CUDA driver, every time.
I have to turn mac off, reset PRAM so that the OS X driver gets used, and then I get a useable system. Is there anything I'm missing?

Many thanks in advance,
Roman

I have two Mac Pro 3,1 & one has an MSI GTX570 Twin Frozr II & the other an
MSI GTX570 Twin Frozr III. They both work OK with the Nvidia web drivers but only one monitor output can be live at a time so as both systems have dual DVI monitors I have the stock OS X drivers installed. I suppose in theory the Nvidia drivers should be better but there is no major difference that I can see running Photoshop or Premiere Pro.



[Studio K]

GTX 650 Yosemite troubles

We need the whole thing, hard to know what's going wrong with just that portion.?

I will try the web driver, but first I would be curious to know if you can see anything interesting in the error report I get when using OS X driver.

I've put Yosemite back on the Mac Pro 4,1 (flashed to 5,1) with a GTX 650 installed . It wasn't long before the system rebooted itself a couple of times on its own.

Here is the entire error report I got when arriving at the desktop.........


Anonymous UUID: 34B12F00-8047-AFE9-4BFE-AEAFF42C42BA

Sat Nov 22 01:17:04 2014

*** Panic Report ***
panic(cpu 4 caller 0xffffff800641e80a): Kernel trap at 0xffffff8006862ee9, type 14=page fault, registers:
CR0: 0x0000000080010033, CR2: 0x0000000000000048, CR3: 0x000000035489b03d, CR4: 0x00000000000226e0
RAX: 0x0000000000000000, RBX: 0x0000000000000000, RCX: 0x0000000000000000, RDX: 0xffffff801f4b51c8
RSP: 0xffffff817d8b3c00, RBP: 0xffffff817d8b3c30, RSI: 0xffffff8006b103f0, RDI: 0xffffff8020851000
R8: 0xffffff80208ad100, R9: 0x0000000000000000, R10: 0x0000000007fc0bed, R11: 0x0000000000000006
R12: 0xffffff80208ad2c0, R13: 0x0000000000000000, R14: 0x0000000000000001, R15: 0xffffff8006b103f0
RFL: 0x0000000000010282, RIP: 0xffffff8006862ee9, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0x0000000000000048, Error code: 0x0000000000000000, Fault CPU: 0x4

Backtrace (CPU 4), Frame : Return Address
0xffffff817d8b38b0 : 0xffffff800633a811
0xffffff817d8b3930 : 0xffffff800641e80a
0xffffff817d8b3af0 : 0xffffff800643a443
0xffffff817d8b3b10 : 0xffffff8006862ee9
0xffffff817d8b3c30 : 0xffffff80068640ab
0xffffff817d8b3c90 : 0xffffff800685f9af
0xffffff817d8b3ce0 : 0xffffff8006864140
0xffffff817d8b3d40 : 0xffffff80068a8ce6
0xffffff817d8b3d70 : 0xffffff80068fe651
0xffffff817d8b3de0 : 0xffffff80063e8f29
0xffffff817d8b3e10 : 0xffffff800633e91c
0xffffff817d8b3e40 : 0xffffff80063235a3
0xffffff817d8b3e90 : 0xffffff8006333e8d
0xffffff817d8b3f10 : 0xffffff800640a142
0xffffff817d8b3fb0 : 0xffffff800643ac66

BSD process name corresponding to current thread: WindowServer
Boot args: kext-dev-mode=1

Mac OS version:
14A389

Kernel version:
Darwin Kernel Version 14.0.0: Fri Sep 19 00:26:44 PDT 2014; root:xnu-2782.1.97~2/RELEASE_X86_64
Kernel UUID: 89E10306-BC78-3A3B-955C-7C4922577E61
Kernel slide: 0x0000000006000000
Kernel text base: 0xffffff8006200000
__HIB text base: 0xffffff8006100000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 9905763056
last loaded kext at 9893836007: com.apple.driver.AppleHWSensor 1.9.5d0 (addr 0xffffff7f884f4000, size 36864)
loaded kexts:
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.driver.AppleGraphicsDevicePolicy 3.7.7
com.apple.driver.AGPM 100.14.37
com.apple.driver.AppleTyMCEDriver 1.0.2d2
com.apple.filesystems.autofs 3.0
com.apple.filesystems.ntfs 3.12
com.apple.driver.AppleOSXWatchdog 1
com.apple.iokit.IOBluetoothSerialManager 4.3.0f10
com.apple.driver.AppleMikeyHIDDriver 124
com.apple.driver.AppleHDAHardwareConfigDriver 266.5
com.apple.driver.AppleHDA 266.5
com.apple.driver.AppleMikeyDriver 266.5
com.apple.driver.AppleUpstreamUserClient 3.6.1
com.apple.driver.AppleMCCSControl 1.2.10
com.apple.GeForce 10.0.0
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothUSBDFU 4.3.0f10
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 4.3.0f10
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.nvidia.NVDAStartup 10.0.0
com.apple.driver.AppleLPC 1.7.3
com.apple.driver.AppleHWAccess 1
com.apple.driver.AppleHV 1
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.XsanFilter 404
com.apple.iokit.IOAHCIBlockStorage 2.6.5
com.apple.driver.AppleUSBDisplays 372.1
com.apple.driver.AppleFileSystemDriver 3.0.1
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
com.apple.BootCache 35
com.apple.driver.AppleUSBHub 705.4.1
com.apple.driver.Intel82574L 2.6.5b1
com.apple.driver.AirPort.Brcm4331 800.20.24
com.apple.driver.AppleFWOHCI 5.5.2
com.apple.driver.AppleAHCIPort 3.0.7
com.apple.driver.AppleUSBEHCI 705.4.14
com.apple.driver.AppleUSBUHCI 656.4.1
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleACPIButtons 3.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 3.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 218.0.0
com.apple.nke.applicationfirewall 161
com.apple.security.quarantine 3
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 218.0.0
com.apple.driver.AppleGraphicsControl 3.7.21
com.apple.driver.AppleBluetoothHIDMouse 185.3
com.apple.driver.IOBluetoothHIDDriver 4.3.0f10
com.apple.kext.triggers 1.0
com.apple.iokit.IOSerialFamily 11
com.apple.driver.DspFuncLib 266.5
com.apple.kext.OSvKernDSPLib 1.15
com.apple.iokit.IOAudioFamily 200.6
com.apple.vecLib.kext 1.2.0
com.apple.iokit.IOAcceleratorFamily2 156.4
com.apple.nvidia.driver.NVDAGK100Hal 10.0.0
com.apple.nvidia.driver.NVDAResman 10.0.0
com.apple.AppleGraphicsDeviceControl 3.7.21
com.apple.iokit.IOSurface 97
com.apple.iokit.IONDRVSupport 2.4.1
com.apple.driver.AppleSMBusController 1.0.13d1
com.apple.iokit.IOFireWireIP 2.2.6
com.apple.iokit.IOBluetoothHostControllerUSBTransport 4.3.0f10
com.apple.iokit.IOBluetoothFamily 4.3.0f10
com.apple.iokit.IOUSBUserClient 705.4.0
com.apple.driver.AppleSMBusPCI 1.0.12d1
com.apple.driver.AppleHDAController 266.5
com.apple.iokit.IOGraphicsFamily 2.4.1
com.apple.iokit.IOHDAFamily 266.5
com.apple.driver.AppleSMC 3.1.9
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 5.8.0d49
com.apple.iokit.IOSCSIArchitectureModelFamily 3.7.0
com.apple.driver.AppleUSBHIDKeyboard 175.5
com.apple.driver.AppleHIDKeyboard 175.5
com.apple.driver.AppleUSBHIDMouse 185.3
com.apple.driver.AppleHIDMouse 185.3
com.apple.iokit.IOUSBHIDDriver 705.4.0
com.apple.iokit.IOUSBHIDDriverPM 705.4.5
com.apple.driver.AppleUSBMergeNub 705.4.0
com.apple.driver.AppleUSBComposite 705.4.9
com.apple.iokit.IO80211Family 700.52
com.apple.iokit.IONetworkingFamily 3.2
com.apple.iokit.IOFireWireFamily 4.5.6
com.apple.iokit.IOAHCIFamily 2.7.0
com.apple.iokit.IOUSBFamily 705.4.14
com.apple.driver.AppleEFINVRAM 2.0
com.apple.driver.AppleEFIRuntime 2.0
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.DiskImages 389.1
com.apple.iokit.IOStorageFamily 2.0
com.apple.iokit.IOReportFamily 31
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleACPIPlatform 3.1
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.Libm 1
com.apple.kec.pthread 1
com.apple.kec.corecrypto 1.0
Model: MacPro5,1, BootROM MP51.007F.B03, 6 processors, 6-Core Intel Xeon, 2.66 GHz, 12 GB, SMC 1.39f5
Graphics: NVIDIA GeForce GTX 650, NVIDIA GeForce GTX 650, PCIe, 1024 MB
Memory Module: DIMM 1, 4 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333531553742465238432D48392020
Memory Module: DIMM 2, 4 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333531553742465238432D48392020
Memory Module: DIMM 3, 2 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333235553743465238432D48392020
Memory Module: DIMM 4, 2 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333235553743465238432D48392020
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.100.24)
Bluetooth: Version 4.3.0f10 14890, 3 services, 27 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en2
Serial ATA Device: INTEL SSDSA2CW120G3, 120.03 GB
USB Device: Hub
USB Device: Keyboard Hub
USB Device: Apple Keyboard
USB Device: Apple Optical USB Mouse
USB Device: Apple Cinema Display
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:



[romanboy]

I have two Mac Pro 3,1 & one has an MSI GTX570 Twin Frozr II & the other an
MSI GTX570 Twin Frozr III. They both work OK with the Nvidia web drivers but only one monitor output can be live at a time so as both systems have dual DVI monitors I have the stock OS X drivers installed. I suppose in theory the Nvidia drivers should be better but there is no major difference that I can see running Photoshop or Premiere Pro.

I get you, thanks for the feedback. I'll experiment some more and see what I can do. I play games (Dota 2, amongst others), do some light video editing, with Final Cut Pro X, so maybe I'll get a better card.



[Studio K]

Use the web driver.

I wish I could.

I just installed the web driver for 10.10.0. Upon reboot, I get no bong, and I'm greeted with yet another error report. AND....I'm still on the OS X Default driver.
Tried again to activate the web driver and same thing happens. And the Nvidia Driver manager tells me no updates available.

So here is the error report....slightly different from previous one posted.....


Anonymous UUID: 34B12F00-8047-AFE9-4BFE-AEAFF42C42BA

Sat Nov 22 21:02:32 2014

*** Panic Report ***
panic(cpu 0 caller 0xffffff8012c1e80a): Kernel trap at 0xffffff80130ea780, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x00000000000001d8, CR3: 0x0000000014a33001, CR4: 0x00000000000226e0
RAX: 0x0000000000000000, RBX: 0xffffff802c04ef80, RCX: 0x0000000001000000, RDX: 0xffffff80158dff78
RSP: 0xffffff818a67b270, RBP: 0xffffff818a67b270, RSI: 0xffffff802c04ef80, RDI: 0xffffff802d3e9000
R8: 0xffffff80158dff10, R9: 0xffffff818b1f2000, R10: 0xffffff80158dff00, R11: 0xffffff802ca87160
R12: 0xffffff802d2c8008, R13: 0xffffff802d3f3608, R14: 0xffffff802a2c2b40, R15: 0xffffff802c04ef80
RFL: 0x0000000000010286, RIP: 0xffffff80130ea780, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0x00000000000001d8, Error code: 0x0000000000000000, Fault CPU: 0x0

Backtrace (CPU 0), Frame : Return Address
0xffffff818a67af20 : 0xffffff8012b3a811
0xffffff818a67afa0 : 0xffffff8012c1e80a
0xffffff818a67b160 : 0xffffff8012c3a443
0xffffff818a67b180 : 0xffffff80130ea780
0xffffff818a67b270 : 0xffffff80130e9ad7
0xffffff818a67b2a0 : 0xffffff80130e9a37
0xffffff818a67b2d0 : 0xffffff7f93752278
0xffffff818a67b2f0 : 0xffffff7f9376f380
0xffffff818a67b360 : 0xffffff7f9376e76b
0xffffff818a67b400 : 0xffffff7f93776f81
0xffffff818a67b4d0 : 0xffffff7f9379f803
0xffffff818a67b6d0 : 0xffffff7f937a1140
0xffffff818a67b7b0 : 0xffffff7f939255d6
0xffffff818a67b880 : 0xffffff7f9392444c
0xffffff818a67b8a0 : 0xffffff7f9393648b
0xffffff818a67ba70 : 0xffffff7f9374c78b
0xffffff818a67bb00 : 0xffffff7f937388d6
0xffffff818a67bb70 : 0xffffff7f936f8a76
0xffffff818a67bbb0 : 0xffffff80130b16d5
0xffffff818a67bc10 : 0xffffff8013128239
0xffffff818a67bc70 : 0xffffff80130bb329
0xffffff818a67bcb0 : 0xffffff8013117993
0xffffff818a67bd90 : 0xffffff80130ef26c
0xffffff818a67bdd0 : 0xffffff8012c22b82
0xffffff818a67bde0 : 0xffffff8012b471c5
0xffffff818a67bdf0 : 0xffffff8012fd891f
0xffffff818a67bec0 : 0xffffff8012fe9799
0xffffff818a67bf50 : 0xffffff801304dcb2
0xffffff818a67bfb0 : 0xffffff8012c3ac46
Kernel Extensions in backtrace:
com.apple.iokit.IOGraphicsFamily(2.4.1)[6D99A3BE-D531-3780-880B-13F2FC894A4A]@0xffffff7f936ed000->0xffffff7f93727fff
dependency: com.apple.iokit.IOPCIFamily(2.9)[766FC23F-452C-3B74-951C-598BB17BCF06]@0xffffff7f93324000
com.apple.iokit.IONDRVSupport(2.4.1)[F4738C55-B507-3627-A9CA-3D29A5230A03]@0xffffff7f93734000->0xffffff7f93743fff
dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[6D99A3BE-D531-3780-880B-13F2FC894A4A]@0xffffff7f936ed000
dependency: com.apple.iokit.IOPCIFamily(2.9)[766FC23F-452C-3B74-951C-598BB17BCF06]@0xffff


Model: MacPro5,1, BootROM MP51.007F.B03, 6 processors, 6-Core Intel Xeon, 2.66 GHz, 12 GB, SMC 1.39f5
Graphics: NVIDIA GeForce GTX 650, NVIDIA GeForce GTX 650, PCIe, 1024 MB
Memory Module: DIMM 1, 4 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333531553742465238432D48392020
Memory Module: DIMM 2, 4 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333531553742465238432D48392020
Memory Module: DIMM 3, 2 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333235553743465238432D48392020
Memory Module: DIMM 4, 2 GB, DDR3 ECC, 1333 MHz, 0x80AD, 0x484D54333235553743465238432D48392020
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.100.24)
Bluetooth: Version 4.3.0f10 14890, 3 services, 27 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en2
Serial ATA Device: INTEL SSDSC2CW120A3, 120.03 GB
Serial ATA Device: INTEL SSDSA2CW120G3, 120.03 GB
USB Device: Hub
USB Device: Keyboard Hub
USB Device: Apple Keyboard
USB Device: Apple Optical USB Mouse
USB Device: Apple Cinema Display
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:
