rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England

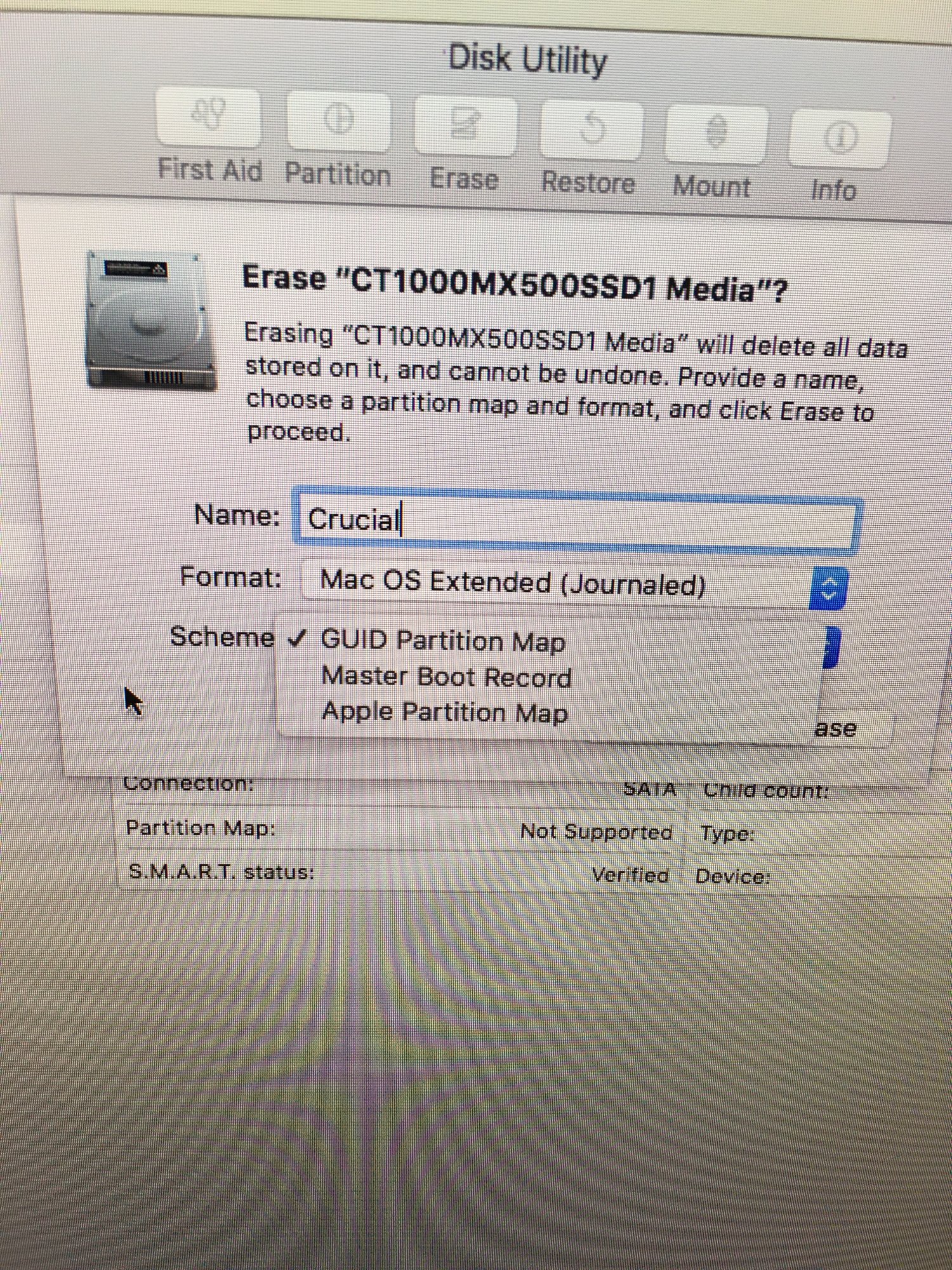

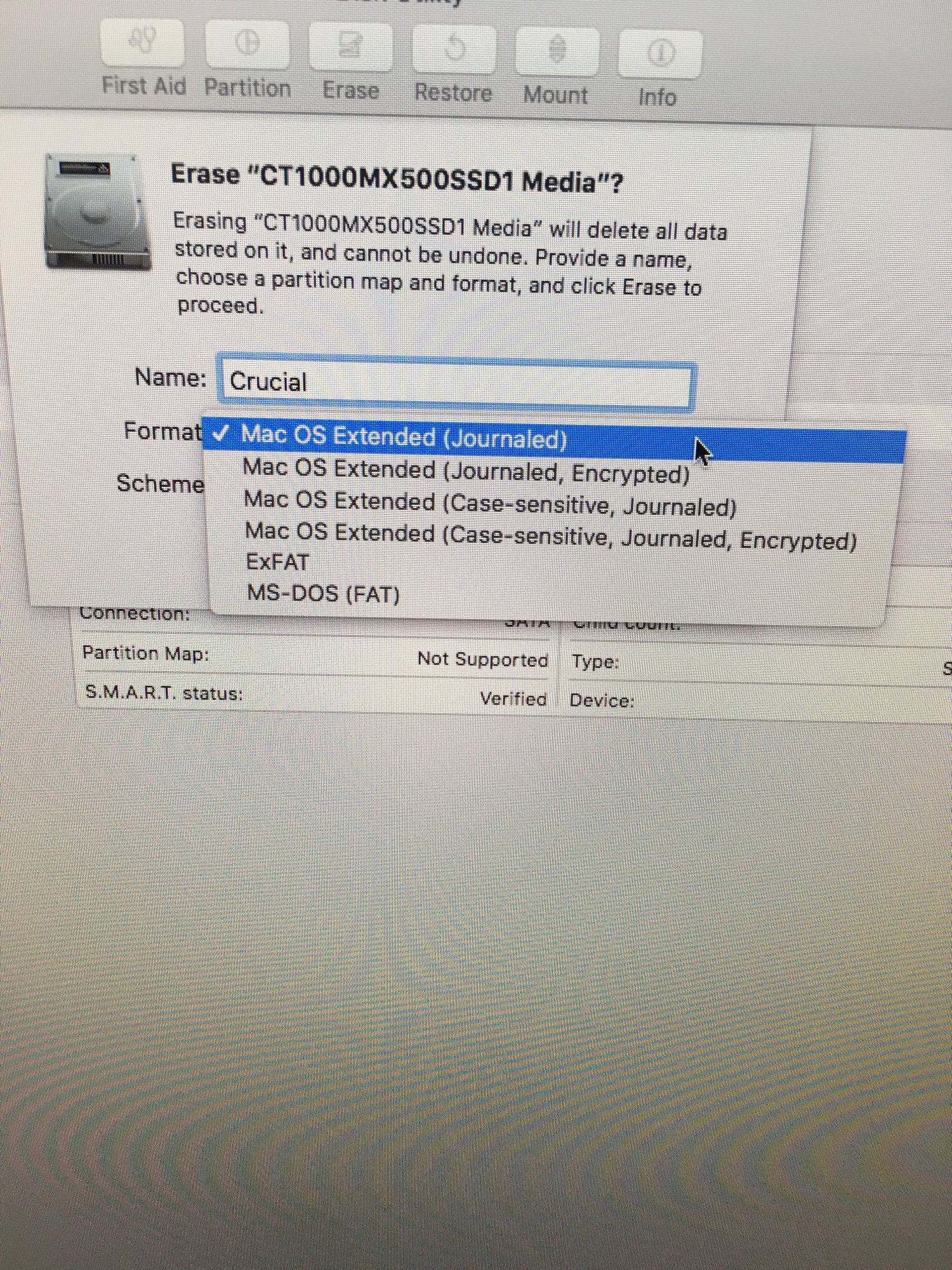

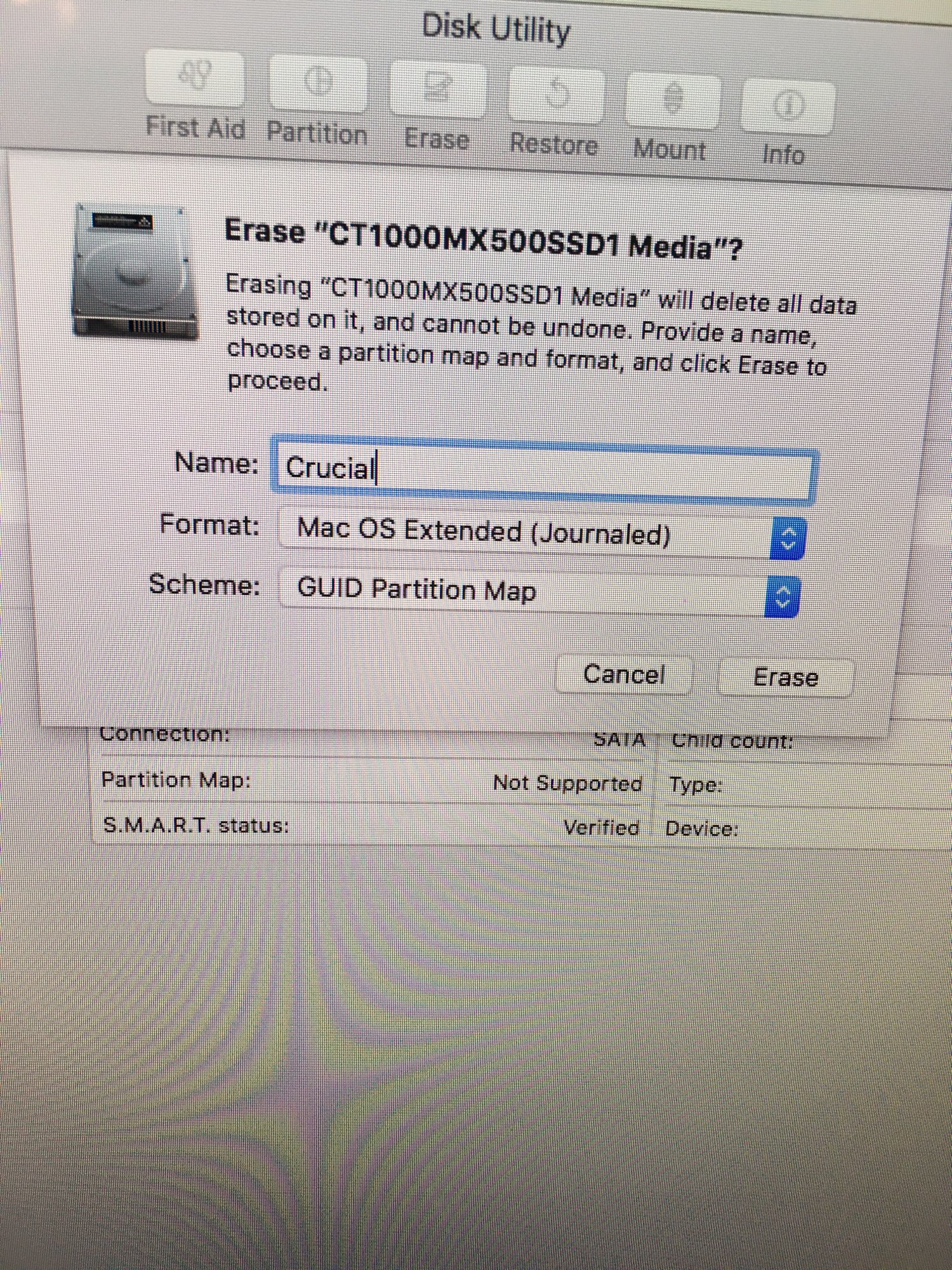

What happens when I hit erase?


Attachments

  • image.jpg
    1.1 MB · Views: 67
  • image.jpg
    1,012.6 KB · Views: 63
  • image.jpg
    1 MB · Views: 69

EugW

macrumors G5
Jun 18, 2017
14,656
12,584
It will format it at HFS+. HFS+ would work fine for High Sierra, but APFS is preferred.

Are you running Sierra? Cuz Sierra does not support APFS. You'd have to be running an install of High Sierra or later to get the option of APFS.

If you want to install APFS and you're currently on Sierra, then a way to do it would be to make a High Sierra USB installer. To do that you need the High Sierra installer and a 16+ GB USB flash drive. Google will tell you what commands are used to make the bootable installer.

Or you can do what I suggested last time and run the installer from your MacBook Pro thru FireWire target disk mode.


rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
btw, i appreciate all the time you have taken to assist.
my laptop is running sierra. i can update it to high sierra, and do the iMac after. is that the best course?

  • Like
Reactions: MBAir2010

rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
why can't i just put sierra on the iMac, and later i can update it to high. don't know what hfs and apfs are. significance?


EugW

macrumors G5
Jun 18, 2017
14,656
12,584
btw, i appreciate all the time you have taken to assist.
No problem. It's a nice distraction when I sit here and do paperwork. I might be outta here for the night soon though.

my laptop is running sierra. i can update it to high sierra, and do the iMac after. is that the best course?
You know what? Go ahead and format it as HFS+ and then run the installer on it. The High Sierra installer may even automatically convert it to APFS during the install, but I can't remember.

HFS+ will work fine, but it's a very old disk format from ancient Mac times. APFS adds a whole bunch of new features, including better optimization for SSDs.


EDIT:

According to that link, the High Sierra installer should convert HFS+ to APFS anyway during the install for new installs, as I suspected.

  • Like
Reactions: Slix

rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
i'm ready to unplug myself. i think i will revisit this tomorrow. my laptop tops out at high sierra also, so i am thinking about doing that first, then resuming this method afterwards. i miss the software disc method!

  • Like
Reactions: MBAir2010

rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
I don't know where they are mostly from. I've never bought one. I suspect some are from old machines and some are new third party. They should have the metal strip, but best to check before you buy.

In the meantime, is the old one still usable? Or are you gonna just run naked for now?

P.S. I once went to check out a Kijiji sale on a 2009 iMac and when I got there I found out why it was so cheap. Not only was the stand dented, there was no front glass. However, somebody had built a plastic black cover for the edges, so in the pictures it looked like the glass was intact. Up close though all you could see was a black plastic frame, with no glass at all. Impressively done for a DIY solution though.
just read this: cracked one could probably be tossed on until a new one comes, though as long as i don't touch the lcd, that might not matter.


rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
so, i think easiest will be to go with sierra, then if that is successful, i can upgrade to high sierra.

under format: Mac OS Extended (journaled, encrypted)?
under scheme: Quid ?

installer: i'll have top locate that. probably haven't touched that in a long time. under utilities?

i'll order a screen when i know the software loading is successful and the machine functions normally. no point in throwing $50 away!


EugW

macrumors G5
Jun 18, 2017
14,656
12,584
so, i think easiest will be to go with sierra, then if that is successful, i can upgrade to high sierra.
That will work, if you want to do it that way, but I'm not sure why you want to do the extra step.

under format: Mac OS Extended (journaled, encrypted)?
under scheme: Quid ?
Journaled yes. Encypted not necessary unless you really want that.
GUID (not QUID).

installer: i'll have top locate that. probably haven't touched that in a long time. under utilities?

i'll order a screen when i know the software loading is successful and the machine functions normally. no point in throwing $50 away!
As mentioned earlier in the thread, the easiest way to get the installer is to install Dosdude's High Sierra (or Sierra) patcher application. It has an option to download the OS installer from Apple. Just don't use the patcher section of it.

  • Like
Reactions: Amethyst1

rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
EugW,

here is your previous suggestion:

"Do you have access to another Mac? If so, you can use that other Mac to make a bootable USB OS X installer drive. All you need is a 16 GB or larger USB drive, and an OS X installer file (which you can download directly from Apple). Google will tell you what commands are needed to create the USB installer from that file.

If you don't have the macOS installer file handy, you can download the High Sierra patcher application, which includes a menu option to download OS X High Sierra direct from Apple. (That downloads the untouched installer for people to patch later, but you don't need to patch High Sierra for that machine, since High Sierra is natively supported.)

What I would suggest is using the USB installer to install High Sierra on an external USB drive. Booting off USB 2.0 will be slow, but if High Sierra works fine, then you know the machine is usable. Once you've confirmed the machine is working fine, then you can take on the project of disassembling machine to install a cheap SSD in there to make it a fast machine again. If you get this far, then we can give you a few pointers about doing the SSD install. Specifically, if you don't do something about the hard drive temperature sensor, then the iMac will run the fans at maximum, which obviously is not ideal of course."

one issue i may have is my 2011 laptop usb ports are flaky at best, so downloading via them would probably not work. that is one of the reasons i was leaning towards the firewire method.


EugW

macrumors G5
Jun 18, 2017
14,656
12,584
Downloading the installer is over WiFi or Ethernet. USB has nothing to do with downloading the installer.

You would only use USB if were going to make a USB installer from that downloaded installer. Installation over FireWire will work fine, but you still need the installer of course.


rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
ok, so i don't actually need the 16gb usb thumb drive.

i think i'm expending too much mental energy mapping out this procedure, and wasting time thinking sierra vs. high sierra. apple allows sierra users to upgrade to high sierra, presumably with no problems, and i have sierra on my laptop ,so path of least resistance. hfs vs. apfs can be handled later. apfs seems to be geared to ssd, which i presume apple and others have moved onto; however, my laptop has a disk hd, so should put high sierra on it? i don't know.

feel free to add/edit:

1) go to apple support or app store, download sierra installer onto laptop
2) firewire target mode with imac
3) disk utility: choose ssd, name it, choose Mac OS Extended (journaled, encrypted), choose GUID
4) then: ?

i prefer vertical instructions, rather than horizontal. thx again (not sure where all the earlier thread participants disappeared to!).

my main goal is too demonstrate that this iMac is healthy and fully functional (incl. hardware like port and superdrive). sierra should do that.

Last edited:

EugW

macrumors G5
Jun 18, 2017
14,656
12,584
My point is if you want to make a new install of Sierra, you need to download the Sierra installer.
If you want to make a new install of High Sierra, you need to download the High Sierra installer.

If you want to make a new install Sierra and then update to High Sierra, then you need to download the Sierra installer, install it, and then download the High Sierra installer, and update using that. This is a waste of time.

My instructions, to save time:

1) Go to www.dosdude1.com and download his High Sierra Patcher. Launch that application, and choose the High Sierra Installer download option. This downloads it direct from Apple.
2) Once the High Sierra Installer is downloaded, you can delete the High Sierra Patcher. (Do NOT patch the installer.)
3) Activate FireWire Target Disk Mode on the iMac and attach it to your MacBook Pro.
4) Open Disk Utility and format the iMac Crucial SSD as GUID, Mac OS Extended Journaled.
5) Run the High Sierra Installer, and choose the iMac Crucial SSD.

---

BTW, I mentioned earlier that the other option is just to make a clone of your MacBook Pro onto your iMac, using SuperDuper!.

  • Like
Reactions: Slix

EugW

macrumors G5
Jun 18, 2017
14,656
12,584
Well, I provided the simplest way to download the installer already, but yes you can also do it through the App Store of course.


rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
My point is if you want to make a new install of Sierra, you need to download the Sierra installer.
If you want to make a new install of High Sierra, you need to download the High Sierra installer.

If you want to make a new install Sierra and then update to High Sierra, then you need to download the Sierra installer, install it, and then download the High Sierra installer, and update using that. This is a waste of time.

My instructions, to save time:

1) Go to www.dosdude1.com and download his High Sierra Patcher. Launch that application, and choose the High Sierra Installer download option. This downloads it direct from Apple.
2) Once the High Sierra Installer is downloaded, you can delete the High Sierra Patcher. (Do NOT patch the installer.)
3) Activate FireWire Target Disk Mode on the iMac and attach it to your MacBook Pro.
4) Open Disk Utility and format the iMac Crucial SSD as GUID, Mac OS Extended Journaled.
5) Run the High Sierra Installer, and choose the iMac Crucial SSD.

---

BTW, I mentioned earlier that the other option is just to make a clone of your MacBook Pro onto your iMac, using SuperDuper!.
thx for your patience. i have lots of disparate things i'm working on, and software procedures and terminology/language is just something else to decipher and decide upon. i'm sure its easier done than discussed. just never did it before, and last computer effort was my new 2011 MacBook pro!


rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England

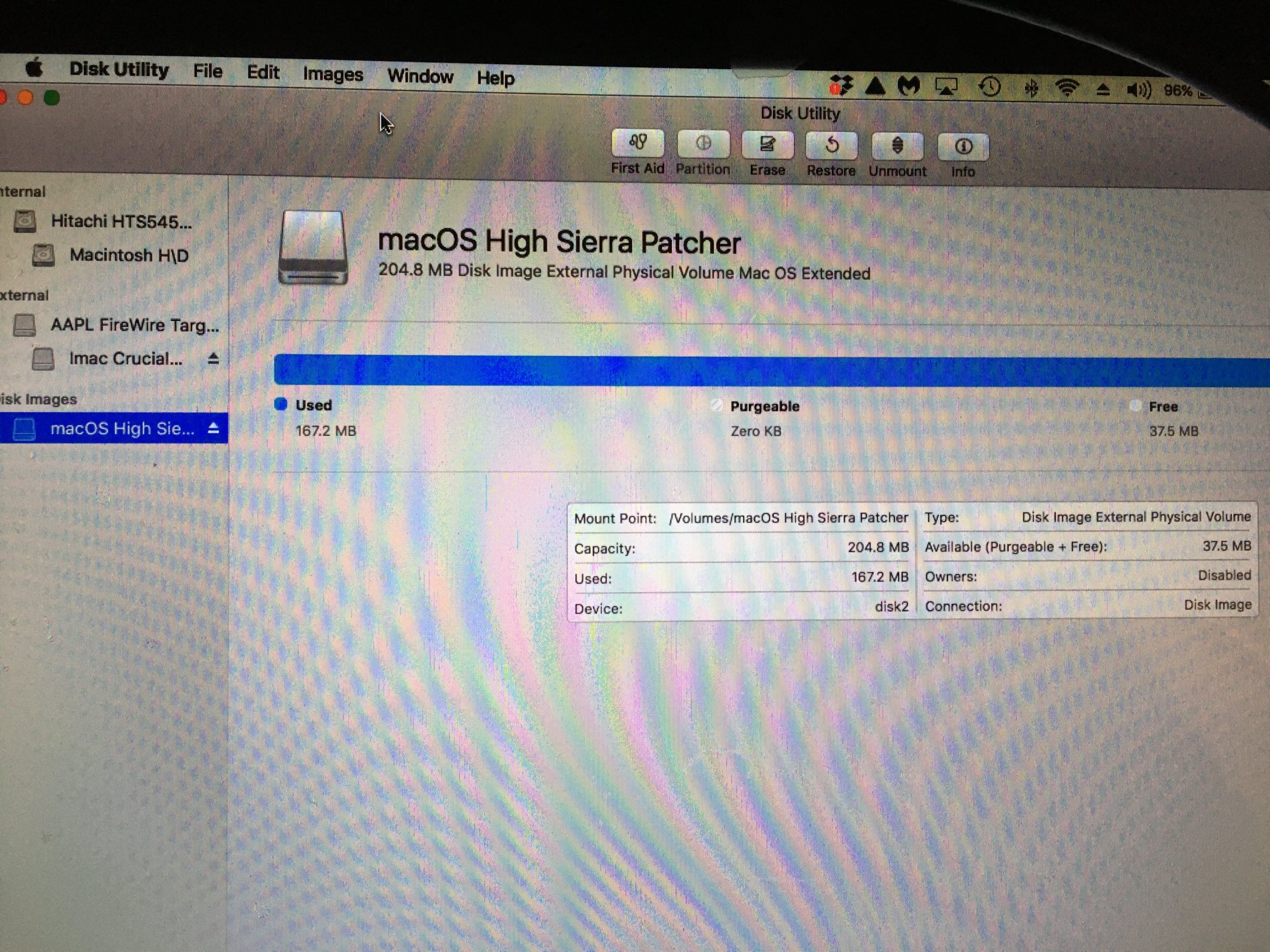

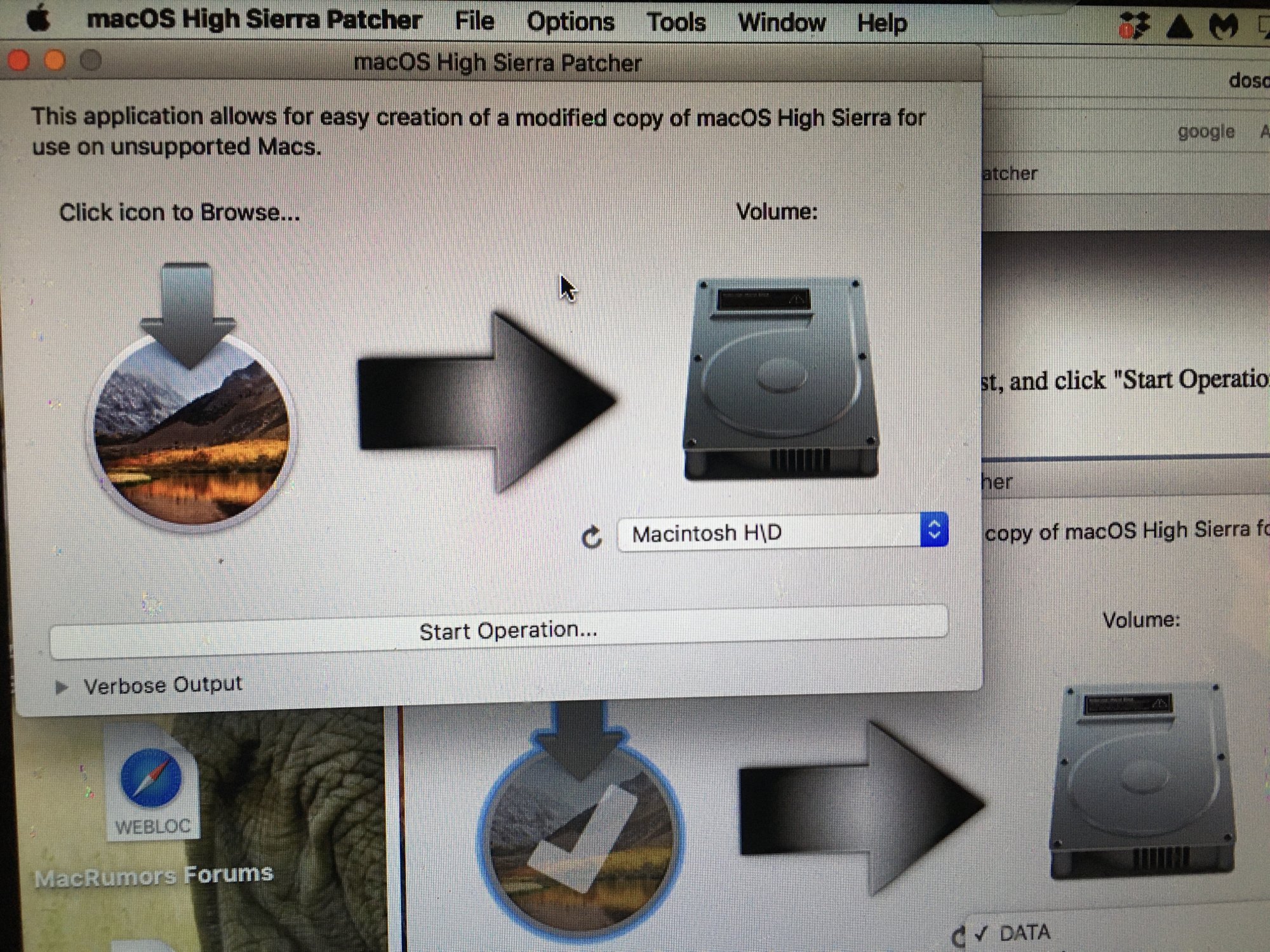

Decided to give this dosdude method a try. Is next step “start operation”? As you can see, the patcher right now is listed in the disk utility.


Attachments

  • 088629F6-D41C-49C2-AB17-8D5F4DAA9970.jpeg
    733.3 KB · Views: 63
  • 00C0C673-F0ED-4A30-BC33-3C78D6D729F2.jpeg
    805.5 KB · Views: 64

rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England

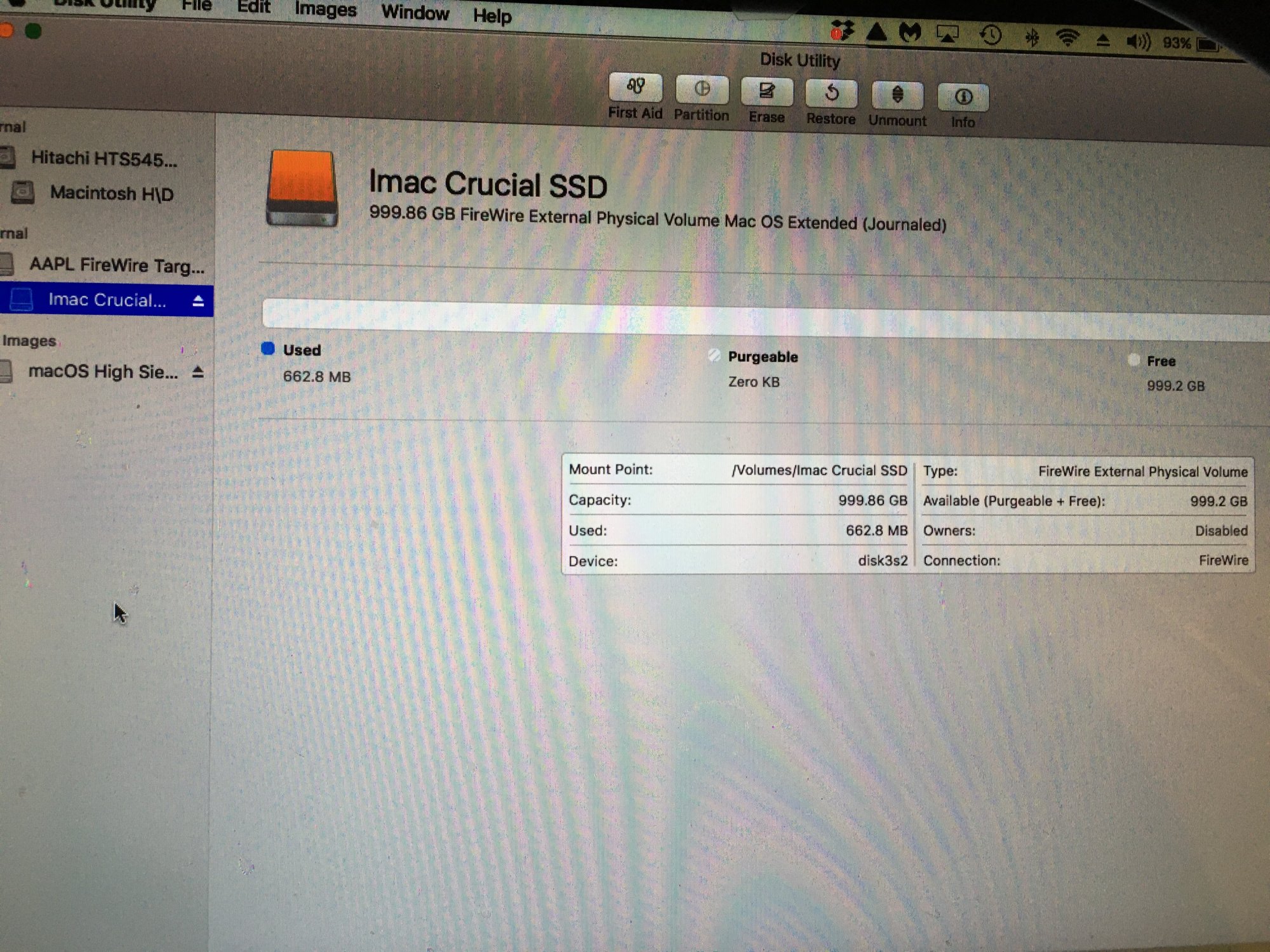

And, I named, journaled, guid, and erased the crucial ssd.


Attachments

  • 67B931DF-5BB9-4B3C-A6BC-48818082720C.jpeg
    675.9 KB · Views: 61

EugW

macrumors G5
Jun 18, 2017
14,656
12,584
Decided to give this dosdude method a try. Is next step “start operation”? As you can see, the patcher right now is listed in the disk utility.
No! As mentioned you do NOT want to patch the downloaded installer. Once you have the downloaded the installer (with the built in command in the patcher application), you can just run the installer. Make sure you choose the iMac SSD as the target for the install.


rwh63

macrumors 6502a
Original poster
Jun 24, 2010
522
288
New England
I did not press continue, after seeing the patcher in disk utility. However, the process has not been crystal clear so far.

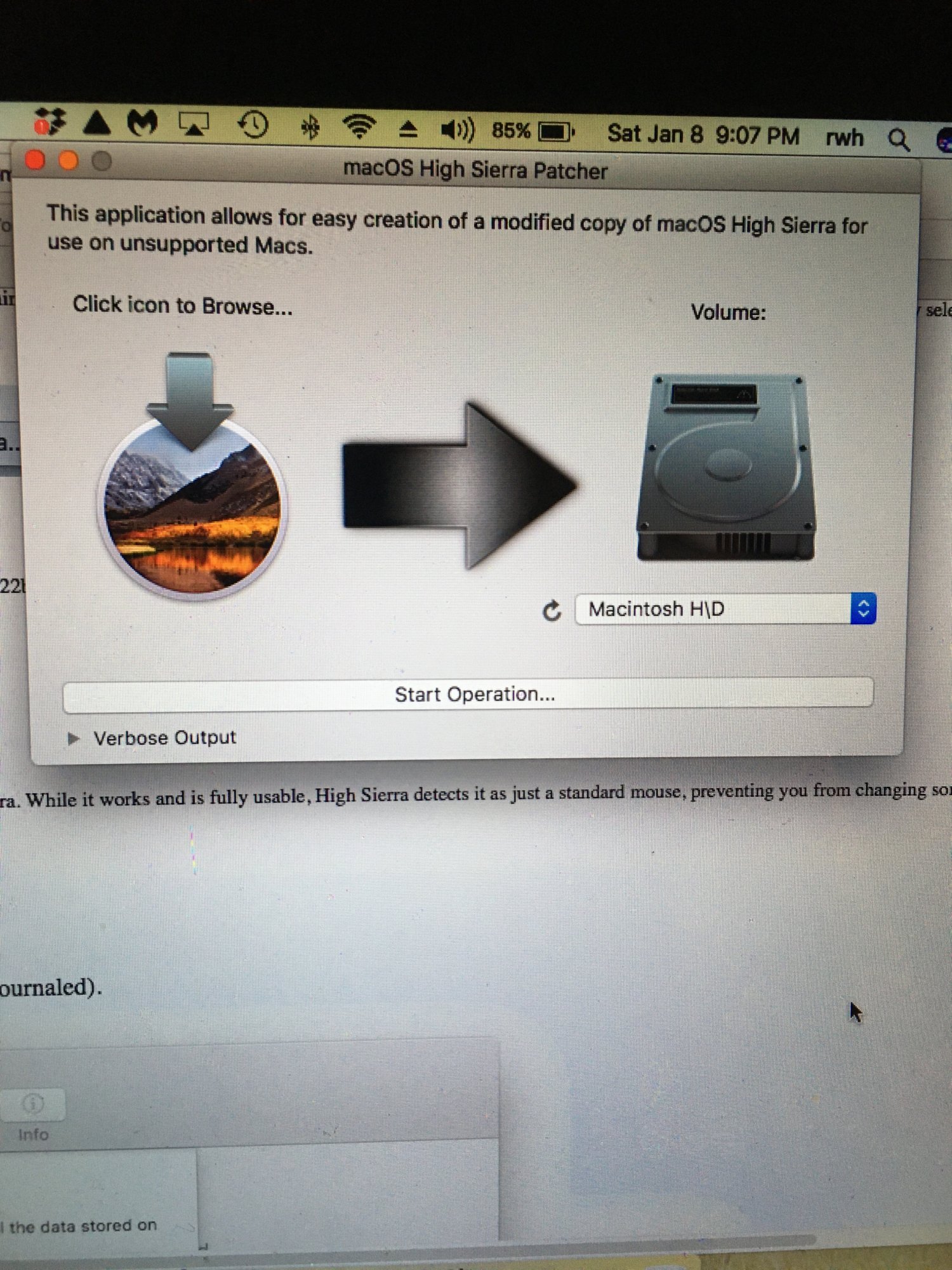

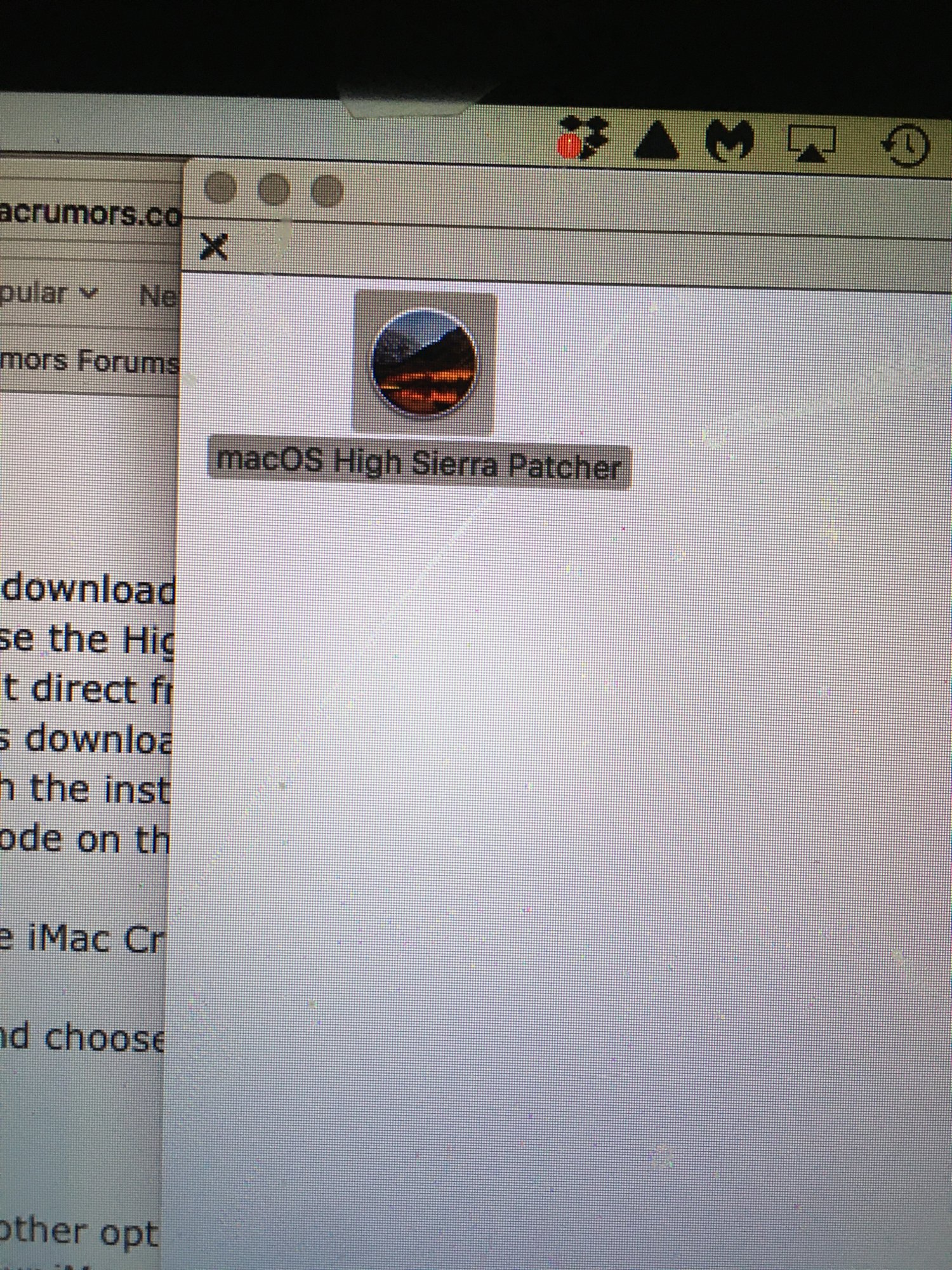

I downloaded the patcher, as instructed. I click on it, this is what pops up.


Attachments

  • 6CFBEA74-51E0-46E0-845F-B30372441571.jpeg
    649.2 KB · Views: 58
  • EE5AEFF2-8FD2-4AEF-9189-E24957F70FF6.jpeg
    985.2 KB · Views: 61
