How to clean the Mac Studio from dust?

[crowe-t]

Yes. I asked the printer first for his recommendation and he definitely favored PLA. This item is the first thing I've ever had printed 3D and am hugely impressed with it.

I was concerned with the Studio getting hot and PLA possibly warping.



[majus]

I was concerned with the Studio getting hot and PLA possibly warping.

Thanks for bringing this up. This is my first experience with buying 3D printing, so I researched that.

Warping might occur about 50°C/122°F. Given that heat rises and there is a constant airflow upward I doubt that would happen. I definitely would not leave the item in a closed car on a hot day in the sun though.

Excess humidity can cause PLA warping. Keeping a consistent room environment is important.

Another issue is UV exposure which will change the material color over time and also cause it to become brittle. Some recommend coating the exterior with a UV-resistant varnish.



[crowe-t]

Thanks for bringing this up. This is my first experience with buying 3D printing, so I researched that.

Warping might occur about 50°C/122°F. Given that heat rises and there is a constant airflow upward I doubt that would happen. I definitely would not leave the item in a closed car on a hot day in the sun though.

Excess humidity can cause PLA warping. Keeping a consistent room environment is important.

Another issue is UV exposure which will change the material color over time and also cause it to become brittle. Some recommend coating the exterior with a UV-resistant varnish.

Thanks for posting this.



[crowe-t]

Thanks for bringing this up. This is my first experience with buying 3D printing, so I researched that.

Warping might occur about 50°C/122°F. Given that heat rises and there is a constant airflow upward I doubt that would happen. I definitely would not leave the item in a closed car on a hot day in the sun though.

Excess humidity can cause PLA warping. Keeping a consistent room environment is important.

Another issue is UV exposure which will change the material color over time and also cause it to become brittle. Some recommend coating the exterior with a UV-resistant varnish.

What type of flter are you using in the Mac Studio 3D printed filter casing?



[majus]

What type of flter are you using in the Mac Studio 3D printed filter casing?

This one:

Bi-Trust Cabin Air Filter,Replacement for Mitsubishi Mirage 2014-2021 Mirage G4 2017-2021 L3 1.2L

Item Description: Product Type: Replacement for Mitsubishi Mirage air conditioning system accessories Material:Nonwoven Fabric Package Include: 1XReplacement Cabin Air Filter Country/Region of Manufacture: China LengthXWidthXHeight:7.05"x6.97"x0.71" Compatibility: Dodge (Also See Ram) Att...

www.amazon.com



[seggy]

This will just cause the fans to work harder when it's actually needed and to wear out faster.

What slum are y'all living in that it needs this apparent level of filtration?



[Shazaam!]

A lack of a technical background will render you clueless.



[seggy]

A lack of a technical background will render you clueless.

An overreliance on theory will also render your solution suboptimal. Mind you, it doesn't stop people even making and marketing - never mind DIYing - solutions based around flawed assumptions (e.g. vertical stands for laptops that partly depend on airflow across the keyboard deck for full cooling).



[dimme]

I live in a house with 2 dogs and a bird, oh and also my wife😀. I have my Mac Studio on a Spigen stand. I dust the desk and under the Mac Studio with a swift about evert two weeks. I never notice ant dust build up on the stand or the studio. I do admit the inside of the studio may be a different story. I have a OWC thunderbay 4 on a rack in the same room running 24/7 and after two weeks the front plate is covered in dust. Just wanted to add my data point.



[Shazaam!]

I live in a house with 2 dogs and a bird, oh and also my wife😀. I have my Mac Studio on a Spigen stand. I dust the desk and under the Mac Studio with a swift about evert two weeks. I never notice ant dust build up on the stand or the studio. I do admit the inside of the studio may be a different story. I have a OWC thunderbay 4 on a rack in the same room running 24/7 and after two weeks the front plate is covered in dust. Just wanted to add my data point.

Let me point out that dust particles common in the home range in size from 1 to 100 microns.

The filter holes in the Spigen stand are 0.77 mm or 770 microns. Dust is passing through the Spigen right into the Mac Studio.



[Killerbob]

I am almost two years in on my Mac Studio, and yes, I have had it sitting on a Spigen stand the last year.

The Mac Studio is located on a desk in my office in the basement. Basement is unfinished, with concrete floors and walls and I only vacuum about once a fortnight. The office is a busy one with a Mac Studio, 2 Mac Pros, laptops, monitors, TB docking stations, NASes, printer, switch, and a collection of external SSDs and HDDs, and lots of traffic… We have a dog, and he leaves his “imprint” on the environment as well.

I clean the Spigen filter about once a quarter and only ever see a bit of dust accumulation, and when I vacuum the Mac Studio, very little dust seems to be inside the unit.

Maybe not the popular opinion, but perhaps we are over-thinking this a bit, and I wonder how susceptible the Mac Studio actually is to dust accumulation?



[Shazaam!]

Skip to the 15 minute mark.



[splifingate]

Skip to the 15 minute mark.

"We blew-up a lot of money, uh, buy[ing] utter rubbish."

Lots of chips on that bloke's shoulders 😉



[splifingate]

Am waiting for the (official; post-purchase) two-month point before I clean/document the accumulation. Current (aggregate) temps are symbolic of the heating dynamic, and the MS never breaches 36C

I work outside, so I introduce a lot of "stuff" into my environment. I am also owned by two quats, so there is a lot of fluff circulating in the house. I've tossed USD50 into proverbial rubbish for many an other wildly-crazy proposition.

Additional layers of protection may not always be pleasant, but they never *cough* hurt 😉



[crowe-t]

A friend printed the Mac Studio filter casing for me. I ordered some filters and a neoprene strip for the seal. As soon as they come this week I'll set it up.



[Shazaam!]

A friend printed the Mac Studio filter casing for me. I ordered some filters and a neoprene strip for the seal. As soon as they come this week I'll set it up.

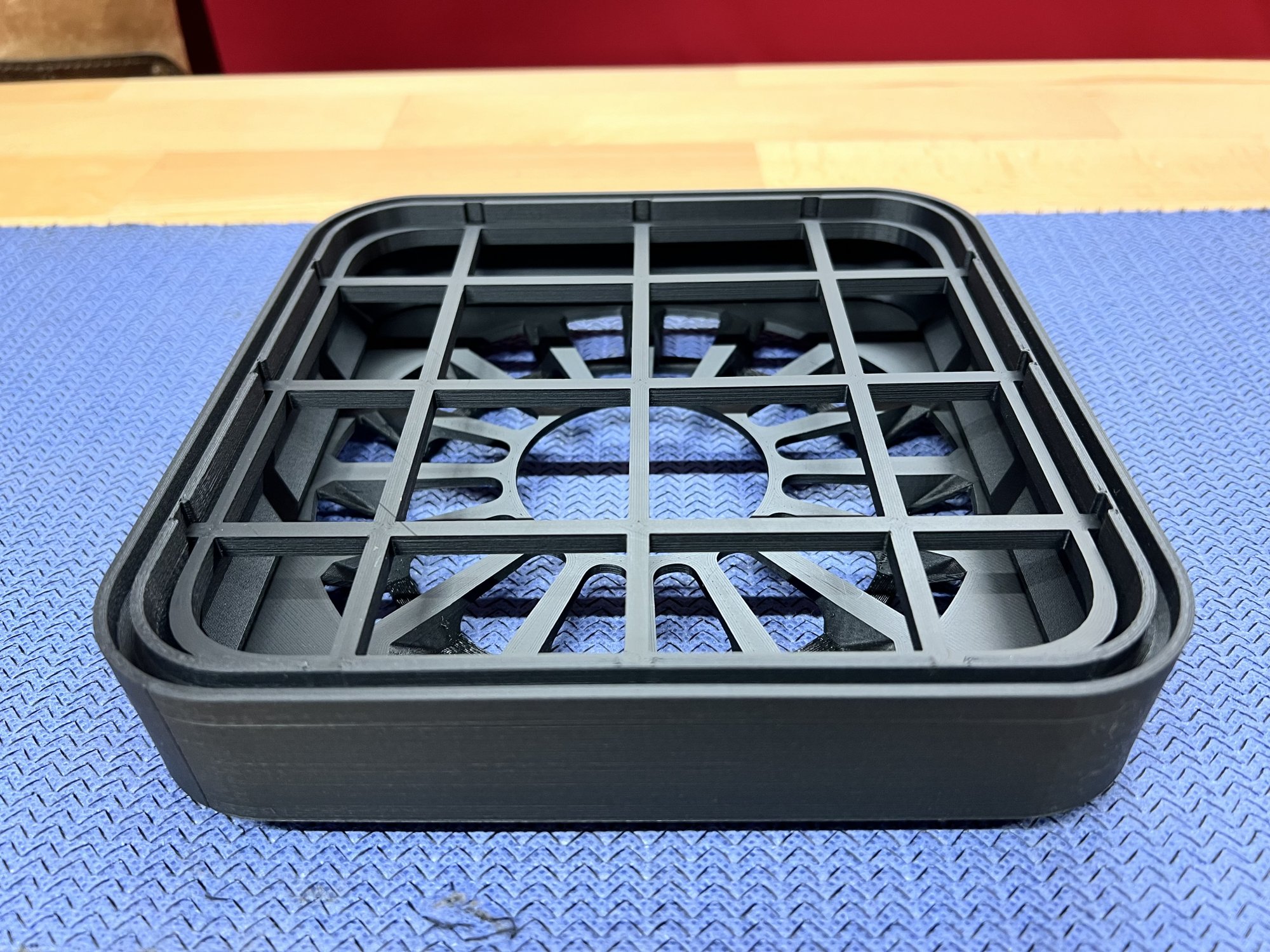

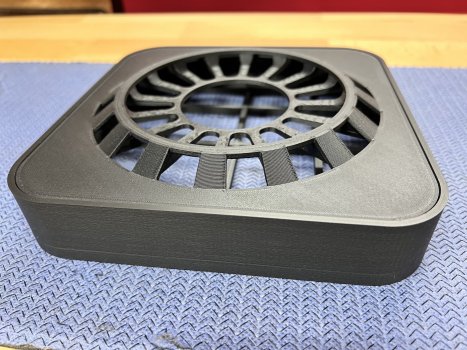

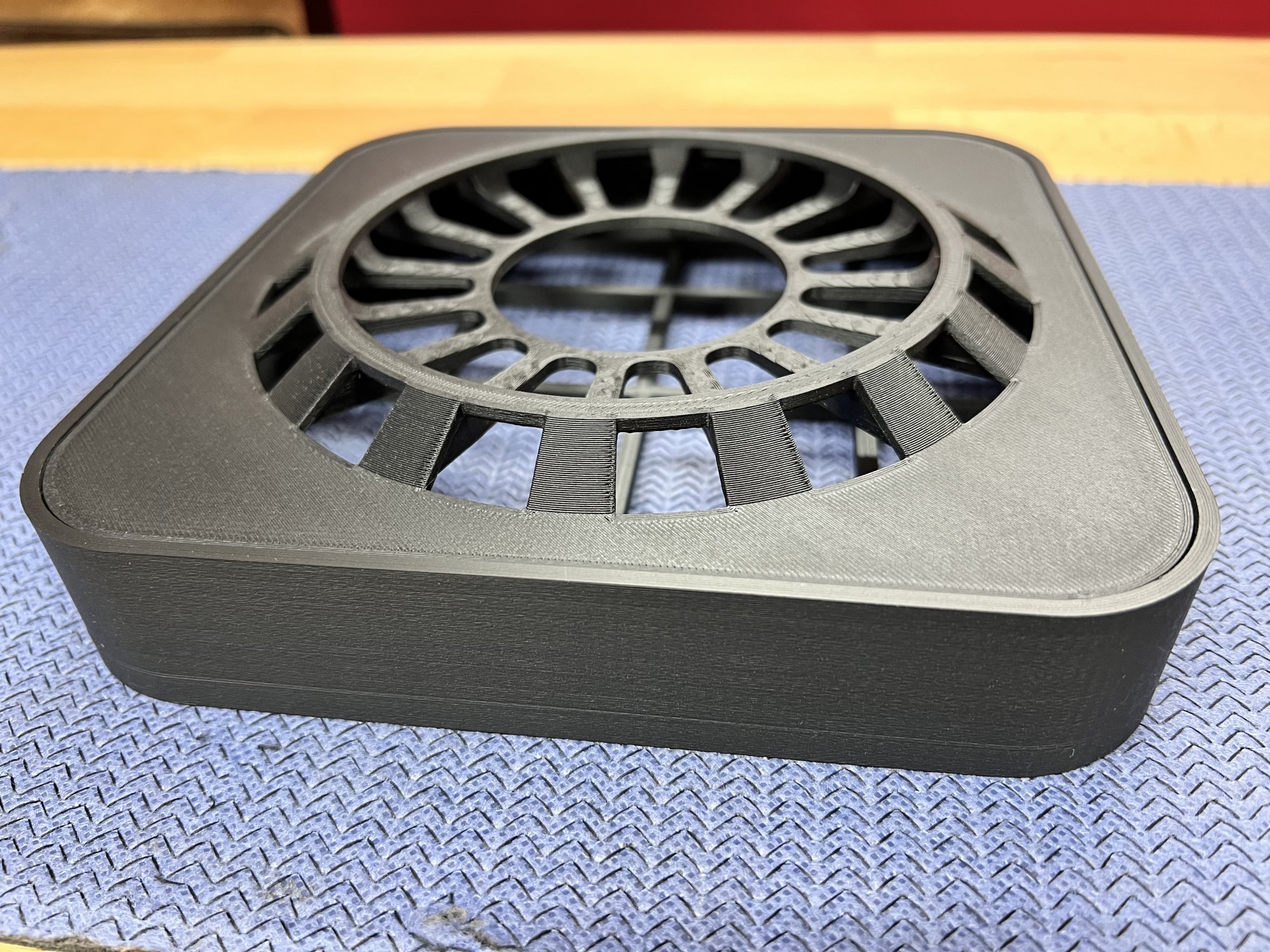

View attachment 2346142

I've been running mine (orange) for a year. A well thought out design, works a treat.



[Wheel_D]

A friend printed the Mac Studio filter casing for me. I ordered some filters and a neoprene strip for the seal. As soon as they come this week I'll set it up.

View attachment 2346142

I'll likely be getting a Mac Studio and would be glad to mount it on a filter like the one pictured above. Still, I doubt I can access the necessary materials. Indeed, as a person with a physical disability, I'm frustrated with the lack of quality commercial solutions. Also, there's no Apple store nearby, so there will be no reason to pay the AppleCare fee for the privilege of watching Apple exhume dust bunnies from my machine.

Extremely frustrating. . . .



[majus]

I'll likely be getting a Mac Studio and would be glad to mount it on a filter like the one pictured above. Still, I doubt I can access the necessary materials. Indeed, as a person with a physical disability, I'm frustrated with the lack of quality commercial solutions. Also, there's no Apple store nearby, so there will be no reason to pay the AppleCare fee for the privilege of watching Apple exhume dust bunnies from my machine.

Extremely frustrating. . . .

Everything, including the printing, can be ordered online.



[Shazaam!]

I'll likely be getting a Mac Studio and would be glad to mount it on a filter like the one pictured above. Still, I doubt I can access the necessary materials. Indeed, as a person with a physical disability, I'm frustrated with the lack of quality commercial solutions. Also, there's no Apple store nearby, so there will be no reason to pay the AppleCare fee for the privilege of watching Apple exhume dust bunnies from my machine.

Extremely frustrating. . . .

Do what I did. Pay ($19) for the 3D printer file and upload to a commercial 3D printer company of your choice to print and ship the file to you ($40). Buy the filter medium ($18) from Amazon and that's it.

https://www.cgtrader.com/3d-print-models/hobby-diy/electronics/mac-studio-filter-casing-3d-printing

https://www.treatstock.com/3d-printing-services/best-3d-printing-services

Uni Filter - BF-1 BF1 12" X 16" X 5/8" 65-PPI Green Fine Foam

Uni filter ATV air filters keep out all the dirt, dust, and mud providing superior engine protection. The principle of how foam air filters work is simple, open cell polyurethane foam is wetted with specially developed filter oil. The sticky filter oil.

www.amazon.com



[Wheel_D]

Everything, including the printing, can be ordered online.

Do what I did. Pay ($19) for the 3D printer file and upload to a commercial 3D printer company of your choice to print and ship the file to you ($40). Buy the filter medium ($18) from Amazon and that's it.

https://www.cgtrader.com/3d-print-models/hobby-diy/electronics/mac-studio-filter-casing-3d-printing

https://www.treatstock.com/3d-printing-services/best-3d-printing-services

Uni Filter - BF-1 BF1 12" X 16" X 5/8" 65-PPI Green Fine Foam

Uni filter ATV air filters keep out all the dirt, dust, and mud providing superior engine protection. The principle of how foam air filters work is simple, open cell polyurethane foam is wetted with specially developed filter oil. The sticky filter oil.

www.amazon.com

I may do so; many thanks to those in this thread for the terrific advice!

However—there is always a “however,” isn’t there?—my dexterity is such that it’s not practical for me to cut filter materials or neoprene strips. Heck, I’m not even sure about assembling them correctly. Yes, I could ask for assistance, but you know the old saying: If you want something done right. . . .

For me—for my money and situation—an effective commercial solution would be highly preferable.



[crowe-t]

I may do so; many thanks to those in this thread for the terrific advice!

However—there is always a “however,” isn’t there?—my dexterity is such that it’s not practical for me to cut filter materials or neoprene strips. Heck, I’m not even sure about assembling them correctly. Yes, I could ask for assistance, but you know the old saying: If you want something done right. . . .

For me—for my money and situation—an effective commercial solution would be highly preferable.

This filter for a Mitsubishi Mirage G4 fits. In fact this is the one mentioned on the listing at CG Trader.

Cabin Air Filter 54-WP10125 Replacement For Mitsubishi Mirage G4

Cabin Air Filter 54-WP10125 Replacement For Mitsubishi Mirage G4

www.amazon.com



[krishnaM]

I am going to try this. The "DustEnd" filter material is self adhesive. I just cut it to fit and attached it to the underside of the Spigen filter stand. Its adhesive did a very good job sticking down and sealing the base up. The black foam will enable me to better see what is it filtering out.View attachment 2198333

Has anyone else tried this method? Any drawbacks? Please post your experience



[Shazaam!]

Has anyone else tried this method? Any drawbacks? Please post your experience

Your approach will work fine. The only drawback is the thickness of the foam. Thin foam can't hold as much dust internally so you'll need to set a reminder to vacuum it or change it more frequently to avoid reducing air flow.



[majus]

...upload to a commercial 3D printer company of your choice to print and ship the file to you ($40).

https://www.treatstock.com/3d-printing-services/best-3d-printing-services

Of the top 10 shown, would you mind sharing which one you used?



[Shazaam!]

Of the top 10 shown, would you mind sharing which one you used?

I used:

Kepler Design Company

Kepler Design Company

www.treatstock.com
