MP 1,1-5,1 Innie: A fix for PCI drives seen as external

[GSXB]

Hello @GSXB
Yep it work! I just installed DP8
At first boot after installation my 2 Samsung NVMe PCIe were seen external but after typing this code in the Terminal

sudo nvram boot-args="$(nvram boot-args | sed $'s/boot-args//;s/\t//g') -lilubeta -inniebeta"

and after a restart everything is back in order, my 2 NVMe PCIe were seen internal.

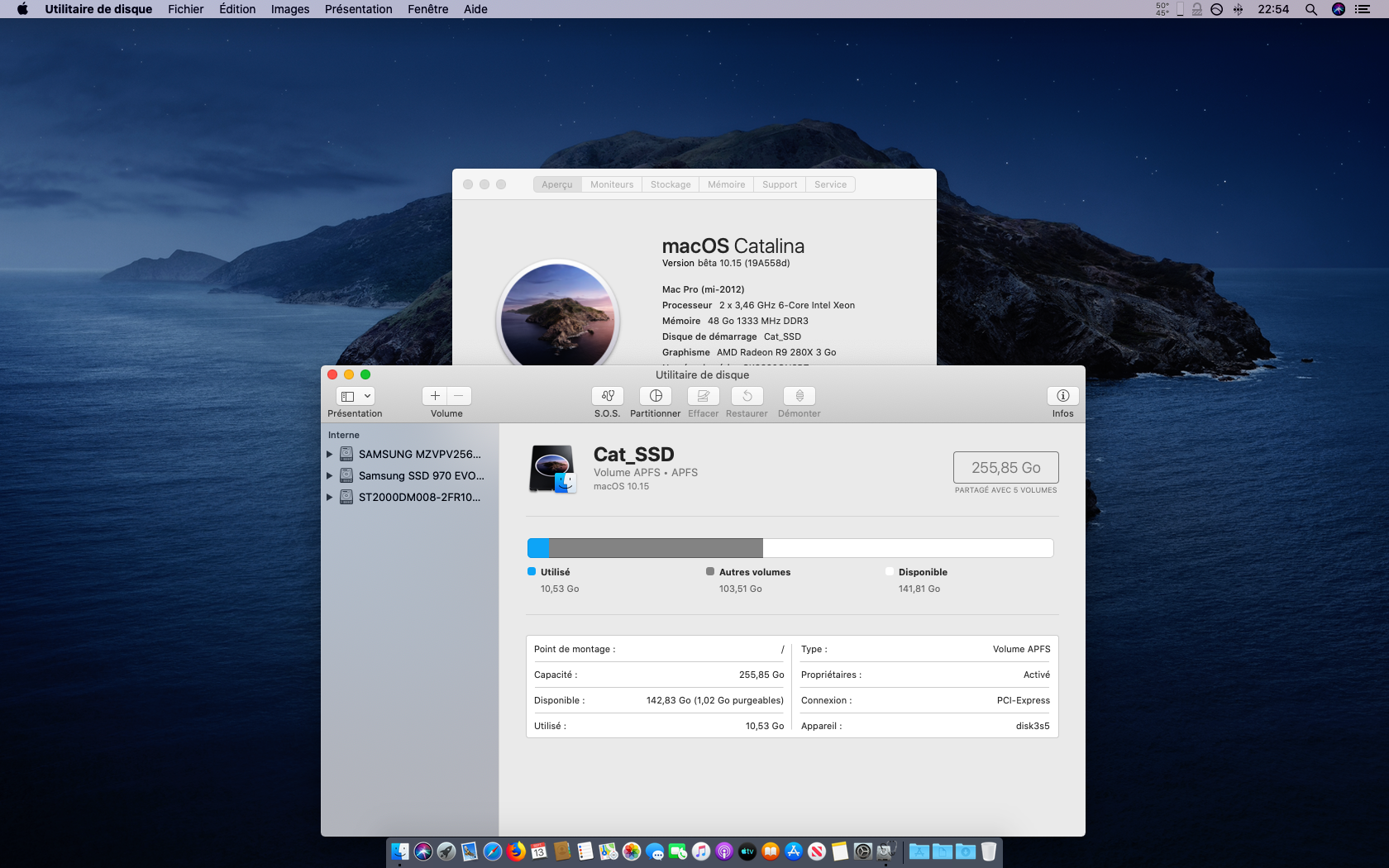

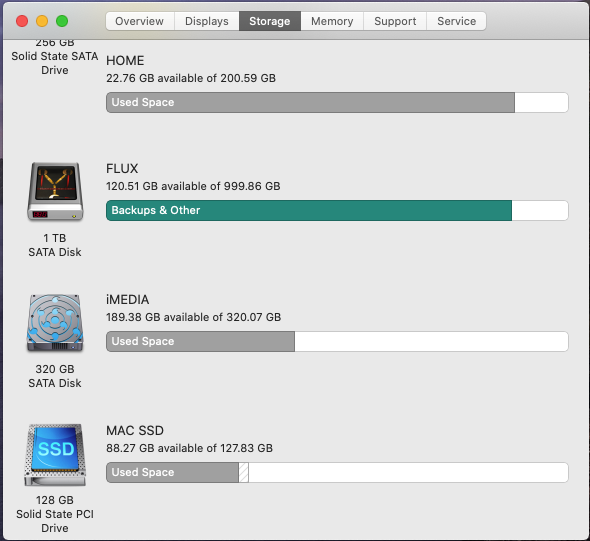

View attachment 858137

I followed post nine and added the line of code you quoted and I didn’t work
Any thoughts as the kexts are loaded but not working



[h9826790]

I followed post nine and added the line of code you quoted and I didn’t work
Any thoughts as the kexts are loaded but not working

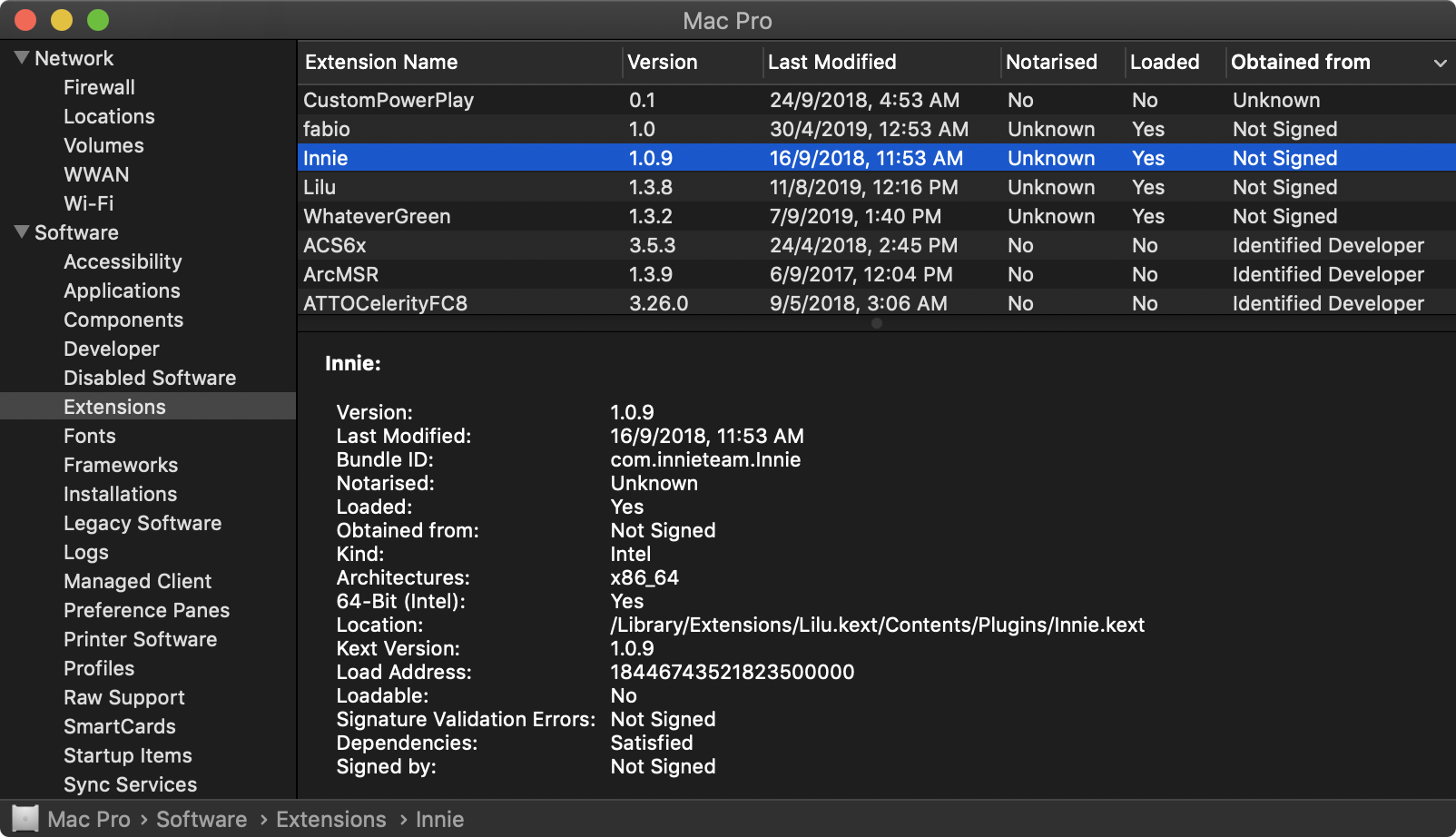

What you see at this page?



[GSXB]

What you see at this page?

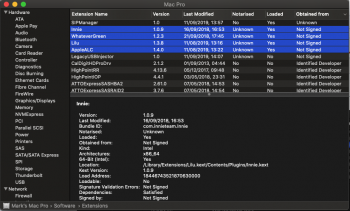

View attachment 858258

as far as I can see it the same as yours



[flyproductions]

Will making the drive appear as internal using Innie, speed up the boot process?

I was particulary interested in this question too, installed with success yesterday, and can now confirm what h9826790 supposed: Doesn't have any influence on the boot-time. Explanation sounds quite logical to me anyway.

But even without that, i like the patch and thank for the nice work done! I also installed the NightShiftUnlocker, which also works, and also AppleALC, which shows up as loaded but i have not tested yet. Should there appeare new sound-outputs like DP or HDMI in the sound-controlpanel without anything attached to the ports (which do not) or is there anything else to install to get sound over HDMI with an RX 570?



[h9826790]

I was particulary interested in this question too, installed with success yesterday, and can now confirm what h9826790 supposed: Doesn't have any influence on the boot-time. Explanation sounds quite logical to me anyway.

But even without that, i like the patch and thank for the nice work done! I also installed the NightShiftUnlocker, which also works, and also AppleALC, which shows up as loaded but i have not tested yet. Should there appeare new sound-outputs like DP or HDMI in the sound-controlpanel without anything attached to the ports (which do not) or is there anything else to install to get sound over HDMI with an RX 570?

Which OS version you are running now? AppleALC shouldn't be required now.



[flyproductions]

Which OS version you are running now? AppleALC shouldn't be required now.

Thanks for your reply.

For different reasons i'm still using HS (10.13.6) and am planning to keep it that way. I tried once before with a tv attached to the HDMI of the RX and didn't get any audio.



[GSXB]

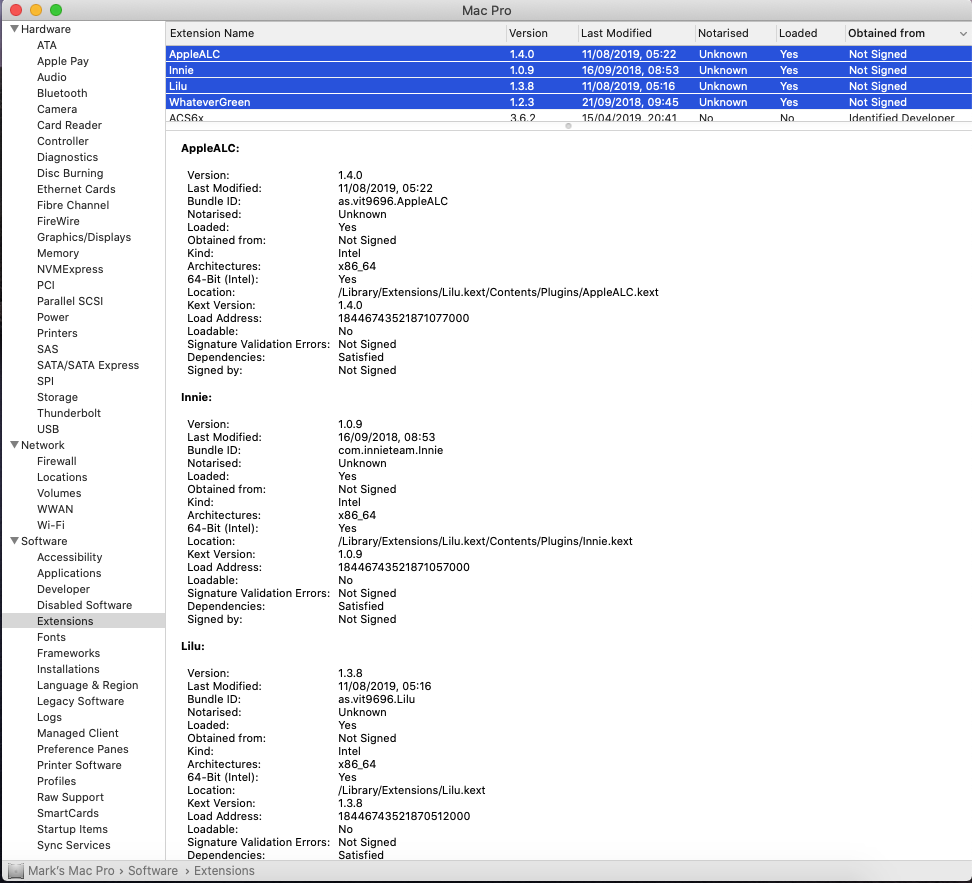

I’ve added the plugins folder to lilu 1.3.8 and placed the latest whatevergreen kext , and the latest appleALC kext with innie
Run the terminal commands rebooted and run the other command rebooted and it doesn’t work has anyone got any ideas



[h9826790]

I’ve added the plugins folder to lilu 1.3.8 and placed the latest whatevergreen kext , and the latest appleALC kext with innie
Run the terminal commands rebooted and run the other command rebooted and it doesn’t work has anyone got any ideas

What’s your boot argument now?



[GSXB]

What’s your boot argument now?

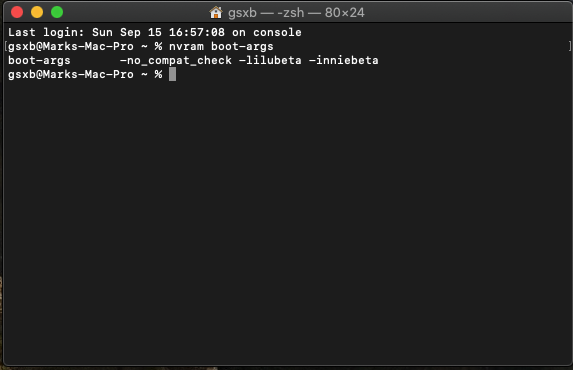

boot-args -no_compat_check -lilubeta -



[cdf]

boot-args -no_compat_check -lilubeta -

For Innie, make sure that you have the "-inniebeta" boot argument.



[GSXB]

For Innie, make sure that you have the "-inniebeta" boot argument.

For Innie, make sure that you have the "-inniebeta" boot argument.

just checked and got



[cdf]

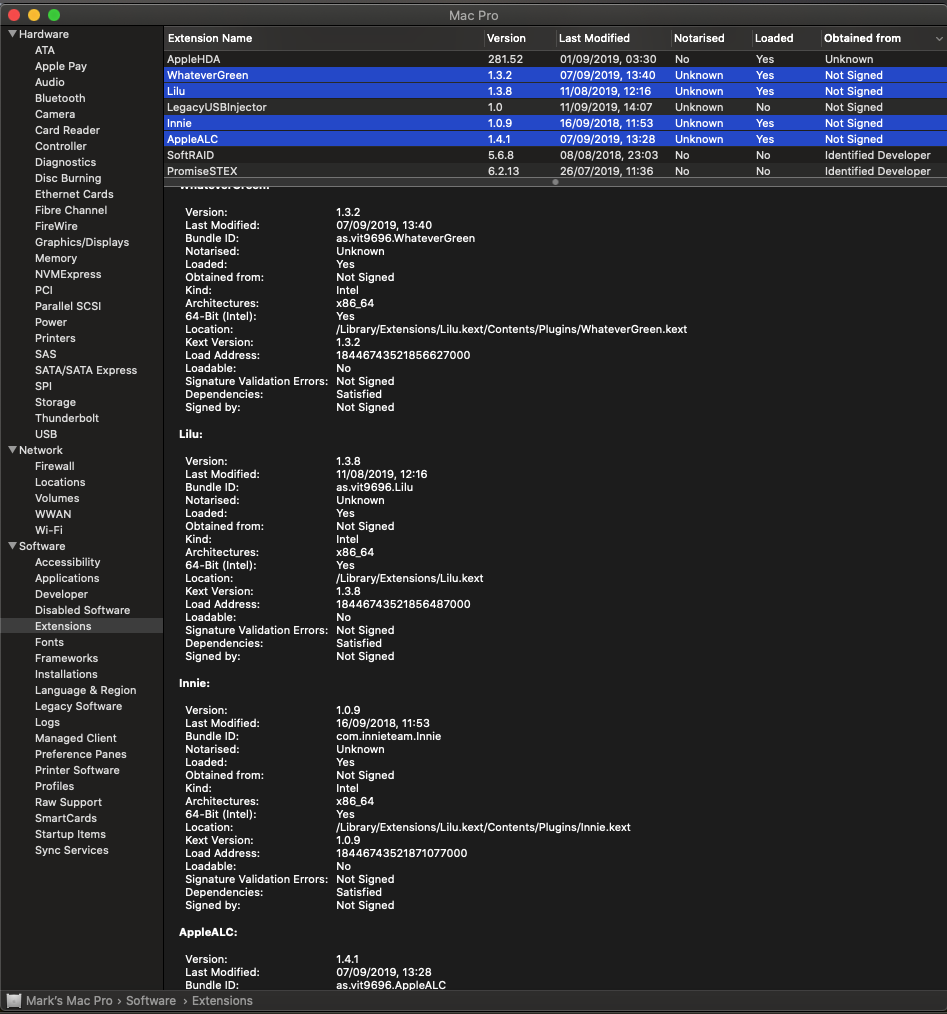

@GSXB, other third party kexts can interfere with Lilu and its plugins. In Post #234, your screenshot shows a "LegacyUSBInjector" kext. It also shows an "AppleHDA" kext, which has apparently been modified ("Obtained from" = "Unknown").



[GSXB]

@GSXB, other third party kexts can interfere with Lilu and its plugins. In Post #234, your screenshot shows a "LegacyUSBInjector" kext. It also shows an "AppleHDA" kext, which has apparently been modified ("Obtained from" = "Unknown").

I’ll look into that, I’ll back em up and delete em rerun kext cashe and try again
Thanks for pointing that out



[flyproductions]

and placed the latest whatevergreen kext , and the latest appleALC kext

I know, this is the innie-thread. So sorry for a little o.t. But is the whatevergreen-plugin needed to get audio out of AMD RX5xx cards?

...and another small question: I am currently using the debug-versions of Lilu and AppleALC, as the "release"-versions came along with some strange .dSYM-files, i did not know what to do with. All seems to work fine. But is it in any way "better" to use the "release"-files if debugging is not needed or is there no difference in functionality besides the debugging option?



[cdf]

I know, this is the innie-thread. So sorry for a little o.t. But is the whatevergreen-plugin needed to get audio out of AMD RX5xx cards?

...and another small question: I am currently using the debug-versions of Lilu and AppleALC, as the "release"-versions came along with some strange .dSYM-files, i did not know what to do with. All seems to work fine. But is it in any way "better" to use the "release"-files if debugging is not needed or is there no difference in functionality besides the debugging option?

The main purpose of WhateverGreen on the cMP is to activate hardware acceleration. I believe that for AMD RX cards, audio is supported natively since 10.14.4. I originally recommended the debug version of Lilu for debugging Innie; however, very few issues have cropped up. Of course, you can keep using the debug version if you want. Other than the debugging features, I don't think that there is a difference functionally between debug or release, although I am currently using the release version (you can ignore the dSYM files).



[flyproductions]

I believe that for AMD RX cards, audio is supported natively since 10.14.4.

Thanks for the reply!

As mentioned before, i once tried and didn't get audio. But sadly i don't remember anymore, if it was with 10.14.5 which i had installed for short or after i went back to HS. Anyway, i will test this again tomorrow to see, if AppleALC changed anything.



[GSXB]

I’ll look into that, I’ll back em up and delete em rerun kext cashe and try again
Thanks for pointing that out

I’ve removed the usb legacy kext
It made No difference
As for the AppleHDA I’m unable to delete it and have been reassured by dosdude that the kexts in question would not be conflicting with lilu and innie
Now I’m completely stumped any more ideas



[flyproductions]

I believe that for AMD RX cards, audio is supported natively since 10.14.4.

Just for the record:

I tested today with some SAMSUNG TV and get audio out of the RX's HDMI perfectly well right now (which, as i also tested, is not present without the AppleALC.kext, running High Sierra). So everything works perfect right now and i have an in a few ways even more useful 5,1 now. Thanks alot for that!

I also switched to the release-versions instead of debug for Lilu as well as for the plugins "just in case" and added WhateverGreen.

Edit: Removed WhateverGreen again because of this! Sometimes it seems to be better to read before!



[Gboyartis]

I really need this .... I have a ssd m2 adata sx8200 pro and I've tried it on mac pro 5.1 ....... I've followed everything you suggest ... but it always fails .... maybe I I did it wrong in point 4 ... I am confused what I should copy in the plugin folder ... I really need your help ... thank you



[GSXB]

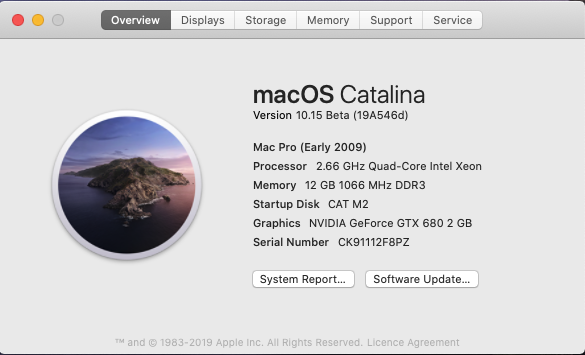

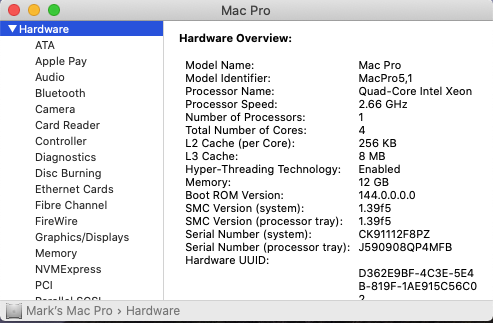

SUCCESS
after my initial problem with lilu, innie, appleALC and whatevergreen
I decided to install Catalina with no patches with Dosdudes Catalina patcher,

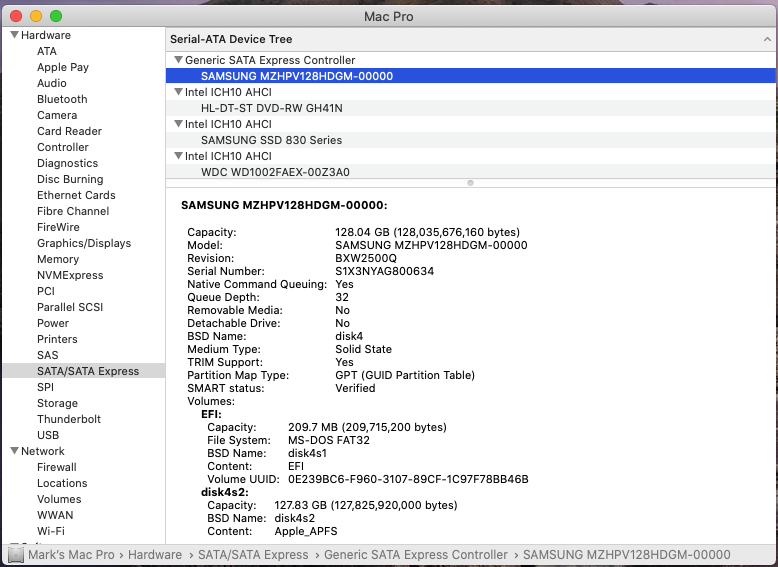

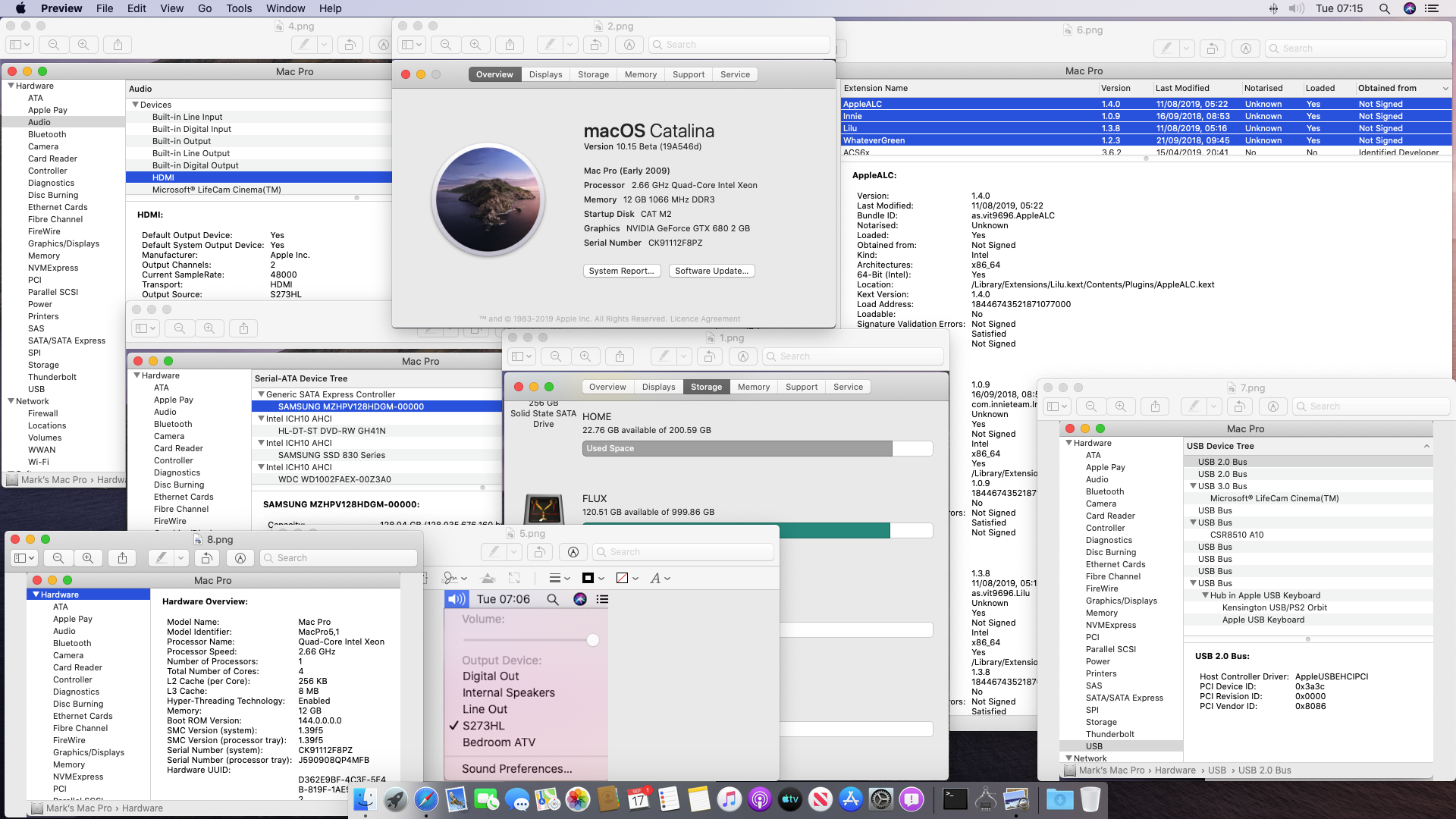

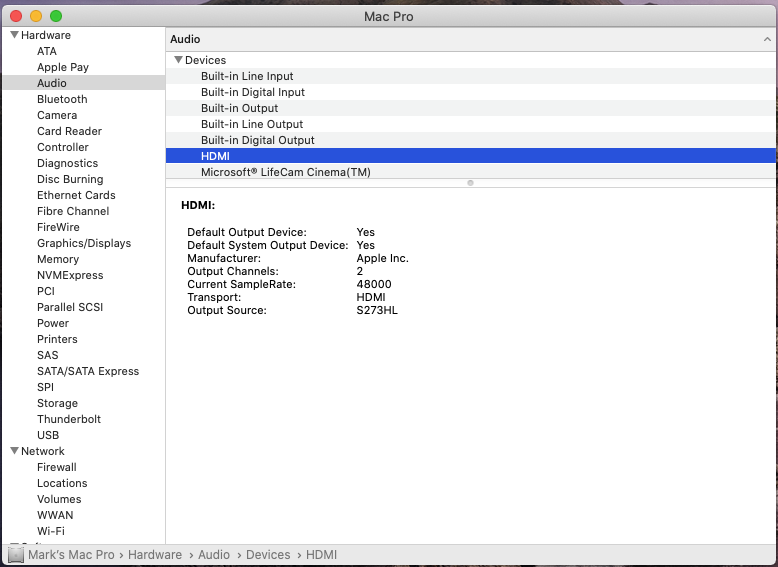

bingo it now works. My pci m.2 is now internal and I have HDMI sound,
there must be some kind of conflict going on. ?????
he said they were required as usb and sound would not work
well there not installed and they do work
UPDATE. Now with WIFI



[Gboyartis]

please ... where can I get "innie"



[flyproductions]

please ... where can I get "innie"

At the bottom of #9 of this thread.



[Gboyartis]

At the bottom of #9 of this thread.

I have tried it ... but still the mvne is read externally .... where is my fault ... please help



[h9826790]

I have tried it ... but still the mvne is read externally .... where is my fault ... please help

You have to tell us the all steps you did in details. Otherwise, how can we know what's wrong?



[flyproductions]

and I have HDMI sound

Does your HDMI show up among the audio-outputs even with nothing connected to it? This is one (for sure not needed!) thing i do not actualy have.
