T

Tachanka

macrumors member
Mar 8, 2021
30
7
Stex said:
@Tachanka and @MisterAndrew:

this is a friendly note from a newbie: the issues you raise are interesting, valid, and worth debating. but please do that in a separate thread.

like other commenters mentioned before me, let's keep this thread focused and on topic, please.

Many of us are following this thread closely and are very grateful to the OP and the experts who are generously and proactively trying to identify the problem.
Click to expand...
You are absolutely correct but it seems like it keeps coming up in these threads so I felt like addressing it forcefully.

Dayo

Dayo

macrumors 68020
Dec 21, 2018
2,257
1,279
tsialex said:
I've explained to you that Mac Pros with PCIe SATA or PCIe AHCI drives (even Apple made ones) can't also boot 11.3, the only reliable reports of early-2009 to mid-2012 booting successfully 11.3 are from people that is using SATA drives connected to the southbrige SATA ports. Since no one using non NVMe PCIe drives can boot 11.3 reliably, so this eliminate NVMe as the real motive of the crashes.
Click to expand...
You know that this discussion did not take place. It may be a conclusion you reached afterwards but just to point the discrepancy out.

Anyway, putting it all in the past including the unfortunate and disappointing choice of words earlier.

Dayo

Dayo

macrumors 68020
Dec 21, 2018
2,257
1,279
tsialex said:
First, anything connected to the slots 3 and 4 are downstream to the PCIe switch. Only the slot 1 and 2 and the devices connected to the PCIe lines of the southbridge, like the FW and mini-PCIe, are not directly connected to the same lines of the PCIe switch.

Second, even if you have nothing connected to slots 3 and 4, you still have the switch logically enabled, that's why I'll look at disabling it interrupting the power feed.

2019 Mac Pro had serious problems with a second switch downstream of the first one, it would not be to crazy to think that Apple did something to solve this problem that caused our current one.
Click to expand...
Just to be clear, cMP 3,1 does not use all this switching stuff?

EDIT: Explaned here
All Mac Pros released after the early-2008 model have PCIe switches to overcome the necessity of more PCIe lanes, even the trashcan.
Click to expand...

tsialex

tsialex

Contributor
Jun 13, 2016
13,455
13,601
Dayo said:
You know that this discussion did not take place. It may be a conclusion you reached afterwards but just to point the discrepancy out.

Anyway, putting it all in the past including the unfortunate and disappointing choice of words earlier.
Click to expand...

Look, I don't really get your point here. If any other type of PCIe drive do not also work, why we should single out and focus on the NVMe EFI module?

Dayo

Dayo

macrumors 68020
Dec 21, 2018
2,257
1,279
tsialex said:
Look, I don't really get your point here. If any other type of PCIe drive do not also work, why we should single out and focus on the NVMe EFI module?
Click to expand...
Not sure where and how you picked up that anyone has suggested it should be singled out and focused on to the detriment of any other possibility. It was an option to be tested in the absence of further information at the time. Now that you have since made the big reveal about the switches, obviously best to focus on that.

I suppose there is no point debating this and best to let things be.

Dayo

Dayo

macrumors 68020
Dec 21, 2018
2,257
1,279
@tsialex ... iMac8,1, iMac9,1, iMac11,2 and MacBook7,1 appear to be also affected.
Not sure whether they also have these switches.

tsialex

tsialex

Contributor
Jun 13, 2016
13,455
13,601
Dayo said:
@tsialex ... iMac8,1, iMac9,1, iMac11,2 and MacBook7,1 appear to be also affected.
Not sure whether they also have these switches.
Click to expand...
Can't be the same thing, AFAIK, none of these have PCIe switches and I'm pretty sure that iMac8,1 (20" early-2008 iMac) and MacBook7,1 (mid-2010 unibody MacBook) are just SATA/ATA, don't have a Thunderbolt port and the AirPort Extreme is connected to the south bridge, since I have both in my collection.

Btw, why anyone is trying to run 11.3/11.4 with a iMac8,1? It's firmware limited to 6GB of RAM, the ATI 2400XT/2600PRO GPU is not METAL supported and can't be upgraded since it's a very weird non standard format/MXM-HE connection. You can't even use the top of the line 8800GS from the 24" model of the same year without cutting the case a lot to install it.

  • Like
Reactions: Dayo
Norbert Mikołajczyk

Norbert Mikołajczyk

macrumors 6502
May 26, 2016
346
171

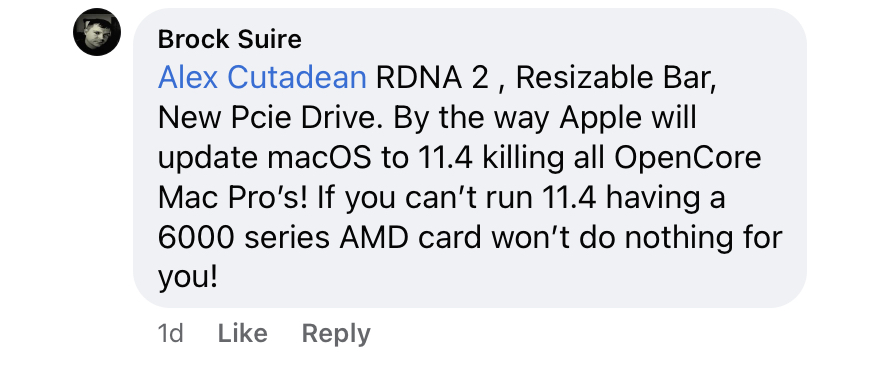

Accidentally I have found some posts from the worker at AMD, he told everyone that 11.4 will be over for us cMP user because apple will use new pci driver. Here is the topic and screenshot.
As I understand the new pcie driver is needed to run the new amd6000 gpus, so the Xeons could communicate properly with newest cards...

https://www.facebook.com/groups/macprousers/permalink/2621452111334150/


Attachments

  • A0A192E8-9202-45A8-82DE-D4A747C56AF1.jpeg
    131.5 KB · Views: 263
Last edited:
startergo

startergo

macrumors 603
Sep 20, 2018
5,022
2,283
Well I guess it is game over for cMP. I am just wondering MBP11,3 is BS supported and you can install NVMe there. Are they gonna kill that line too? It is already in the supported group.

startergo

startergo

macrumors 603
Sep 20, 2018
5,022
2,283
I am also suspicious now about some reports claiming they have no issues with NVMe drives and 11.3RC or 11.4. I have my reasons.

tsialex

tsialex

Contributor
Jun 13, 2016
13,455
13,601
startergo said:
I am also suspicious now about some reports claiming they have no issues with NVMe drives and 11.3RC or 11.4. I have my reasons.
Click to expand...

I really don't know how I'm still surprised with all the dubious reports as working when was clearly not working with my tests.

Btw, it's not just NVMe. Let's be crystal clear on this. Anything connected to a PCIe controller is not booting 11.3/11.4b1 reliably.

  • Like
Reactions: Norbert Mikołajczyk, JohnD and startergo
JohnD

JohnD

macrumors regular
Jun 2, 2005
150
97
Los Angeles, California
Norbert Mikołajczyk said:
Accidentally I have found some posts from the worker at AMD, he told everyone that 11.4 will be over for us cMP user because apple will use new pci driver. Here is the topic and screenshot.
As I understand the new pcie driver is needed to run the new amd6000 gpus, so the Xeons could communicate properly with newest cards...
Click to expand...

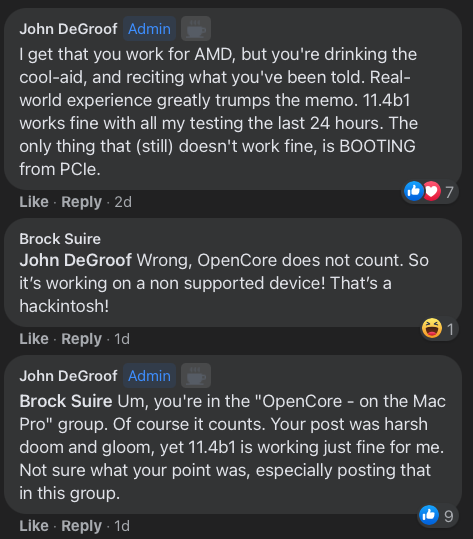

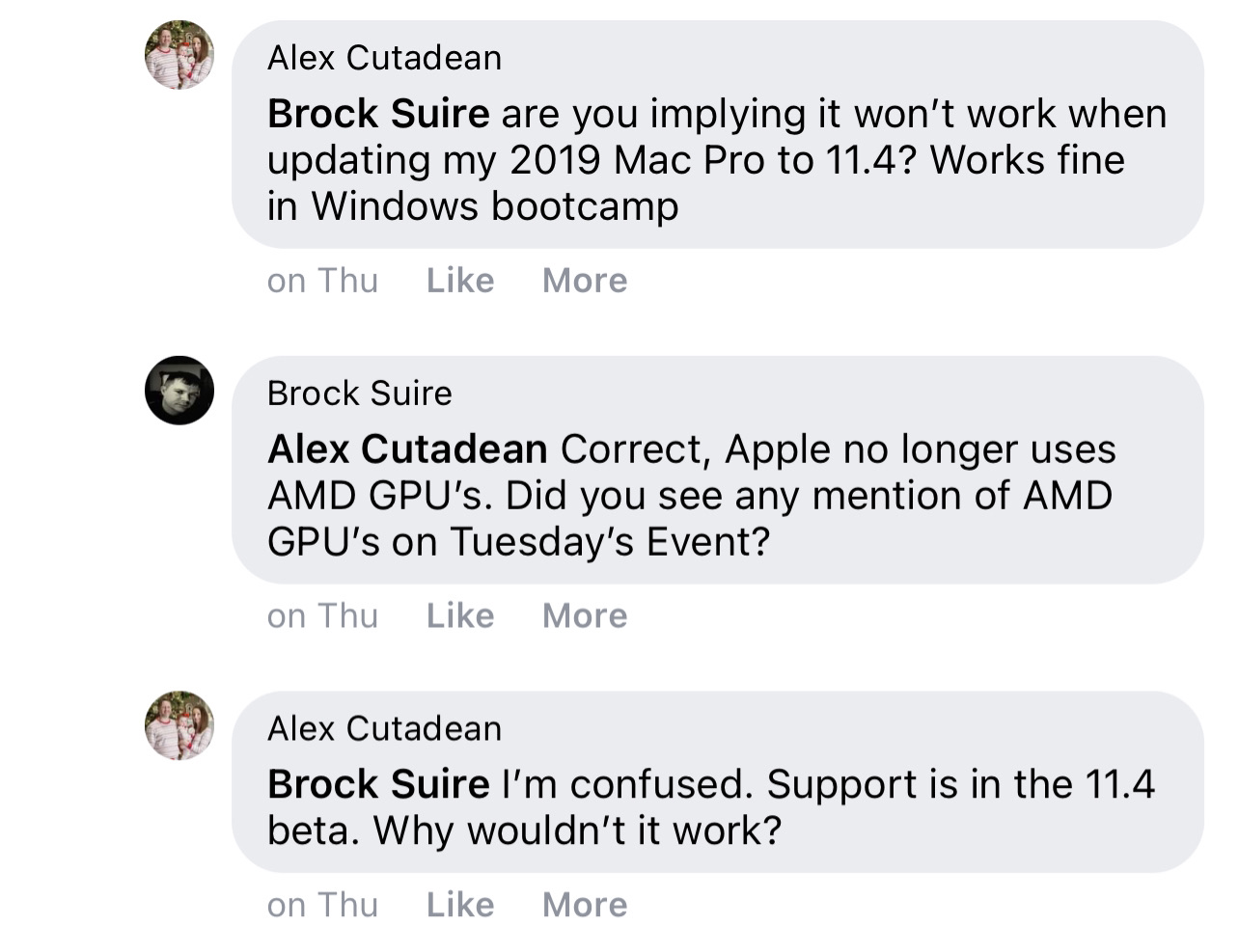

That guy is Mr. Negative. He's been spreading doom and gloom for a long time. He said 11.4 wouldn't run on our Mac Pro's, to which I replied with a screenshot. Here's another excerpt of his wisdom, and my responses. This is one of many - you be the judge.


eVasilis

eVasilis

macrumors 6502
Jan 13, 2010
425
182
tsialex said:
Real insiders are tight-lipped.
Click to expand...
His comment "Intel doesn’t support AMD GPU’s only there own GPU’s" is too bizarre to be taken seriously. I guess if that were true that would be the end of all platforms using intel cpus.

tsialex

tsialex

Contributor
Jun 13, 2016
13,455
13,601
eVasilis said:
His comment "Intel doesn’t support AMD GPU’s only there own GPU’s" is too bizarre to be taken seriously. I guess if that were true that would be the end of all platforms using intel cpus.
Click to expand...
I'm not even going there, since at least Friday, people has been posting geekbenchs with NAVI21 cards and hackintoshes all over, so, he really don't know what he is talking.

Changing topic, I've read some comments for some time that the NAVI21 GPUs require a CPU that have AVX support. This I'm inclined to believe, since AMD already have enterprise tools and several libraries that require AVX.

eVasilis

eVasilis

macrumors 6502
Jan 13, 2010
425
182
tsialex said:
Changing topic, I've read some comments for some time that the NAVI21 GPUs require a CPU that have AVX support. This I'm inclined to believe, since AMD already have enterprise tools and several libraries that require AVX.
Click to expand...
Could AVX be emulated?
