MP 1,1-5,1 Mac OS 11.3 has broken support for older Mac Pros

[PeterHolbrook]

Further on the installation of 11.3 on a Parallels virtual machine. I can confirm that creating a NEW virtual machine works, although I had to reset the machine once, as the initial installation just froze up. Something I've noticed is that my Parallels 11.1.2 VM was using an 80GB virtual disk, but it seems version 11.3 won't run on anything less than 256GB (?). Other than that, everything seems to work.

If the above experience is indicative of anything, it would appear that updating a prior 11.1.2 installation is fraught with difficulty, as opposed to an installation from scratch, which seems more likely to succeed with little effort.



[w1z]

Another data point -

Updated from 11.2.3 to 11.3 successfully only after clearing slots 3 and 4 (Slot 3 was already empty but slot 4 had a Sonnet USB-C 2-port card). As soon as I reinstalled the USB-C card, the system started freezing at boot.

Cold/Warm boots are normal including shutdowns (7 tries).

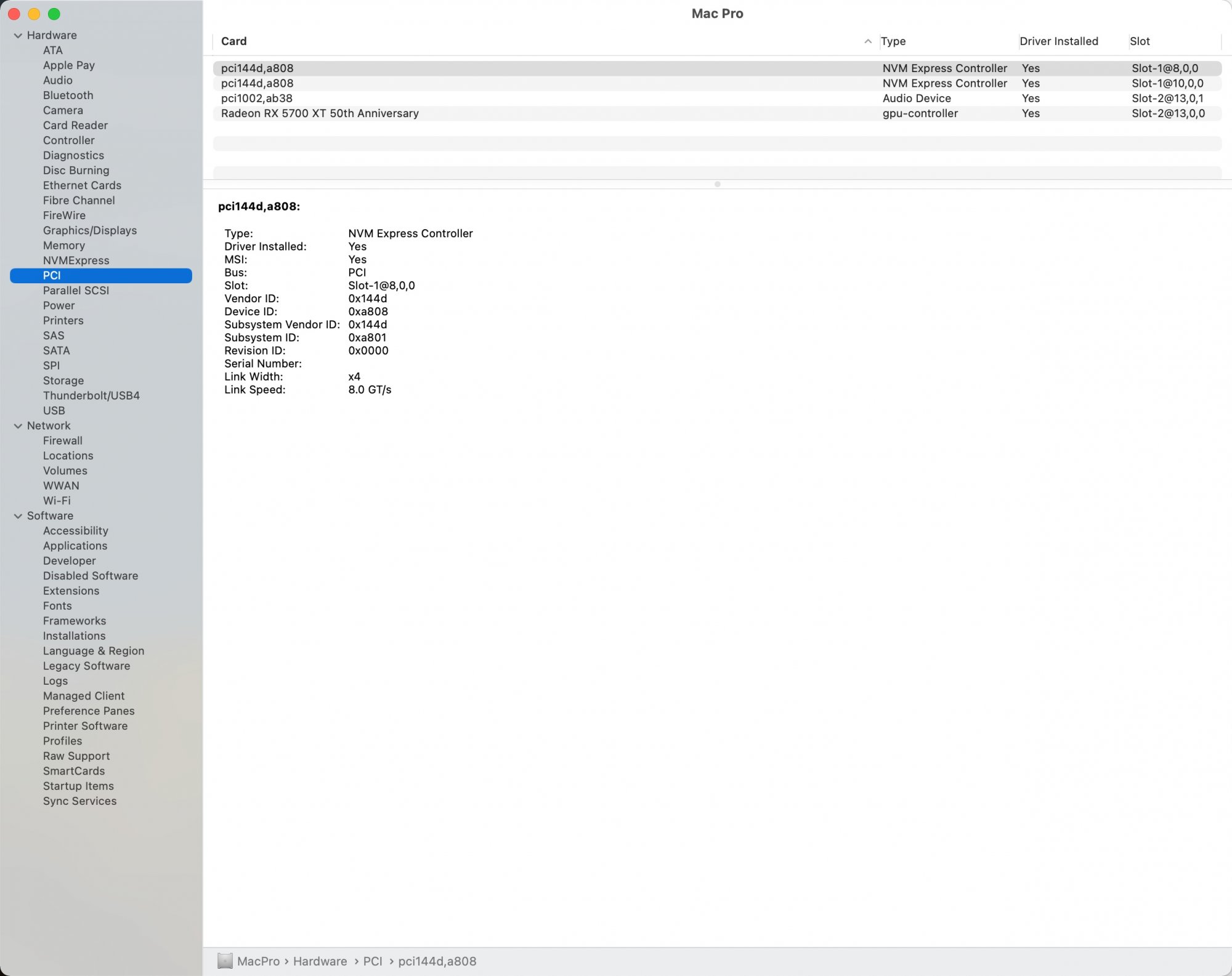

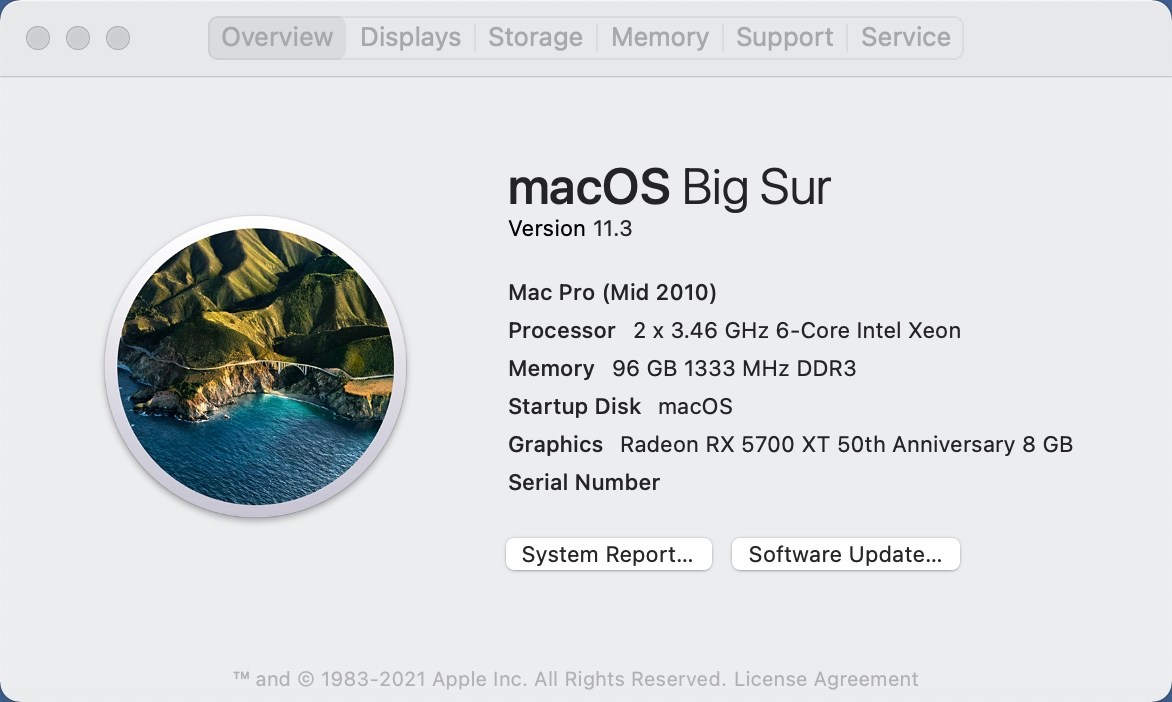

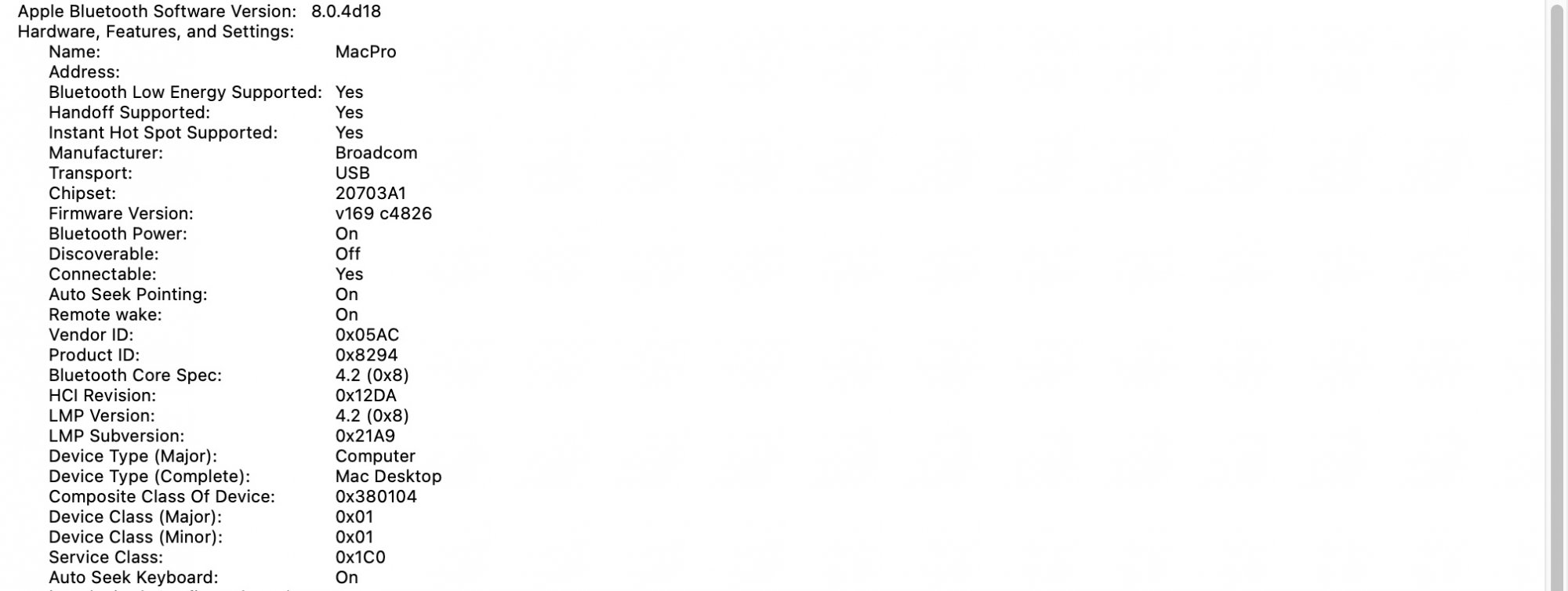

System specs in signature - will add screenshots in a bit


Edit: Looking at the NVRAM after the failed boot with the card installed in slot 4, I noticed 2 new entries

NVMeCommandErrorQueue %01%00%00%00

NVMeCommandErrorOpcode %02%00%00%00



[cdf]

Updated from 11.2.3 to 11.3 successfully only after clearing slots 3 and 4 (Slot 3 was already empty but slot 4 had a Sonnet USB-C 2-port card).

Nice. Is your WiFi card a BCM943602CDP? Did you leave it in the mini PCIe slot?



[w1z]

Nice. Is your WiFi card a BCM943602CDP? Did you leave it in the mini PCIe slot?

Yes - Apple part no 653-00005



[w1z]

Hmmm.. On the 10th try, I got the same error message on login "You shut down your computer because of a problem" after a normal shutdown and when restarting again, the cMP froze half way through with slots 3/4 being free.

I'm beginning to suspect there's a timing issue with hardware initialization as I noticed that after OC loads and immediately selecting the macOS drive, the progress bar loads up to ~5% but if I wait for 5 seconds (oc setting) and let OC load the default drive, it either loads fully or half way through the progress bar after which the system halts (startup error/stop sign).

Strange though how it worked without issues through the 7 tries I attempted.

So far, it's a hit or miss with slots 3/4 free and no loading whatsoever with a card in slot 4. I'll fiddle with it more later tonight.



[eVasilis]

Out of pure curiosity I tried a clean install of 11.3, only having a sata ssd, the target disk carrying OC in SATA bay one, a mojave spinner in sata bay 4 and the GPU in the macpro. After the first boot, the installer hung. I tried once more but there was no difference. Thus I am back to 11.2.3. 11.3 is too 'capricious" and "quirky" for the time being.



[socamx]

Is it accepted at this point that 11.3 is just a blanket no-go on any cMP, or is it only ones with extra cards in PCIe slots having issues?

I have a 2010 cMP with a single 3.33 ghz 6 core, and a PC Radeon 480 running OpenCore with GPU acceleration patches installed, wifi patches, etc following the guides available here on the forums. No extra PCIe cards, and booted off an SSD in slot 1 of the built-in SATA ports.

It is not a primary machine, it's a testing machine to my 2009 dual 3.33 cMP, so is there any value in me upgrading it from 11.2.3 to 11.3 as another data point?



[eVasilis]

Is it accepted at this point that 11.3 is just a blanket no-go on any cMP, or is it only ones with extra cards in PCIe slots having issues?

I have a 2010 cMP with a single 3.33 ghz 6 core, and a PC Radeon 480 running OpenCore with GPU acceleration patches installed, wifi patches, etc following the guides available here on the forums. No extra PCIe cards, and booted off an SSD in slot 1 of the built-in SATA ports.

It is not a primary machine, it's a testing machine to my 2009 dual 3.33 cMP, so is there any value in me upgrading it from 11.2.3 to 11.3 as another data point?

I tried to install it on my machine, dual cpu, rx 580 and only two sata disks in, an ssd in bay one, the target disk also carrying OC, and a spinner with mojave in bay 4 . The installer hang after the first boot. I tried it twice and then I gave up. Back to 11.2.3.



[w1z]

Not sure if this matters, but tries 8 and 9 were spent on reintroducing the USB-C card into slot 4 with boot failure on both tries.

I'm sure we'll figure it out at some point.. for now though, I've lost USB-C support and will avoid unnecessary restarts/shutdowns.. Everything else works.



[TECK]

OWC Accelsior S SATA-3 PCIe 2.0 card. It's a SATA SSD, not NVMe, or AHCI - slot 4.

So you don't have the same NVMe+card setup as myself. I remember that another person running the same NVMe+HighPoint 7101A setup had no issues upgrading. Syba SI-PEX40129 shares the same chip as HighPoint 7101A. I was wondering if anyone else is running NVMes on these cards and upgraded successfully.



[KevinClark]

I run Highpoint and Nvme doesn't work



[TECK]

Updated from 11.2.3 to 11.3 successfully only after clearing slots 3 and 4 (Slot 3 was already empty but slot 4 had a Sonnet USB-C 2-port card).

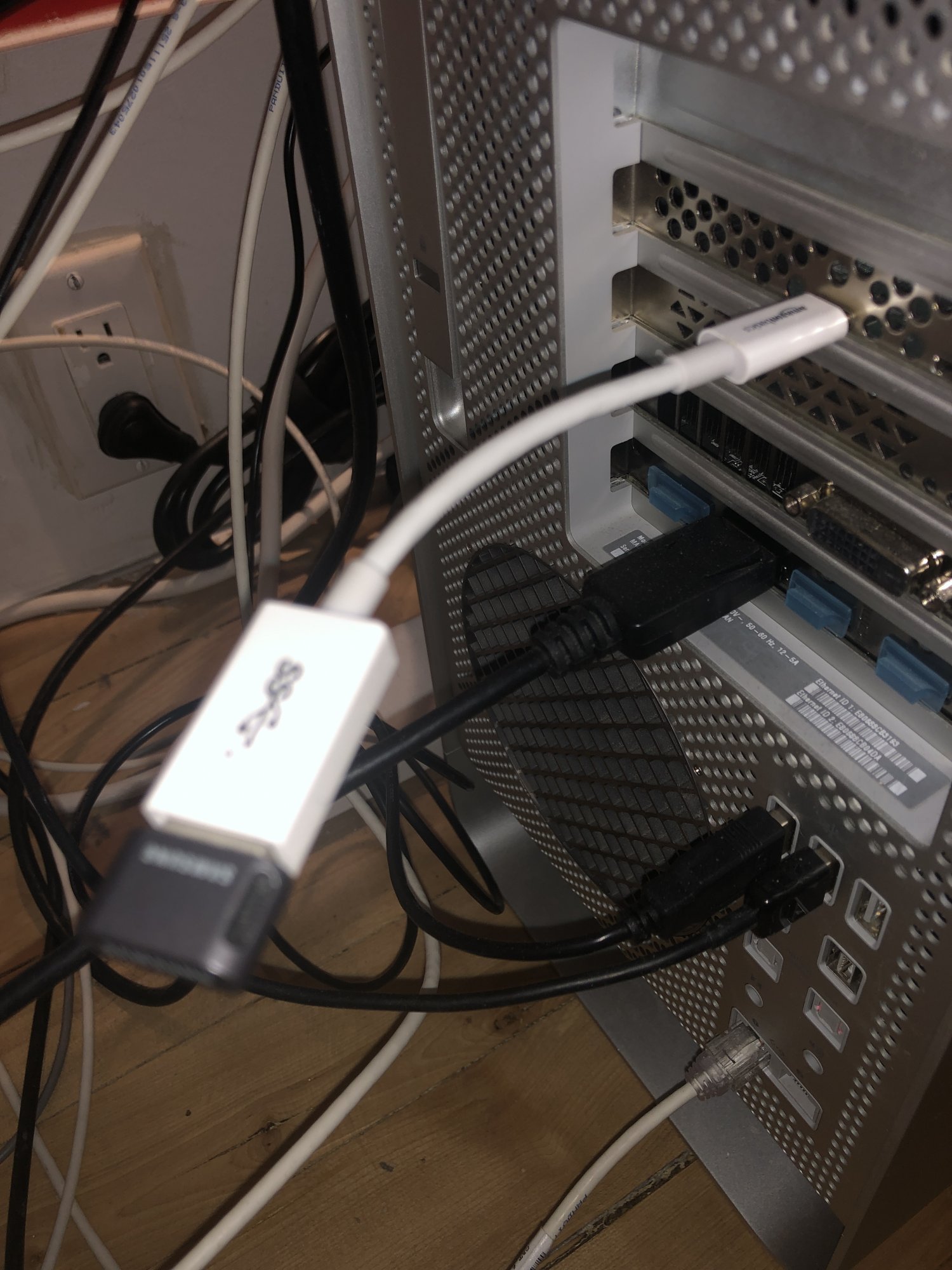

I have a Sonnet Allegro USB3C-2PM-E fully functional in Slot 3. Sapphire Pulse RX 580 in Slot 1, Syba SI-PEX40129 with 2 Samsung 970 EVO Plus in Slot 2, Slot 4 empty. I never removed or changed any hardware components during 11.3 upgrade.

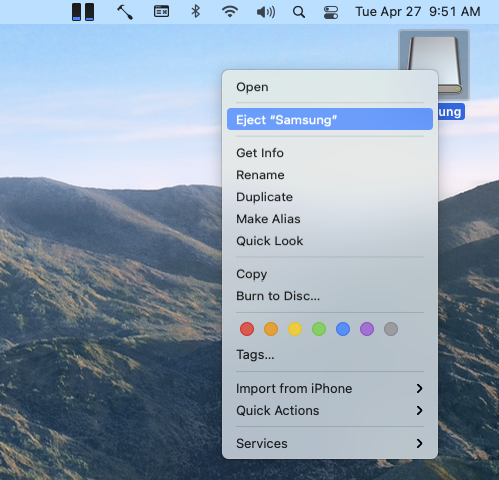

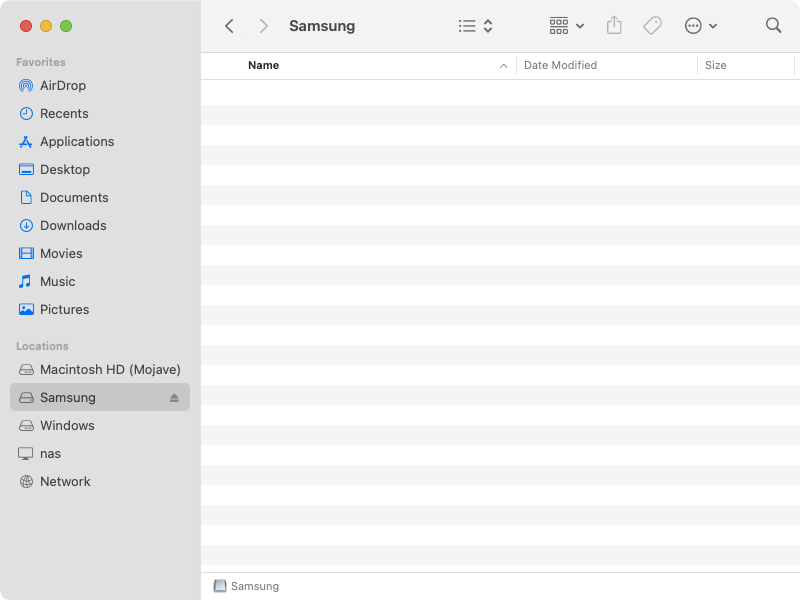

I attached a USB3 stick to it and it immediately showed on my desktop:



[TECK]

I run Highpoint and Nvme doesn't work

What model, HighPoint 7101A? What NVMe disk model?



[KevinClark]

I use Big Sur 11.2.3 installed with open core Martin Lo 068 I run highpoint 7101A with Samsung 970 Pro OS X + 970 EVO + Kingston SA 2000 + Titan ridge flashed slot 4 + USB 3 inateck card slot 3 RX580 Slot 1

Macpro 12cores 3,46 + 128 Go ram +RX 580 Flashed Mac



[cdf]

Everything else works.

I have a Sonnet Allegro USB3C-2PM-E fully functional in Slot 3. Sapphire Pulse RX 580 in Slot 1, Syba SI-PEX40129 in Slot 2. I never removed or changed any hardware components during 11.3 upgrade.

This is interesting. You both have the same WiFi card. So perhaps some devices are more problematic than others, with some being completely overlooked (WiFi?) and others mistakenly blamed (NVMe?).

It is not a primary machine, it's a testing machine to my 2009 dual 3.33 cMP, so is there any value in me upgrading it from 11.2.3 to 11.3 as another data point?

The more data the better.



[tsialex]

Syba SI-PEX40129 shares the same chip as HighPoint 7101A.

Nope, Syba SI-PEX40129 is a ASMedia ASM2824 based card while HighPoint SSD7101A-1 is a Broadcom/PLX PEX8747.



[KevinClark]

Does open core stop 11.3 ?



[w1z]

I have a Sonnet Allegro USB3C-2PM-E fully functional in Slot 3. Sapphire Pulse RX 580 in Slot 1, Syba SI-PEX40129 with 2 Samsung 970 EVO Plus in Slot 2. I never removed or changed any hardware components during 11.3 upgrade.

Can you try switching it to slot 4 and see if you have problem booting?

I can't use slot 3 as the GPU is in Slot 2 and the HighPoint in Slot 1



[cdf]

@tsialex, would the PLX switch still be problematic without any devices in slots 3 and 4?



[tsialex]

@tsialex, would the PLX switch still be problematic without any devices in slots 3 and 4?

Yes, still crashes at different points. Tonight I'm gonna remove the AirPort Extreme to see if I can get it at least more consistent with the minimum possible configuration.

P.S. one of my Mac Pros have a BCM94360CD while the other have a BCM94322MC. I don't have any BCM943602CDP cards.



[TECK]

Nope, Syba SI-PEX40129 is a ASMedia ASM2824 based card while HighPoint SSD7101A-1 is a Broadcom/PLX PEX8747.

Thank you, now we know more about he differences. Alex, from your experience, what could be the root cause for all the issues others have, while I don't have any except the Progress Bar freeze?



[w1z]

I am going to try installing HighPoint's drivers and reintroduce the USB-C card into slot 4 to see if it boots.. will report back later

By the way - I'm using OC compiled yesterday from the master branch.



[TECK]

Can you try switching it to slot 4 and see if you have problem booting?

After reading all problems others have, I'm actually worried playing with any hardware now, since everything works properly. I'm using OC 0.6.8 config generated by Plistlib Generator setup.py example which produced the following config.plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>ACPI</key>
    <dict>
        <key>Add</key>
        <array/>
        <key>Delete</key>
        <array/>
        <key>Patch</key>
        <array/>
        <key>Quirks</key>
        <dict>
            <key>FadtEnableReset</key>
            <false/>
            <key>NormalizeHeaders</key>
            <false/>
            <key>RebaseRegions</key>
            <false/>
            <key>ResetHwSig</key>
            <false/>
            <key>ResetLogoStatus</key>
            <false/>
        </dict>
    </dict>
    <key>Booter</key>
    <dict>
        <key>MmioWhitelist</key>
        <array/>
        <key>Patch</key>
        <array/>
        <key>Quirks</key>
        <dict>
            <key>AllowRelocationBlock</key>
            <false/>
            <key>AvoidRuntimeDefrag</key>
            <false/>
            <key>DevirtualiseMmio</key>
            <false/>
            <key>DisableSingleUser</key>
            <false/>
            <key>DisableVariableWrite</key>
            <false/>
            <key>DiscardHibernateMap</key>
            <false/>
            <key>EnableSafeModeSlide</key>
            <false/>
            <key>EnableWriteUnprotector</key>
            <false/>
            <key>ForceBooterSignature</key>
            <false/>
            <key>ForceExitBootServices</key>
            <false/>
            <key>ProtectMemoryRegions</key>
            <false/>
            <key>ProtectSecureBoot</key>
            <true/>
            <key>ProtectUefiServices</key>
            <false/>
            <key>ProvideCustomSlide</key>
            <false/>
            <key>ProvideMaxSlide</key>
            <integer>0</integer>
            <key>RebuildAppleMemoryMap</key>
            <false/>
            <key>SetupVirtualMap</key>
            <false/>
            <key>SignalAppleOS</key>
            <false/>
            <key>SyncRuntimePermissions</key>
            <false/>
        </dict>
    </dict>
    <key>DeviceProperties</key>
    <dict>
        <key>Add</key>
        <dict>
            <key>PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)</key>
            <dict>
                <key>agdpmod</key>
                <data>
                cGlrZXJhAA==
                </data>
                <key>rebuild-device-tree</key>
                <data>
                AA==
                </data>
                <key>shikigva</key>
                <data>
                UA==
                </data>
                <key>unfairgva</key>
                <data>
                AQAAAA==
                </data>
            </dict>
            <key>PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)</key>
            <dict>
                <key>built-in</key>
                <data>
                AA==
                </data>
            </dict>
            <key>PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x8,0x0)/Pci(0x0,0x0)</key>
            <dict>
                <key>built-in</key>
                <data>
                AA==
                </data>
            </dict>
        </dict>
        <key>Delete</key>
        <dict/>
    </dict>
    <key>Kernel</key>
    <dict>
        <key>Add</key>
        <array>
            <dict>
                <key>Arch</key>
                <string>x86_64</string>
                <key>BundlePath</key>
                <string>AppleMCEReporterDisabler.kext</string>
                <key>Comment</key>
                <string></string>
                <key>Enabled</key>
                <true/>
                <key>ExecutablePath</key>
                <string></string>
                <key>MaxKernel</key>
                <string></string>
                <key>MinKernel</key>
                <string></string>
                <key>PlistPath</key>
                <string>Contents/Info.plist</string>
            </dict>
            <dict>
                <key>Arch</key>
                <string>x86_64</string>
                <key>BundlePath</key>
                <string>Lilu.kext</string>
                <key>Comment</key>
                <string></string>
                <key>Enabled</key>
                <true/>
                <key>ExecutablePath</key>
                <string>Contents/MacOS/Lilu</string>
                <key>MaxKernel</key>
                <string></string>
                <key>MinKernel</key>
                <string></string>
                <key>PlistPath</key>
                <string>Contents/Info.plist</string>
            </dict>
            <dict>
                <key>Arch</key>
                <string>x86_64</string>
                <key>BundlePath</key>
                <string>NightShiftEnabler.kext</string>
                <key>Comment</key>
                <string></string>
                <key>Enabled</key>
                <true/>
                <key>ExecutablePath</key>
                <string>Contents/MacOS/NightShiftEnabler</string>
                <key>MaxKernel</key>
                <string></string>
                <key>MinKernel</key>
                <string></string>
                <key>PlistPath</key>
                <string>Contents/Info.plist</string>
            </dict>
            <dict>
                <key>Arch</key>
                <string>x86_64</string>
                <key>BundlePath</key>
                <string>WhateverGreen.kext</string>
                <key>Comment</key>
                <string></string>
                <key>Enabled</key>
                <true/>
                <key>ExecutablePath</key>
                <string>Contents/MacOS/WhateverGreen</string>
                <key>MaxKernel</key>
                <string></string>
                <key>MinKernel</key>
                <string></string>
                <key>PlistPath</key>
                <string>Contents/Info.plist</string>
            </dict>
        </array>
        <key>Block</key>
        <array/>
        <key>Emulate</key>
        <dict>
            <key>Cpuid1Data</key>
            <data>
            AAAAAAAAAAAAAAAAAAAAAA==
            </data>
            <key>Cpuid1Mask</key>
            <data>
            AAAAAAAAAAAAAAAAAAAAAA==
            </data>
            <key>DummyPowerManagement</key>
            <false/>
            <key>MaxKernel</key>
            <string></string>
            <key>MinKernel</key>
            <string></string>
        </dict>
        <key>Force</key>
        <array/>
        <key>Patch</key>
        <array/>
        <key>Quirks</key>
        <dict>
            <key>AppleCpuPmCfgLock</key>
            <false/>
            <key>AppleXcpmCfgLock</key>
            <false/>
            <key>AppleXcpmExtraMsrs</key>
            <false/>
            <key>AppleXcpmForceBoost</key>
            <false/>
            <key>CustomSMBIOSGuid</key>
            <false/>
            <key>DisableIoMapper</key>
            <false/>
            <key>DisableLinkeditJettison</key>
            <true/>
            <key>DisableRtcChecksum</key>
            <false/>
            <key>ExtendBTFeatureFlags</key>
            <false/>
            <key>ExternalDiskIcons</key>
            <false/>
            <key>ForceSecureBootScheme</key>
            <false/>
            <key>IncreasePciBarSize</key>
            <false/>
            <key>LapicKernelPanic</key>
            <false/>
            <key>LegacyCommpage</key>
            <false/>
            <key>PanicNoKextDump</key>
            <false/>
            <key>PowerTimeoutKernelPanic</key>
            <false/>
            <key>SetApfsTrimTimeout</key>
            <integer>9999999</integer>
            <key>ThirdPartyDrives</key>
            <false/>
            <key>XhciPortLimit</key>
            <false/>
        </dict>
        <key>Scheme</key>
        <dict>
            <key>FuzzyMatch</key>
            <false/>
            <key>KernelArch</key>
            <string>x86_64</string>
            <key>KernelCache</key>
            <string>Auto</string>
        </dict>
    </dict>
    <key>Misc</key>
    <dict>
        <key>BlessOverride</key>
        <array/>
        <key>Boot</key>
        <dict>
            <key>ConsoleAttributes</key>
            <integer>15</integer>
            <key>HibernateMode</key>
            <string>None</string>
            <key>HideAuxiliary</key>
            <true/>
            <key>LauncherOption</key>
            <string>Disabled</string>
            <key>LauncherPath</key>
            <string>Default</string>
            <key>PickerAttributes</key>
            <integer>0</integer>
            <key>PickerAudioAssist</key>
            <false/>
            <key>PickerMode</key>
            <string>External</string>
            <key>PickerVariant</key>
            <string>Auto</string>
            <key>PollAppleHotKeys</key>
            <true/>
            <key>ShowPicker</key>
            <false/>
            <key>TakeoffDelay</key>
            <integer>0</integer>
            <key>Timeout</key>
            <integer>5</integer>
        </dict>
        <key>Debug</key>
        <dict>
            <key>AppleDebug</key>
            <false/>
            <key>ApplePanic</key>
            <false/>
            <key>DisableWatchDog</key>
            <false/>
            <key>DisplayDelay</key>
            <integer>0</integer>
            <key>DisplayLevel</key>
            <integer>0</integer>
            <key>SerialInit</key>
            <false/>
            <key>SysReport</key>
            <false/>
            <key>Target</key>
            <integer>0</integer>
        </dict>
        <key>Entries</key>
        <array/>
        <key>Security</key>
        <dict>
            <key>AllowNvramReset</key>
            <false/>
            <key>AllowSetDefault</key>
            <true/>
            <key>ApECID</key>
            <integer>0</integer>
            <key>AuthRestart</key>
            <false/>
            <key>BlacklistAppleUpdate</key>
            <true/>
            <key>DmgLoading</key>
            <string>Signed</string>
            <key>EnablePassword</key>
            <false/>
            <key>ExposeSensitiveData</key>
            <integer>3</integer>
            <key>HaltLevel</key>
            <integer>2147483648</integer>
            <key>PasswordHash</key>
            <data>
            </data>
            <key>PasswordSalt</key>
            <data>
            </data>
            <key>ScanPolicy</key>
            <integer>0</integer>
            <key>SecureBootModel</key>
            <string>Disabled</string>
            <key>Vault</key>
            <string>Optional</string>
        </dict>
        <key>Tools</key>
        <array/>
    </dict>
    <key>NVRAM</key>
    <dict>
        <key>Add</key>
        <dict>
            <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
            <dict>
                <key>DefaultBackgroundColor</key>
                <data>
                AAAAAA==
                </data>
                <key>UIScale</key>
                <data>
                AQ==
                </data>
            </dict>
        </dict>
        <key>Delete</key>
        <dict>
            <key>4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14</key>
            <array>
                <string>DefaultBackgroundColor</string>
                <string>UIScale</string>
            </array>
        </dict>
        <key>LegacyEnable</key>
        <false/>
        <key>LegacyOverwrite</key>
        <false/>
        <key>LegacySchema</key>
        <dict/>
        <key>WriteFlash</key>
        <false/>
    </dict>
    <key>PlatformInfo</key>
    <dict>
        <key>Automatic</key>
        <false/>
        <key>CustomMemory</key>
        <false/>
        <key>DataHub</key>
        <dict>
            <key>ARTFrequency</key>
            <integer>0</integer>
            <key>BoardProduct</key>
            <string></string>
            <key>BoardRevision</key>
            <data>
            </data>
            <key>DevicePathsSupported</key>
            <integer>0</integer>
            <key>FSBFrequency</key>
            <integer>0</integer>
            <key>InitialTSC</key>
            <integer>0</integer>
            <key>PlatformName</key>
            <string></string>
            <key>SmcBranch</key>
            <data>
            </data>
            <key>SmcPlatform</key>
            <data>
            </data>
            <key>SmcRevision</key>
            <data>
            </data>
            <key>StartupPowerEvents</key>
            <integer>0</integer>
            <key>SystemProductName</key>
            <string></string>
            <key>SystemSerialNumber</key>
            <string></string>
            <key>SystemUUID</key>
            <string></string>
        </dict>
        <key>Generic</key>
        <dict>
            <key>AdviseWindows</key>
            <false/>
            <key>MLB</key>
            <string></string>
            <key>MaxBIOSVersion</key>
            <false/>
            <key>ProcessorType</key>
            <integer>0</integer>
            <key>ROM</key>
            <data>
            </data>
            <key>SpoofVendor</key>
            <false/>
            <key>SystemMemoryStatus</key>
            <string>Auto</string>
            <key>SystemProductName</key>
            <string></string>
            <key>SystemSerialNumber</key>
            <string></string>
            <key>SystemUUID</key>
            <string></string>
        </dict>
        <key>Memory</key>
        <dict>
            <key>DataWidth</key>
            <integer>0</integer>
            <key>Devices</key>
            <array/>
            <key>ErrorCorrection</key>
            <integer>3</integer>
            <key>FormFactor</key>
            <integer>2</integer>
            <key>MaxCapacity</key>
            <integer>0</integer>
            <key>TotalWidth</key>
            <integer>0</integer>
            <key>Type</key>
            <integer>2</integer>
            <key>TypeDetail</key>
            <integer>4</integer>
        </dict>
        <key>PlatformNVRAM</key>
        <dict>
            <key>BID</key>
            <string></string>
            <key>FirmwareFeatures</key>
            <data>
            </data>
            <key>FirmwareFeaturesMask</key>
            <data>
            </data>
            <key>MLB</key>
            <string></string>
            <key>ROM</key>
            <data>
            </data>
            <key>SystemSerialNumber</key>
            <string></string>
            <key>SystemUUID</key>
            <string></string>
        </dict>
        <key>SMBIOS</key>
        <dict>
            <key>BIOSReleaseDate</key>
            <string></string>
            <key>BIOSVendor</key>
            <string></string>
            <key>BIOSVersion</key>
            <string>9999.0.0.0.0</string>
            <key>BoardAssetTag</key>
            <string></string>
            <key>BoardLocationInChassis</key>
            <string></string>
            <key>BoardManufacturer</key>
            <string></string>
            <key>BoardProduct</key>
            <string>Mac-7BA5B2D9E42DDD94</string>
            <key>BoardSerialNumber</key>
            <string></string>
            <key>BoardType</key>
            <integer>0</integer>
            <key>BoardVersion</key>
            <string></string>
            <key>ChassisAssetTag</key>
            <string></string>
            <key>ChassisManufacturer</key>
            <string></string>
            <key>ChassisSerialNumber</key>
            <string></string>
            <key>ChassisType</key>
            <integer>0</integer>
            <key>ChassisVersion</key>
            <string></string>
            <key>FirmwareFeatures</key>
            <data>
            A1QM4A==
            </data>
            <key>FirmwareFeaturesMask</key>
            <data>
            P/8f/w==
            </data>
            <key>PlatformFeature</key>
            <integer>-1</integer>
            <key>ProcessorType</key>
            <integer>0</integer>
            <key>SmcVersion</key>
            <data>
            </data>
            <key>SystemFamily</key>
            <string></string>
            <key>SystemManufacturer</key>
            <string></string>
            <key>SystemProductName</key>
            <string></string>
            <key>SystemSKUNumber</key>
            <string></string>
            <key>SystemSerialNumber</key>
            <string></string>
            <key>SystemUUID</key>
            <string></string>
            <key>SystemVersion</key>
            <string></string>
        </dict>
        <key>UpdateDataHub</key>
        <false/>
        <key>UpdateNVRAM</key>
        <false/>
        <key>UpdateSMBIOS</key>
        <true/>
        <key>UpdateSMBIOSMode</key>
        <string>Create</string>
        <key>UseRawUuidEncoding</key>
        <false/>
    </dict>
    <key>UEFI</key>
    <dict>
        <key>APFS</key>
        <dict>
            <key>EnableJumpstart</key>
            <false/>
            <key>GlobalConnect</key>
            <false/>
            <key>HideVerbose</key>
            <false/>
            <key>JumpstartHotPlug</key>
            <false/>
            <key>MinDate</key>
            <integer>0</integer>
            <key>MinVersion</key>
            <integer>0</integer>
        </dict>
        <key>AppleInput</key>
        <dict>
            <key>AppleEvent</key>
            <string>Builtin</string>
            <key>CustomDelays</key>
            <string>Auto</string>
            <key>KeyInitialDelay</key>
            <integer>0</integer>
            <key>KeySubsequentDelay</key>
            <integer>0</integer>
            <key>PointerSpeedDiv</key>
            <integer>1</integer>
            <key>PointerSpeedMul</key>
            <integer>1</integer>
        </dict>
        <key>Audio</key>
        <dict>
            <key>AudioCodec</key>
            <integer>0</integer>
            <key>AudioDevice</key>
            <string></string>
            <key>AudioOut</key>
            <integer>0</integer>
            <key>AudioSupport</key>
            <false/>
            <key>MinimumVolume</key>
            <integer>0</integer>
            <key>PlayChime</key>
            <string>Auto</string>
            <key>ResetTrafficClass</key>
            <false/>
            <key>SetupDelay</key>
            <integer>0</integer>
            <key>VolumeAmplifier</key>
            <integer>0</integer>
        </dict>
        <key>ConnectDrivers</key>
        <true/>
        <key>Drivers</key>
        <array>
            <string>ExFatDxeLegacy.efi</string>
            <string>OpenCanopy.efi</string>
            <string>OpenRuntime.efi</string>
        </array>
        <key>Input</key>
        <dict>
            <key>KeyFiltering</key>
            <false/>
            <key>KeyForgetThreshold</key>
            <integer>0</integer>
            <key>KeySupport</key>
            <false/>
            <key>KeySupportMode</key>
            <string>Auto</string>
            <key>KeySwap</key>
            <false/>
            <key>PointerSupport</key>
            <false/>
            <key>PointerSupportMode</key>
            <string></string>
            <key>TimerResolution</key>
            <integer>0</integer>
        </dict>
        <key>Output</key>
        <dict>
            <key>ClearScreenOnModeSwitch</key>
            <false/>
            <key>ConsoleMode</key>
            <string></string>
            <key>DirectGopRendering</key>
            <false/>
            <key>ForceResolution</key>
            <false/>
            <key>GopPassThrough</key>
            <false/>
            <key>IgnoreTextInGraphics</key>
            <false/>
            <key>ProvideConsoleGop</key>
            <true/>
            <key>ReconnectOnResChange</key>
            <false/>
            <key>ReplaceTabWithSpace</key>
            <false/>
            <key>Resolution</key>
            <string>Max</string>
            <key>SanitiseClearScreen</key>
            <false/>
            <key>TextRenderer</key>
            <string>BuiltinGraphics</string>
            <key>UgaPassThrough</key>
            <false/>
        </dict>
        <key>ProtocolOverrides</key>
        <dict>
            <key>AppleAudio</key>
            <false/>
            <key>AppleBootPolicy</key>
            <true/>
            <key>AppleDebugLog</key>
            <false/>
            <key>AppleFramebufferInfo</key>
            <false/>
            <key>AppleImageConversion</key>
            <false/>
            <key>AppleImg4Verification</key>
            <false/>
            <key>AppleKeyMap</key>
            <false/>
            <key>AppleRtcRam</key>
            <false/>
            <key>AppleSecureBoot</key>
            <false/>
            <key>AppleSmcIo</key>
            <false/>
            <key>AppleUserInterfaceTheme</key>
            <true/>
            <key>DataHub</key>
            <false/>
            <key>DeviceProperties</key>
            <false/>
            <key>FirmwareVolume</key>
            <false/>
            <key>HashServices</key>
            <false/>
            <key>OSInfo</key>
            <false/>
            <key>UnicodeCollation</key>
            <false/>
        </dict>
        <key>Quirks</key>
        <dict>
            <key>ActivateHpetSupport</key>
            <false/>
            <key>DisableSecurityPolicy</key>
            <false/>
            <key>ExitBootServicesDelay</key>
            <integer>0</integer>
            <key>IgnoreInvalidFlexRatio</key>
            <false/>
            <key>ReleaseUsbOwnership</key>
            <false/>
            <key>RequestBootVarRouting</key>
            <true/>
            <key>TscSyncTimeout</key>
            <integer>0</integer>
            <key>UnblockFsConnect</key>
            <false/>
        </dict>
        <key>ReservedMemory</key>
        <array/>
    </dict>
</dict>
</plist>



[tsialex]

Hmmm.. On the 10th try, I got the same error message on login "You shut down your computer because of a problem" after a normal shutdown and when restarting again, the cMP froze half way through with slots 3/4 being free.

I'm beginning to suspect there's a timing issue with hardware initialization as I noticed that after OC loads and immediately selecting the macOS drive, the progress bar loads up to ~5% but if I wait for 5 seconds (oc setting) and let OC load the default drive, it either loads fully or half way through the progress bar after which the system halts (startup error/stop sign).

Strange though how it worked without issues through the 7 tries I attempted.

So far, it's a hit or miss with slots 3/4 free and no loading whatsoever with a card in slot 4. I'll fiddle with it more later tonight.

Since you are testing with the same SSD7101A-1 as I am, could you please take note of the kext that is crashing?

Mine is crashing at different kexts, without any consistency that I can see, besides being PCIe related.



[TECK]

@tsialex if you need anything from my Mac to help troubleshoot, please let me know, it might help find the issue.
